7640/7740 Op Guide

Table of Contents

Introduction

Safeguards

Thank You for Choosing 3M

Warranty

Section 1: Unpack

Contents of Shipping Box

Optional Accessories

Keep Your Packing Materials

What’s Next?

Section 2: Product Description

Machine Characteristics

Part Identification List

System Setup—Connecting to Various Equipment

Remote Control Transmitter Identification

Changing Remote Control Battery

Section 3: Basic Operations

Projector Start-up

Projector Shutdown

Section 4: Adjustments and Functions

How to Use Height Adjustment Foot

Plug & Play Function

Freeze Function

Magnify Function

Menu Navigation

Factory Default Setting:

SETUP Submenu

INPUT Submenu

IMAGE Submenu

OPT. Submenu

Section 5: Maintenance

Cleaning the Air Filter

Section 6: Lamp

Lamp

Display Lamp Operation Hours

Reset Lamp Hours

Replacing the Lamp

Section 7: Troubleshooting

Symptoms/Solutions

Messages/Solutions

Indicator Lights

Service Information

Section 8: Accessories

Where to get additional information

Appendix

Technical Specifications

Connection to the Video Signal Terminal

Connection to the RGB Signal Terminal

Mouse Unit Function

RS-232C Communication

Communications Setting

Command Data Chart

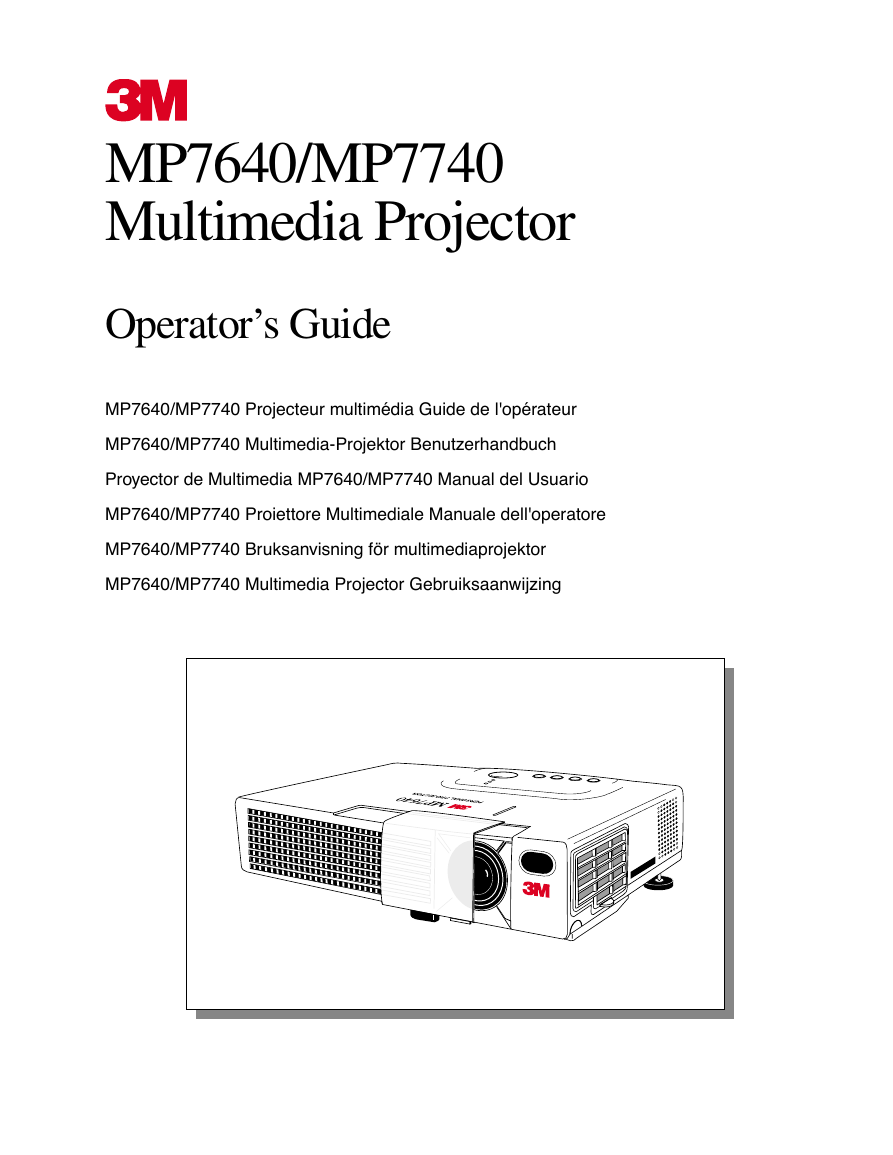

MP7640/MP7740 Multimedia Projector Operator’s Guide MP7640/MP7740 Projecteur multimédia Guide de l'opérateur MP7640/MP7740 Multimedia-Projektor Benutzerhandbuch Proyector de Multimedia MP7640/MP7740 Manual del Usuario MP7640/MP7740 Proiettore Multimediale Manuale dell'operatore MP7640/MP7740 Bruksanvisning för multimediaprojektor MP7640/MP7740 Multimedia Projector Gebruiksaanwijzing © 3M IPC 2001 3M™ Multimedia Projector MP7640/MP7740 1

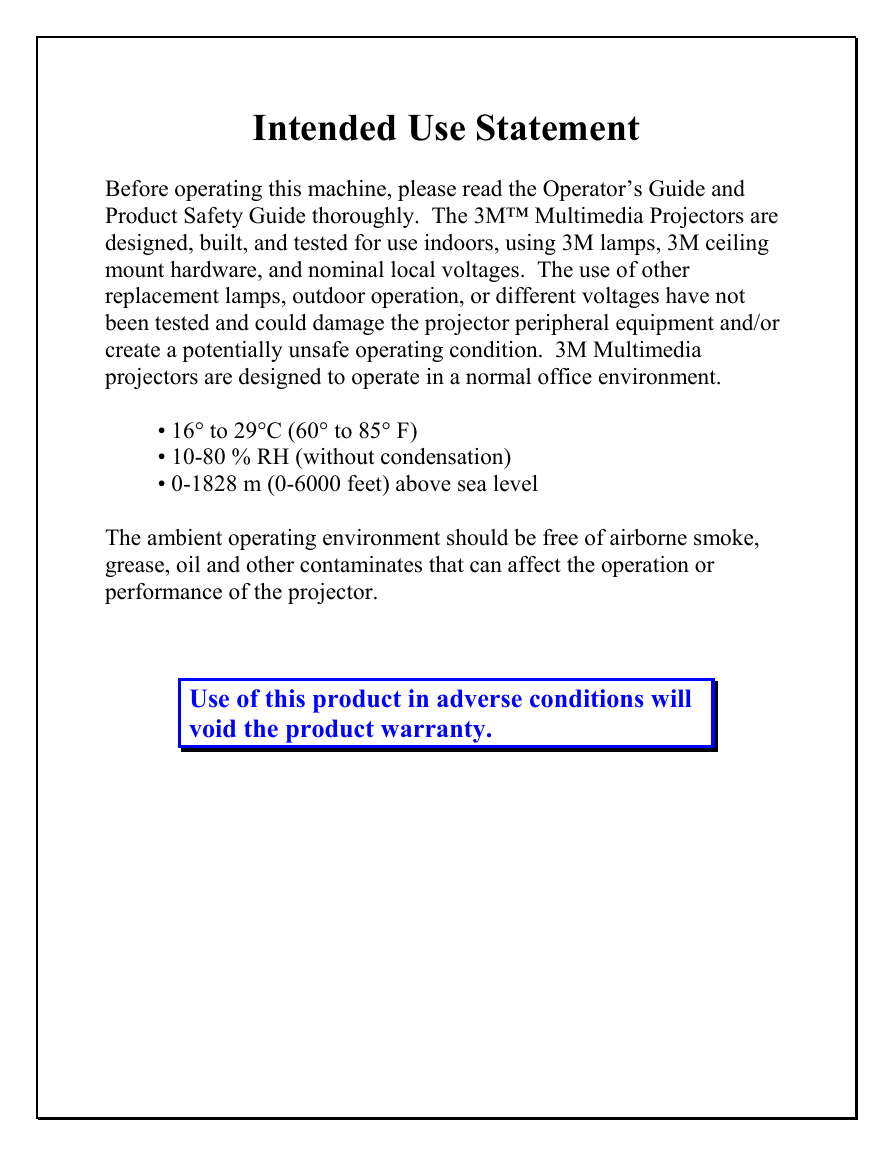

Intended Use Statement Before operating this machine, please read the Operator’s Guide and Product Safety Guide thoroughly. The 3M™ Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages. The use of other replacement lamps, outdoor operation, or different voltages have not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors are designed to operate in a normal office environment. 16° to 29°C (60° to 85° F) 10-80 % RH (without condensation) 0-1828 m (0-6000 feet) above sea level The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty.

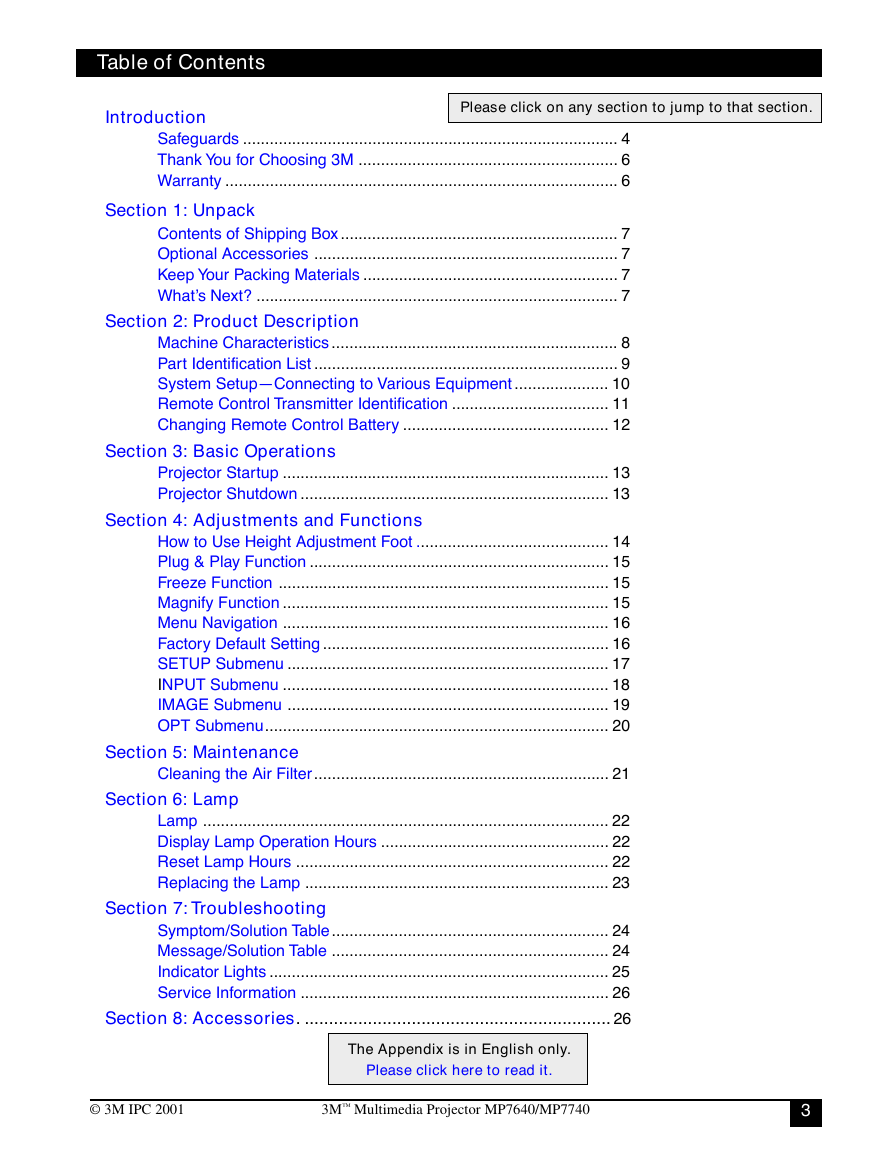

Table of Contents Introduction Please click on any section to jump to that section. Safeguards .................................................................................... 4 Thank You for Choosing 3M .......................................................... 6 Warranty ........................................................................................ 6 Section 1: Unpack Contents of Shipping Box.............................................................. 7 Optional Accessories .................................................................... 7 Keep Your Packing Materials ......................................................... 7 What’s Next? ................................................................................. 7 Section 2: Product Description Machine Characteristics ................................................................ 8 Part Identification List .................................................................... 9 System Setup—Connecting to Various Equipment ..................... 10 Remote Control Transmitter Identification ................................... 11 Changing Remote Control Battery .............................................. 12 Section 3: Basic Operations Projector Startup ......................................................................... 13 Projector Shutdown ..................................................................... 13 Section 4: Adjustments and Functions How to Use Height Adjustment Foot ........................................... 14 Plug & Play Function ................................................................... 15 Freeze Function .......................................................................... 15 Magnify Function ......................................................................... 15 Menu Navigation ......................................................................... 16 Factory Default Setting ................................................................ 16 SETUP Submenu ........................................................................ 17 INPUT Submenu ......................................................................... 18 IMAGE Submenu ........................................................................ 19 OPT Submenu............................................................................. 20 Section 5: Maintenance Cleaning the Air Filter.................................................................. 21 Section 6: Lamp Lamp ........................................................................................... 22 Display Lamp Operation Hours ................................................... 22 Reset Lamp Hours ...................................................................... 22 Replacing the Lamp .................................................................... 23 Section 7: Troubleshooting Symptom/Solution Table.............................................................. 24 Message/Solution Table .............................................................. 24 Indicator Lights ............................................................................ 25 Service Information ..................................................................... 26 Section 8: Accessories. ............................................................... 26 The Appendix is in English only. Please click here to read it. © 3M IPC 2001 3M™ Multimedia Projector MP7640/MP7740 3

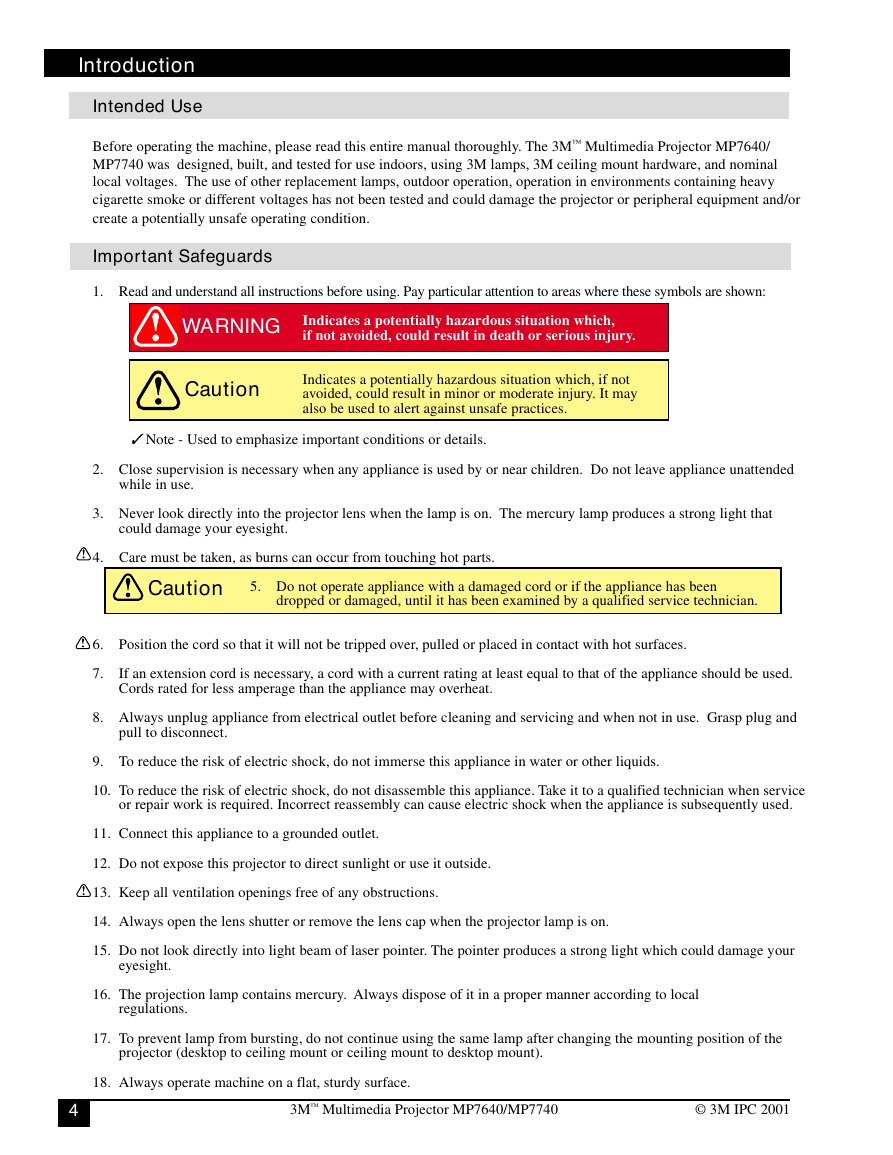

Introduction Intended Use Before operating the machine, please read this entire manual thoroughly. The 3M™ Multimedia Projector MP7640/ MP7740 was designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages. The use of other replacement lamps, outdoor operation, operation in environments containing heavy cigarette smoke or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition. Important Safeguards 1. Read and understand all instructions before using. Pay particular attention to areas where these symbols are shown: WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Caution Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It may also be used to alert against unsafe practices. Note - Used to emphasize important conditions or details. 2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use. 3. Never look directly into the projector lens when the lamp is on. The mercury lamp produces a strong light that could damage your eyesight. 4. Care must be taken, as burns can occur from touching hot parts. Caution 5. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged, until it has been examined by a qualified service technician. 6. Position the cord so that it will not be tripped over, pulled or placed in contact with hot surfaces. 7. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat. 8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Grasp plug and pull to disconnect. 9. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids. 10. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualified technician when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 11. Connect this appliance to a grounded outlet. 12. Do not expose this projector to direct sunlight or use it outside. 13. Keep all ventilation openings free of any obstructions. 14. Always open the lens shutter or remove the lens cap when the projector lamp is on. 15. Do not look directly into light beam of laser pointer. The pointer produces a strong light which could damage your eyesight. 16. The projection lamp contains mercury. Always dispose of it in a proper manner according to local regulations. 17. To prevent lamp from bursting, do not continue using the same lamp after changing the mounting position of the projector (desktop to ceiling mount or ceiling mount to desktop mount). 18. Always operate machine on a flat, sturdy surface. 4 3M™ Multimedia Projector MP7640/MP7740 © 3M IPC 2001

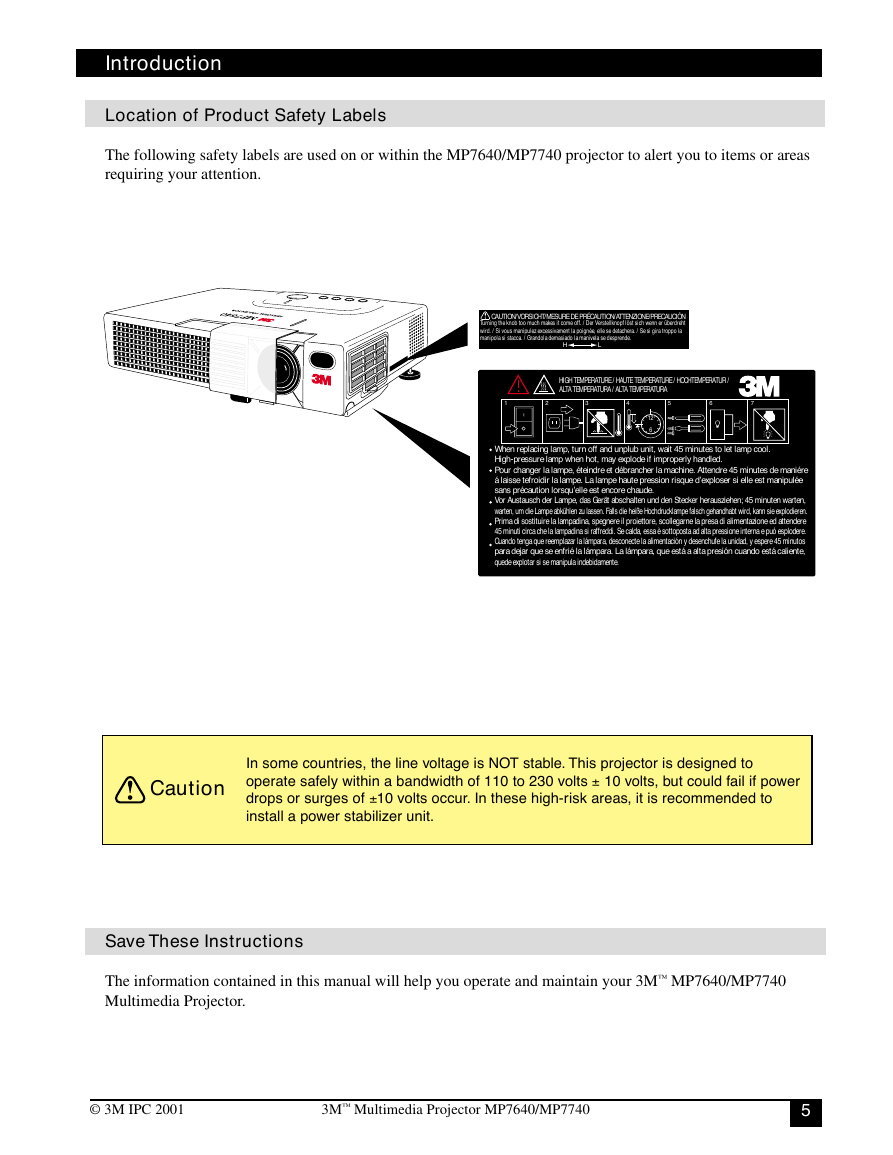

Introduction Location of Product Safety Labels The following safety labels are used on or within the MP7640/MP7740 projector to alert you to items or areas requiring your attention. CAUTION/VORSICHT/MESURE DE PRÉCAUTION/ATTENZIONE/PRECAUCIÓN Turning the knob too much makes it come off. / Der Verstellknopf löst sich wenn er überdreht wird. / Si vous manipulez excessivament la poignée, elle se detachera. / Se si gira troppo la manipola si stacca. / Grandola demasiado la manivela se desprende. H L HIGH TEMPERATURE / HAUTE TEMPERATURE / HOCHTEMPERATUR / ALTA TEMPERATURA / ALTA TEMPERATURA 1 2 3 4 5 6 7 12 6 When replacing lamp, turn off and unplub unit, wait 45 minutes to let lamp cool. High-pressure lamp when hot, may explode if improperly handled. Pour changer la lampe, éteindre et débrancher la machine. Attendre 45 minutes de maniére á laisse tefroidir la lampe. La lampe haute pression risque d’exploser si elle est manipulée sans précaution lorsqu’elle est encore chaude. Vor Austausch der Lampe, das Gerät abschalten und den Stecker herausziehen; 45 minuten warten, warten, um die Lampe abkühlen zu lassen. Falls die heiße Hochdrucklampe falsch gehandhabt wird, kann sie explodieren. Prima di sostituire la lampadina, spegnere il proiettore, scollegarne la presa di alimentazione ed attendere 45 minuti circa che la lampadina si raffreddi. Se calda, essa è sottoposta ad alta pressione interna e puó esplodere. Cuando tenga que reemplazar la lámpara, desconecte la alimentación y desenchufe la unidad, y espere 45 minutos para dejar que se enfrié la lámpara. La lámpara, que está a alta presión cuando está caliente, quede explotar si se manipula indebidamente. Caution In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a bandwidth of 110 to 230 volts ± 10 volts, but could fail if power drops or surges of ±10 volts occur. In these high-risk areas, it is recommended to install a power stabilizer unit. Save These Instructions The information contained in this manual will help you operate and maintain your 3M™ MP7640/MP7740 Multimedia Projector. © 3M IPC 2001 3M™ Multimedia Projector MP7640/MP7740 5

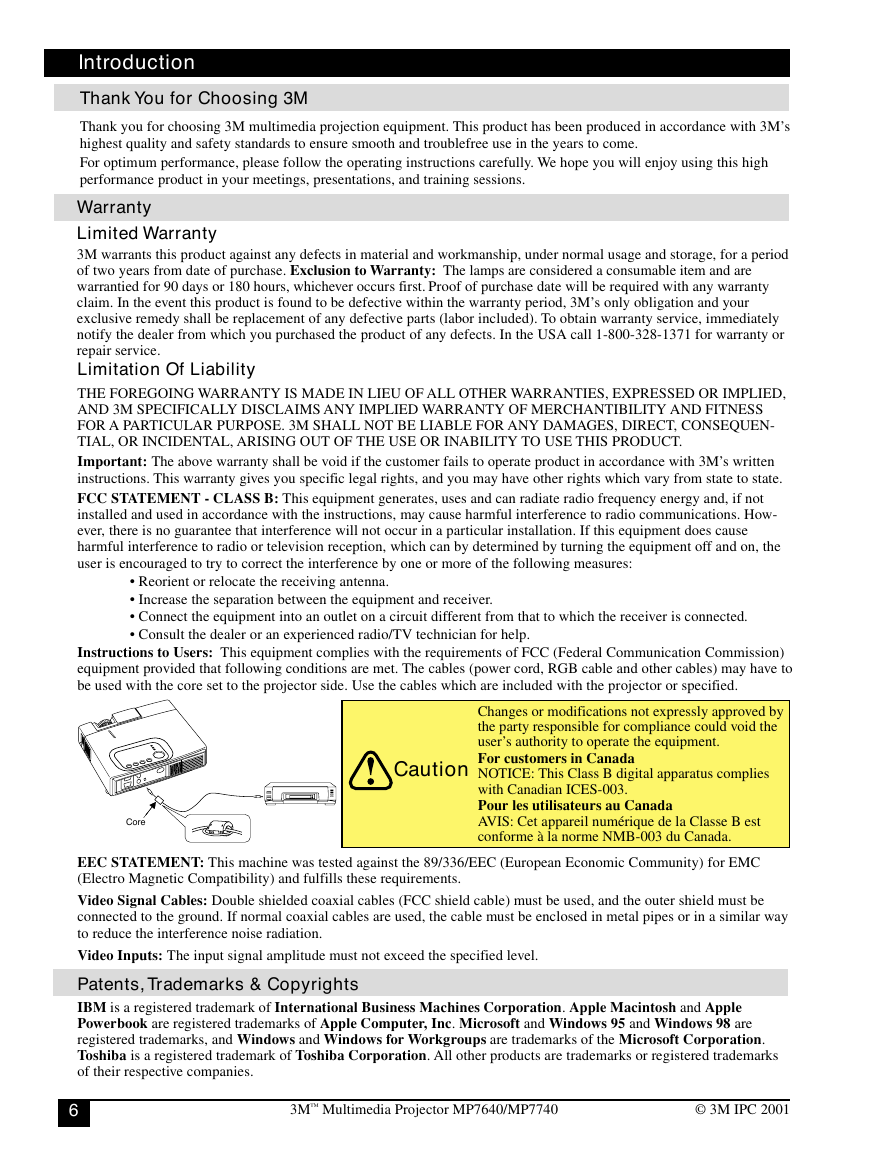

Introduction Thank You for Choosing 3M Thank you for choosing 3M multimedia projection equipment. This product has been produced in accordance with 3M’s highest quality and safety standards to ensure smooth and troublefree use in the years to come. For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using this high performance product in your meetings, presentations, and training sessions. Warranty Limited Warranty 3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of two years from date of purchase. Exclusion to Warranty: The lamps are considered a consumable item and are warrantied for 90 days or 180 hours, whichever occurs first. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. In the USA call 1-800-328-1371 for warranty or repair service. Limitation Of Liability THE FOREGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE. 3M SHALL NOT BE LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUEN- TIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT. Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M’s written instructions. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. FCC STATEMENT - CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. How- ever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can by determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that following conditions are met. The cables (power cord, RGB cable and other cables) may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For customers in Canada NOTICE: This Class B digital apparatus complies with Canadian ICES-003. Pour les utilisateurs au Canada AVIS: Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Core EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements. Video Signal Cables: Double shielded coaxial cables (FCC shield cable) must be used, and the outer shield must be connected to the ground. If normal coaxial cables are used, the cable must be enclosed in metal pipes or in a similar way to reduce the interference noise radiation. Video Inputs: The input signal amplitude must not exceed the specified level. Patents, Trademarks & Copyrights IBM is a registered trademark of International Business Machines Corporation. Apple Macintosh and Apple Powerbook are registered trademarks of Apple Computer, Inc. Microsoft and Windows 95 and Windows 98 are registered trademarks, and Windows and Windows for Workgroups are trademarks of the Microsoft Corporation. Toshiba is a registered trademark of Toshiba Corporation. All other products are trademarks or registered trademarks of their respective companies. 6 3M™ Multimedia Projector MP7640/MP7740 © 3M IPC 2001

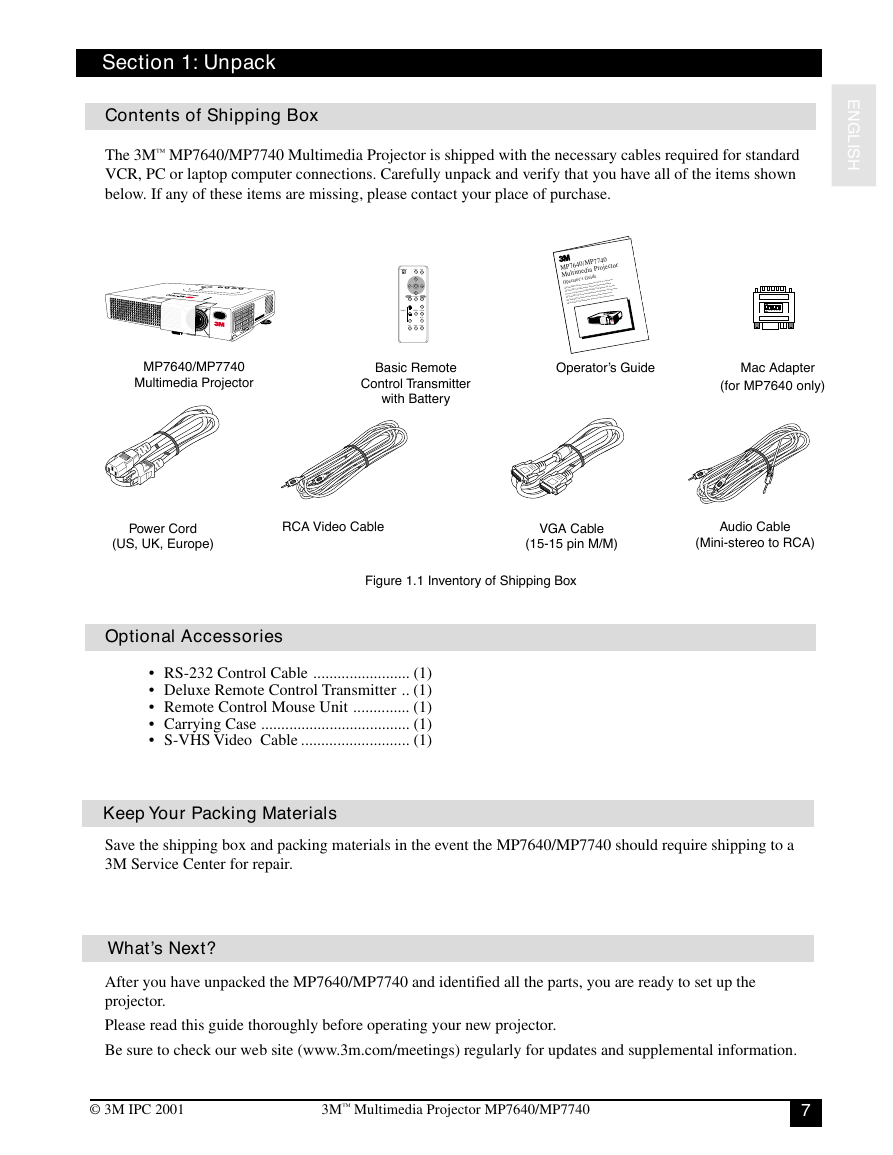

Section 1: Unpack Contents of Shipping Box The 3M™ MP7640/MP7740 Multimedia Projector is shipped with the necessary cables required for standard VCR, PC or laptop computer connections. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. E N G L S H I STANDBY/ON VIDEO RGB MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME MUTE AUTO TIMER BLANK t i m e d i a P r o j e c t o r ’ s G u i d e i m é d i a G u i d e d e i m e d i a - P r o j e k t o r i m e d i a M P 7 6 4 0 / M P 7 7 4 0 M a n u a l M P 7 6 4 0 / M P 7 7 4 0 M u l O p e r a t o r M P 7 6 4 0 / M P 7 7 4 0 P r o j e c t e u r M P 7 6 4 0 / M P 7 7 4 0 M u l P r o y e c t o r M P 7 6 4 0 / M P 7 7 4 0 P r o i e t M P 7 6 4 0 / M P 7 7 4 0 B r u k s a n v i s n i n g M P 7 6 4 0 / M P 7 7 4 0 M u l t o r e M u l m u l i m e d i a P r o j e c t o r d e M u l l ’ o p é r a t e u r B e n u t z e r h a n d b u c h U s u a r d e l ’ o p e r a t o r e l i m e d i a l e M a n u a l e d e l i m e d i a p r o j e c t o r t j z i n g f ö r G e b r u i k s a a n w i i o m u l t t t t t MP7640/MP7740 Multimedia Projector Basic Remote Control Transmitter with Battery Operator’s Guide Mac Adapter (for MP7640 only) Power Cord (US, UK, Europe) RCA Video Cable VGA Cable (15-15 pin M/M) Audio Cable (Mini-stereo to RCA) Figure 1.1 Inventory of Shipping Box Optional Accessories • RS-232 Control Cable ........................ (1) • Deluxe Remote Control Transmitter .. (1) • Remote Control Mouse Unit .............. (1) • Carrying Case ..................................... (1) • S-VHS Video Cable ........................... (1) Keep Your Packing Materials Save the shipping box and packing materials in the event the MP7640/MP7740 should require shipping to a 3M Service Center for repair. What’s Next? After you have unpacked the MP7640/MP7740 and identified all the parts, you are ready to set up the projector. Please read this guide thoroughly before operating your new projector. Be sure to check our web site (www.3m.com/meetings) regularly for updates and supplemental information. © 3M IPC 2001 3M™ Multimedia Projector MP7640/MP7740 7

I H S L G N E Section 2: Product Description Machine Characteristics The MP7640/MP7740 Multimedia Projector integrates ultra-high bright lamp and polysilicon LCD display technology into a single unit. It accepts input from one computer source and two video/audio sources, and projects a bright, super-crisp image. Switching your presentation from a computer input to a video input, then back to a computer input simply requires the push of a button on the remote control keypad or control panel keypad. The MP7640/MP7740 Multimedia Projector offers the following features: • UHB (ultra-high bright) projection lamp • MP7640: SVGA resolution (3 separate 800 x 600 LCD panels are used for the R, G and B signals) • MP7740: XGA resolution (3 separate 1024 x 768 LCD panels are used for the R, G and B signals) • Intelligent XGA scaling (60 Hz and 75 Hz) • Intelligent VGA scaling • Compact size, lightweight for portability • Manual zoom and focus functions • 4x digital magnification • Easy to set up and use • Ability to display 16.7 million colors • One computer input connection • Two video input connections (composite and S-video compatible) • Eight blank-screen colors available • Slim, lightweight remote control • One built-in speaker (1.0 watt) • Horizontal and vertical image inverting function • Horizontal and vertical image position control • Digital keystone correction • On-screen menu with nine languages • Universal power supply • IR sensor in front and rear for maximum remote control range • RS-232 control capability • Color balance control for data/video • Plug & Play compatible • Freeze function • Kensington™ Slot K (Kensington microsaver needed) • Aspect ratio 16:9, 4:3, or 4:3 small ✔ Note: The MP7640/MP7740 is one of the brightest personal projectors in the marketplace. The brightness of your machine will vary depending on the ambient room conditions and contrast/brightness settings. 8 © 3M IPC 2001 3M™ Multimedia Projector MP7640/MP7740 3M™ Multimedia Projector MP7640/MP7740 © 3M IPC 2001
