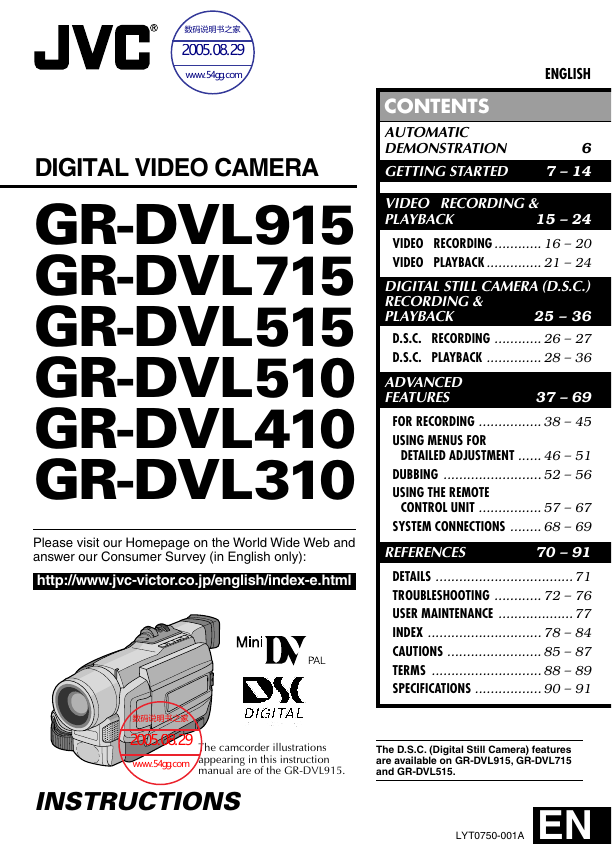

DIGITAL VIDEO CAMERA GR-DVL915 GR-DVL715 GR-DVL515 GR-DVL510 GR-DVL410 GR-DVL310 Please visit our Homepage on the World Wide Web and answer our Consumer Survey (in English only): http://www.jvc-victor.co.jp/english/index-e.html CONTENTS AUTOMATIC DEMONSTRATION GETTING STARTED ENGLISH 6 7 – 14 VIDEO RECORDING & PLAYBACK 15 – 24 VIDEO RECORDING ............ 16 – 20 VIDEO PLAYBACK .............. 21 – 24 DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK 25 – 36 D.S.C. RECORDING ............ 26 – 27 D.S.C. PLAYBACK .............. 28 – 36 ADVANCED FEATURES 37 – 69 FOR RECORDING ................ 38 – 45 USING MENUS FOR DETAILED ADJUSTMENT ...... 46 – 51 DUBBING ......................... 52 – 56 USING THE REMOTE CONTROL UNIT ................ 57 – 67 SYSTEM CONNECTIONS ........ 68 – 69 REFERENCES 70 – 91 DETAILS ................................... 71 TROUBLESHOOTING ............ 72 – 76 USER MAINTENANCE ................... 77 INDEX ............................. 78 – 84 CAUTIONS ........................ 85 – 87 TERMS ............................ 88 – 89 SPECIFICATIONS ................. 90 – 91 The camcorder illustrations appearing in this instruction manual are of the GR-DVL915. The D.S.C. (Digital Still Camera) features are available on GR-DVL915, GR-DVL715 and GR-DVL515. INSTRUCTIONS LYT0750-001A EN

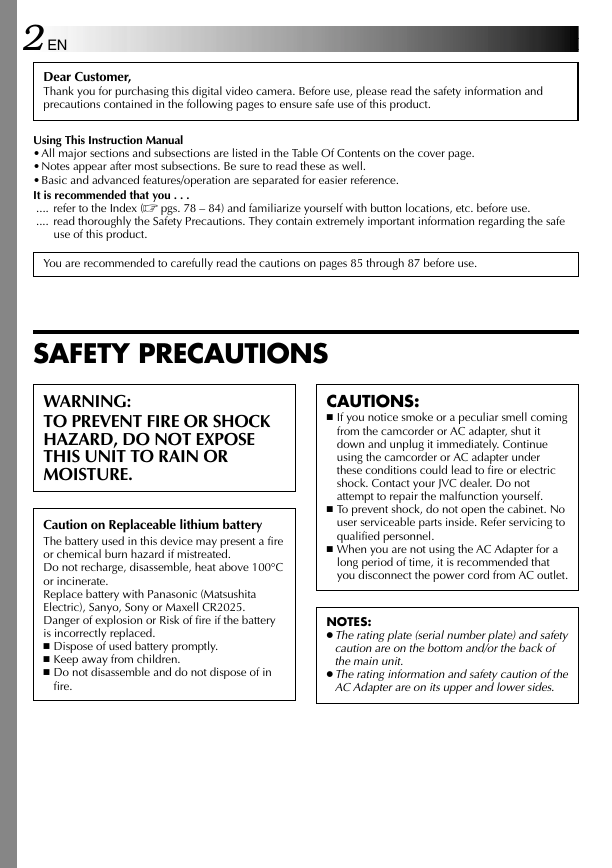

2 EN Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual •All major sections and subsections are listed in the Table Of Contents on the cover page. •Notes appear after most subsections. Be sure to read these as well. •Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (墌 pgs. 78 – 84) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 85 through 87 before use. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Caution on Replaceable lithium battery The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced. 䡲 Dispose of used battery promptly. 䡲 Keep away from children. 䡲 Do not disassemble and do not dispose of in fire. CAUTIONS: 䡲 If you notice smoke or a peculiar smell coming from the camcorder or AC adapter, shut it down and unplug it immediately. Continue using the camcorder or AC adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. 䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. 䡲 When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. NOTES: ●The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ●The rating information and safety caution of the AC Adapter are on its upper and lower sides.

EN3 When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. CAUTIONS: ● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. ● Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

4 EN Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage. 䡲 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and ” and memory cards* marked “ ” or MultiMediaCard. Only cassettes marked “ ” can be used with this unit. “ Before recording an important scene . . . .... make sure you only use cassettes with the Mini DV mark .... make sure you only use memory cards* with the mark .... remember that this camcorder is not compatible with other digital video formats. .... remember that this camcorder is intended for private consumer use only. Any commercial use . or . without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.) *Memory cards can be used with GR-DVL915/DVL715/DVL515 only.

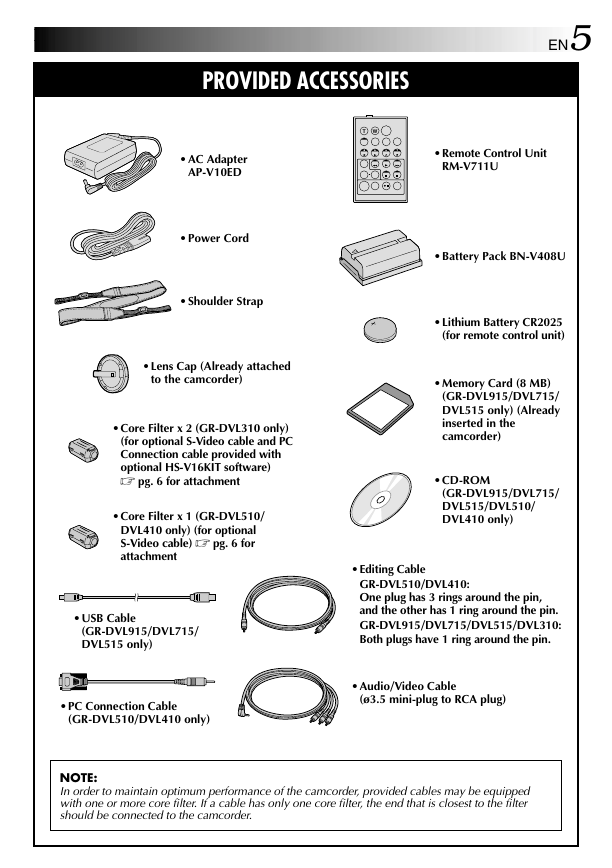

PROVIDED ACCESSORIES EN5 •AC Adapter AP-V10ED •Power Cord •Shoulder Strap •Lens Cap (Already attached to the camcorder) •Core Filter x 2 (GR-DVL310 only) (for optional S-Video cable and PC Connection cable provided with optional HS-V16KIT software) 墌 pg. 6 for attachment •Core Filter x 1 (GR-DVL510/ DVL410 only) (for optional S-Video cable) 墌 pg. 6 for attachment •USB Cable (GR-DVL915/DVL715/ DVL515 only) •PC Connection Cable (GR-DVL510/DVL410 only) T W •Remote Control Unit RM-V711U •Battery Pack BN-V408U •Lithium Battery CR2025 (for remote control unit) •Memory Card (8 MB) (GR-DVL915/DVL715/ DVL515 only) (Already inserted in the camcorder) •CD-ROM (GR-DVL915/DVL715/ DVL515/DVL510/ DVL410 only) •Editing Cable GR-DVL510/DVL410: One plug has 3 rings around the pin, and the other has 1 ring around the pin. GR-DVL915/DVL715/DVL515/DVL310: Both plugs have 1 ring around the pin. •Audio/Video Cable (ø3.5 mini-plug to RCA plug) NOTE: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

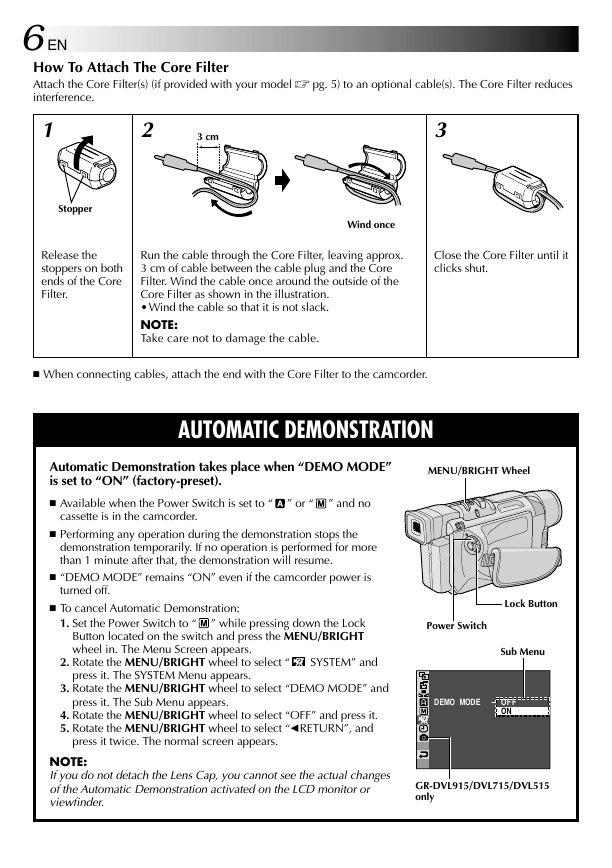

6 EN How To Attach The Core Filter Attach the Core Filter(s) (if provided with your model 墌 pg. 5) to an optional cable(s). The Core Filter reduces interference. 1 2 3 3 cm Stopper Release the stoppers on both ends of the Core Filter. Wind once Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable once around the outside of the Core Filter as shown in the illustration. •Wind the cable so that it is not slack. NOTE: Take care not to damage the cable. 䡲 When connecting cables, attach the end with the Core Filter to the camcorder. AUTOMATIC DEMONSTRATION Close the Core Filter until it clicks shut. Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factory-preset). 䡲 Available when the Power Switch is set to “ ” and no ” or “ cassette is in the camcorder. 䡲 Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume. 䡲 “DEMO MODE” remains “ON” even if the camcorder power is turned off. 䡲 To cancel Automatic Demonstration: 1. Set the Power Switch to “ ” while pressing down the Lock Button located on the switch and press the MENU/BRIGHT wheel in. The Menu Screen appears. 2. Rotate the MENU/BRIGHT wheel to select “ SYSTEM” and press it. The SYSTEM Menu appears. 3. Rotate the MENU/BRIGHT wheel to select “DEMO MODE” and press it. The Sub Menu appears. 4. Rotate the MENU/BRIGHT wheel to select “OFF” and press it. 5. Rotate the MENU/BRIGHT wheel to select “1RETURN”, and press it twice. The normal screen appears. MENU/BRIGHT Wheel Power Switch Lock Button Sub Menu DEMO MODE – OFF ON NOTE: If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewfinder. GR-DVL915/DVL715/DVL515 only

GETTING STARTED EN7 GETTING STARTED CONTENTS Power ...................................................... 8 – 9 Grip Adjustment .............................................. 10 Viewfinder Adjustment ....................................... 10 Shoulder Strap Attachment .................................. 10 Tripod Mounting............................................... 10 Date/Time Settings........................................... 11 Loading/Unloading A Cassette .............................. 12 Recording Mode Setting ...................................... 13 Loading A Memory Card (GR-DVL915/DVL715/DVL515 only) ............................. 14 Picture Quality Mode Setting (GR-DVL915/DVL715/DVL515 only) ............................. 14

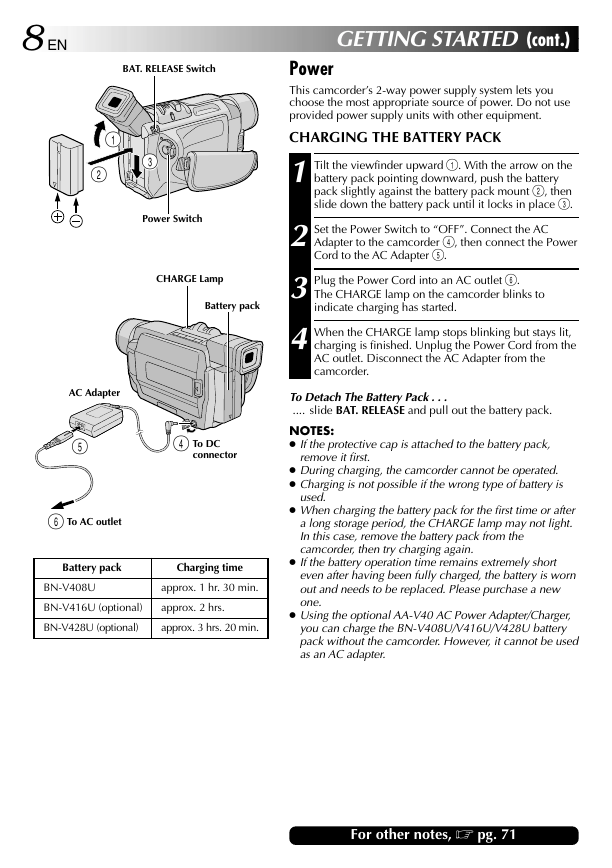

8 EN BAT. RELEASE Switch 1 2 3 Power Switch CHARGE Lamp Battery pack AC Adapter 5 4 To DC connector 6 To AC outlet Battery pack Charging time BN-V408U approx. 1 hr. 30 min. BN-V416U (optional) approx. 2 hrs. BN-V428U (optional) approx. 3 hrs. 20 min. GETTING STARTED (cont.) Power This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK 1 Tilt the viewfinder upward 1. With the arrow on the battery pack pointing downward, push the battery pack slightly against the battery pack mount 2, then slide down the battery pack until it locks in place 3. Adapter to the camcorder 4, then connect the Power Cord to the AC Adapter 5. 2 Set the Power Switch to “OFF”. Connect the AC 3 Plug the Power Cord into an AC outlet 6. 4 When the CHARGE lamp stops blinking but stays lit, The CHARGE lamp on the camcorder blinks to indicate charging has started. charging is finished. Unplug the Power Cord from the AC outlet. Disconnect the AC Adapter from the camcorder. To Detach The Battery Pack . . . .... slide BAT. RELEASE and pull out the battery pack. NOTES: ● If the protective cap is attached to the battery pack, remove it first. ● During charging, the camcorder cannot be operated. ● Charging is not possible if the wrong type of battery is used. ● When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again. ● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one. ● Using the optional AA-V40 AC Power Adapter/Charger, you can charge the BN-V408U/V416U/V428U battery pack without the camcorder. However, it cannot be used as an AC adapter. For other notes, 墌 pg. 71
