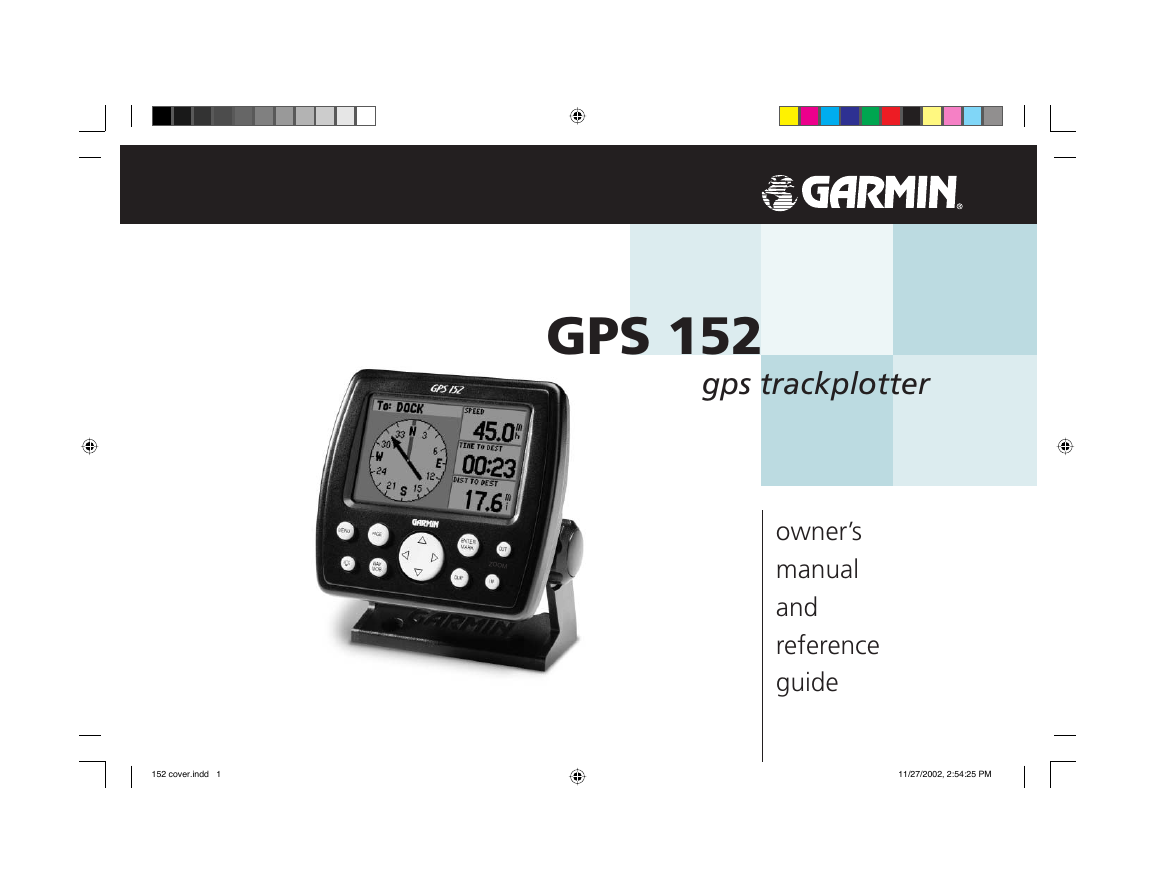

GPS 152 gps trackplotter ZOOM owner’s manual and reference guide 152 cover.indd 1 11/27/2002, 2:54:25 PM

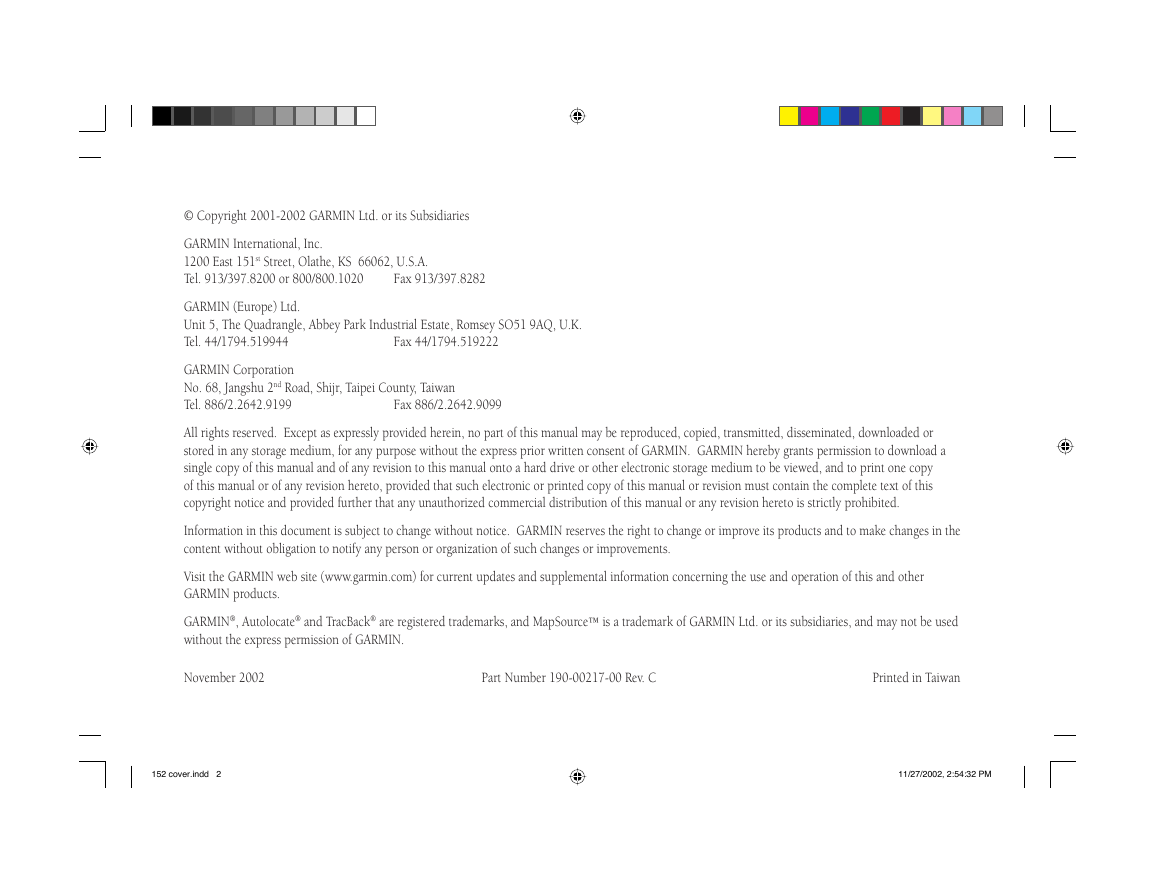

© Copyright 2001-2002 GARMIN Ltd. or its Subsidiaries GARMIN International, Inc. 1200 East 151st Street, Olathe, KS 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 GARMIN (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey SO51 9AQ, U.K. Tel. 44/1794.519944 Fax 44/1794.519222 GARMIN Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of GARMIN. GARMIN hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed, and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. GARMIN reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the GARMIN web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other GARMIN products. GARMIN®, Autolocate® and TracBack® are registered trademarks, and MapSource™ is a trademark of GARMIN Ltd. or its subsidiaries, and may not be used without the express permission of GARMIN. November 2002 Part Number 190-00217-00 Rev. C Printed in Taiwan 152 cover.indd 2 11/27/2002, 2:54:32 PM

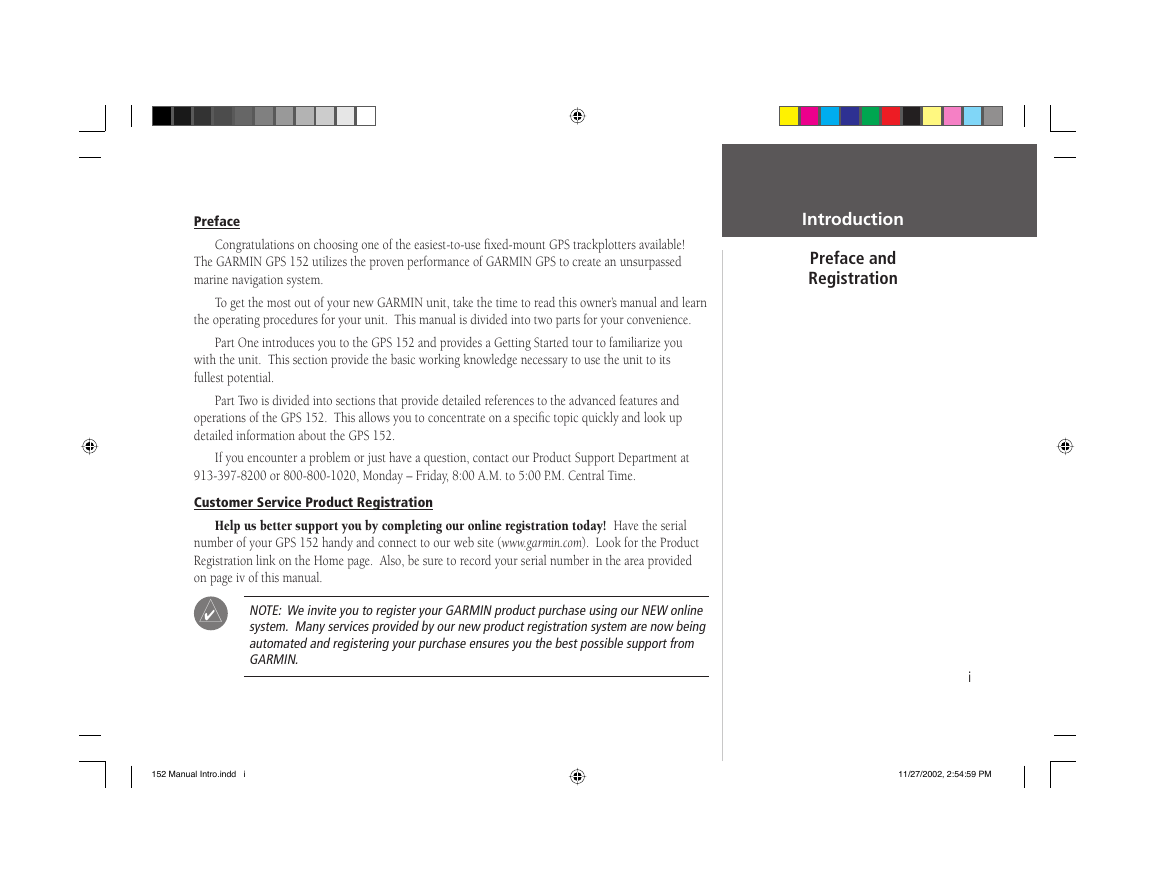

Preface Congratulations on choosing one of the easiest-to-use ﬁ xed-mount GPS trackplotters available! The GARMIN GPS 152 utilizes the proven performance of GARMIN GPS to create an unsurpassed marine navigation system. To get the most out of your new GARMIN unit, take the time to read this owner’s manual and learn the operating procedures for your unit. This manual is divided into two parts for your convenience. Part One introduces you to the GPS 152 and provides a Getting Started tour to familiarize you with the unit. This section provide the basic working knowledge necessary to use the unit to its fullest potential. Part Two is divided into sections that provide detailed references to the advanced features and operations of the GPS 152. This allows you to concentrate on a speciﬁ c topic quickly and look up detailed information about the GPS 152. If you encounter a problem or just have a question, contact our Product Support Department at 913-397-8200 or 800-800-1020, Monday – Friday, 8:00 A.M. to 5:00 P.M. Central Time. Customer Service Product Registration Help us better support you by completing our online registration today! Have the serial number of your GPS 152 handy and connect to our web site (www.garmin.com). Look for the Product Registration link on the Home page. Also, be sure to record your serial number in the area provided on page iv of this manual. NOTE: We invite you to register your GARMIN product purchase using our NEW online system. Many services provided by our new product registration system are now being automated and registering your purchase ensures you the best possible support from GARMIN. Introduction Preface and Registration i 152 Manual Intro.indd i 11/27/2002, 2:54:59 PM

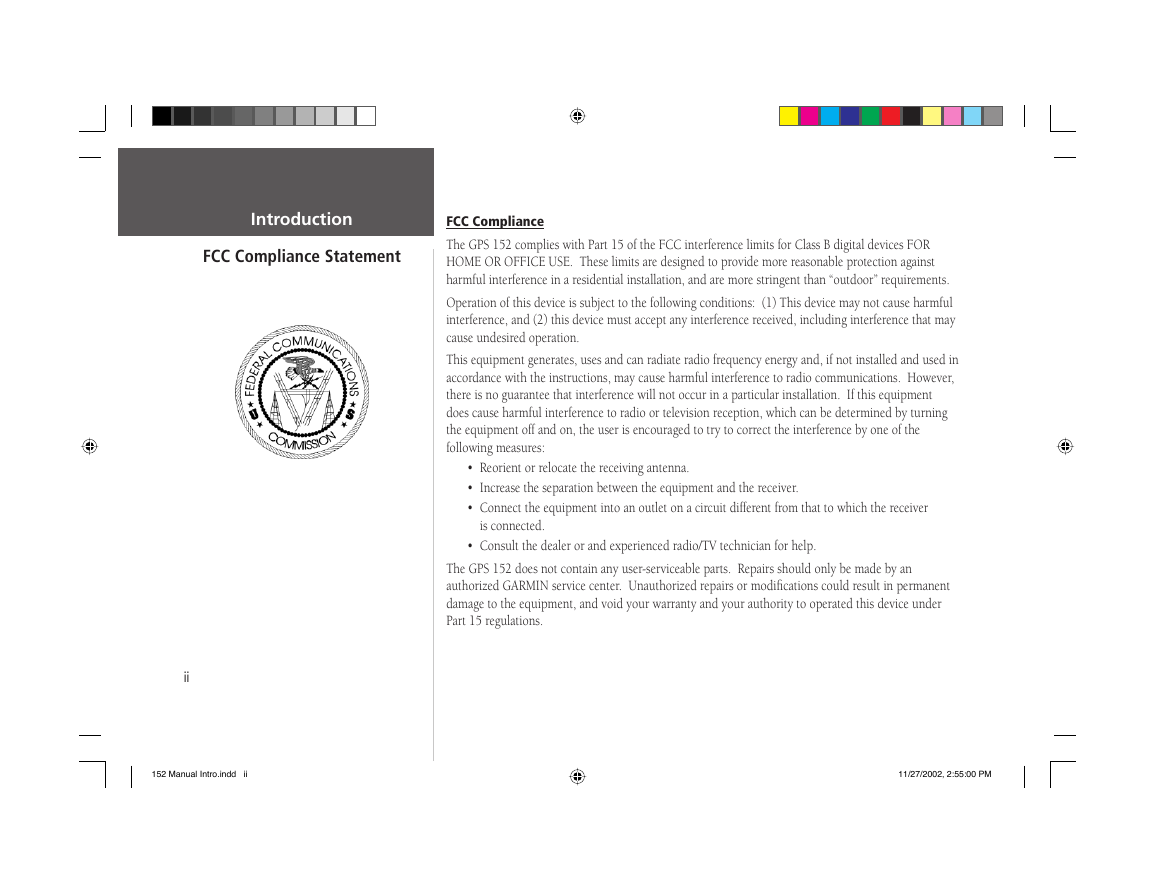

Introduction FCC Compliance Statement FCC Compliance The GPS 152 complies with Part 15 of the FCC interference limits for Class B digital devices FOR HOME OR OFFICE USE. These limits are designed to provide more reasonable protection against harmful interference in a residential installation, and are more stringent than “outdoor” requirements. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or and experienced radio/TV technician for help. The GPS 152 does not contain any user-serviceable parts. Repairs should only be made by an authorized GARMIN service center. Unauthorized repairs or modiﬁ cations could result in permanent damage to the equipment, and void your warranty and your authority to operated this device under Part 15 regulations. ii 152 Manual Intro.indd ii 11/27/2002, 2:55:00 PM

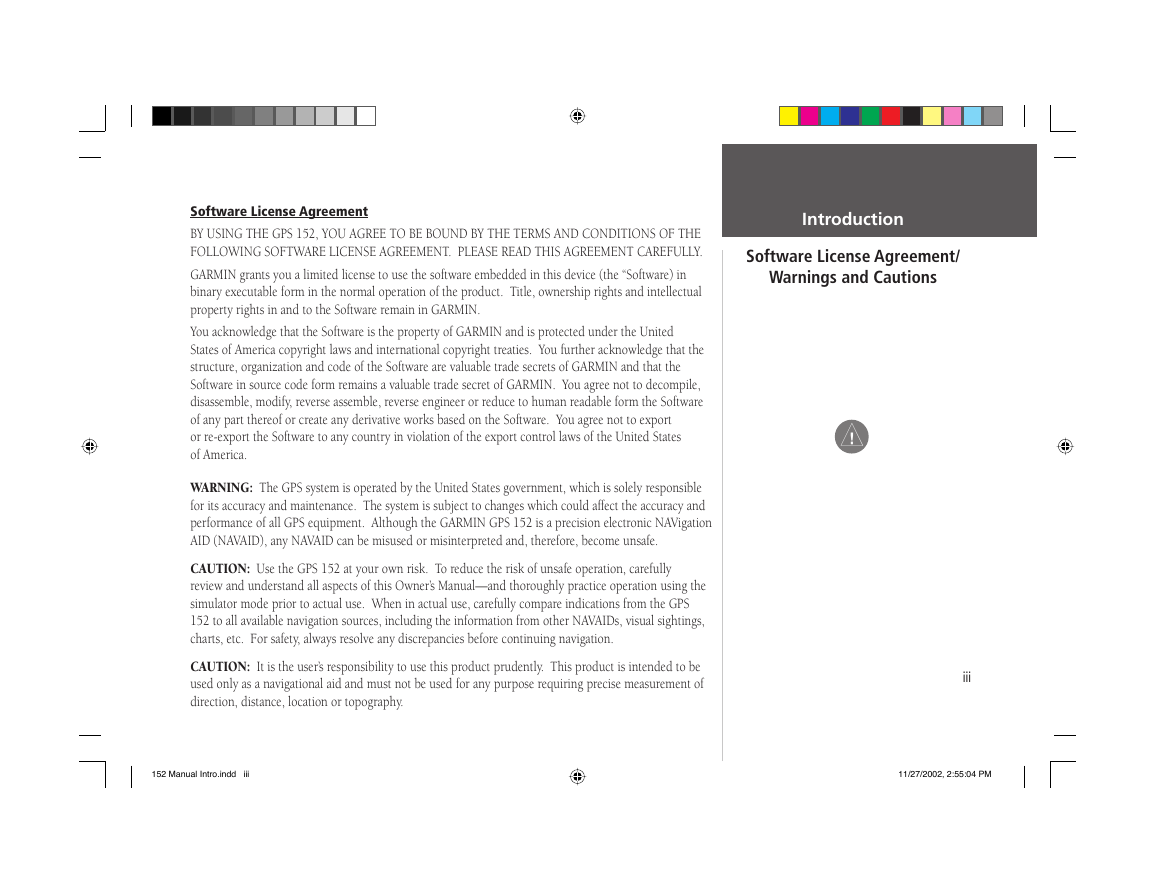

Software License Agreement BY USING THE GPS 152, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. GARMIN grants you a limited license to use the software embedded in this device (the “Software) in binary executable form in the normal operation of the product. Title, ownership rights and intellectual property rights in and to the Software remain in GARMIN. You acknowledge that the Software is the property of GARMIN and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization and code of the Software are valuable trade secrets of GARMIN and that the Software in source code form remains a valuable trade secret of GARMIN. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer or reduce to human readable form the Software of any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America. WARNING: The GPS system is operated by the United States government, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. Although the GARMIN GPS 152 is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe. CAUTION: Use the GPS 152 at your own risk. To reduce the risk of unsafe operation, carefully review and understand all aspects of this Owner’s Manual—and thoroughly practice operation using the simulator mode prior to actual use. When in actual use, carefully compare indications from the GPS 152 to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety, always resolve any discrepancies before continuing navigation. CAUTION: It is the user’s responsibility to use this product prudently. This product is intended to be used only as a navigational aid and must not be used for any purpose requiring precise measurement of direction, distance, location or topography. Introduction Software License Agreement/ Warnings and Cautions iii 152 Manual Intro.indd iii 11/27/2002, 2:55:04 PM

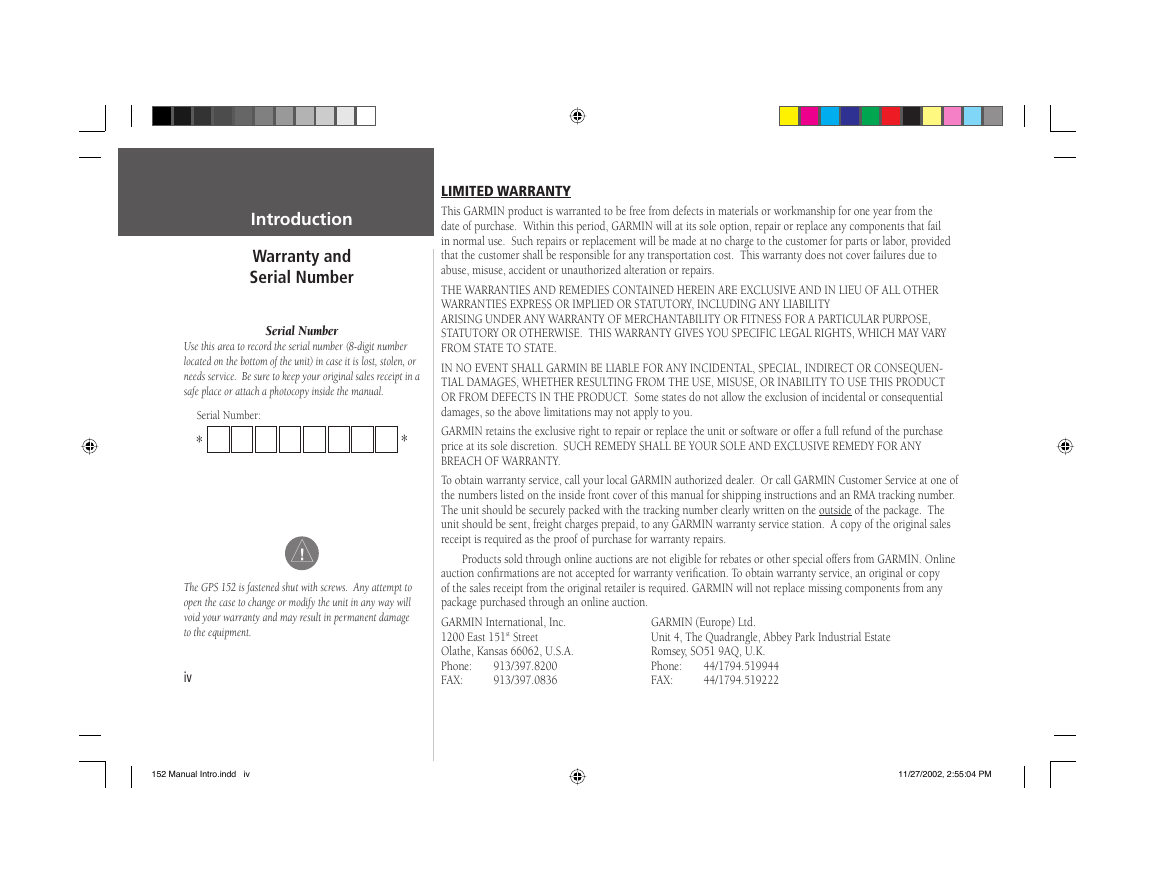

Introduction Warranty and Serial Number Serial Number Use this area to record the serial number (8-digit number located on the bottom of the unit) in case it is lost, stolen, or needs service. Be sure to keep your original sales receipt in a safe place or attach a photocopy inside the manual. Serial Number: * * The GPS 152 is fastened shut with screws. Any attempt to open the case to change or modify the unit in any way will void your warranty and may result in permanent damage to the equipment. iv LIMITED WARRANTY This GARMIN product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, GARMIN will at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUEN- TIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. GARMIN retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To obtain warranty service, call your local GARMIN authorized dealer. Or call GARMIN Customer Service at one of the numbers listed on the inside front cover of this manual for shipping instructions and an RMA tracking number. The unit should be securely packed with the tracking number clearly written on the outside of the package. The unit should be sent, freight charges prepaid, to any GARMIN warranty service station. A copy of the original sales receipt is required as the proof of purchase for warranty repairs. Products sold through online auctions are not eligible for rebates or other special offers from GARMIN. Online auction conﬁ rmations are not accepted for warranty veriﬁ cation. To obtain warranty service, an original or copy of the sales receipt from the original retailer is required. GARMIN will not replace missing components from any package purchased through an online auction. GARMIN International, Inc. 1200 East 151st Street Olathe, Kansas 66062, U.S.A. Phone: FAX: GARMIN (Europe) Ltd. Unit 4, The Quadrangle, Abbey Park Industrial Estate Romsey, SO51 9AQ, U.K. Phone: FAX: 913/397.8200 913/397.0836 44/1794.519944 44/1794.519222 152 Manual Intro.indd iv 11/27/2002, 2:55:04 PM

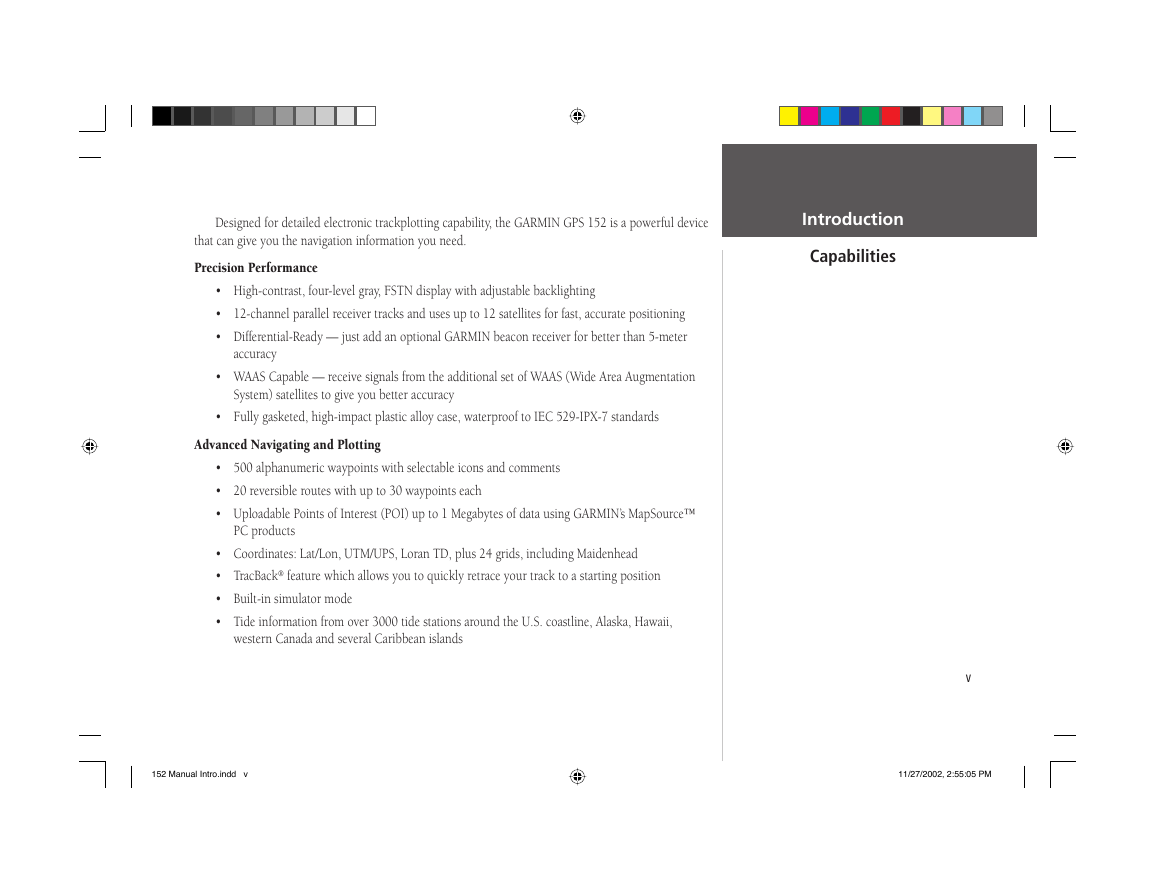

Designed for detailed electronic trackplotting capability, the GARMIN GPS 152 is a powerful device that can give you the navigation information you need. Precision Performance • High-contrast, four-level gray, FSTN display with adjustable backlighting • 12-channel parallel receiver tracks and uses up to 12 satellites for fast, accurate positioning • Differential-Ready — just add an optional GARMIN beacon receiver for better than 5-meter accuracy • WAAS Capable — receive signals from the additional set of WAAS (Wide Area Augmentation System) satellites to give you better accuracy • Fully gasketed, high-impact plastic alloy case, waterproof to IEC 529-IPX-7 standards Advanced Navigating and Plotting • 500 alphanumeric waypoints with selectable icons and comments • 20 reversible routes with up to 30 waypoints each • Uploadable Points of Interest (POI) up to 1 Megabytes of data using GARMIN’s MapSource™ PC products • Coordinates: Lat/Lon, UTM/UPS, Loran TD, plus 24 grids, including Maidenhead • TracBack® feature which allows you to quickly retrace your track to a starting position • Built-in simulator mode • Tide information from over 3000 tide stations around the U.S. coastline, Alaska, Hawaii, western Canada and several Caribbean islands Introduction Capabilities v 152 Manual Intro.indd v 11/27/2002, 2:55:05 PM

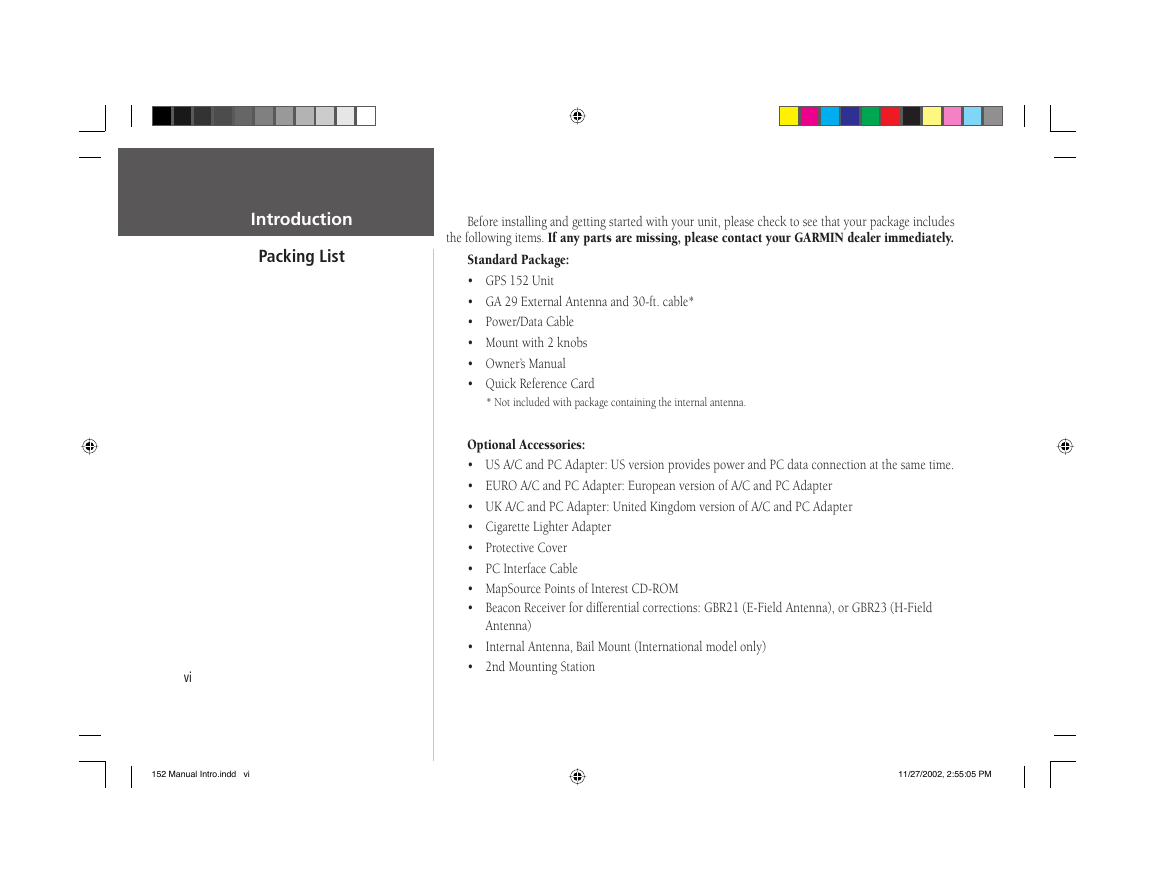

Introduction Packing List vi Before installing and getting started with your unit, please check to see that your package includes the following items. If any parts are missing, please contact your GARMIN dealer immediately. Standard Package: • GPS 152 Unit • GA 29 External Antenna and 30-ft. cable* • Power/Data Cable • Mount with 2 knobs • Owner’s Manual • Quick Reference Card * Not included with package containing the internal antenna. Optional Accessories: • US A/C and PC Adapter: US version provides power and PC data connection at the same time. • EURO A/C and PC Adapter: European version of A/C and PC Adapter • UK A/C and PC Adapter: United Kingdom version of A/C and PC Adapter • Cigarette Lighter Adapter • Protective Cover • PC Interface Cable • MapSource Points of Interest CD-ROM • Beacon Receiver for differential corrections: GBR21 (E-Field Antenna), or GBR23 (H-Field Antenna) • Internal Antenna, Bail Mount (International model only) • 2nd Mounting Station 152 Manual Intro.indd vi 11/27/2002, 2:55:05 PM
