DIGITAL COLOR PRINTER MODEL CP800DW OPERATION MANUAL ALARM SHEET/PAPER SCSI DATA CP800DW PAPER FEED &CUT COPY ONLINE POWER OPEN THIS OPERATION MANUAL IS IMPORTANT TO YOU. PLEASE READ IT BEFORE USING YOUR DIGITAL COLOR PRINTER. This digital colour printer complies with the requirements of the EC Directive 89/336/EEC, 73/23/EEC and 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

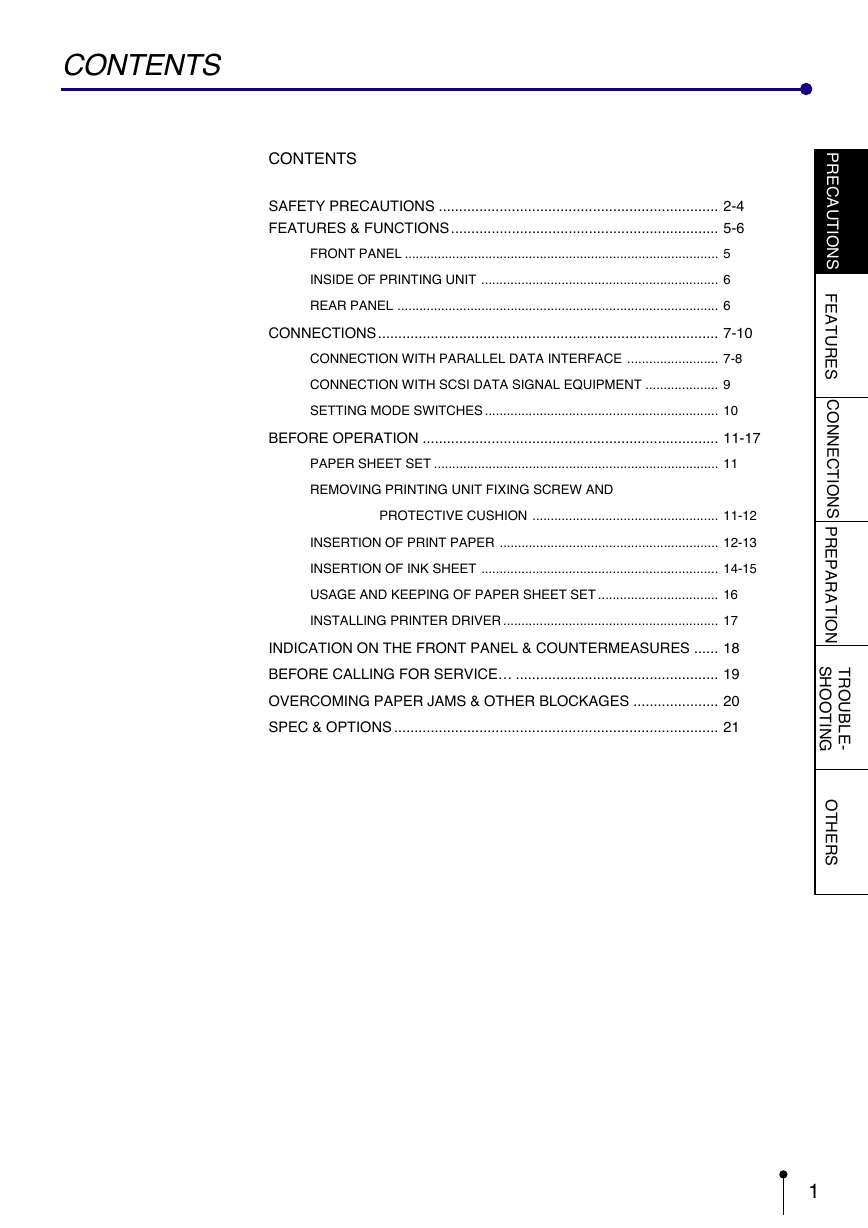

CONTENTS CONTENTS SAFETY PRECAUTIONS ..................................................................... 2-4 FEATURES & FUNCTIONS.................................................................. 5-6 FRONT PANEL ...................................................................................... 5 INSIDE OF PRINTING UNIT ................................................................. 6 REAR PANEL ........................................................................................ 6 CONNECTIONS.................................................................................... 7-10 CONNECTION WITH PARALLEL DATA INTERFACE ......................... 7-8 CONNECTION WITH SCSI DATA SIGNAL EQUIPMENT .................... 9 SETTING MODE SWITCHES ................................................................ 10 BEFORE OPERATION ......................................................................... 11-17 PAPER SHEET SET .............................................................................. 11 REMOVING PRINTING UNIT FIXING SCREW AND PROTECTIVE CUSHION ................................................... 11-12 INSERTION OF PRINT PAPER ............................................................ 12-13 INSERTION OF INK SHEET ................................................................. 14-15 USAGE AND KEEPING OF PAPER SHEET SET ................................. 16 INSTALLING PRINTER DRIVER ........................................................... 17 INDICATION ON THE FRONT PANEL & COUNTERMEASURES ...... 18 BEFORE CALLING FOR SERVICE… .................................................. 19 OVERCOMING PAPER JAMS & OTHER BLOCKAGES ..................... 20 SPEC & OPTIONS ................................................................................ 21 P R E C A U T O N S I F E A T U R E S C O N N E C T O N S I P R E P A R A T O N I S H O O T N G I T R O U B L E - O T H E R S 1
SAFETY PRECAUTIONS In the interest of safety, please observe the following precautions: POWER REQUIREMENT This Digital Color Printer is designed to operate on 120V, 60Hz AC in U.S.A. and Canada, 220-240V, 50Hz AC in Europe. Never connect to any outlet or power supply having a different voltage or frequency. WARNING: THIS APPARATUS MUST BE EARTHED. AVERTISSEMENT: CET APPAREIL DOIT ETRE MIS A LA TERRE. PROTECTIVE MEASURES IF ABNORMALITIES ARISE, ..... Use of the unit during emission of smoke or abnormal sounds (without adopting countermeasures) is dangerous. In such a case, unplug the power cord from the source outlet immediately, and request maintenance service from the sales dealer. NEVER INSERT ANY OBJECT INTO THE UNIT Foreign objects of any kind inserted into this unit constitute a safety hazard and can cause extensive damage. DO NOT PLACE ANYTHING ON THE DIGITAL COLOR PRINTER Heavy objects placed on the Digital Color Printer can cause damage or obstruct proper ventilation. PROTECT THE POWER CORD Damage to the power cord may cause fire or shock hazard. When unplugging, hold by the plug only and remove carefully. DO NOT PLACE WATER CONTAINERS ON THE UNIT Do not place flower vases, and other water-holding containers on the device. If, for some reason, water seeps to the inside of the unit, unplug the power cord from the source outlet, and contact the sales dealer. If used without corrective measures, the unit may be damaged. "In the interest of safety, avoid handling of liquids near the unit." DO NOT REMOVE THE CABINET Touching internal parts is dangerous, besides, it may lead to malfunction. Contact the sales dealer to carry out internal checks and adjustments. Before opening the cover for eliminating a jammed paper, etc., be sure to disconnect the power cord plug. UNPLUG THE POWER CORD DURING A LONG ABSENCE Turn off the MAIN power switch and unplug the power cord during a long absence. WHEN TRANSPORTING THE UNIT When transporting the unit, remove the sheet cartridge and paper from the paper holder, and insert the protective cushion into its compartment. Make sure to screw the printing unit down. BE CAREFUL AROUND PRINT PAPER EXIT SLOT Don't insert your hand or any material into the paper exit slot during printing. Don’t touch the cutter blade inside the paper exit slot. Otherwise, your finger will be injured. DO NOT TOUCH THE THERMAL HEAD Do not touch your hand to the thermal head (located inside the unit). The thermal head is heated to high temperature. This may cause injury. 2

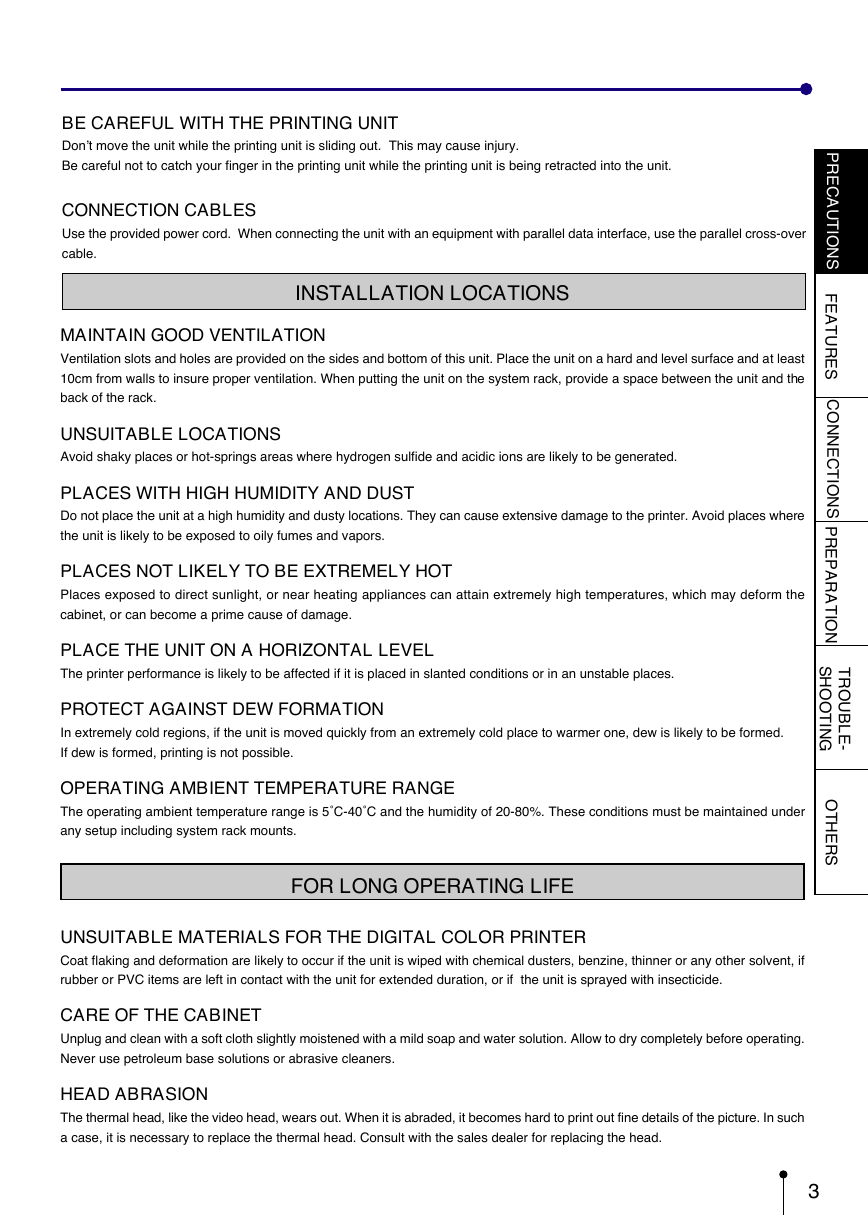

BE CAREFUL WITH THE PRINTING UNIT Don’t move the unit while the printing unit is sliding out. This may cause injury. Be careful not to catch your finger in the printing unit while the printing unit is being retracted into the unit. CONNECTION CABLES Use the provided power cord. When connecting the unit with an equipment with parallel data interface, use the parallel cross-over cable. INSTALLATION LOCATIONS MAINTAIN GOOD VENTILATION Ventilation slots and holes are provided on the sides and bottom of this unit. Place the unit on a hard and level surface and at least 10cm from walls to insure proper ventilation. When putting the unit on the system rack, provide a space between the unit and the back of the rack. UNSUITABLE LOCATIONS Avoid shaky places or hot-springs areas where hydrogen sulfide and acidic ions are likely to be generated. PLACES WITH HIGH HUMIDITY AND DUST Do not place the unit at a high humidity and dusty locations. They can cause extensive damage to the printer. Avoid places where the unit is likely to be exposed to oily fumes and vapors. PLACES NOT LIKELY TO BE EXTREMELY HOT Places exposed to direct sunlight, or near heating appliances can attain extremely high temperatures, which may deform the cabinet, or can become a prime cause of damage. PLACE THE UNIT ON A HORIZONTAL LEVEL The printer performance is likely to be affected if it is placed in slanted conditions or in an unstable places. PROTECT AGAINST DEW FORMATION In extremely cold regions, if the unit is moved quickly from an extremely cold place to warmer one, dew is likely to be formed. If dew is formed, printing is not possible. OPERATING AMBIENT TEMPERATURE RANGE The operating ambient temperature range is 5˚C-40˚C and the humidity of 20-80%. These conditions must be maintained under any setup including system rack mounts. FOR LONG OPERATING LIFE UNSUITABLE MATERIALS FOR THE DIGITAL COLOR PRINTER Coat flaking and deformation are likely to occur if the unit is wiped with chemical dusters, benzine, thinner or any other solvent, if rubber or PVC items are left in contact with the unit for extended duration, or if the unit is sprayed with insecticide. CARE OF THE CABINET Unplug and clean with a soft cloth slightly moistened with a mild soap and water solution. Allow to dry completely before operating. Never use petroleum base solutions or abrasive cleaners. HEAD ABRASION The thermal head, like the video head, wears out. When it is abraded, it becomes hard to print out fine details of the picture. In such a case, it is necessary to replace the thermal head. Consult with the sales dealer for replacing the head. P R E C A U T O N S I F E A T U R E S C O N N E C T O N S I P R E P A R A T O N I S H O O T N G I T R O U B L E - O T H E R S 3
SAFETY PRECAUTIONS CONNECTING DEVICES Read thoroughly "Operating Precautions" of the instruction booklets for the devices connected with the Digital Color Printer. The power cord must be disconnected after printing is over. CAUTION ON RELOCATING When transporting this unit, make sure it is not likely to be subjected to impacts. They can be a prime cause for damage. Further, make sure to disconnect the power cord from the power outlet, and the cables from the connected devices. OTHER CAUTIONS Dust or other foreign matter adhering to the print paper or the sheet cartridge, or deformation resulting from exposure to extremely low or high temperatures could cause loss of color, uneven color or lines, or wrinkles in the print images. NOTE: YOUR UNDERSTANDING IS REQUESTED FOR THE LOSS OF IMAGES IN MEMORY DUE TO THE SUDDEN OCCURRENCE OF A MALFUNCTION. As for paper sheet set, refer to "Paper sheet set". 4

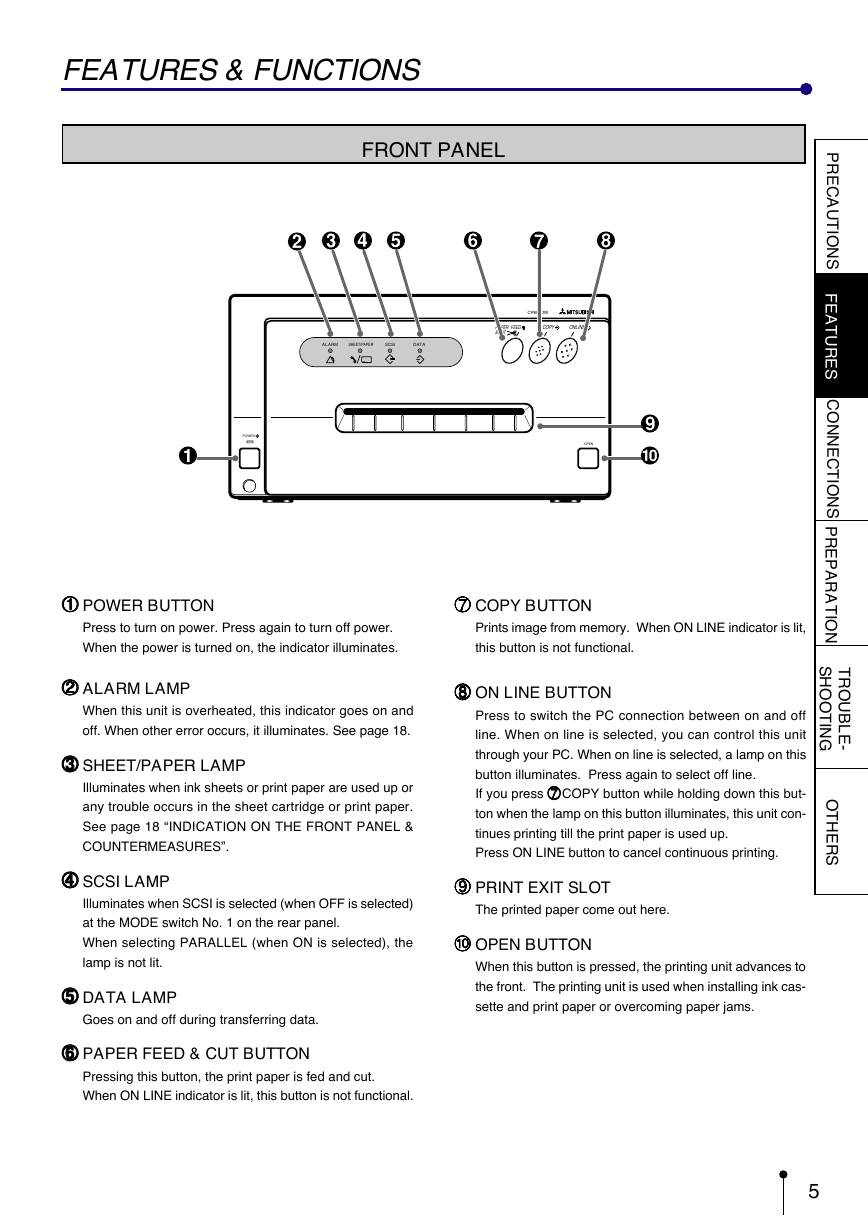

FEATURES & FUNCTIONS FRONT PANEL 2 3 4 5 6 7 8 ALARM SHEET/PAPER SCSI DATA CP800DW PAPER FEED &CUT COPY ONLINE POWER 1 OPEN 9 A 11111 POWER BUTTON 77777 COPY BUTTON Press to turn on power. Press again to turn off power. When the power is turned on, the indicator illuminates. Prints image from memory. When ON LINE indicator is lit, this button is not functional. 22222 ALARM LAMP When this unit is overheated, this indicator goes on and off. When other error occurs, it illuminates. See page 18. 33333 SHEET/PAPER LAMP Illuminates when ink sheets or print paper are used up or any trouble occurs in the sheet cartridge or print paper. See page 18 “INDICATION ON THE FRONT PANEL & COUNTERMEASURES”. 44444 SCSI LAMP Illuminates when SCSI is selected (when OFF is selected) at the MODE switch No. 1 on the rear panel. When selecting PARALLEL (when ON is selected), the lamp is not lit. 55555 DATA LAMP Goes on and off during transferring data. 66666 PAPER FEED & CUT BUTTON Pressing this button, the print paper is fed and cut. When ON LINE indicator is lit, this button is not functional. 88888 ON LINE BUTTON Press to switch the PC connection between on and off line. When on line is selected, you can control this unit through your PC. When on line is selected, a lamp on this button illuminates. Press again to select off line. If you press 77777COPY button while holding down this but- ton when the lamp on this button illuminates, this unit con- tinues printing till the print paper is used up. Press ON LINE button to cancel continuous printing. 99999 PRINT EXIT SLOT The printed paper come out here. AAAAA OPEN BUTTON When this button is pressed, the printing unit advances to the front. The printing unit is used when installing ink cas- sette and print paper or overcoming paper jams. P R E C A U T O N S I F E A T U R E S C O N N E C T O N S I P R E P A R A T O N I S H O O T N G I T R O U B L E - O T H E R S 5
FEATURES & FUNCTIONS INSIDE OF PRINTING UNIT 1 Ink cassette compartment 2 Ink cassette locking lever 3 Print paper fixing lever 4 Paper sending control 11111 INK CASSETTE COMPARTMENT Load the ink cassette here. Insert the cassette gently until it snaps into place. 33333 PRINT PAPER FIXING LEVER Use this lever when inserting print paper. 22222INK CASSETTE LOCKING LEVER Push this lever to take the ink cassette out. 44444 PAPER SENDING CONTROL Turn this control clockwise to rewind the print paper. REAR PANEL 1 2 Store the printing unit fixing screw here. SCREW SCSI ON OFF 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 DIRECT SNAP ACK ON PARALLEL OFF SCSI ID No. PARALLEL AC LINE 3 4 5 11111 SCSI PORT 44444 POWER SOCKET (AC LINE) Used to connect this unit to a SCSI device such as per- sonal computers. See page 9. Connects to the provided power cord. Insert the cord firmly. 22222 SCSI ID SWITCH 55555 MODE SWITCHES Used to set the SCSI ID number of the connected device. See page 9. 33333 PARALLEL DATA PORT Compatible parallel interface for Centronics®. For pin connections see the table on pages 7-8. Used to set the time of the acknowledge signal, selection between PARALLEL and SCSI of the connected device, and direct snap setting. See page 10. Centronics® is a registered trademark of Centronics Data Corporation. 6

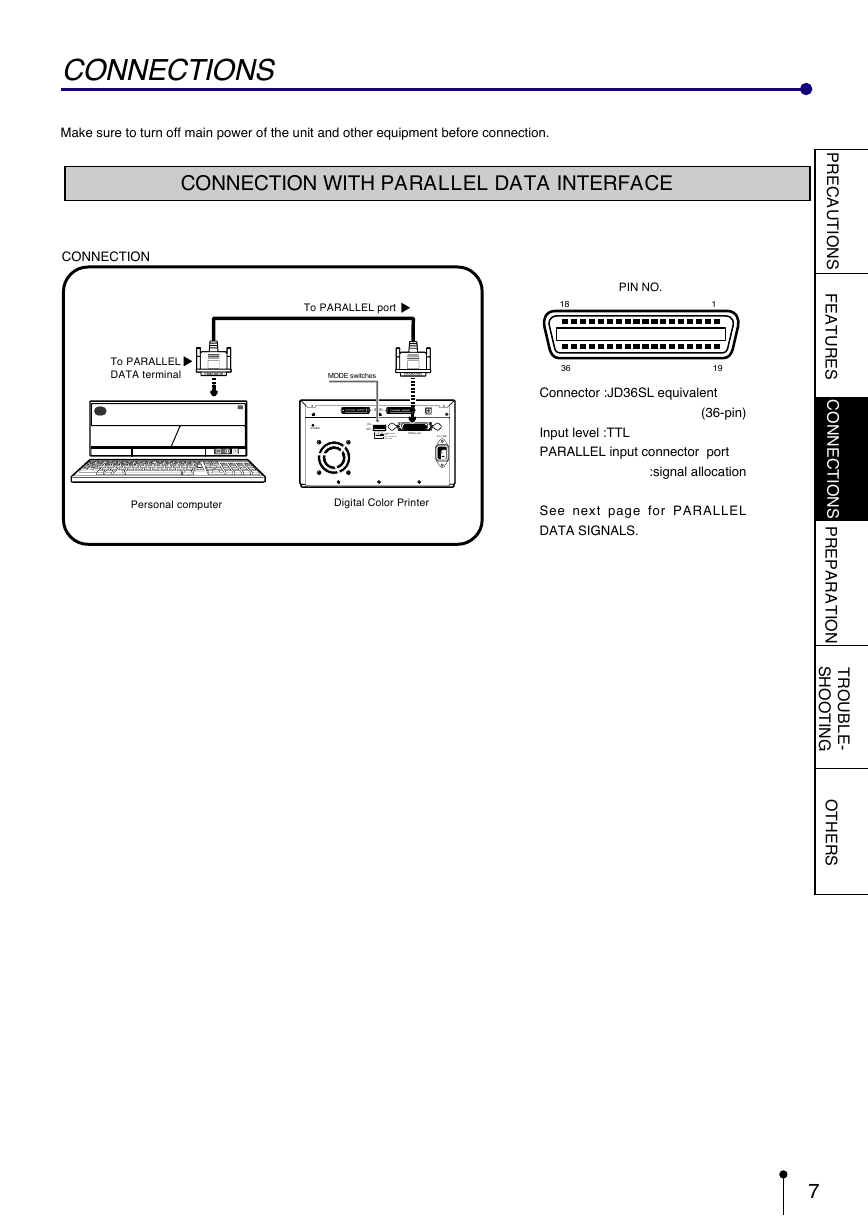

CONNECTIONS Make sure to turn off main power of the unit and other equipment before connection. CONNECTION WITH PARALLEL DATA INTERFACE CONNECTION To PARALLEL port To PARALLEL DATA terminal MODE switches SCREW SCSI ON OFF 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 DIRECT SNAP ACK ON PARALLEL OFF SCSI ID No. PARALLEL AC LINE Personal computer Digital Color Printer PIN NO. 18 36 1 19 Connector :JD36SL equivalent (36-pin) Input level :TTL PARALLEL input connector port :signal allocation See next page for PARALLEL DATA SIGNALS. P R E C A U T O N S I F E A T U R E S C O N N E C T O N S I P R E P A R A T O N I S H O O T N G I T R O U B L E - O T H E R S 7
