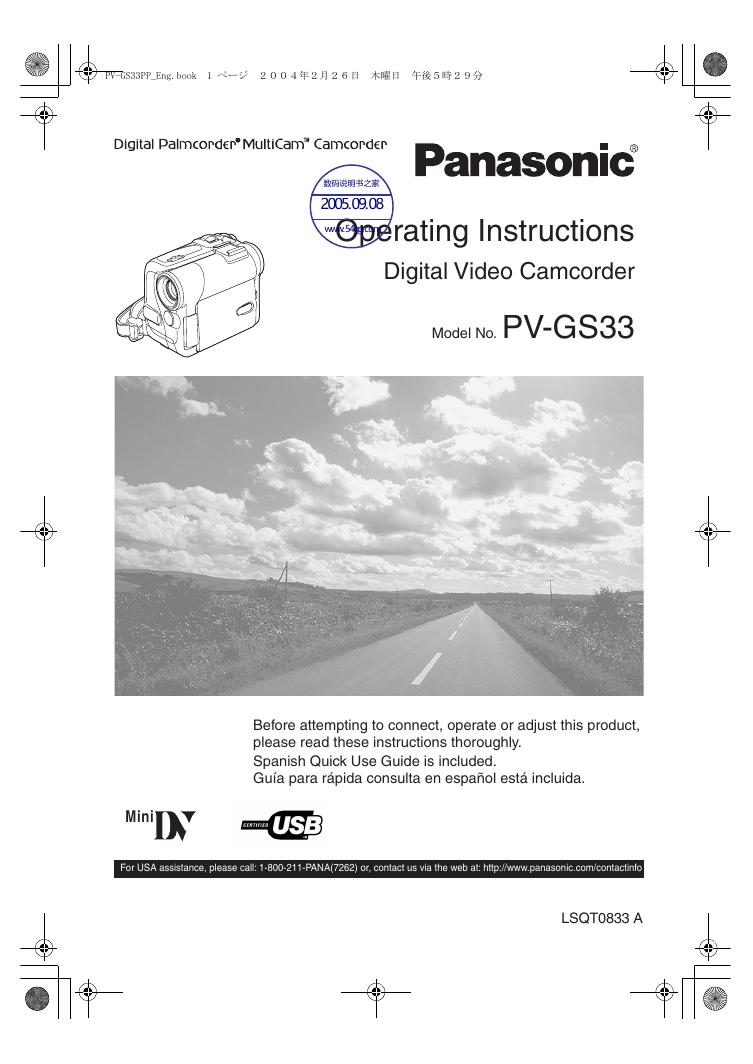

PV-GS33PP_Eng.book 1 ページ２００４年２月２６日　木曜日　午後５時２９分 Operating Instructions Digital Video Camcorder Model No. PV-GS33 Before attempting to connect, operate or adjust this product, please read these instructions thoroughly. Spanish Quick Use Guide is included. Guía para rápida consulta en español está incluida. Mini For USA assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo LSQT0833 A

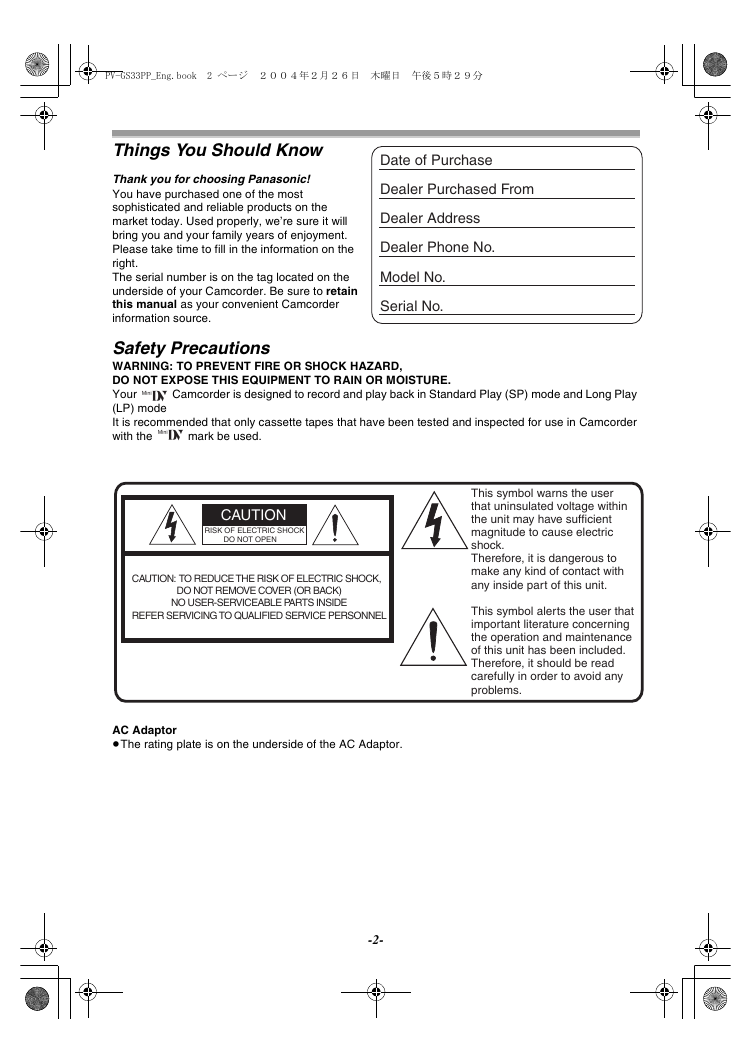

PV-GS33PP_Eng.book 2 ページ２００４年２月２６日　木曜日　午後５時２９分 Things You Should Know Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the right. The serial number is on the tag located on the underside of your Camcorder. Be sure to retain this manual as your convenient Camcorder information source. Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. Serial No. Safety Precautions WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. Your Ò (LP) mode It is recommended that only cassette tapes that have been tested and inspected for use in Camcorder with the Camcorder is designed to record and play back in Standard Play (SP) mode and Long Play Ò mark be used. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL AC Adaptor ≥The rating plate is on the underside of the AC Adaptor. This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. -2-

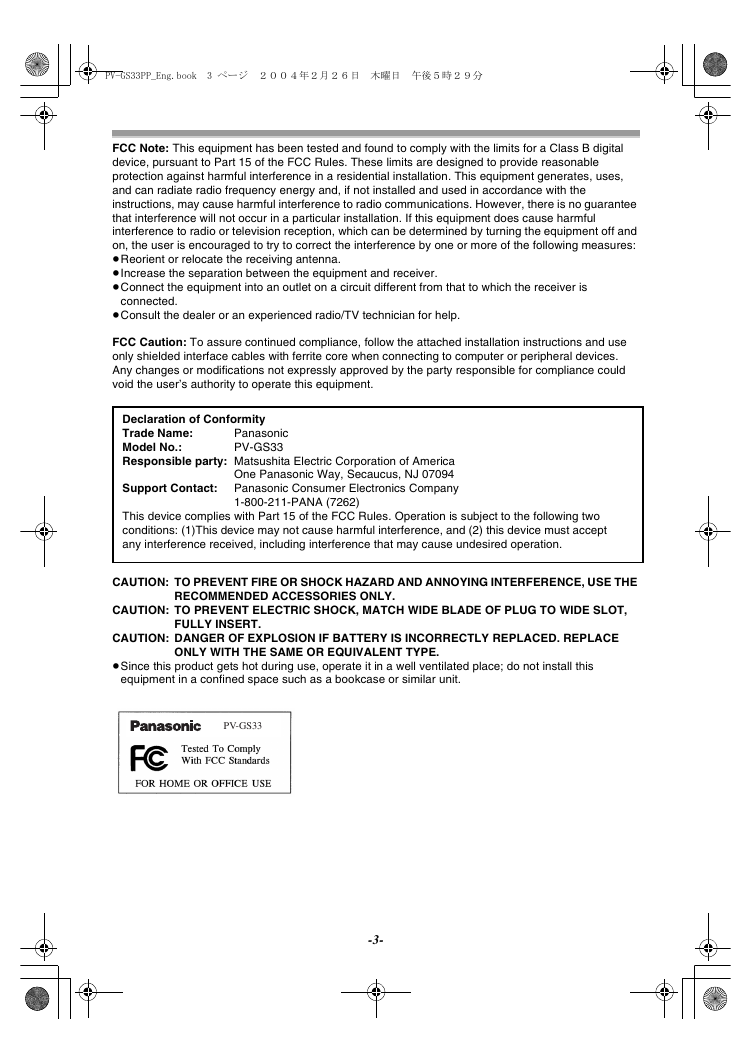

PV-GS33PP_Eng.book 3 ページ２００４年２月２６日　木曜日　午後５時２９分 FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Panasonic PV-GS33 Declaration of Conformity Trade Name: Model No.: Responsible party: Matsushita Electric Corporation of America One Panasonic Way, Secaucus, NJ 07094 Panasonic Consumer Electronics Company 1-800-211-PANA (7262) Support Contact: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: TO PREVENT FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. ≥Since this product gets hot during use, operate it in a well ventilated place; do not install this equipment in a confined space such as a bookcase or similar unit. PV-GS33 -3-

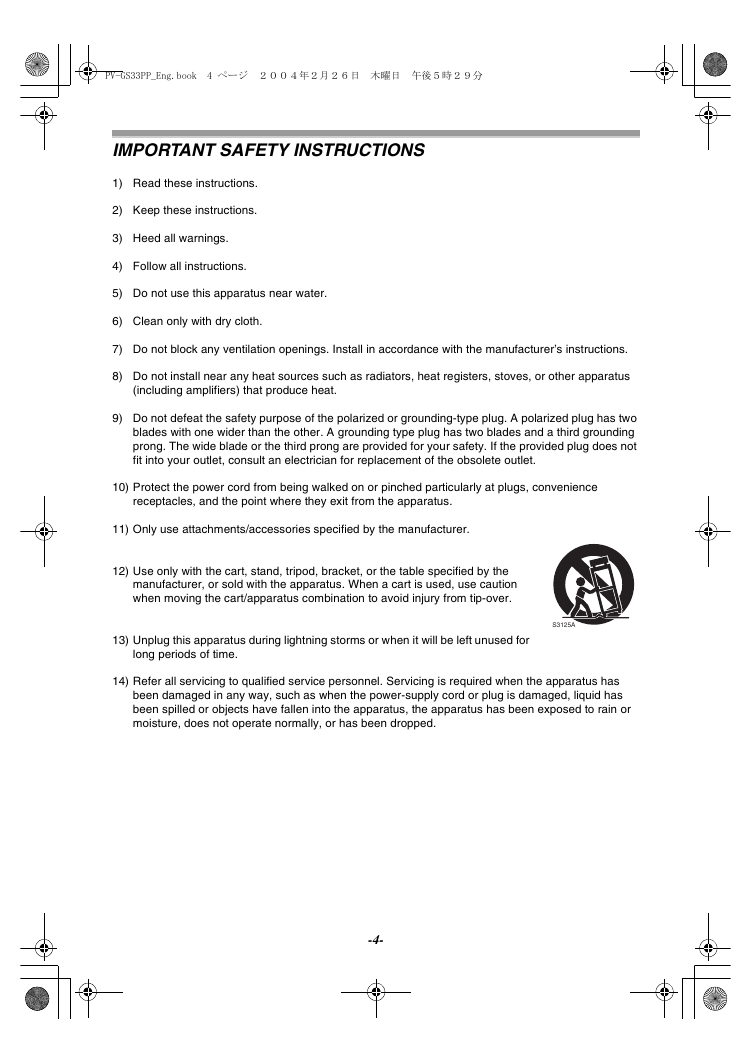

PV-GS33PP_Eng.book 4 ページ２００４年２月２６日　木曜日　午後５時２９分 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or the table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when it will be left unused for long periods of time. S3125A 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. -4-

PV-GS33PP_Eng.book 5 ページ２００４年２月２６日　木曜日　午後５時２９分 Precautions USE & LOCATION WARNING ≥TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your Camcorder from the power supply before cleaning. CAUTION ≥DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS ≥DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE DAMAGE TO THE INTERNAL PARTS OF THE EVF ≥DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight, inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your Camcorder. ≥AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm place, moisture may form on the tape and inside the unit. ≥DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE. ≥STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which could be damaged by improper handling or storage. CARE ≥TO CLEAN YOUR Camcorder ... Do not use strong or abrasive detergents when cleaning your Camcorder body. ≥TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial Camcorder lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating. ≥TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands and face are free from any chemical products, such as suntan lotion, as it may damage the finish. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. U.S.A. CONSUMERS: ATTENTION: A lithium ion/polymer battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery. -5-

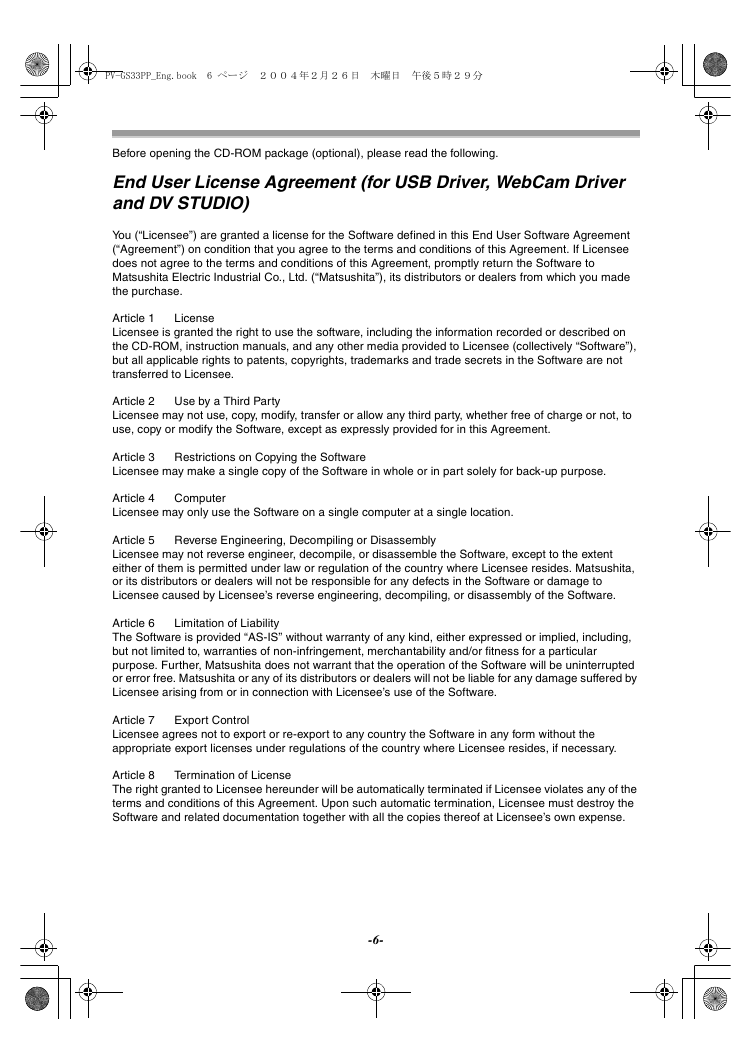

PV-GS33PP_Eng.book 6 ページ２００４年２月２６日　木曜日　午後５時２９分 Before opening the CD-ROM package (optional), please read the following. End User License Agreement (for USB Driver, WebCam Driver and DV STUDIO) You (“Licensee”) are granted a license for the Software defined in this End User Software Agreement (“Agreement”) on condition that you agree to the terms and conditions of this Agreement. If Licensee does not agree to the terms and conditions of this Agreement, promptly return the Software to Matsushita Electric Industrial Co., Ltd. (“Matsushita”), its distributors or dealers from which you made the purchase. License Article 1 Licensee is granted the right to use the software, including the information recorded or described on the CD-ROM, instruction manuals, and any other media provided to Licensee (collectively “Software”), but all applicable rights to patents, copyrights, trademarks and trade secrets in the Software are not transferred to Licensee. Use by a Third Party Article 2 Licensee may not use, copy, modify, transfer or allow any third party, whether free of charge or not, to use, copy or modify the Software, except as expressly provided for in this Agreement. Article 3 Licensee may make a single copy of the Software in whole or in part solely for back-up purpose. Restrictions on Copying the Software Article 4 Licensee may only use the Software on a single computer at a single location. Computer Reverse Engineering, Decompiling or Disassembly Article 5 Licensee may not reverse engineer, decompile, or disassemble the Software, except to the extent either of them is permitted under law or regulation of the country where Licensee resides. Matsushita, or its distributors or dealers will not be responsible for any defects in the Software or damage to Licensee caused by Licensee’s reverse engineering, decompiling, or disassembly of the Software. Limitation of Liability Article 6 The Software is provided “AS-IS” without warranty of any kind, either expressed or implied, including, but not limited to, warranties of non-infringement, merchantability and/or fitness for a particular purpose. Further, Matsushita does not warrant that the operation of the Software will be uninterrupted or error free. Matsushita or any of its distributors or dealers will not be liable for any damage suffered by Licensee arising from or in connection with Licensee’s use of the Software. Export Control Article 7 Licensee agrees not to export or re-export to any country the Software in any form without the appropriate export licenses under regulations of the country where Licensee resides, if necessary. Termination of License Article 8 The right granted to Licensee hereunder will be automatically terminated if Licensee violates any of the terms and conditions of this Agreement. Upon such automatic termination, Licensee must destroy the Software and related documentation together with all the copies thereof at Licensee’s own expense. -6-

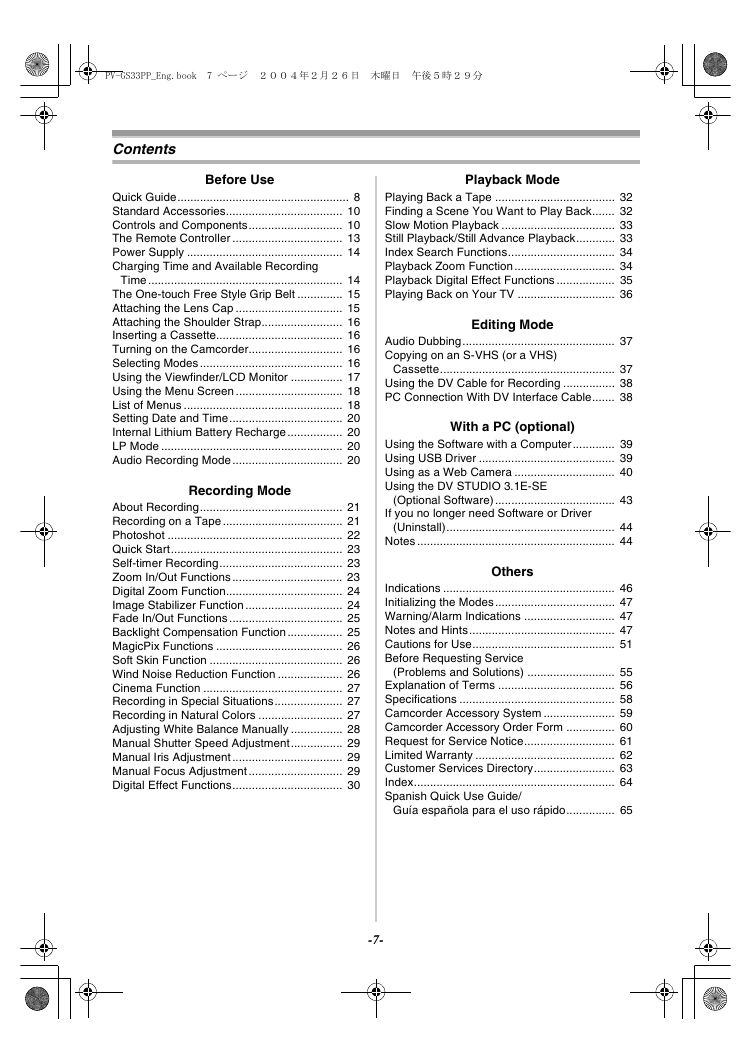

PV-GS33PP_Eng.book 7 ページ２００４年２月２６日　木曜日　午後５時２９分 Contents Before Use Playback Mode Quick Guide..................................................... 8 Standard Accessories.................................... 10 Controls and Components............................. 10 The Remote Controller .................................. 13 Power Supply ................................................ 14 Charging Time and Available Recording Time ............................................................ 14 The One-touch Free Style Grip Belt .............. 15 Attaching the Lens Cap ................................. 15 Attaching the Shoulder Strap......................... 16 Inserting a Cassette....................................... 16 Turning on the Camcorder............................. 16 Selecting Modes ............................................ 16 Using the Viewfinder/LCD Monitor ................ 17 Using the Menu Screen ................................. 18 List of Menus ................................................. 18 Setting Date and Time................................... 20 Internal Lithium Battery Recharge ................. 20 LP Mode ........................................................ 20 Audio Recording Mode .................................. 20 Recording Mode About Recording............................................ 21 Recording on a Tape ..................................... 21 Photoshot ...................................................... 22 Quick Start..................................................... 23 Self-timer Recording...................................... 23 Zoom In/Out Functions .................................. 23 Digital Zoom Function.................................... 24 Image Stabilizer Function .............................. 24 Fade In/Out Functions ................................... 25 Backlight Compensation Function ................. 25 MagicPix Functions ....................................... 26 Soft Skin Function ......................................... 26 Wind Noise Reduction Function .................... 26 Cinema Function ........................................... 27 Recording in Special Situations..................... 27 Recording in Natural Colors .......................... 27 Adjusting White Balance Manually ................ 28 Manual Shutter Speed Adjustment................ 29 Manual Iris Adjustment .................................. 29 Manual Focus Adjustment ............................. 29 Digital Effect Functions.................................. 30 Playing Back a Tape ..................................... 32 Finding a Scene You Want to Play Back....... 32 Slow Motion Playback ................................... 33 Still Playback/Still Advance Playback............ 33 Index Search Functions................................. 34 Playback Zoom Function............................... 34 Playback Digital Effect Functions .................. 35 Playing Back on Your TV .............................. 36 Editing Mode Audio Dubbing............................................... 37 Copying on an S-VHS (or a VHS) Cassette...................................................... 37 Using the DV Cable for Recording ................ 38 PC Connection With DV Interface Cable....... 38 With a PC (optional) Using the Software with a Computer............. 39 Using USB Driver .......................................... 39 Using as a Web Camera ............................... 40 Using the DV STUDIO 3.1E-SE (Optional Software) ..................................... 43 If you no longer need Software or Driver (Uninstall).................................................... 44 Notes ............................................................. 44 Others Indications ..................................................... 46 Initializing the Modes..................................... 47 Warning/Alarm Indications ............................ 47 Notes and Hints............................................. 47 Cautions for Use............................................ 51 Before Requesting Service (Problems and Solutions) ........................... 55 Explanation of Terms .................................... 56 Specifications ................................................ 58 Camcorder Accessory System ...................... 59 Camcorder Accessory Order Form ............... 60 Request for Service Notice............................ 61 Limited Warranty ........................................... 62 Customer Services Directory......................... 63 Index.............................................................. 64 Spanish Quick Use Guide/ Guía española para el uso rápido............... 65 -7-

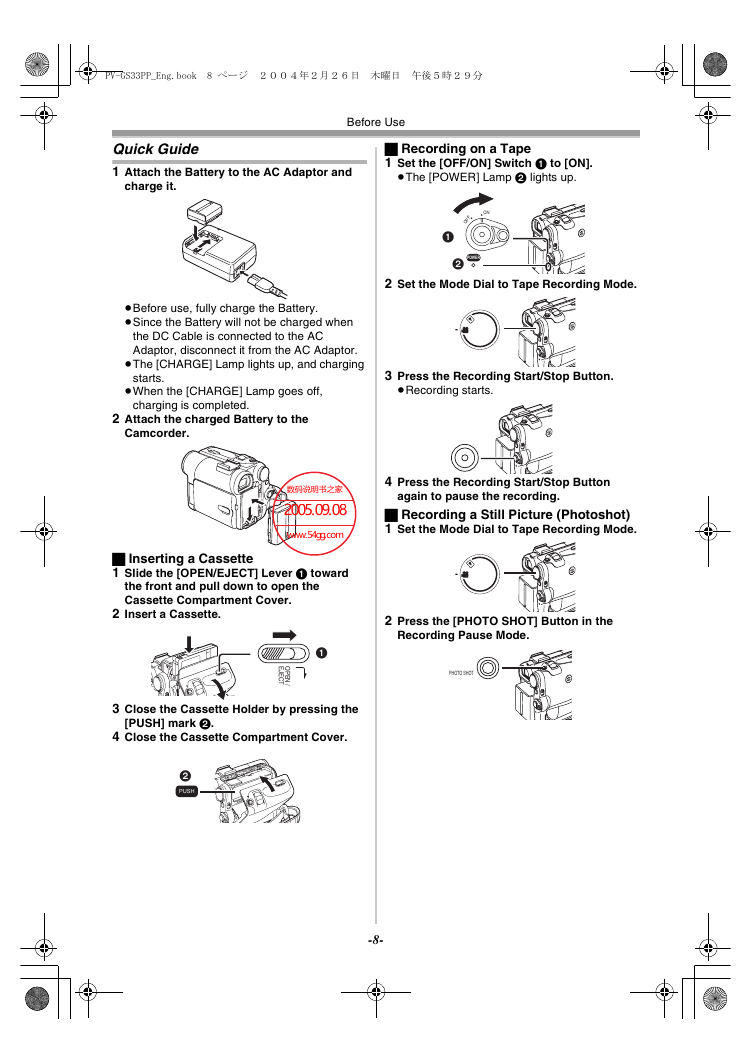

PV-GS33PP_Eng.book 8 ページ２００４年２月２６日　木曜日　午後５時２９分 Before Use Quick Guide 1 Attach the Battery to the AC Adaptor and charge it. ª Recording on a Tape 1 Set the [OFF/ON] Switch 1 to [ON]. ≥The [POWER] Lamp 2 lights up. ≥Before use, fully charge the Battery. ≥Since the Battery will not be charged when the DC Cable is connected to the AC Adaptor, disconnect it from the AC Adaptor. ≥The [CHARGE] Lamp lights up, and charging starts. ≥When the [CHARGE] Lamp goes off, charging is completed. 2 Attach the charged Battery to the Camcorder. ON OFF 1 POWER 2 2 Set the Mode Dial to Tape Recording Mode. 3 Press the Recording Start/Stop Button. ≥Recording starts. 4 Press the Recording Start/Stop Button again to pause the recording. ª Recording a Still Picture (Photoshot) 1 Set the Mode Dial to Tape Recording Mode. ª Inserting a Cassette 1 Slide the [OPEN/EJECT] Lever 1 toward the front and pull down to open the Cassette Compartment Cover. 2 Insert a Cassette. 2 Press the [PHOTO SHOT] Button in the Recording Pause Mode. 1 PHOTO SHOT E J E C T O P E N / 3 Close the Cassette Holder by pressing the [PUSH] mark 2. 4 Close the Cassette Compartment Cover. 2 PUSH -8-
