高级FPGA系统设计Ver.5.0.0908

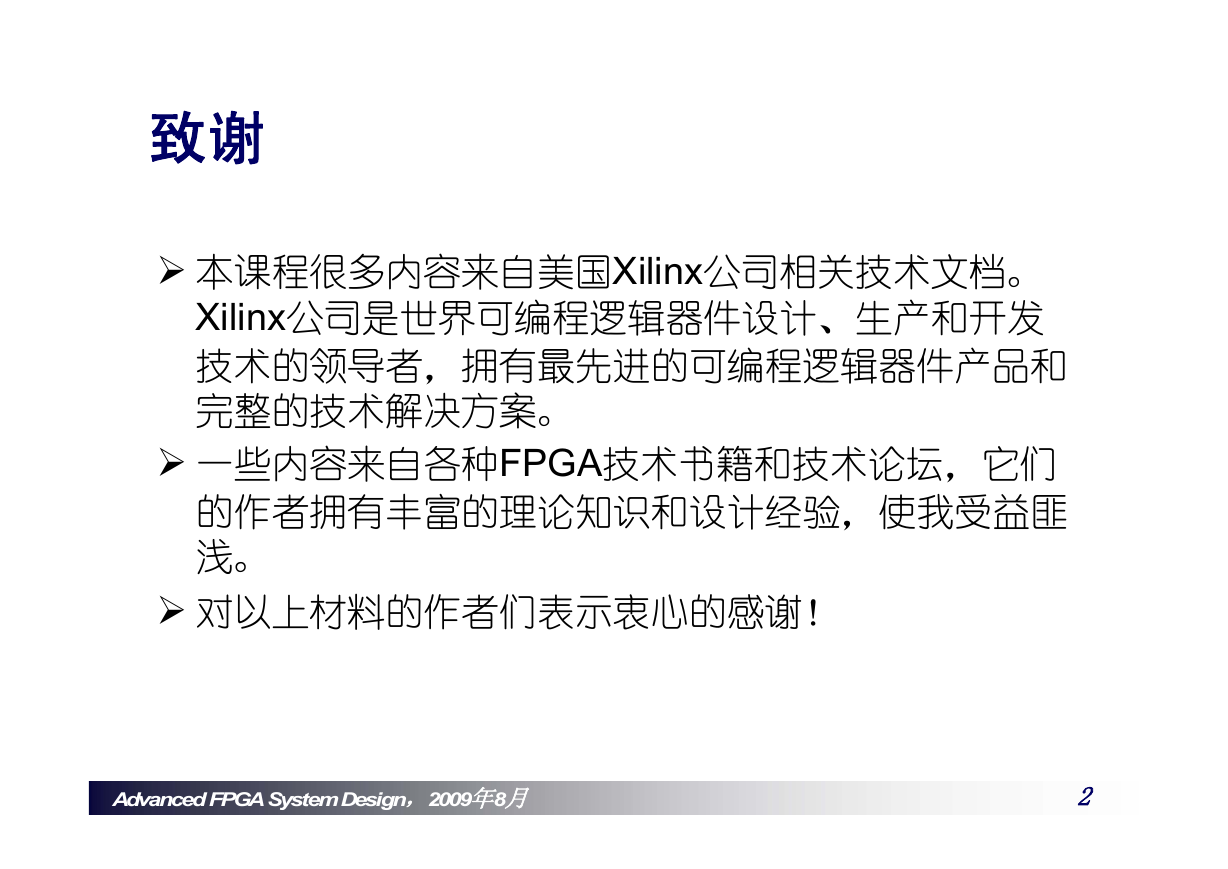

致谢

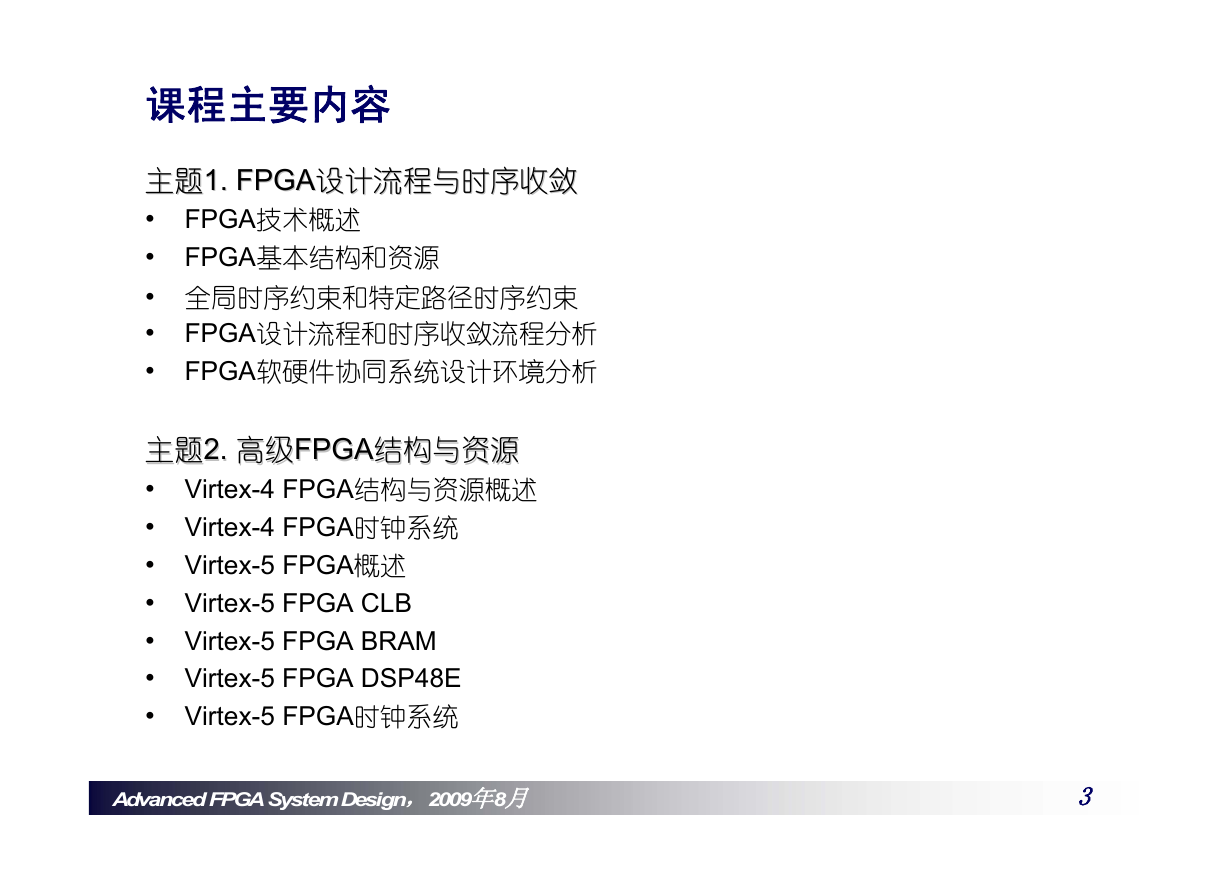

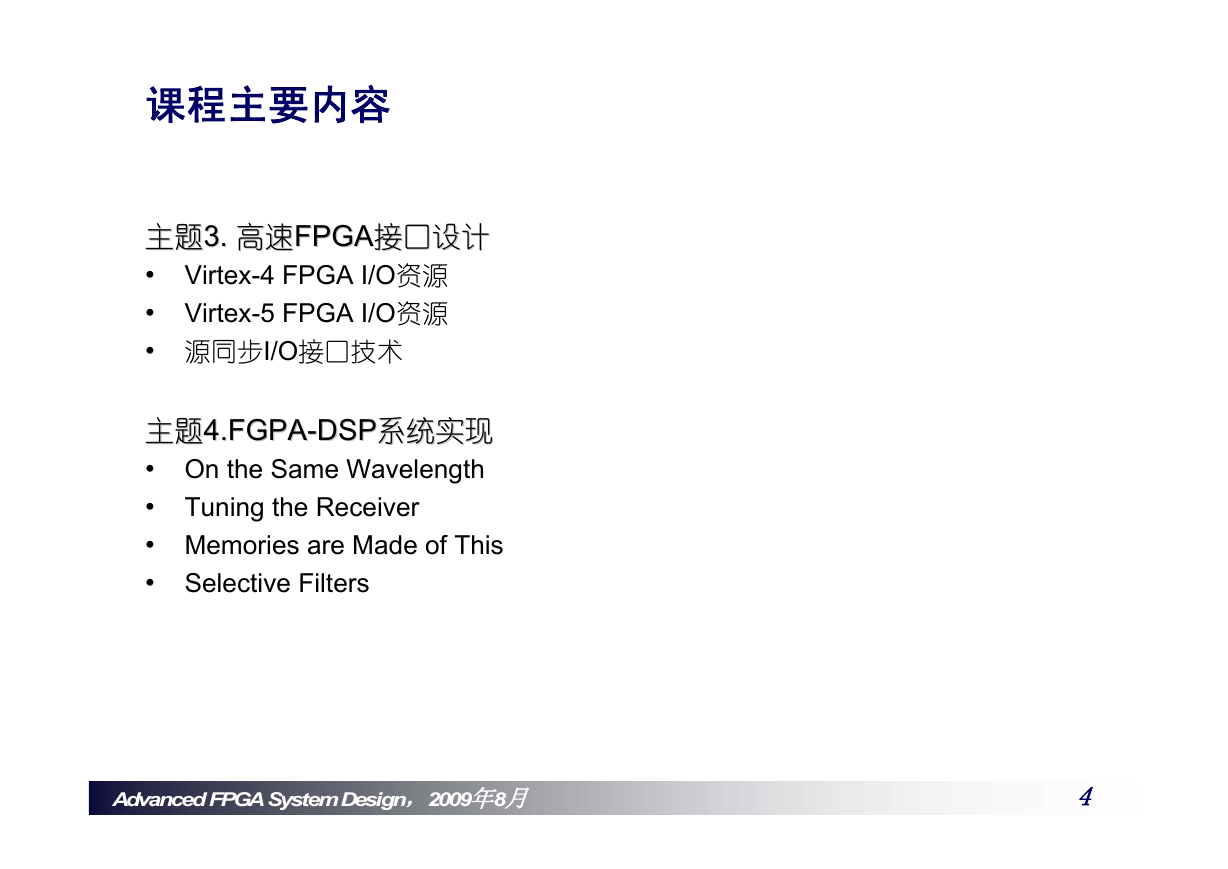

课程主要内容

主题

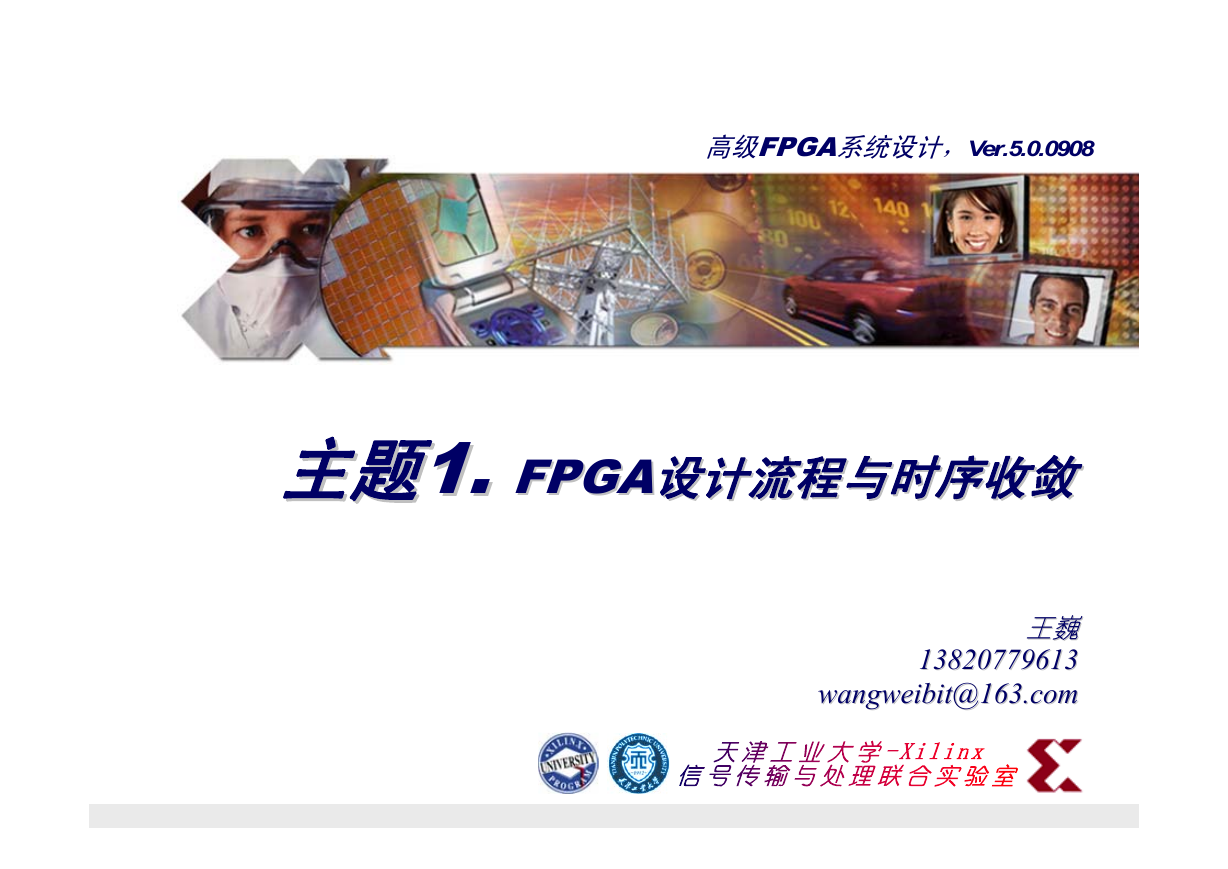

主题1. FPGA设计流程与时序收敛

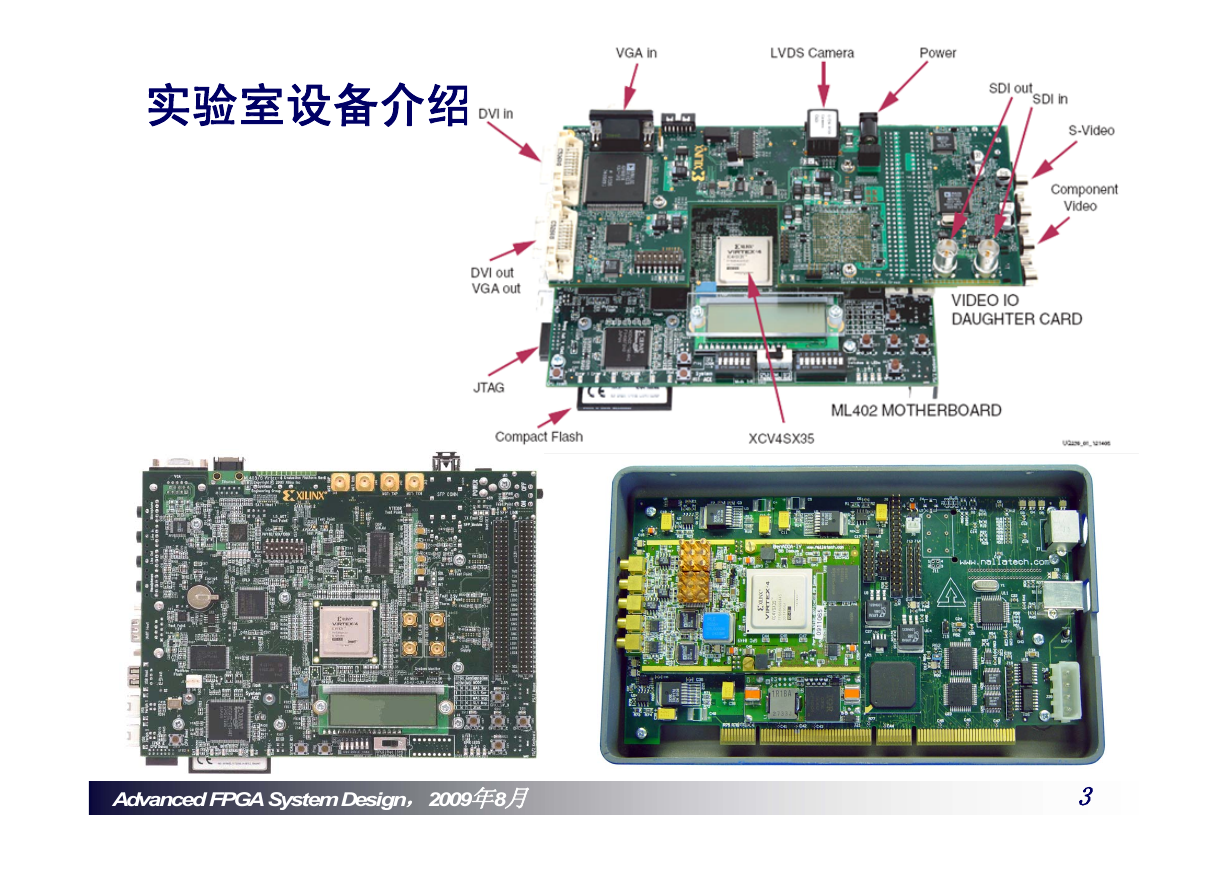

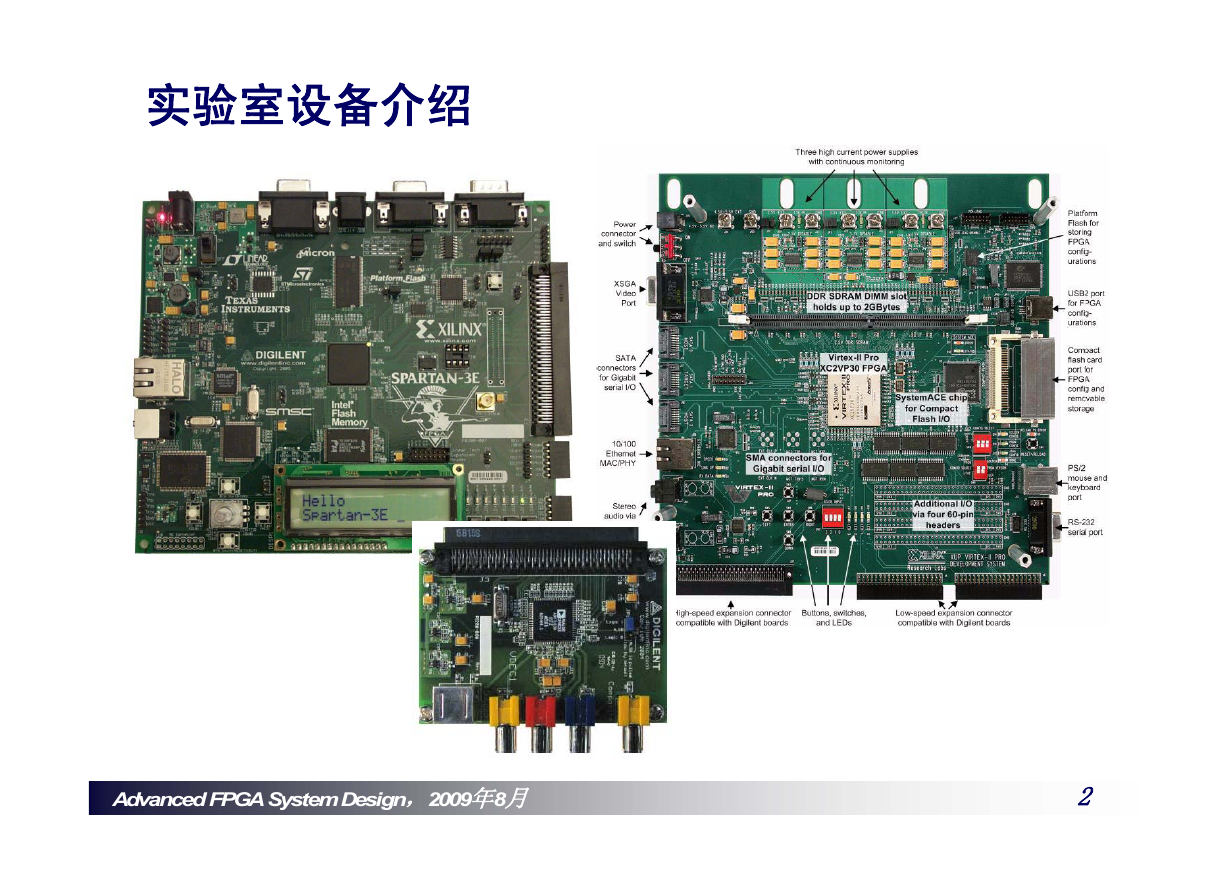

实验室设备介绍

在研项目-高速无损检测机

在研项目-雷达信号处理机

Outline

几个小问题？

幻灯片编号 11

处理单元

异步电路 Vs. 同步电路？

幻灯片编号 14

软件无线电

IF软件无线电

幻灯片编号 17

幻灯片编号 18

幻灯片编号 19

幻灯片编号 20

Outline

FPGA架构

概述

Slices and CLBs

Simplified Slice Structure

查找表(Look-Up Tables)

使用LUT实现移位flip-flop Shift Register (SRL16CE)

Shift Register LUT(SRL)例子

灵活的时序单元(Sequential Elements)

Distributed SelectRAM资源

Block SelectRAM资源

专用 Multiplier Blocks

Global Clock 布线资源

数字时钟管理器 (DCM)

幻灯片编号 41

幻灯片编号 42

IOB Element

SelectIO标准

数控匹配阻抗(DCI)

Outline

附加约束的基本作用

? 路径(Path)

周期约束

周期约束：精确的时间信息

输入时钟抖动是时钟不确定性的原因之一(Clock Uncertainty)

周期约束的计算

偏移约束

幻灯片编号 55

OFFSET_IN_BEFORE和OFFSET_IN_AFTER

OFFSET_IN的计算

幻灯片编号 58

OFFSET_OUT_BEFORE和OFFSET_OUT_AFTER

OFFSET_OUT的计算

幻灯片编号 61

Offset Constraints 自动处理时钟延迟和抖动

Offset Constraints Account for Clock Delay

约束编辑器（Constraints Editor）

输入约束

轻松的小问题

Path-Specific Timing Constraints

More About Path-Specific Timing Constraints

Advanced Tab of the Constraints Editor

Creating Groups of End Points

Pin-Specific OFFSET Constraints

Creating Groups of Pads

Creating Group OFFSET Constraints

OFFSET Constraints with Two-Phase Clocks

Constraining Between Related Clock Domains

Constraining Between Unrelated Clock Domains

Multicycle Path Constraints

False Paths

Creating Multicycle Path and False Path Constraints

Timing Constraint Priority

Timing Reports

使用Timing Analyzer 查看时序报告(Timing Reports)

Timing Report Structure

Using the Timing Analyzer

Timing Analyzer GUI

幻灯片编号 86

Cross-Probing

Report Example：Tilo

Estimating Design Performance

60/40 Rule

Analyzing Post-Place & Route Timing

Case 1

Poor Placement: Solutions

Case 2

High Fanout: Solutions

Case 3

Too Many Logic Levels: Solutions

I/O位置约束

通用I/O Layout 指导

大型器件I/O Layout 指导

Outline

Xilinx 设计流程

Outline

幻灯片编号 112

幻灯片编号 113

System Generator for DSP平台设计

SysGen 设计流程

建立一个System Generator 设计

System Generator 设计

幻灯片编号 118

Xilinx Processor家族

PowerPC-Based Embedded Design

MicroBlaze-Based Embedded Design

Xilinx Platform Studio (XPS)

Embedded DevelopmentTool Flow Overview

幻灯片编号 124

幻灯片编号 125

Timing Closure

幻灯片编号 127

主题

主题2. 高级FPGA结构与资源

Outline

Fourth-Generation Virtex Family

幻灯片编号 4

Increased Functionality with Dramatic Power Reduction

幻灯片编号 6

Virtex-4 FPGA CLB

I/O Banking

IOB Tile

幻灯片编号 10

Data Input DDR_CLOCK_EDGE = Opposite Edge

Data Input DDR_CLOCK_EDGE = Same Edge

Data Input DDR_CLOCK_EDGE = Same Edge Pipelined

ISERDES

Use Examples

ILOGIC Block Diagram

Input DDR VHDL Code Example

Input DDR Verilog Code Example

IDDR VHDL Instantiate primitives Example

OLOGIC Block Diagram

Output DDR in OPPOSITE_EDGE Mode

Output DDR in SAME_EDGE Mode

OSERDES

ODDR VHDL Instantiate primitives Example

ChipSync WizardMemory Applications: General and Data Setup

Memory Interface GeneratorMemory Corner: www.xilinx.com  Technology Solutions  Memory

Virtex-4 FPGA Block RAM

New Block RAM

FIFO16

Block RAM FIFO Feature Summary

FIFO Operation Mode

FIFO16 Use

Virtex-4 FPGA XtremeDSP Technology Slice

XtremeDSP Technology Slice Advantages

Virtex-II Pro FPGA Design Example

Virtex-4 FPGA Design Example

DSP Tile

幻灯片编号 40

The Most Advanced Serial I/O

Integrated PowerPC 405 Processor CoreWorld’s Most Popular Embedded Processor Architecture

New Tri-Mode Ethernet MAC

Knowledge Check & Answers

Summary

Where Can I Learn More?

Outline

Objectives

Virtex-4 FPGA Clocking Floorplan

Virtex-4 FPGA Clocking

Global Clock Pads

Clock Nets Can Drive Nonclock Pins

BUFGCTRL

Virtex-4 FPGA ClockingBUFGCTRL Drivers

Virtex-4 FPGA ClockingBUFGCTRL – Providing all the Hooks

BUFGCTRL Example

BUFGCTRL Attributes

BUFGCTRL Truth Table

BUFG

BUFG Multiplexer

BUFGMUX_VIRTEX4

BUFGCTRL 2:1 Multiplexer

BUFGCE

BUFGCE Design Example

BUFGMUX+CE Example

Regional Clocking

Clock-Capable I/O

BUFIO

Regional Clock Buffer (BUFR)

Regional Clock BufferExample

Multiple Clocks?

Use

Global Clock Buffers SetupIP (COREGen & Architecture Wizard)

BUFR and BUFIO Instantiation

Knowledge Check

Answers

Summary

Outline

Objectives

Virtex Family Product and Process Evolution

65-nm Xilinx Virtex-5 Platform FPGA New Benchmark in FPGA Price Performance

Virtex-5 FPGA Platform Feature Overview

Virtex-5 and Virtex-4 FPGA Comparison

Higher Performance 1.25-Gbps SelectIO Technology

Second-Generation ChipSync Calibration Circuitry for Every I/O

Measurements Show 35 Percent Lower Dynamic Power

New and Enhanced Hardened IPDrives System Integration

Continuing the Drive for Innovation

Optimized Performance and Area6-Input LUT Yields Best Results at 65 nm

Real 6-Input LUTReduce Logic Levels and Improve Performance

Virtex-5 FPGA Clock Management Tile

Virtex-5 FPGA Block RAM and FIFO

DSP48E Slice

Summary

Where Can I Learn More?

Outline

Objectives

Virtex-5 FPGA Floorplan

Revamped CLB

SLICEL and SLICEM

Real 6-Input LUTReduce Logic Levels and Improve Performance

6-Input LUT with Dual Output

6-Input LUTs are Better

Quad-Port Memory in One SLICEM

32-Bit Shift Registers in One LUT

Knowledge Check & Answers

Application Example MicroBlaze Processor

CLB Summary

Knowledge Check & Answer

Summary

Outline

Objectives

Virtex-5 FPGA Memory OptionsThe Right Memory for the Application

Distributed Memory

Block RAM and FIFO Block

Interfacing to External Memories

Virtex-5 FPGA Control Logic SchemeDynamic Power Reduction

Many Block RAM Configurations

BRAM/FIFO Memory Capacity

Main Changes from Virtex-4 Block RAM

Virtex-5 FPGA Block RAM and FIFO Enhancements

Independent 18-kb Block RAM and FIFO

Simple Dual-Port or Single-Port Block RAM

Single-Port Mode

Simple Dual-Port Mode

True Dual-Port Mode

Block RAM is Cascadable

Output Register Set/Reset

Block RAM Use

RAMB Primitives

WE During Write First Mode

IP (COREGen & Architecture Wizard)

Knowledge Check & Answer

FIFO18/36 Top-Level View

FIFO18/36

Two Modes

Virtex-5 FPGA FIFOs are Cascadable

Cascading FIFO to Increase Depth

Cascading FIFO in Width

FIFO Functions: Reset

FIFO Functions: FIFO Empty

FIFO Functions: RDERR

FIFO Functions: FIFO Full

FIFO Functions: WRERR

FIFO Functions: Almost Empty and Almost Full

FIFO Functions: WRCOUNT and RDCOUNT

Integrated Error Correction

FIFO18/36 Use

Knowledge Check & Answers

Summary

Where Can I Learn More?

Outline

Objectives

DSP48EExtending the Capabilities of the DSP48 Slice

DSP48E Slice Power Estimate

Virtex-4 FPGA DSP48 Slice

Virtex-5 FPGA (25x18) Multiplier

Independent C Input

SIMD and Logic Unit

幻灯片编号 174

Basic Logic Functions

A Input Cascade

Pattern Detector

Attributes

Port Descriptions

Virtex-5 FPGA CARRYIN Multiplexer and Register

CARRYINSEL Multiplexer

A/B Registers

Valid Register Configurations

Overflow/Underflow

Counter Auto Reset

Complex Multiply (25 X 18)

MACC Extension

Key Applications that will Benefit from Wider Inputs

Key Applications that will Benefit from Expanded Second Stage

Key Applications that will Benefit from Expanded Cascade

Key Applications that will Benefit from Independent C Input

Symmetric Rounding

16 x 16 Multiplier

MADD

2-Input Adder

Loadable MAC

Dynamically ReconfigurableDSP OPMODEs

Multiply (35 X 25)

Implement or Accelerate DSP Functions

Adder Tree versus Cascaded Adder

幻灯片编号 209

Problem: The FIR Filter

Chaining Up The Trees

Answer: The FIR Filter

IP SupportIP (COREGen & Architecture Wizard)

Knowledge Check & Answer

Summary

Where Can I Learn More?

Outline

Objectives

Virtex-5 FPGA Delivers Powerful Clock Management

Three Types of Clock Resources

Virtex-5 FPGA Clock Management Summary

Product Comparison

Virtex-5 FPGA Clock Management Tile

Standard CMT Configurations

CMT General Use Model

DCM Features

PLL Features

PLL Primitives

PLL Basics

PLL Equations

PLL Counter Attributes

PLL Attributes

PLL Basic Equations

Phase-Locked Loop Attributes

Counter Output Examples

Phase-Locked Loop Attributes

CLKFBOUT_PHASE Affect on Waveforms

Phase-Locked Loop Attributes

PLL and Jitter

PLL Jitter Filter

What is the PLL Output Jitter?

Knowledge Check

A Knowledge Check & answer

PLL Use Example Frequency Synthesizer and Jitter Filter

PLL Use Example Clock Network De-Skew

PLL Use Example Zero Delay Buffer

PLL Use ExampleDCM2PLL

PLL Use ExamplePLL2DCM

Virtex-5 FPGA Clock Regions and I/O Banks

Virtex-5 FPGA Global Clocking

Virtex-5 FPGA I/O Clocking

Virtex-5 FPGA Regional Clocking

Use

Knowledge Check

Answer

Knowledge Check

Answer

Summary

Where Can I Learn More?

幻灯片编号 270

主题

主题3. 高速FPGA接口设计

Outline

Objectives

What is Identical to the Virtex-II Pro FPGA?

What’s New or Changed?

I/O Banking

IOB Tiles

Output DDR Changes

Data Output DDR_CLOCK_EDGE = Opposite Edge

Data Output DDR_CLOCK_EDGE = Same Edge

ODDR Instantiation

Input DDR Changes

Data Input DDR_CLOCK_EDGE = Opposite Edge

Data Input DDR_CLOCK_EDGE = Same Edge

Data Input DDR_CLOCK_EDGE = Same Edge Pipelined

IDDR Instantiation

Source-Synchronous System

Source-Synchronous Problems and Solutions

Source-Synchronous Problems and Solutions (continued)

Virtex-4 Source-Synchronous Clocking Resources

OSERDES

OSERDES Width Expansion

OSERDES Attributes

Source-Synchronous Input Solutions

Source-Synchronous Solution

ISERDES

ISERDES Width Expansion

ISERDES Attributes

Dynamic Phase Alignment

Source-Synchronous Clocking (Ideal)

Source-Synchronous Clocking

Delay Chain

64-Tap Absolute Delay Line

Delay Chain

ISERDES Attributes for IDELAY

Delay-Chain Operation

IDELAYCTRL

Word Alignment

Bitslip

Bitslip Use Rules

Word Alignment (Bitslip)

Use Examples

ChipSync WizardMemory Applications: General and Data Setup

Memory Interface Generator

Knowledge Check & Answers

Summary

Where Can I Learn More?

System Interface Platforms

ML461 Memory Interface Boards

Outline

Objectives

I/O Banking Architecture

EnhancementsInput and Output Buffers

EnhancementsChipSync Technology Enhancements

Easy Interface to Source- Synchronous Memory

Virtex-5 FPGA SelectIO Interface Simplifies Design with Built-In Critical Circuits

Easy Frequency Division

Easy Word Alignment

Up to 39 Channels Can Be Clock Aligned in a Region

Memory Reference Design Kits

Delay Chain

64-Tap Absolute Delay Line

Delay Chain

Delay-Chain Operation

IDELAYCTRL

Bitslip

Bitslip Use Rules

OSERDES Attributes

ISERDES Attributes

ISERDES Attributes for IDELAY

Edge-Aligned DDR Inputs Opposite Edge

Edge-Aligned DDR InputsSame Edge

Edge-Aligned DDR InputsSame-Edge Pipelined

Drive DDR Output Data with One Clock

ISERDES Manages Incoming Data

OSERDES Simplifies Frequency Multiplication

Data Output Alignment

Bit Alignment Centers Clock within Data Valid Window

Use Examples

ChipSync WizardMemory Applications: General and Data Setup

Memory Interface Generator

Knowledge Check

Knowledge Check & Answer

Summary

Where Can I Learn More?

Outline

Virtex-4 I/O Tile

Virtex-4 IOB Switching Characteristics

Virtex-4 ILOGIC Switching Characteristics

Virtex-4 OLOGIC Switching Characteristics

Virtex-4 OLOGICSwitching Characteristics

Virtex-4 ISERDES Switching Characteristics

Virtex-4 ISERDESSwitching Characteristics

Virtex-4 ISERDES Switching Characteristics

Virtex-4 OSERDESSwitching Characteristics

Virtex-4 OSERDES Switching Characteristics

Virtex-4 OSERDESSwitching Characteristics

Virtex-4 CLBSwitching Characteristics

Virtex-4 CLB Switching Characteristics

Virtex-4 Block RAM Switching Characteristics

Virtex-4 FIFO switching Characteristics

Clock Switching Characteristics

Introduction

Circuit Description

Working Principles

Circuit Description

Working Principles

Circuit Description

Example1: SDR Transceiver

幻灯片编号 128

TX_CLK_AND_DAT Module Block Diagram

幻灯片编号 130

RX_CLK_AND_DAT Module Block Diagram

Bus Alignment: Clock Training

Clock to Data Centering Circuit

幻灯片编号 134

Simplified Virtex-4 DDR Transceiver Block Diagram

TX_CLOCKS Module Using PMCD

TX_CLK_AND_DAT Module

幻灯片编号 138

RX_CLK_AND_DAT Module

ISERDES_ALIGNMENT_MACHINE Module

幻灯片编号 141

Example3：高速存储器数据捕获

存储器的读数据捕获(Read Data Capture)

幻灯片编号 144

幻灯片编号 145

幻灯片编号 146

幻灯片编号 147

幻灯片编号 148

幻灯片编号 149

幻灯片编号 150

533Mbps(267MHz)DDR2接口(V4)

Input Setup Timing Requirements

Input Hold Timing Requirements

Input Requirement Reporting

Setup Time and Relative Mins

Setup Time and Clock Uncertainty

Hold Time and Relative Mins

Hold Time and Uncertainty

OFFSET Analysis Templates

OFFSET IN BEFORE Constraint

System Synchronous Interface

System Synchronous Inputs

System Synchronous Data Sheet

Knowledge Check

Answers

Knowledge Check

Answers

OFFSET IN Analysis Header

Source Synchronous DDR I/F

Source Synchronous Examples

DDR: Group Registers for Offset In Constraints based on RISING Keyword

DDR: Group Registers for Offset In Constraints based on FALLING Keyword

DDR: Rising Edge Example

DDR: Rising Edge

DDR: Falling Edge

Data Sheet OFFSET Reporting

Knowledge Check

Answer

OFFSET OUT Constraint

OFFSET OUT Reporting Header

OFFSET OUT Reporting Details

Source Synchronous Example

Lab Design:System Synchronous Interface (SDR)

Lab OverviewSystem Synchronous Interface (SDR)

Lab Design:Source Synchronous Interface (DDR)

Lab OverviewSource Synchronous Interface (DDR)

幻灯片编号 190

主题

主题4.FGPA-DSP系统实现

Agenda

On the Same Wavelength

Why DSP?

Sample Rates and Bit Widths

Bits and Signal-to-Noise Ratio

Bits and Dynamic Range

Sample Rates and Nyquist

Sub-Sampling

FIR Filter

Digital Mixing

Fast Fourier Transform (FFT)

Where are Xilinx Devices Used?

MAC Engine

“MAC Farm”

Full Parallel FIR Filter

Basic Building Blocks of DSP

Delays and Data Storage

Addition and Summation

Accumulation

Multipliers

Tuning the Receiver

Objectives

Xilinx FPGA Device Architecture

Flip-Flops for Delay

Serial to Parallel Conversion

Look-Up Tables

Multiplexer LUT

Parallel to Serial Conversion

Dedicated Multiplexers

DSP48 Tile

Dedicated Carry Logic

Xilinx Full Adder

Addition without the Lowest Level Detail

Twos Complement

Subtract and Add/Subtract

Serial Addition

Simplified DSP48 Slice

Accumulation

Accumulation in the DSP48 Slice

Multiplication

Embedded Multipliers

Building Wider Multipliers

DSP48 Slice Multiplier

35x35 Multiplier Using a Single DSP48 Slice

35x35 Multiplier Using Multiple DSP48 Slices

Slice-Based Multipliers

Addition Trees and the Multiplier

Partial Products and the Multiplier Logic

Multiplier Size

Pipelining and Performance

“Shift and Add” Multiplier

“Shift and Add” Multiplier Logic

Constants Remove ROM Multiplier Inputs

Small KCM Multipliers

Hexadecimal KCM Multipliers

Memories are Made of This

Objectives

Distributed RAM

Larger Distributed RAM

Distributed RAM Functions

Dual Port Distributed RAM

SRL16E

Compact Delay

Shift and Scan

Expanding the Shift Register

Using the SRL16E as a FIFO

Embedded Block RAM

Block ROM andMixed-Mode RAM

Virtex-4 FPGA Block RAM

Virtex-4 FPGA Block RAM Optional Output Register

Virtex-4 FPGA Cascadable Block RAM

FIFO16 in the Virtex-4 FPGA

Synchronous FIFO

Working Together

Selective Filters

Objectives

Outline

Inside the FIR Filter

Gain and Saturation

Outline

MAC Engine FIR Filter

Selecting Block RAM and Clock Cycles

Selecting Distributed RAMand Clock Cycles

Exploiting Symmetryversus Bandwidth

Selecting Distributed RAMfor Symmetry

Outline

Full Parallel FIR Filter

Adder Tree to Adder Chain

Systolic FIR Filter

Symmetry Saves Multipliers and Logic

Symmetric Systolic FIR Filter

Transpose FIR Structure

Transpose FIR Filter

Transpose FIR Structure

Spectrum Coverage

Outline

Going Slow: Memory Deficiency

Going Slow: Improving Processing Efficiency

Going Faster:Processing Deficiency

Slowing Down the Parallel FIR

Smaller Serial Multipliers

Reducing the Addition Process

Serial Delay Registers

Accumulate and Add

Add and Accumulate

Serial Distributed Arithmetic (SDA)

SDA Symmetrical Filter

Filter Dynamics and Trends 31-Tap Filter Example: 31 Taps, 12-bit Samples, Symmetrical

Filter Dynamics and Trends

Spectrum Coverage

Outline

Filling the Gap

Splitting the Sample

Splitting the Filter Sample

DRAM-Based Systolic Semi-Parallel (SP) FIR

Block RAM-Based SP FIR

Transpose Block RAM SP FIR

Spectrum Coverage

Outline

Zero is Worth Nothing!

Missing Zero Logic

Outline

FIR Filter Exercise

FIR Filter Answer

Summary

幻灯片编号 154

高级FPGA系统设计 Ver.5.0.0908 王巍王巍 13820779613 13820779613 wangweibit@163.com wangweibit@163.com

致谢  本课程很多内容来自美国Xilinx公司相关技术文档。 Xilinx公司是世界可编程逻辑器件设计、生产和开发技术的领导者，拥有最先进的可编程逻辑器件产品和完整的技术解决方案。  一些内容来自各种FPGA技术书籍和技术论坛，它们的作者拥有丰富的理论知识和设计经验，使我受益匪浅。  对以上材料的作者们表示衷心的感谢！ Advanced FPGA System Design，2009年8月 2

课程主要内容 1. FPGA设计流程与时序收敛设计流程与时序收敛主题主题1. FPGA • FPGA技术概述 • FPGA基本结构和资源 • 全局时序约束和特定路径时序约束 • FPGA设计流程和时序收敛流程分析 • FPGA软硬件协同系统设计环境分析 FPGA结构与资源主题主题2. 2. 高级高级FPGA 结构与资源 • Virtex-4 FPGA结构与资源概述 • Virtex-4 FPGA时钟系统 • Virtex-5 FPGA概述 • Virtex-5 FPGA CLB • Virtex-5 FPGA BRAM • Virtex-5 FPGA DSP48E • Virtex-5 FPGA时钟系统 Advanced FPGA System Design，2009年8月 3

课程主要内容 FPGA接口设计接口设计主题主题3. 3. 高速高速FPGA • Virtex-4 FPGA I/O资源 • Virtex-5 FPGA I/O资源 • 源同步I/O接口技术 4.FGPA--DSPDSP系统实现主题主题4.FGPA 系统实现 • On the Same Wavelength • Tuning the Receiver • Memories are Made of This • Selective Filters Advanced FPGA System Design，2009年8月 4

高级FPGA系统设计，Ver.5.0.0908 主题主题1. 1. FPGAFPGA设计流程与时序收敛设计流程与时序收敛王巍王巍 13820779613 13820779613 wangweibit@163.com wangweibit@163.com

实验室设备介绍 Advanced FPGA System Design，2009年8月 2

实验室设备介绍 Advanced FPGA System Design，2009年8月 3

实验室设备介绍 ML561 Spartan-3A DSP Advanced FPGA System Design，2009年8月 4

分享到：

赞收藏

资料库

FPGA工程师必备、\FPGA讲义\高级FPGA数字系统设计.pdf

相关推荐

开发技术

热门标签

最新资料
