SAFETY PRECAUTIONS

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT

CONTENTS

GETTING STARTED

Index

Controls

Connectors

Indicators

Other Parts

LCD Monitor/Viewfinder Indications

During Video Recording Only

During D.S.C. Recording Only (GR-DX97/77/67 only)

During E-Mail Clip Recording (GR-DX97/77/67 only)

During Both Video And D.S.C. Recording

During Video Playback

During D.S.C. Playback (GR-DX97/77/67 only)

Provided Accessories

How To Attach The Lens Cap

How To Use The Audio Extension Cable

How To Attach The Core Filter (for USB Cable (except GR-DX27) and Audio Extension Cable)

Power

Charging The Battery Pack

Using The Battery Pack

Using AC Power

About Batteries

Operation Mode

Power-Linked Operation

Date/Time Settings

Grip Adjustment

Viewfinder Adjustment

Brightness Adjustment Of The Display

Tripod Mounting

Loading/Unloading A Cassette

Loading/Unloading A Memory Card (GR-DX97/77/67 only)

VIDEO RECORDING

Basic Recording

Tape Remaining Time

LCD Monitor And Viewfinder

Zooming

Journalistic Shooting

Interface Shooting

Time Code

Recording From The Middle Of A Tape

VIDEO PLAYBACK

Normal Playback

Still Playback

Shuttle Search

Blank Search

Connections To A TV Or VCR

Playback Using The Remote Control

Installing The Battery

Beam Effective Area (indoor use)

Buttons And Functions

Slow-Motion Playback

Frame-By-Frame Playback

Playback Zoom

Playback Special Effects

D.S.C. RECORDING (GR-DX97/77/67 only)

Basic Shooting (D.S.C. Snapshot)

Interval Shooting

D.S.C. PLAYBACK (GR-DX97/77/67 only)

Normal Playback Of Images

Playback Zoom

Auto Playback Of Images

Playback Of Video Clips

Index Playback Of Files

Viewing File Information

Removing On-Screen Display

ADDITIONAL FEATURES FOR D.S.C. (GR-DX97/77/67 only)

E-Mail Clip Recording

To make video clips from real-time camera image

To make video clips from recorded video footage

Dubbing Still Images Recorded On A Tape To A Memory Card

Resetting The File Name

Protecting Files

To Remove Protection

Deleting Files

Setting Print Information (DPOF Setting)

To Print All Still Images (One Print For Each)

To Print By Selecting Still Images And Number Of Prints

To Reset The Number Of Prints

Initialising A Memory Card

MENUS FOR DETAILED ADJUSTMENT

Changing The Menu Settings

Menus without Sub Menus

Menus with Sub Menus

Recording Menus

Playback Menus

FEATURES FOR RECORDING

LED Light

Night Scope

Snapshot (For Video Recording)

Motor Drive Mode

Manual Focus

Exposure Control

Iris Lock

Backlight Compensation

Spot Exposure Control

White Balance Adjustment

Manual White Balance Adjustment

Wipe Or Fader Effects

WIPE/FADER

Program AE With Special Effects

PROGRAM AE

Navigation Function (GR-DX97/77/67 only)

To make thumbnail images during video recording automatically

To find scenes on tape using thumbnail images (Navigation Search)

To add thumbnail images during video playback

To delete thumbnail images

EDITING

Dubbing To Or From A VCR

Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing)

Connection To A Personal Computer

Audio Dubbing

Insert Editing

Random Assemble Editing [R.A.Edit]

Set Remote/VCR Code

Buttons And Functions (RM-V717U)

Make Connections

Select Scenes

Automatic Editing To VCR

For More Accurate Editing

TROUBLESHOOTING

Warning Indications

USER MAINTENANCE

Cleaning The Camcorder

CAUTIONS

Battery Packs

Cassettes

Memory Cards (GR-DX97/77/67 only)

LCD Monitor

Main Unit

How To Handle A CD-ROM (except GR-DX27)

SPECIFICATIONS

Camcorder

AC Adapter

TERMS

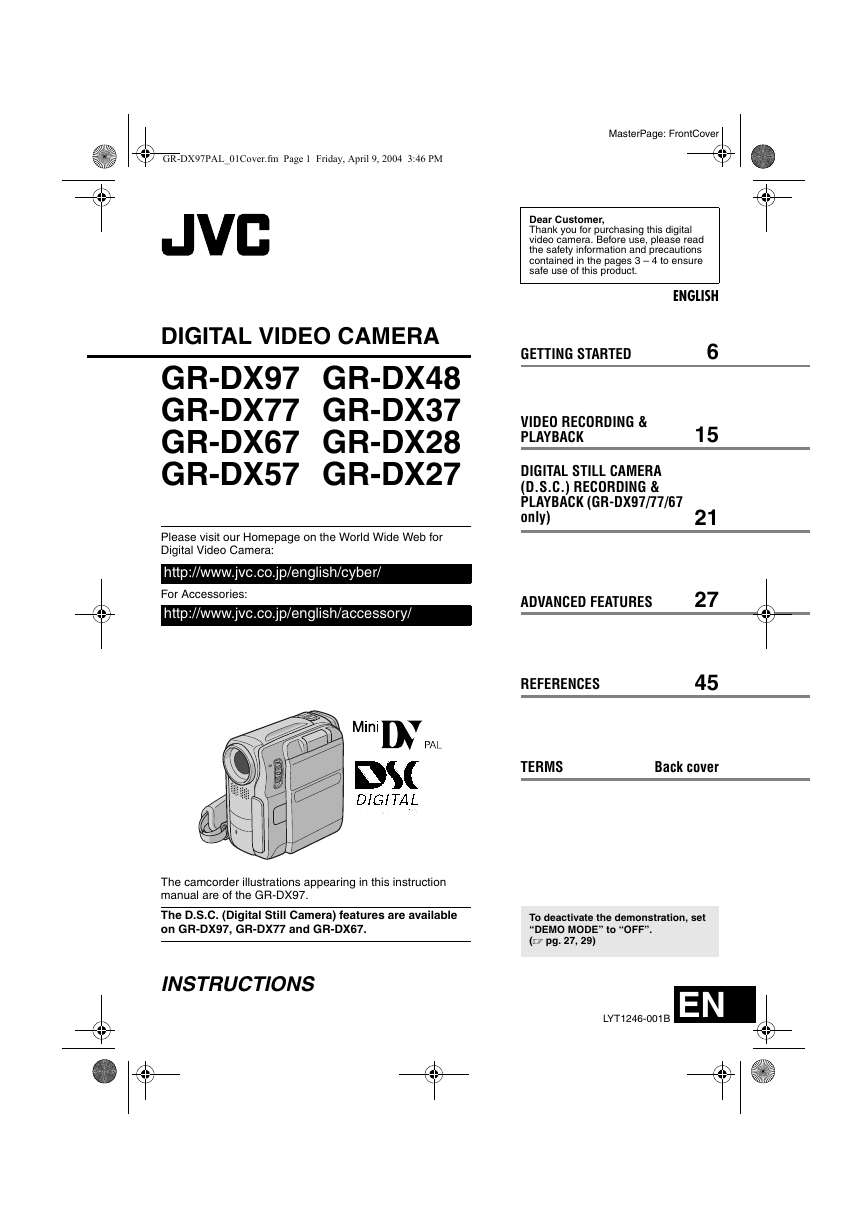

GR-DX97PAL_01Cover.fm Page 1 Friday, April 9, 2004 3:46 PM MasterPage: FrontCover DIGITAL VIDEO CAMERA GR-DX97 GR-DX77 GR-DX67 GR-DX57 GR-DX48 GR-DX37 GR-DX28 GR-DX27 Please visit our Homepage on the World Wide Web for Digital Video Camera: http://www.jvc.co.jp/english/cyber/ For Accessories: http://www.jvc.co.jp/english/accessory/ Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the pages 3 – 4 to ensure safe use of this product. ENGLISH GETTING STARTED VIDEO RECORDING & PLAYBACK DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK (GR-DX97/77/67 only) ADVANCED FEATURES REFERENCES 6 15 21 27 45 TERMS Back cover The camcorder illustrations appearing in this instruction manual are of the GR-DX97. The D.S.C. (Digital Still Camera) features are available on GR-DX97, GR-DX77 and GR-DX67. INSTRUCTIONS To deactivate the demonstration, set “DEMO MODE” to “OFF”. (墌 pg. 27, 29) EN LYT1246-001B

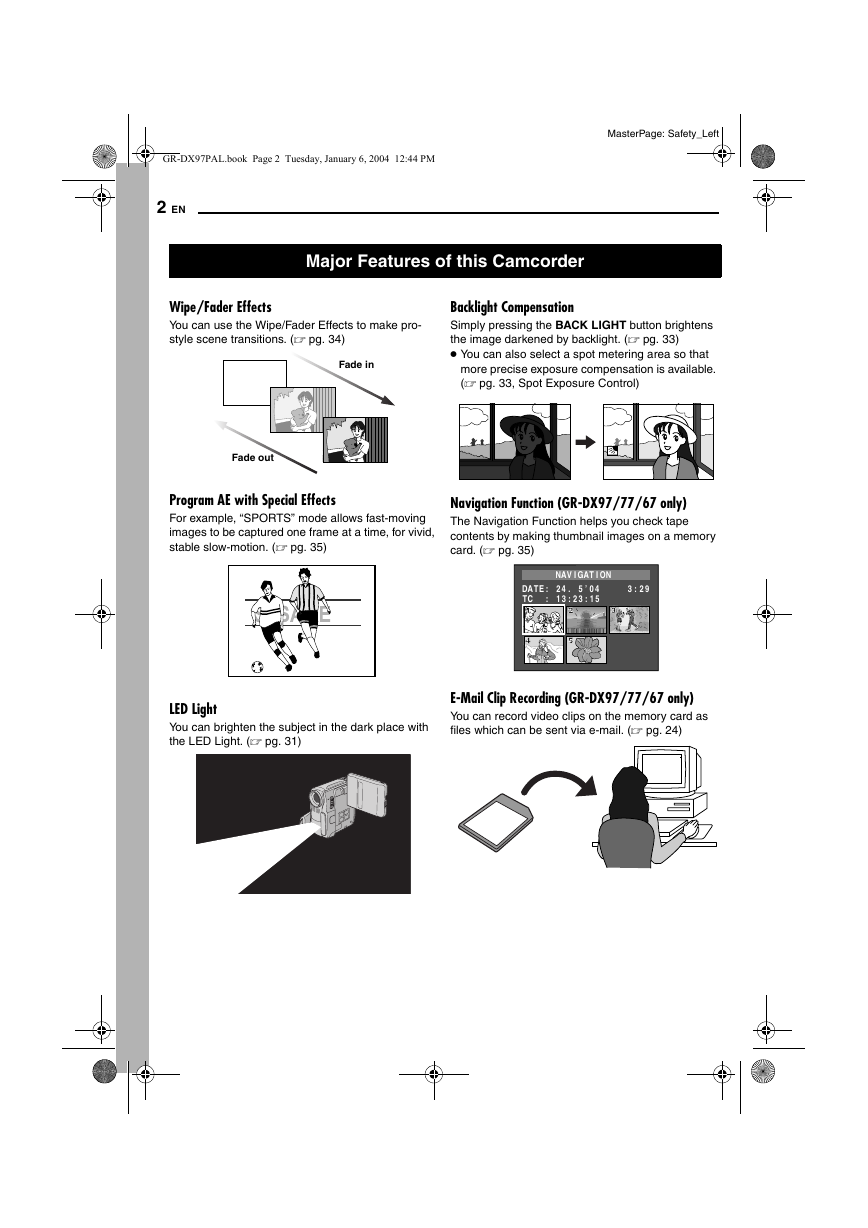

GR-DX97PAL.book Page 2 Tuesday, January 6, 2004 12:44 PM 2 EN MasterPage: Safety_Left Major Features of this Camcorder Wipe/Fader Effects You can use the Wipe/Fader Effects to make pro- style scene transitions. (墌 pg. 34) Fade in Backlight Compensation Simply pressing the BACK LIGHT button brightens the image darkened by backlight. (墌 pg. 33) ● You can also select a spot metering area so that more precise exposure compensation is available. (墌 pg. 33, Spot Exposure Control) Fade out Program AE with Special Effects For example, “SPORTS” mode allows fast-moving images to be captured one frame at a time, for vivid, stable slow-motion. (墌 pg. 35) Navigation Function (GR-DX97/77/67 only) The Navigation Function helps you check tape contents by making thumbnail images on a memory card. (墌 pg. 35) NAV I GA ’ . 2 5 ONIT 0 3 : 3 : 2 9 4 4 : 1 3 : 2 3 : 1 5 DATE : 2 TC 1 2 5 3 006 4 LED Light You can brighten the subject in the dark place with the LED Light. (墌 pg. 31) E-Mail Clip Recording (GR-DX97/77/67 only) You can record video clips on the memory card as files which can be sent via e-mail. (墌 pg. 24)

GR-DX97PAL.book Page 3 Tuesday, January 6, 2004 12:44 PM SAFETY PRECAUTIONS IMPORTANT (for owners in the U.K.) Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code: Blue to N (Neutral) or Black Brown to L (Live) or Red If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTIONS: ● To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. ● When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. CAUTIONS: ● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. ● Use the JVC BN-V107U/V114U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) MasterPage: Safety_Right EN 3 Caution on Replaceable lithium battery The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced. ● Dispose of used battery promptly. ● Keep away from children. ● Do not disassemble and do not dispose of in fire. NOTES: ● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ● The rating information and safty caution of the AC Adapter are on its upper and lower sides. When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

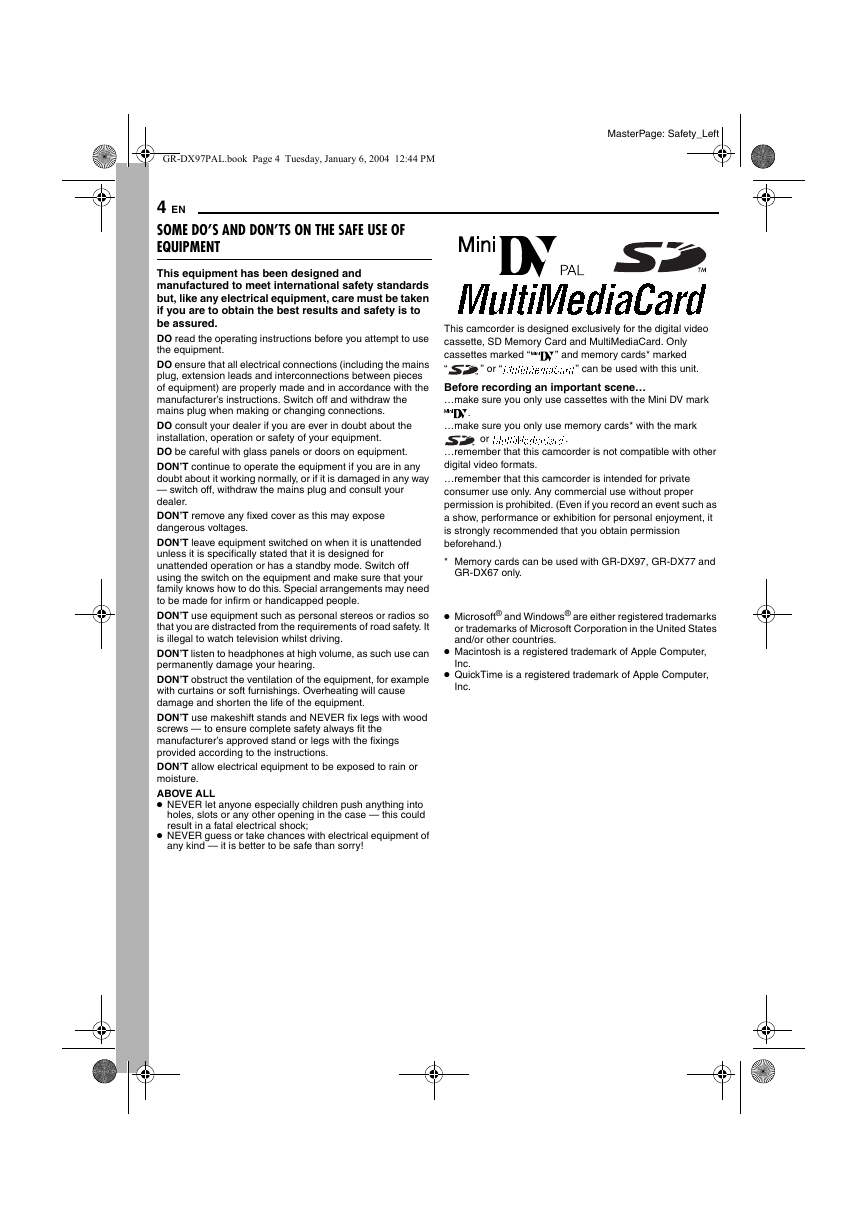

GR-DX97PAL.book Page 4 Tuesday, January 6, 2004 12:44 PM 4 EN SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT MasterPage: Safety_Left This camcorder is designed exclusively for the digital video cassette, SD Memory Card and MultiMediaCard. Only cassettes marked “ ” and memory cards* marked “ ” can be used with this unit. ” or “ Before recording an important scene… …make sure you only use cassettes with the Mini DV mark . …make sure you only use memory cards* with the mark or . …remember that this camcorder is not compatible with other digital video formats. …remember that this camcorder is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.) * Memory cards can be used with GR-DX97, GR-DX77 and GR-DX67 only. ● Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ● Macintosh is a registered trademark of Apple Computer, ● QuickTime is a registered trademark of Apple Computer, Inc. Inc. This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer. DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL ● NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock; ● NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

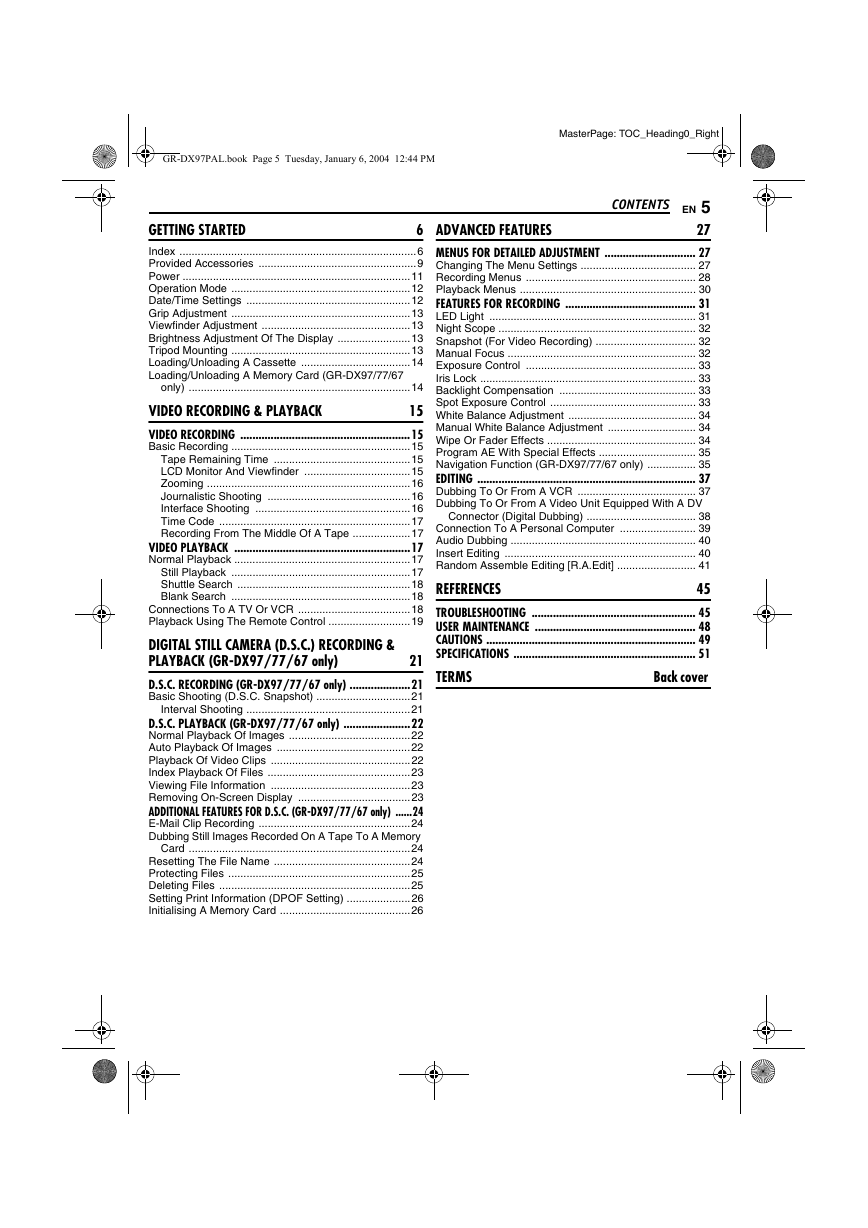

GR-DX97PAL.book Page 5 Tuesday, January 6, 2004 12:44 PM MasterPage: TOC_Heading0_Right CONTENTS EN 5 ADVANCED FEATURES 27 MENUS FOR DETAILED ADJUSTMENT .............................. 27 Changing The Menu Settings ...................................... 27 Recording Menus ........................................................ 28 Playback Menus .......................................................... 30 FEATURES FOR RECORDING ........................................... 31 LED Light .................................................................... 31 Night Scope ................................................................. 32 Snapshot (For Video Recording) ................................. 32 Manual Focus .............................................................. 32 Exposure Control ........................................................ 33 Iris Lock ....................................................................... 33 Backlight Compensation ............................................. 33 Spot Exposure Control ................................................ 33 White Balance Adjustment .......................................... 34 Manual White Balance Adjustment ............................. 34 Wipe Or Fader Effects ................................................. 34 Program AE With Special Effects ................................ 35 Navigation Function (GR-DX97/77/67 only) ................ 35 EDITING ........................................................................ 37 Dubbing To Or From A VCR ....................................... 37 Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing) .................................... 38 Connection To A Personal Computer ......................... 39 Audio Dubbing ............................................................. 40 Insert Editing ............................................................... 40 Random Assemble Editing [R.A.Edit] .......................... 41 REFERENCES 45 TROUBLESHOOTING ...................................................... 45 USER MAINTENANCE ..................................................... 48 CAUTIONS ..................................................................... 49 SPECIFICATIONS ............................................................ 51 TERMS Back cover GETTING STARTED 6 Index ..............................................................................6 Provided Accessories ....................................................9 Power ...........................................................................11 Operation Mode ...........................................................12 Date/Time Settings ......................................................12 Grip Adjustment ...........................................................13 Viewfinder Adjustment .................................................13 Brightness Adjustment Of The Display ........................13 Tripod Mounting ...........................................................13 Loading/Unloading A Cassette ....................................14 Loading/Unloading A Memory Card (GR-DX97/77/67 only) .........................................................................14 VIDEO RECORDING & PLAYBACK 15 VIDEO RECORDING ........................................................15 Basic Recording ...........................................................15 Tape Remaining Time .............................................15 LCD Monitor And Viewfinder ...................................15 Zooming ...................................................................16 Journalistic Shooting ...............................................16 Interface Shooting ...................................................16 Time Code ...............................................................17 Recording From The Middle Of A Tape ...................17 VIDEO PLAYBACK ..........................................................17 Normal Playback ..........................................................17 Still Playback ...........................................................17 Shuttle Search .........................................................18 Blank Search ...........................................................18 Connections To A TV Or VCR .....................................18 Playback Using The Remote Control ...........................19 DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK (GR-DX97/77/67 only) 21 D.S.C. RECORDING (GR-DX97/77/67 only) ....................21 Basic Shooting (D.S.C. Snapshot) ...............................21 Interval Shooting ......................................................21 D.S.C. PLAYBACK (GR-DX97/77/67 only) ......................22 Normal Playback Of Images ........................................22 Auto Playback Of Images ............................................22 Playback Of Video Clips ..............................................22 Index Playback Of Files ...............................................23 Viewing File Information ..............................................23 Removing On-Screen Display .....................................23 ADDITIONAL FEATURES FOR D.S.C. (GR-DX97/77/67 only) ......24 E-Mail Clip Recording ..................................................24 Dubbing Still Images Recorded On A Tape To A Memory Card .........................................................................24 Resetting The File Name .............................................24 Protecting Files ............................................................25 Deleting Files ...............................................................25 Setting Print Information (DPOF Setting) .....................26 Initialising A Memory Card ...........................................26

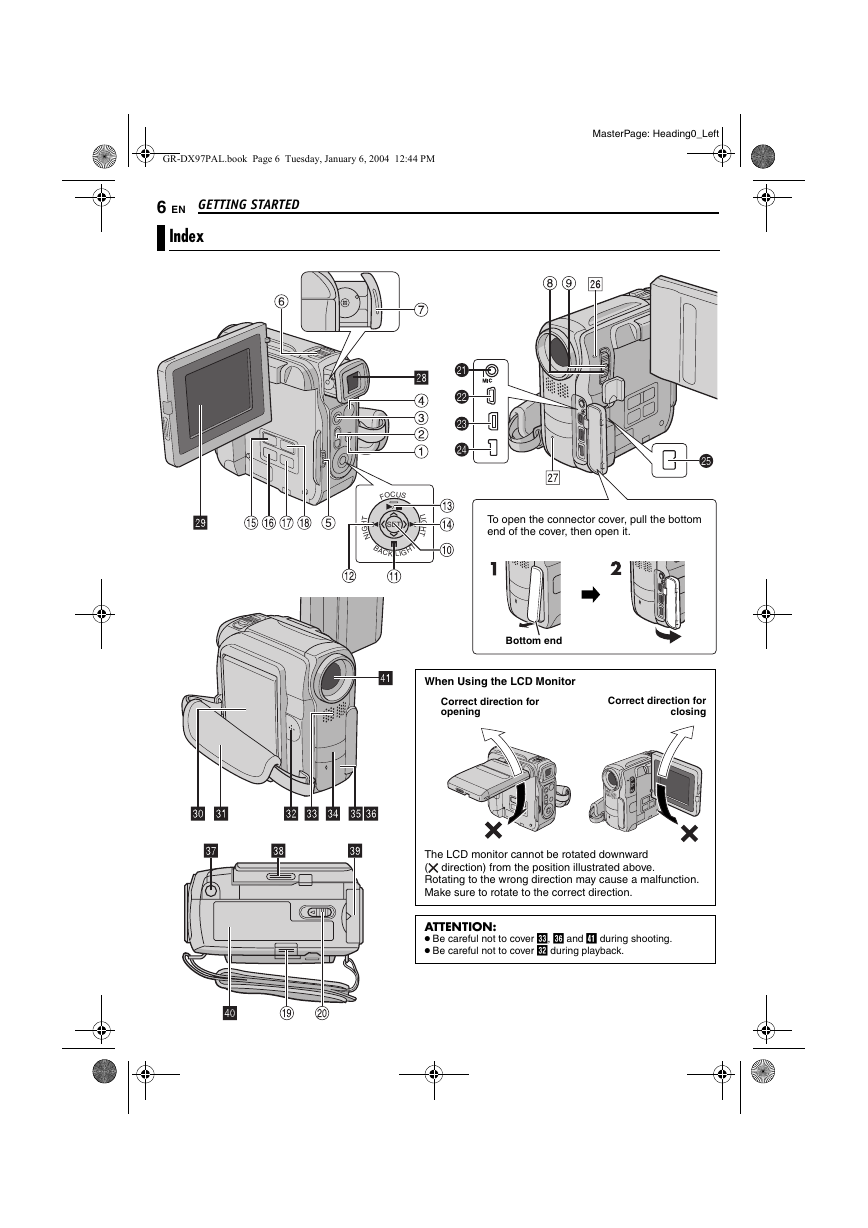

GR-DX97PAL.book Page 6 Tuesday, January 6, 2004 12:44 PM 6 EN GETTING STARTED Index MasterPage: Heading0_Left F O CUS T H G I N SET L I G H T BACK L I G H T To open the connector cover, pull the bottom end of the cover, then open it. Bottom end When Using the LCD Monitor Correct direction for opening Correct direction for closing The LCD monitor cannot be rotated downward ( direction) from the position illustrated above. Rotating to the wrong direction may cause a malfunction. Make sure to rotate to the correct direction. ATTENTION: ● Be careful not to cover h, k and p during shooting. ● Be careful not to cover g during playback.

GR-DX97PAL.book Page 7 Tuesday, January 6, 2004 12:44 PM MasterPage: Start_Right GETTING STARTED EN 7 Controls a Menu Button [MENU] (墌 pg. 27) b Sub Zoom Buttons [T/W] (墌 pg. 16) Speaker Volume Control [VOL. +, –] (墌 pg. 17) c Snapshot Button [SNAPSHOT] (墌 pg. 21, 32) d Recording Start/Stop Button (墌 pg. 15) e VIDEO/MEMORY Switch (GR-DX97/77/67 only) (墌 pg. 12) f Power Zoom Lever [T/W] (墌 pg. 16) g Dioptre Adjustment Control (墌 pg. 13) h Power Switch [A, M, PLAY, OFF] (墌 pg. 12) i Lock Button (墌 pg. 12) j Set Button [SET] (墌 pg. 27) k Stop Button [8] (墌 pg. 17) Backlight Compensation Button [BACK LIGHT] (墌 pg. 33) Down Button [ ] (墌 pg. 27) l Rewind Button [3] (墌 pg. 17) Night Button [NIGHT] (墌 pg. 32) Left Button [ ] (墌 pg. 27) m Play/Pause Button [4/9] (墌 pg. 17) Manual Focus Button [FOCUS] (墌 pg. 32) Up Button [ ] (墌 pg. 27) n Fast-Forward Button [5] (墌 pg. 17) LED Light Button [LIGHT] (墌 pg. 31) Right Button [ ] (墌 pg. 27) o Information Button [INFO] (GR-DX97/77/67 only) (墌 pg. 23) E-Mail Clip Recording Button [E-MAIL] (GR-DX97/77/ 67 only) (墌 pg. 24) p Index Button [INDEX] (GR-DX97/77/67 only) (墌 pg. 23) Navigation Button [NAVI] (GR-DX97/77/67 only) (墌 pg. 36) q Thumbnail Storing Button (GR-DX97/77/67 only) r D.S.C. Playback Select Button [SELECT] (GR-DX97/ [NAVI STORE] (墌 pg. 36) 77/67 only) (墌 pg. 22, 23) s Battery Release Switch [BATT.RELEASE] (墌 pg. 11) t Cassette Open/Eject Switch [OPEN/EJECT] (墌 pg. 14) Connectors The connectors are located beneath the covers. U Microphone connector [MIC] (墌 pg. 30, 40) (An optional microphone can be used during video recording and audio dubbing. To stabilise the microphone, use of an optional shoe adapter is recommended.) V USB (Universal Serial Bus) Connector (except GR-DX27) (墌 pg. 39) W S-Video/Audio/Video Input*/Output Connector [AV] (墌 pg. 18, 37, 42) * GR-DX97/77/57/37 only X DC Input Connector [DC] (墌 pg. 11) Y Digital Video Connector [DV IN*/OUT] (i.Link**) (墌 pg. 38, 39) * GR-DX97/77/57/37 only **i.Link refers to the IEEE1394-1995 industry specification logo is used for products and extensions thereof. The compliant with the i.Link standard. Indicators D POWER/CHARGE Lamp (墌 pg. 11, 15) E Tally Lamp (墌 pg. 15, 29) Other Parts c Viewfinder (墌 pg. 13) d LCD Monitor (墌 pg. 15, 16) e Battery Pack Mount (墌 pg. 11) f Grip Strap (墌 pg. 13) g Speaker (墌 pg. 17) h Stereo Microphone (墌 pg. 40) (When using an optional conversion lens, it may cover this area. In this case, use of an optional microphone is recommended.) i LED Light (墌 pg. 31) j Remote Sensor (墌 pg. 19) k Camera Sensor l Tripod Mounting Socket (墌 pg. 13) m Monitor Latch n Card Cover [MEMORY CARD] (GR-DX97/77/67 only) D E T R A T S G N I T T E G (墌 pg. 14) o Cassette Holder Cover (墌 pg. 14) p Lens LCD Monitor/Viewfinder Indications During Video Recording Only 1h40m REC r e SOUND 12 BIT 15:55 a Navigation Indicator (GR-DX97/77/67 only) (墌 pg. 35) b Selected Wipe/Fader Effect Indicator (墌 pg. 34) c Tape Running Indicator (墌 pg. 15) (Rotates while tape is running.) d Selected Wide Mode Indicator (墌 pg. 29) e Thumbnail Storing Indicator (墌 pg. 35) f Recording Speed Mode (SP/LP) (墌 pg. 28) g Tape Remaining Time (墌 pg. 15) h REC: (Appears during recording.) (墌 pg. 15) PAUSE: (Appears during Record-Standby mode.) (墌 pg. 15) i Insert Editing/Insert Editing Pause Mode (墌 pg. 40) j Wind Cut Indicator (墌 pg. 29) k Auxiliary Microphone Level Indicator (Appears when an optional microphone is connected. 墌 pg. 30, “AUX MIC” ) l Time Code (墌 pg. 30, 31) m Digital Image Stabiliser (“DIS”) (墌 pg. 28) n Sound Mode Indicator (墌 pg. 28) (Appears for approx. 5 seconds after turning on the camcorder.)

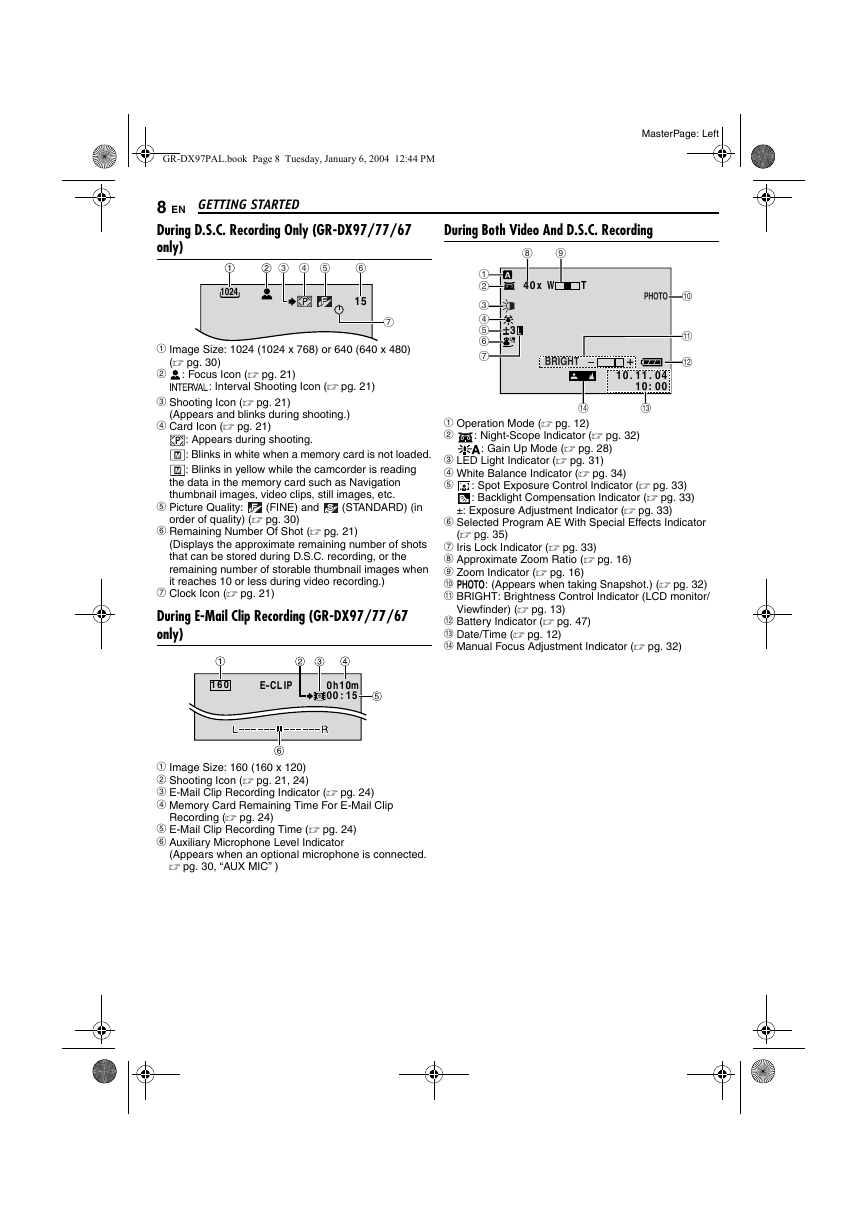

MasterPage: Left During Both Video And D.S.C. Recording 1 2 3 4 5 6 7 8 9 40 x W T 3 BRIGHT O 0 q w 1 0 . : 0 0 4 0 1 0 . 1 1 e r a Operation Mode (墌 pg. 12) b : Night-Scope Indicator (墌 pg. 32) : Gain Up Mode (墌 pg. 28) c LED Light Indicator (墌 pg. 31) d White Balance Indicator (墌 pg. 34) e : Spot Exposure Control Indicator (墌 pg. 33) : Backlight Compensation Indicator (墌 pg. 33) ±: Exposure Adjustment Indicator (墌 pg. 33) f Selected Program AE With Special Effects Indicator (墌 pg. 35) g Iris Lock Indicator (墌 pg. 33) h Approximate Zoom Ratio (墌 pg. 16) i Zoom Indicator (墌 pg. 16) jO: (Appears when taking Snapshot.) (墌 pg. 32) k BRIGHT: Brightness Control Indicator (LCD monitor/ Viewfinder) (墌 pg. 13) l Battery Indicator (墌 pg. 47) m Date/Time (墌 pg. 12) n Manual Focus Adjustment Indicator (墌 pg. 32) GR-DX97PAL.book Page 8 Tuesday, January 6, 2004 12:44 PM GETTING STARTED 8 EN During D.S.C. Recording Only (GR-DX97/77/67 only) 3 4 5 6 1024 51 7 a Image Size: 1024 (1024 x 768) or 640 (640 x 480) (墌 pg. 30) b : Focus Icon (墌 pg. 21) : Interval Shooting Icon (墌 pg. 21) c Shooting Icon (墌 pg. 21) (Appears and blinks during shooting.) d Card Icon (墌 pg. 21) : Appears during shooting. : Blinks in white when a memory card is not loaded. : Blinks in yellow while the camcorder is reading the data in the memory card such as Navigation thumbnail images, video clips, still images, etc. e Picture Quality: (FINE) and (STANDARD) (in order of quality) (墌 pg. 30) f Remaining Number Of Shot (墌 pg. 21) (Displays the approximate remaining number of shots that can be stored during D.S.C. recording, or the remaining number of storable thumbnail images when it reaches 10 or less during video recording.) g Clock Icon (墌 pg. 21) During E-Mail Clip Recording (GR-DX97/77/67 only) 1 6 0 PILC-E 0h m:10 00 : 15 a Image Size: 160 (160 x 120) b Shooting Icon (墌 pg. 21, 24) c E-Mail Clip Recording Indicator (墌 pg. 24) d Memory Card Remaining Time For E-Mail Clip Recording (墌 pg. 24) e E-Mail Clip Recording Time (墌 pg. 24) f Auxiliary Microphone Level Indicator (Appears when an optional microphone is connected. 墌 pg. 30, “AUX MIC” )
