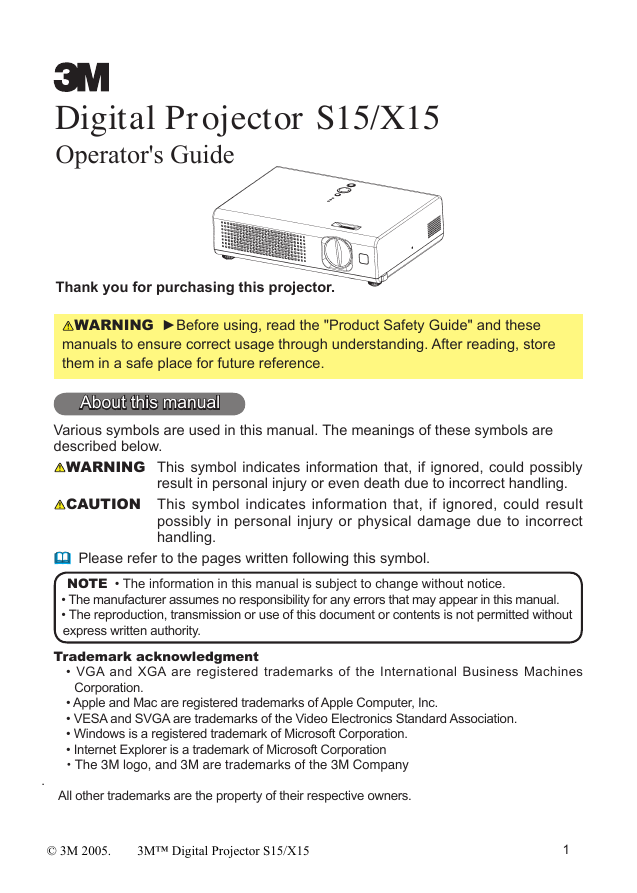

Digital Projector S15/X15 Operator's Guide Thank you for purchasing this projector. WARNING ►Before using, read the "Product Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. CAUTION This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.  Please refer to the pages written following this symbol. NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transmission or use of this document or contents is not permitted without express written authority. Trademark acknowledgment • VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple and Mac are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. • Internet Explorer is a trademark of Microsoft Corporation • The 3M logo, and 3M are trademarks of the 3M Company . All other trademarks are the property of their respective owners. © 3M 2005. 3M™ Digital Projector S15/X15 1

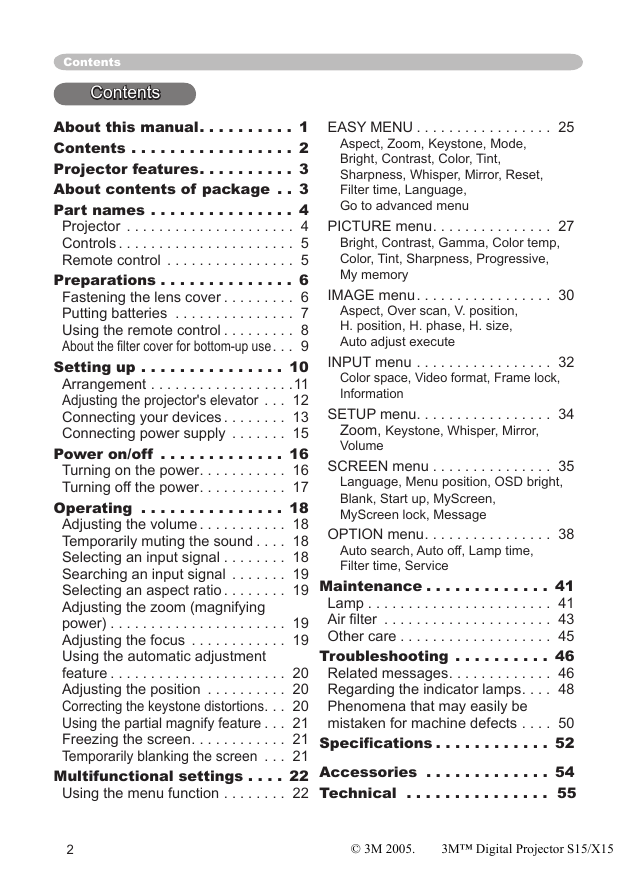

Contents Contents About this manual . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . 3 About contents of package . . 3 Part names . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . 4 Controls . . . . . . . . . . . . . . . . . . . . . . 5 Remote control . . . . . . . . . . . . . . . . 5 Preparations . . . . . . . . . . . . . . 6 Fastening the lens cover . . . . . . . . . 6 Putting batteries . . . . . . . . . . . . . . . 7 Using the remote control . . . . . . . . . 8 About the ﬁlter cover for bottom-up use . . . 9 Setting up . . . . . . . . . . . . . . . 10 Arrangement . . . . . . . . . . . . . . . . . .11 Adjusting the projector's elevator . . . 12 Connecting your devices . . . . . . . . 13 Connecting power supply . . . . . . . 15 Power on/off . . . . . . . . . . . . . 16 Turning on the power . . . . . . . . . . . 16 Turning off the power . . . . . . . . . . . 17 Operating . . . . . . . . . . . . . . . 18 Adjusting the volume . . . . . . . . . . . 18 Temporarily muting the sound . . . . 18 Selecting an input signal . . . . . . . . 18 Searching an input signal . . . . . . . 19 Selecting an aspect ratio . . . . . . . . 19 Adjusting the zoom (magnifying power) . . . . . . . . . . . . . . . . . . . . . . 19 Adjusting the focus . . . . . . . . . . . . 19 Using the automatic adjustment feature . . . . . . . . . . . . . . . . . . . . . . 20 Adjusting the position . . . . . . . . . . 20 Correcting the keystone distortions . . . 20 Using the partial magnify feature . . . 21 Freezing the screen . . . . . . . . . . . . 21 Temporarily blanking the screen . . . 21 Multifunctional settings . . . . 22 Using the menu function . . . . . . . . 22 EASY MENU . . . . . . . . . . . . . . . . . 25 Aspect, Zoom, Keystone, Mode, Bright, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to advanced menu PICTURE menu . . . . . . . . . . . . . . . 27 Bright, Contrast, Gamma, Color temp, Color, Tint, Sharpness, Progressive, My memory IMAGE menu . . . . . . . . . . . . . . . . . 30 Aspect, Over scan, V. position, H. position, H. phase, H. size, Auto adjust execute INPUT menu . . . . . . . . . . . . . . . . . 32 Color space, Video format, Frame lock, Information SETUP menu . . . . . . . . . . . . . . . . . 34 Zoom, Keystone, Whisper, Mirror, Volume SCREEN menu . . . . . . . . . . . . . . . 35 Language, Menu position, OSD bright, Blank, Start up, MyScreen, MyScreen lock, Message OPTION menu . . . . . . . . . . . . . . . . 38 Auto search, Auto off, Lamp time, Filter time, Service Maintenance . . . . . . . . . . . . . 41 Lamp . . . . . . . . . . . . . . . . . . . . . . . 41 Air ﬁlter . . . . . . . . . . . . . . . . . . . . . 43 Other care . . . . . . . . . . . . . . . . . . . 45 Troubleshooting . . . . . . . . . . 46 Related messages . . . . . . . . . . . . . 46 Regarding the indicator lamps . . . . 48 Phenomena that may easily be mistaken for machine defects . . . . 50 Speciﬁcations . . . . . . . . . . . . 52 Accessories . . . . . . . . . . . . . 54 Technical . . . . . . . . . . . . . . . 55 2 © 3M 2005. 3M™ Digital Projector S15/X15

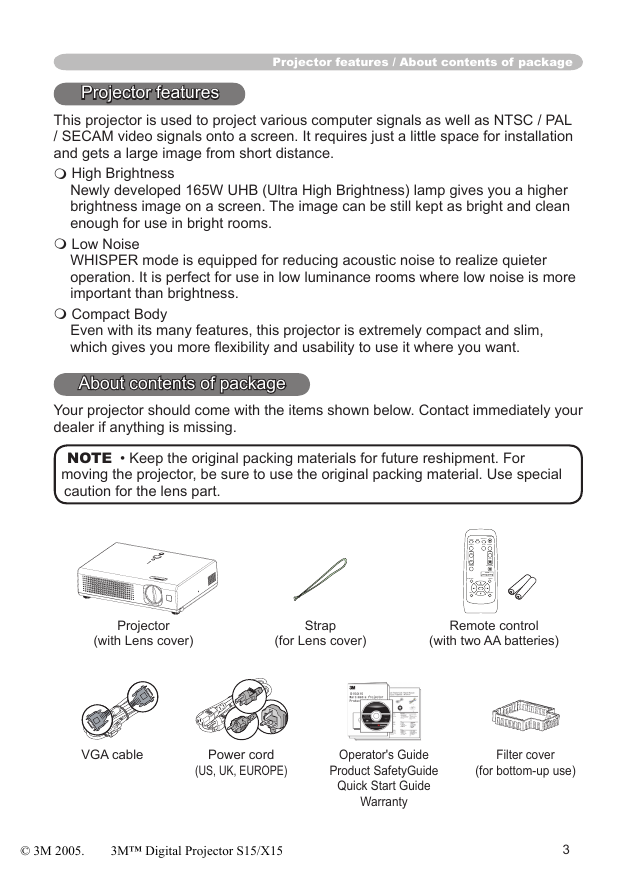

Projector features / About contents of package Projector features This projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. It requires just a little space for installation and gets a large image from short distance.  High Brightness Newly developed 165W UHB (Ultra High Brightness) lamp gives you a higher brightness image on a screen. The image can be still kept as bright and clean enough for use in bright rooms.  Low Noise WHISPER mode is equipped for reducing acoustic noise to realize quieter operation. It is perfect for use in low luminance rooms where low noise is more important than brightness.  Compact Body Even with its many features, this projector is extremely compact and slim, which gives you more ﬂexibility and usability to use it where you want. About contents of package Your projector should come with the items shown below. Contact immediately your dealer if anything is missing. NOTE • Keep the original packing materials for future reshipment. For moving the projector, be sure to use the original packing material. Use special caution for the lens part. VIDEO RGB SEARCH STANDBY/ON ASPECT AUTO BLANK MAGNIFY ON OFF VOLUME MUTE FREEZE KEYSTONE ZOOM + - POSITION MENU ENTER ESC RESET Projector (with Lens cover) Strap (for Lens cover) Remote control (with two AA batteries) S15/X15 VGA cable Power cord (US, UK, EUROPE) Operator's Guide Product SafetyGuide Quick Start Guide Warranty Filter cover (for bottom-up use) © 3M 2005. 3M™ Digital Projector S15/X15 3

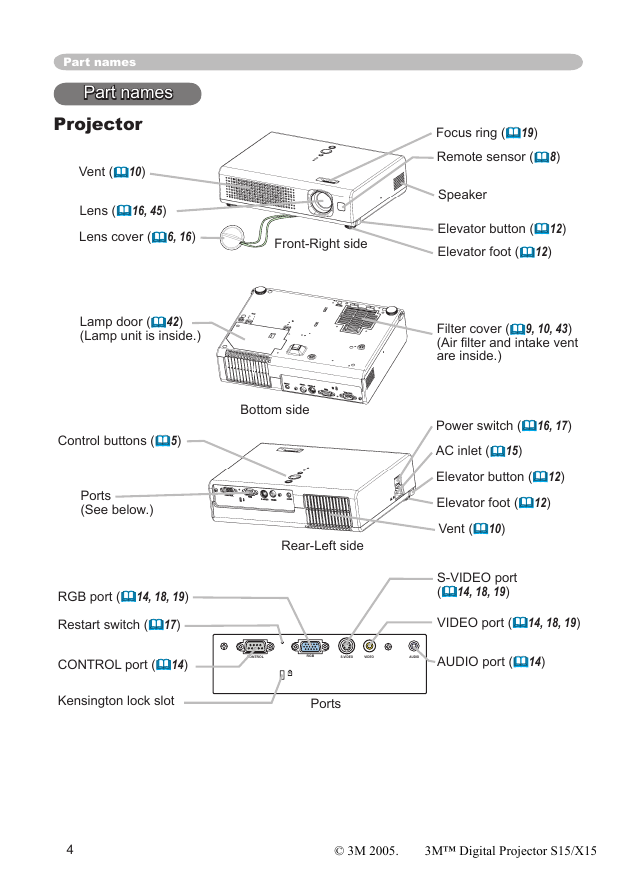

Part names Part names Projector Vent (10) Lens (16, 45) Lens cover (6, 16) Lamp door (42) (Lamp unit is inside.) Control buttons (5) Ports (See below.) RGB port (14, 18, 19) Restart switch (17) CONTROL port (14) Kensington lock slot Focus ring (19) Remote sensor (8) Speaker Elevator button (12) Elevator foot (12) Filter cover (9, 10, 43) (Air ﬁlter and intake vent are inside.) Power switch (16, 17) AC inlet (15) Elevator button (12) Elevator foot (12) Vent (10) S-VIDEO port (14, 18, 19) VIDEO port (14, 18, 19) AUDIO port (14) Front-Right side Bottom side Rear-Left side CONTROL RGB S-VIDEO VIDEO AUDIO K Ports 4 © 3M 2005. 3M™ Digital Projector S15/X15

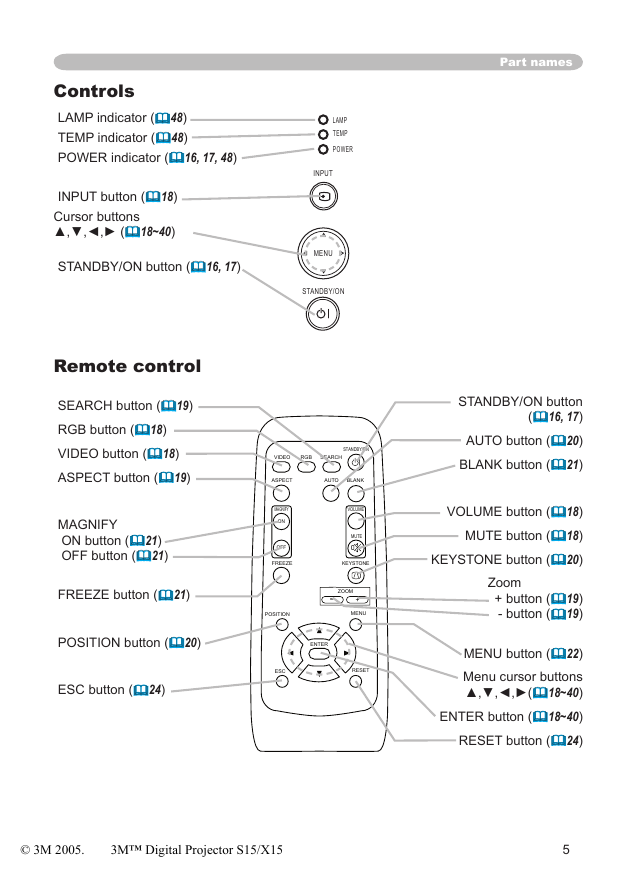

Controls LAMP indicator (48) TEMP indicator (48) POWER indicator (16, 17, 48) INPUT button (18) Cursor buttons ▲,▼,◄,► (18~40) STANDBY/ON button (16, 17) LAMP TEMP POWER INPUT MENU STANDBY/ON Remote control SEARCH button (19) RGB button (18) VIDEO button (18) ASPECT button (19) MAGNIFY ON button (21) OFF button (21) FREEZE button (21) VIDEO RGB SEARCH STANDBY/ON ASPECT AUTO BLANK MAGNIFY ON OFF VOLUME MUTE FREEZE KEYSTONE ZOOM + - POSITION MENU POSITION button (20) ENTER ESC button (24) ESC RESET Part names STANDBY/ON button (16, 17) AUTO button (20) BLANK button (21) VOLUME button (18) MUTE button (18) KEYSTONE button (20) Zoom + button (19) - button (19) MENU button (22) Menu cursor buttons ▲,▼,◄,►(18~40) ENTER button (18~40) RESET button (24) © 3M 2005. 3M™ Digital Projector S15/X15 5

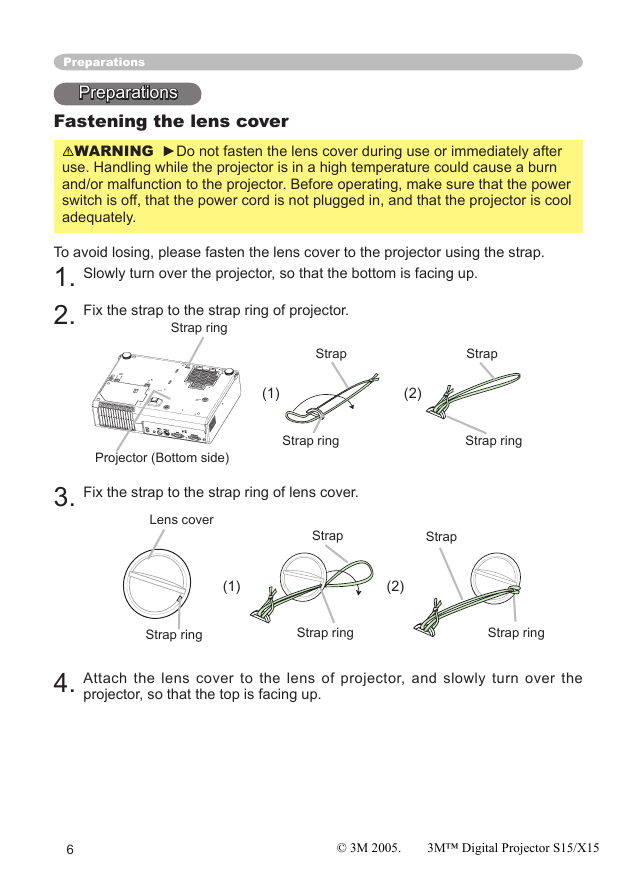

Preparations Preparations Fastening the lens cover WARNING ►Do not fasten the lens cover during use or immediately after use. Handling while the projector is in a high temperature could cause a burn and/or malfunction to the projector. Before operating, make sure that the power switch is off, that the power cord is not plugged in, and that the projector is cool adequately. To avoid losing, please fasten the lens cover to the projector using the strap. 1. Slowly turn over the projector, so that the bottom is facing up. 2. Fix the strap to the strap ring of projector. Strap ring Strap Strap (1) (2) Projector (Bottom side) Strap ring Strap ring 3. Fix the strap to the strap ring of lens cover. Lens cover Strap Strap (1) (2) Strap ring Strap ring Strap ring 4. Attach the lens cover to the lens of projector, and slowly turn over the projector, so that the top is facing up. 6 © 3M 2005. 3M™ Digital Projector S15/X15

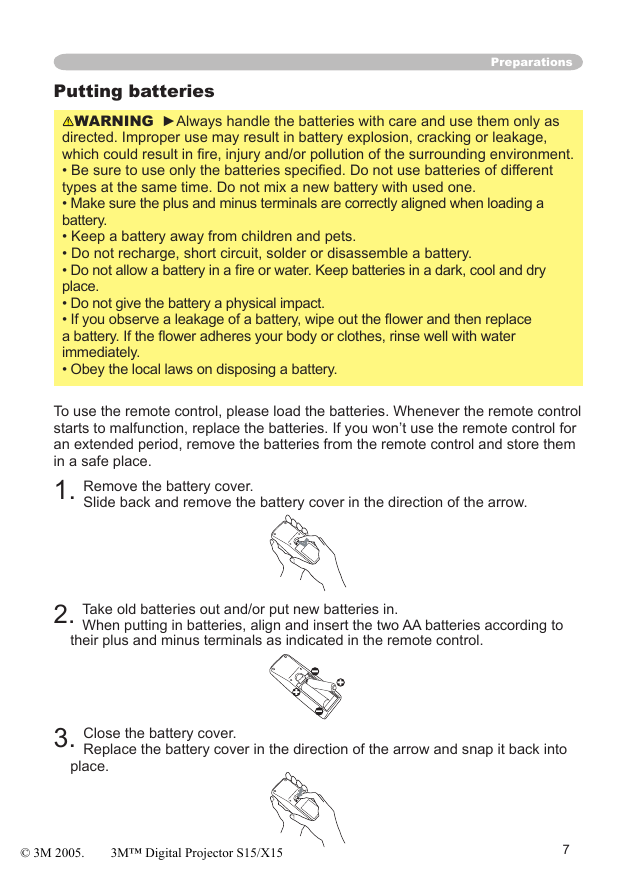

Preparations Putting batteries WARNING ►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in ﬁre, injury and/or pollution of the surrounding environment. • Be sure to use only the batteries speciﬁed. Do not use batteries of different types at the same time. Do not mix a new battery with used one. • Make sure the plus and minus terminals are correctly aligned when loading a battery. • Keep a battery away from children and pets. • Do not recharge, short circuit, solder or disassemble a battery. • Do not allow a battery in a ﬁre or water. Keep batteries in a dark, cool and dry place. • Do not give the battery a physical impact. • If you observe a leakage of a battery, wipe out the ﬂower and then replace a battery. If the ﬂower adheres your body or clothes, rinse well with water immediately. • Obey the local laws on disposing a battery. To use the remote control, please load the batteries. Whenever the remote control starts to malfunction, replace the batteries. If you won’t use the remote control for an extended period, remove the batteries from the remote control and store them in a safe place. 1. Remove the battery cover. Slide back and remove the battery cover in the direction of the arrow. 2. Take old batteries out and/or put new batteries in. their plus and minus terminals as indicated in the remote control. When putting in batteries, align and insert the two AA batteries according to 3. Close the battery cover. place. Replace the battery cover in the direction of the arrow and snap it back into © 3M 2005. 3M™ Digital Projector S15/X15 7

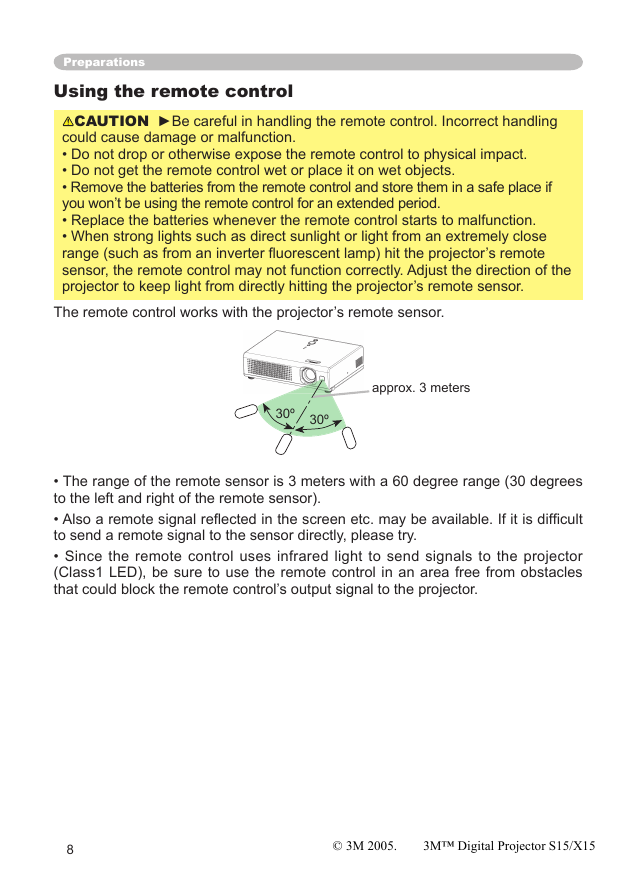

Preparations Using the remote control CAUTION ►Be careful in handling the remote control. Incorrect handling could cause damage or malfunction. • Do not drop or otherwise expose the remote control to physical impact. • Do not get the remote control wet or place it on wet objects. • Remove the batteries from the remote control and store them in a safe place if you won’t be using the remote control for an extended period. • Replace the batteries whenever the remote control starts to malfunction. • When strong lights such as direct sunlight or light from an extremely close range (such as from an inverter ﬂuorescent lamp) hit the projector’s remote sensor, the remote control may not function correctly. Adjust the direction of the projector to keep light from directly hitting the projector’s remote sensor. The remote control works with the projector’s remote sensor. approx. 3 meters 30º 30º • The range of the remote sensor is 3 meters with a 60 degree range (30 degrees to the left and right of the remote sensor). • Also a remote signal reﬂected in the screen etc. may be available. If it is difﬁcult to send a remote signal to the sensor directly, please try. • Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector. 8 © 3M 2005. 3M™ Digital Projector S15/X15
