麦哲伦 GPS导航设备-eXplorist 100说明书.pdf

发布时间：2022-05-13 发布人：admin 分类：说明书资料大小：2.39M 资料格式：pdf 举报版权申诉

第1页 / 共77页

第2页 / 共77页

第3页 / 共77页

第4页 / 共77页

第5页 / 共77页

第6页 / 共77页

第7页 / 共77页

第8页 / 共77页

Cover

Warnings

Table of Contents

eXplorist 100 GPS Receiver

Features

Installing the Batteries

Using the eXplorist 100

Going to a Destination

Saving Your Position

Tracing Your Steps

Additional Features

Summary

Starting Up

Turning the eXplorist On

Turning the eXplorist Off

Turning the Backlight On/Off

Using the eXplorist for the First Time

Conclusion

Navigation Screens

Plotter Screen

Plotter Screen Overview

Changing Plotter Scale

MPlotter Screen Modes

Showing or Hiding Map Information

Customizing the Displayed Map Information

Changing the Plotter Orientation

Compass Screen

Compass Screen Overview

Customizing the Information Fields

Position Screen

Position Screen Overview

Resetting the Trip Odometer

Satellite Status Screen

Satellite Status Screen Overview

Points of Interest

Marking Your Position

Quick Marking Your Position

Marking Your Position (Personalized)

Making POIs for Locations Other Than Your Present Position

Marking a Position by Entering Coordinates

Marking a Position using the Plotter Cursor

The POI Database

Searching for a POI

Editing a POI

Deleting a POI

Viewing a POI on the Plotter Screen

Routes

GOTO Routes

Creating a GOTO Route

Creating a GOTO Route from the Plotter Cursor

Multi-Leg Routes

Creating a Multi-Leg Route

Activating/Deactivating a Route

Changing the Destination Leg of an Active Route

Editing a Saved Route

Reversing a Route

Deleting a Route

Copying a Route

Viewing a Route on the Plotter

Track Logs

Stopping and Resuming Active Track Logging

Starting a New Active Track Log

Saving an Active Track Log

Creating a BackTrack Route

Clearing the Active Track

Converting the Track Log to a Route

Viewing the Track Log on the Map

Working with Saved Track Logs

Following Saved Track Logs

Reversing a Saved Track Log

Deleting a Saved Track Log

Preferences

Restarting the GPS

Setting the Map Units

Selecting Navigational Units of Measure

Selecting the North Reference

Selecting the Coordinate System

Selecting the Map Datum

Using the Power Management Tool

Setting the Power-Off Timer

Setting the Light Timer

Personlizing the eXplorist

Steps to Personalize Your eXplorist

Selecting Languages

Selecting the Language for Your eXplorist

Clearing Memory

Clearing All Track Logs

Clearing All POIs and Routes

Clearing All Routes

Clearing All Track Logs, POIs, and Routes

Reseting the eXplorist to Factory Defaults

Specifications

Performance

Physical

Power

Memory

Coordinate Systems

Routes

Track Logs

Points of Interest

Navigation Screens

Alarms

Accessories

Contacting Magellan Support

Magellan eXplorist 100 Reference Manual Topics: • eXplorist 100 GPS Receiver • Using the eXplorist 100 • Starting Up • Navigation Screens • Points of Interest • Routes • Track Logs • Preferences • Specifications • Accessories • Contacting Magellan Support

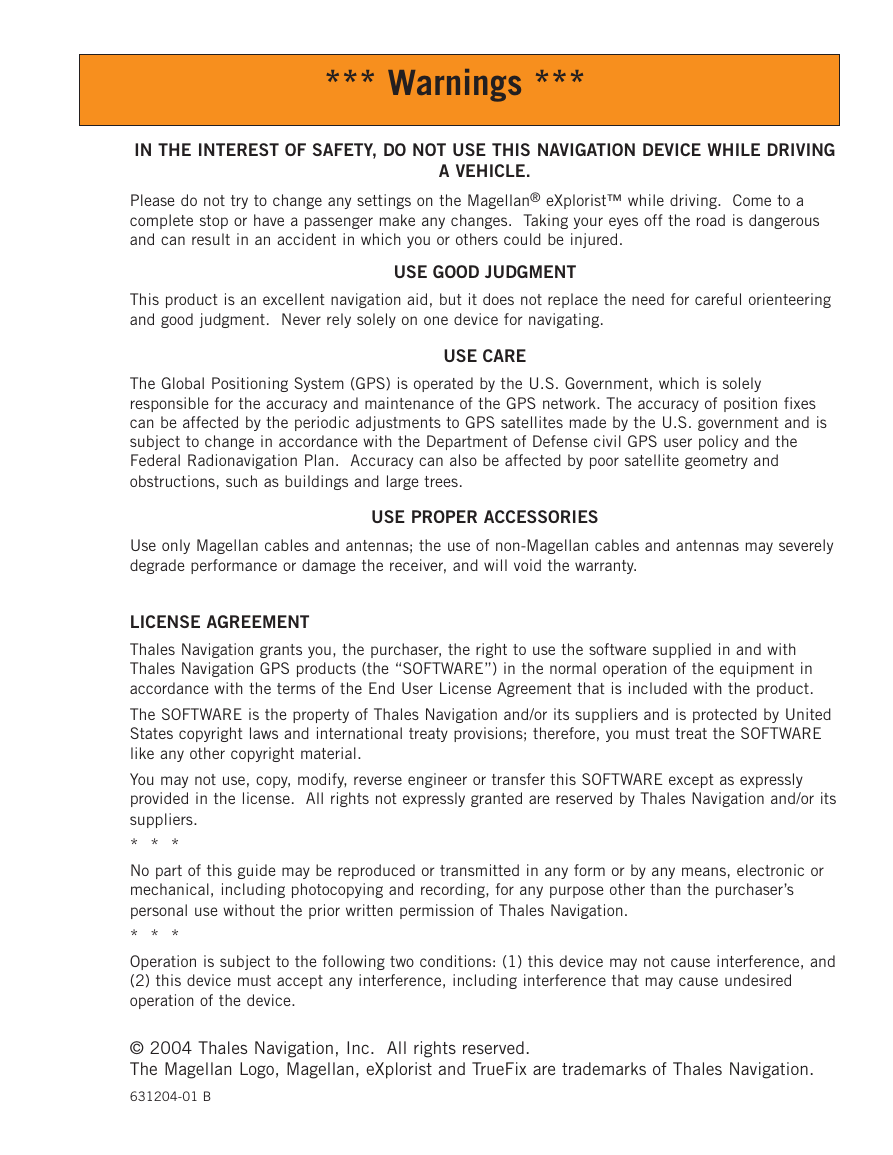

*** Warnings *** IN THE INTEREST OF SAFETY, DO NOT USE THIS NAVIGATION DEVICE WHILE DRIVING A VEHICLE. Please do not try to change any settings on the Magellan® eXplorist™ while driving. Come to a complete stop or have a passenger make any changes. Taking your eyes off the road is dangerous and can result in an accident in which you or others could be injured. This product is an excellent navigation aid, but it does not replace the need for careful orienteering and good judgment. Never rely solely on one device for navigating. USE GOOD JUDGMENT USE CARE The Global Positioning System (GPS) is operated by the U.S. Government, which is solely responsible for the accuracy and maintenance of the GPS network. The accuracy of position fixes can be affected by the periodic adjustments to GPS satellites made by the U.S. government and is subject to change in accordance with the Department of Defense civil GPS user policy and the Federal Radionavigation Plan. Accuracy can also be affected by poor satellite geometry and obstructions, such as buildings and large trees. Use only Magellan cables and antennas; the use of non-Magellan cables and antennas may severely degrade performance or damage the receiver, and will void the warranty. USE PROPER ACCESSORIES LICENSE AGREEMENT Thales Navigation grants you, the purchaser, the right to use the software supplied in and with Thales Navigation GPS products (the “SOFTWARE”) in the normal operation of the equipment in accordance with the terms of the End User License Agreement that is included with the product. The SOFTWARE is the property of Thales Navigation and/or its suppliers and is protected by United States copyright laws and international treaty provisions; therefore, you must treat the SOFTWARE like any other copyright material. You may not use, copy, modify, reverse engineer or transfer this SOFTWARE except as expressly provided in the license. All rights not expressly granted are reserved by Thales Navigation and/or its suppliers. * * * No part of this guide may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal use without the prior written permission of Thales Navigation. * * * Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. © 2004 Thales Navigation, Inc. All rights reserved. The Magellan Logo, Magellan, eXplorist and TrueFix are trademarks of Thales Navigation. 631204-01 B

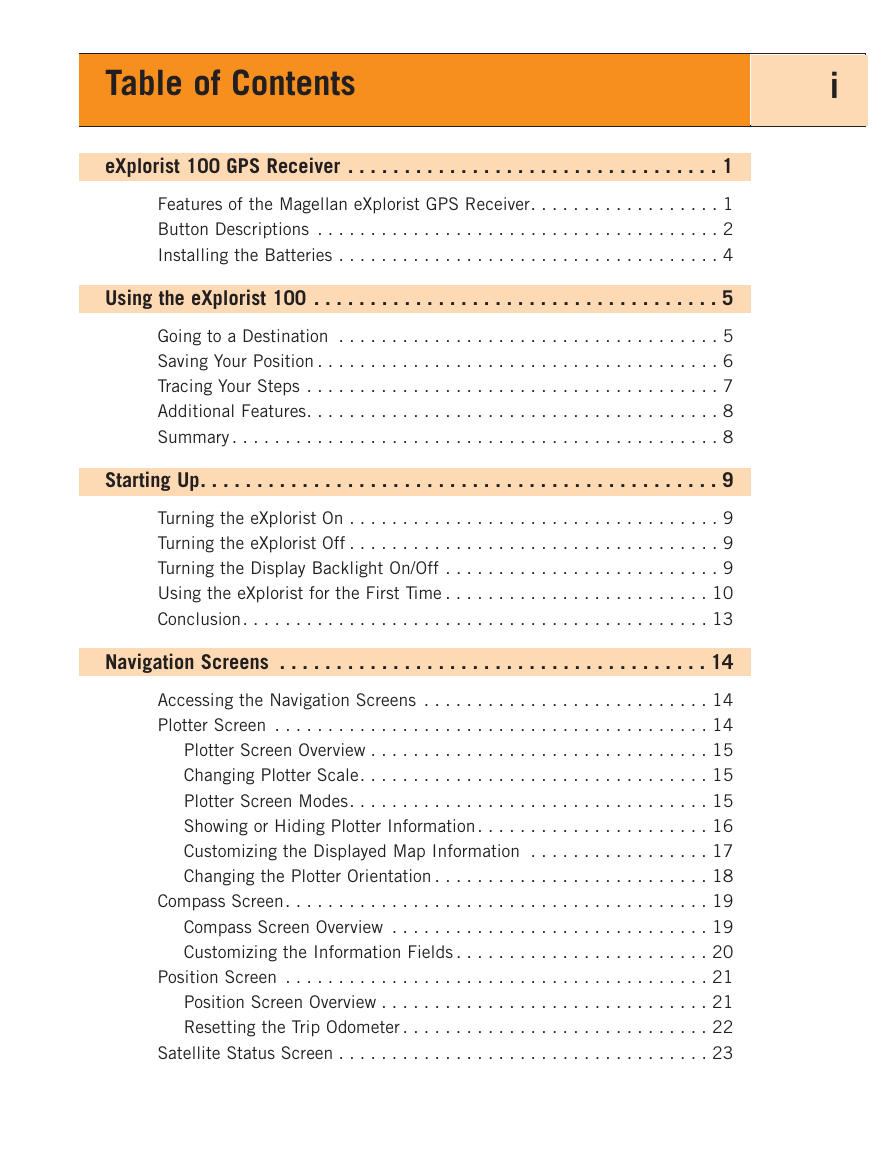

Table of Contents i eXplorist 100 GPS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Features of the Magellan eXplorist GPS Receiver. . . . . . . . . . . . . . . . . . 1 Button Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Using the eXplorist 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Going to a Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Saving Your Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Tracing Your Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Additional Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Starting Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning the eXplorist On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning the eXplorist Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning the Display Backlight On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Using the eXplorist for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . 10 Conclusion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Navigation Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Accessing the Navigation Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Plotter Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Plotter Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Plotter Scale. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Plotter Screen Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Showing or Hiding Plotter Information. . . . . . . . . . . . . . . . . . . . . . 16 Customizing the Displayed Map Information . . . . . . . . . . . . . . . . . 17 Changing the Plotter Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Compass Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Compass Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Customizing the Information Fields . . . . . . . . . . . . . . . . . . . . . . . . 20 Position Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Position Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Resetting the Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Satellite Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

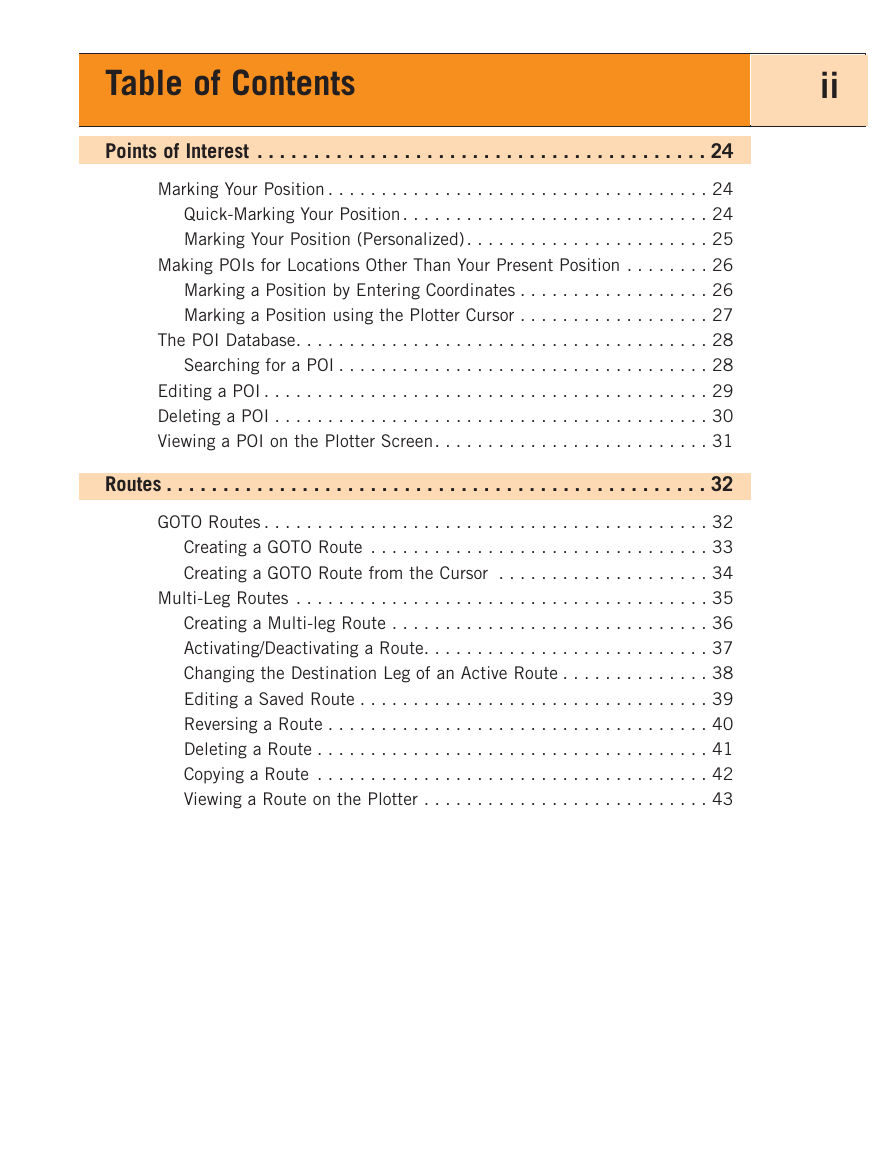

Table of Contents ii Points of Interest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Marking Your Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Quick-Marking Your Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Marking Your Position (Personalized). . . . . . . . . . . . . . . . . . . . . . . 25 Making POIs for Locations Other Than Your Present Position . . . . . . . . 26 Marking a Position by Entering Coordinates . . . . . . . . . . . . . . . . . . 26 Marking a Position using the Plotter Cursor . . . . . . . . . . . . . . . . . . 27 The POI Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Searching for a POI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Editing a POI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Deleting a POI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Viewing a POI on the Plotter Screen. . . . . . . . . . . . . . . . . . . . . . . . . . 31 Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 GOTO Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Creating a GOTO Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Creating a GOTO Route from the Cursor . . . . . . . . . . . . . . . . . . . . 34 Multi-Leg Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Creating a Multi-leg Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Activating/Deactivating a Route. . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Changing the Destination Leg of an Active Route . . . . . . . . . . . . . . 38 Editing a Saved Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Reversing a Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Deleting a Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Copying a Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Viewing a Route on the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

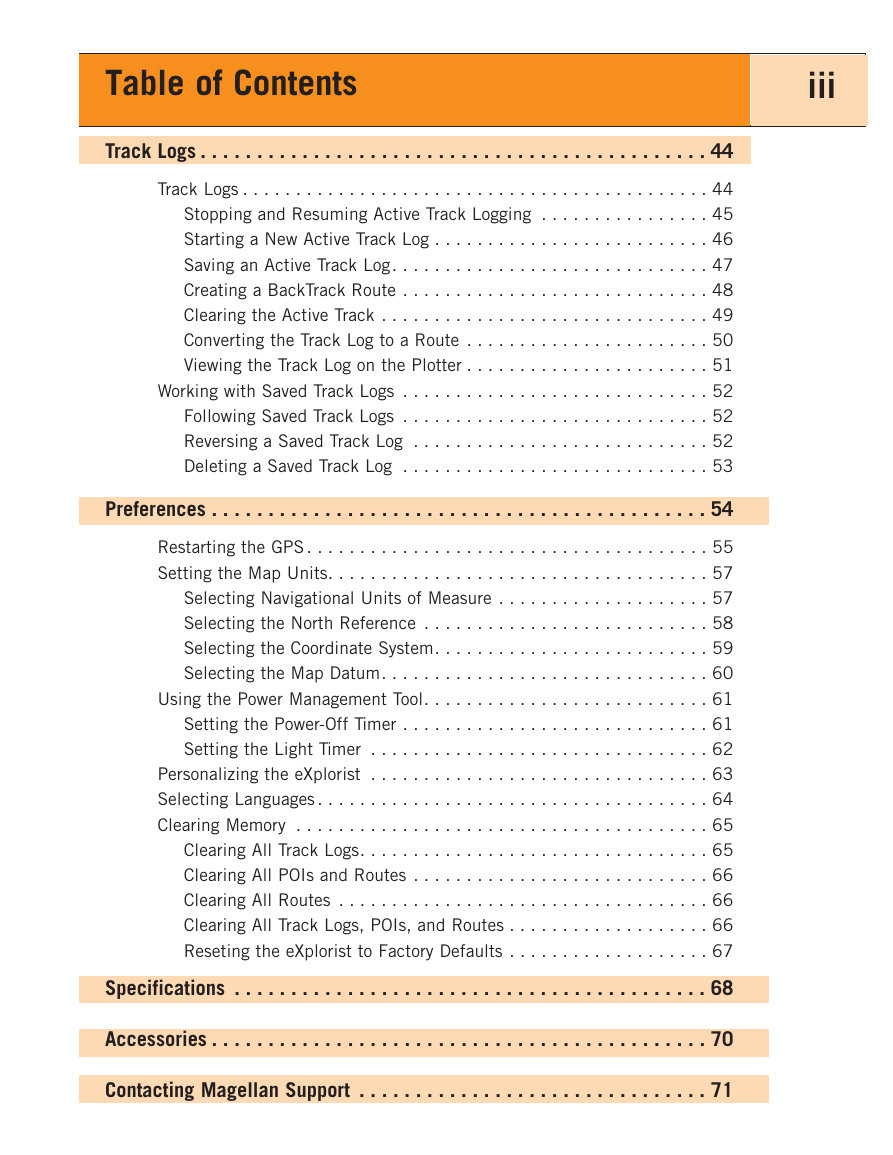

Table of Contents iii Track Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Track Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Stopping and Resuming Active Track Logging . . . . . . . . . . . . . . . . 45 Starting a New Active Track Log . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Saving an Active Track Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Creating a BackTrack Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Clearing the Active Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Converting the Track Log to a Route . . . . . . . . . . . . . . . . . . . . . . . 50 Viewing the Track Log on the Plotter . . . . . . . . . . . . . . . . . . . . . . . 51 Working with Saved Track Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Following Saved Track Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Reversing a Saved Track Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Deleting a Saved Track Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Restarting the GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Setting the Map Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Selecting Navigational Units of Measure . . . . . . . . . . . . . . . . . . . . 57 Selecting the North Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Selecting the Coordinate System. . . . . . . . . . . . . . . . . . . . . . . . . . 59 Selecting the Map Datum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Using the Power Management Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Setting the Power-Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Setting the Light Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Personalizing the eXplorist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Selecting Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Clearing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Clearing All Track Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Clearing All POIs and Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Clearing All Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Clearing All Track Logs, POIs, and Routes . . . . . . . . . . . . . . . . . . . 66 Reseting the eXplorist to Factory Defaults . . . . . . . . . . . . . . . . . . . 67 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Contacting Magellan Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

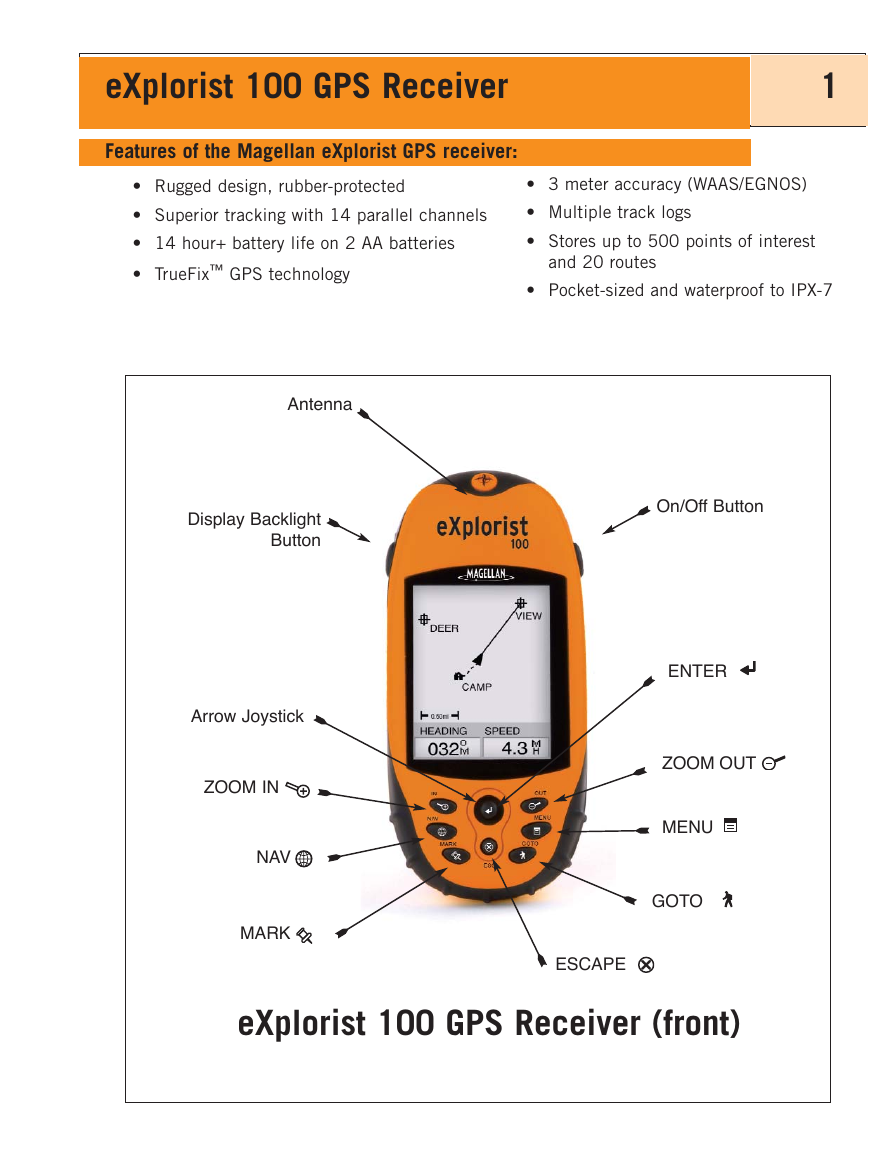

eXplorist 100 GPS Receiver 1 Features of the Magellan eXplorist GPS receiver: • Rugged design, rubber-protected • Superior tracking with 14 parallel channels • 14 hour+ battery life on 2 AA batteries • TrueFix™ GPS technology • 3 meter accuracy (WAAS/EGNOS) • Multiple track logs • Stores up to 500 points of interest and 20 routes • Pocket-sized and waterproof to IPX-7 Antenna Display Backlight Button Arrow Joystick ZOOM IN NAV MARK On/Off Button ENTER ZOOM OUT MENU GOTO ESCAPE eXplorist 100 GPS Receiver (front)

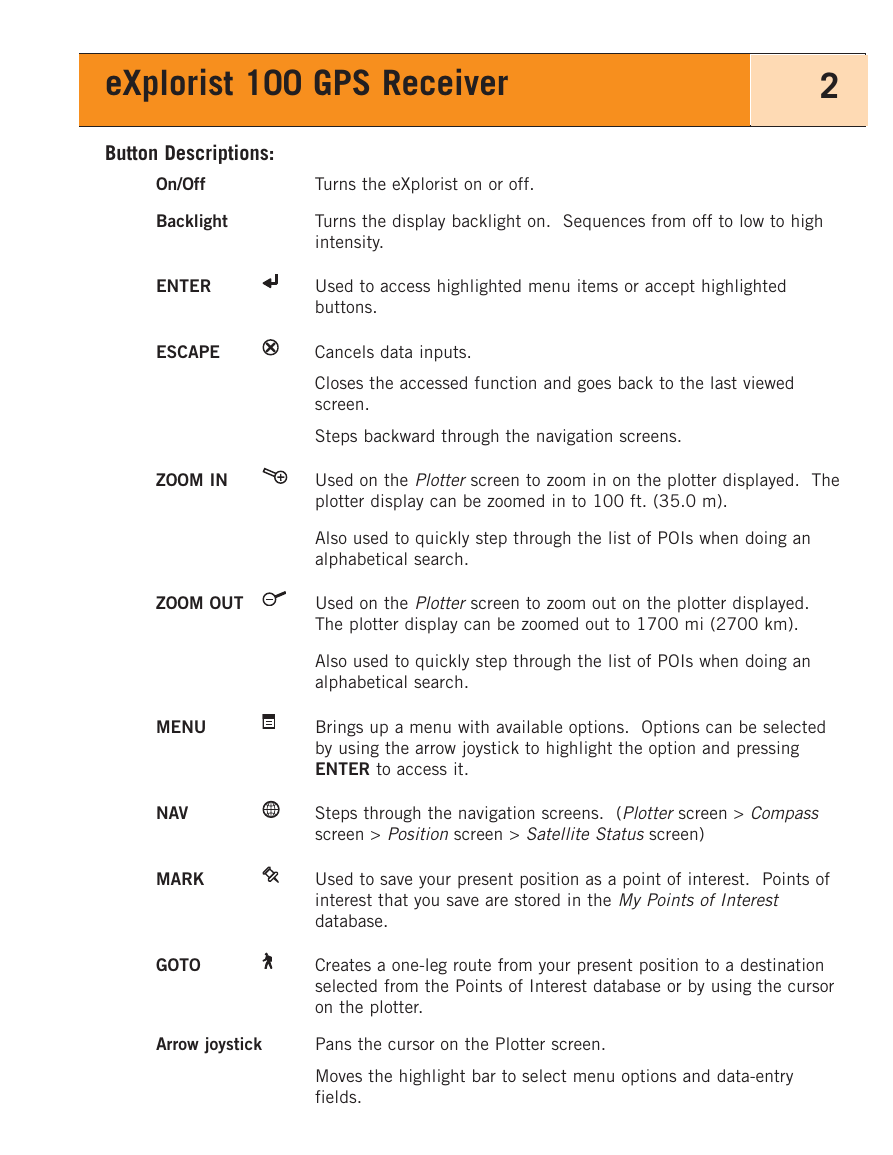

eXplorist 100 GPS Receiver 2 Button Descriptions: On/Off Backlight ENTER Turns the eXplorist on or off. Turns the display backlight on. Sequences from off to low to high intensity. Used to access highlighted menu items or accept highlighted buttons. ESCAPE Cancels data inputs. Closes the accessed function and goes back to the last viewed screen. Steps backward through the navigation screens. ZOOM IN Used on the Plotterscreen to zoom in on the plotter displayed. The plotter display can be zoomed in to 100 ft. (35.0 m). Also used to quickly step through the list of POIs when doing an alphabetical search. ZOOM OUT Used on the Plotterscreen to zoom out on the plotter displayed. The plotter display can be zoomed out to 1700 mi (2700 km). MENU NAV MARK GOTO Also used to quickly step through the list of POIs when doing an alphabetical search. Brings up a menu with available options. Options can be selected by using the arrow joystick to highlight the option and pressing ENTER to access it. Steps through the navigation screens. (Plotterscreen > Compass screen > Positionscreen > Satellite Statusscreen) Used to save your present position as a point of interest. Points of interest that you save are stored in the My Points of Interest database. Creates a one-leg route from your present position to a destination selected from the Points of Interest database or by using the cursor on the plotter. Arrow joystick Pans the cursor on the Plotter screen. Moves the highlight bar to select menu options and data-entry fields.

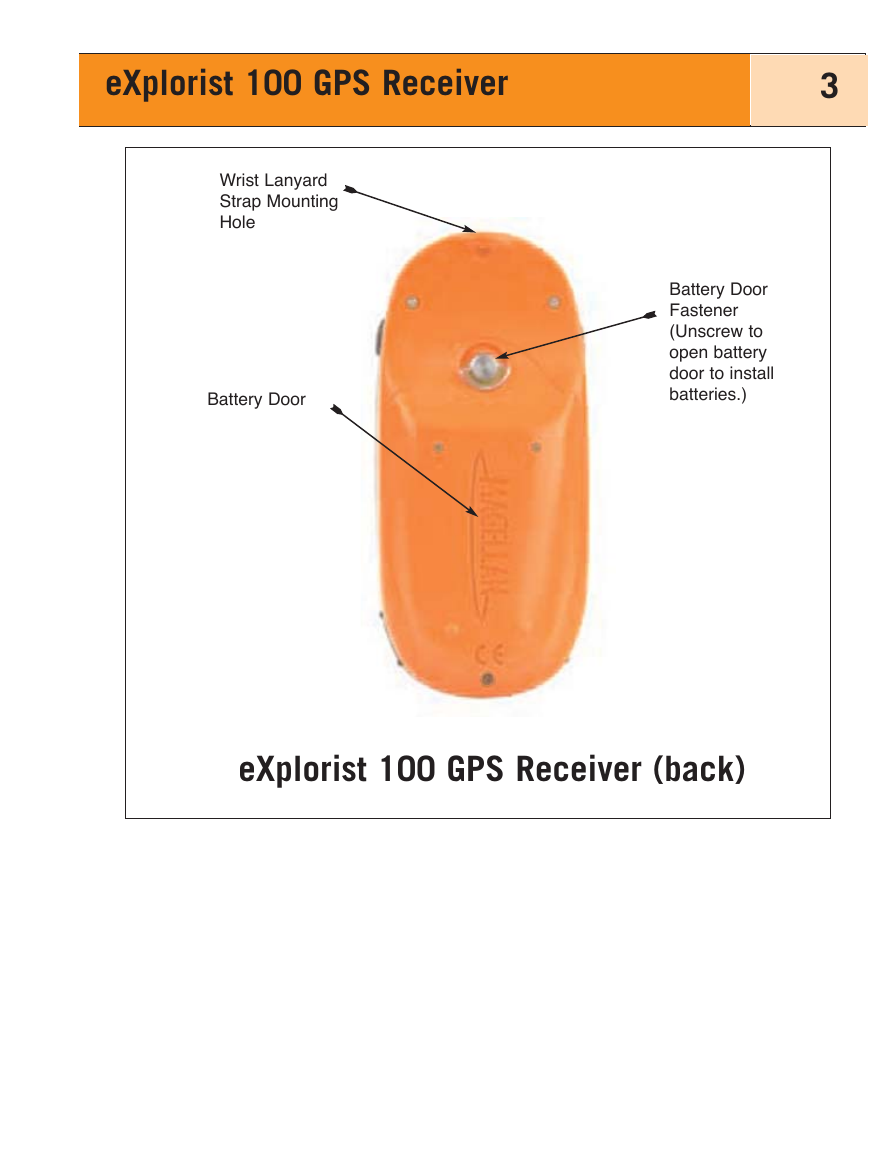

eXplorist 100 GPS Receiver 3 Wrist Lanyard Strap Mounting Hole Battery Door Battery Door Fastener (Unscrew to open battery door to install batteries.) eXplorist 100 GPS Receiver (back)
