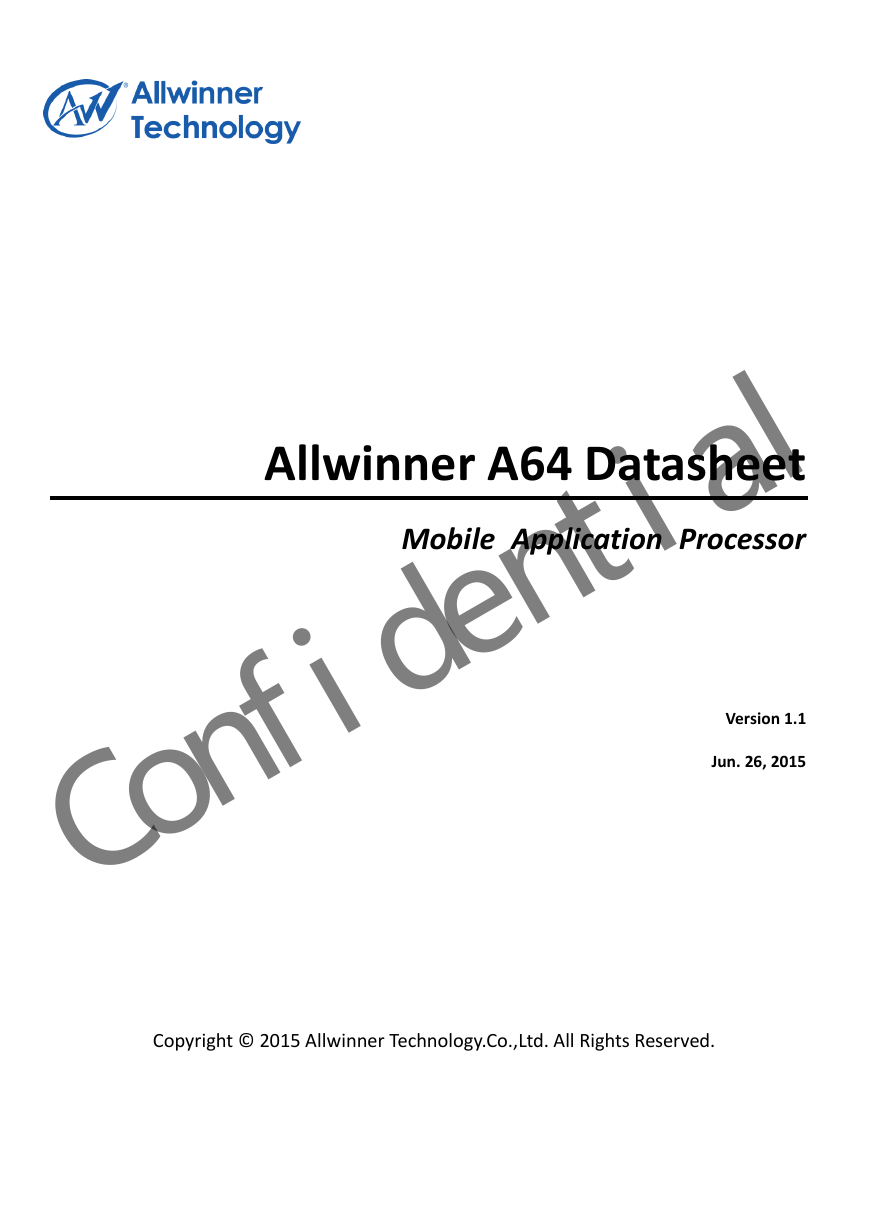

全志A64芯片数据手册.pdf

发布时间：2022-06-09 发布人：admin 分类：说明书资料大小：2.28M 资料格式：pdf 举报版权申诉


第1页 / 共64页


第2页 / 共64页


第3页 / 共64页


第4页 / 共64页


第5页 / 共64页


第6页 / 共64页


第7页 / 共64页


第8页 / 共64页

Revision History

Declaration

Table of Contents

1. Overview

2. Feature

2.1. CPU Architecture

2.2. GPU Architecture

2.3. Memory Subsystem

Boot ROM

SDRAM

NAND Flash

SD/MMC

2.4. System Peripheral

Timer

High Speed Timer

RTC

GIC

DMA

CCU

KEYADC

PWM

Thermal Sensor

Crypto Engine(CE)

Security ID

CPU Configuration

2.5. Display Subsystem

Display Output

2.6. Video Engine

Video Decoding

Video Encoding

2.7. Image In

CSI

2.8. Audio Subsystem

Audio Codec

I2S/PCM

One Wire Audio(OWA)

2.9. External Peripherals

USB Controller

EMAC

UART

SPI

Two Wire Interface(TWI)

CIR

RSBTM

SCR

2.10. Package

3. Block Diagram

4. Pin Description

4.1. Pin Characteristics

4.2. GPIO Multiplexing Functions

4.3. Detailed Pin/Signal Description

5. Electrical Characteristics

5.1. Absolute Maximum Ratings

5.2. Recommended Operating Conditions

5.3. DC Electrical Characteristics

5.4. Oscillator Electrical Characteristics

5.5. Electrical Characteristics for Power Supply

5.6. Nand AC Electrical Characteristics

5.7. SMHC AC Electrical Characteristics

5.7.1. SMHC0 AC Electrical Characteristics

5.7.2. SMHC1 AC Electrical Characteristics

SDR Mode

DDR50 Mode

SDR104 Mode(>100MHz)

5.7.3. SMHC2 AC Electrical Characteristics

HS-SDR/HS-DDR Mode

HS200 Mode

HS400 Mode

5.8. LCD AC Electrical Characteristics

5.9. CSI AC Electrical Characteristics

5.10. EMAC AC Electrical Characteristics

5.11. CIR AC Electrical Characteristics

5.12. SPI AC Electrical Characteristics

5.13. UART AC Electrical Characteristics

5.14. TWI AC Electrical Characteristics

5.15. TS AC Electrical Characteristics

5.16. SCR AC Electrical Characteristics

5.17. Power-up and Power-down Sequence

5.17.1. Power-up Sequence

5.17.2. Power-down Sequence

6. Package Thermal Characteristics

7. Pin Assignment

7.1. Pin Map

7.2. Package Dimension

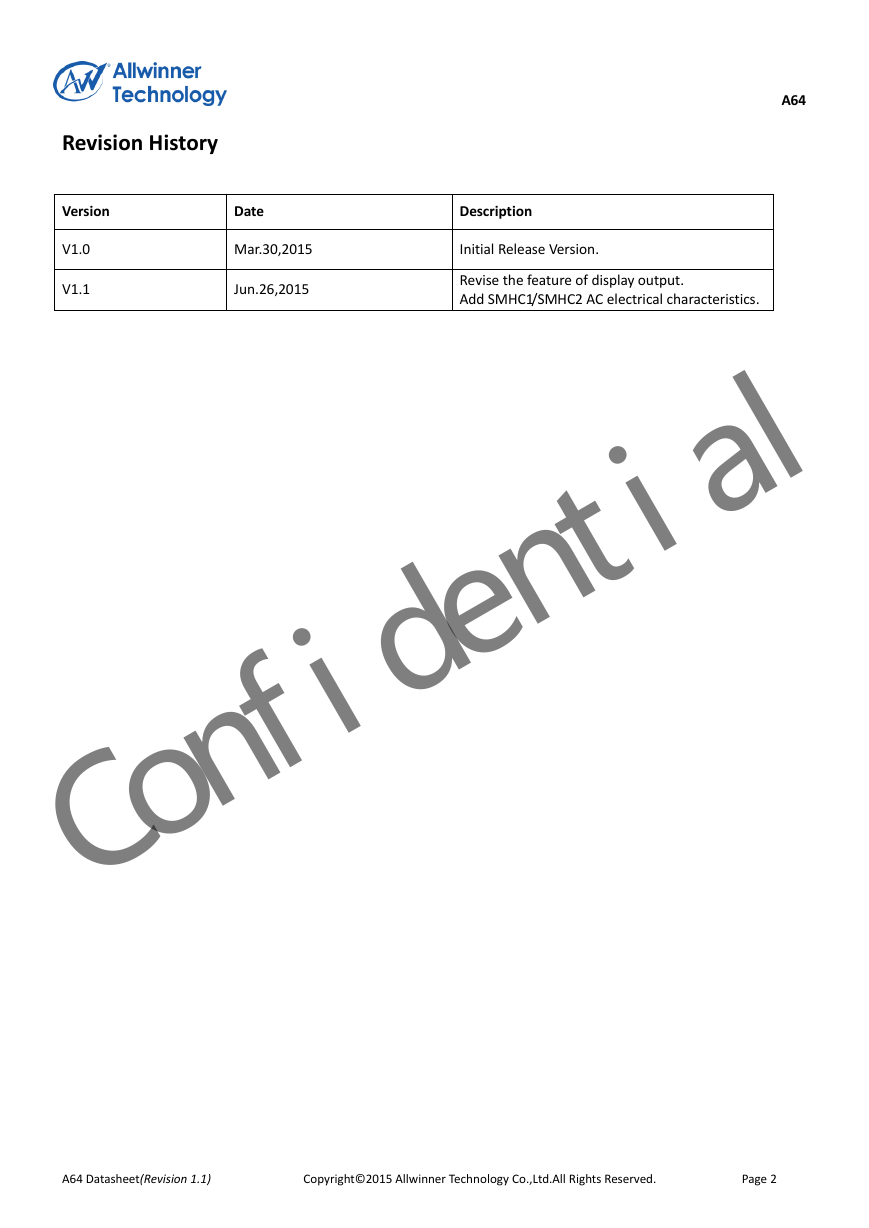

A64 Revision History Version Date Description V1.0 V1.1 Mar.30,2015 Jun.26,2015 Initial Release Version. Revise the feature of display output. Add SMHC1/SMHC2 AC electrical characteristics. A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 2

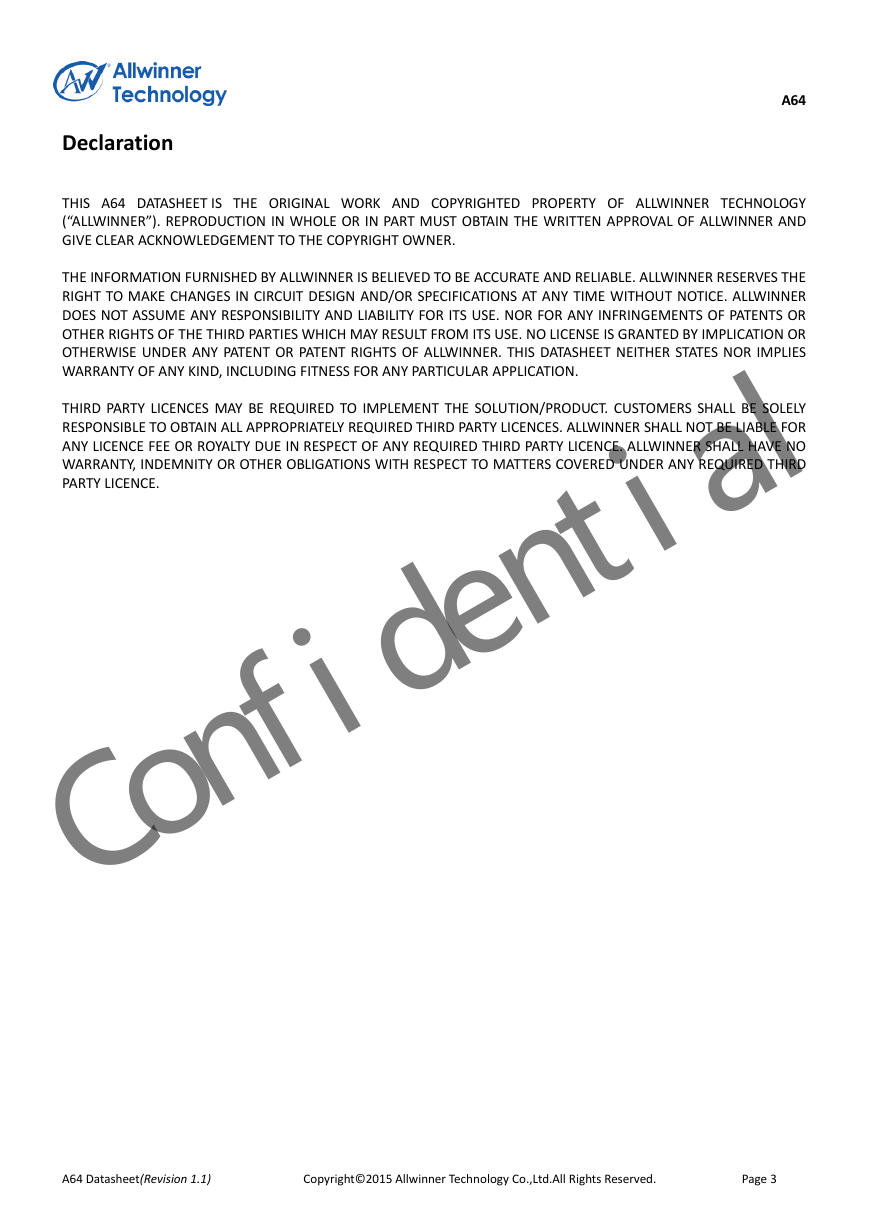

A64 Declaration THIS A64 DATASHEET IS THE ORIGINAL WORK AND COPYRIGHTED PROPERTY OF ALLWINNER TECHNOLOGY (“ALLWINNER”). REPRODUCTION IN WHOLE OR IN PART MUST OBTAIN THE WRITTEN APPROVAL OF ALLWINNER AND GIVE CLEAR ACKNOWLEDGEMENT TO THE COPYRIGHT OWNER. THE INFORMATION FURNISHED BY ALLWINNER IS BELIEVED TO BE ACCURATE AND RELIABLE. ALLWINNER RESERVES THE RIGHT TO MAKE CHANGES IN CIRCUIT DESIGN AND/OR SPECIFICATIONS AT ANY TIME WITHOUT NOTICE. ALLWINNER DOES NOT ASSUME ANY RESPONSIBILITY AND LIABILITY FOR ITS USE. NOR FOR ANY INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THE THIRD PARTIES WHICH MAY RESULT FROM ITS USE. NO LICENSE IS GRANTED BY IMPLICATION OR OTHERWISE UNDER ANY PATENT OR PATENT RIGHTS OF ALLWINNER. THIS DATASHEET NEITHER STATES NOR IMPLIES WARRANTY OF ANY KIND, INCLUDING FITNESS FOR ANY PARTICULAR APPLICATION. THIRD PARTY LICENCES MAY BE REQUIRED TO IMPLEMENT THE SOLUTION/PRODUCT. CUSTOMERS SHALL BE SOLELY RESPONSIBLE TO OBTAIN ALL APPROPRIATELY REQUIRED THIRD PARTY LICENCES. ALLWINNER SHALL NOT BE LIABLE FOR ANY LICENCE FEE OR ROYALTY DUE IN RESPECT OF ANY REQUIRED THIRD PARTY LICENCE. ALLWINNER SHALL HAVE NO WARRANTY, INDEMNITY OR OTHER OBLIGATIONS WITH RESPECT TO MATTERS COVERED UNDER ANY REQUIRED THIRD PARTY LICENCE. A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 3

A64 Table of Contents Revision History............................................................................................................................................................ 2 Declaration ................................................................................................................................................................... 3 Table of Contents ......................................................................................................................................................... 4 1. Overview .................................................................................................................................................................. 6 2. Feature ..................................................................................................................................................................... 7 2.1. CPU Architecture ........................................................................................................................................... 7 2.2. GPU Architecture .......................................................................................................................................... 7 2.3. Memory Subsystem....................................................................................................................................... 7 2.4. System Peripheral .......................................................................................................................................... 8 2.5. Display Subsystem ......................................................................................................................................... 9 2.6. Video Engine ...............................................................................................................................................10 2.7. Image In .......................................................................................................................................................10 2.8. Audio Subsystem .........................................................................................................................................10 2.9. External Peripherals ....................................................................................................................................11 2.10. Package .....................................................................................................................................................13 3. Block Diagram ........................................................................................................................................................14 4. Pin Description .......................................................................................................................................................15 4.1. Pin Characteristics .......................................................................................................................................15 4.2. GPIO Multiplexing Functions .......................................................................................................................23 4.3. Detailed Pin/Signal Description ................................................................................................................... 26 5. Electrical Characteristics ........................................................................................................................................33 5.1. Absolute Maximum Ratings ........................................................................................................................33 5.2. Recommended Operating Conditions .........................................................................................................33 5.3. DC Electrical Characteristics ........................................................................................................................34 5.4. Oscillator Electrical Characteristics .............................................................................................................34 A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 4

5.5. Electrical Characteristics for Power Supply .................................................................................................35 A64 5.6. Nand AC Electrical Characteristics ...............................................................................................................36 5.7. SMHC AC Electrical Characteristics .............................................................................................................40 5.8. LCD AC Electrical Characteristics .................................................................................................................46 5.9. CSI AC Electrical Characteristics .................................................................................................................. 51 5.10. EMAC AC Electrical Characteristics ........................................................................................................... 52 5.11. CIR AC Electrical Characteristics ................................................................................................................ 53 5.12. SPI AC Electrical Characteristics ................................................................................................................54 5.13. UART AC Electrical Characteristics ............................................................................................................54 5.14. TWI AC Electrical Characteristics ...............................................................................................................56 5.15. TS AC Electrical Characteristics .................................................................................................................56 5.16. SCR AC Electrical Characteristics ...............................................................................................................56 5.17. Power-up and Power-down Sequence ......................................................................................................58 5.17.1. Power-up Sequence .......................................................................................................................58 5.17.2. Power-down Sequence ..................................................................................................................59 6. Package Thermal Characteristics ............................................................................................................................61 7. Pin Assignment ....................................................................................................................................................... 62 7.1. Pin Map ....................................................................................................................................................... 62 7.2. Package Dimension .....................................................................................................................................63 A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 5

Overview 1. Overview Allwinner’s A64 is a quad-core,64bit SoC targeted for high performance tablets.A64 integrates a higher energy efficiency ARM Cortex-A53 CPU architecture, and also includes advanced 3D graphics processing unit, high-definition video decoding/encoding, low power audio codec, excellent display controllers and a broad range of interfaces. The processor has some very exciting features: CPU Quad-core ARM Cortex-A53 Processor, a power-efficient ARM v8 architecture, it has 64 and 32bit execution Audio An integrated audio subsystem delivers extremely low power audio playback and exceptional high quality • states for scalable high performance ,which includes a NEON multimedia processing engine. • Graphics ARM Mali400MP2 graphics acceleration provides mobile users with superior experience in web browsing, video playback and gaming effects; OpenGL ES2.0 ,OpenVG1.1 standards are supported. Video A64 provides almost full motion playback of up to 4K high-definition video, and supports H.265 decoder • by 4K@30fps , H.264 decoder by 1080p@60fps, MPEG1/2/4 decoder by 1080p@60fps, VP8 decoder by 1080p@60fps, AVS/AVS+ decoder by 1080p@60fps,VC1 decoder by 1080p@30fps, H.264 encoder by 1080p@60fps with dedicated hardware. • sound. • Display A64 features Allwinner’s SmartColor2.0 TM technology with an integrated display engine. Content can be displayed on 4-lane MIPI DSI displays up to 1920x1200@60fps, or a RGB panel interface up to 1920x1200@60fps, or LVDS panel up to 1366x768@60fps, or HDMI v1.4 is also supported up to 4K@30fps. • External Memory Many types of external memory devices are supported, including LPDDR2, LPDDR3, DDR2, DDR3 ,DDR3L, NAND Flash(MLC,SLC,TLC,EF),Nor Flash, SD/SDIO/MMC including eMMC up to rev5.0,and also supports booting from RAW NAND,eMMC,SD/TF Card or Nor Flash. • Management(DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse. • Connectivity A64 has a broad range of hardware interfaces such as parallel CMOS sensor interface, 10/100/1000Mbps EMAC,USB OTG v2.0 operating at high speed(480Mbps) with PHY, USB Host with PHY and a variety of other popular interfaces(SPI,UART,CIR,TS,TWI,RSB,SCR). Security A64 delivers hardware security features that enable trustzone security system, Digital Rights A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 6

Feature 2. Feature Support Large Physical Address Extensions(LPAE) VFPv4 Floating Point Unit 32KB L1 Instruction cache and 32KB L1 Data cache 512KB L2 cache 2.1. CPU Architecture • Quad-core ARM Cortex-A53 Processor A power-efficient ARM v8 architecture • 64 and 32bit execution states for scalable high performance • • Trustzone technology supported 3~10x better software encryption performance • • Support NEON Advanced SIMD(Single Instruction Multiple Data)instruction for acceleration of media and signal processing functions • • • • 2.2. GPU Architecture • • 2.3. Memory Subsystem Boot ROM • On-chip memory • • • ARM Mali400MP2 GPU Support OpenGL ES 2.0 and OpenVG 1.1 standard Size:112KB(non secure ROM:48KB,secure ROM:64KB) Support secure and non-secure access boot Support system boot from the following device: - Raw NAND - eMMC - SD/TF card - SPI NOR Flash Support system code download through USB OTG Compatible with JEDEC standard DDR2 /DDR3 /DDR3L/LPDDR2/LPDDR3 SDRAM Support clock frequency up to 667MHz(DDR3-1333) Support 2 chip selects • SDRAM • • • • Up to 3GB address space • • • NAND Flash • Up to 2 chip selects • 8-bit data bus width • Up to 64-bit ECC per 1024 bytes • 32-bits bus width 16 address signal lines and 3 bank signal lines Support Memory Dynamic Frequency Scale(MDFS) Support 1024,2048,4096,8192,16K bytes size per page A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 7

Feature Comply to eMMC standard specification V5.0, SD physical layer specification V2.0, SDIO card specification V3.0 1-bit or 4-bit data bus transfer mode for SD cards 1-bit or 4-bit data bus transfer mode for SDIO interface 1-bit ,4-bit or 8-bit data bus transfer mode for MMC cards Embedded special DMA to do data transfer Support hardware CRC generation and error detection Support SLC/MLC/TLC flash and EF-NAND memory Support SDR,ONFI DDR and Toggle DDR NAND Embedded DMA to do data transfer Support data transfer together with normal DMA • • • • SD/MMC • Up to three SD/MMC controllers • • • • • • 2.4. System Peripheral Timer Two on-chip timers with interrupt-based operation • • One watchdog to resume the controller operation • • High Speed Timer • One high speed timer with 56bit counter • RTC • • • One 32768Hz fanout GIC • Interrupts(SPIs) DMA • Up to 8-channel DMA • • • • Two AVS Counter to synchronize video and audio in the player 24MHz or 32KHz clock input Clock source is synchronized with AHB1 clock, much more accurate than other timers Calendar :Counters second,minutes,hours,day,week,month and year with leap year generator Alarm: general alarm and weekly alarm Support 16 Software Generated Interrupts(SGIs), 16 Private Peripheral Interrupts(PPIs) and 125 Shared Peripheral Interrupt generated for each DMA channel Flexible data width of 8/16/32/64-bits Support linear and IO address modes Support data transfer types with memory-to-memory, memory-to-peripheral, peripheral-to-memory 13 PLLs CCU • • One on-chip RC oscillator • • • KEYADC • • ADC with 6-bit resolution for key Support hold key and continuous key Support a external 24MHz oscillator and a external32.768KHz oscillator Support clock configuration and clock generated for corresponding modules Support software-controlled clock gating and software-controlled reset for corresponding modules A64 Datasheet(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 8
