TomTom GPS导航设备-GO x50 LIVE说明书.pdf

发布时间：2022-05-16 发布人：admin 分类：说明书资料大小：6.34M 资料格式：pdf 举报版权申诉

第1页 / 共93页

第2页 / 共93页

第3页 / 共93页

第4页 / 共93页

第5页 / 共93页

第6页 / 共93页

第7页 / 共93页

第8页 / 共93页

What’s in the box

Before you start

Switching on and off

Setting up

Device not starting

Battery notes

Active Dock

GPS reception

Safety Notice

Take care of your device

Safety

Positioning the Active Dock

Installing the Active Dock

Safety preferences

Making your first journey

Route summary

LIVE snapshot

Using your voice to plan a route

Frequent destinations

Show my list of frequent destinations every time my TomTom GO starts

Arrival times

Other navigation options

Planning a route in advance

More information about a route

Voice command and control

Using voice command and control

Planning a journey using your voice

Voice address input

Driving View

Driving View symbols

Advanced Lane Guidance

Finding alternative routes

Why change the route?

Browse Map

Options

TomTom Map ShareTM

Map corrections

Making a map correction

Receiving the latest map updates

Marking a map error while on the move

TomTom Map Share community

Correction preferences

Accepting map corrections

Types of map correction

Sounds and voices

Changing the volume level

Changing the volume automatically

Selecting a voice

How do computer voices work?

Internal and external speakers

Using Bluetooth® Hi-Fi speakers

Preferences

Use night colours / Use day colours

Can my GO make this change automatically?

Show POI on map

Quick menu preferences

Guided tours

Turn off voice guidance / Turn on voice guidance

Voices

Volume preferences

Can my GO change the volume depending on how noisy it is in the car?

Command and control

Speaker preferences

Turn off sound / Turn on sound

Can I still use my GO to make hands-free calls when the sound is turned off?

Manage Favourites

Change Home location

Do I need to use my actual home address for the Home location?

Why should I set a Home location?

Planning preferences

Replanning preferences

Switch maps

Manage POIs

Change car symbol

2D/3D preferences

Status bar preferences

Change map colours

Brightness preferences

Bluetooth preferences

Flight mode

Send/Receive files

Set owner

Start-up preferences

Set clock

Set units

Operate left-handed / Operate right handed

Keyboard preferences

Battery saving preferences

Change language

My TomTom account

Safety preferences

What happens when I use the Turn off map display option?

Advanced preferences

Reset factory settings

Points of Interest

Creating POIs

Navigating to a POI

Showing POIs on the map

Calling a POI

How can I set warnings for POIs?

Managing POIs

Why would I want to create my own POIs?

Itinerary Planning

What is an Itinerary?

When would I use an Itinerary?

Creating an Itinerary

Following an Itinerary

Organising an Itinerary

Start using an Itinerary

Help me

How do I use Help me to phone a local service?

Options

Hands-free calling

Connecting to your phone

Setting up TomTom Services

Your phonebook

Making a call

Receiving a call

Auto-answer

Connecting more phones to your TomTom GO

Mobile phone menu

Favourites

What are Favourites?

How can I create a Favourite?

How can I use a Favourite?

How can I change the name of a Favourite?

How can I delete a Favourite?

Media

Putting documents and photos on your GO

Looking at photos

Reading documents

LIVE Services

Regional availability

Safety Notice

LIVE Services subscriptions

Checking your LIVE Services subscription

Renewing your LIVE Services subscription using your GO

Renewing your LIVE Services subscription using TomTom HOME

TomTom HD Traffic

Fuel Prices

Search for the best fuel prices

TomTom local search with Google

Using local search

TomTom Safety Alerts

Other services

TomTom Weather

QuickGPSfixTM

My Services

TomTom HD Traffic

Safety Notice

Using TomTom HD Traffic

Taking the fastest route

Notifications about changes in the traffic situation

Changing HD Traffic preferences

Making commuting to work easier

Checking traffic incidents in your area

Show traffic on route

Traffic sidebar colours

Traffic incidents

Traffic menu

TomTom Safety Alerts

Setting up Safety Cameras

Updating locations for safety alerts

Safety camera warnings

Changing the way you are warned

Report button

Reporting a new safety camera while on the move

Reporting a new safety camera while at home

Reporting incorrect camera alerts

Types of fixed safety camera you can report

Average speed check camera warnings

TomTom Safety Camera menu

Fuel Prices

Search for the best fuel prices

TomTom Weather

Key Features

How to request a weather report

Types of location

Introducing TomTom HOME

Installing TomTom HOME

MyTomTom Account

Find out more with HOME Help topics

Addendum

Important Safety Notices and Warnings

Global Positioning System

Use with Care

Aircraft and Hospitals

Taking care of your TomTom device

Battery

CE Marking

R&TTE directive

WEEE directive

Connected networks

This Document

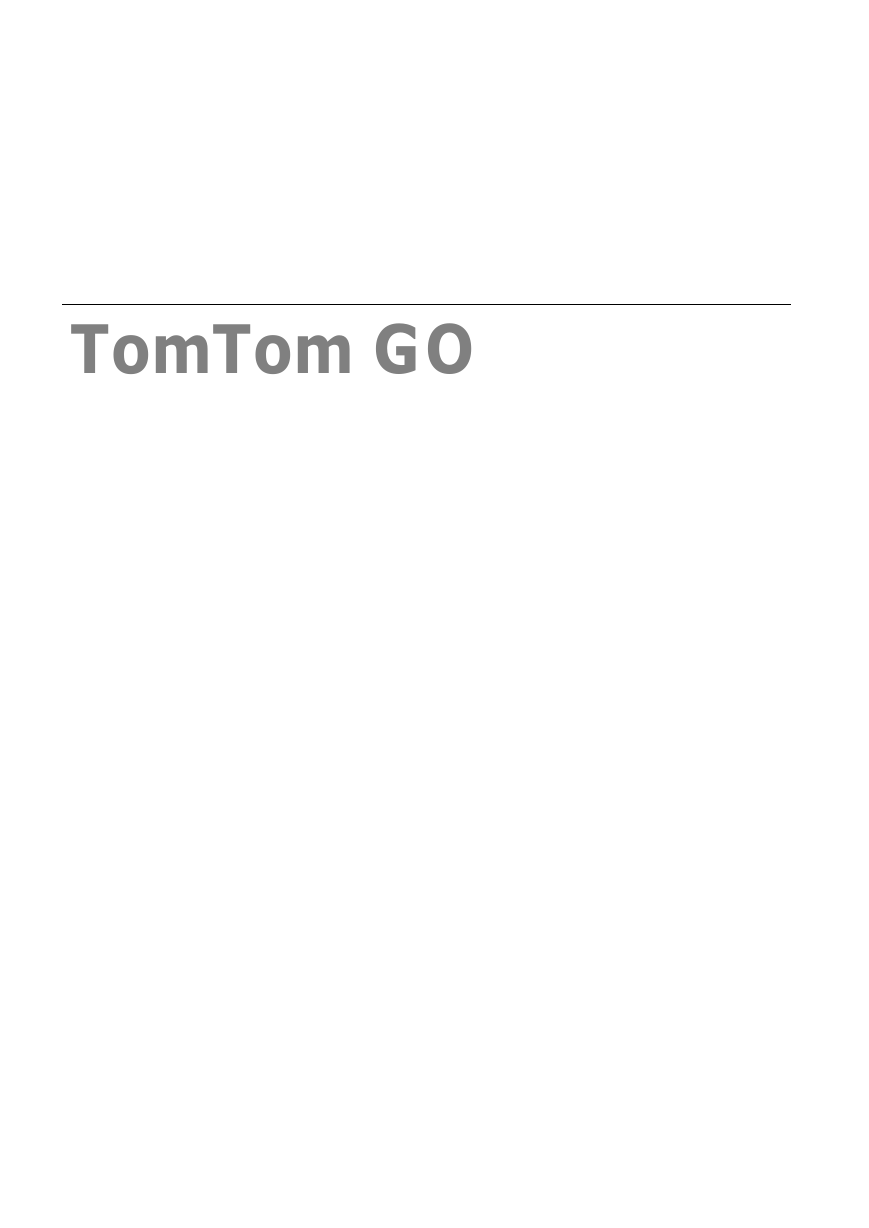

TomTom GO

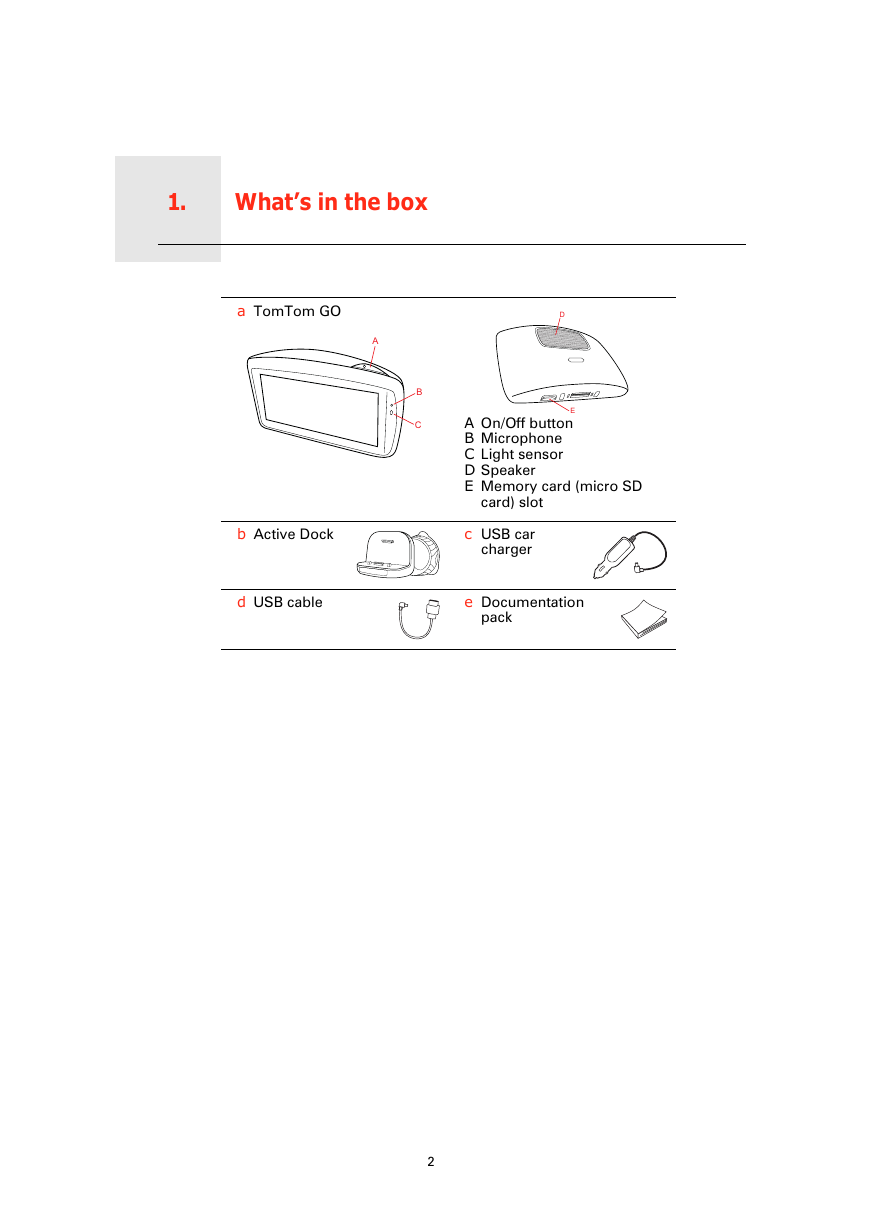

1. What’s in the box What’s in the box a TomTom GO D A B C E A On/Off button B Microphone C Light sensor D Speaker E Memory card (micro SD card) slot c USB car charger e Documentation pack b Active Dock d USB cable 2

2. Before you start Before you start Switching on and off Setting up Install your TomTom GO navigation device in your car following the instruc- tions in the installation section at the start of this book. To switch on your navigation device, press and hold the On/Off button until you see the start-up screen. The first time you switch on your device, it may take a short time to start. When you first switch on your device, you have to answer a few questions to set up the device. Answer the questions by tapping the screen. You are asked whether you make regular trips to the same locations. If you tap YES, you can enter these destinations as your favourite destinations. Every time you switch on your device, you can immediately select one of these loca- tions as your destination. To change these destinations or select a new destination, tap Start-up preferences in the Preferences menu, then select Ask for a destination. Device not starting Battery notes In rare cases, your TomTom GO navigation device may not start correctly or may stop responding to your taps. First, check that the battery is properly charged. To charge the battery, con- nect your device to the car charger. It can take up to 2 hours to fully charge the battery. If this does not solve the problem, you can reset the device. To do this, press and hold the On/Off button for 15 seconds and release the button when your device begins to restart. The battery in your TomTom GO navigation device charges when you connect it to the car charger or to your computer. When you connect your device to a computer, you are asked if you want to connect to the computer. If you select No and then do not tap the screen within three minutes, the device will automatically switch off. This happens so that the battery can charge faster. Note: You should plug the USB connector directly into a USB port on your computer and not into a USB hub or USB port on a keyboard or monitor. 3

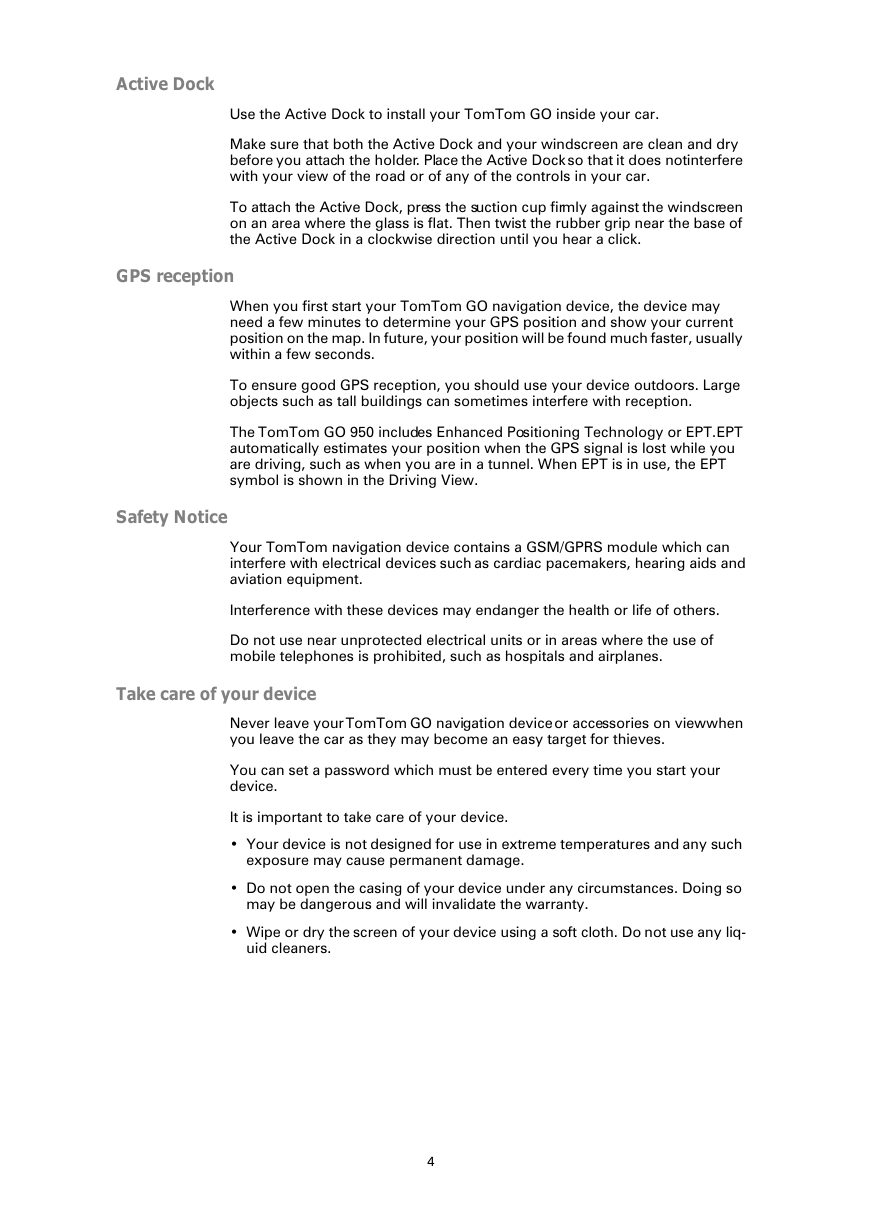

Active Dock Use the Active Dock to install your TomTom GO inside your car. Make sure that both the Active Dock and your windscreen are clean and dry before you attach the holder. Place the Active Dock so that it does not interfere with your view of the road or of any of the controls in your car. To attach the Active Dock, press the suction cup firmly against the windscreen on an area where the glass is flat. Then twist the rubber grip near the base of the Active Dock in a clockwise direction until you hear a click. GPS reception When you first start your TomTom GO navigation device, the device may need a few minutes to determine your GPS position and show your current position on the map. In future, your position will be found much faster, usually within a few seconds. To ensure good GPS reception, you should use your device outdoors. Large objects such as tall buildings can sometimes interfere with reception. The TomTom GO 950 includes Enhanced Positioning Technology or EPT. EPT automatically estimates your position when the GPS signal is lost while you are driving, such as when you are in a tunnel. When EPT is in use, the EPT symbol is shown in the Driving View. Your TomTom navigation device contains a GSM/GPRS module which can interfere with electrical devices such as cardiac pacemakers, hearing aids and aviation equipment. Interference with these devices may endanger the health or life of others. Do not use near unprotected electrical units or in areas where the use of mobile telephones is prohibited, such as hospitals and airplanes. Safety Notice Take care of your device Never leave your TomTom GO navigation device or accessories on view when you leave the car as they may become an easy target for thieves. You can set a password which must be entered every time you start your device. It is important to take care of your device. • Your device is not designed for use in extreme temperatures and any such exposure may cause permanent damage. • Do not open the casing of your device under any circumstances. Doing so may be dangerous and will invalidate the warranty. • Wipe or dry the screen of your device using a soft cloth. Do not use any liq- uid cleaners. 4

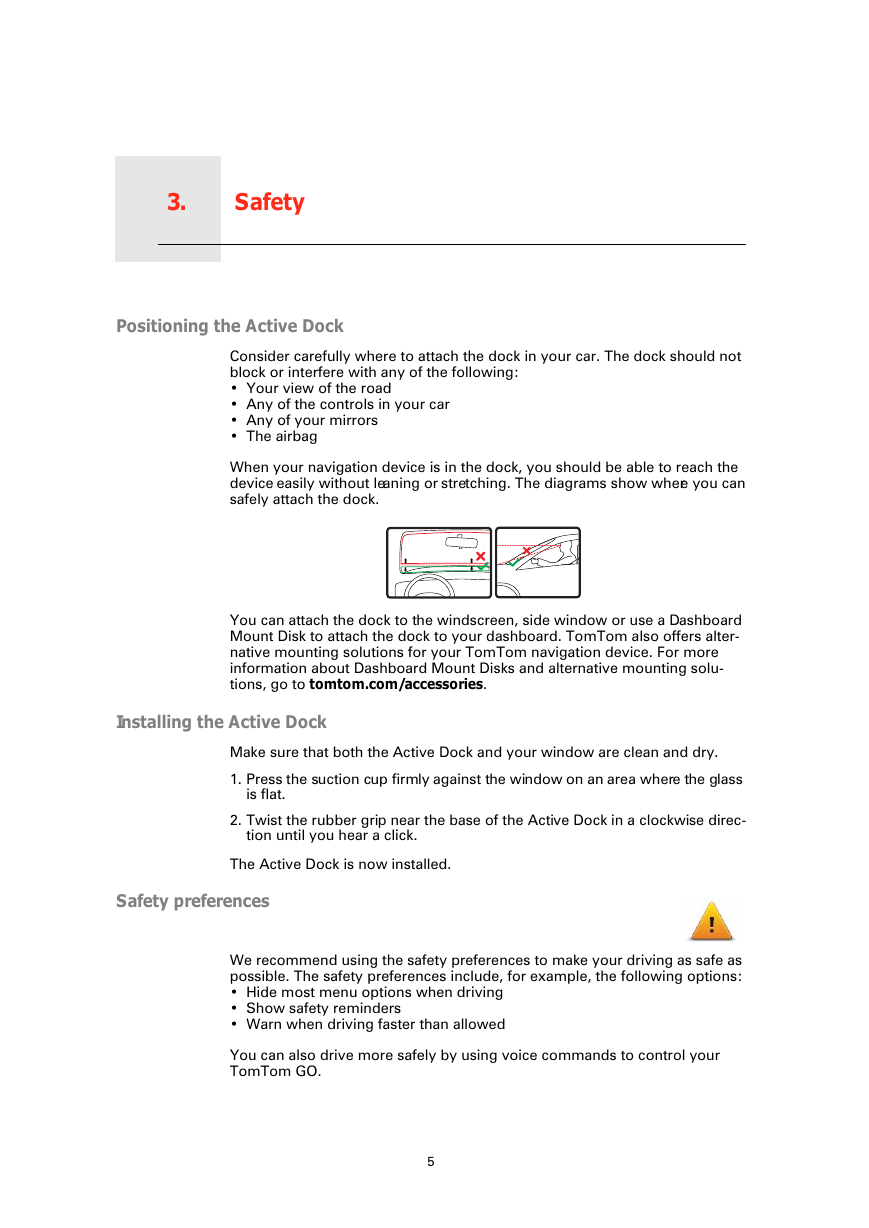

3. Safety Safety Positioning the Active Dock Consider carefully where to attach the dock in your car. The dock should not block or interfere with any of the following: • Your view of the road • Any of the controls in your car • Any of your mirrors • The airbag When your navigation device is in the dock, you should be able to reach the device easily without leaning or stretching. The diagrams show where you can safely attach the dock. You can attach the dock to the windscreen, side window or use a Dashboard Mount Disk to attach the dock to your dashboard. TomTom also offers alter- native mounting solutions for your TomTom navigation device. For more information about Dashboard Mount Disks and alternative mounting solu- tions, go to tomtom.com/accessories. Installing the Active Dock Make sure that both the Active Dock and your window are clean and dry. 1. Press the suction cup firmly against the window on an area where the glass is flat. 2. Twist the rubber grip near the base of the Active Dock in a clockwise direc- tion until you hear a click. The Active Dock is now installed. Safety preferences We recommend using the safety preferences to make your driving as safe as possible. The safety preferences include, for example, the following options: • Hide most menu options when driving • Show safety reminders • Warn when driving faster than allowed You can also drive more safely by using voice commands to control your TomTom GO. 5

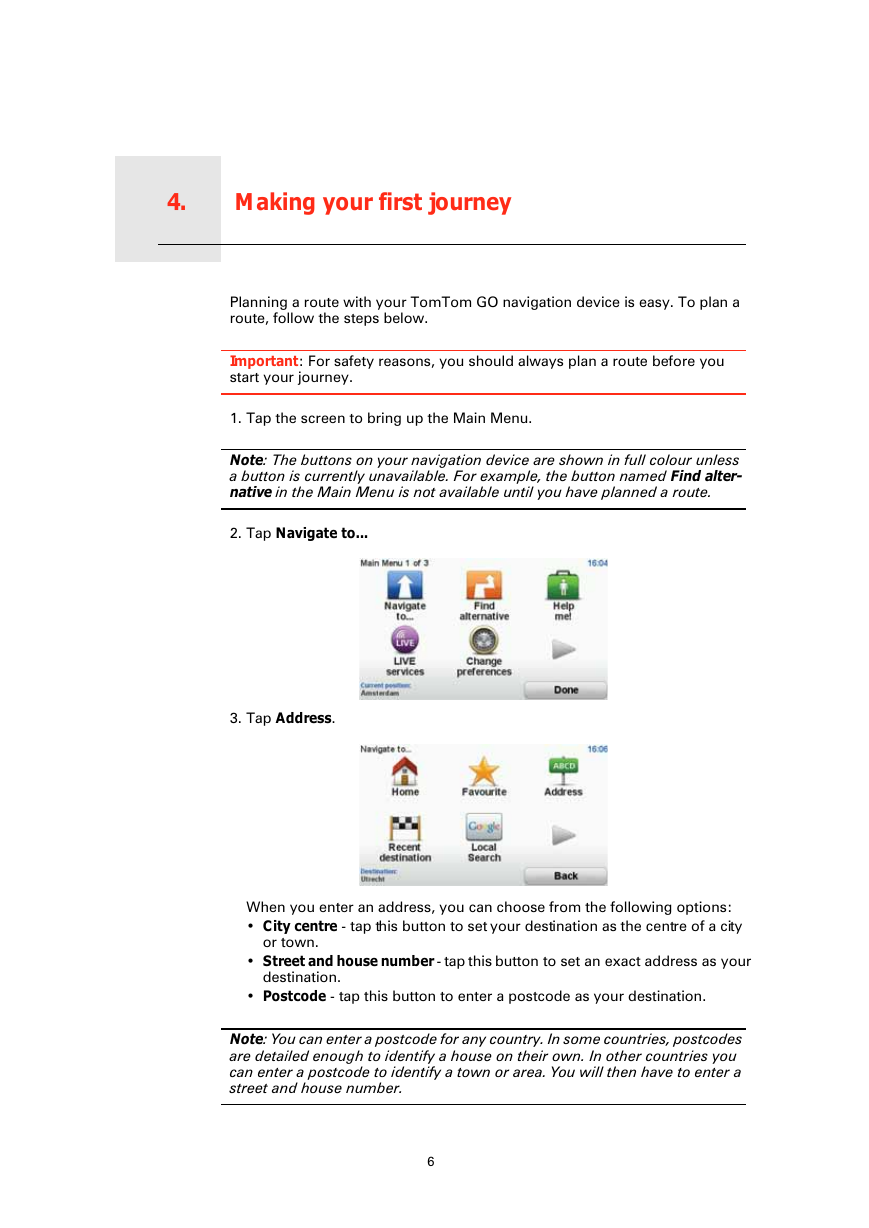

4. Making your first journey Making your first journey Planning a route with your TomTom GO navigation device is easy. To plan a route, follow the steps below. Important: For safety reasons, you should always plan a route before you start your journey. 1. Tap the screen to bring up the Main Menu. Note: The buttons on your navigation device are shown in full colour unless a button is currently unavailable. For example, the button named Find alter- native in the Main Menu is not available until you have planned a route. 2. Tap Navigate to... 3. Tap Address. When you enter an address, you can choose from the following options: • City centre - tap this button to set your destination as the centre of a city • Street and house number - tap this button to set an exact address as your or town. destination. • Postcode - tap this button to enter a postcode as your destination. Note: You can enter a postcode for any country. In some countries, postcodes are detailed enough to identify a house on their own. In other countries you can enter a postcode to identify a town or area. You will then have to enter a street and house number. 6

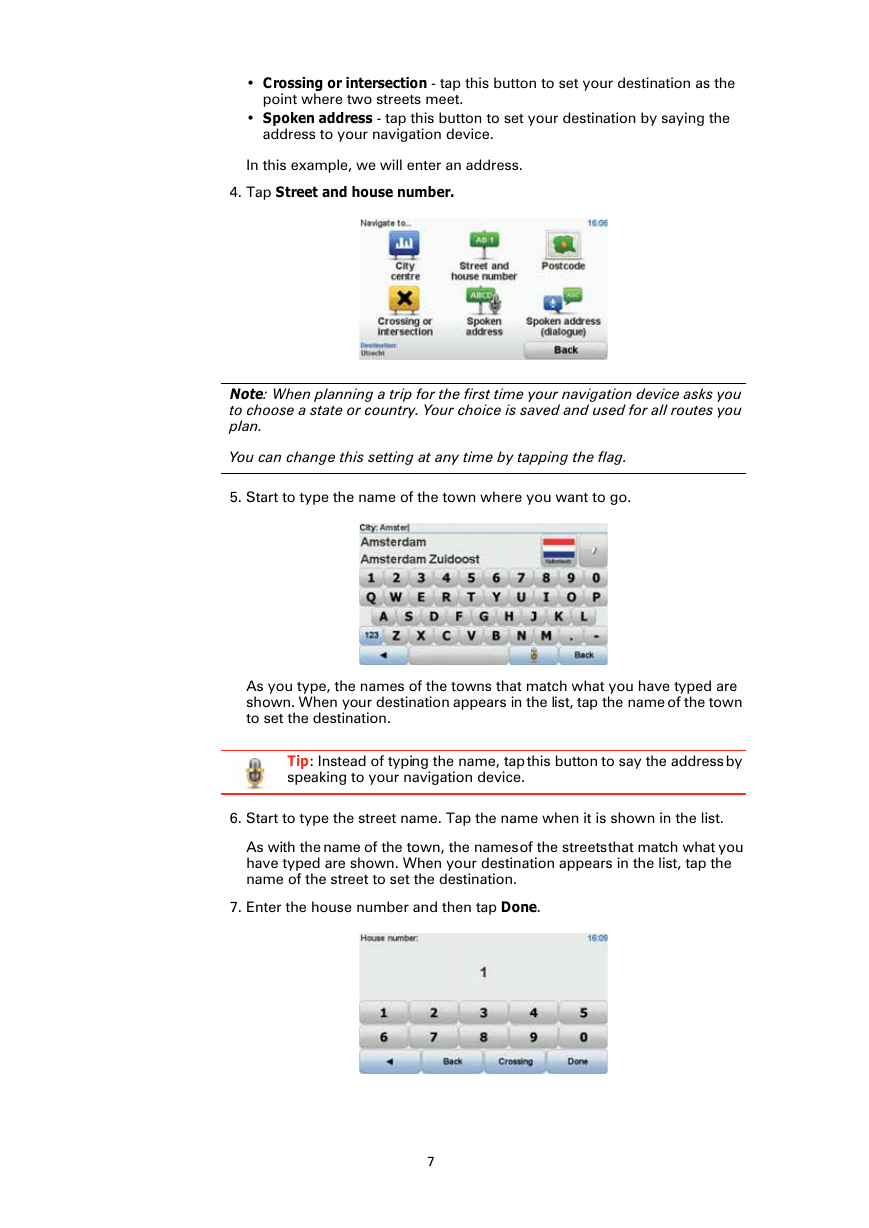

• Crossing or intersection - tap this button to set your destination as the point where two streets meet. • Spoken address - tap this button to set your destination by saying the address to your navigation device. In this example, we will enter an address. 4. Tap Street and house number. Note: When planning a trip for the first time your navigation device asks you to choose a state or country. Your choice is saved and used for all routes you plan. You can change this setting at any time by tapping the flag. 5. Start to type the name of the town where you want to go. As you type, the names of the towns that match what you have typed are shown. When your destination appears in the list, tap the name of the town to set the destination. Tip: Instead of typing the name, tap this button to say the address by speaking to your navigation device. 6. Start to type the street name. Tap the name when it is shown in the list. As with the name of the town, the names of the streets that match what you have typed are shown. When your destination appears in the list, tap the name of the street to set the destination. 7. Enter the house number and then tap Done. 7

8. Your navigation device asks if you need to arrive at a particular time. For this exercise, tap NO. The route is calculated by your device using IQ RoutesTM. IQ Routes is used to plan the best possible route using information about the average speeds measured on the roads. When the route has been calculated, tap Done. Your TomTom GO navigation device warns you about any traffic delays and begins to guide you to your destination. Route summary After planning a route, you see a summary of your route. The route summary shows an overview map of your route and the total jour- ney time including delays caused by both incidents and busy roads. You can see the route summary at any time by tapping the right side of the status bar. LIVE snapshot LIVE snapshot shows an overview of the information provided by LIVE serv- ices for your planned route. To explore LIVE snapshot, open the LIVE tab on the route summary screen, then tap each panel for more detailed information. Note: Not all services are available in all countries or regions. Go to tom- tom.com/services to check which services are available where you live. Tap on the panels in the LIVE tab to see, for example, information on the fol- lowing. Not all information is available in all countries: • Traffic on route - tap this section to see details of any delays caused by inci- dents and busy roads. • Cheapest on route - tap this section to see the Fuel Prices menu. You can then change your route to go via the cheapest fuel station. • Safety cameras - tap this section to see the Safety Camera menu. You can then report a safety camera or change the warning preferences. Note: As well as using LIVE services in your own country, you may also be able to use LIVE services when travelling abroad. Not all LIVE services are available in all countries. For more information on available services, go to tomtom.com/services. 8
