GPSMAP® 198C Sounder chartplotting receiver owner’s manual

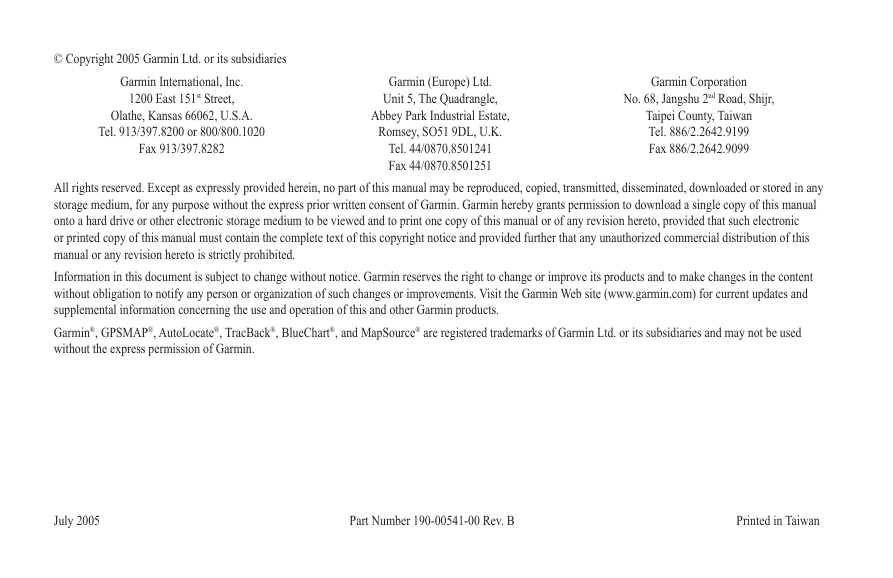

© Copyright 2005 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Tel. 44/0870.8501241 Fax 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin®, GPSMAP®, AutoLocate®, TracBack®, BlueChart®, and MapSource® are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. July 2005 Part Number 190-00541-00 Rev. B Printed in Taiwan

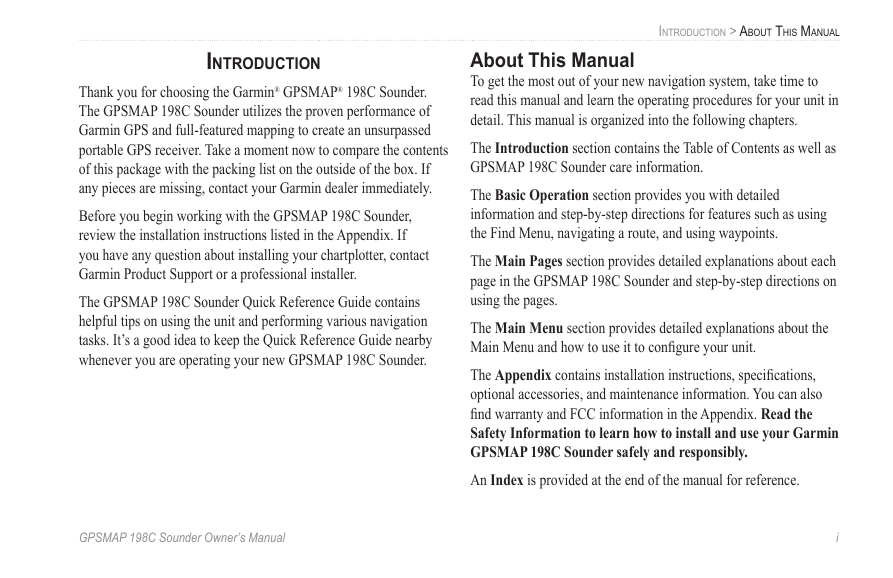

INTRODUCTION Thank you for choosing the Garmin® GPSMAP® 198C Sounder. The GPSMAP 198C Sounder utilizes the proven performance of Garmin GPS and full-featured mapping to create an unsurpassed portable GPS receiver. Take a moment now to compare the contents of this package with the packing list on the outside of the box. If any pieces are missing, contact your Garmin dealer immediately. Before you begin working with the GPSMAP 198C Sounder, review the installation instructions listed in the Appendix. If you have any question about installing your chartplotter, contact Garmin Product Support or a professional installer. The GPSMAP 198C Sounder Quick Reference Guide contains helpful tips on using the unit and performing various navigation tasks. It’s a good idea to keep the Quick Reference Guide nearby whenever you are operating your new GPSMAP 198C Sounder. INTRODUCTION > ABOUT THIS MANUAL About This Manual To get the most out of your new navigation system, take time to read this manual and learn the operating procedures for your unit in detail. This manual is organized into the following chapters. The Introduction section contains the Table of Contents as well as GPSMAP 198C Sounder care information. The Basic Operation section provides you with detailed information and step-by-step directions for features such as using the Find Menu, navigating a route, and using waypoints. The Main Pages section provides detailed explanations about each page in the GPSMAP 198C Sounder and step-by-step directions on using the pages. The Main Menu section provides detailed explanations about the Main Menu and how to use it to conﬁgure your unit. The Appendix contains installation instructions, speciﬁcations, optional accessories, and maintenance information. You can also ﬁnd warranty and FCC information in the Appendix. Read the Safety Information to learn how to install and use your Garmin GPSMAP 198C Sounder safely and responsibly. An Index is provided at the end of the manual for reference. GPSMAP 198C Sounder Owner’s Manual i

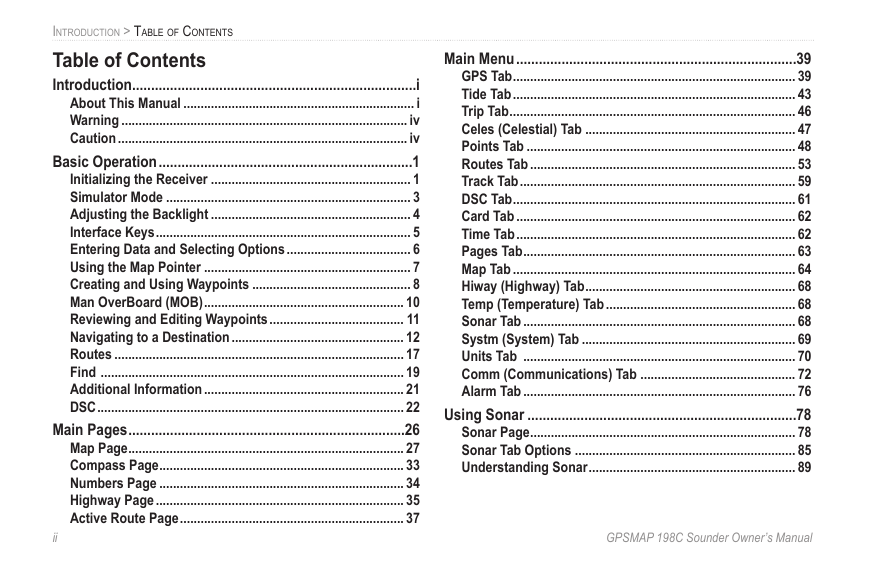

INTRODUCTION > TABLE OF CONTENTS Table of Contents Introduction ...........................................................................i About This Manual ................................................................... i Warning ................................................................................... iv Caution .................................................................................... iv Basic Operation ...................................................................1 Initializing the Receiver .......................................................... 1 Simulator Mode ....................................................................... 3 Adjusting the Backlight .......................................................... 4 Interface Keys .......................................................................... 5 Entering Data and Selecting Options .................................... 6 Using the Map Pointer ............................................................ 7 Creating and Using Waypoints .............................................. 8 Man OverBoard (MOB) .......................................................... 10 Reviewing and Editing Waypoints ....................................... 11 Navigating to a Destination .................................................. 12 Routes .................................................................................... 17 Find ........................................................................................ 19 Additional Information .......................................................... 21 DSC ......................................................................................... 22 Main Pages .........................................................................26 Map Page ................................................................................ 27 Compass Page ....................................................................... 33 Numbers Page ....................................................................... 34 Highway Page ........................................................................ 35 Active Route Page ................................................................. 37 ii Main Menu ..........................................................................39 GPS Tab .................................................................................. 39 Tide Tab .................................................................................. 43 Trip Tab ................................................................................... 46 Celes (Celestial) Tab ............................................................. 47 Points Tab .............................................................................. 48 Routes Tab ............................................................................. 53 Track Tab ................................................................................ 59 DSC Tab .................................................................................. 61 Card Tab ................................................................................. 62 Time Tab ................................................................................. 62 Pages Tab ............................................................................... 63 Map Tab .................................................................................. 64 Hiway (Highway) Tab ............................................................. 68 Temp (Temperature) Tab ....................................................... 68 Sonar Tab ............................................................................... 68 Systm (System) Tab .............................................................. 69 Units Tab ............................................................................... 70 Comm (Communications) Tab ............................................. 72 Alarm Tab ............................................................................... 76 Using Sonar .......................................................................78 Sonar Page ............................................................................. 78 Sonar Tab Options ................................................................ 85 Understanding Sonar ............................................................ 89 GPSMAP 198C Sounder Owner’s Manual

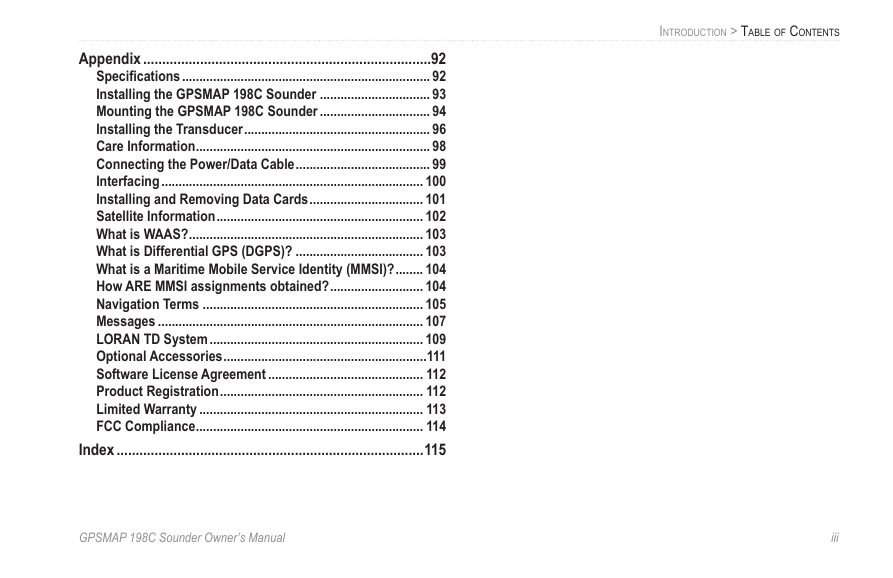

INTRODUCTION > TABLE OF CONTENTS Appendix ............................................................................92 Speciﬁcations ........................................................................ 92 Installing the GPSMAP 198C Sounder ................................ 93 Mounting the GPSMAP 198C Sounder ................................ 94 Installing the Transducer ...................................................... 96 Care Information .................................................................... 98 Connecting the Power/Data Cable ....................................... 99 Interfacing ............................................................................ 100 Installing and Removing Data Cards ................................. 101 Satellite Information ............................................................ 102 What is WAAS? .................................................................... 103 What is Differential GPS (DGPS)? ..................................... 103 What is a Maritime Mobile Service Identity (MMSI)? ........ 104 How ARE MMSI assignments obtained? ........................... 104 Navigation Terms ................................................................ 105 Messages ............................................................................. 107 LORAN TD System .............................................................. 109 Optional Accessories ...........................................................111 Software License Agreement ............................................. 112 Product Registration ........................................................... 112 Limited Warranty ................................................................. 113 FCC Compliance .................................................................. 114 Index .................................................................................115 GPSMAP 198C Sounder Owner’s Manual iii

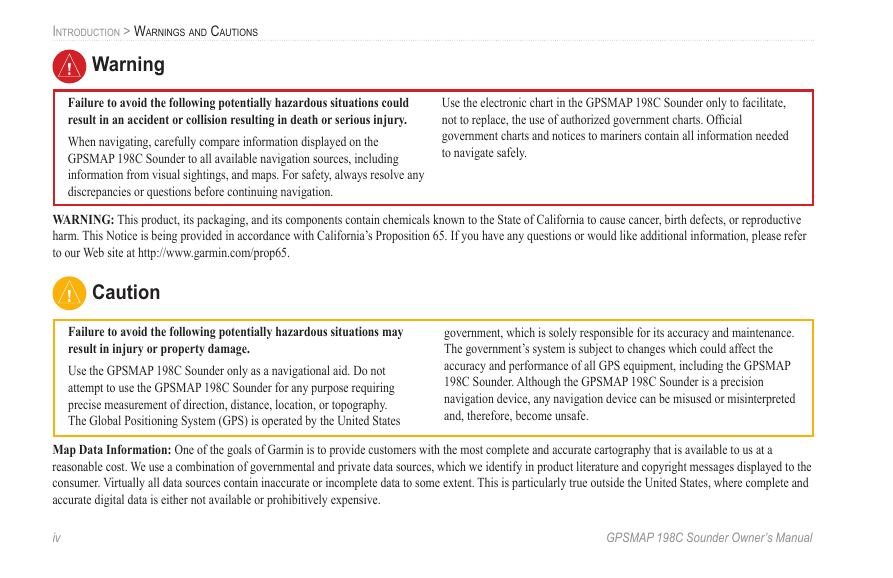

INTRODUCTION > WARNINGS AND CAUTIONS Warning Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. When navigating, carefully compare information displayed on the GPSMAP 198C Sounder to all available navigation sources, including information from visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation. Use the electronic chart in the GPSMAP 198C Sounder only to facilitate, not to replace, the use of authorized government charts. Ofﬁcial government charts and notices to mariners contain all information needed to navigate safely. WARNING: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This Notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, please refer to our Web site at http://www.garmin.com/prop65. Caution Failure to avoid the following potentially hazardous situations may result in injury or property damage. Use the GPSMAP 198C Sounder only as a navigational aid. Do not attempt to use the GPSMAP 198C Sounder for any purpose requiring precise measurement of direction, distance, location, or topography. The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government’s system is subject to changes which could affect the accuracy and performance of all GPS equipment, including the GPSMAP 198C Sounder. Although the GPSMAP 198C Sounder is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe. Map Data Information: One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain inaccurate or incomplete data to some extent. This is particularly true outside the United States, where complete and accurate digital data is either not available or prohibitively expensive. iv GPSMAP 198C Sounder Owner’s Manual

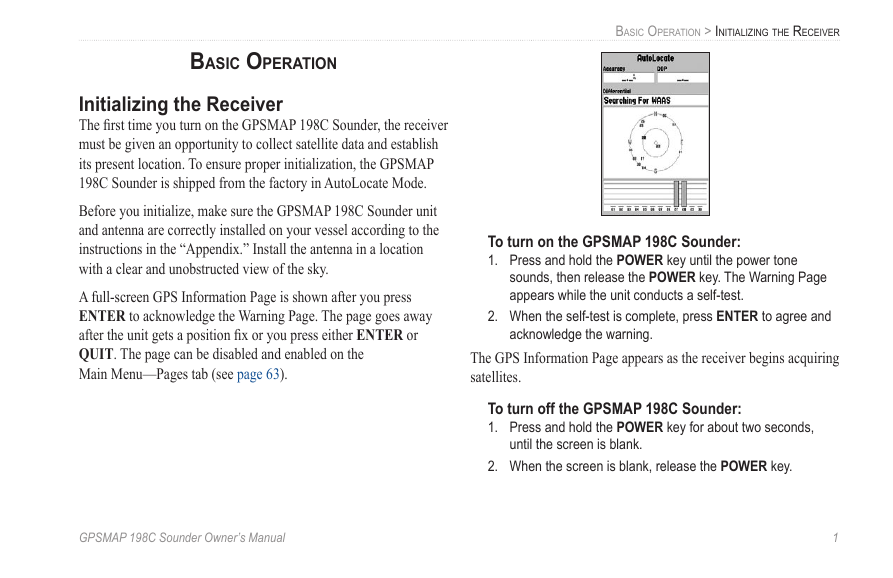

BASIC OPERATION Initializing the Receiver The ﬁrst time you turn on the GPSMAP 198C Sounder, the receiver must be given an opportunity to collect satellite data and establish its present location. To ensure proper initialization, the GPSMAP 198C Sounder is shipped from the factory in AutoLocate Mode. Before you initialize, make sure the GPSMAP 198C Sounder unit and antenna are correctly installed on your vessel according to the instructions in the “Appendix.” Install the antenna in a location with a clear and unobstructed view of the sky. A full-screen GPS Information Page is shown after you press ENTER to acknowledge the Warning Page. The page goes away after the unit gets a position ﬁx or you press either ENTER or QUIT. The page can be disabled and enabled on the Main Menu—Pages tab (see page 63). BASIC OPERATION > INITIALIZING THE RECEIVER To turn on the GPSMAP 198C Sounder: 1. Press and hold the POWER key until the power tone sounds, then release the POWER key. The Warning Page appears while the unit conducts a self-test. 2. When the self-test is complete, press ENTER to agree and acknowledge the warning. The GPS Information Page appears as the receiver begins acquiring satellites. To turn off the GPSMAP 198C Sounder: 1. Press and hold the POWER key for about two seconds, until the screen is blank. 2. When the screen is blank, release the POWER key. GPSMAP 198C Sounder Owner’s Manual 1

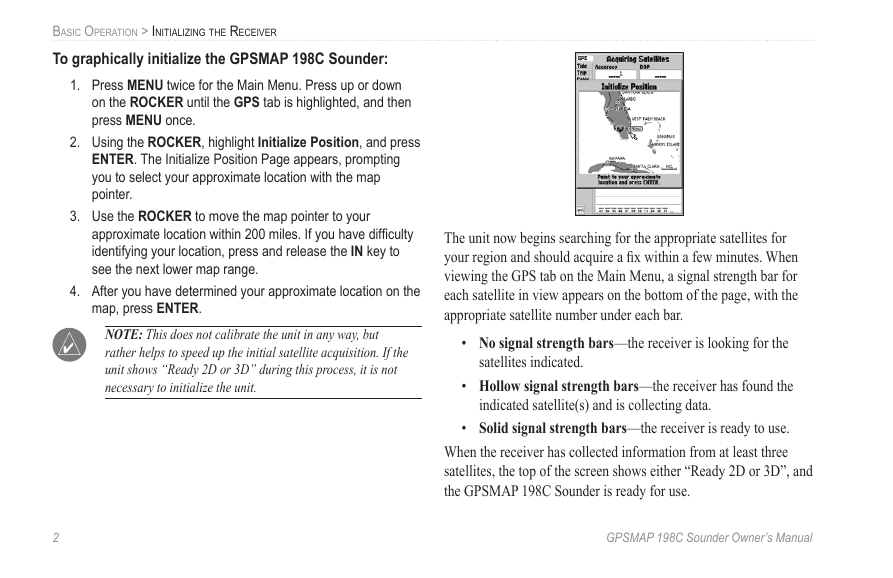

BASIC OPERATION > INITIALIZING THE RECEIVER To graphically initialize the GPSMAP 198C Sounder: 1. Press MENU twice for the Main Menu. Press up or down on the ROCKER until the GPS tab is highlighted, and then press MENU once. 2. Using the ROCKER, highlight Initialize Position, and press ENTER. The Initialize Position Page appears, prompting you to select your approximate location with the map pointer. 3. Use the ROCKER to move the map pointer to your approximate location within 200 miles. If you have difﬁculty identifying your location, press and release the IN key to see the next lower map range. 4. After you have determined your approximate location on the map, press ENTER. NOTE: This does not calibrate the unit in any way, but rather helps to speed up the initial satellite acquisition. If the unit shows “Ready 2D or 3D” during this process, it is not necessary to initialize the unit. The unit now begins searching for the appropriate satellites for your region and should acquire a ﬁx within a few minutes. When viewing the GPS tab on the Main Menu, a signal strength bar for each satellite in view appears on the bottom of the page, with the appropriate satellite number under each bar. • No signal strength bars—the receiver is looking for the satellites indicated. • Hollow signal strength bars—the receiver has found the indicated satellite(s) and is collecting data. • Solid signal strength bars—the receiver is ready to use. When the receiver has collected information from at least three satellites, the top of the screen shows either “Ready 2D or 3D”, and the GPSMAP 198C Sounder is ready for use. 2 GPSMAP 198C Sounder Owner’s Manual
