Cover-end 4/13/97 3:09 PM Page 1 User's Manual Date of Publication : Jan. 2003 Date of First edition : Sep. 2002 Publishing Company : Digitalway Co., LTD. Address : Korea Design Center, 344-1 Ya'tap 1-dong, Bundang-gu, Seongnam City, Gyeonggi-do, Korea Tel : +82-31-788-7230 Fax : +82-31-788-7240 Homepage : www.digitalway.co.kr / www.mpio.co.kr / www.mpio.com User’s Manual English Français Deutsch DMG plus Date of Manufacture : 2003 Manufactured by Digitalway Co., LTD. Made in China Please read all instructions in this User’s Manual before using the player.

Cover-for pdf 8/25/96 12:59 PM Page 1 User's Manual Date of Publication : Sep. 2002 Date of First edition : Sep. 2002 Publishing Company : Digitalway Co., LTD. Address : Korea Design Center, 344-1 Ya'tap 1-dong, Bundang-gu, Seongnam City, Gyeonggi-do, Korea Tel : +82-31-788-7230 Fax : +82-31-788-7240 Homepage : www.digitalway.co.kr / www.mpio.co.kr / www.mpio.com User’s Manual English Français Deutsch DMG plus Date of Manufacture : 2002 Manufactured by Digitalway Co., LTD. Made in Korea Please read all instructions in this User’s Manual before using the player.

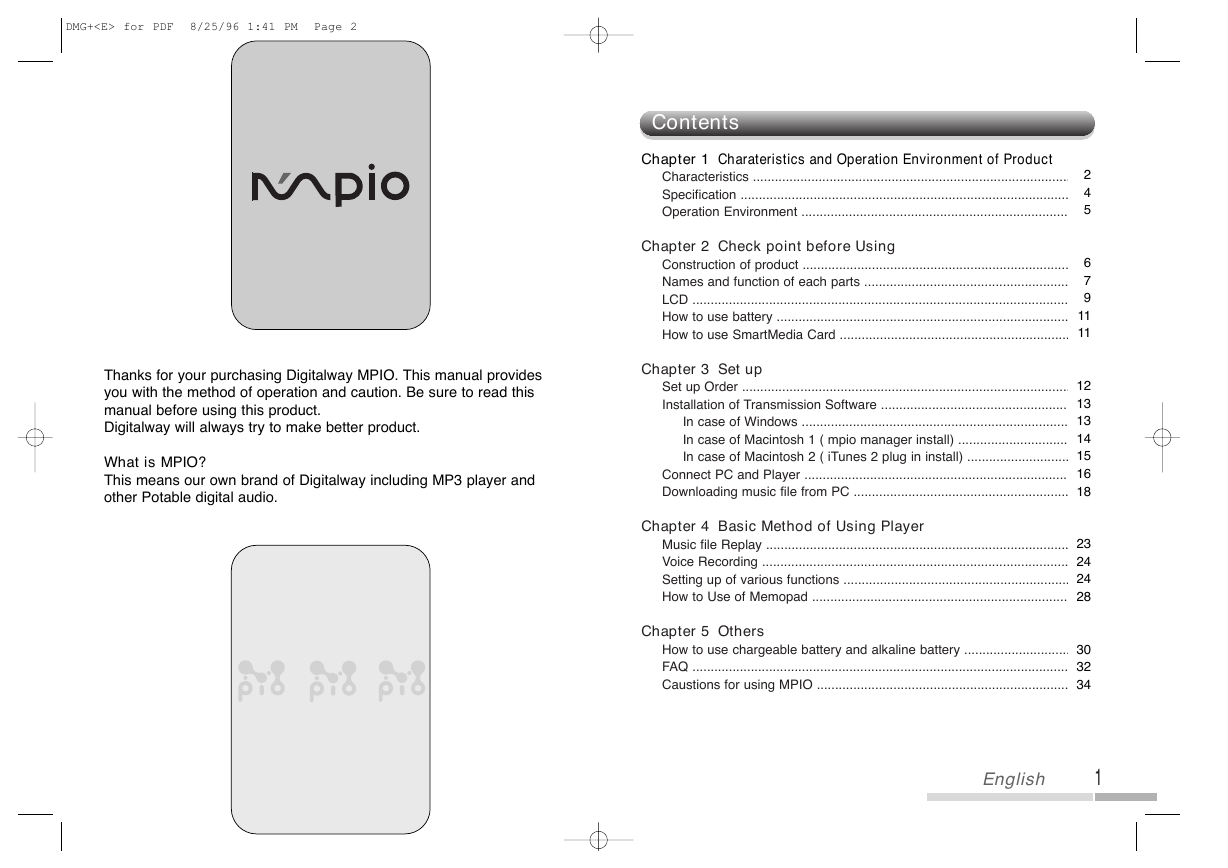

DMG+ for PDF 8/25/96 1:41 PM Page 2 Thanks for your purchasing Digitalway MPIO. This manual provides you with the method of operation and caution. Be sure to read this manual before using this product. Digitalway will always try to make better product. What is MPIO? This means our own brand of Digitalway including MP3 player and other Potable digital audio. Contents Chapter 1 Charateristics and Operation Environment of Product Characteristics .......................................................................................... Specification ............................................................................................. Operation Environment ............................................................................ 2 4 5 Chapter 2 Check point before Using 6 Construction of product ............................................................................. 7 Names and function of each parts ............................................................ 9 LCD ........................................................................................................... 11 How to use battery .................................................................................... 11 How to use SmartMedia Card ................................................................... Chapter 3 Set up 12 Set up Order .............................................................................................. 13 Installation of Transmission Software ....................................................... 13 In case of Windows ............................................................................. 14 In case of Macintosh 1 ( mpio manager install) .................................. 15 In case of Macintosh 2 ( iTunes 2 plug in install) ................................ 16 Connect PC and Player ............................................................................ 18 Downloading music file from PC ............................................................... Chapter 4 Basic Method of Using Player Music file Replay ....................................................................................... Voice Recording ....................................................................................... Setting up of various functions ................................................................. How to Use of Memopad ........................................................................ 23 24 24 28 Chapter 5 Others How to use chargeable battery and alkaline battery ............................... FAQ .......................................................................................................... Caustions for using MPIO ........................................................................ 30 32 34 English 1

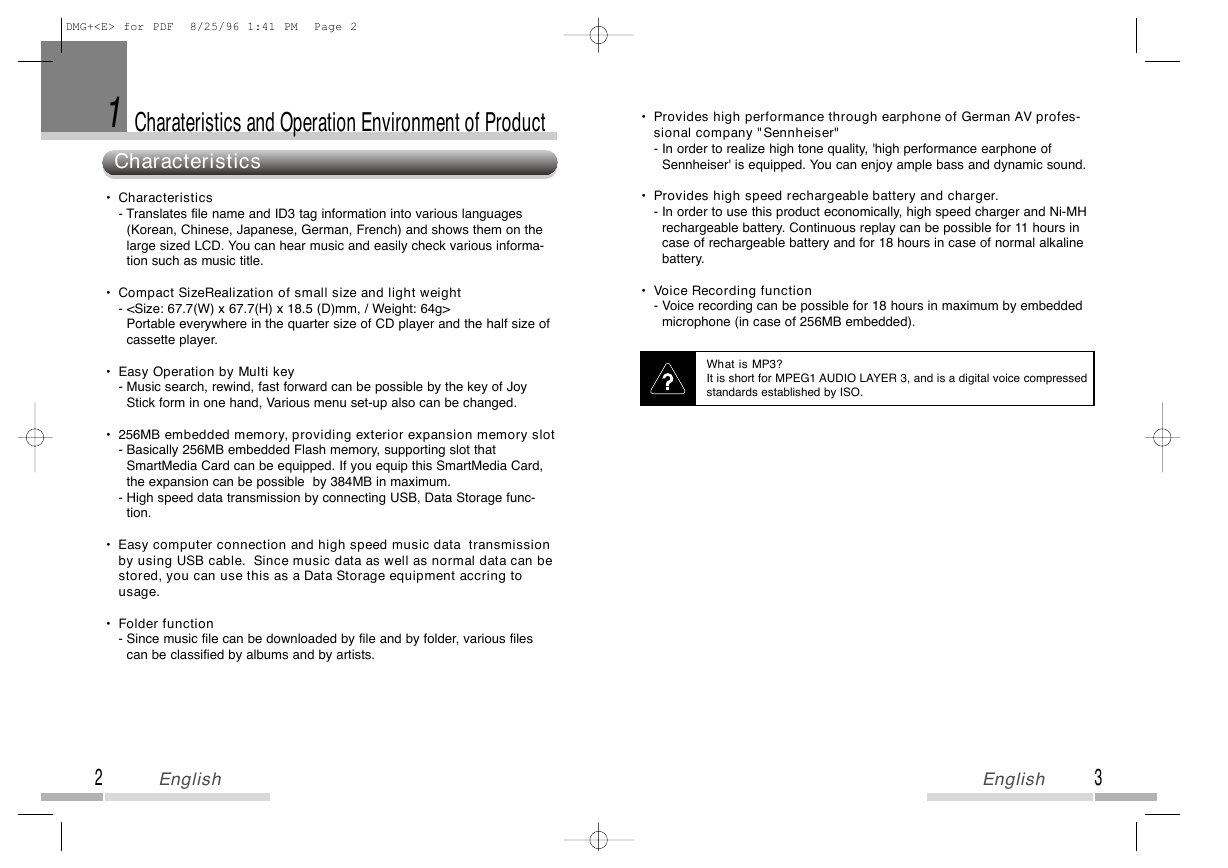

DMG+ for PDF 8/25/96 1:41 PM Page 2 1 Charateristics and Operation Environment of Product Characteristics • Characteristics - Translates file name and ID3 tag information into various languages (Korean, Chinese, Japanese, German, French) and shows them on the large sized LCD. You can hear music and easily check various informa- tion such as music title. • Compact SizeRealization of small size and light weight - Portable everywhere in the quarter size of CD player and the half size of cassette player. • Easy Operation by Multi key - Music search, rewind, fast forward can be possible by the key of Joy Stick form in one hand, Various menu set-up also can be changed. • 256MB embedded memory, providing exterior expansion memory slot - Basically 256MB embedded Flash memory, supporting slot that SmartMedia Card can be equipped. If you equip this SmartMedia Card, the expansion can be possible by 384MB in maximum. - High speed data transmission by connecting USB, Data Storage func- tion. • Easy computer connection and high speed music data transmission by using USB cable. Since music data as well as normal data can be stored, you can use this as a Data Storage equipment accring to usage. • Folder function - Since music file can be downloaded by file and by folder, various files can be classified by albums and by artists. • Provides high performance through earphone of German AV profes- sional company "Sennheiser" - In order to realize high tone quality, 'high performance earphone of Sennheiser' is equipped. You can enjoy ample bass and dynamic sound. • Provides high speed rechargeable battery and charger. - In order to use this product economically, high speed charger and Ni-MH rechargeable battery. Continuous replay can be possible for 11 hours in case of rechargeable battery and for 18 hours in case of normal alkaline battery. • Voice Recording function - Voice recording can be possible for 18 hours in maximum by embedded microphone (in case of 256MB embedded). What is MP3? It is short for MPEG1 AUDIO LAYER 3, and is a digital voice compressed standards established by ISO. 2 English English 3

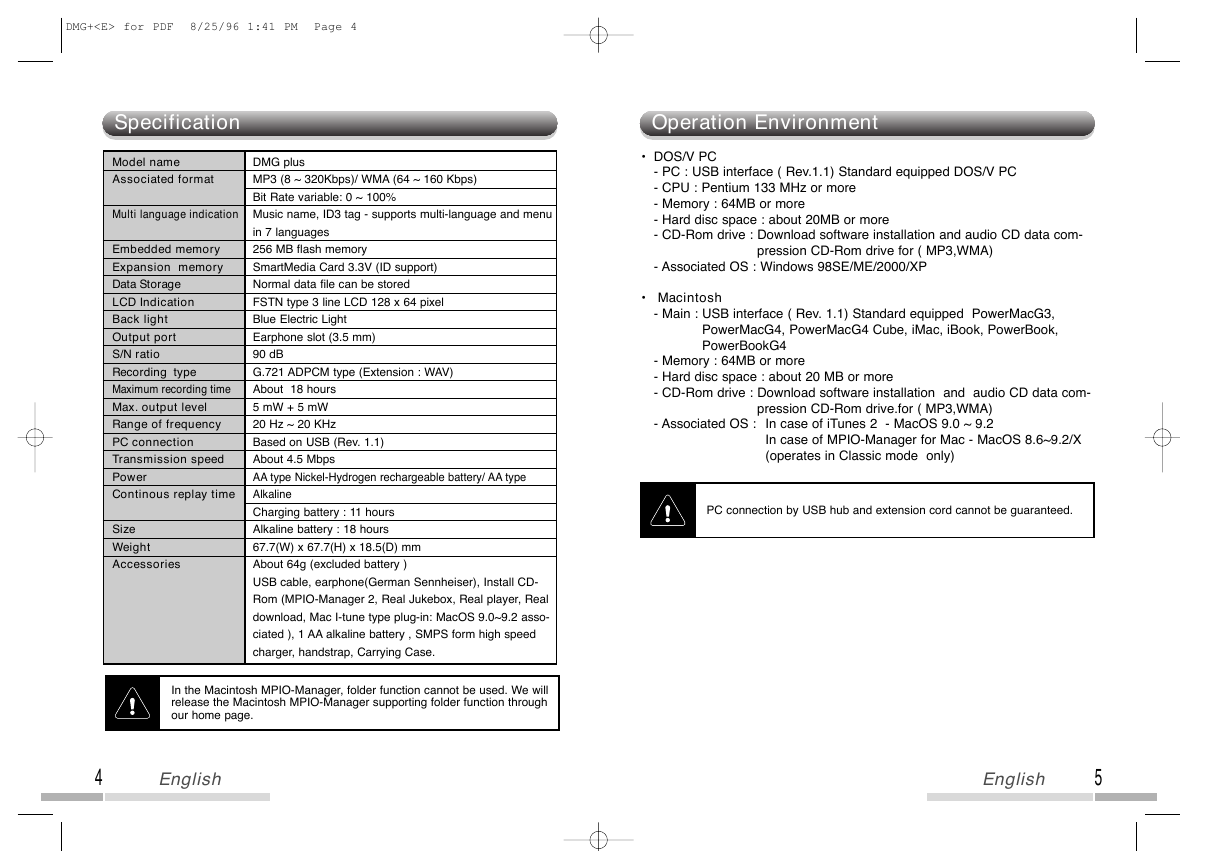

DMG+ for PDF 8/25/96 1:41 PM Page 4 Specification Model name Associated format Multi language indication Embedded memory Expansion memory Data Storage LCD Indication Back light Output port S/N ratio Recording type Maximum recording time Max. output level Range of frequency PC connection Transmission speed Power Continous replay time Size Weight Accessories DMG plus MP3 (8 ~ 320Kbps)/ WMA (64 ~ 160 Kbps) Bit Rate variable: 0 ~ 100% Music name, ID3 tag - supports multi-language and menu in 7 languages 256 MB flash memory SmartMedia Card 3.3V (ID support) Normal data file can be stored FSTN type 3 line LCD 128 x 64 pixel Blue Electric Light Earphone slot (3.5 mm) 90 dB G.721 ADPCM type (Extension : WAV) About 18 hours 5 mW + 5 mW 20 Hz ~ 20 KHz Based on USB (Rev. 1.1) About 4.5 Mbps AA type Nickel-Hydrogen rechargeable battery/ AA type Alkaline Charging battery : 11 hours Alkaline battery : 18 hours 67.7(W) x 67.7(H) x 18.5(D) mm About 64g (excluded battery ) USB cable, earphone(German Sennheiser), Install CD- Rom (MPIO-Manager 2, Real Jukebox, Real player, Real download, Mac I-tune type plug-in: MacOS 9.0~9.2 asso- ciated ), 1 AA alkaline battery , SMPS form high speed charger, handstrap, Carrying Case. In the Macintosh MPIO-Manager, folder function cannot be used. We will release the Macintosh MPIO-Manager supporting folder function through our home page. Operation Environment • DOS/V PC - PC : USB interface ( Rev.1.1) Standard equipped DOS/V PC - CPU : Pentium 133 MHz or more - Memory : 64MB or more - Hard disc space : about 20MB or more - CD-Rom drive : Download software installation and audio CD data com- - Associated OS : Windows 98SE/ME/2000/XP pression CD-Rom drive for ( MP3,WMA) • Macintosh - Main : USB interface ( Rev. 1.1) Standard equipped PowerMacG3, PowerMacG4, PowerMacG4 Cube, iMac, iBook, PowerBook, PowerBookG4 - Memory : 64MB or more - Hard disc space : about 20 MB or more - CD-Rom drive : Download software installation and audio CD data com- - Associated OS : pression CD-Rom drive.for ( MP3,WMA) In case of iTunes 2 - MacOS 9.0 ~ 9.2 In case of MPIO-Manager for Mac - MacOS 8.6~9.2/X (operates in Classic mode only) PC connection by USB hub and extension cord cannot be guaranteed. 4 English English 5

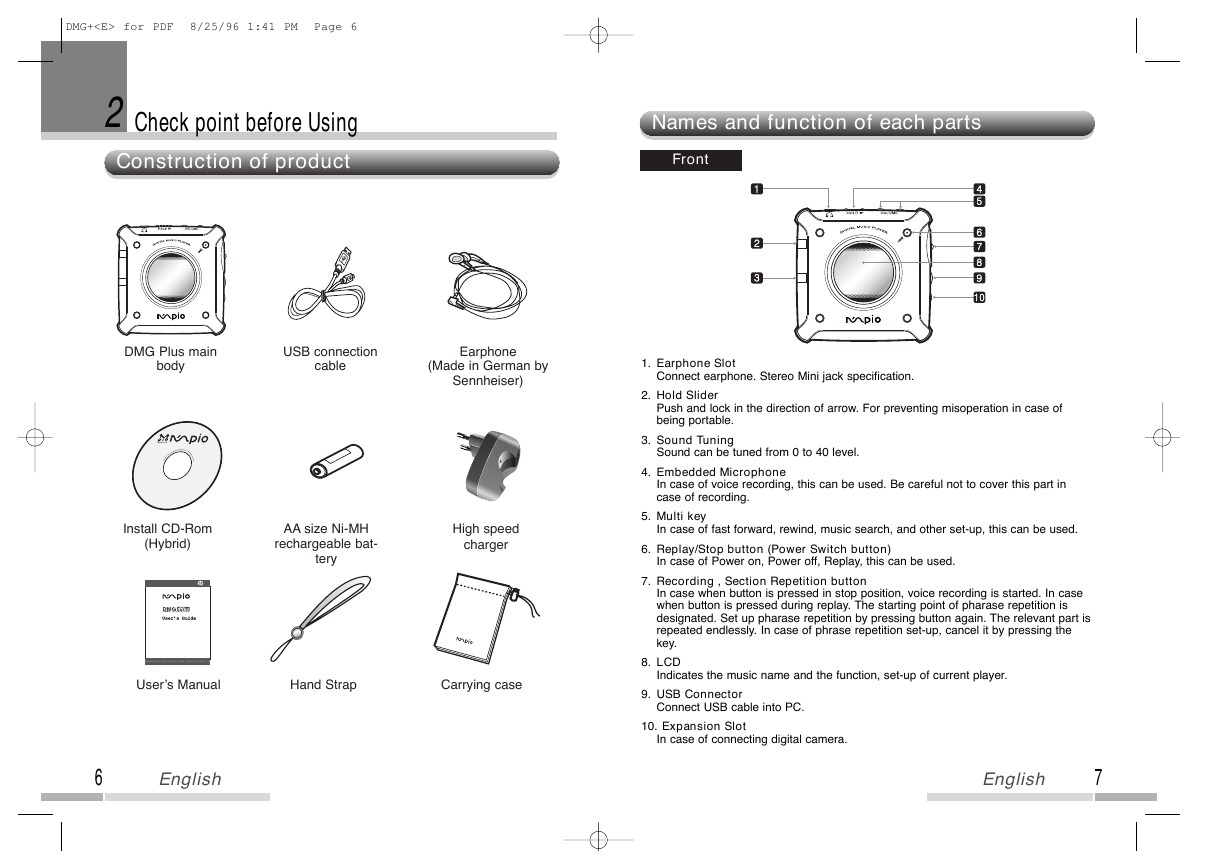

DMG+ for PDF 8/25/96 1:41 PM Page 6 2 Check point before Using Construction of product DMG Plus main 1 body USB connection 2 cable Names and function of each parts Front 1. Earphone Slot Connect earphone. Stereo Mini jack specification. Earphone 3 (Made in German by Sennheiser) 2. Hold Slider Push and lock in the direction of arrow. For preventing misoperation in case of being portable. 3. Sound Tuning Sound can be tuned from 0 to 40 level. Install CD-Rom 4 (Hybrid) AA size Ni-MH rechargeable bat- 5 tery High speed 6 charger 4. Embedded Microphone In case of voice recording, this can be used. Be careful not to cover this part in case of recording. 5. Multi key In case of fast forward, rewind, music search, and other set-up, this can be used. 6. Replay/Stop button (Power Switch button) In case of Power on, Power off, Replay, this can be used. User’s Guide Please read this user’s guide carefully before using the MPIO. User’s Manual 7 6 English Hand Strap 8 Carrying case 9 7. Recording , Section Repetition button In case when button is pressed in stop position, voice recording is started. In case when button is pressed during replay. The starting point of pharase repetition is designated. Set up pharase repetition by pressing button again. The relevant part is repeated endlessly. In case of phrase repetition set-up, cancel it by pressing the key. 8. LCD Indicates the music name and the function, set-up of current player. 9. USB Connector Connect USB cable into PC. 10. Expansion Slot In case of connecting digital camera. English 7

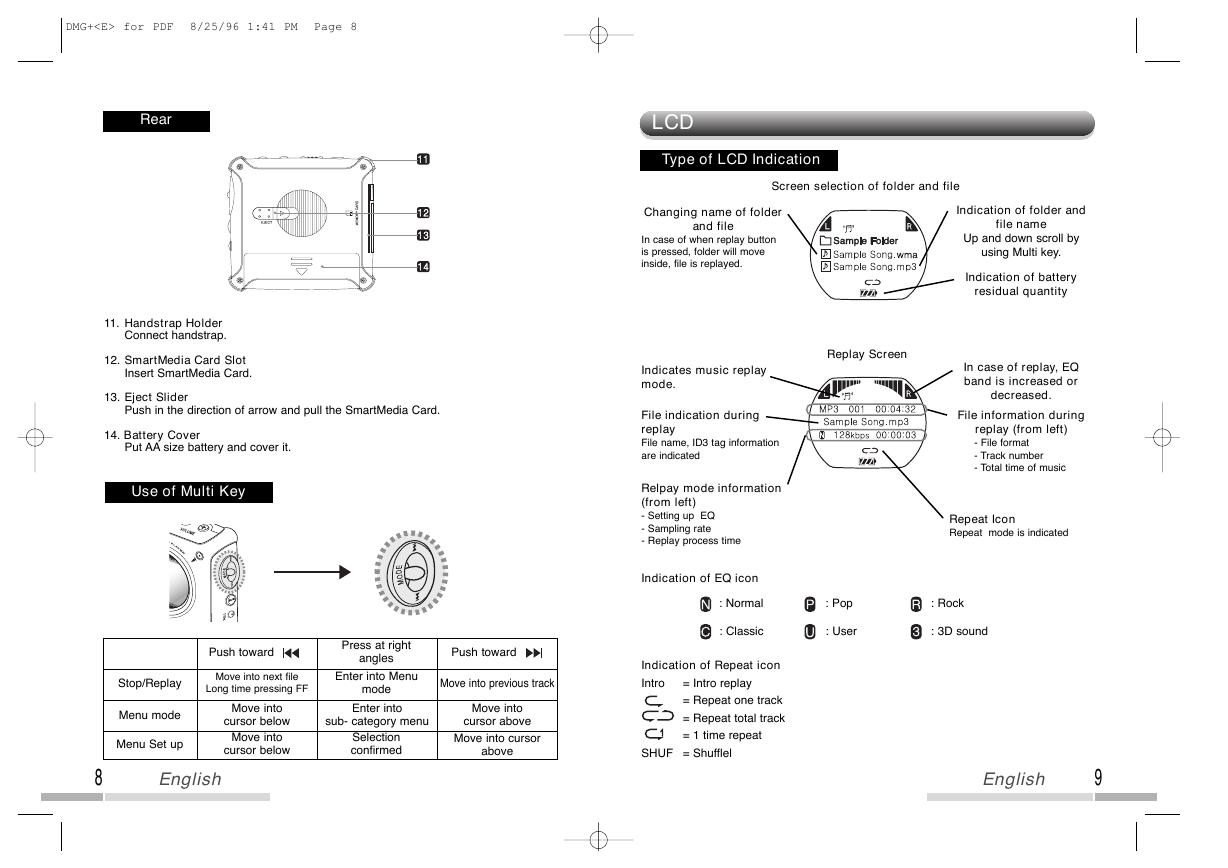

DMG+ for PDF 8/25/96 1:41 PM Page 8 Rear 11. Handstrap Holder Connect handstrap. 12. SmartMedia Card Slot Insert SmartMedia Card. 13. Eject Slider Push in the direction of arrow and pull the SmartMedia Card. 14. Battery Cover Put AA size battery and cover it. Use of Multi Key LCD Type of LCD Indication Screen selection of folder and file Changing name of folder and file In case of when replay button is pressed, folder will move inside, file is replayed. Indicates music replay mode. File indication during replay File name, ID3 tag information are indicated Relpay mode information (from left) - Setting up EQ - Sampling rate - Replay process time Indication of EQ icon Replay Screen Indication of folder and file name Up and down scroll by using Multi key. Indication of battery residual quantity In case of replay, EQ band is increased or decreased. File information during replay (from left) - File format - Track number - Total time of music Repeat Icon Repeat mode is indicated : Normal : Classic : Pop : User : Rock : 3D sound Push toward Stop/Replay Move into next file Long time pressing FF Press at right angles Enter into Menu mode Push toward Move into previous track Menu mode Menu Set up Move into cursor below Move into cursor below Enter into sub- category menu Selection confirmed Move into cursor above Move into cursor above 8 English Indication of Repeat icon Intro = Intro replay = Repeat one track = Repeat total track = 1 time repeat SHUF = Shufflel English 9

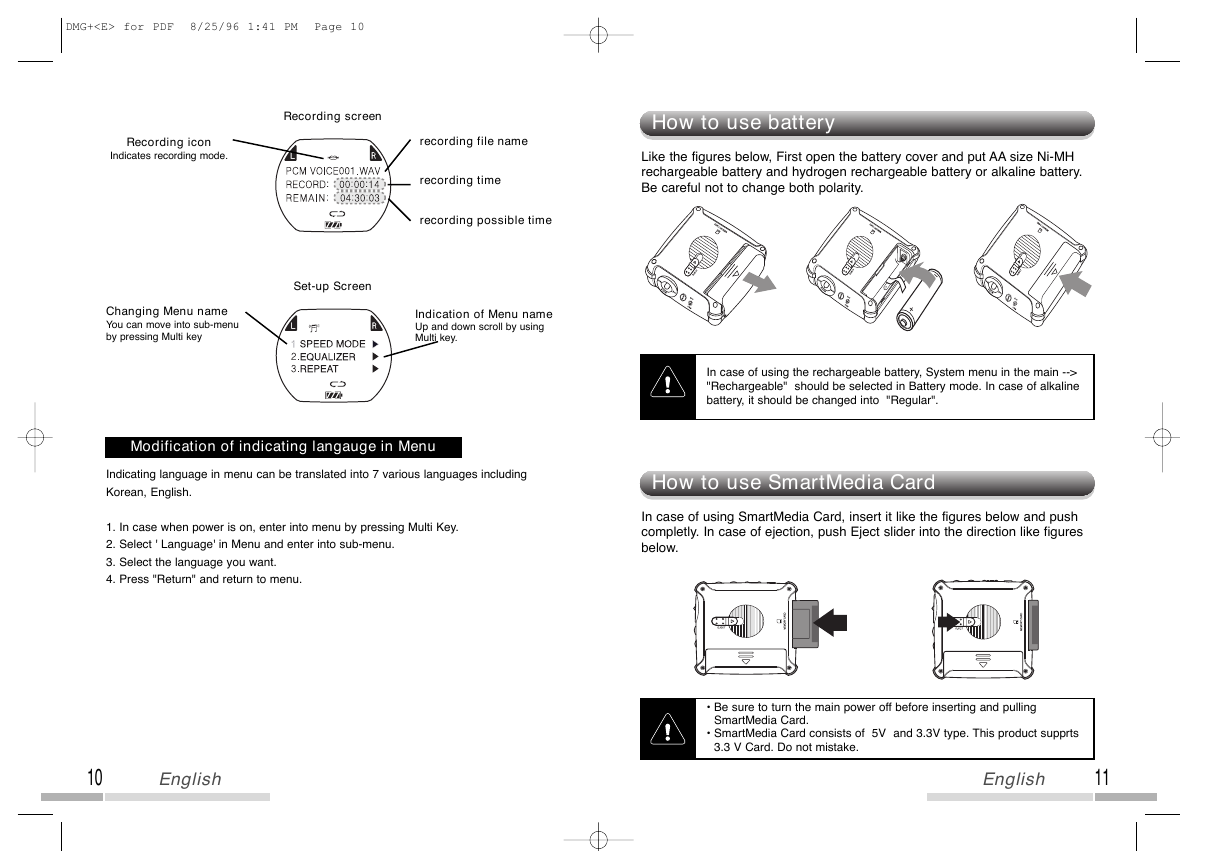

DMG+ for PDF 8/25/96 1:41 PM Page 10 Recording screen How to use battery Recording icon Indicates recording mode. recording file name recording time recording possible time Set-up Screen Changing Menu name You can move into sub-menu by pressing Multi key Indication of Menu name Up and down scroll by using Multi key. Like the figures below, First open the battery cover and put AA size Ni-MH rechargeable battery and hydrogen rechargeable battery or alkaline battery. Be careful not to change both polarity. In case of using the rechargeable battery, System menu in the main --> "Rechargeable" should be selected in Battery mode. In case of alkaline battery, it should be changed into "Regular". Modification of indicating langauge in Menu Indicating language in menu can be translated into 7 various languages including Korean, English. How to use SmartMedia Card 1. In case when power is on, enter into menu by pressing Multi Key. 2. Select ' Language' in Menu and enter into sub-menu. 3. Select the language you want. 4. Press "Return" and return to menu. In case of using SmartMedia Card, insert it like the figures below and push completly. In case of ejection, push Eject slider into the direction like figures below. 10 English English 11 • Be sure to turn the main power off before inserting and pulling • SmartMedia Card consists of 5V and 3.3V type. This product supprts SmartMedia Card. 3.3 V Card. Do not mistake.
