JVC数码摄像机-GR-DVL9000U说明书.pdf

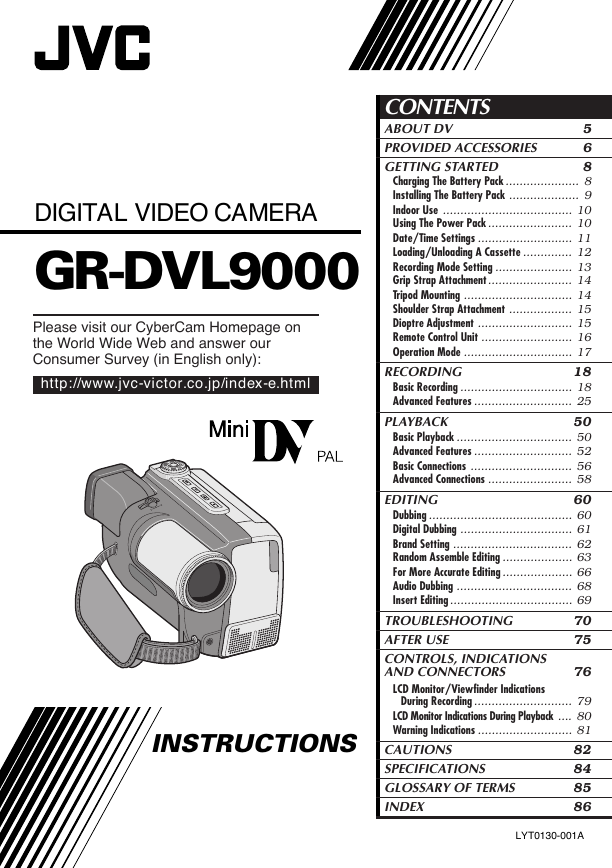

DIGITAL VIDEO CAMERA
GR-DVL9000
Please visit our CyberCam Homepage on
the World Wide Web and answer our
Consumer Survey (in English only):
http://www.jvc-victor.co.jp/index-e.html
INSTRUCTIONS
CONTENTS
ABOUT DV

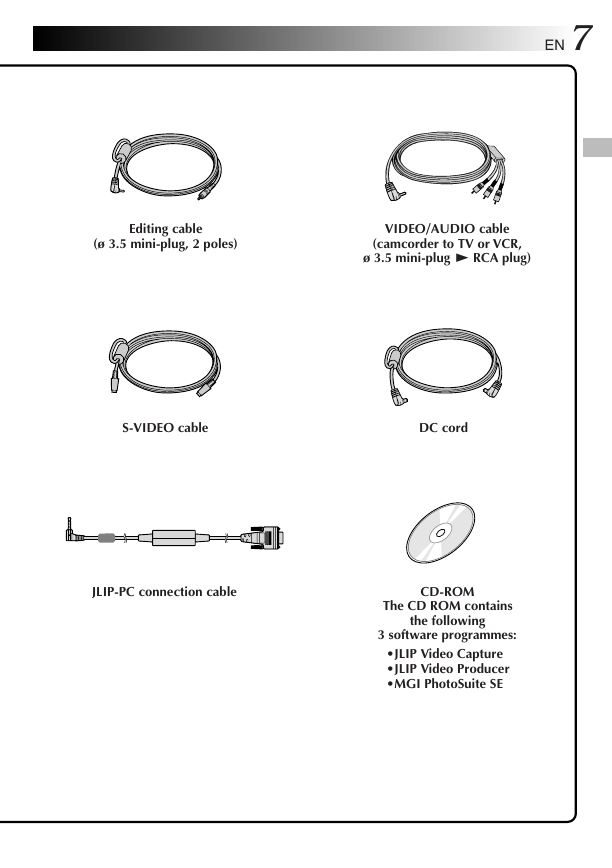

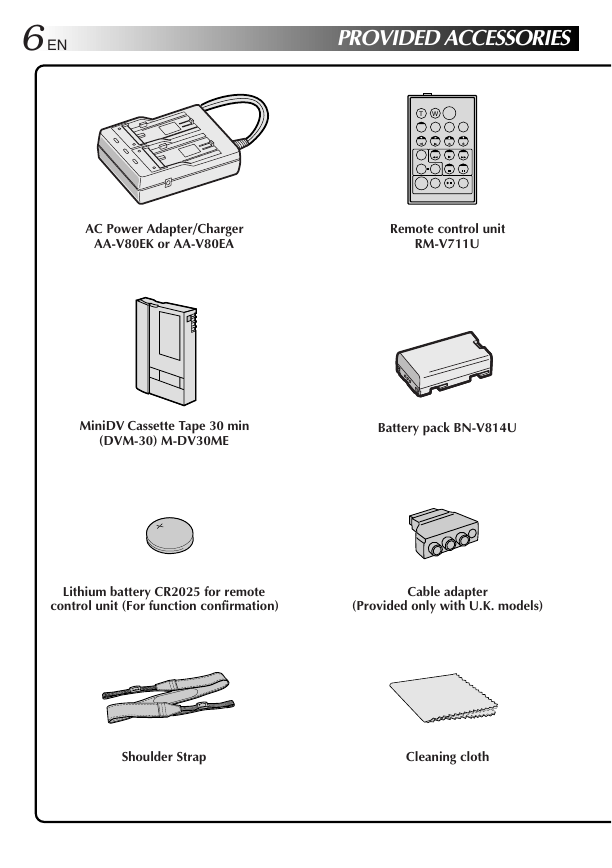

PROVIDED ACCESSORIES
GETTING STARTED
5
6
8

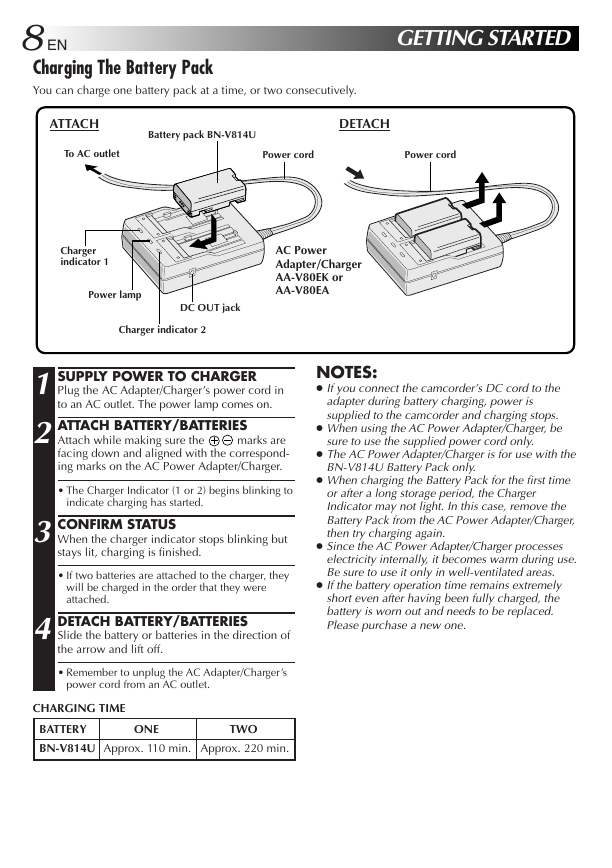

Charging The Battery Pack ..................... 8
Installing The Battery Pack .................... 9
Indoor Use ..................................... 10
Using The Power Pack ........................ 10
Date/Time Settings ........................... 11
Loading/Unloading A Cassette .............. 12
Recording Mode Setting ...................... 13
Grip Strap Attachment........................ 14
Tripod Mounting ............................... 14
Shoulder Strap Attachment .................. 15
Dioptre Adjustment ........................... 15
Remote Control Unit .......................... 16
Operation Mode ............................... 17
18
Basic Recording ................................ 18
Advanced Features ............................ 25
50
Basic Playback ................................. 50
Advanced Features ............................ 52
Basic Connections ............................. 56
Advanced Connections ........................ 58
60
Dubbing ......................................... 60
Digital Dubbing ................................ 61
Brand Setting .................................. 62
Random Assemble Editing .................... 63
For More Accurate Editing .................... 66
Audio Dubbing ................................. 68
Insert Editing ................................... 69
70
75
RECORDING
PLAYBACK
EDITING
TROUBLESHOOTING
AFTER USE
CONTROLS, INDICATIONS
AND CONNECTORS
76
LCD Monitor/Viewfinder Indications
During Recording ............................ 79
LCD Monitor Indications During Playback .... 80
Warning Indications ........................... 81
82
84
85
86
CAUTIONS
SPECIFICATIONS
GLOSSARY OF TERMS
INDEX
LYT0130-001A
2 EN
Dear Customer,
Thank you for purchasing this Digital Video Camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
• All major sections and subsections are listed in the Table Of Contents (墌 cover page).
• Notes appear after most subsections. Be sure to read these as well.
• Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
.... refer to “Controls, Indications and Connectors”
(墌 pgs. 76 – 81) and familiarize yourself with button locations, etc. before use.
.... read thoroughly the Safety Precautions that follow. They contain extremely important information
regarding the safe use of your new camcorder.
You are recommended to carefully read the cautions on pages 82 and 83 before use.
SAFETY PRECAUTIONS
IMPORTANT
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power
points in your home or the cable is too short to
reach a power point, then obtain an appropriate
safety approved extension lead or consult your
dealer.
BE SURE to replace the fuse only with an
identical approved type, as originally fitted,
and to replace the fuse cover.
If nontheless the mains plug is cut off ensure to
remove the fuse and dispose of the plug
immediately, to avoid a possible shock hazard
by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains
plug then follow the instructions given below:
DO NOT make any connection to the Larger
Terminal coded E or Green.
The wires in the mains lead are coloured in
accordance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the
terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or
coloured black.
Brown wire to terminal coded L (Live) or
coloured Red.
If in doubt — consult a competent electrician.
CAUTIONS:
䡲 To prevent shock, do not open the cabinet.
No user serviceable parts inside. Refer
servicing to qualified personnel.
䡲 When you are not using the AC Power
Adapter/Battery charger for a long period of
time, it is recommended that you disconnect
the power cord from AC outlet.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
Warning on lithium cell battery
The battery used in this device may present a
fire or chemical burn hazard if mistreated. Do
not recharge, disassemble, heat above 100°C or
incinerate.
Replace battery with Maxell, Panasonic
(Matsushita Electronic), Sanyo or Sony CR2025;
use of another battery may present a risk of fire
or explosion.
䡲 Dispose of used battery properly.
䡲 Keep away from children.
䡲 Do not disassemble and do not dispose of in
fire.
IMPORTANT:
䡲 Never use any AC Power Adapter/Battery
Charger other than the one provided with this
camcorder.
䡲 If you lose the provided AC Power Adapter/
Battery Charger or if it malfunctions, please
consult your nearest JVC service dealer.
NOTES:
● The rating plate (serial number plate) and
safety caution are on the bottom and/or the
back of the main unit.
● The rating plate (serial number plate) of the
AC Power Adapter/Charger is on its bottom.
This camcorder is designed to be used with
PAL-type colour television signals. It cannot be
used for playback with a television of a different
standard. However, live recording and LCD
monitor/viewfinder playback are possible
anywhere. Use the BN-V814U battery pack
and, to recharge it, the provided multi-voltage
AC Power Adapter/Charger. (An appropriate
conversion adapter may be necessary to
accommodate different designs of AC outlets in
different countries.)
This unit is produced to comply with Standard
IEC Publ. 65.
䡲 This camcorder is designed exclusively for
digital video cassette. Only
can be used with this
the
cassettes marked
unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini
DV mark.
.... remember that this camcorder is not compatible
with other digital video formats.
.... remember that this camcorder is intended for
private consumer use only. Any commercial use
without proper permission is prohibited. (Even if
you record an event such as a show, perform-
ance or exhibition for personal enjoyment, it is
strongly recommended that you obtain
permission beforehand.)
EN 3

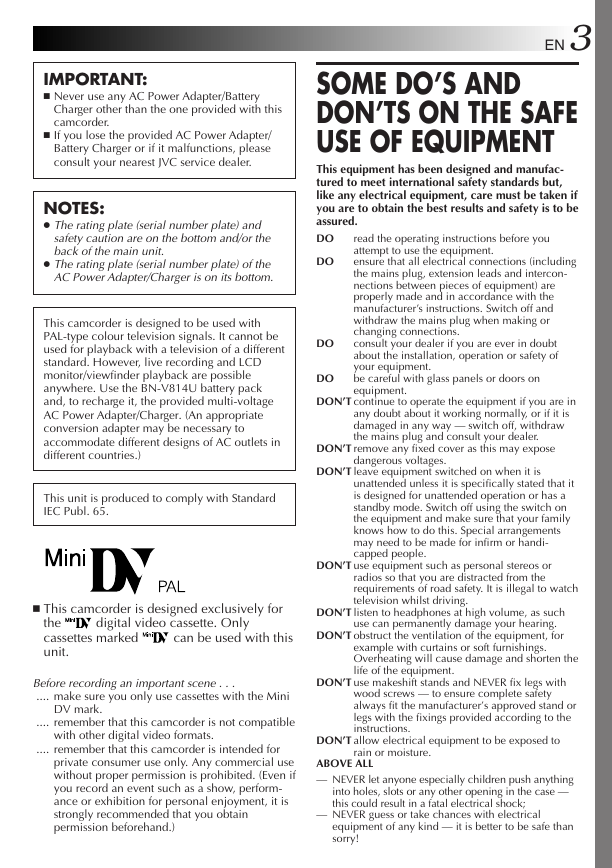

SOME DO’S AND
DON’TS ON THE SAFE
USE OF EQUIPMENT
This equipment has been designed and manufac-
tured to meet international safety standards but,
like any electrical equipment, care must be taken if
you are to obtain the best results and safety is to be
assured.
DO
DO
DO
DO
read the operating instructions before you
attempt to use the equipment.
ensure that all electrical connections (including
the mains plug, extension leads and intercon-
nections between pieces of equipment) are
properly made and in accordance with the
manufacturer’s instructions. Switch off and
withdraw the mains plug when making or
changing connections.
consult your dealer if you are ever in doubt
about the installation, operation or safety of
your equipment.
be careful with glass panels or doors on
equipment.
DON’T continue to operate the equipment if you are in
any doubt about it working normally, or if it is
damaged in any way — switch off, withdraw
the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose
dangerous voltages.
DON’T leave equipment switched on when it is
unattended unless it is specifically stated that it
is designed for unattended operation or has a
standby mode. Switch off using the switch on
the equipment and make sure that your family
knows how to do this. Special arrangements
may need to be made for infirm or handi-
capped people.
DON’T use equipment such as personal stereos or
radios so that you are distracted from the
requirements of road safety. It is illegal to watch
television whilst driving.
DON’T listen to headphones at high volume, as such
use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for
example with curtains or soft furnishings.
Overheating will cause damage and shorten the
life of the equipment.
DON’T use makeshift stands and NEVER fix legs with
wood screws — to ensure complete safety
always fit the manufacturer’s approved stand or
legs with the fixings provided according to the
instructions.
DON’T allow electrical equipment to be exposed to
rain or moisture.
ABOVE ALL
— NEVER let anyone especially children push anything
into holes, slots or any other opening in the case —
this could result in a fatal electrical shock;
— NEVER guess or take chances with electrical
equipment of any kind — it is better to be safe than
sorry!
4 EN

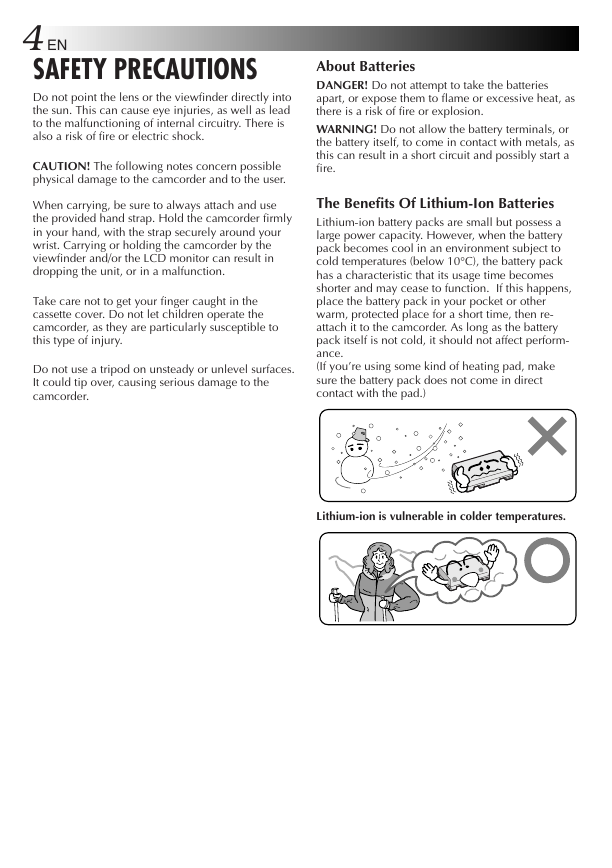

SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into
the sun. This can cause eye injuries, as well as lead
to the malfunctioning of internal circuitry. There is
also a risk of fire or electric shock.
CAUTION! The following notes concern possible
physical damage to the camcorder and to the user.
When carrying, be sure to always attach and use
the provided hand strap. Hold the camcorder firmly
in your hand, with the strap securely around your
wrist. Carrying or holding the camcorder by the
viewfinder and/or the LCD monitor can result in
dropping the unit, or in a malfunction.
Take care not to get your finger caught in the
cassette cover. Do not let children operate the
camcorder, as they are particularly susceptible to
this type of injury.
Do not use a tripod on unsteady or unlevel surfaces.
It could tip over, causing serious damage to the
camcorder.
About Batteries
DANGER! Do not attempt to take the batteries
apart, or expose them to flame or excessive heat, as
there is a risk of fire or explosion.
WARNING! Do not allow the battery terminals, or
the battery itself, to come in contact with metals, as
this can result in a short circuit and possibly start a
fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but possess a
large power capacity. However, when the battery
pack becomes cool in an environment subject to
cold temperatures (below 10°C), the battery pack
has a characteristic that its usage time becomes
shorter and may cease to function. If this happens,
place the battery pack in your pocket or other
warm, protected place for a short time, then re-
attach it to the camcorder. As long as the battery
pack itself is not cold, it should not affect perform-
ance.
(If you’re using some kind of heating pad, make
sure the battery pack does not come in direct
contact with the pad.)
Lithium-ion is vulnerable in colder temperatures.

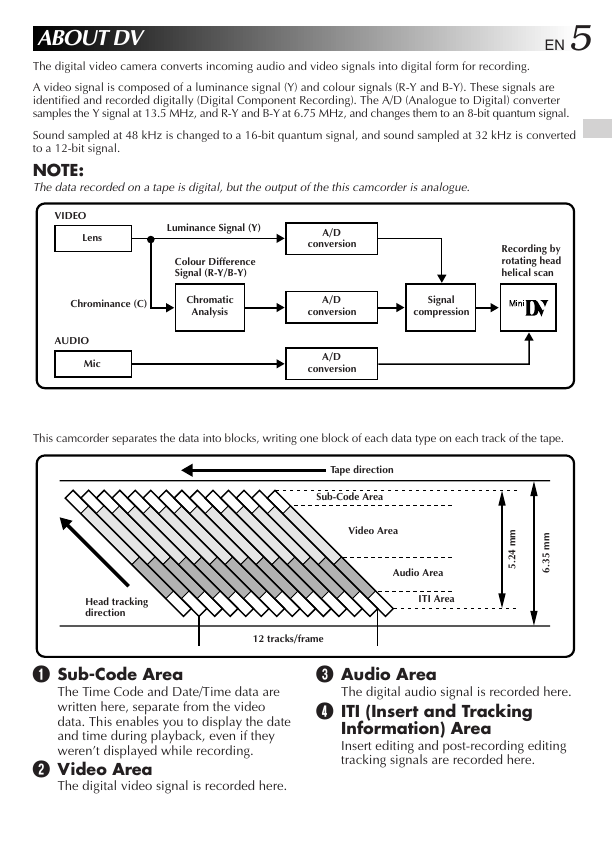

ABOUT DV
The digital video camera converts incoming audio and video signals into digital form for recording.
EN 5
A video signal is composed of a luminance signal (Y) and colour signals (R-Y and B-Y). These signals are
identified and recorded digitally (Digital Component Recording). The A/D (Analogue to Digital) converter
samples the Y signal at 13.5 MHz, and R-Y and B-Y at 6.75 MHz, and changes them to an 8-bit quantum signal.
Sound sampled at 48 kHz is changed to a 16-bit quantum signal, and sound sampled at 32 kHz is converted
to a 12-bit signal.
NOTE:
The data recorded on a tape is digital, but the output of the this camcorder is analogue.
VIDEO
Lens
Luminance Signal (Y)
Colour Difference
Signal (R-Y/B-Y)
A/D
conversion
Recording by
rotating head
helical scan
Chrominance (C)
Chromatic
Analysis
A/D
conversion
Signal
compression
AUDIO
Mic
A/D
conversion
This camcorder separates the data into blocks, writing one block of each data type on each track of the tape.
Tape direction
Sub-Code Area
Video Area
Head tracking
direction
12 tracks/frame
Audio Area
ITI Area
m
m
4
2
.
5
m
m
5
3
.
6
1 Sub-Code Area
The Time Code and Date/Time data are
written here, separate from the video
data. This enables you to display the date
and time during playback, even if they
weren’t displayed while recording.
2 Video Area
The digital video signal is recorded here.
3 Audio Area
The digital audio signal is recorded here.
4 ITI (Insert and Tracking
Information) Area
Insert editing and post-recording editing
tracking signals are recorded here.
6 EN
PROVIDED ACCESSORIES
T W
AC Power Adapter/Charger
AA-V80EK or AA-V80EA
Remote control unit
RM-V711U
MiniDV Cassette Tape 30 min
(DVM-30) M-DV30ME
Battery pack BN-V814U
Lithium battery CR2025 for remote
control unit (For function confirmation)
Cable adapter
(Provided only with U.K. models)
Shoulder Strap
Cleaning cloth
EN 7
Editing cable
(ø 3.5 mini-plug, 2 poles)
VIDEO/AUDIO cable
(camcorder to TV or VCR,
ø 3.5 mini-plug 4 RCA plug)
S-VIDEO cable
DC cord
JLIP-PC connection cable
CD-ROM
The CD ROM contains
the following
3 software programmes:
•JLIP Video Capture
•JLIP Video Producer
•MGI PhotoSuite SE
8 EN
Charging The Battery Pack
You can charge one battery pack at a time, or two consecutively.
GETTING STARTED
ATTACH
To AC outlet
Battery pack BN-V814U
DETACH
Power cord
Power cord
Charger
indicator 1
Power lamp
DC OUT jack
Charger indicator 2
AC Power
Adapter/Charger
AA-V80EK or
AA-V80EA
NOTES:
● If you connect the camcorder’s DC cord to the
adapter during battery charging, power is
supplied to the camcorder and charging stops.
● When using the AC Power Adapter/Charger, be
sure to use the supplied power cord only.
● The AC Power Adapter/Charger is for use with the
BN-V814U Battery Pack only.
● When charging the Battery Pack for the first time
or after a long storage period, the Charger
Indicator may not light. In this case, remove the
Battery Pack from the AC Power Adapter/Charger,
then try charging again.
● Since the AC Power Adapter/Charger processes
electricity internally, it becomes warm during use.
Be sure to use it only in well-ventilated areas.
● If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.
Plug the AC Adapter/Charger’s power cord in
to an AC outlet. The power lamp comes on.
1SUPPLY POWER TO CHARGER
2ATTACH BATTERY/BATTERIES
Attach while making sure the
marks are
facing down and aligned with the correspond-
ing marks on the AC Power Adapter/Charger.
• The Charger Indicator (1 or 2) begins blinking to
indicate charging has started.
3CONFIRM STATUS
When the charger indicator stops blinking but
stays lit, charging is finished.
• If two batteries are attached to the charger, they
will be charged in the order that they were
attached.
4DETACH BATTERY/BATTERIES
Slide the battery or batteries in the direction of
the arrow and lift off.
• Remember to unplug the AC Adapter/Charger’s
power cord from an AC outlet.
CHARGING TIME
BATTERY
BN-V814U Approx. 110 min. Approx. 220 min.
TWO
ONE
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
