TR-102 User Manual Ver 1.17

TR-10 Table of Contents 1. Introduction ........................................................................................................... 4 2. Features ............................................................................................................... 4 3. Specification ......................................................................................................... 5 4. Start-up ................................................................................................................. 7 4.1 Accessories ............................................................................................................7 4.2 Charging the battery ...............................................................................................8 4.3 Install SIM card .....................................................................................................8 5. Hardware Overview .............................................................................................. 9 5.1 Appearance ............................................................................................................9 5.2 Button description ............................................................................................... 10 6. TR-102 Setup and Call Center Operation .......................................................... 11 6.1 Install the USB driver ...........................................................................................11 6.2 Install the Call Center program ........................................................................... 12 6.3 Call Center Operation ......................................................................................... 13 6.4 Basic Setting ....................................................................................................... 14 7. Operating the device .......................................................................................... 19 7.1 Turn on / Turn off ................................................................................................. 19 7.2 Answer / Hand up the phone ............................................................................... 19 7.3 Adjust the volume ................................................................................................ 20 7.4 Making a phone call ............................................................................................ 20 7.5 Send out emergency SMS .................................................................................. 21

TR-10 8. Tracking by SMS mode ..................................................................................... 22 8.1 Setup SMS return type ........................................................................................ 22 8.2 Send SMS from a cell phone to TR-102 ............................................................. 22 8.3 TR-102 sends SMS to cell phone ....................................................................... 22 8.4 Displaying the location on map ........................................................................... 23 9. Tracking by GPRS mode ................................................................................... 25 9.1 Setup GPRS return type ..................................................................................... 25 9.2 Trigger the TR-102 to connect to Internet by GPRS ........................................... 25 9.3 Send a command from Call Center to TR-102 .................................................... 26 9.4 TR-102 sends back location information to Call Center ...................................... 28 9.5 Displaying the location on map ........................................................................... 29 10. How does TR-102 work by SMS and GRPS? .................................................. 30 11. Troubleshooting ................................................................................................ 34

TR-10 1. Introduction TR-102 is a personal remote positioning device with built-in GPS and GSM modules; it’s compact and portable. Not only can TR-102 transmit the longitude and latitude coordinate to your cell phone by the short message service, but it can also transmit the longitude and latitude coordinate to your personal computer by the internet connection of GPRS and then displaying the location by a specific map software. There are three speed-dial keys and one emergency key on the TR-102. You can use these features for protecting and searching children and old persons. Further, you can use it as a security purpose and other purpose which needs remote positioning. . Features 1. GPS/GPRS personal locator. 2. GSM/SMS/GPRS communication. 3. Omni-directional high sensitivity GPS antenna which can receive GPS signal from all direction. 4. New technology and latest GPS SiRF-Star III chipset! Excellent for fixing the position even at a weak signal status. 5. Remote command control via mobile phones or through online software. 6. Receive phone calls to have two way communications. 7. Monitors can track the person without interfering him, LIVE! Real-Time tracking! 8. Locate the locator holder by just pressing a button on PC software or through mobile phone via SMS (short messaging 9. Three quick dialing buttons for 3 preset phone numbers. 10. Works worldwide! Support 4-frequency GSM 850/900/1800/1900 MHZ and GPRS class 12. 11. SOS button send out exact location for immediate rescue/action. 12. Independent SOS (emergency) button which will send GPS location information via SMS for up to 3 preset numbers (it can be 3 sets of different numbers than the 3 sets of quick dialing numbers). 13. Device can be connecting to PC by using a USB cable for setup the arguments (package comes with mini USB cable when you purchase the device). 14. Report device holder’s position at a preset time interval. 15. Low battery notification before the battery dies out! Worrying free on why the locator wouldn’t respond for this kind of system). situation!

Software Feature Professional Call Center program, supporting the operating system such as Windows 98 /2000 /XP, also supporting up to 5 sets of TR-102's tracking function at the same time by using the GPRS mode. Clicking on one of the TR-102's user name from the Call Center program will open a browser with the latitude and longitude information displaying as a point at the center of the maps.google.com. The display map is Google's patented right. TR-10 3. Specification Hardware GSM module: GPS Chipset: Frequency: C/A code: Channels: Antenna Type: Position Accuracy: Velocity Accuracy: Time Accuracy: Default datum: Reacquisition: Hot start: Warm start: embedded GSM 850/900/1800/1900 MHz , GPRS class 12 SiRF Star III L1, 1575.42 MHz 1.023 MHz chip rate 20 channel all-in-view tracking Omni-directional GPS antenna 10 meters, 2D RMS 0.1 m/s 1 us synchronized to GPS time WGS-84 0.1 sec., average 1 sec., average 38 sec., average

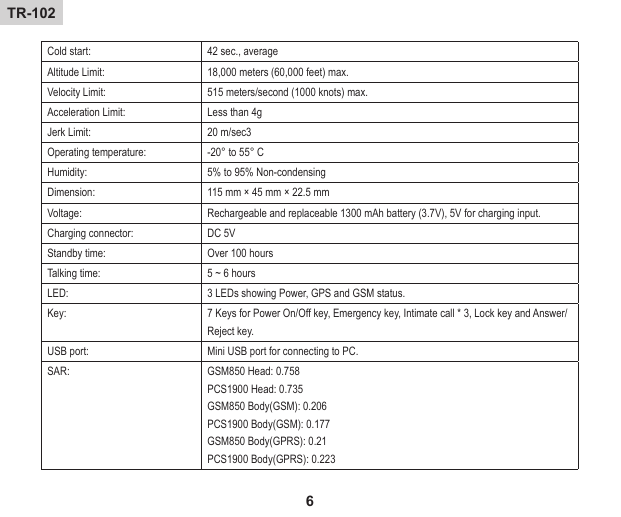

TR-10 Cold start: Altitude Limit: Velocity Limit: Acceleration Limit: Jerk Limit: Operating temperature: Humidity: Dimension: Voltage: Charging connector: Standby time: Talking time: LED: Key: USB port: SAR: 42 sec., average 18,000 meters (60,000 feet) max. 515 meters/second (1000 knots) max. Less than 4g 20 m/sec3 -20° to 55° C 5% to 95% Non-condensing 115 mm × 45 mm × 22.5 mm Rechargeable and replaceable 1300 mAh battery (3.7V), 5V for charging input. DC 5V Over 100 hours 5 ~ 6 hours 3 LEDs showing Power, GPS and GSM status. 7 Keys for Power On/Off key, Emergency key, Intimate call * 3, Lock key and Answer/ Reject key. Mini USB port for connecting to PC. GSM850 Head: 0.758 PCS1900 Head: 0.735 GSM850 Body(GSM): 0.206 PCS1900 Body(GSM): 0.177 GSM850 Body(GPRS): 0.21 PCS1900 Body(GPRS): 0.223

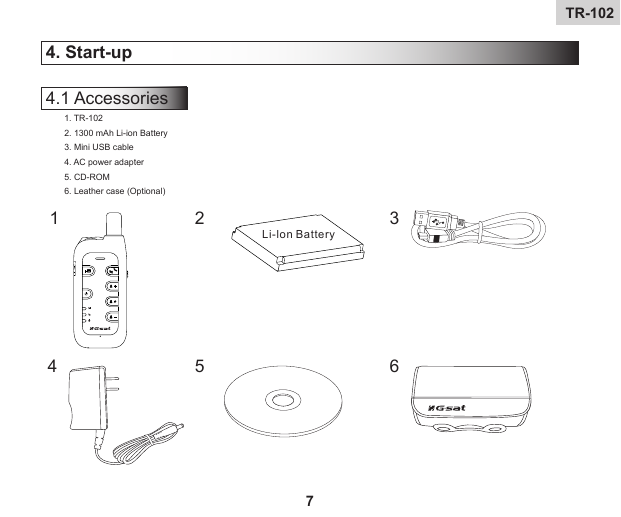

TR-10 . Start-up 4.1 Accessories 1. TR-102 2. 1300 mAh Li-ion Battery 3. Mini USB cable 4. AC power adapter 5. CD-ROM 6. Leather case (Optional) 1 4 2 5 3 6 Li-lon Battery

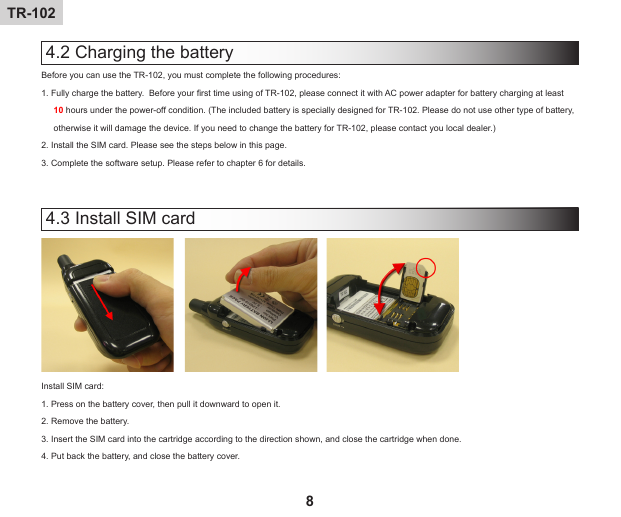

TR-10 4.2 Charging the battery Before you can use the TR-102, you must complete the following procedures: 1. Fully charge the battery. Before your first time using of TR-102, please connect it with AC power adapter for battery charging at least 10 hours under the power-off condition. (The included battery is specially designed for TR-102. Please do not use other type of battery, otherwise it will damage the device. If you need to change the battery for TR-102, please contact you local dealer.) 2. Install the SIM card. Please see the steps below in this page. 3. Complete the software setup. Please refer to chapter 6 for details. 4.3 Install SIM card Install SIM card: 1. Press on the battery cover, then pull it downward to open it. 2. Remove the battery. 3. Insert the SIM card into the cartridge according to the direction shown, and close the cartridge when done. 4. Put back the battery, and close the battery cover.
