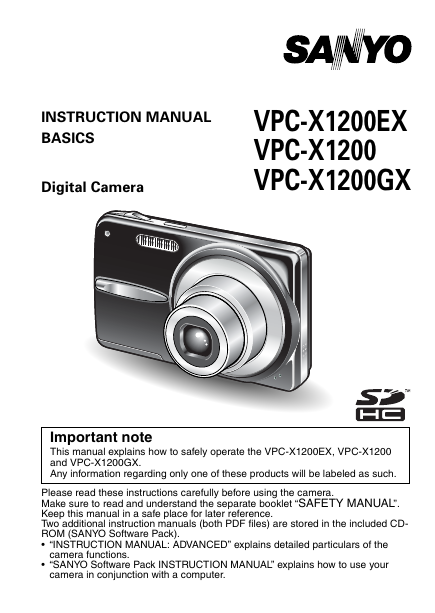

INSTRUCTION MANUAL BASICS Digital Camera VPC-X1200EX VPC-X1200 VPC-X1200GX Important note This manual explains how to safely operate the VPC-X1200EX, VPC-X1200 and VPC-X1200GX. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference. Two additional instruction manuals (both PDF files) are stored in the included CD- ROM (SANYO Software Pack). “INSTRUCTION MANUAL: ADVANCED” explains detailed particulars of the camera functions. “SANYO Software Pack INSTRUCTION MANUAL” explains how to use your camera in conjunction with a computer.

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE kFOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Model number: VPC-X1200 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. i English

FOR USERS IN THE USA About the battery charger IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS h For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet. h Power Supply Cord: Use UL Listed detachable power supply cord - No. 18 AWG, two conductors, rated 10 A, VW-1, 105 ºC, 125/250 V, minimum 1.8 m, maximum 3 m long. Provided with a molded-on, non-polarized attachment plug with a 15 A, 250 V (NEMA 2-15P) configuration or a 15 A, 125 V (NEMA 1-15P) configuration and a molded-on connector which mates with the Power Inlet. Cord Type Basic Cord Type TS SP-2 SP-3 SV SJ S Other Suitable Types TST SPE-2, SPT-2 SPE-3, SPT-3 SVE, SVO, SVOO, SVT, SVTO, SVTOO SJE, SJO, SJOO, SJT, SJTO, SJTOO SE, SO, SOO, ST, STO, STOO h This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. English ii

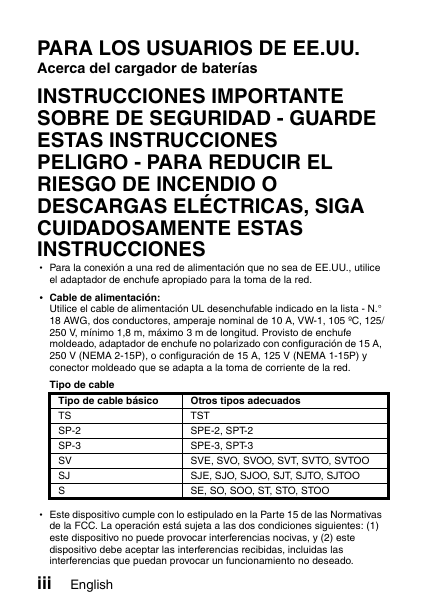

PARA LOS USUARIOS DE EE.UU. Acerca del cargador de baterías INSTRUCCIONES IMPORTANTE SOBRE DE SEGURIDAD - GUARDE ESTAS INSTRUCCIONES PELIGRO - PARA REDUCIR EL RIESGO DE INCENDIO O DESCARGAS ELÉCTRICAS, SIGA CUIDADOSAMENTE ESTAS INSTRUCCIONES h Para la conexión a una red de alimentación que no sea de EE.UU., utilice el adaptador de enchufe apropiado para la toma de la red. h Cable de alimentación: Utilice el cable de alimentación UL desenchufable indicado en la lista - N.° 18 AWG, dos conductores, amperaje nominal de 10 A, VW-1, 105 ºC, 125/ 250 V, mínimo 1,8 m, máximo 3 m de longitud. Provisto de enchufe moldeado, adaptador de enchufe no polarizado con configuración de 15 A, 250 V (NEMA 2-15P), o configuración de 15 A, 125 V (NEMA 1-15P) y conector moldeado que se adapta a la toma de corriente de la red. Tipo de cable Tipo de cable básico TS SP-2 SP-3 SV SJ S Otros tipos adecuados TST SPE-2, SPT-2 SPE-3, SPT-3 SVE, SVO, SVOO, SVT, SVTO, SVTOO SJE, SJO, SJOO, SJT, SJTO, SJTOO SE, SO, SOO, ST, STO, STOO h Este dispositivo cumple con lo estipulado en la Parte 15 de las Normativas de la FCC. La operación está sujeta a las dos condiciones siguientes: (1) este dispositivo no puede provocar interferencias nocivas, y (2) este dispositivo debe aceptar las interferencias recibidas, incluidas las interferencias que puedan provocar un funcionamiento no deseado. iii English

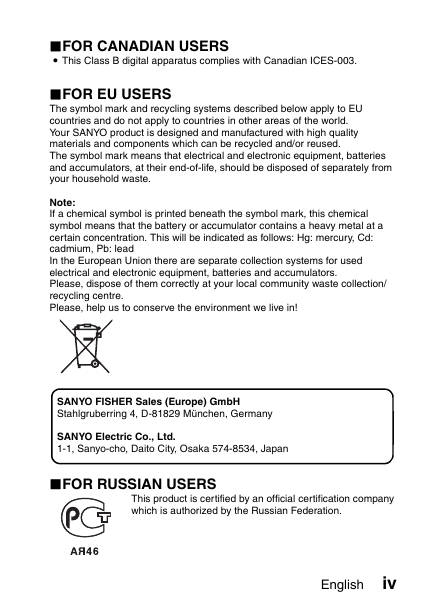

kFOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. kFOR EU USERS The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. Note: If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correctly at your local community waste collection/ recycling centre. Please, help us to conserve the environment we live in! SANYO FISHER Sales (Europe) GmbH Stahlgruberring 4, D-81829 München, Germany SANYO Electric Co., Ltd. 1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan kFOR RUSSIAN USERS This product is certified by an official certification company which is authorized by the Russian Federation. English iv

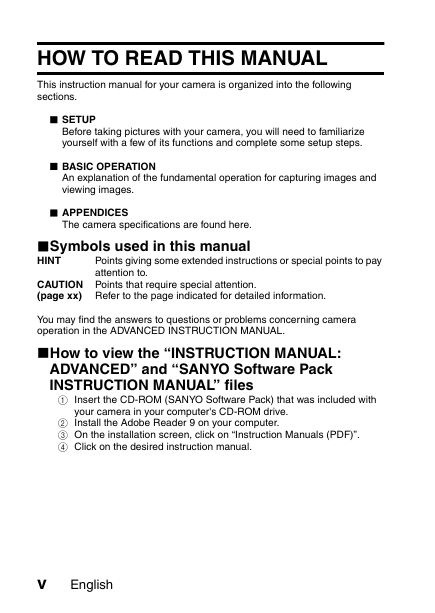

HOW TO READ THIS MANUAL This instruction manual for your camera is organized into the following sections. k SETUP Before taking pictures with your camera, you will need to familiarize yourself with a few of its functions and complete some setup steps. k BASIC OPERATION An explanation of the fundamental operation for capturing images and viewing images. k APPENDICES The camera specifications are found here. kSymbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. You may find the answers to questions or problems concerning camera operation in the ADVANCED INSTRUCTION MANUAL. kHow to view the “INSTRUCTION MANUAL: ADVANCED” and “SANYO Software Pack INSTRUCTION MANUAL” files 1 Insert the CD-ROM (SANYO Software Pack) that was included with your camera in your computer's CD-ROM drive. 2 Install the Adobe Reader 9 on your computer. 3 On the installation screen, click on “Instruction Manuals (PDF)”. 4 Click on the desired instruction manual. v English

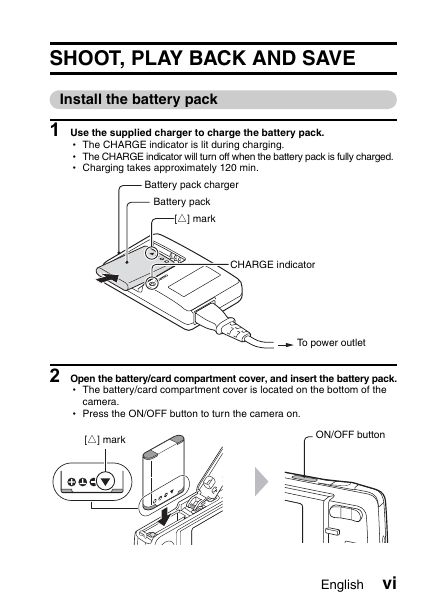

SHOOT, PLAY BACK AND SAVE Install the battery pack 1 Use the supplied charger to charge the battery pack. h The CHARGE indicator is lit during charging. h The CHARGE indicator will turn off when the battery pack is fully charged. h Charging takes approximately 120 min. Battery pack charger Battery pack [o] mark CHARGE indicator To power outlet 2 Open the battery/card compartment cover, and insert the battery pack. h The battery/card compartment cover is located on the bottom of the camera. h Press the ON/OFF button to turn the camera on. [o] mark ON/OFF button English vi

SHOOT, PLAY BACK AND SAVE Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go i Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Shooting 1 Press the [m] button. h The recording mode menu appears. Single-shot High-speed sequential shots Sequential shots Video clip recording PHOTOGRAPH 1 IMAGE 2 Press the [l] or [m] button to 3 Press the SET button. select the recording mode. h The recording mode is indicated by an icon in the upper left area of the monitor. Shutter button [l] / [m] buttons 6 4 Press the shutter button. Single-shot mode: A still image is captured. High-speed sequential shots mode/sequential shots mode: Shooting begins. Release the shutter button to discontinue shooting. Video clip recording mode: Recording begins. To stop recording, press the shutter button again. vii English s: Single-shot mode : High-speed sequential shots mode O: Sequential shots mode X: Video clip recording mode
