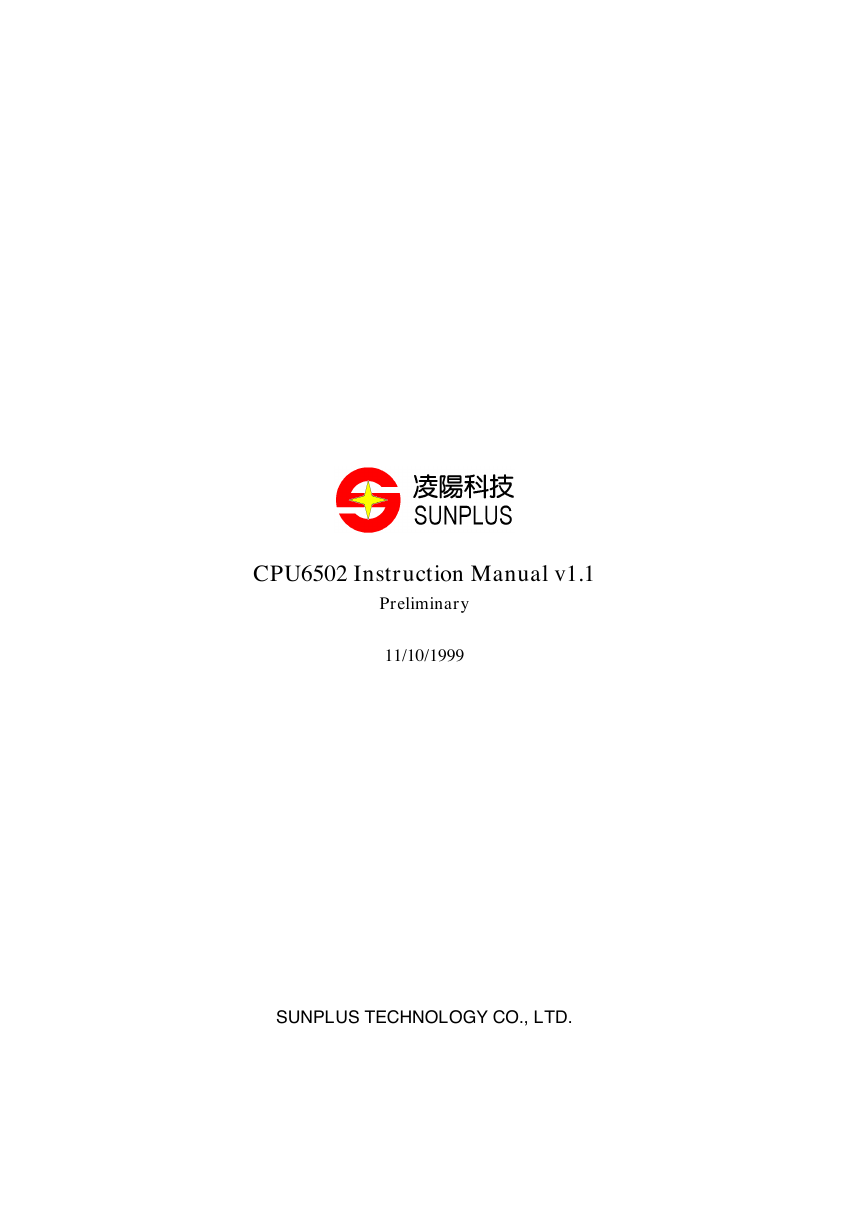

CPU6502 Instruction Manual v1.1 Preliminary 11/10/1999 SUNPLUS TECHNOLOGY CO., LTD.

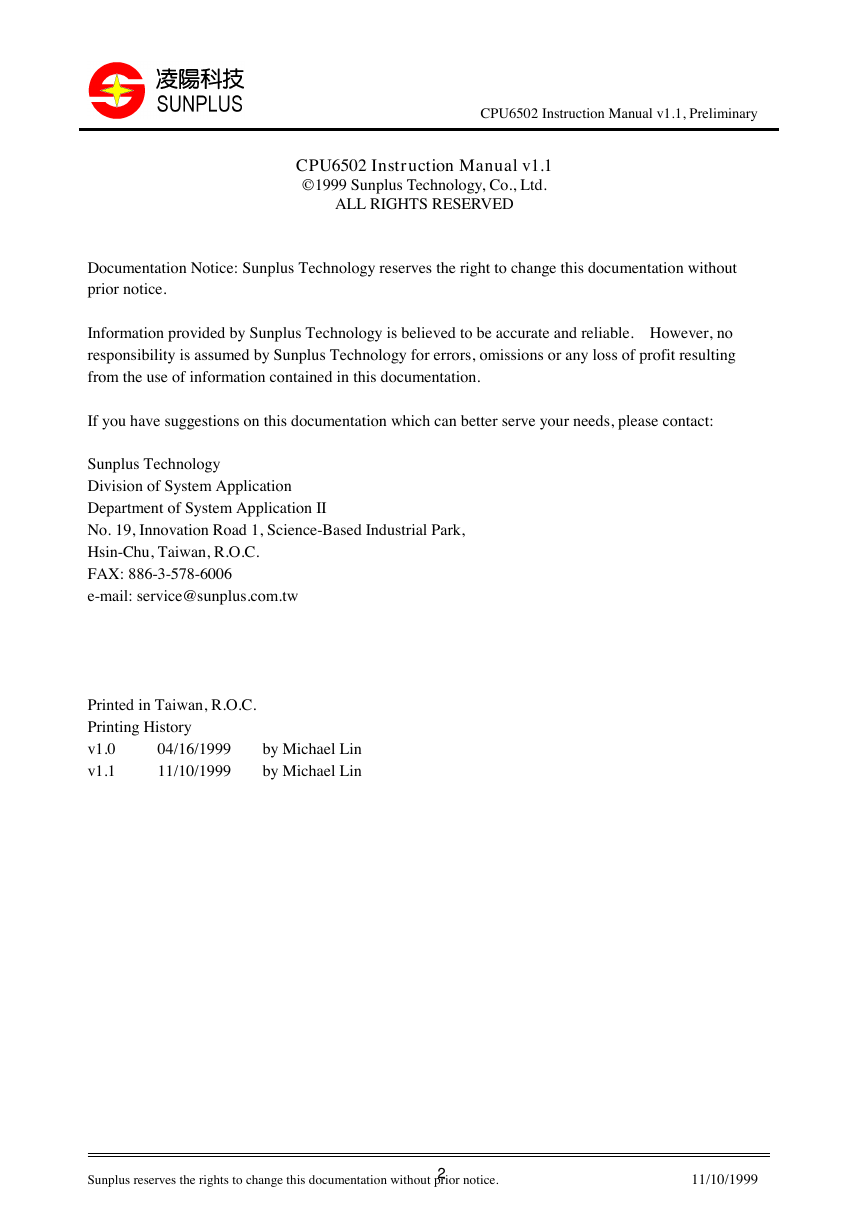

CPU6502 Instruction Manual v1.1, Preliminary CPU6502 Instruction Manual v1.1 ª 1999 Sunplus Technology, Co., Ltd. ALL RIGHTS RESERVED Documentation Notice: Sunplus Technology reserves the right to change this documentation without prior notice. Information provided by Sunplus Technology is believed to be accurate and reliable. However, no responsibility is assumed by Sunplus Technology for errors, omissions or any loss of profit resulting from the use of information contained in this documentation. If you have suggestions on this documentation which can better serve your needs, please contact: Sunplus Technology Division of System Application Department of System Application II No. 19, Innovation Road 1, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. FAX: 886-3-578-6006 e-mail: service@sunplus.com.tw Printed in Taiwan, R.O.C. Printing History v1.0 v1.1 04/16/1999 11/10/1999 by Michael Lin by Michael Lin Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 2

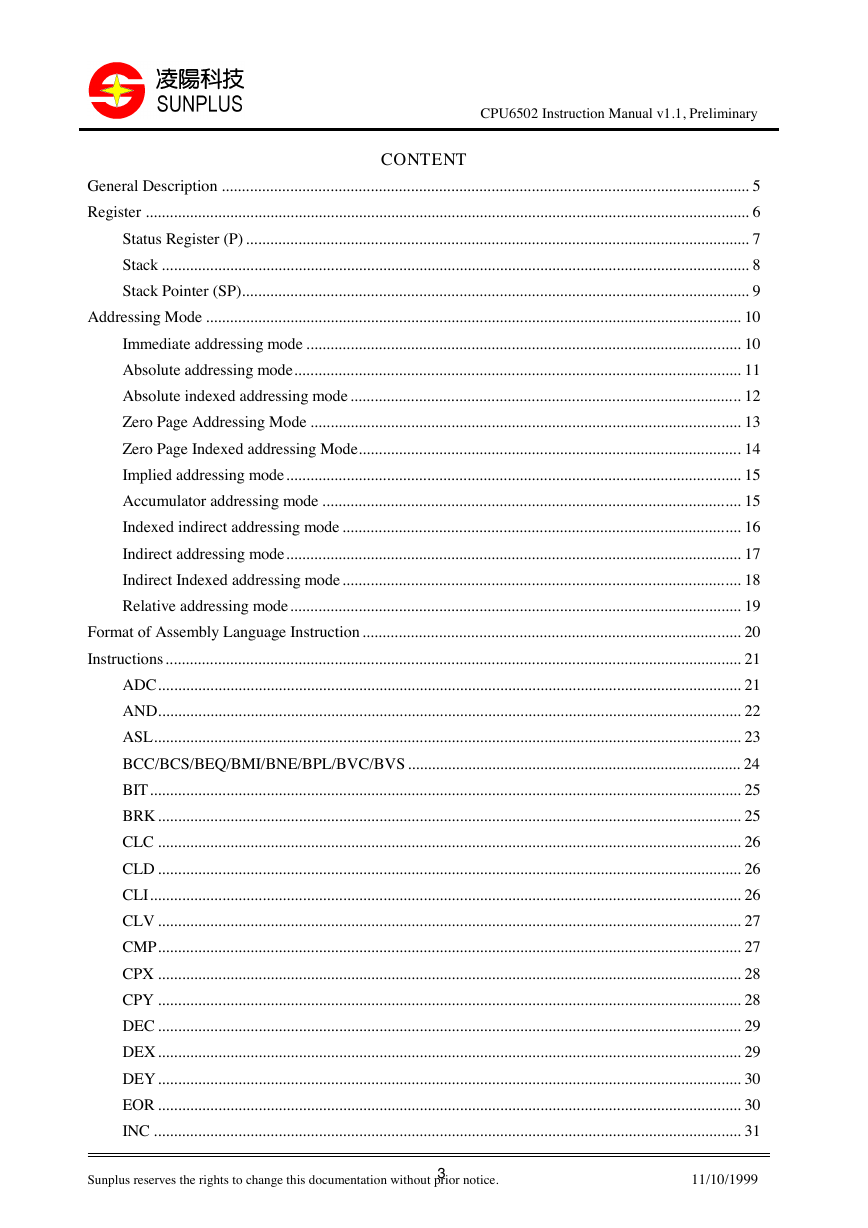

CPU6502 Instruction Manual v1.1, Preliminary CONTENT General Description ................................................................................................................................... 5 Register ...................................................................................................................................................... 6 Status Register (P) ............................................................................................................................. 7 Stack .................................................................................................................................................. 8 Stack Pointer (SP).............................................................................................................................. 9 Addressing Mode ..................................................................................................................................... 10 Immediate addressing mode ............................................................................................................ 10 Absolute addressing mode............................................................................................................... 11 Absolute indexed addressing mode ................................................................................................. 12 Zero Page Addressing Mode ........................................................................................................... 13 Zero Page Indexed addressing Mode............................................................................................... 14 Implied addressing mode................................................................................................................. 15 Accumulator addressing mode ........................................................................................................ 15 Indexed indirect addressing mode ................................................................................................... 16 Indirect addressing mode................................................................................................................. 17 Indirect Indexed addressing mode................................................................................................... 18 Relative addressing mode................................................................................................................ 19 Format of Assembly Language Instruction .............................................................................................. 20 Instructions............................................................................................................................................... 21 ADC................................................................................................................................................. 21 AND................................................................................................................................................. 22 ASL.................................................................................................................................................. 23 BCC/BCS/BEQ/BMI/BNE/BPL/BVC/BVS ................................................................................... 24 BIT................................................................................................................................................... 25 BRK................................................................................................................................................. 25 CLC ................................................................................................................................................. 26 CLD ................................................................................................................................................. 26 CLI................................................................................................................................................... 26 CLV ................................................................................................................................................. 27 CMP................................................................................................................................................. 27 CPX ................................................................................................................................................. 28 CPY ................................................................................................................................................. 28 DEC ................................................................................................................................................. 29 DEX................................................................................................................................................. 29 DEY................................................................................................................................................. 30 EOR ................................................................................................................................................. 30 INC .................................................................................................................................................. 31 Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 3

CPU6502 Instruction Manual v1.1, Preliminary INX .................................................................................................................................................. 31 INY .................................................................................................................................................. 32 JMP.................................................................................................................................................. 32 JSR................................................................................................................................................... 33 LDA................................................................................................................................................. 33 LDX................................................................................................................................................. 34 LDY................................................................................................................................................. 34 LSR.................................................................................................................................................. 35 NOP ................................................................................................................................................. 35 ORA................................................................................................................................................. 36 PHA ................................................................................................................................................. 36 PHP.................................................................................................................................................. 37 PLA.................................................................................................................................................. 37 PLP .................................................................................................................................................. 37 ROL ................................................................................................................................................. 38 ROR................................................................................................................................................. 39 RTI................................................................................................................................................... 39 RTS.................................................................................................................................................. 40 SBC.................................................................................................................................................. 40 SEC.................................................................................................................................................. 41 SED.................................................................................................................................................. 41 SEI ................................................................................................................................................... 41 STA.................................................................................................................................................. 42 STX.................................................................................................................................................. 42 STY.................................................................................................................................................. 43 TAX................................................................................................................................................. 43 TAY................................................................................................................................................. 44 TSX.................................................................................................................................................. 44 TXA................................................................................................................................................. 44 TXS.................................................................................................................................................. 45 TYA................................................................................................................................................. 45 Summary of Available Instruction set for each CPU Type...................................................................... 46 Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 4

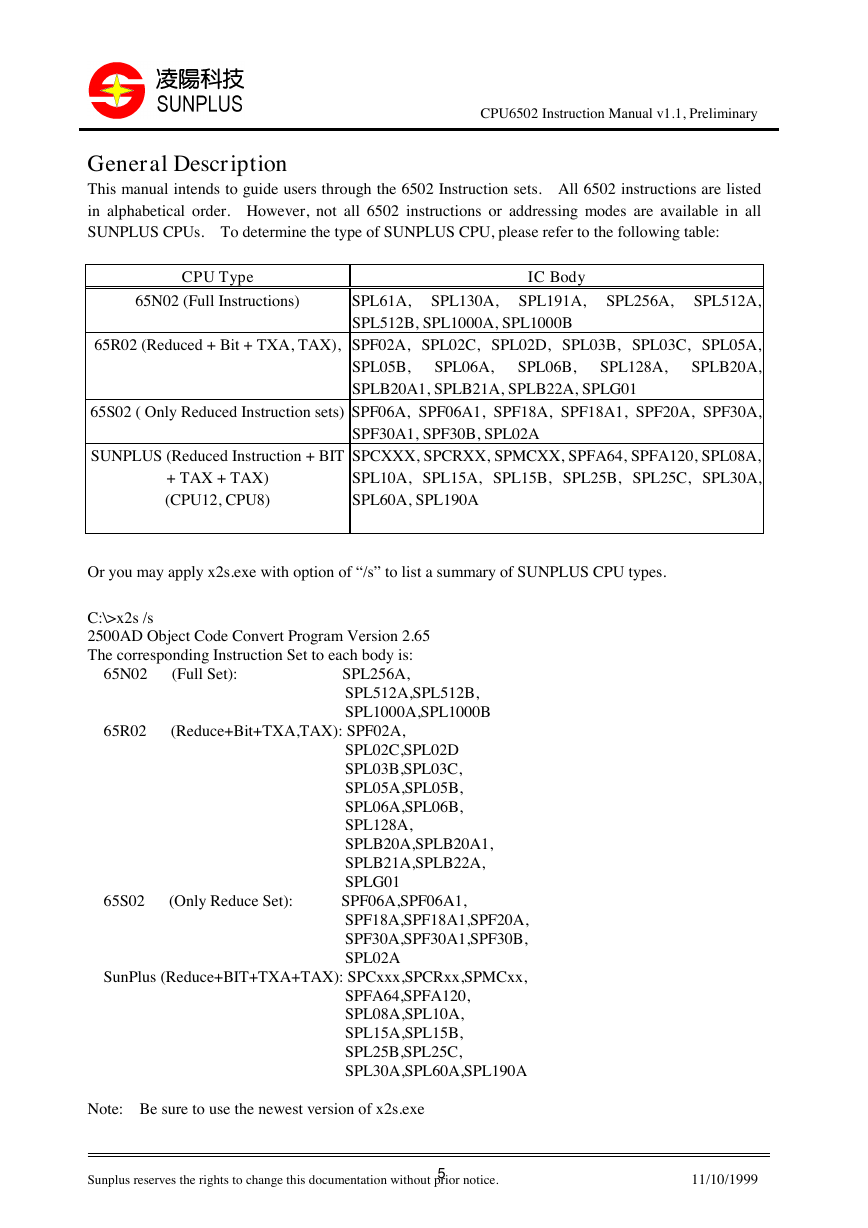

CPU6502 Instruction Manual v1.1, Preliminary General Description This manual intends to guide users through the 6502 Instruction sets. All 6502 instructions are listed in alphabetical order. However, not all 6502 instructions or addressing modes are available in all SUNPLUS CPUs. To determine the type of SUNPLUS CPU, please refer to the following table: CPU Type 65N02 (Full Instructions) IC Body SPL61A, SPL130A, SPL191A, SPL256A, SPL512A, SPL512B, SPL1000A, SPL1000B 65R02 (Reduced + Bit + TXA, TAX), SPF02A, SPL02C, SPL02D, SPL03B, SPL03C, SPL05A, SPLB20A, SPL128A, SPL06B, SPL05B, SPLB20A1, SPLB21A, SPLB22A, SPLG01 SPL06A, 65S02 ( Only Reduced Instruction sets) SPF06A, SPF06A1, SPF18A, SPF18A1, SPF20A, SPF30A, SUNPLUS (Reduced Instruction + BIT + TAX + TAX) (CPU12, CPU8) SPF30A1, SPF30B, SPL02A SPCXXX, SPCRXX, SPMCXX, SPFA64, SPFA120, SPL08A, SPL10A, SPL15A, SPL15B, SPL25B, SPL25C, SPL30A, SPL60A, SPL190A Or you may apply x2s.exe with option of “/s” to list a summary of SUNPLUS CPU types. C:\>x2s /s 2500AD Object Code Convert Program Version 2.65 The corresponding Instruction Set to each body is: 65N02 (Full Set): SPL256A, SPL512A,SPL512B, SPL1000A,SPL1000B 65R02 (Reduce+Bit+TXA,TAX): SPF02A, SPL02C,SPL02D SPL03B,SPL03C, SPL05A,SPL05B, SPL06A,SPL06B, SPL128A, SPLB20A,SPLB20A1, SPLB21A,SPLB22A, SPLG01 65S02 (Only Reduce Set): SPF06A,SPF06A1, SPF18A,SPF18A1,SPF20A, SPF30A,SPF30A1,SPF30B, SPL02A SunPlus (Reduce+BIT+TXA+TAX): SPCxxx,SPCRxx,SPMCxx, SPFA64,SPFA120, SPL08A,SPL10A, SPL15A,SPL15B, SPL25B,SPL25C, SPL30A,SPL60A,SPL190A Note: Be sure to use the newest version of x2s.exe Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 5

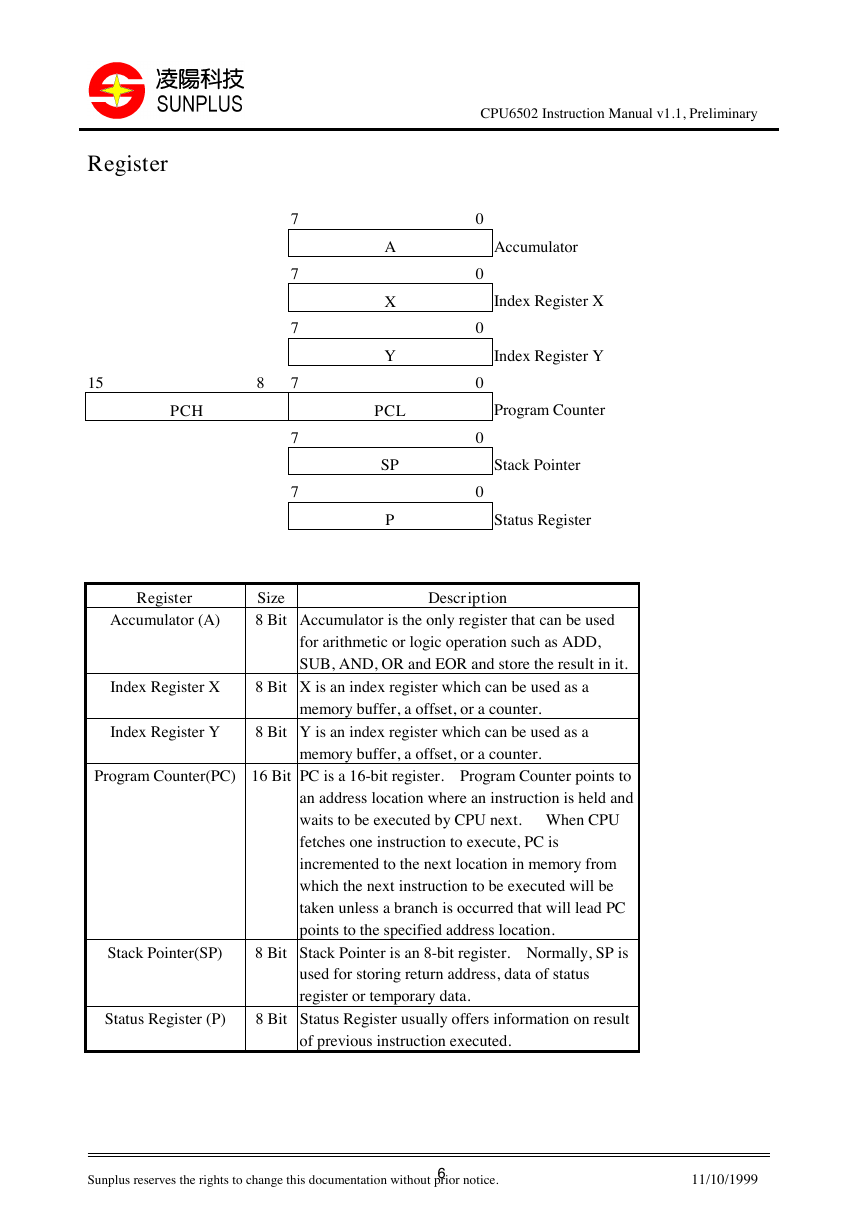

CPU6502 Instruction Manual v1.1, Preliminary Register 7 0 A Accumulator 7 0 X Index Register X 7 0 Y Index Register Y 15 8 7 0 PCH PCL Program Counter 7 0 SP Stack Pointer 7 0 P Status Register Register Accumulator (A) Size 8 Bit Accumulator is the only register that can be used Description for arithmetic or logic operation such as ADD, SUB, AND, OR and EOR and store the result in it. Index Register X 8 Bit X is an index register which can be used as a memory buffer, a offset, or a counter. Index Register Y 8 Bit Y is an index register which can be used as a memory buffer, a offset, or a counter. Program Counter(PC) 16 Bit PC is a 16-bit register. Program Counter points to an address location where an instruction is held and waits to be executed by CPU next. When CPU fetches one instruction to execute, PC is incremented to the next location in memory from which the next instruction to be executed will be taken unless a branch is occurred that will lead PC points to the specified address location. Stack Pointer(SP) 8 Bit Stack Pointer is an 8-bit register. Normally, SP is used for storing return address, data of status register or temporary data. Status Register (P) 8 Bit Status Register usually offers information on result of previous instruction executed. Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 6

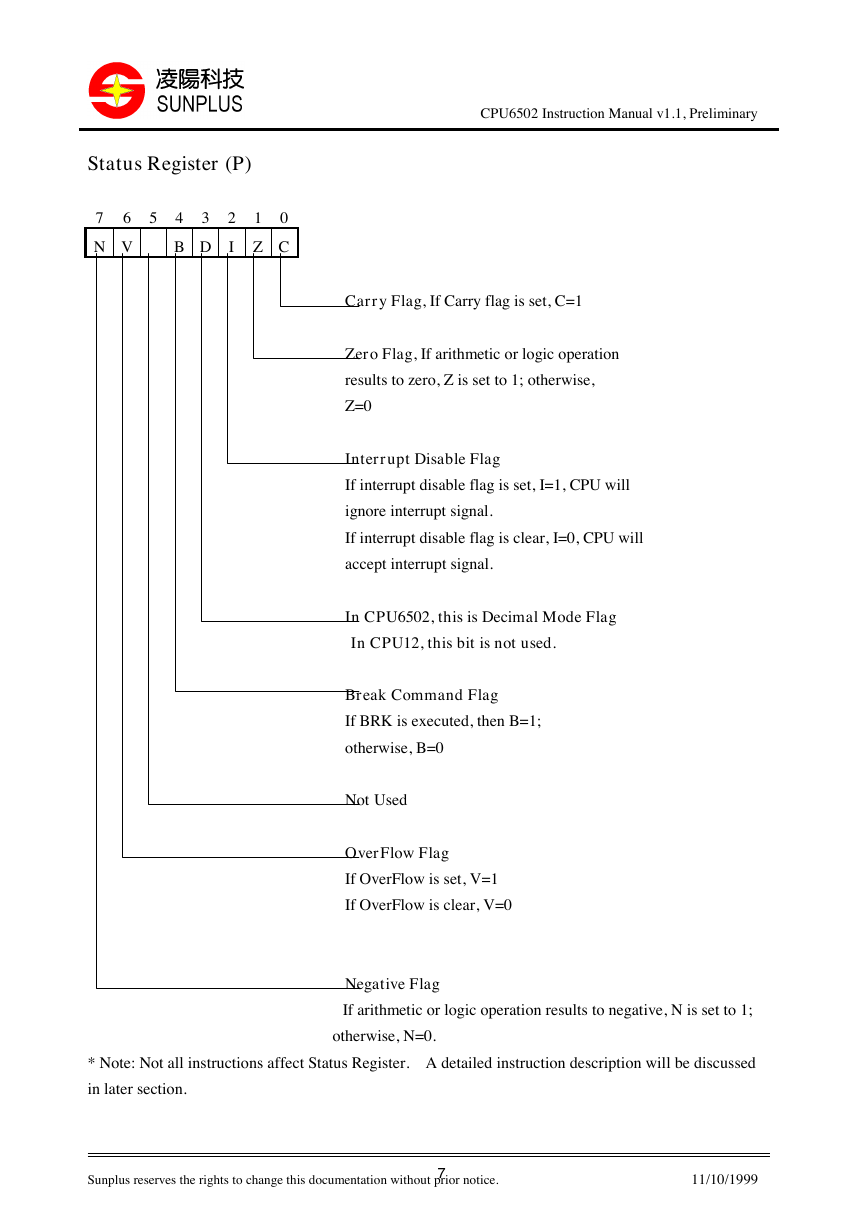

CPU6502 Instruction Manual v1.1, Preliminary Status Register (P) 7 6 5 4 3 2 1 0 N V B D I Z C Carry Flag, If Carry flag is set, C=1 Zero Flag, If arithmetic or logic operation results to zero, Z is set to 1; otherwise, Z=0 Interrupt Disable Flag If interrupt disable flag is set, I=1, CPU will ignore interrupt signal. If interrupt disable flag is clear, I=0, CPU will accept interrupt signal. In CPU6502, this is Decimal Mode Flag In CPU12, this bit is not used. Break Command Flag If BRK is executed, then B=1; otherwise, B=0 Not Used OverFlow Flag If OverFlow is set, V=1 If OverFlow is clear, V=0 Negative Flag If arithmetic or logic operation results to negative, N is set to 1; otherwise, N=0. * Note: Not all instructions affect Status Register. A detailed instruction description will be discussed in later section. Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 7

CPU6502 Instruction Manual v1.1, Preliminary Stack In normal use, stack can be used as storing return address, temporary data or register‘s content. A stack has the property that the last item placed on the stack will be the first item removed. This property is commonly referred to as last in, first out, or simply LIFO. A diagram is shown as follows: Push 30 Push 40 Push 50 Push 60 50 40 30 60 50 40 30 30 40 30 Stack (Push) P O P 6 0 P O P 5 0 P O P 4 0 P O P 3 0 50 40 30 40 30 30 Stack (Pop) In push activity, a value of 30 is pushed first. Then, a value of 40 is pushed. Thus, the value of 40 is now stored on the top on stack. After all values stored in the stack, the value order is 60, 50, 40, 30. Now, in pop activity, the value of 60 will be popped out first. Second, the value of 50 will be popped. Then, 40 and 30 will be popped out in order. Stack is empty after all the values are popped. Sunplus reserves the rights to change this documentation without prior notice. 11/10/1999 8
