C3-370B-Jnavi High-Performance GPS Receiver

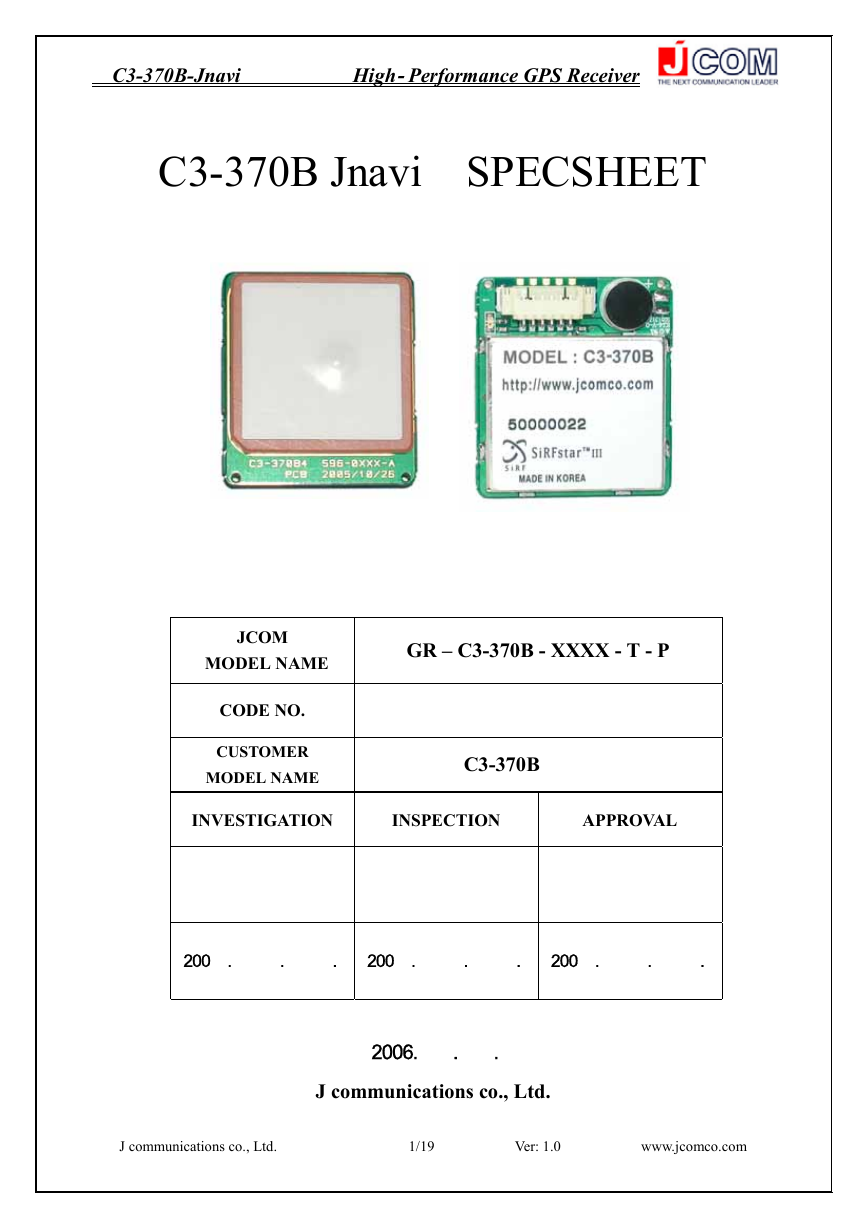

C3-370B Jnavi SPECSHEET
JCOM
MODEL NAME
CODE NO.
CUSTOMER
MODEL NAME
GR – C3-370B - XXXX - T - P
C3-370B
INVESTIGATION
INSPECTION
APPROVAL
200 . . . 200 . . . 200 . . .
2006. . .
J communications co., Ltd.
J communications co., Ltd. 1/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

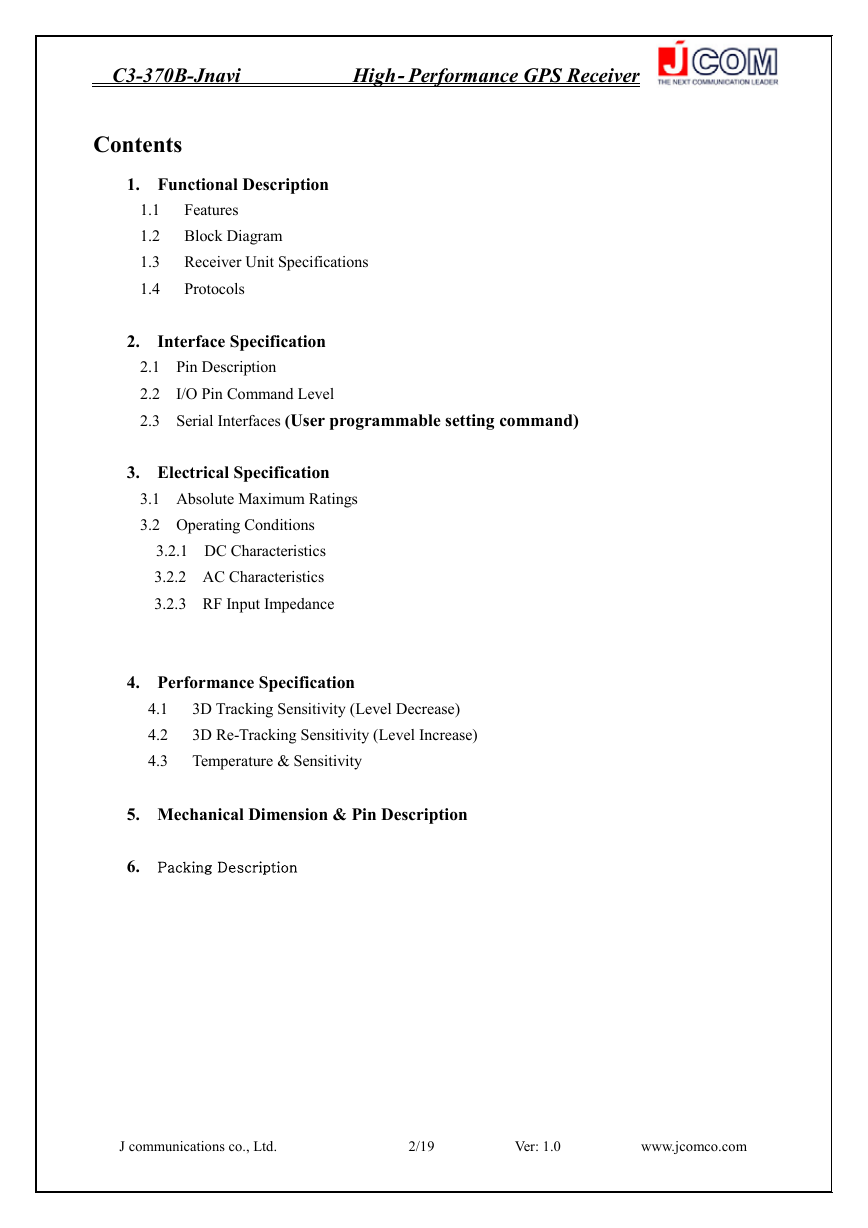

Contents
1. Functional Description
1.1 Features
1.2 Block Diagram
1.3 Receiver Unit Specifications
1.4 Protocols
2. Interface Specification
2.1 Pin Description
2.2 I/O Pin Command Level
2.3 Serial Interfaces (User programmable setting command)
3. Electrical Specification
3.1 Absolute Maximum Ratings
3.2 Operating Conditions
3.2.1 DC Characteristics
3.2.2 AC Characteristics
3.2.3 RF Input Impedance
4. Performance Specification
4.1 3D Tracking Sensitivity (Level Decrease)
4.2 3D Re-Tracking Sensitivity (Level Increase)
4.3 Temperature & Sensitivity
5. Mechanical Dimension & Pin Description
6. Packing Description
J communications co., Ltd. 2/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver
1. Functional Description
1.1 Features
Fully self-contained GPS receiver
Fully shield
Full implementation of SiRFstarTMIII GPS architecture
GSC3F(High Performance GPS Single Chip)
GPS DSP with integrated real time clock(RTC) ARM7TDMI CPU
4Mbit FLASH memory
Low noise amplifiers and SAW filters.
TCXO, Reset & Regulator etc
Built-In Back-up Battery
GPS receiver With Patch Antenna
Patch Antenna Size : 25(w)mm X 25(d)mm X 2(h)mm
Max. Size : 30.0(w)mm X 27(d)mm X 7.0(h)mm
Weight : 10.5 grams
1.2 Block Diagram
RTC X-TAL
Back-UP
LNA
Filter
GSC3F
SAW
Line
Filter
TCXO
RESET
Regulator
IC
J communications co., Ltd. 3/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

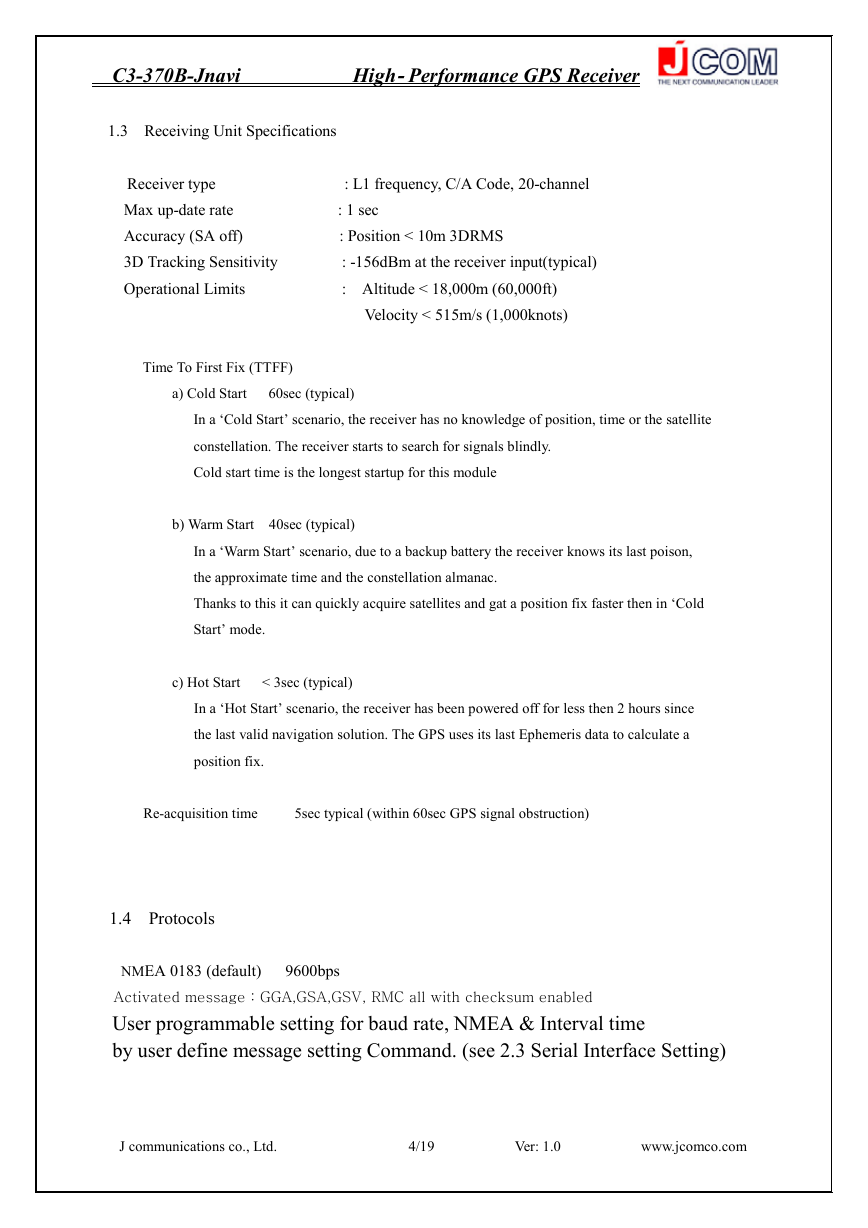

1.3 Receiving Unit Specifications
Receiver type : L1 frequency, C/A Code, 20-channel
Max up-date rate : 1 sec
Accuracy (SA off) : Position < 10m 3DRMS
3D Tracking Sensitivity : -156dBm at the receiver input(typical)
Operational Limits : Altitude < 18,000m (60,000ft)
Velocity < 515m/s (1,000knots)
Time To First Fix (TTFF)
a) Cold Start 60sec (typical)
In a ‘Cold Start’ scenario, the receiver has no knowledge of position, time or the satellite
constellation. The receiver starts to search for signals blindly.
Cold start time is the longest startup for this module
b) Warm Start 40sec (typical)
In a ‘Warm Start’ scenario, due to a backup battery the receiver knows its last poison,
the approximate time and the constellation almanac.
Thanks to this it can quickly acquire satellites and gat a position fix faster then in ‘Cold
Start’ mode.
c) Hot Start < 3sec (typical)
In a ‘Hot Start’ scenario, the receiver has been powered off for less then 2 hours since
the last valid navigation solution. The GPS uses its last Ephemeris data to calculate a
position fix.
Re-acquisition time 5sec typical (within 60sec GPS signal obstruction)
1.4 Protocols
NMEA 0183 (default) 9600bps
Activated message : GGA,GSA,GSV, RMC all with checksum enabled
User programmable setting for baud rate, NMEA & Interval time
by user define message setting Command. (see 2.3 Serial Interface Setting)
J communications co., Ltd. 4/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

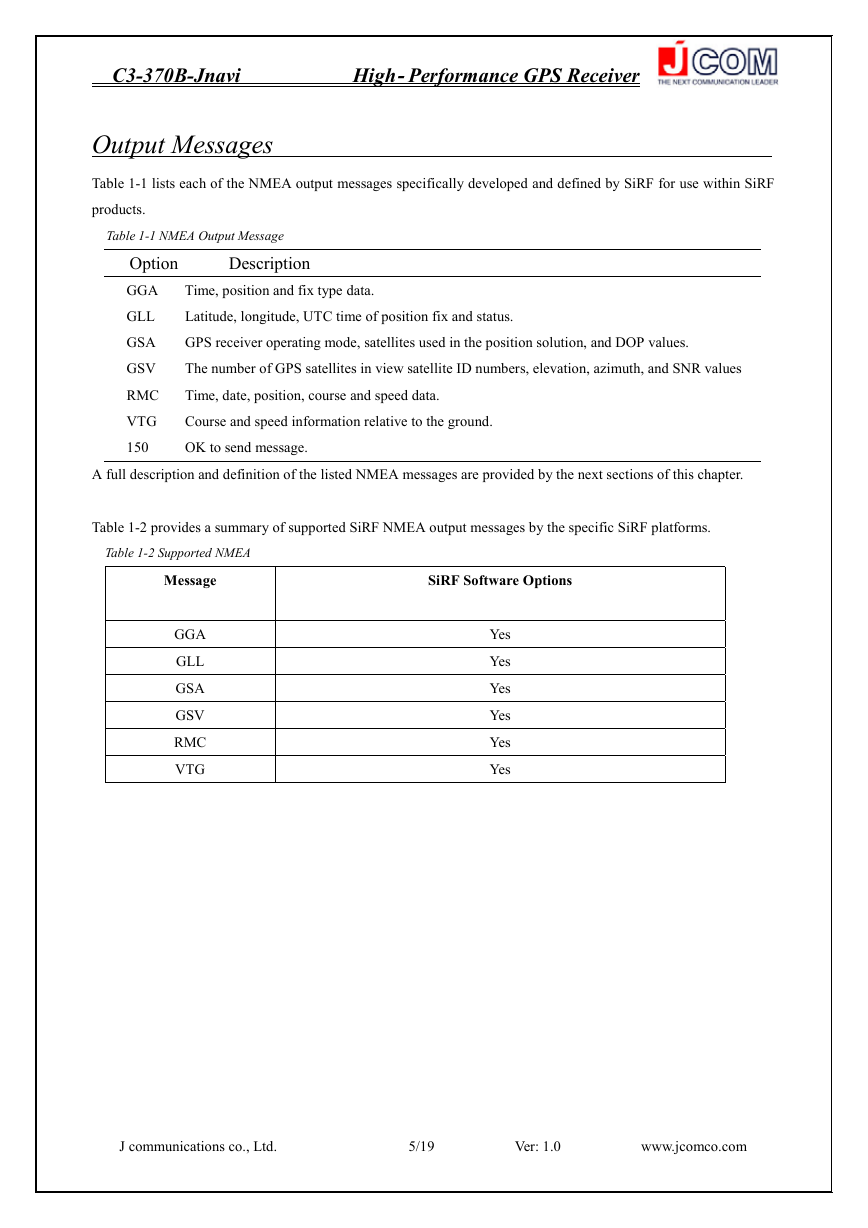

Output Messages
Table 1-1 lists each of the NMEA output messages specifically developed and defined by SiRF for use within SiRF
products.
Table 1-1 NMEA Output Message
Description
Option
GGA
GLL
GSA
GSV
RMC
VTG
150 OK to send message.
Time, position and fix type data.
Latitude, longitude, UTC time of position fix and status.
GPS receiver operating mode, satellites used in the position solution, and DOP values.
The number of GPS satellites in view satellite ID numbers, elevation, azimuth, and SNR values
Time, date, position, course and speed data.
Course and speed information relative to the ground.
A full description and definition of the listed NMEA messages are provided by the next sections of this chapter.
Table 1-2 provides a summary of supported SiRF NMEA output messages by the specific SiRF platforms.
Table 1-2 Supported NMEA
Message
SiRF Software Options
GGA
GLL
GSA
GSV
RMC
VTG
Yes
Yes
Yes
Yes
Yes
Yes
J communications co., Ltd. 5/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

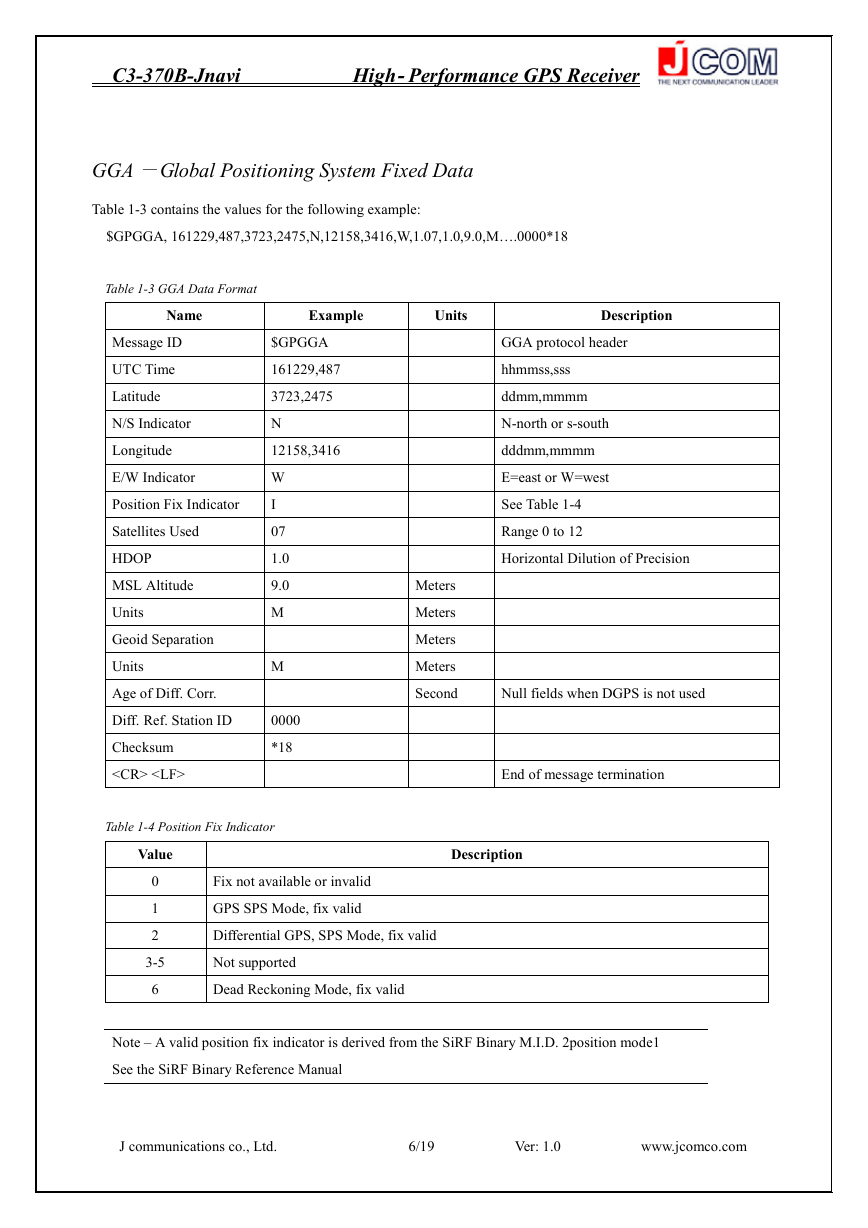

GGA ―Global Positioning System Fixed Data
Table 1-3 contains the values for the following example:
$GPGGA, 161229,487,3723,2475,N,12158,3416,W,1.07,1.0,9.0,M….0000*18
Table 1-3 GGA Data Format
Name
Example
Units
Description
Message ID
UTC Time
Latitude
N/S Indicator
Longitude
E/W Indicator
Position Fix Indicator
Satellites Used
HDOP
MSL Altitude
Units
Geoid Separation
Units
Age of Diff. Corr.
Diff. Ref. Station ID
Checksum
$GPGGA
161229,487
3723,2475
N
12158,3416
W
I
07
1.0
9.0
M
M
0000
*18
Table 1-4 Position Fix Indicator
Meters
Meters
Meters
Meters
Second
GGA protocol header
hhmmss,sss
ddmm,mmmm
N-north or s-south
dddmm,mmmm
E=east or W=west
See Table 1-4
Range 0 to 12
Horizontal Dilution of Precision
Null fields when DGPS is not used
End of message termination
Description
Value
0
1
2
3-5
6
Fix not available or invalid
GPS SPS Mode, fix valid
Differential GPS, SPS Mode, fix valid
Not supported
Dead Reckoning Mode, fix valid
Note – A valid position fix indicator is derived from the SiRF Binary M.I.D. 2position mode1
See the SiRF Binary Reference Manual
J communications co., Ltd. 6/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

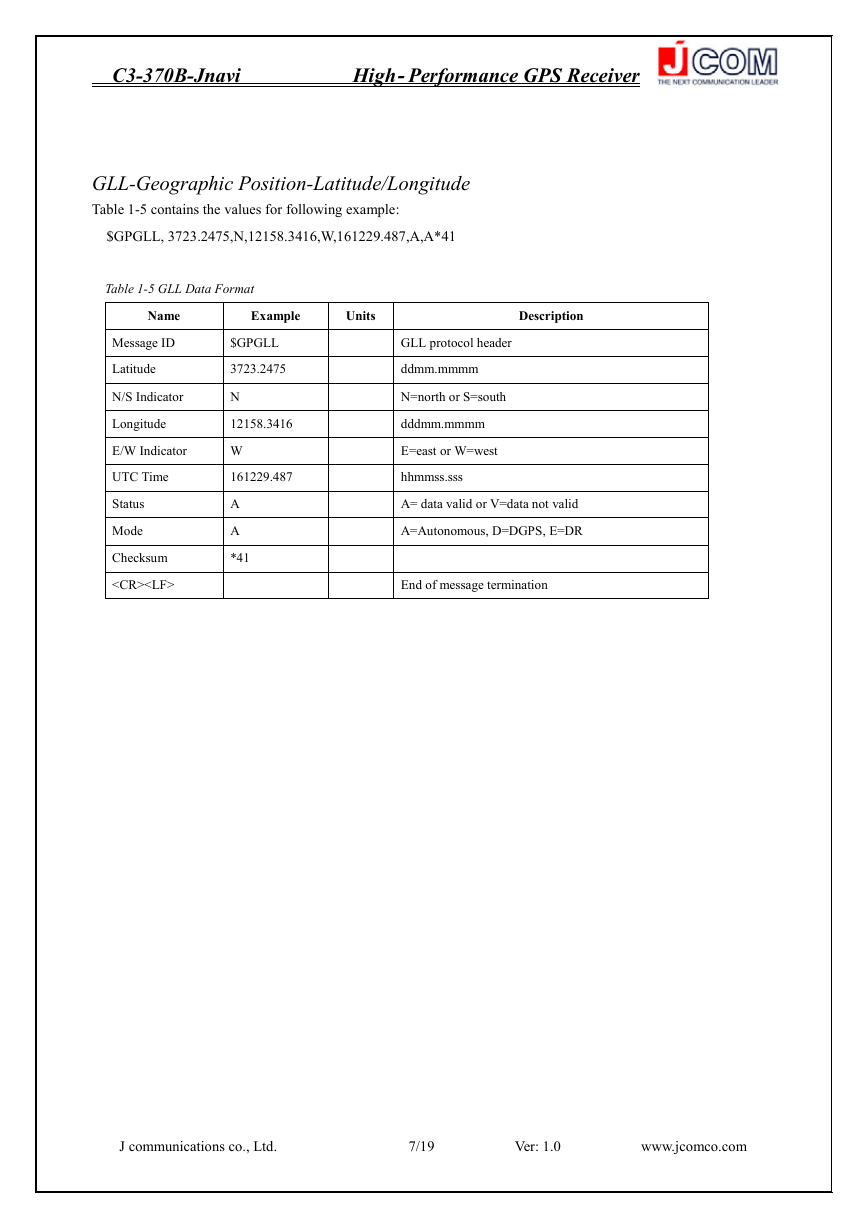

GLL-Geographic Position-Latitude/Longitude
Table 1-5 contains the values for following example:
$GPGLL, 3723.2475,N,12158.3416,W,161229.487,A,A*41
Table 1-5 GLL Data Format
Name
Example
Units
Description
Message ID
$GPGLL
Latitude
3723.2475
N/S Indicator
N
Longitude
12158.3416
E/W Indicator
W
UTC Time
161229.487
Status
Mode
Checksum
A
A
*41
GLL protocol header
ddmm.mmmm
N=north or S=south
dddmm.mmmm
E=east or W=west
hhmmss.sss
A= data valid or V=data not valid
A=Autonomous, D=DGPS, E=DR
End of message termination
J communications co., Ltd. 7/19 Ver: 1.0 www.jcomco.com
C3-370B-Jnavi High-Performance GPS Receiver

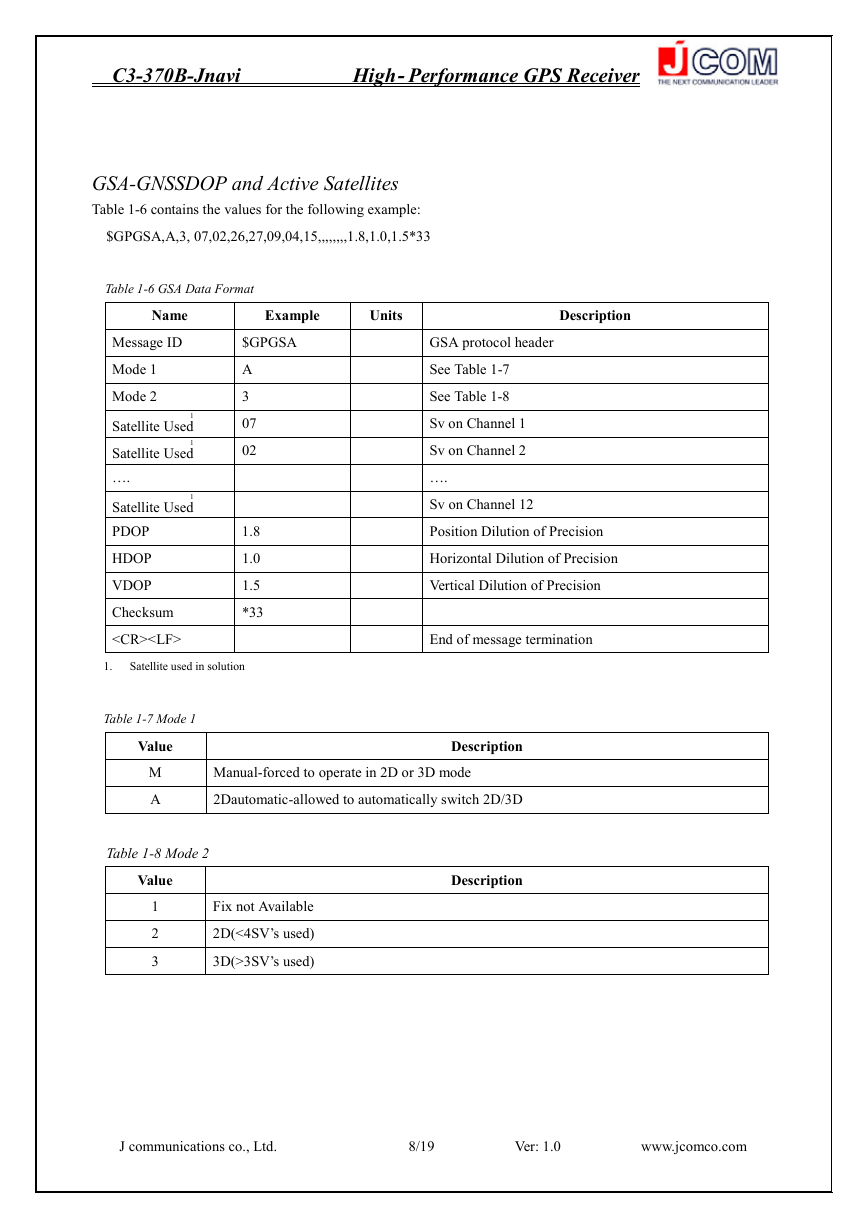

GSA-GNSSDOP and Active Satellites
Table 1-6 contains the values for the following example:
$GPGSA,A,3, 07,02,26,27,09,04,15,,,,,,,,1.8,1.0,1.5*33
Table 1-6 GSA Data Format
Name
Message ID
Mode 1
Mode 2
1
Satellite Used
1
Satellite Used
….
1
Satellite Used
PDOP
HDOP
VDOP
Checksum
Example
Units
Description
$GPGSA
A
3
07
02
1.8
1.0
1.5
*33
GSA protocol header
See Table 1-7
See Table 1-8
Sv on Channel 1
Sv on Channel 2
….
Sv on Channel 12
Position Dilution of Precision
Horizontal Dilution of Precision
Vertical Dilution of Precision
End of message termination
1.
Satellite used in solution
Table 1-7 Mode 1
Value
M
A
Table 1-8 Mode 2
Value
Description
Manual-forced to operate in 2D or 3D mode
2Dautomatic-allowed to automatically switch 2D/3D
Description
1
2
3
Fix not Available
2D(<4SV’s used)
3D(>3SV’s used)
J communications co., Ltd. 8/19 Ver: 1.0 www.jcomco.com
