松下投影机-PTAE100U说明书.pdf
TABLE OF CONTENTS
PREPARATION
IMPORTANT SAFETY NOTICE
PRECAUTIONS WITH REGARD TO SAFETY
ACCESSORIES
PRECAUTIONS ON HANDLING

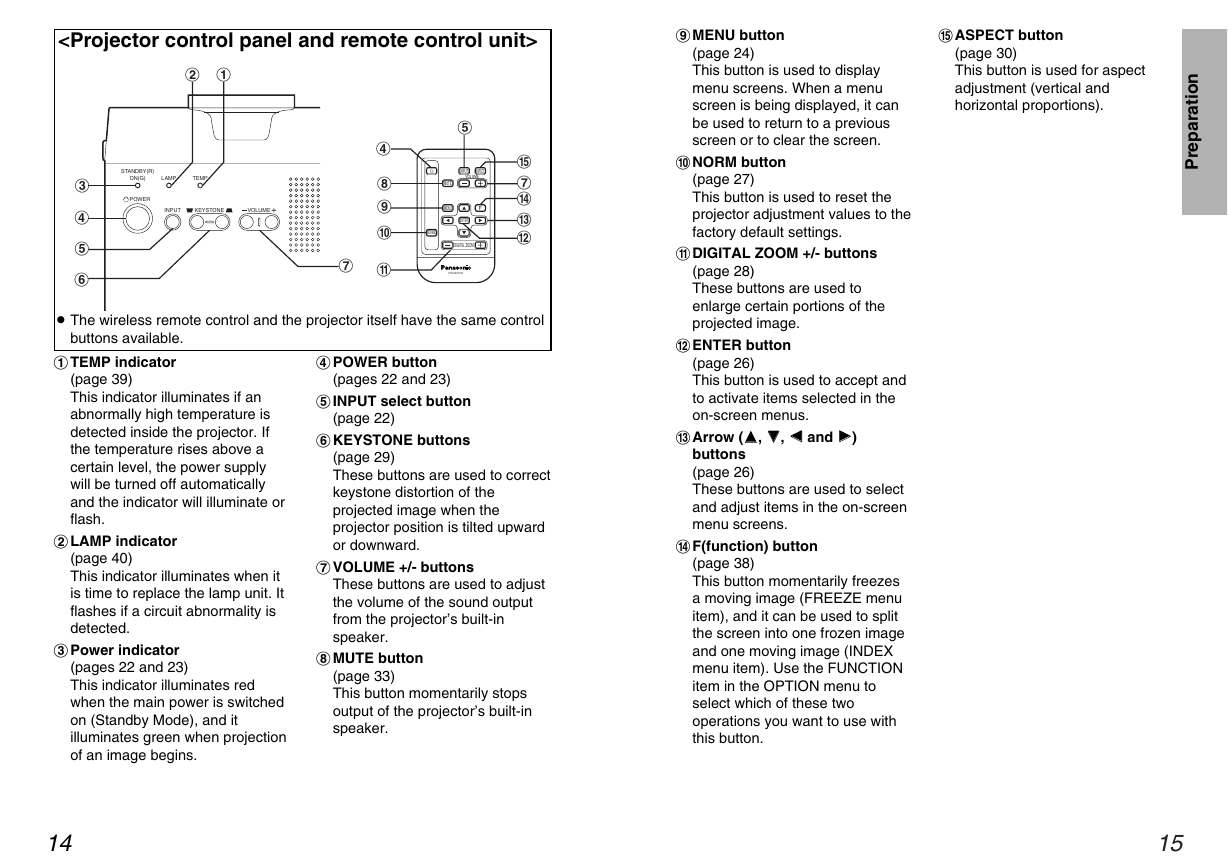

LOCATION AND FUNCTION OF EACH PART
USING THE REMOTE CONTROL UNIT
CONNECTIONS
SETTING-UP
BASIC OPERATION
STARTING TO USE
ON-SCREEN MENUS
USING THE FREEZE FUNCTION
USING THE DIGITAL ZOOM FUNCTION
CORRECTING KEYSTONE DISTORTION
SETTING THE ASPECT
USING THE INDEX WINDOW FUNCTION
USING THE SHUTTER FUNCTION
CHANGING THE DISPLAY LANGUAGE
MUTING THE SOUND
ADJUSTING THE PICTURE
ADJUSTING THE POSITION
ADVANCED OPERATION
OPTION SETTINGS
OTHERS
INDICATORS
CLEANING AND REPLACING THE AIR FILTER
REPLACING THE LAMP UNIT
BEFORE ASKING FOR SERVICE
SPECIFICATIONS
APPENDIX
DIMENSIONS
R
LCD Projector
Operating Instructions
Model No. PT-AE100U
I
H
S
L
G
N
E
R
MUTE
MENU
F
ENTER
DIGITAL ZOOM
PROJECTOR
NORMAL
INPUT
ASPECT
VOLUME
Before operating this product, please read the instructions carefully and save this
manual for future use.
For assistance, please call : 1-888-VIEW-PTV(843-9788)
or send e-mail to : consumerproducts@panasonic.com
or visit us at www.panasonic.com
(U.S.A)
For assistance, please call : 787-750-4300
or visit us at www.panasonic.co.jp/global/
(Puerto Rico)
TQBJ 0095-1
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that
you might require. We hope it will help you to get the most performance out
of your new product, and that you will be pleased with your Panasonic LCD
projector.
The serial number of your product may be found on its back. You should
note it in the space provided below and retain this booklet in case service is
required.
Model number: PT-AE100U
Serial number:
IMPORTANT SAFETY NOTICE
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This LCD Projector is designed to operate on 100 V – 240 V, 50 Hz/60
Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can
only be used for power supplies up to 125 V, 7 A. If you need to use higher
voltages or currents than this, you will need to obtain a separate 250 V
power cord. If you use the accessory cord in such situations, fire may result.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION: This equipment is equipped with a
three-pin grounding-type power
plug. Do not remove the grounding
pin on the power plug. This plug will
only fit a grounding-type power
outlet. This is a safety feature. If you
are unable to insert the plug into the
outlet, contact an electrician. Do not
defeat the purpose of the grounding
plug.
Do not remove
n
o
i
t
a
r
a
p
e
r
P
WARNING:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
–
– Connect the equipment into an outlet on a circuit different from that to
Increase the separation between the equipment and receiver.
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any unauthorized changes or modifications to this equipment
will void the users authority to operate.
Declaration of Conformity
PT-AE100U
Panasonic
Model Number:
Trade Name:
Responsible party: Matsushita Electric Corporation of America.
Address:
Telephone number: 1-888-843-9788
This device complies with Part 15 of the FCC Rules, Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
One Panasonic Way Secaucus New Jersey 07094
2
3
Contents
Preparation
IMPORTANT SAFETY NOTICE..........2
Precautions with regard to safety ....5
Accessories........................................9
Precautions on handling .................10
Location and function of
each part........................................12
Using the remote control unit.........17
Inserting the battery........................17
Operating range..............................17
Connections .....................................18
Notes on connections .....................18
Example of connecting to video
equipment ...................................18
Example of connecting to
computer .....................................19
Example of connecting to equipments
compatible with YPBPR(CBCR)
signals .........................................20
Setting-up .........................................21
Projection methods.........................21
Projector position............................21
Basic Operation
Starting to use..................................22
Turning on the power......................22
Turning off the power......................23
On-screen menus.............................24
Menu screens .................................24
Menu operation guide.....................26
Unavailable on-screen
menu items..................................26
Returning to the previous screen....26
Returning a setting to the factory
default .........................................27
Using the freeze function ................27
Using the DIGITAL ZOOM
function .........................................28
Correcting keystone distortion.......29
Setting the ASPECT.........................30
Using the index window function...32
Using the shutter function ..............33
Changing the display
language........................................33
Muting the sound .............................33
Adjusting the picture .......................34
PICTURE MODE ............................34
4
COLOR...........................................34
TINT................................................34
BRIGHT ..........................................34
CONTRAST....................................35
SHARPNESS .................................35
TV SYSTEM ...................................35
Color Hue Setting ..........................35
WHITE BALANCE R/G/B ...............35
SIGNAL MODE...............................35
Adjusting the position .....................36
HORIZONTAL POSITION ..............36
VERTICAL POSITION....................36
DOT CLOCK...................................36
CLOCK PHASE ..............................36
ASPECT .........................................36
AUTO SETUP.................................37
Advanced Operation
Option settings.................................37
OSD................................................37
PC PRIORITY.................................37
BACK COLOR ................................37
4:3 H-POS ......................................37
FRONT/REAR ................................38
DESK/CEILING ..............................38
LAMP POWER ...............................38
LAMP TIME ....................................38
FUNCTION .....................................38
Others
Indicators..........................................39
Cleaning and replacing
the air filter ....................................41
Replacing the lamp unit ..................42
Before asking for service ................45
Specifications...................................47
Appendix...........................................49
List of compatible signals ...............49
Connector pin wiring.......................50
Projection dimensions calculation
methods ......................................50
Dimensions.......................................51
Precautions with regard to safety
WARNING
If a problem occurs (such as no image or no sound) or if you notice
smoke or a strange smell coming from the projector, turn off the power
and disconnect the power cord from the wall outlet.
B Do not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
B Check that no more smoke is coming out, and then contact an Authorized
n
o
i
t
a
r
a
p
e
r
P
Service Center for repairs.
B Do not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
B If the installation location is not strong enough, it may fall down or tip over,
and severe injury or damage could result.
Installation work (such as ceiling suspension) should only be carried
out by a qualified technician.
B If installation is not carried out correctly, there is the danger that injury or
electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is
dropped or the cabinet is broken, turn off the power and disconnect the
power cord from the wall outlet.
B Continued use of the projector in this condition may result in fire or electric
shocks.
B Contact an Authorized Service Center for repairs.
Do not cover the air inlet or the air outlet.
B Doing so may cause the projector to overheat, which can cause fire or
damage to the projector.
Do not overload the wall outlet.
B If the power supply is overloaded (for example, by using too many
adapters), overheating may occur and fire may result.
Do not remove the cover or modify it in any way.
B High voltages which can cause fire or electric shocks are present inside
the projector.
B For any inspection, adjustment and repair work, please contact an
Authorized Service Center.
Clean the power cord plug regularly to prevent it from becoming
covered in dust.
B If dust builds up on the power cord plug, the resulting humidity can
damage the insulation, which could result in fire. Pull the power cord out
from the wall outlet and wipe it with a dry cloth.
B If not using the projector for an extended period of time, pull the power
cord plug out from the wall outlet.
5
Do not do anything that might damage the power cord or the power
cord plug.
B Do not damage the power cord, make any modifications to it, place it near
any hot objects, bend it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
B If the power cord is used while damaged, electric shocks, short-circuits or
fire may result.
B Ask an Authorized Service Center to carry out any repairs to the power
cord that might be necessary.
Do not handle the power cord plug with wet hands.
B Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
B If the plug is not inserted correctly, electric shocks or overheating could
result.
B Do not use plugs which are damaged or wall outlets which are coming
loose from the wall.
Do not place the projector on top of surfaces which are unstable.
B If the projector is placed on top of a surface which is sloped or unstable, it
may fall down or tip over, and injury or damage could result.
Do not place the projector into water or let it become wet.
B Failure to observe this may result in fire or electric shocks.
Do not place liquid containers on top of the projector.
B If water spills onto the projector or gets inside it, fire or electric shocks
could result.
B If any water gets inside the projector, contact an Authorized Service
Center.
Do not insert any foreign objects into the projector.
B Do not insert any metal objects or flammable objects into the projector or
drop them onto the projector, as doing so can result in fire or electric
shocks.
After removing the battery from the remote control unit, keep the
battery out of the reach of small children and infants.
B The battery can cause death by suffocation if swallowed.
B If the battery is swallowed, seek medical advice straight away.
Do not allow the + and - terminals of the battery to come into contact
with metallic objects such as necklaces or hairpins.
B Failure to observe this may cause the battery to leak, overheat, explode or
catch fire.
B Store the battery in a plastic bag and keep it away from metallic objects.
Please follow local codes and standards before disposing of batteries.
B Contact recycling center for proper disposal of lithium batteries.
n
o
i
t
a
r
a
p
e
r
P
During a thunderstorm, do not touch the projector or the cable.
B Electric shocks can result.
Do not use the projector in a bath or shower.
B Fire or electric shocks can result.
Do not look into the lens while the projector is being used.
B Strong light is emitted from the projector’s lens. If you look directly into this
light, it can hurt and damage your eyes.
Do not bring your hands or other objects close to the air outlet port.
B Heated air comes out of the air outlet port. Do not bring your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
When replacing the lamp, allow it to cool for at least one hour before
handling it.
B The lamp cover gets very hot, and contact with it can cause burns.
Before replacing the lamp, be sure to unplug the power cord from the
power outlet.
B Electric shocks or explosions can result if this is not done.
Caution
Do not set up the projector in humid or dusty places or in places where
the projector may come into contact with smoke or steam.
B Using the projector under such conditions may result in fire or electric
shocks.
When disconnecting the power cord, hold the plug, not the cord.
B If the power cord itself is pulled, the cord will become damaged, and fire,
short-circuits or serious electric shocks may result.
Always disconnect all cables before moving the projector.
B Moving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
B Failure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the battery or place it into
water or fire.
B Failure to observe this may cause the battery to overheat, leak, explode or
catch fire, and burns or other injury may result.
When inserting the battery, make sure the polarities (+ and -) are
correct.
B If the battery is inserted incorrectly, it may explode or leak, and fire, injury
or contamination of the battery compartment and surrounding area may
result.
6
7
Use only the specified battery.
B If an incorrect battery is used, it may explode or leak, and fire, injury or
contamination of the battery compartment and surrounding area may
result.
Do not put your weight on this projector.
B You could fall or the projector could break, and injury may result.
B Be especially careful not to let young children climb onto the projector.
Disconnect the power cord plug from the wall outlet as a safety
precaution before carrying out any cleaning.
B Electric shocks can result if this is not done.
Regular cleaning of internal parts and maintenance may be required
depending upon specific installation and location and/or usage.
B If the projector is subjected to smoke, dust or humidity, please contact an
Authorized Service Center yearly to clean the projector.
We are in effort to hold your environment clean. Please bring the non
repairable unit your Dealer or a Recycling Company.
NOTICE:
B This product has a High Intensity Discharge (HID) lamp that contains a
small amount of mercury. It also contains lead in some components.
Disposal of these materials may be regulated in your community due to
environmental considerations. For disposal or recycling information
please contact your local authorities, or the Electronics Industries
Alliance:
Accessories
Check that all of the accessories shown below have been included with your
projector.
Remote control unit
(N2QADC000003 x1)
Video/Audio cable [3.0
m (9´10˝),
K2KA2FA00001 x1]
Lithium battery for
remote control unit
(CR2025 x1)
n
o
i
t
a
r
a
p
e
r
P
INPUT
ASPECT
VOLUME
Power cord
(K2CG3FR00001 x1)
Carrying bag
(TPEP004-1 x1)
MUTE
MENU
F
ENTER
DIGITAL ZOOM
PROJECTOR
NORMAL
8
9
About the screen
If the screen you are using is dirty, damaged or discolored, attractive
projections cannot be obtained. Do not apply any volatile substances to the
screen, and do not let it become dirty or damaged.
Before carrying out cleaning and maintenance, be
sure to disconnect the power cord plug from the
wall outlet.
Wipe the cabinet with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in water with a small amount
of neutral detergent in it, squeeze the cloth very well, and then wipe the
cabinet. After cleaning, wipe the cabinet dry with a dry cloth.
If using a chemically-treated cloth, read the instructions supplied with
the cloth before use.
Do not wipe the lens with a cloth that is dusty or which produces lint.
If any dust or lint gets onto the lens, such dust or lint will be magnified and
projected onto the screen. Use a blower to clean any dust and lint from the
lens surface, or use a soft cloth to wipe off any dust or lint.
n
o
i
t
a
r
a
p
e
r
P
Precautions on handling
Cautions regarding transportation
Be sure to attach the lens cover before transporting the projector.
The projection lens is extremely susceptible to vibration and shocks. When
carrying the projector, use the accessory carrying bag.
When placing the projector inside the carrying bag, position it so
that the lens is facing upward.
Cautions regarding setting-up
Observe the following at all times when setting up the projector.
Avoid setting up in places which are subject to vibration or shocks.
If the projector is set up in locations with strong vibration, such as near a
motor, or if it is installed inside a vehicle or on board a ship, the projector
may be subjected to vibration or shocks which can damage the internal parts
and cause malfunctions or accidents. Accordingly, set up the projector in a
place which is free from such vibrations and shocks.
Do not set up the projector near high-voltage power lines or near
motors.
The projector may be subject to electromagnetic interference if it is set up
near high-voltage power lines or motors.
If installing the projector to the ceiling, ask a qualified technician to
carry out all installation work.
If the projector is to be suspended from the ceiling, you will need to purchase
the separate installation kit (Model No.: ET-PKE100). Furthermore, all
installation work should only be carried out by a qualified technician.
If using of this projector at high elevations (above 1400 m), consult
your dealer or Authorized Service Center.
Special measures will be necessary to use this projector at high elevations,
so consult your dealer or Authorized Service Center about preparations.
Failure to observe this may cause malfunctions.
Notes on use
In order to get the best picture quality
If outside light or light from indoor lamps is shining onto the screen, the
images projected will not have good contrast. Draw curtains or blinds over
any windows and turn off any fluorescent lights near the screen to prevent
reflection.
Do not touch the surfaces of the lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this
will be magnified and projected onto the screen. Moreover, when not using
the projector, retract the lens and then cover it with the accessory lens cover.
10
11
Location and function of each part
Projector
#$%&
.
'
-
,
+
*
- Security lock
This can be used to connect a
commercially-available theft-
prevention cable (manufactured
by Kensington). This security lock
is compatible with the Microsaver
Security System from
Kensington. Contact details for
this company are given below.
Kensington Technology Group
ACCO Brands Inc.
2855 Campus Drive
San Mateo, CA 94403 USA
Tel (650)572-2700
Fax (650)572-9675
http://www.kensington.com/
http://www.gravis.com/
. Projector control panel
(page 14)
'
(
)
# Speaker
$ Zoom ring
(page 23)
% Focus ring
(page 23)
& Projection lens
' Air inlet ports
Do not cover this port.
( Front adjustable legs(L/R)
(page 23)
) Lens cover
* Leg adjuster buttons(L/R)
(page 23)
This button is used to unlock the
front adjustable legs. Press to
adjust the angle of tilt of the
projector.
+ Air filter
(page 41)
, Remote control signal receptor
(page 17)
12
Projector
#
'
$
%
&
n
o
i
t
a
r
a
p
e
r
P
' Lamp unit holder
(page 43)
NOTE:
B During projection of an image, the
cooling fan will operate, emitting
a small noise as it operates.
Turning the lamp on or off will
cause this noise to increase a
little.
B By using the OPTION menu to
set “LAMP POWER” to LOW, the
operating sound of the fan can be
reduced. (Refer to page 38.)
# Air outlet port
Do not cover this port.
WARNING
Do not bring your hands or other
objects close to the air outlet
port.
B Heated air comes out of the air
outlet port. Do not bring your
hands or face, or objects which
cannot withstand heat close to
this port, otherwise burns or
damage could result.
$ Connector panel
(page 16)
% Power input socket (AC IN)
(page 22)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
& MAIN POWER switch
(pages 22 and 23)
13
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
