松下投影机-PTAE300U说明书.pdf
TABLE OF CONTENTS
PREPARATIION
IMPORTANT SAFETY NOTICE
PRECAUTIONS WITH REGARD TO SAFETY
ACCESSORIES
PRECAUTIONS ON HANDLING

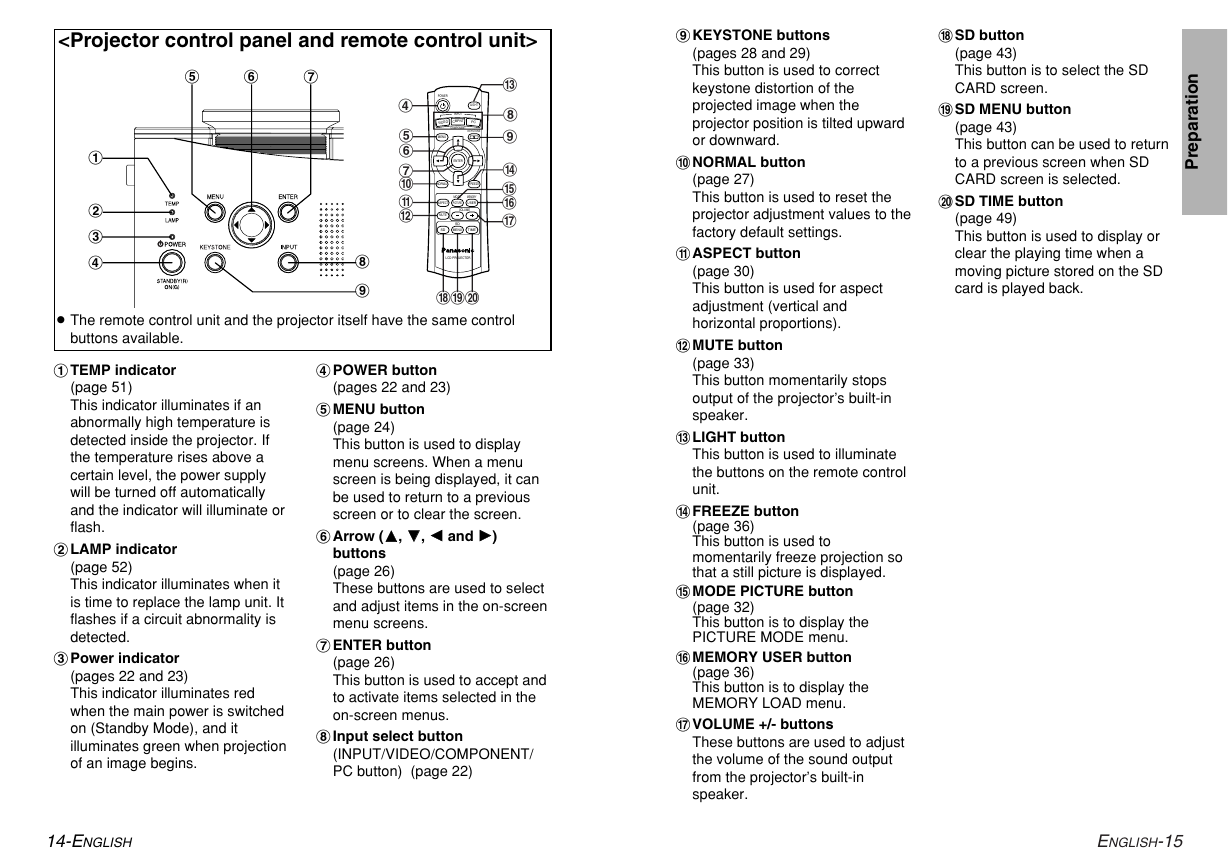

LOCATION AND FUNCTION OF EACH PART
USING THE REMOTE CONTROL UNIT
CONNECTIONS
SETTING-UP
BASIC OPERATION
STARTING TO USE
ON-SCREEN MENUS
USING THE FREEZE FUNCTION
CORRECTING KEYSTONE DISTORATION
SETTING THE ASPECT
SELECTING THE PICTURE MODE
USING THE SHUTTER FUNCTION
CHANGING THE DISPLAY LANGUAGE
MUTING THE SOUND
ADJUSTING THE PICTURE
ADJUSTING THE POSITION
ADVANCED OPERATION
OPTION SETTINGS
SD MEMORY CARD
INSERTING AND REMOVING THE SD MEMORY CARD
ABOUT THE SD MENU
PLAYING BACK STILL IMAGES
SLIDE PLAYBACK OF STILL IMAGES
PLAYING BACK MOVING IMAGES
ERROR DISPLAYS
OTHERS
INDICATORS
CLEANING AND REPLACING THE AIR FILTER
REPLACING THE LAMP UNIT
BEFORE CALLING FOR SERVICE
SPECIFICATIONS
APPENDIX
DCF STANDARD
DIMENSIONS
TRADEMARK ACKNOWLEDGEMENTS
R
LCD Projector
POWER
LIGHT
INPUT
V I D EO
CMPNT
PC
COMPONENT
KEYSTONE
MENU
ENTER
NORMAL
FREEZE
MODE
MEMORY
USER
VOLUME
ASPECT
MUTE
SD
SD
MENU
TIME

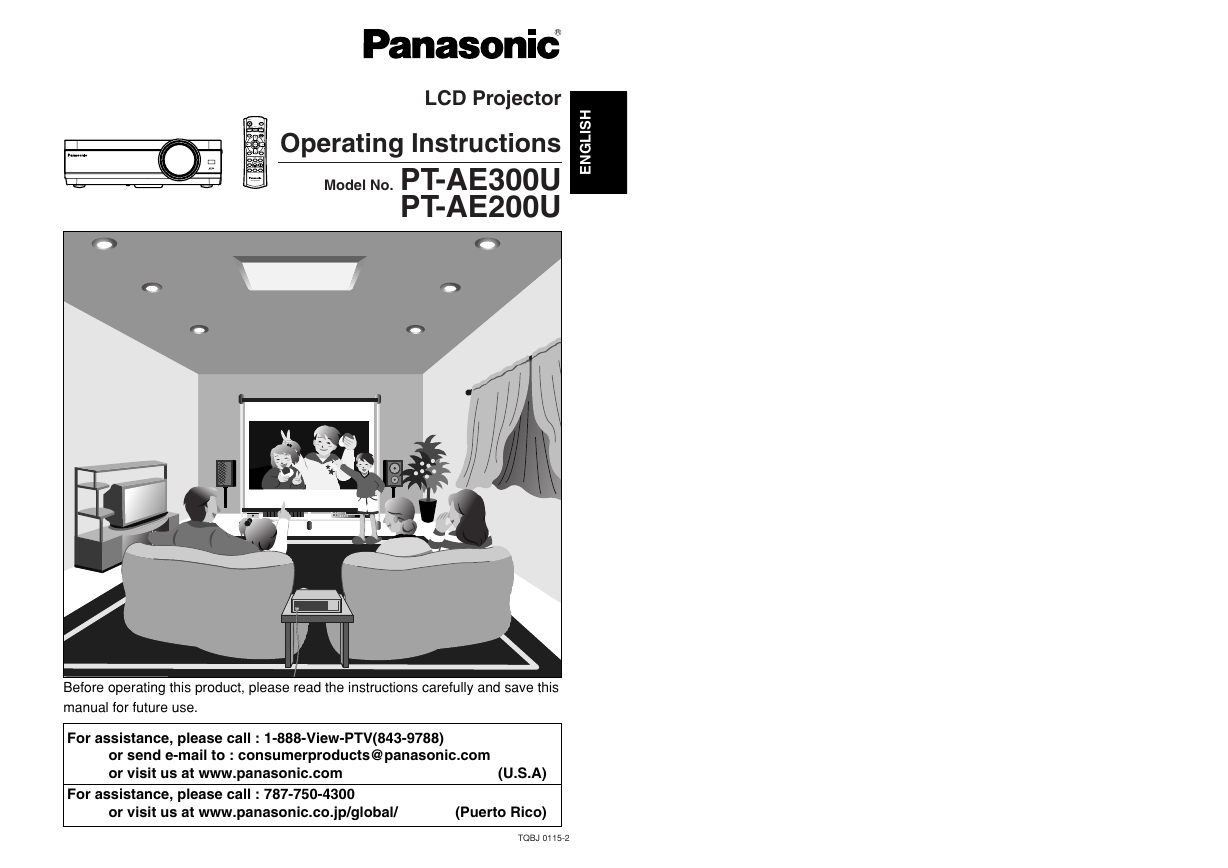

LCD PROJECTOR
Operating Instructions
Model No. PT-AE300U
PT-AE200U
I
H
S
L
G
N
E
Before operating this product, please read the instructions carefully and save this
manual for future use.
For assistance, please call : 1-888-View-PTV(843-9788)
or send e-mail to : consumerproducts@panasonic.com
or visit us at www.panasonic.com
(U.S.A)
For assistance, please call : 787-750-4300
or visit us at www.panasonic.co.jp/global/
(Puerto Rico)
TQBJ 0115-2

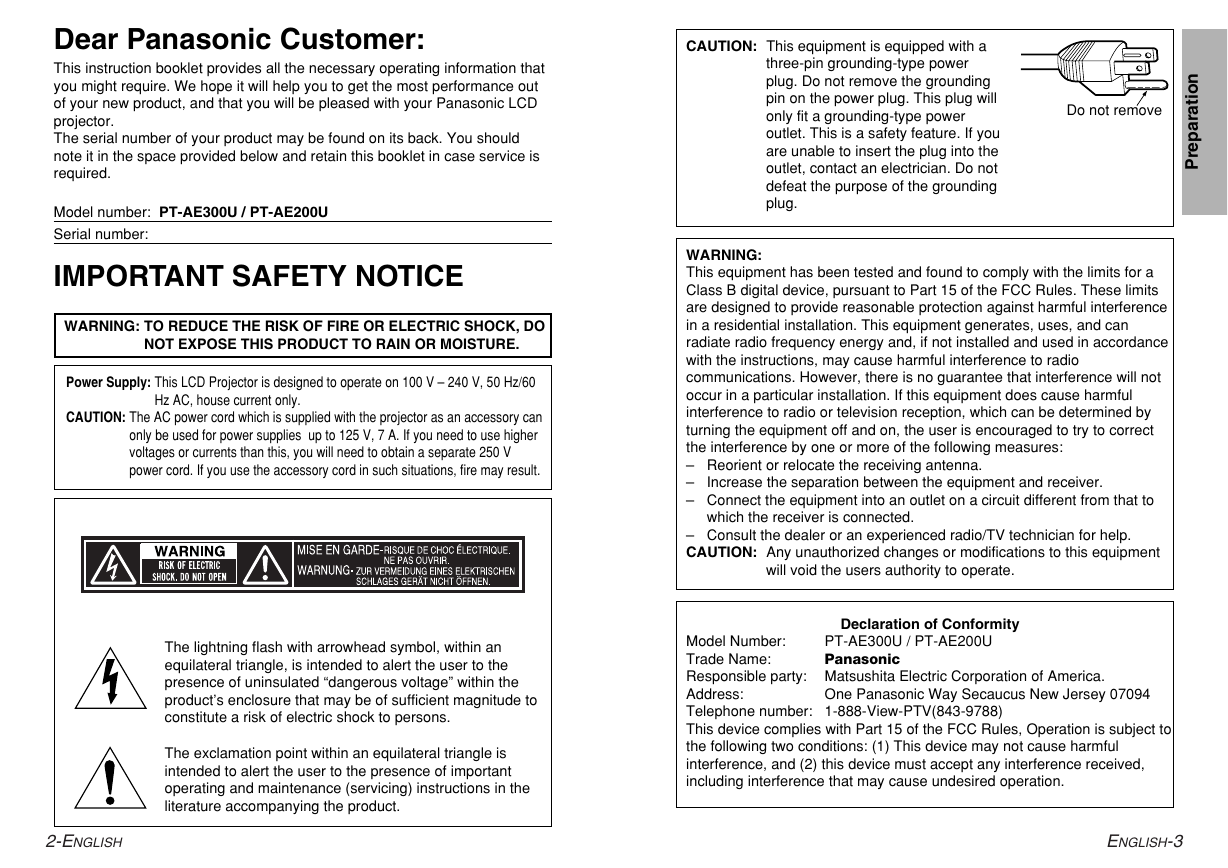

Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that
you might require. We hope it will help you to get the most performance out
of your new product, and that you will be pleased with your Panasonic LCD
projector.
The serial number of your product may be found on its back. You should
note it in the space provided below and retain this booklet in case service is
required.
Model number: PT-AE300U / PT-AE200U
Serial number:
IMPORTANT SAFETY NOTICE
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This LCD Projector is designed to operate on 100 V – 240 V, 50 Hz/60
Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can
only be used for power supplies up to 125 V, 7 A. If you need to use higher
voltages or currents than this, you will need to obtain a separate 250 V
power cord. If you use the accessory cord in such situations, fire may result.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION: This equipment is equipped with a
three-pin grounding-type power
plug. Do not remove the grounding
pin on the power plug. This plug will
only fit a grounding-type power
outlet. This is a safety feature. If you
are unable to insert the plug into the
outlet, contact an electrician. Do not
defeat the purpose of the grounding
plug.
Do not remove
n
o
i
t
a
r
a
p
e
r
P
WARNING:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
–
– Connect the equipment into an outlet on a circuit different from that to
Increase the separation between the equipment and receiver.
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any unauthorized changes or modifications to this equipment
will void the users authority to operate.
Declaration of Conformity
PT-AE300U / PT-AE200U
Panasonic
Model Number:
Trade Name:
Responsible party: Matsushita Electric Corporation of America.
Address:
Telephone number: 1-888-View-PTV(843-9788)
This device complies with Part 15 of the FCC Rules, Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
One Panasonic Way Secaucus New Jersey 07094
2-ENGLISH
ENGLISH-3

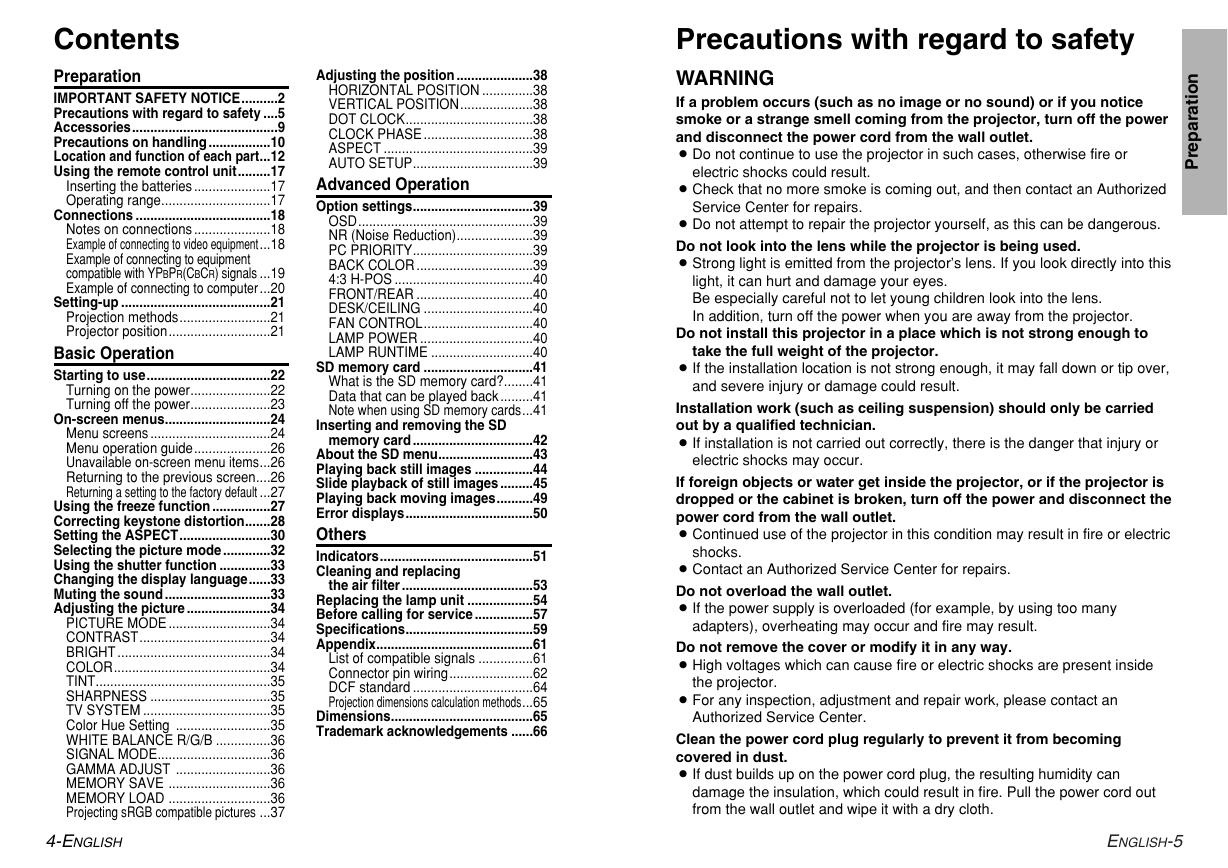

Contents
Preparation
IMPORTANT SAFETY NOTICE..........2
Precautions with regard to safety ....5
Accessories........................................9
Precautions on handling .................10
Location and function of each part...12
Using the remote control unit.........17
Inserting the batteries .....................17
Operating range..............................17
Connections .....................................18
Notes on connections .....................18
Example of connecting to video equipment...18
Example of connecting to equipment
compatible with YPBPR(CBCR) signals ...19
Example of connecting to computer...20
Setting-up .........................................21
Projection methods.........................21
Projector position............................21
Basic Operation
Starting to use..................................22
Turning on the power......................22
Turning off the power......................23
On-screen menus.............................24
Menu screens .................................24
Menu operation guide.....................26
Unavailable on-screen menu items...26
Returning to the previous screen....26
Returning a setting to the factory default ...27
Using the freeze function ................27
Correcting keystone distortion.......28
Setting the ASPECT.........................30
Selecting the picture mode .............32
Using the shutter function ..............33
Changing the display language......33
Muting the sound .............................33
Adjusting the picture .......................34
PICTURE MODE ............................34
CONTRAST....................................34
BRIGHT ..........................................34
COLOR...........................................34
TINT................................................35
SHARPNESS .................................35
TV SYSTEM ...................................35
Color Hue Setting ..........................35
WHITE BALANCE R/G/B ...............36
SIGNAL MODE...............................36
GAMMA ADJUST ..........................36
MEMORY SAVE ............................36
MEMORY LOAD ............................36
Projecting sRGB compatible pictures ...37
4-ENGLISH
Adjusting the position .....................38
HORIZONTAL POSITION ..............38
VERTICAL POSITION....................38
DOT CLOCK...................................38
CLOCK PHASE ..............................38
ASPECT .........................................39
AUTO SETUP.................................39
Advanced Operation
Option settings.................................39
OSD................................................39
NR (Noise Reduction).....................39
PC PRIORITY.................................39
BACK COLOR ................................39
4:3 H-POS ......................................40
FRONT/REAR ................................40
DESK/CEILING ..............................40
FAN CONTROL..............................40
LAMP POWER ...............................40
LAMP RUNTIME ............................40
SD memory card ..............................41
What is the SD memory card?........41
Data that can be played back .........41
Note when using SD memory cards...41
Inserting and removing the SD
memory card .................................42
About the SD menu..........................43
Playing back still images ................44
Slide playback of still images .........45
Playing back moving images..........49
Error displays...................................50
Others
Indicators..........................................51
Cleaning and replacing
the air filter ....................................53
Replacing the lamp unit ..................54
Before calling for service ................57
Specifications...................................59
Appendix...........................................61
List of compatible signals ...............61
Connector pin wiring.......................62
DCF standard .................................64
Projection dimensions calculation methods...65
Dimensions.......................................65
Trademark acknowledgements ......66
Precautions with regard to safety
WARNING
If a problem occurs (such as no image or no sound) or if you notice
smoke or a strange smell coming from the projector, turn off the power
and disconnect the power cord from the wall outlet.
B Do not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
B Check that no more smoke is coming out, and then contact an Authorized
n
o
i
t
a
r
a
p
e
r
P
Service Center for repairs.
B Do not attempt to repair the projector yourself, as this can be dangerous.
Do not look into the lens while the projector is being used.
B Strong light is emitted from the projector’s lens. If you look directly into this
light, it can hurt and damage your eyes.
Be especially careful not to let young children look into the lens.
In addition, turn off the power when you are away from the projector.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
B If the installation location is not strong enough, it may fall down or tip over,
and severe injury or damage could result.
Installation work (such as ceiling suspension) should only be carried
out by a qualified technician.
B If installation is not carried out correctly, there is the danger that injury or
electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is
dropped or the cabinet is broken, turn off the power and disconnect the
power cord from the wall outlet.
B Continued use of the projector in this condition may result in fire or electric
shocks.
B Contact an Authorized Service Center for repairs.
Do not overload the wall outlet.
B If the power supply is overloaded (for example, by using too many
adapters), overheating may occur and fire may result.
Do not remove the cover or modify it in any way.
B High voltages which can cause fire or electric shocks are present inside
the projector.
B For any inspection, adjustment and repair work, please contact an
Authorized Service Center.
Clean the power cord plug regularly to prevent it from becoming
covered in dust.
B If dust builds up on the power cord plug, the resulting humidity can
damage the insulation, which could result in fire. Pull the power cord out
from the wall outlet and wipe it with a dry cloth.
ENGLISH-5
B If not using the projector for an extended period of time, pull the power
cord plug out from the wall outlet.
Do not do anything that might damage the power cord or the power
cord plug.
B Do not damage the power cord, make any modifications to it, place it near
any hot objects, bend it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
B If the power cord is used while damaged, electric shocks, short-circuits or
fire may result.
B Ask an Authorized Service Center to carry out any repairs to the power
cord that might be necessary.
Do not handle the power cord plug with wet hands.
B Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
B If the plug is not inserted correctly, electric shocks or overheating could
result.
B Do not use plugs which are damaged or wall outlets which are coming
loose from the wall.
Do not place the projector on top of surfaces which are unstable.
B If the projector is placed on top of a surface which is sloped or unstable, it
may fall down or tip over, and injury or damage could result.
Do not place the projector into water or let it become wet.
B Failure to observe this may result in fire or electric shocks.
Do not place liquid containers on top of the projector.
B If water spills onto the projector or gets inside it, fire or electric shocks
could result.
B If any water gets inside the projector, contact an Authorized Service
Center.
Do not insert any foreign objects into the projector.
B Do not insert any metal objects or flammable objects into the projector or
drop them onto the projector, as doing so can result in fire or electric
shocks.
Do not allow the + and - terminals of the battery to come into contact
with metallic objects such as necklaces or hairpins.
B Failure to observe this may cause the battery to leak, overheat, explode or
catch fire.
B Store the battery in a plastic bag and keep it away from metallic objects.
During a thunderstorm, do not touch the projector or the cable.
B Electric shocks can result.
Do not use the projector in a bath or shower.
B Fire or electric shocks can result.
Do not bring your hands or other objects close to the air outlet port.
B Heated air comes out of the air outlet port. Do not bring your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
Replacement of the lamp unit should only be carried out by a qualified
technician.
B The lamp unit has high internal pressure. It can easily become damaged if
struck against hard objects or dropped, and injury or malfunctions may
result.
n
o
i
t
a
r
a
p
e
r
P
When replacing the lamp, allow it to cool for at least one hour before
handling it.
B The lamp cover gets very hot, and contact with it can cause burns.
Before replacing the lamp, be sure to unplug the power cord from the
power outlet.
B Electric shocks or explosions can result if this is not done.
Caution
Do not cover the air inlet or the air outlet.
B Doing so may cause the projector to overheat, which can cause fire or
damage to the projector.
Do not set up the projector in humid or dusty places or in places where
the projector may come into contact with smoke or steam.
B Using the projector under such conditions may result in fire or electric
shocks.
When disconnecting the power cord, hold the plug, not the cord.
B If the power cord itself is pulled, the cord will become damaged, and fire,
short-circuits or serious electric shocks may result.
Always disconnect all cables before moving the projector.
B Moving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
B Failure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the battery or place it into
water or fire.
B Failure to observe this may cause the battery to overheat, leak, explode or
catch fire, and burns or other injury may result.
When inserting the battery, make sure the polarities (+ and -) are
correct.
B If the battery is inserted incorrectly, it may explode or leak, and fire, injury
or contamination of the battery compartment and surrounding area may
result.
6-ENGLISH
ENGLISH-7
Accessories
Check that all of the accessories shown below have been included with your
projector.
Remote control unit
(N2QAFA000002 x1)
Video/Audio cable [3.0
m (9´10˝),
K2KA2FA00002 x1]
AAA batteries for
remote control unit (x2)
n
o
i
t
a
r
a
p
e
r
P
POWER
LIGHT
INPUT
V I D EO
CMPNT
PC
COMPONENT
KEYSTONE
MENU
ENTER
NORMAL
FREEZE
MODE
MEMORY
USER
VOLUME
ASPECT
MUTE
SD
SD
MENU
TIME
LCD PROJECTOR
Power cord
(K2CG3FR00001 x 1)
Carrying bag
(TPEP008 x1)
Use only the specified battery.
B If an incorrect battery is used, it may explode or leak, and fire, injury or
contamination of the battery compartment and surrounding area may
result.
Do not mix old and new batteries.
B If the batteries are inserted incorrectly, they may explode or leak, and fire,
injury or contamination of the battery compartment and surrounding area
may result.
Do not put your weight on this projector.
B You could fall or the projector could break, and injury may result.
B Be especially careful not to let young children climb onto the equipment.
Disconnect the power cord plug from the wall outlet as a safety
precaution before carrying out any cleaning.
B Electric shocks can result if this is not done.
Ask an Authorized Service Center to clean inside the projector at least
once a year.
B If dust is left to build up inside the projector without being cleaned out, it
can result in fire or problems with operation.
B It is a good idea to clean the inside of the projector before the season for
humid weather arrives. Ask your nearest Authorized Service Center to
clean the projector when required. Please discuss with the Authorized
Service Center regarding cleaning costs.
We are in effort to hold your environment clean. Please bring the non
repairable unit your Dealer or a Recycling Company.
NOTICE:
B This product has a High Intensity Discharge (HID) lamp that contains a
small amount of mercury. It also contains lead in some components.
Disposal of these materials may be regulated in your community due to
environmental considerations. For disposal or recycling information
please contact your local authorities, or the Electronics Industries
Alliance:
8-ENGLISH
ENGLISH-9
Precautions on handling
Cautions when moving the projector
Be sure to attach the lens cover before moving the projector.
The projection lens is extremely susceptible to vibration and shocks. When
moving the projector, use the accessory carrying bag. When placing the
projector inside the carrying bag, position it so that the lens is facing upward.
Cautions regarding setting-up
Observe the following at all times when setting up the projector.
Avoid setting up in places which are subject to vibration or shocks.
If the projector is set up in locations with strong vibration, such as near a
motor, or if it is installed inside a vehicle or on board a ship, the projector
may be subjected to vibration or shocks which can damage the internal parts
and cause malfunctions or accidents. Accordingly, set up the projector in a
place which is free from such vibrations and shocks.
Do not set up the projector near high-voltage power lines or near
motors.
The projector may be subject to electromagnetic interference if it is set up
near high-voltage power lines or motors.
If installing the projector to the ceiling, ask a qualified technician to
carry out all installation work.
If the projector is to be suspended from the ceiling, you will need to purchase
the separate installation kit (Model No.: ET-PKE300). Furthermore, all
installation work should only be carried out by a qualified technician.
If using this projector at high elevations (above 1400 m), set the FAN
CONTROL to HIGH. (Refer to page 40.)
Failure to observe this may result in malfunctions.
Notes on use
In order to get the best picture quality
If outside light or light from indoor lamps is shining onto the screen, the
images projected will not have good contrast. Draw curtains or blinds over
any windows and turn off any fluorescent lights near the screen to prevent
reflection.
Do not touch the surfaces of the lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this
will be magnified and projected onto the screen. Moreover, when not using
the projector, retract the lens and then cover it with the accessory lens cover.
n
o
i
t
a
r
a
p
e
r
P
About the SD memory card slot
Make sure that there are no foreign objects inside the slot when inserting an
optional SD memory card. Failure to observe it may damage the card and
the slot.
About the screen
If the screen you are using is dirty, damaged or discolored, attractive
projections cannot be obtained. Do not apply any volatile substances to the
screen, and do not let it become dirty or damaged.
About the lamp
The lamp may need to be replaced earlier due to variables such as a
particular lamp’s characteristics, usage conditions and the installation
environment, especially when it is subjected to a continuous use for more
than 10 hours.
About the liquid crystal panel
The liquid crystal panel of the projector is built with very high precision
technology giving you fine picture details. Occasionally, a few non-active
pixels may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your LCD.
Before carrying out cleaning and maintenance, be
sure to disconnect the power cord plug from the
wall outlet.
Wipe the cabinet with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in water with a small amount
of neutral detergent in it, squeeze the cloth very well, and then wipe the
cabinet. After cleaning, wipe the cabinet dry with a dry cloth.
If using a chemically-treated cloth, read the instructions supplied with
the cloth before use.
Do not wipe the lens with a cloth that is dusty or which produces lint.
If any dust or lint gets onto the lens, such dust or lint will be magnified and
projected onto the screen. Use a blower to clean any dust and lint from the
lens surface, or use a soft cloth to wipe off any dust or lint.
10-ENGLISH
ENGLISH-11
Location and function of each part
Projector
#$%&
0
./
-
'
,
+
*
- MAIN POWER switch
(pages 22 and 23)
. SD memory card slot
(page 42)
Insert the SD memory card into
here after opening the cover.
/ Access lamp
(page 42)
Flashes while the projector is
being accessed for reading or
writing the data in the SD
memory card.
0 Projector control panel
(page 14)
'
(
)
# Speaker
$ Zoom ring
(page 23)
% Focus ring
(page 23)
& Projection lens
' Air inlet ports
Do not cover this port.
( Front adjustable legs(L/R)
(page 22)
) Lens cover
* Leg adjuster buttons(L/R)
(page 22)
This button is used to unlock the
front adjustable legs. Press to
adjust the angle of tilt of the
projector.
+ Air filter
(page 53)
, Remote control signal receptor
(page 17)
12-ENGLISH
Projector
$
#
%
'
&
n
o
i
t
a
r
a
p
e
r
P
# Air outlet port
Do not cover this port.
WARNING
Do not bring your hands or other
objects close to the air outlet
port.
B Heated air comes out of the air
outlet port. Do not bring your
hands or face, or objects which
cannot withstand heat close to
this port, otherwise burns or
damage could result.
$ Connector panel
(page 16)
% Power input socket (AC IN)
(page 22)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
& Lamp unit holder
(page 55)
NOTE:
B During projection of an image, the
cooling fan will operate, emitting
a small noise as it operates.
Turning the lamp on or off will
cause this noise to increase a
little.
B By using the OPTION menu to
set “LAMP POWER” to LOW, the
operating sound of the fan can be
reduced. (Refer to page 40.)
' Security lock
This can be used to connect a
commercially-available theft-
prevention cable (manufactured
by Kensington). This security lock
is compatible with the Microsaver
Security System from
Kensington. Contact details for
this company are given below.
Kensington Technology Group
ACCO Brands Inc.
2855 Campus Drive
San Mateo, CA 94403 USA
Tel (650)572-2700
Fax (650)572-9675
http://www.kensington.com/
http://www.gravis.com/
ENGLISH-13
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
