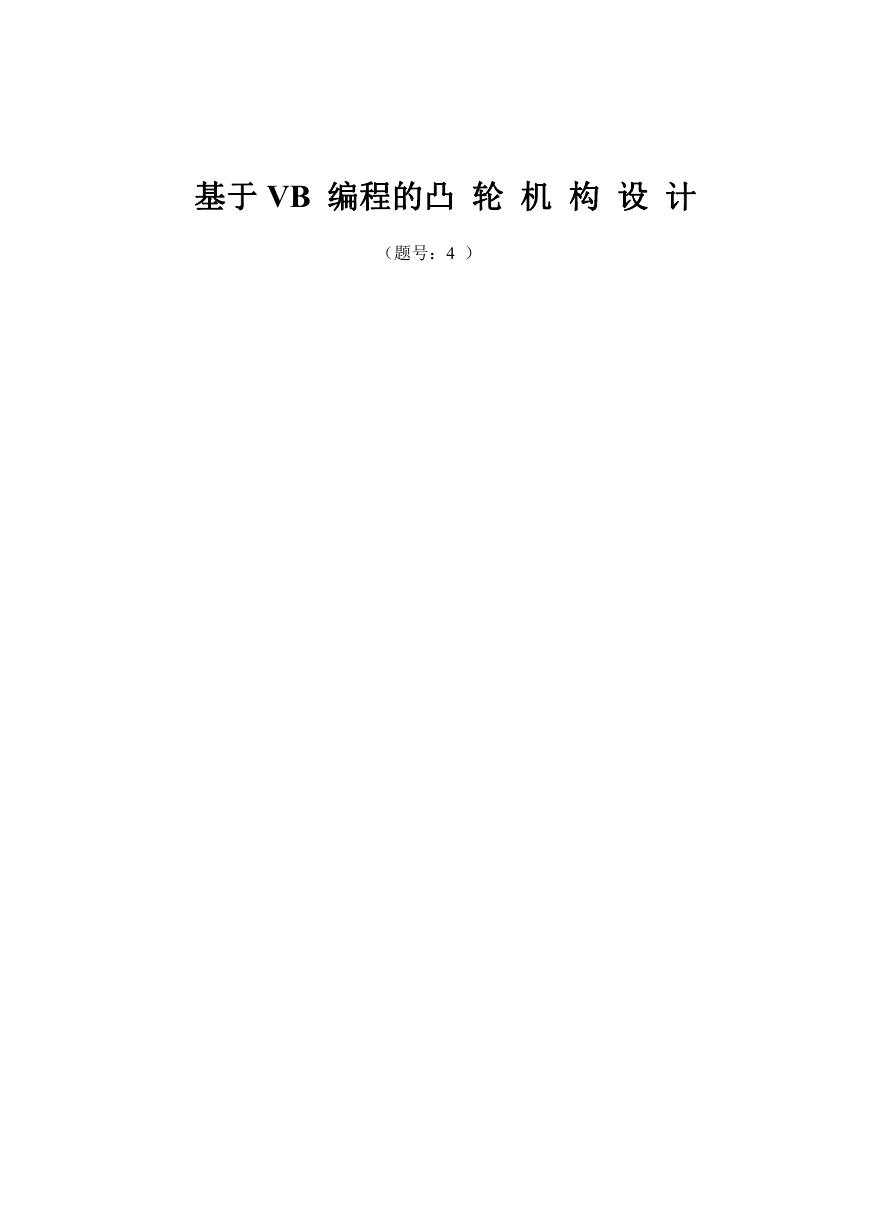

    基于 VB 编程的凸 轮 机 构 设 计 （题号：4 ）
    1. 题目要求：设计一偏置直动滚子推杆盘形凸轮机构，使其推 程为五项多项式运动，回程为余弦加速度运动。凸轮沿逆时 针方向做匀速转动。 主要参数有： 题 号： 近休凸轮转角 推程凸轮转角 远休凸轮转角 回程凸轮转角 4-A 题号 4-A r0 15 0-60 e 5 60-180 rr 10 h 28 180-270 [α1] 30 270-360 p 0.3rr [α2] 70 题 号： 近休凸轮转角 推程凸轮转角 远休凸轮转角 回程凸轮转角 4-B 题号 4-B r0 20 0-45 e 10 45-210 rr 14 h 30 210-260 [α1] 30 260-360 p 0.3rr [α2] 75 题 号： 近休凸轮转角 推程凸轮转角 远休凸轮转角 回程凸轮转角 4-C 题号 4-C r0 22 0-30 e 14 30-210 rr 18 h 35 210-280 [α1] 35 280-360 p 0.35rr [α2] 65 2. 所需方程： 推程（五次多项式）： s  v  a  3 1 0 h  3  0 3 0 h w 3  0 h w 3  0 6 0 4   2  1 5 h  4  0 6 0   h w 4  0 1 8 0 h w 4  0 2   5 h   5 0 6 3 3 0  2 2   4  h w 5  0 1 2 0 3 2  h w 5  0 回程（余弦加速度）：

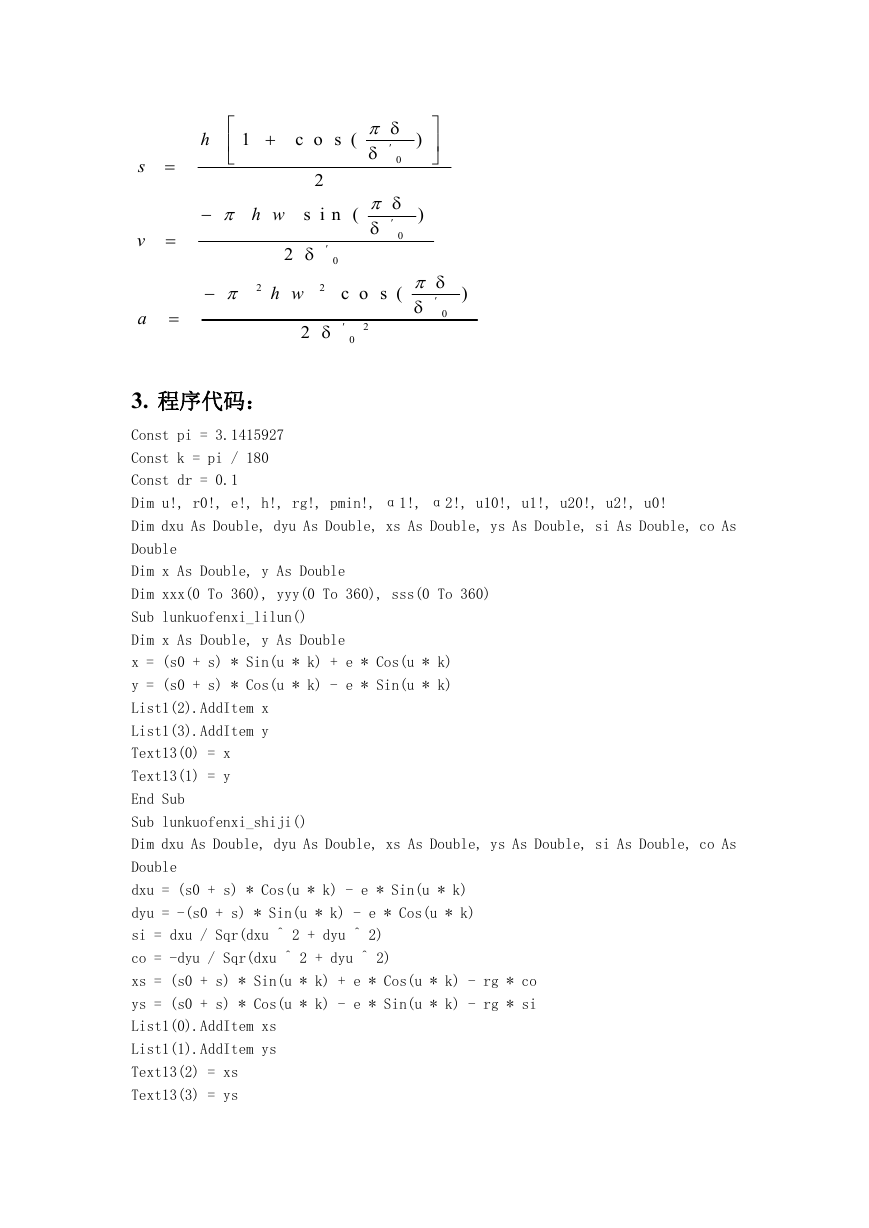

    h    1  c o s (   h w 2 s i n ( 2   0    ) )     0     0   2 h w 2 c o s ( 2  2  0     0 ) s v   a  3. 程序代码： Const pi = 3.1415927 Const k = pi / 180 Const dr = 0.1 Dim u!, r0!, e!, h!, rg!, pmin!, α1!, α2!, u10!, u1!, u20!, u2!, u0! Dim dxu As Double, dyu As Double, xs As Double, ys As Double, si As Double, co As Double Dim x As Double, y As Double Dim xxx(0 To 360), yyy(0 To 360), sss(0 To 360) Sub lunkuofenxi_lilun() Dim x As Double, y As Double x = (s0 + s) * Sin(u * k) + e * Cos(u * k) y = (s0 + s) * Cos(u * k) - e * Sin(u * k) List1(2).AddItem x List1(3).AddItem y Text13(0) = x Text13(1) = y End Sub Sub lunkuofenxi_shiji() Dim dxu As Double, dyu As Double, xs As Double, ys As Double, si As Double, co As Double dxu = (s0 + s) * Cos(u * k) - e * Sin(u * k) dyu = -(s0 + s) * Sin(u * k) - e * Cos(u * k) si = dxu / Sqr(dxu ^ 2 + dyu ^ 2) co = -dyu / Sqr(dxu ^ 2 + dyu ^ 2) xs = (s0 + s) * Sin(u * k) + e * Cos(u * k) - rg * co ys = (s0 + s) * Cos(u * k) - e * Sin(u * k) - rg * si List1(0).AddItem xs List1(1).AddItem ys Text13(2) = xs Text13(3) = ys

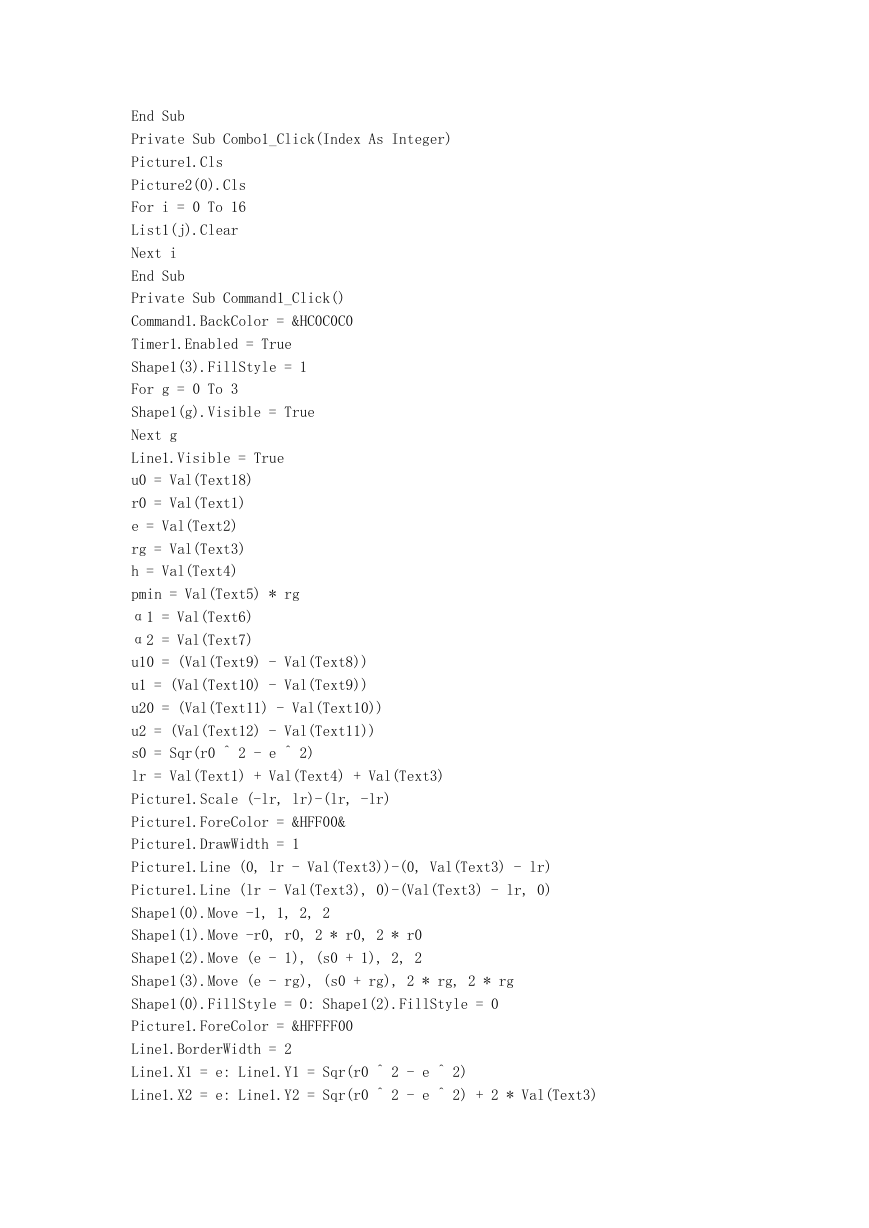

    End Sub Private Sub Combo1_Click(Index As Integer) Picture1.Cls Picture2(0).Cls For i = 0 To 16 List1(j).Clear Next i End Sub Private Sub Command1_Click() Command1.BackColor = &HC0C0C0 Timer1.Enabled = True Shape1(3).FillStyle = 1 For g = 0 To 3 Shape1(g).Visible = True Next g Line1.Visible = True u0 = Val(Text18) r0 = Val(Text1) e = Val(Text2) rg = Val(Text3) h = Val(Text4) pmin = Val(Text5) * rg α1 = Val(Text6) α2 = Val(Text7) u10 = (Val(Text9) - Val(Text8)) u1 = (Val(Text10) - Val(Text9)) u20 = (Val(Text11) - Val(Text10)) u2 = (Val(Text12) - Val(Text11)) s0 = Sqr(r0 ^ 2 - e ^ 2) lr = Val(Text1) + Val(Text4) + Val(Text3) Picture1.Scale (-lr, lr)-(lr, -lr) Picture1.ForeColor = &HFF00& Picture1.DrawWidth = 1 Picture1.Line (0, lr - Val(Text3))-(0, Val(Text3) - lr) Picture1.Line (lr - Val(Text3), 0)-(Val(Text3) - lr, 0) Shape1(0).Move -1, 1, 2, 2 Shape1(1).Move -r0, r0, 2 * r0, 2 * r0 Shape1(2).Move (e - 1), (s0 + 1), 2, 2 Shape1(3).Move (e - rg), (s0 + rg), 2 * rg, 2 * rg Shape1(0).FillStyle = 0: Shape1(2).FillStyle = 0 Picture1.ForeColor = &HFFFF00 Line1.BorderWidth = 2 Line1.X1 = e: Line1.Y1 = Sqr(r0 ^ 2 - e ^ 2) Line1.X2 = e: Line1.Y2 = Sqr(r0 ^ 2 - e ^ 2) + 2 * Val(Text3)

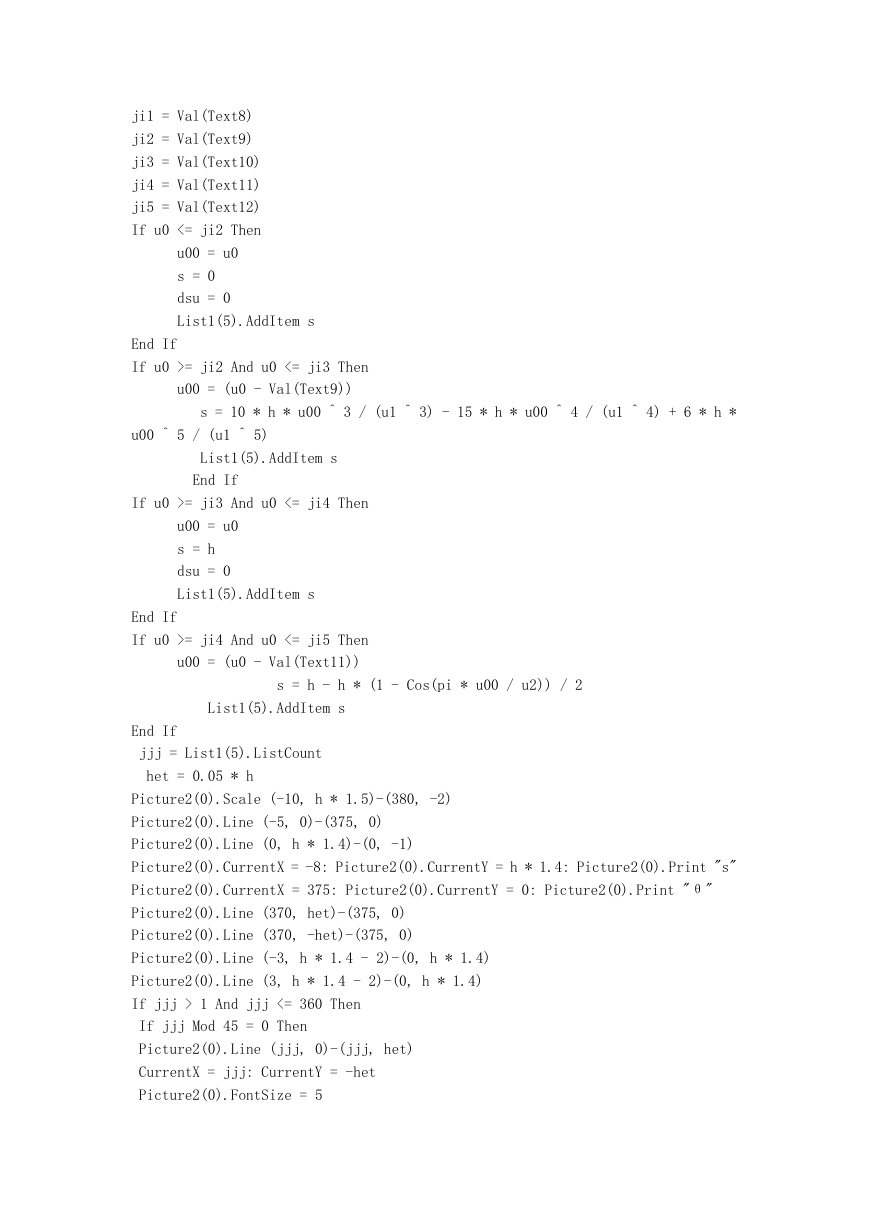

    ji1 = Val(Text8) ji2 = Val(Text9) ji3 = Val(Text10) ji4 = Val(Text11) ji5 = Val(Text12) If u0 <= ji2 Then u00 = u0 s = 0 dsu = 0 List1(5).AddItem s End If If u0 >= ji2 And u0 <= ji3 Then u00 = (u0 - Val(Text9)) s = 10 * h * u00 ^ 3 / (u1 ^ 3) - 15 * h * u00 ^ 4 / (u1 ^ 4) + 6 * h * u00 ^ 5 / (u1 ^ 5) List1(5).AddItem s End If If u0 >= ji3 And u0 <= ji4 Then u00 = u0 s = h dsu = 0 List1(5).AddItem s End If If u0 >= ji4 And u0 <= ji5 Then u00 = (u0 - Val(Text11)) s = h - h * (1 - Cos(pi * u00 / u2)) / 2 List1(5).AddItem s End If jjj = List1(5).ListCount het = 0.05 * h Picture2(0).Scale (-10, h * 1.5)-(380, -2) Picture2(0).Line (-5, 0)-(375, 0) Picture2(0).Line (0, h * 1.4)-(0, -1) Picture2(0).CurrentX = -8: Picture2(0).CurrentY = h * 1.4: Picture2(0).Print "s" Picture2(0).CurrentX = 375: Picture2(0).CurrentY = 0: Picture2(0).Print "θ" Picture2(0).Line (370, het)-(375, 0) Picture2(0).Line (370, -het)-(375, 0) Picture2(0).Line (-3, h * 1.4 - 2)-(0, h * 1.4) Picture2(0).Line (3, h * 1.4 - 2)-(0, h * 1.4) If jjj > 1 And jjj <= 360 Then If jjj Mod 45 = 0 Then Picture2(0).Line (jjj, 0)-(jjj, het) CurrentX = jjj: CurrentY = -het Picture2(0).FontSize = 5

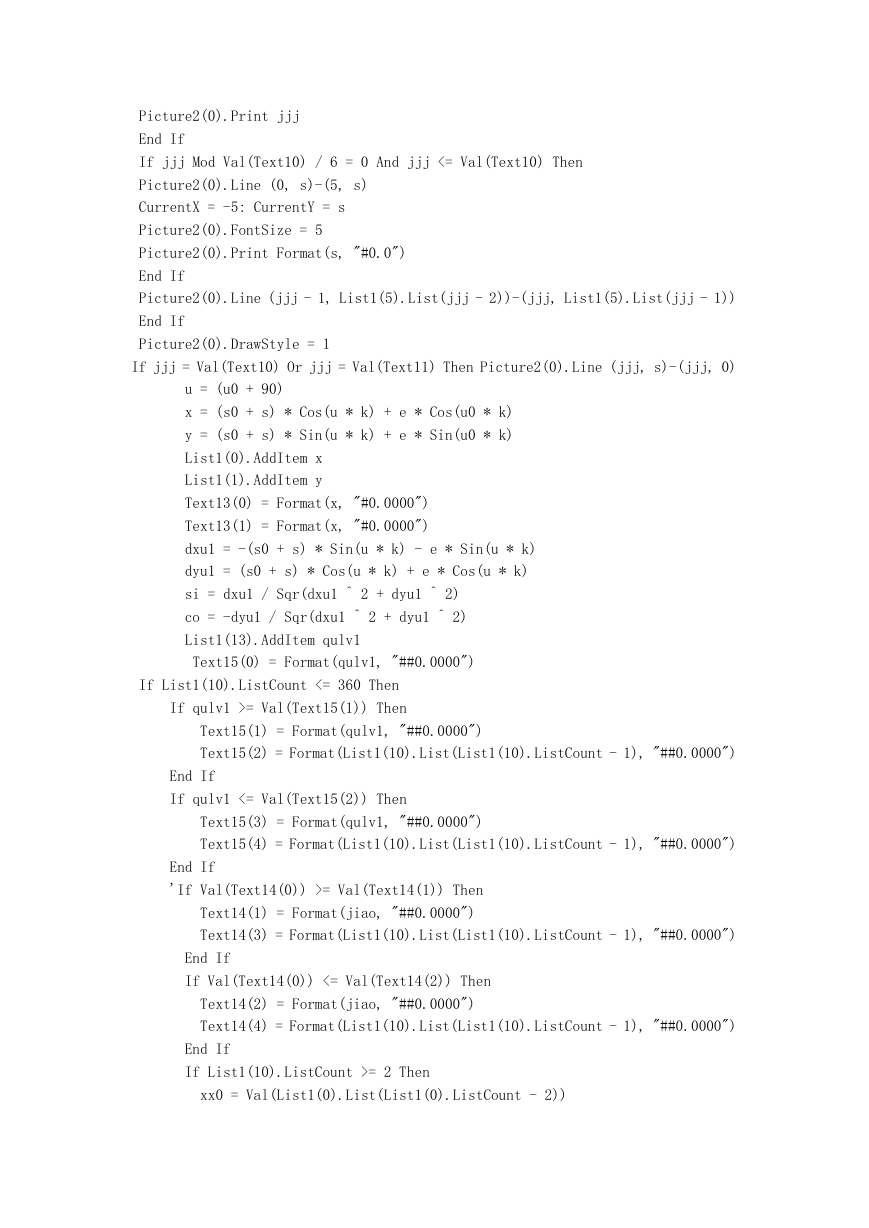

    Picture2(0).Print jjj End If If jjj Mod Val(Text10) / 6 = 0 And jjj <= Val(Text10) Then Picture2(0).Line (0, s)-(5, s) CurrentX = -5: CurrentY = s Picture2(0).FontSize = 5 Picture2(0).Print Format(s, "#0.0") End If Picture2(0).Line (jjj - 1, List1(5).List(jjj - 2))-(jjj, List1(5).List(jjj - 1)) End If Picture2(0).DrawStyle = 1 If jjj = Val(Text10) Or jjj = Val(Text11) Then Picture2(0).Line (jjj, s)-(jjj, 0) u = (u0 + 90) x = (s0 + s) * Cos(u * k) + e * Cos(u0 * k) y = (s0 + s) * Sin(u * k) + e * Sin(u0 * k) List1(0).AddItem x List1(1).AddItem y Text13(0) = Format(x, "#0.0000") Text13(1) = Format(x, "#0.0000") dxu1 = -(s0 + s) * Sin(u * k) - e * Sin(u * k) dyu1 = (s0 + s) * Cos(u * k) + e * Cos(u * k) si = dxu1 / Sqr(dxu1 ^ 2 + dyu1 ^ 2) co = -dyu1 / Sqr(dxu1 ^ 2 + dyu1 ^ 2) List1(13).AddItem qulv1 Text15(0) = Format(qulv1, "##0.0000") If List1(10).ListCount <= 360 Then If qulv1 >= Val(Text15(1)) Then Text15(1) = Format(qulv1, "##0.0000") Text15(2) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If If qulv1 <= Val(Text15(2)) Then Text15(3) = Format(qulv1, "##0.0000") Text15(4) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If 'If Val(Text14(0)) >= Val(Text14(1)) Then Text14(1) = Format(jiao, "##0.0000") Text14(3) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If If Val(Text14(0)) <= Val(Text14(2)) Then Text14(2) = Format(jiao, "##0.0000") Text14(4) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If If List1(10).ListCount >= 2 Then xx0 = Val(List1(0).List(List1(0).ListCount - 2))

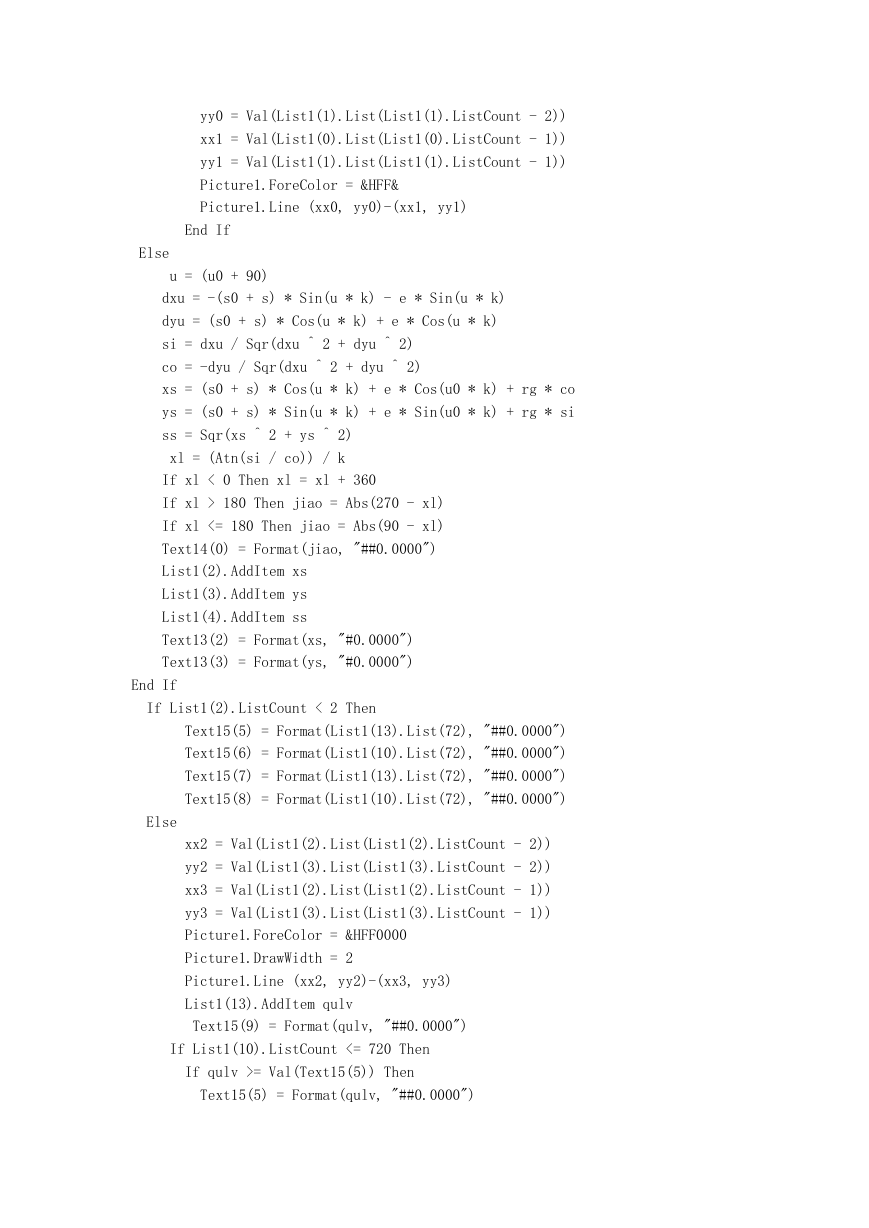

    yy0 = Val(List1(1).List(List1(1).ListCount - 2)) xx1 = Val(List1(0).List(List1(0).ListCount - 1)) yy1 = Val(List1(1).List(List1(1).ListCount - 1)) Picture1.ForeColor = &HFF& Picture1.Line (xx0, yy0)-(xx1, yy1) End If Else u = (u0 + 90) dxu = -(s0 + s) * Sin(u * k) - e * Sin(u * k) dyu = (s0 + s) * Cos(u * k) + e * Cos(u * k) si = dxu / Sqr(dxu ^ 2 + dyu ^ 2) co = -dyu / Sqr(dxu ^ 2 + dyu ^ 2) xs = (s0 + s) * Cos(u * k) + e * Cos(u0 * k) + rg * co ys = (s0 + s) * Sin(u * k) + e * Sin(u0 * k) + rg * si ss = Sqr(xs ^ 2 + ys ^ 2) xl = (Atn(si / co)) / k If xl < 0 Then xl = xl + 360 If xl > 180 Then jiao = Abs(270 - xl) If xl <= 180 Then jiao = Abs(90 - xl) Text14(0) = Format(jiao, "##0.0000") List1(2).AddItem xs List1(3).AddItem ys List1(4).AddItem ss Text13(2) = Format(xs, "#0.0000") Text13(3) = Format(ys, "#0.0000") End If If List1(2).ListCount < 2 Then Text15(5) = Format(List1(13).List(72), "##0.0000") Text15(6) = Format(List1(10).List(72), "##0.0000") Text15(7) = Format(List1(13).List(72), "##0.0000") Text15(8) = Format(List1(10).List(72), "##0.0000") Else xx2 = Val(List1(2).List(List1(2).ListCount - 2)) yy2 = Val(List1(3).List(List1(3).ListCount - 2)) xx3 = Val(List1(2).List(List1(2).ListCount - 1)) yy3 = Val(List1(3).List(List1(3).ListCount - 1)) Picture1.ForeColor = &HFF0000 Picture1.DrawWidth = 2 Picture1.Line (xx2, yy2)-(xx3, yy3) List1(13).AddItem qulv Text15(9) = Format(qulv, "##0.0000") If List1(10).ListCount <= 720 Then If qulv >= Val(Text15(5)) Then Text15(5) = Format(qulv, "##0.0000")

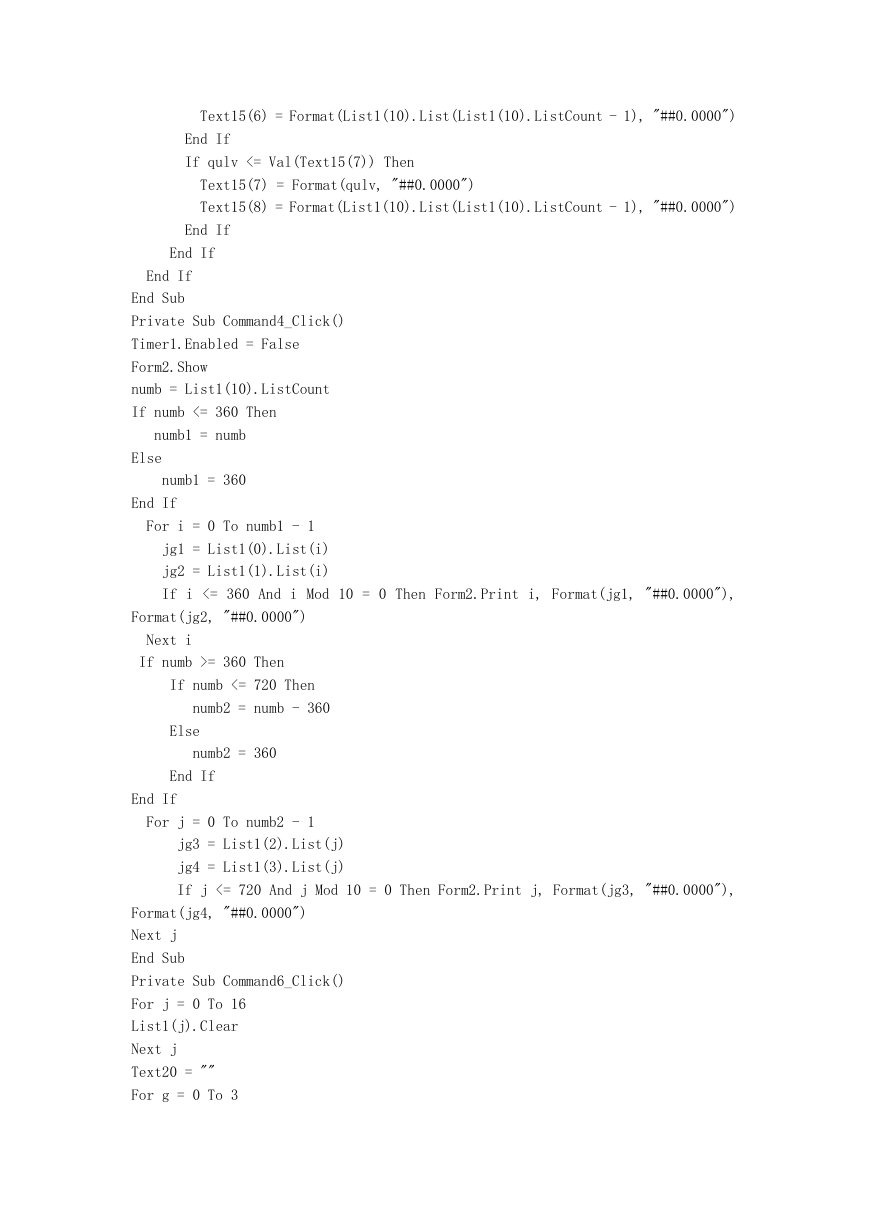

    Text15(6) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If If qulv <= Val(Text15(7)) Then Text15(7) = Format(qulv, "##0.0000") Text15(8) = Format(List1(10).List(List1(10).ListCount - 1), "##0.0000") End If End If End If End Sub Private Sub Command4_Click() Timer1.Enabled = False Form2.Show numb = List1(10).ListCount If numb <= 360 Then numb1 = numb Else numb1 = 360 End If For i = 0 To numb1 - 1 jg1 = List1(0).List(i) jg2 = List1(1).List(i) If i <= 360 And i Mod 10 = 0 Then Form2.Print i, Format(jg1, "##0.0000"), Format(jg2, "##0.0000") Next i If numb >= 360 Then If numb <= 720 Then numb2 = numb - 360 Else numb2 = 360 End If End If For j = 0 To numb2 - 1 jg3 = List1(2).List(j) jg4 = List1(3).List(j) If j <= 720 And j Mod 10 = 0 Then Form2.Print j, Format(jg3, "##0.0000"), Format(jg4, "##0.0000") Next j End Sub Private Sub Command6_Click() For j = 0 To 16 List1(j).Clear Next j Text20 = "" For g = 0 To 3
