User’s Manual Camileo H20

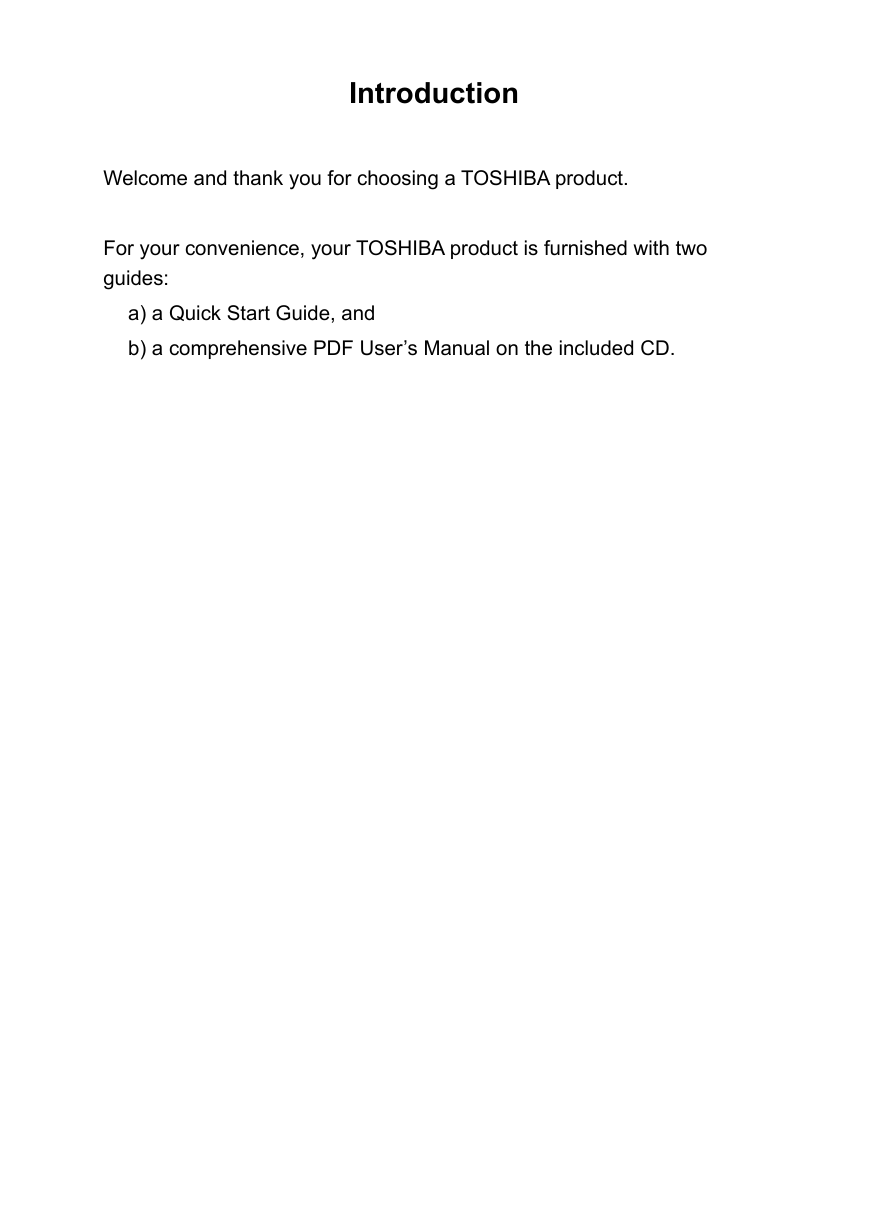

Introduction Welcome and thank you for choosing a TOSHIBA product. For your convenience, your TOSHIBA product is furnished with two guides: a) a Quick Start Guide, and b) a comprehensive PDF User’s Manual on the included CD.

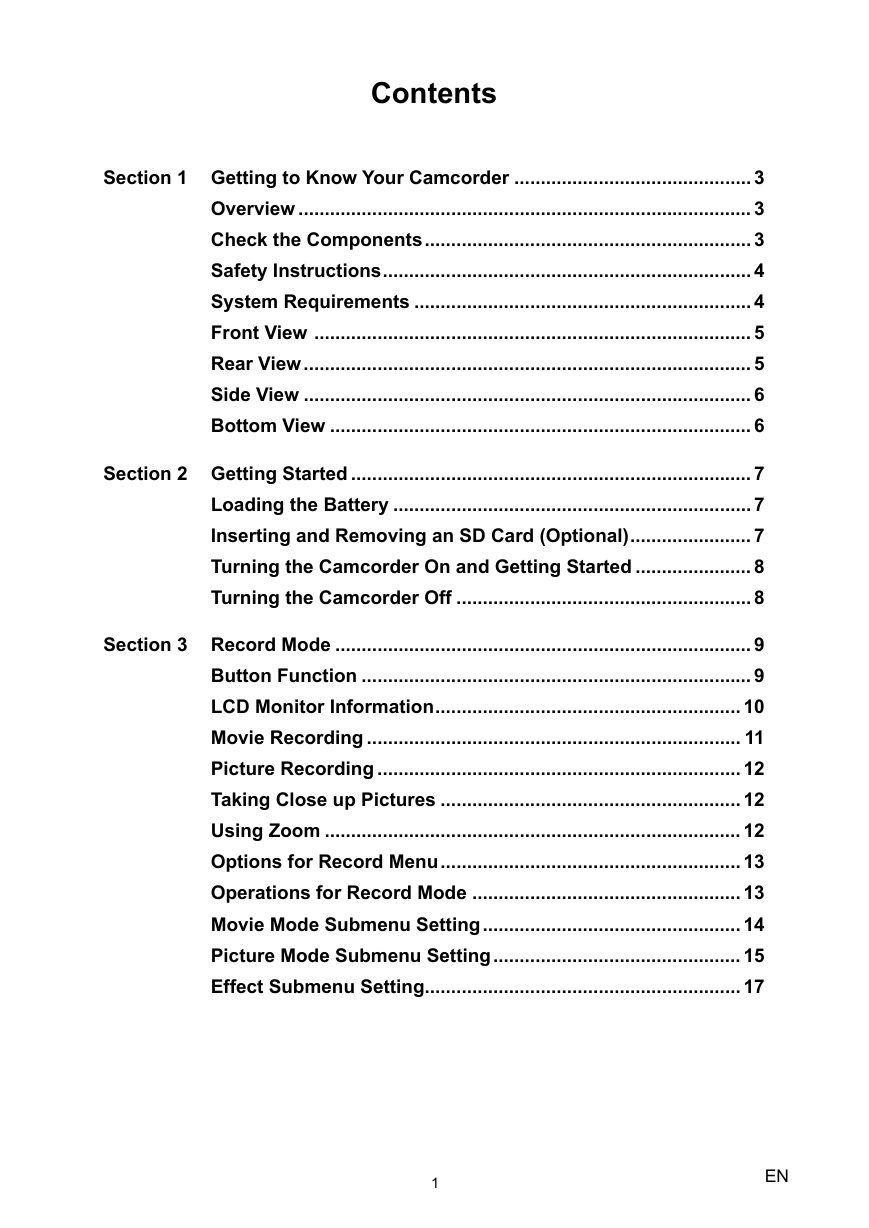

Contents Section 1 Getting to Know Your Camcorder ............................................. 3 Overview ...................................................................................... 3 Check the Components .............................................................. 3 Safety Instructions ...................................................................... 4 System Requirements ................................................................ 4 Front View ................................................................................... 5 Rear View ..................................................................................... 5 Side View ..................................................................................... 6 Bottom View ................................................................................ 6 Section 2 Getting Started ............................................................................ 7 Loading the Battery .................................................................... 7 Inserting and Removing an SD Card (Optional) ....................... 7 Turning the Camcorder On and Getting Started ...................... 8 Turning the Camcorder Off ........................................................ 8 Section 3 Record Mode ............................................................................... 9 Button Function .......................................................................... 9 LCD Monitor Information .......................................................... 10 Movie Recording ....................................................................... 11 Picture Recording ..................................................................... 12 Taking Close up Pictures ......................................................... 12 Using Zoom ............................................................................... 12 Options for Record Menu ......................................................... 13 Operations for Record Mode ................................................... 13 Movie Mode Submenu Setting ................................................. 14 Picture Mode Submenu Setting ............................................... 15 Effect Submenu Setting ............................................................ 17 1 EN

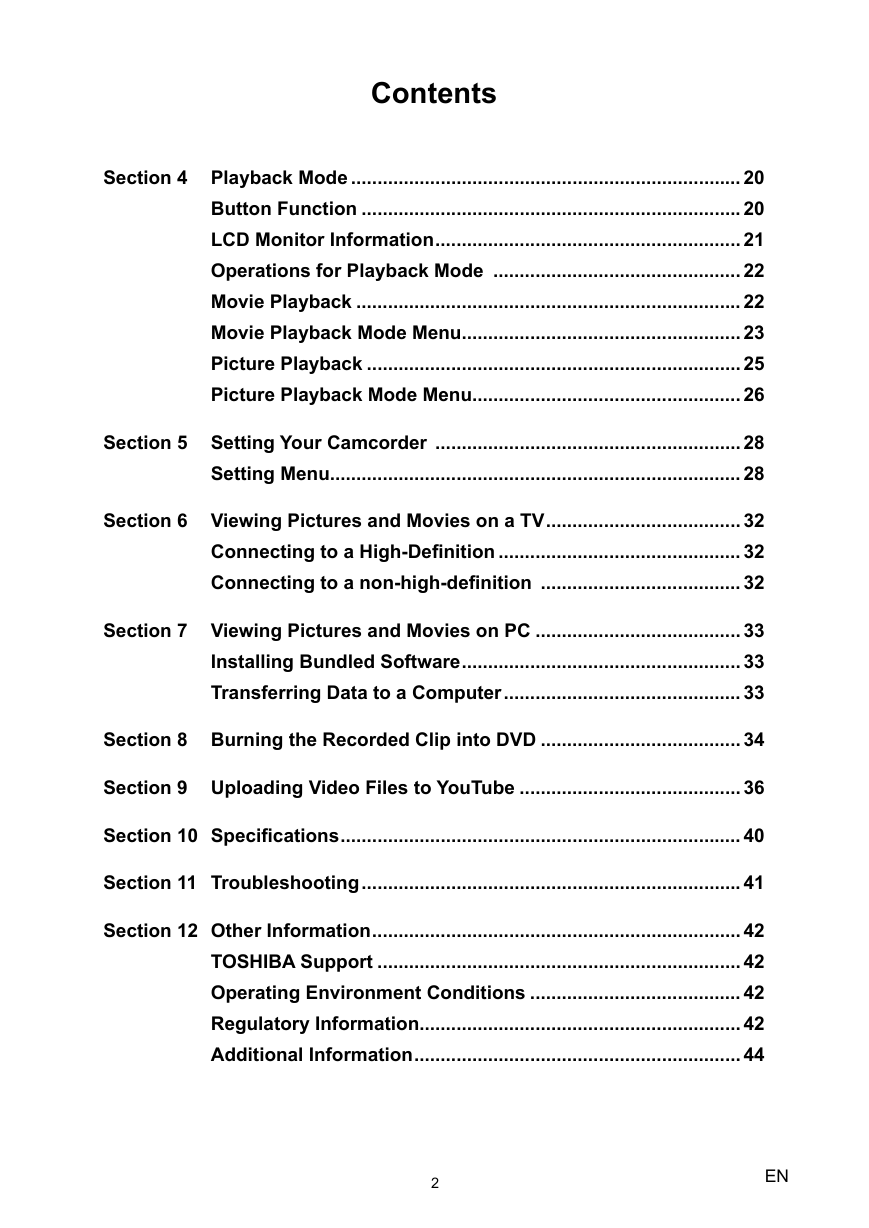

Contents Section 4 Playback Mode .......................................................................... 20 Button Function ........................................................................ 20 LCD Monitor Information .......................................................... 21 Operations for Playback Mode ............................................... 22 Movie Playback ......................................................................... 22 Movie Playback Mode Menu..................................................... 23 Picture Playback ....................................................................... 25 Picture Playback Mode Menu................................................... 26 Section 5 Setting Your Camcorder .......................................................... 28 Setting Menu .............................................................................. 28 Section 6 Viewing Pictures and Movies on a TV ..................................... 32 Connecting to a High-Definition .............................................. 32 Connecting to a non-high-definition ...................................... 32 Section 7 Viewing Pictures and Movies on PC ....................................... 33 Installing Bundled Software ..................................................... 33 Transferring Data to a Computer ............................................. 33 Section 8 Burning the Recorded Clip into DVD ...................................... 34 Section 9 Uploading Video Files to YouTube .......................................... 36 Section 10 Specifications ............................................................................ 40 Section 11 Troubleshooting ........................................................................ 41 Section 12 Other Information ...................................................................... 42 TOSHIBA Support ..................................................................... 42 Operating Environment Conditions ........................................ 42 Regulatory Information ............................................................. 42 Additional Information .............................................................. 44 2 EN

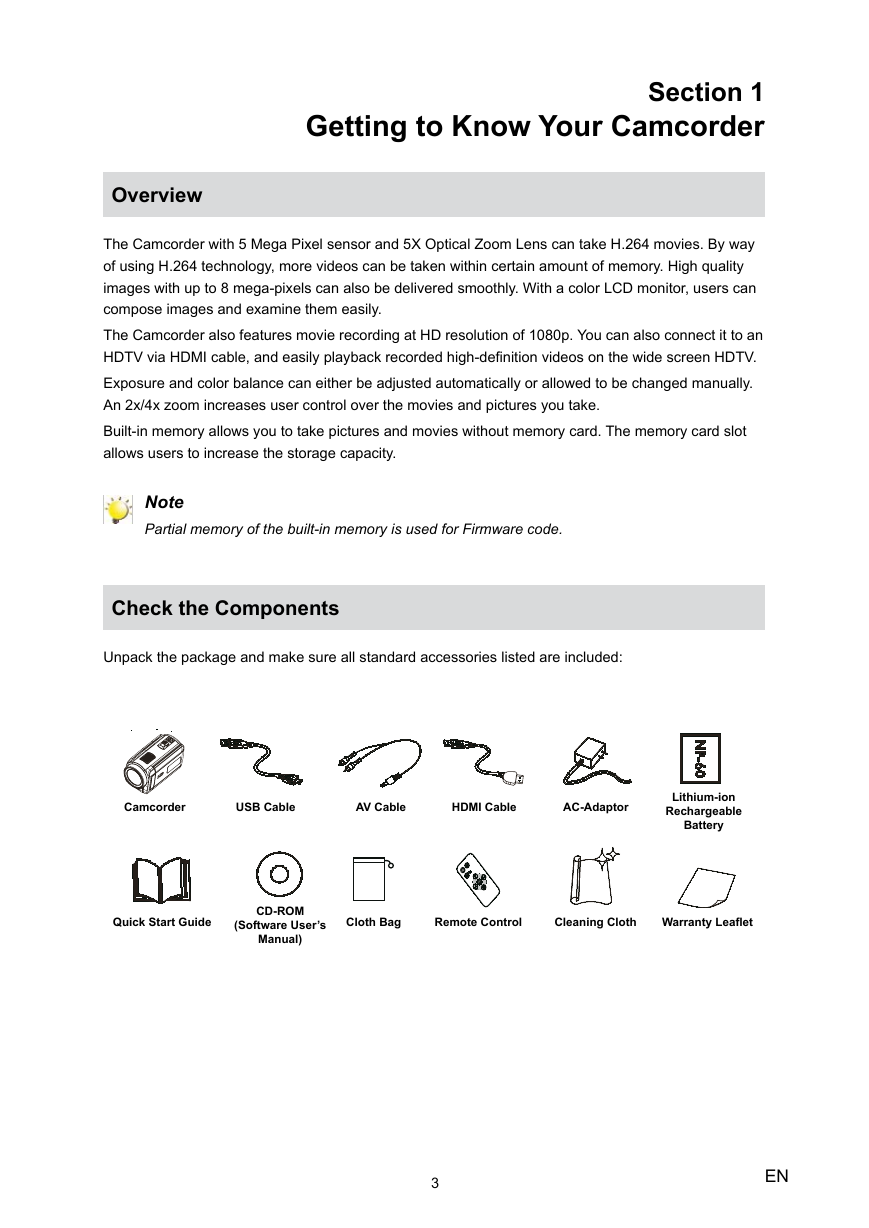

Section 1 Getting to Know Your Camcorder Overview The Camcorder with 5 Mega Pixel sensor and 5X Optical Zoom Lens can take H.264 movies. By way of using H.264 technology, more videos can be taken within certain amount of memory. High quality images with up to 8 mega-pixels can also be delivered smoothly. With a color LCD monitor, users can compose images and examine them easily. The Camcorder also features movie recording at HD resolution of 1080p. You can also connect it to an HDTV via HDMI cable, and easily playback recorded high-definition videos on the wide screen HDTV. Exposure and color balance can either be adjusted automatically or allowed to be changed manually. An 2x/4x zoom increases user control over the movies and pictures you take. Built-in memory allows you to take pictures and movies without memory card. The memory card slot allows users to increase the storage capacity. Note Partial memory of the built-in memory is used for Firmware code. Check the Components Unpack the package and make sure all standard accessories listed are included: Camcorder USB Cable AV Cable HDMI Cable AC-Adaptor Lithium-ion Rechargeable Battery Quick Start Guide CD-ROM (Software User’s Manual) SET SET SET SET SET SET SET SET SET SET SET SET Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Cloth Bag Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Remote Control Cleaning Cleaning Cleaning Cleaning Cleaning Cleaning Cloth Cloth Cloth Cloth Cloth Cloth Cleaning Cleaning Cleaning Cleaning Cleaning Cleaning Cloth Cloth Cloth Cloth Cloth Cloth Cleaning Cloth Warranty Leaflet 3 EN

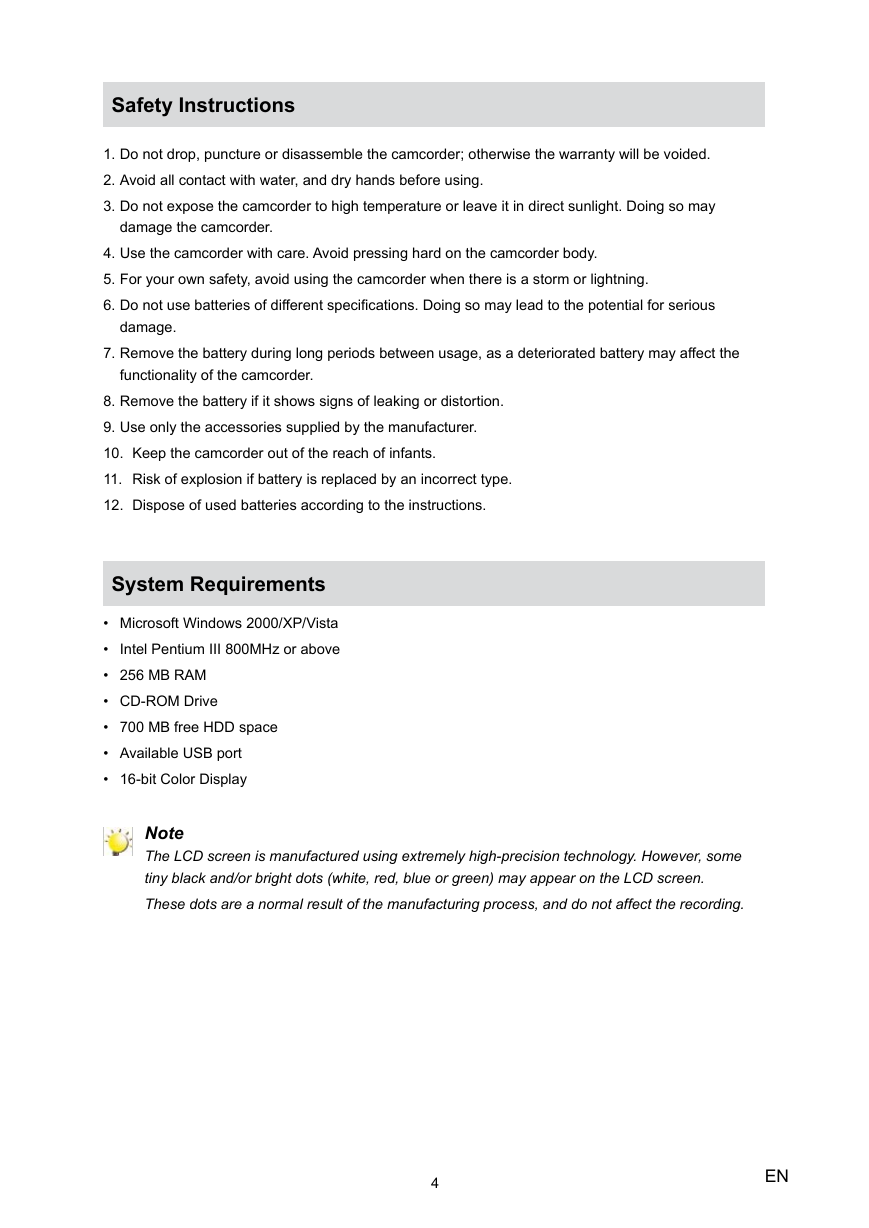

Safety Instructions 1. 2. 3. 4. 5. 6. 7. Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided. Avoid all contact with water, and dry hands before using. Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder. Use the camcorder with care. Avoid pressing hard on the camcorder body. For your own safety, avoid using the camcorder when there is a storm or lightning. Do not use batteries of different specifications. Doing so may lead to the potential for serious damage. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder. Remove the battery if it shows signs of leaking or distortion. Use only the accessories supplied by the manufacturer. 8. 9. 10. 11. 12. Keep the camcorder out of the reach of infants. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. System Requirements • • • • • • • Microsoft Windows 2000/XP/Vista Intel Pentium III 800MHz or above 256 MB RAM CD-ROM Drive 700 MB free HDD space Available USB port 16-bit Color Display Note The LCD screen is manufactured using extremely high-precision technology. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording. 4 EN

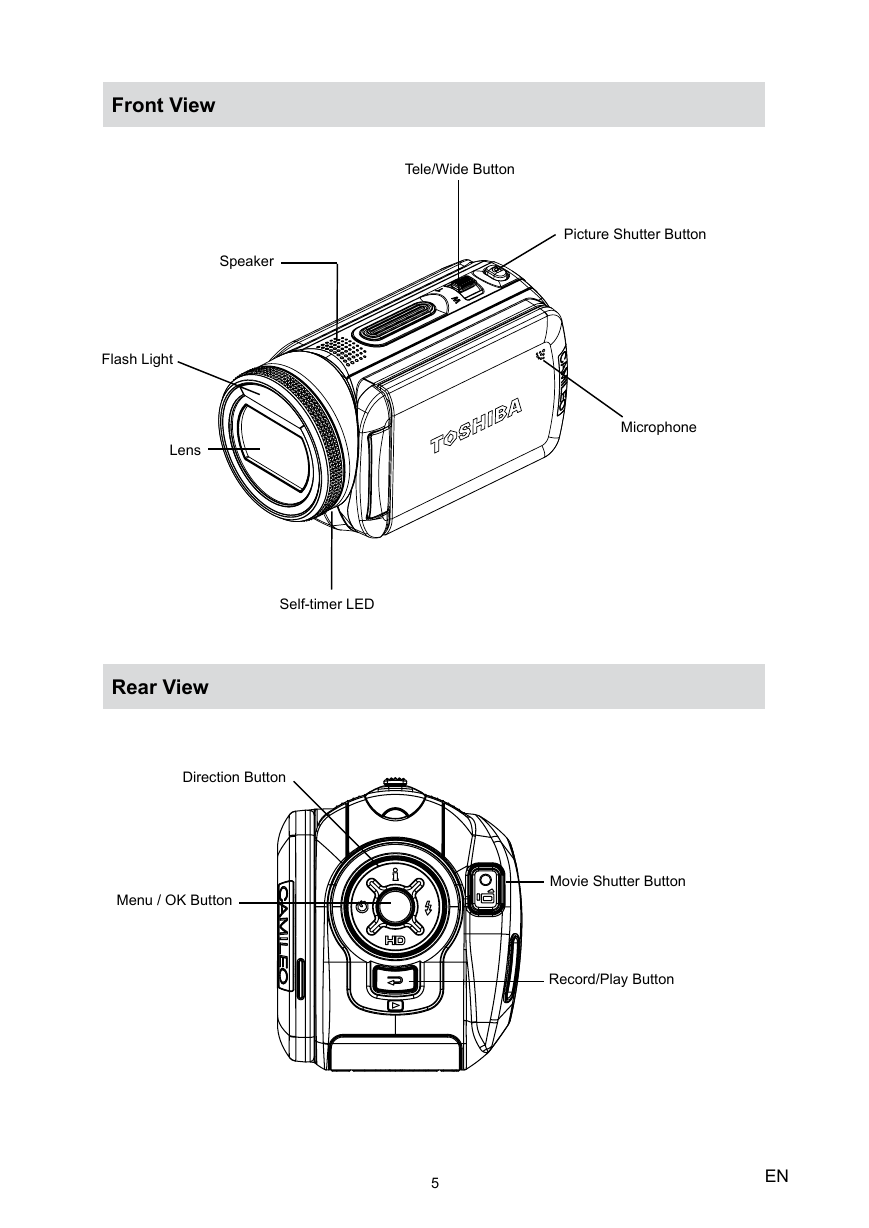

Front View Tele/Wide Button Speaker Picture Shutter Button Flash Light Lens Microphone Self-timer LED Rear View Direction Button Menu / OK Button Movie Shutter Button Record/Play Button 5 EN

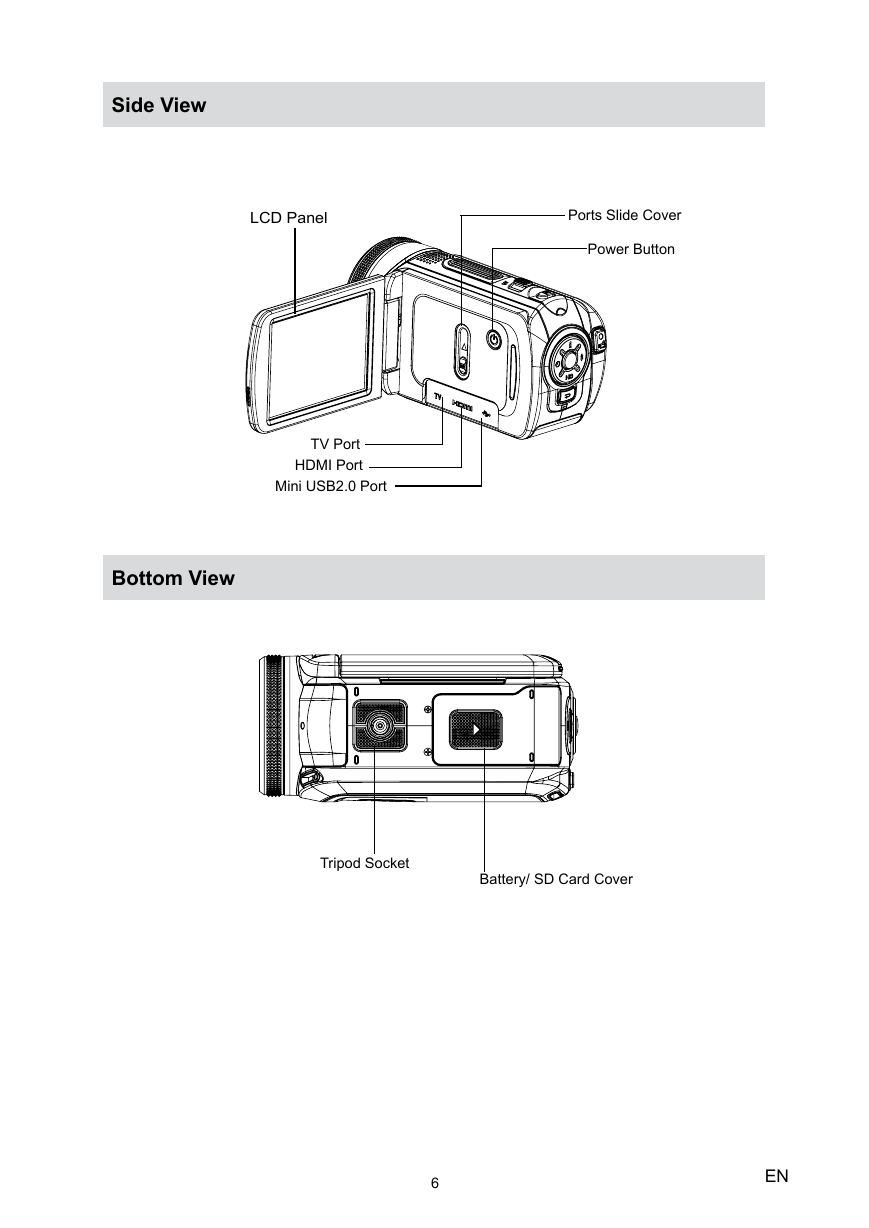

Side View LCD Panel Ports Slide Cover Power Button TV Port HDMI Port Mini USB2.0 Port Bottom View Tripod Socket Battery/ SD Card Cover 6 EN
