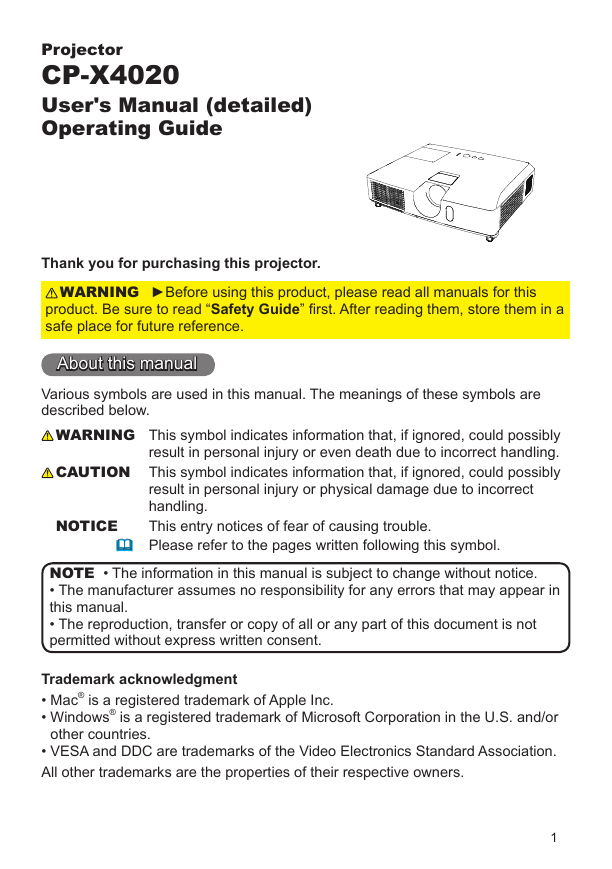

Projector CP-X4020 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” ﬁ rst. After reading them, store them in a safe place for future reference. About this manual About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING CAUTION NOTICE This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. This entry notices of fear of causing trouble. Please refer to the pages written following this symbol. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Mac® is a registered trademark of Apple Inc. • Windows® is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. • VESA and DDC are trademarks of the Video Electronics Standard Association. All other trademarks are the properties of their respective owners. 1

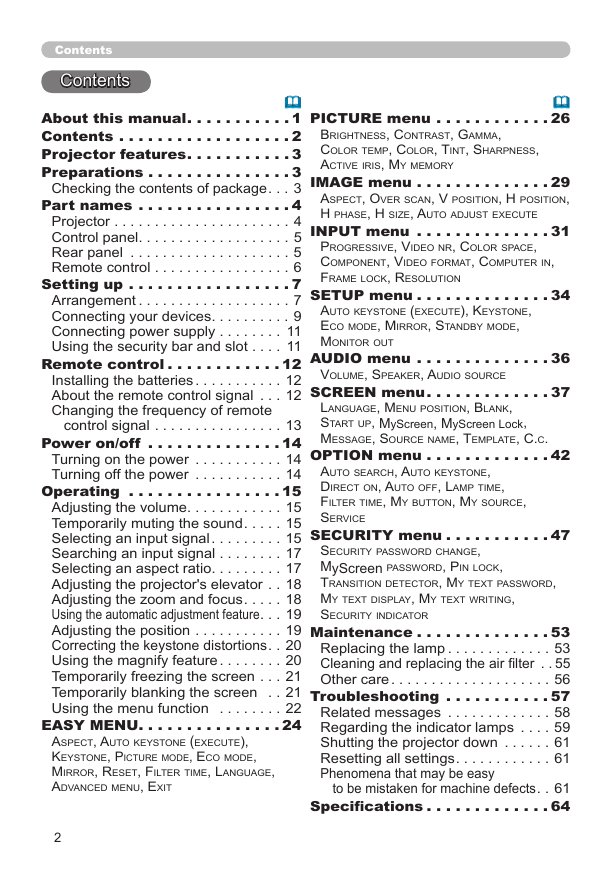

Contents Contents Contents About this manual . . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . . 3 Checking the contents of package . . . 3 Part names . . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . . 4 Control panel . . . . . . . . . . . . . . . . . . . 5 Rear panel . . . . . . . . . . . . . . . . . . . . 5 Remote control . . . . . . . . . . . . . . . . . 6 Setting up . . . . . . . . . . . . . . . . . 7 Arrangement . . . . . . . . . . . . . . . . . . . 7 Connecting your devices . . . . . . . . . . 9 Connecting power supply . . . . . . . . 11 Using the security bar and slot . . . . 11 Remote control . . . . . . . . . . . . 12 Installing the batteries . . . . . . . . . . . 12 About the remote control signal . . . 12 Changing the frequency of remote control signal . . . . . . . . . . . . . . . . 13 Power on/off . . . . . . . . . . . . . . 14 Turning on the power . . . . . . . . . . . 14 Turning off the power . . . . . . . . . . . 14 Operating . . . . . . . . . . . . . . . . 15 Adjusting the volume . . . . . . . . . . . . 15 Temporarily muting the sound . . . . . 15 Selecting an input signal . . . . . . . . . 15 Searching an input signal . . . . . . . . 17 Selecting an aspect ratio . . . . . . . . . 17 Adjusting the projector's elevator . . 18 Adjusting the zoom and focus . . . . . 18 Using the automatic adjustment feature . . . 19 Adjusting the position . . . . . . . . . . . 19 Correcting the keystone distortions . . 20 Using the magnify feature . . . . . . . . 20 Temporarily freezing the screen . . . 21 Temporarily blanking the screen . . 21 Using the menu function . . . . . . . . 22 EASY MENU. . . . . . . . . . . . . . . 24 ASPECT, AUTO KEYSTONE (EXECUTE), KEYSTONE, PICTURE MODE, ECO MODE, MIRROR, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT 2 PICTURE menu . . . . . . . . . . . . 26 BRIGHTNESS, CONTRAST, GAMMA, COLOR TEMP, COLOR, TINT, SHARPNESS, ACTIVE IRIS, MY MEMORY IMAGE menu . . . . . . . . . . . . . . 29 ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE, H SIZE, AUTO ADJUST EXECUTE INPUT menu . . . . . . . . . . . . . . 31 PROGRESSIVE, VIDEO NR, COLOR SPACE, COMPONENT, VIDEO FORMAT, COMPUTER IN, FRAME LOCK, RESOLUTION SETUP menu . . . . . . . . . . . . . . 34 AUTO KEYSTONE (EXECUTE), KEYSTONE, ECO MODE, MIRROR, STANDBY MODE, MONITOR OUT AUDIO menu . . . . . . . . . . . . . . 36 VOLUME, SPEAKER, AUDIO SOURCE SCREEN menu . . . . . . . . . . . . . 37 LANGUAGE, MENU POSITION, BLANK, START UP, MyScreen, MyScreen Lock, MESSAGE, SOURCE NAME, TEMPLATE, C.C. OPTION menu . . . . . . . . . . . . . 42 AUTO SEARCH, AUTO KEYSTONE, DIRECT ON, AUTO OFF, LAMP TIME, FILTER TIME, MY BUTTON, MY SOURCE, SERVICE SECURITY menu . . . . . . . . . . . 47 SECURITY PASSWORD CHANGE, MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING, SECURITY INDICATOR Maintenance . . . . . . . . . . . . . . 53 Replacing the lamp . . . . . . . . . . . . . 53 Cleaning and replacing the air ﬁ lter . . 55 Other care . . . . . . . . . . . . . . . . . . . . 56 Troubleshooting . . . . . . . . . . . 57 Related messages . . . . . . . . . . . . . 58 Regarding the indicator lamps . . . . 59 Shutting the projector down . . . . . . 61 Resetting all settings . . . . . . . . . . . . 61 Phenomena that may be easy to be mistaken for machine defects . . 61 Speciﬁ cations . . . . . . . . . . . . . 64

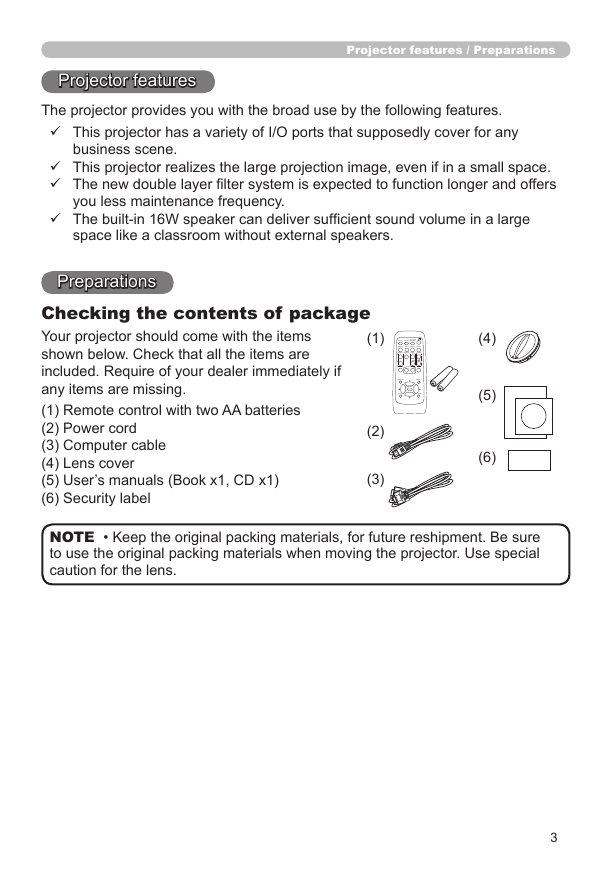

Projector features Projector features Projector features / Preparations The projector provides you with the broad use by the following features. This projector has a variety of I/O ports that supposedly cover for any business scene. This projector realizes the large projection image, even if in a small space. The new double layer ﬁ lter system is expected to function longer and offers you less maintenance frequency. The built-in 16W speaker can deliver sufﬁ cient sound volume in a large space like a classroom without external speakers. Preparations Preparations Checking the contents of package Your projector should come with the items shown below. Check that all the items are included. Require of your dealer immediately if any items are missing. (1) Remote control with two AA batteries (2) Power cord (3) Computer cable (4) Lens cover (5) User’s manuals (Book x1, CD x1) (6) Security label (1) (2) (3) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP VOLUME DOWN KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (4) (5) (6) • Keep the original packing materials, for future reshipment. Be sure NOTE to use the original packing materials when moving the projector. Use special caution for the lens. 3

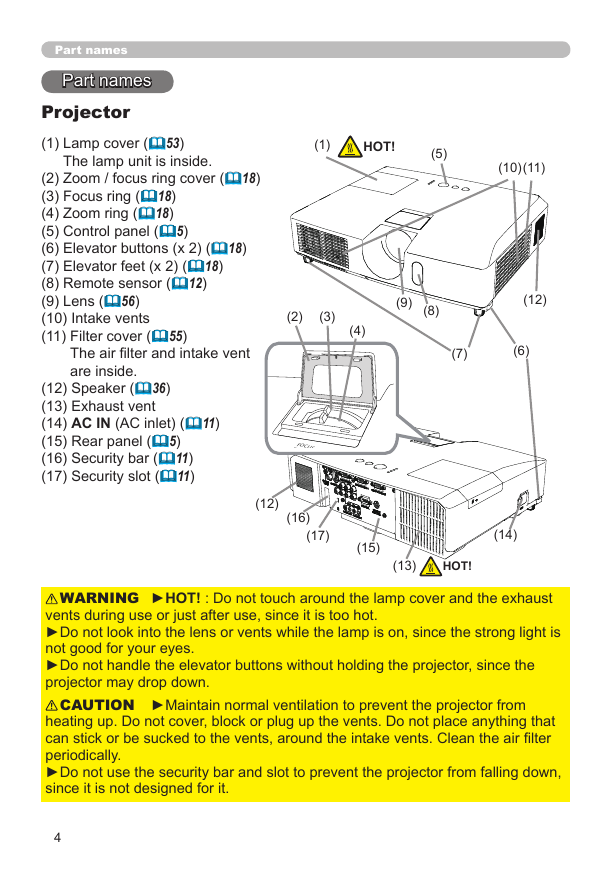

Part names Part names Part names Projector (1) Lamp cover (53) The lamp unit is inside. (2) Zoom / focus ring cover (18) (3) Focus ring (18) (4) Zoom ring (18) (5) Control panel (5) (6) Elevator buttons (x 2) (18) (7) Elevator feet (x 2) (18) (8) Remote sensor (12) (9) Lens (56) (10) Intake vents (11) Filter cover (55) The air ﬁ lter and intake vent are inside. (12) Speaker (36) (13) Exhaust vent (14) AC IN (AC inlet) (11) (15) Rear panel (5) (16) Security bar (11) (17) Security slot (11) (1) HOT! (5) (10) (11) (2) (3) (4) (9) (8) (12) (7) (6) FOCUS (12) (16) (17) (15) (13) HOT! (14) WARNING ►HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator buttons without holding the projector, since the projector may drop down. CAUTION ►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air ﬁ lter periodically. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it. 4

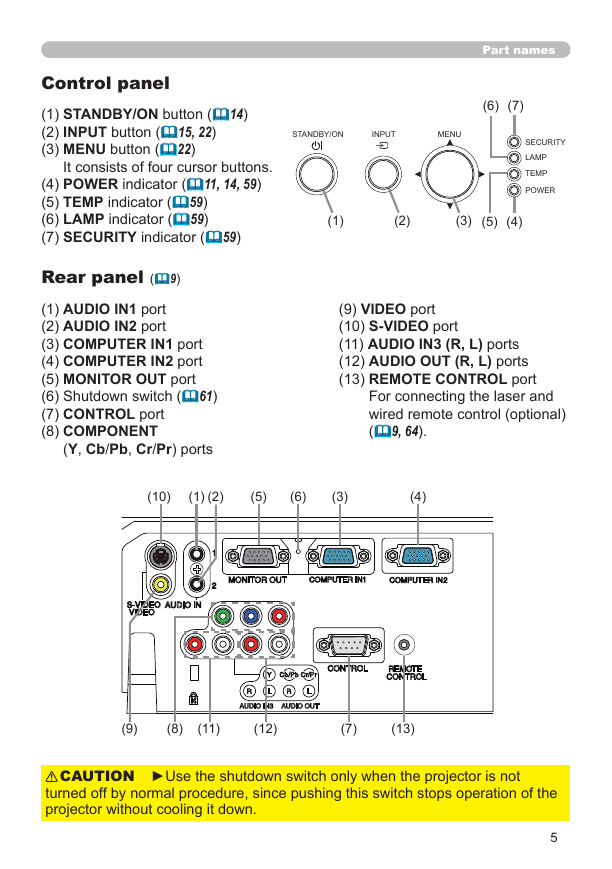

Control panel (1) STANDBY/ON button (14) (2) INPUT button (15, 22) (3) MENU button (22) It consists of four cursor buttons. (4) POWER indicator (11, 14, 59) (5) TEMP indicator (59) (6) LAMP indicator (59) (7) SECURITY indicator (59) Rear panel (9) (1) AUDIO IN1 port (2) AUDIO IN2 port (3) COMPUTER IN1 port (4) COMPUTER IN2 port (5) MONITOR OUT port (6) Shutdown switch (61) (7) CONTROL port (8) COMPONENT (Y, Cb/Pb, Cr/Pr) ports STANDBY/ON INPUT MENU Part names (6) (7) SECURITY LAMP TEMP POWER (1) (2) (3) (5) (4) (9) VIDEO port (10) S-VIDEO port (11) AUDIO IN3 (R, L) ports (12) AUDIO OUT (R, L) ports (13) REMOTE CONTROL port For connecting the laser and wired remote control (optional) (9, 64). (10) (1) (2) (5) (6) (3) (4) (9) (8) (11) (12) (7) (13) CAUTION ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down. 5

Part names Remote control (1) VIDEO button (16) (2) COMPUTER button (16) (3) SEARCH button (17) (4) STANDBY/ON button (14) (5) ASPECT button (17) (6) AUTO button (19) (7) BLANK button (21) (8) MAGNIFY - ON button (20) (9) MAGNIFY - OFF button (13, 20) (10) MY SOURCE/DOC.CAMERA button (16, 44) (11) VOLUME - button (13, 15) (12) PAGE UP button * (13) PAGE DOWN button * (14) VOLUME + button (15) (15) MUTE button (15) (16) FREEZE button (21) (17) MY BUTTON - 1 button (44) (18) MY BUTTON - 2 button (44) (19) KEYSTONE button (20) (20) POSITION button (19, 20, 23) (21) MENU button (22) (22) ▲/▼/◄/► cursor buttons (22) (23) ENTER button (22) (24) ESC button (22) (25) RESET button (22) (26) Battery cover (12) (2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22) (24) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP VOLUME DOWN KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25) (26) NOTE • Any button marked with “*” is not supported on this projector (58). Back of the remote control 6

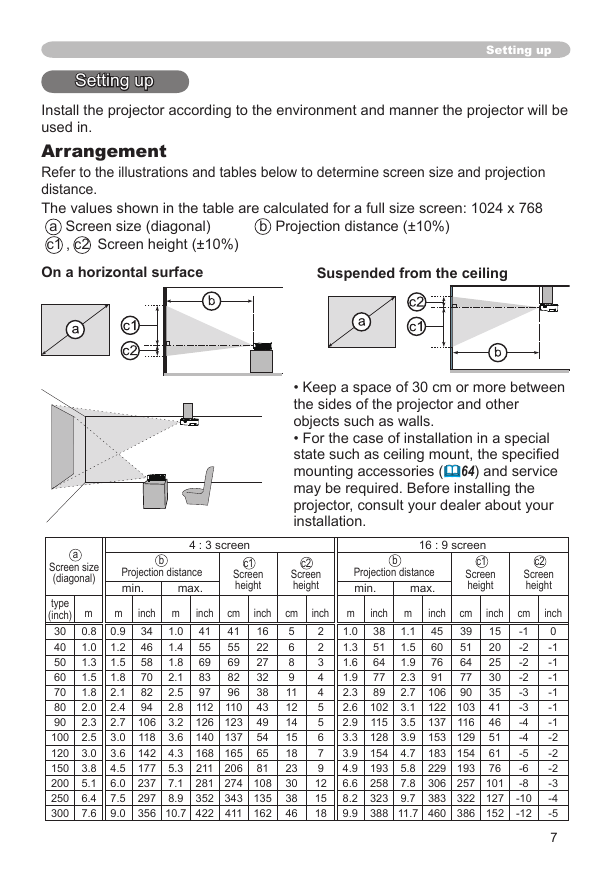

Setting up Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024 x 768 a Screen size (diagonal) c1 , c2 Screen height (±10%) On a horizontal surface b Projection distance (±10%) Suspended from the ceiling • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • For the case of installation in a special state such as ceiling mount, the speciﬁ ed mounting accessories (64) and service may be required. Before installing the projector, consult your dealer about your installation. b Projection distance min. max. 4 : 3 screen c1 Screen height a Screen size (diagonal) type (inch) m 30 40 50 60 70 80 90 100 120 150 200 250 300 0.8 0.9 1.0 1.2 1.3 1.5 1.5 1.8 1.8 2.1 2.0 2.4 2.3 2.7 2.5 3.0 3.0 3.6 3.8 4.5 5.1 6.0 6.4 7.5 7.6 9.0 cm inch inch m inch 41 16 41 34 22 55 55 46 27 69 69 58 32 82 83 70 38 97 96 82 112 110 43 94 49 126 123 106 54 140 137 118 65 168 165 142 211 206 81 177 281 274 108 237 297 352 343 135 356 10.7 422 411 162 m 1.0 1.4 1.8 2.1 2.5 2.8 3.2 3.6 4.3 5.3 7.1 8.9 c2 Screen height cm inch 5 2 2 6 3 8 4 9 4 11 12 5 5 14 6 15 7 18 9 23 30 12 15 38 46 18 16 : 9 screen c1 b Projection distance min. max. Screen height c2 Screen height m 1.1 1.5 1.9 2.3 2.7 3.1 3.5 3.9 4.7 5.8 7.8 9.7 cm inch inch cm inch m inch 39 15 45 -1 0 1.0 38 20 51 60 -1 -2 51 1.3 25 64 76 -1 -2 64 1.6 30 77 91 -1 -2 77 1.9 35 106 90 -1 -3 89 2.3 122 103 41 -3 -1 2.6 102 46 137 116 -1 -4 115 2.9 51 153 129 -2 -4 128 3.3 61 183 154 -2 -5 154 3.9 -2 229 193 76 -6 193 4.9 306 257 101 -8 -3 6.6 258 -4 323 8.2 383 322 127 -10 388 11.7 460 386 152 -12 9.9 -5 7

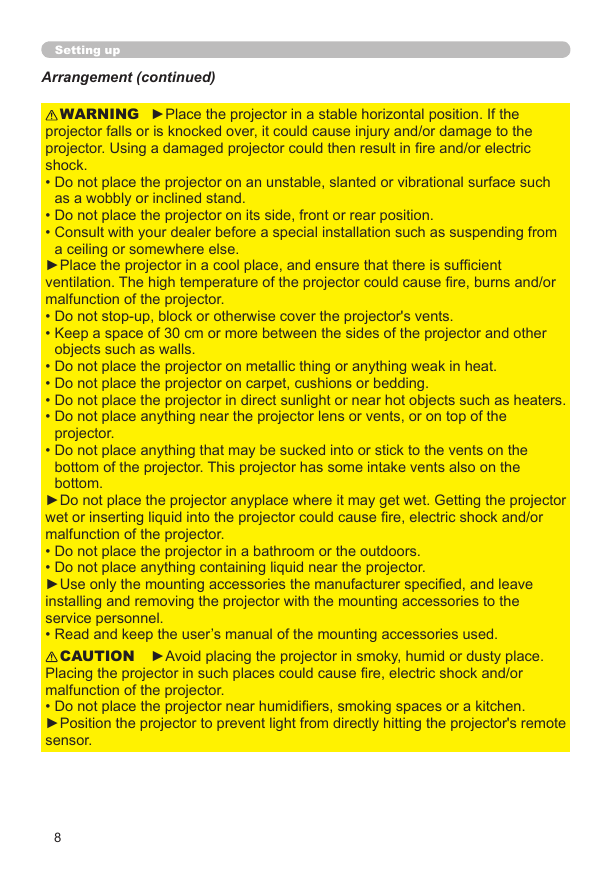

Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in ﬁ re and/or electric shock. • Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand. • Do not place the projector on its side, front or rear position. • Consult with your dealer before a special installation such as suspending from a ceiling or somewhere else. ►Place the projector in a cool place, and ensure that there is sufﬁ cient ventilation. The high temperature of the projector could cause ﬁ re, burns and/or malfunction of the projector. • Do not stop-up, block or otherwise cover the projector's vents. • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • Do not place the projector on metallic thing or anything weak in heat. • Do not place the projector on carpet, cushions or bedding. • Do not place the projector in direct sunlight or near hot objects such as heaters. • Do not place anything near the projector lens or vents, or on top of the projector. • Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause ﬁ re, electric shock and/or malfunction of the projector. • Do not place the projector in a bathroom or the outdoors. • Do not place anything containing liquid near the projector. ►Use only the mounting accessories the manufacturer speciﬁ ed, and leave installing and removing the projector with the mounting accessories to the service personnel. • Read and keep the user’s manual of the mounting accessories used. CAUTION ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause ﬁ re, electric shock and/or malfunction of the projector. • Do not place the projector near humidiﬁ ers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor. 8
