使用 OpenSSL 生成证书 server.csr server.key 下载安装 openssl，进入/bin/下面，执行命令（把 ssl 目录下的 openssl.cnf 拷贝到 bin 目录下） 1.首先要生成服务器端的私钥(key 文件): openssl genrsa -des3 -out server.key 1024 [root@airwaySSL openssl]# cd ssl/ [root@airwaySSL ssl]# pwd /home/openssl/ssl [root@airwaySSL ssl]# ls certs man misc openssl.cnf private 运行时会提示输入密码,此密码用于加密 key 文件(参数 des3 便是指加密算法,当然也可以选 用其他你认为安全的算法.),以后每当需读取此文件(通过 openssl 提供的命令或 API)都需输入 口令.如果觉得不方便,也可以去除这个口令,但一定要采取其他的保护措施! 去除 key 文件口令的命令: openssl rsa -in server.key -out server.key 2.openssl req -new -key server.key -out server.csr -config openssl.cnf [root@airwaySSL bin]# openssl req -new -key server.key -out server.csr -config openssl.cnf Enter pass phrase for server.key:12345 You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [AU]:CN State or Province Name (full name) [Some-State]:china Locality Name (eg, city) []:wuhan Organization Name (eg, company) [Internet Widgits Pty Ltd]:airway Organizational Unit Name (eg, section) []:airway Common Name (eg, YOUR name) []:airway Email Address []: Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []: An optional company name []: 生成 Certificate Signing Request（CSR）,生成的 csr 文件交给 CA 签名后形成服务端自己的证 书.屏幕上将有提示,依照其指示一步一步输入要求的个人信息即可. 3.对客户端也作同样的命令生成 key 及 csr 文件: openssl genrsa -des3 -out client.key 1024 Generating RSA private key, 1024 bit long modulus 

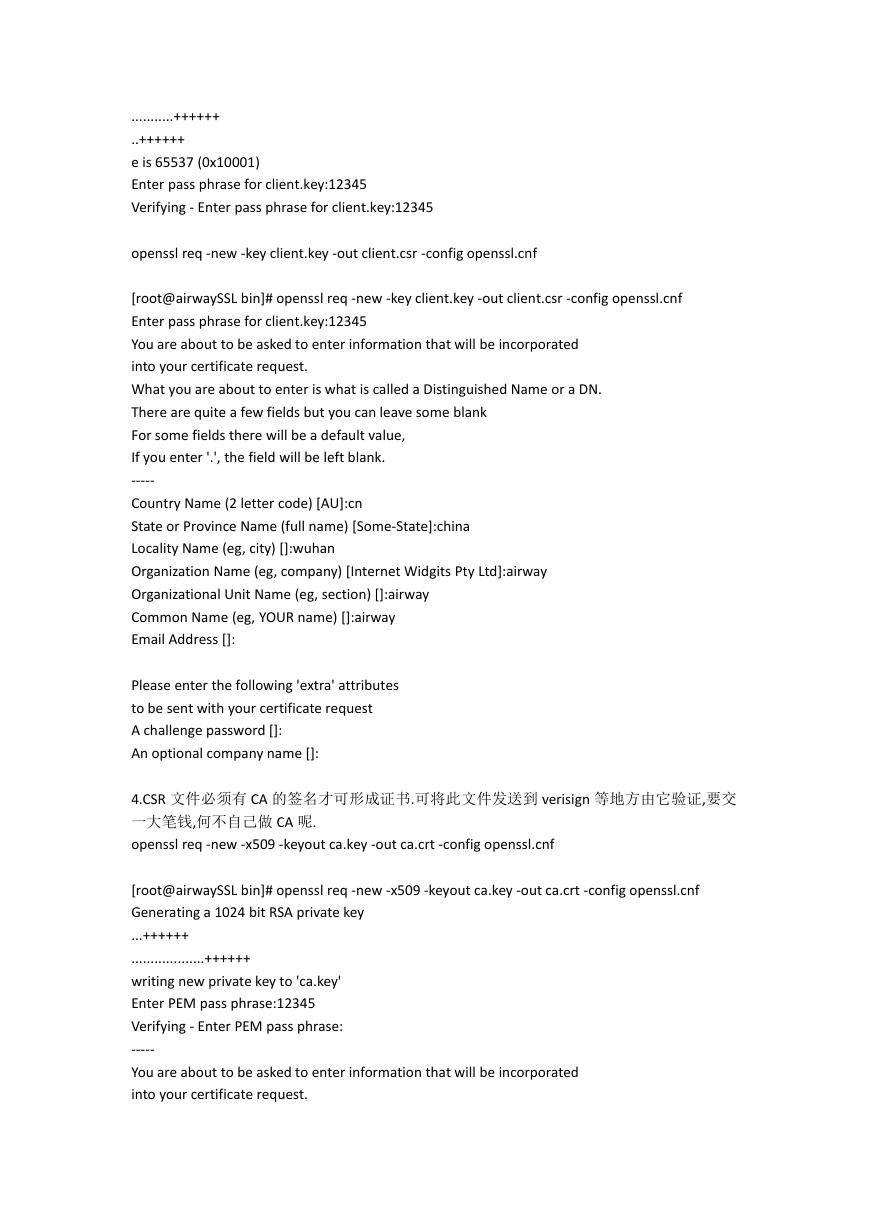

...........++++++ ..++++++ e is 65537 (0x10001) Enter pass phrase for client.key:12345 Verifying - Enter pass phrase for client.key:12345 openssl req -new -key client.key -out client.csr -config openssl.cnf [root@airwaySSL bin]# openssl req -new -key client.key -out client.csr -config openssl.cnf Enter pass phrase for client.key:12345 You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [AU]:cn State or Province Name (full name) [Some-State]:china Locality Name (eg, city) []:wuhan Organization Name (eg, company) [Internet Widgits Pty Ltd]:airway Organizational Unit Name (eg, section) []:airway Common Name (eg, YOUR name) []:airway Email Address []: Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []: An optional company name []: 4.CSR 文件必须有 CA 的签名才可形成证书.可将此文件发送到 verisign 等地方由它验证,要交 一大笔钱,何不自己做 CA 呢. openssl req -new -x509 -keyout ca.key -out ca.crt -config openssl.cnf [root@airwaySSL bin]# openssl req -new -x509 -keyout ca.key -out ca.crt -config openssl.cnf Generating a 1024 bit RSA private key ...++++++ ...................++++++ writing new private key to 'ca.key' Enter PEM pass phrase:12345 Verifying - Enter PEM pass phrase: ----- You are about to be asked to enter information that will be incorporated into your certificate request. 

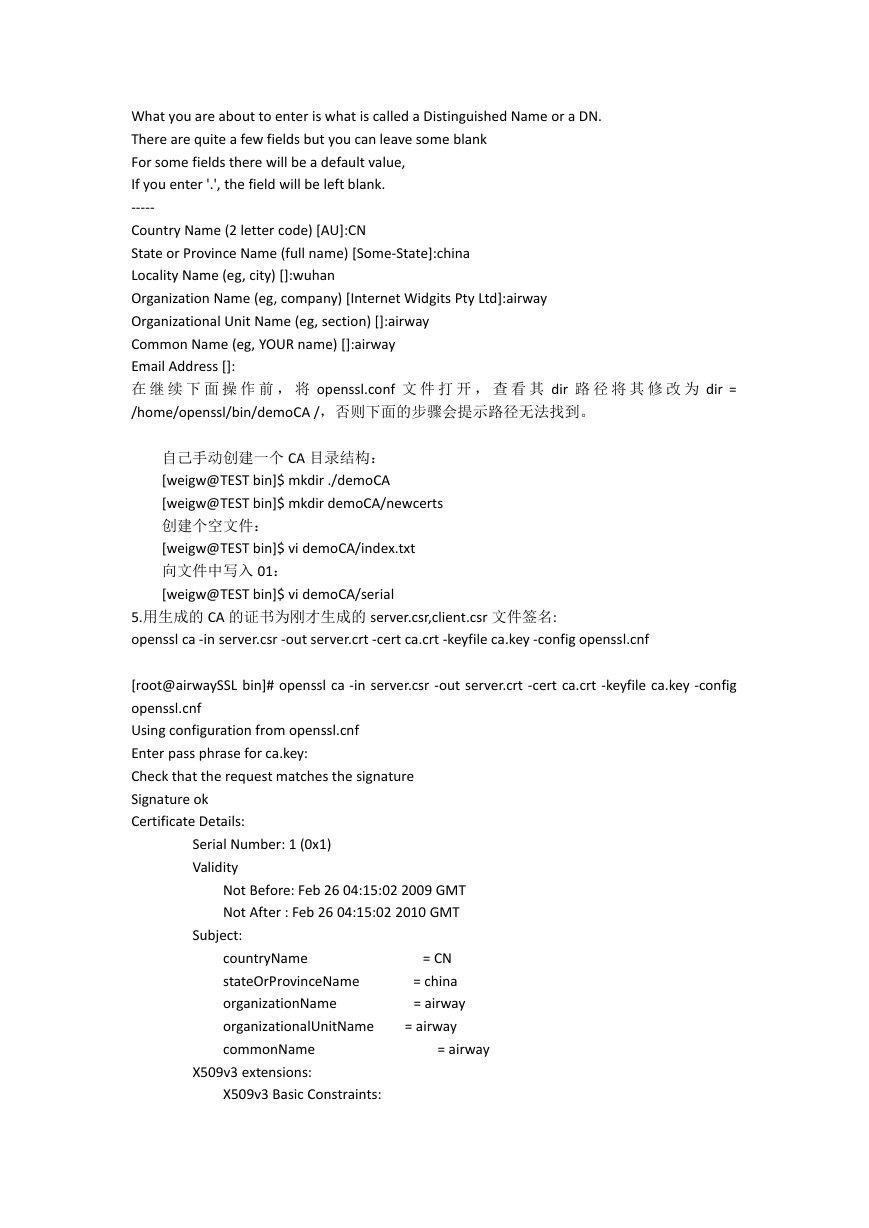

What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [AU]:CN State or Province Name (full name) [Some-State]:china Locality Name (eg, city) []:wuhan Organization Name (eg, company) [Internet Widgits Pty Ltd]:airway Organizational Unit Name (eg, section) []:airway Common Name (eg, YOUR name) []:airway Email Address []: 在 继 续 下 面 操 作 前 ， 将 openssl.conf 文 件 打 开 ， 查 看 其 dir 路 径 将 其 修 改 为 dir = /home/openssl/bin/demoCA /，否则下面的步骤会提示路径无法找到。 自己手动创建一个 CA 目录结构： [weigw@TEST bin]$ mkdir ./demoCA [weigw@TEST bin]$ mkdir demoCA/newcerts 创建个空文件： [weigw@TEST bin]$ vi demoCA/index.txt 向文件中写入 01： [weigw@TEST bin]$ vi demoCA/serial 5.用生成的 CA 的证书为刚才生成的 server.csr,client.csr 文件签名: openssl ca -in server.csr -out server.crt -cert ca.crt -keyfile ca.key -config openssl.cnf [root@airwaySSL bin]# openssl ca -in server.csr -out server.crt -cert ca.crt -keyfile ca.key -config openssl.cnf Using configuration from openssl.cnf Enter pass phrase for ca.key: Check that the request matches the signature Signature ok Certificate Details: Serial Number: 1 (0x1) Validity Not Before: Feb 26 04:15:02 2009 GMT Not After : Feb 26 04:15:02 2010 GMT Subject: countryName stateOrProvinceName organizationName organizationalUnitName commonName X509v3 extensions: X509v3 Basic Constraints: = CN = china = airway = airway = airway 

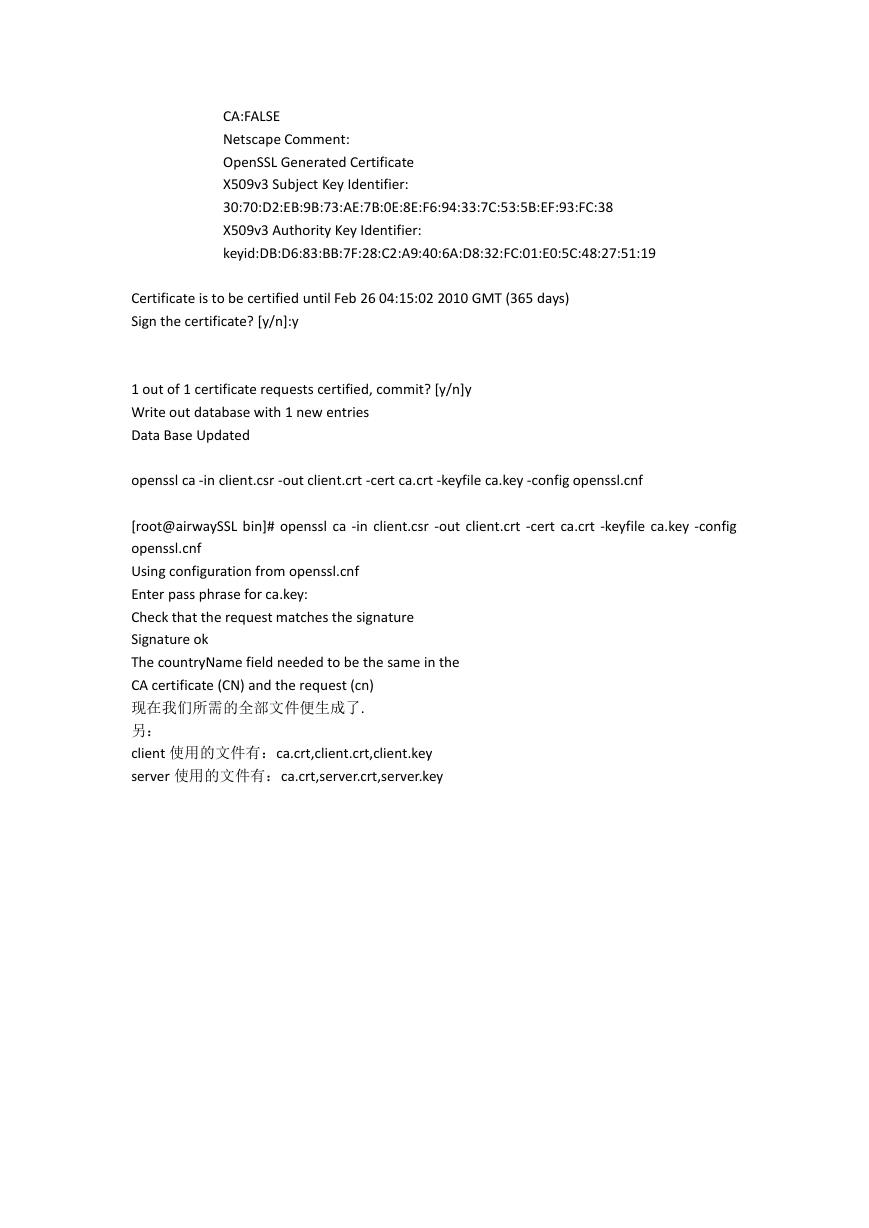

CA:FALSE Netscape Comment: OpenSSL Generated Certificate X509v3 Subject Key Identifier: 30:70:D2:EB:9B:73:AE:7B:0E:8E:F6:94:33:7C:53:5B:EF:93:FC:38 X509v3 Authority Key Identifier: keyid:DB:D6:83:BB:7F:28:C2:A9:40:6A:D8:32:FC:01:E0:5C:48:27:51:19 Certificate is to be certified until Feb 26 04:15:02 2010 GMT (365 days) Sign the certificate? [y/n]:y 1 out of 1 certificate requests certified, commit? [y/n]y Write out database with 1 new entries Data Base Updated openssl ca -in client.csr -out client.crt -cert ca.crt -keyfile ca.key -config openssl.cnf [root@airwaySSL bin]# openssl ca -in client.csr -out client.crt -cert ca.crt -keyfile ca.key -config openssl.cnf Using configuration from openssl.cnf Enter pass phrase for ca.key: Check that the request matches the signature Signature ok The countryName field needed to be the same in the CA certificate (CN) and the request (cn) 现在我们所需的全部文件便生成了. 另： client 使用的文件有：ca.crt,client.crt,client.key server 使用的文件有：ca.crt,server.crt,server.key
