VAIO® C1 PictureBook™ Notebook User Guide

PCG-C1VN

Notice to Users

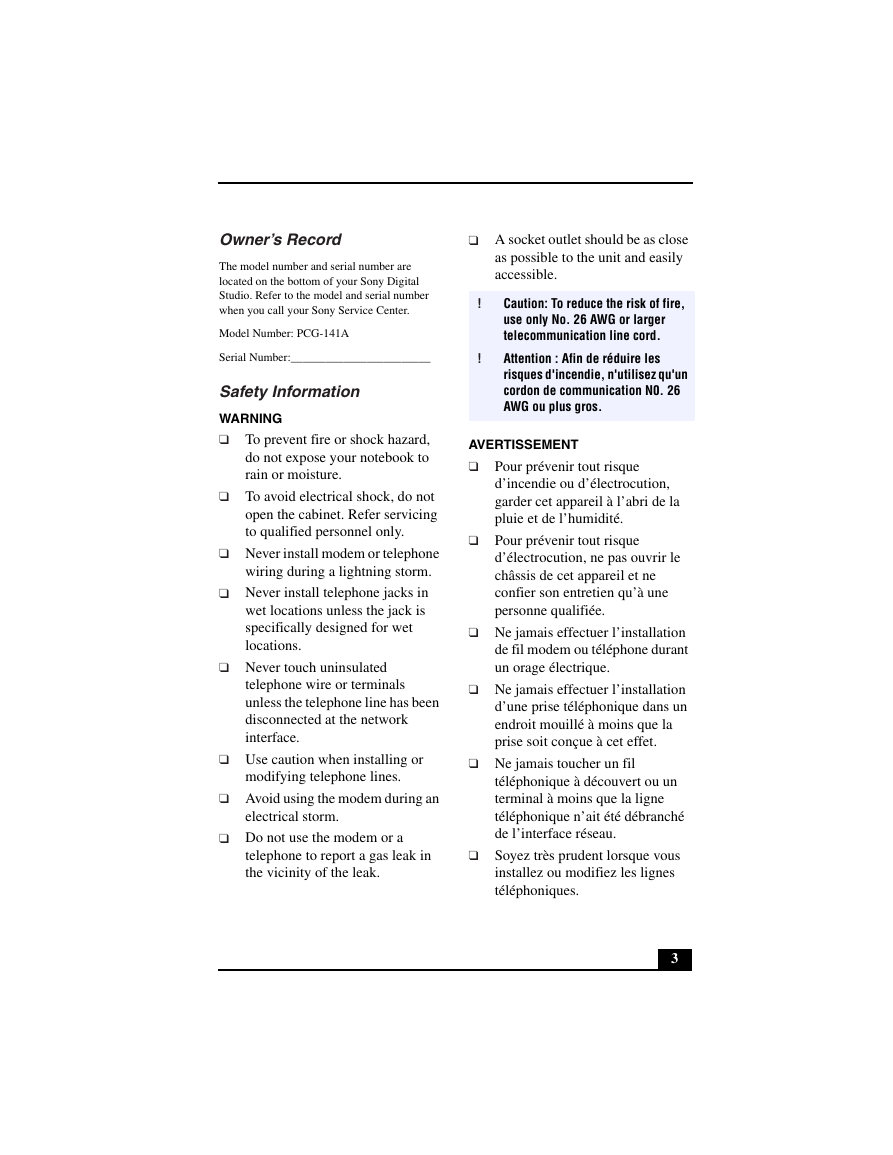

Owner’s Record

Safety Information

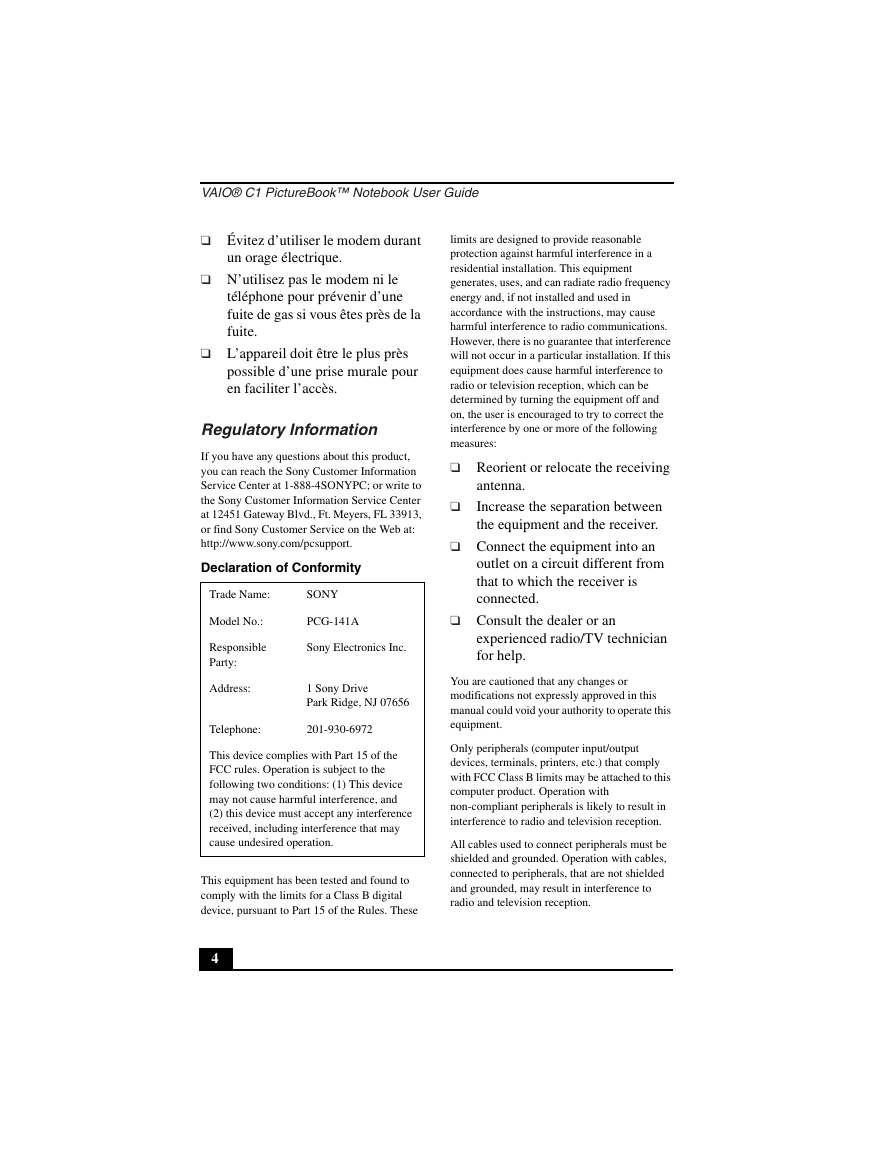

Regulatory Information

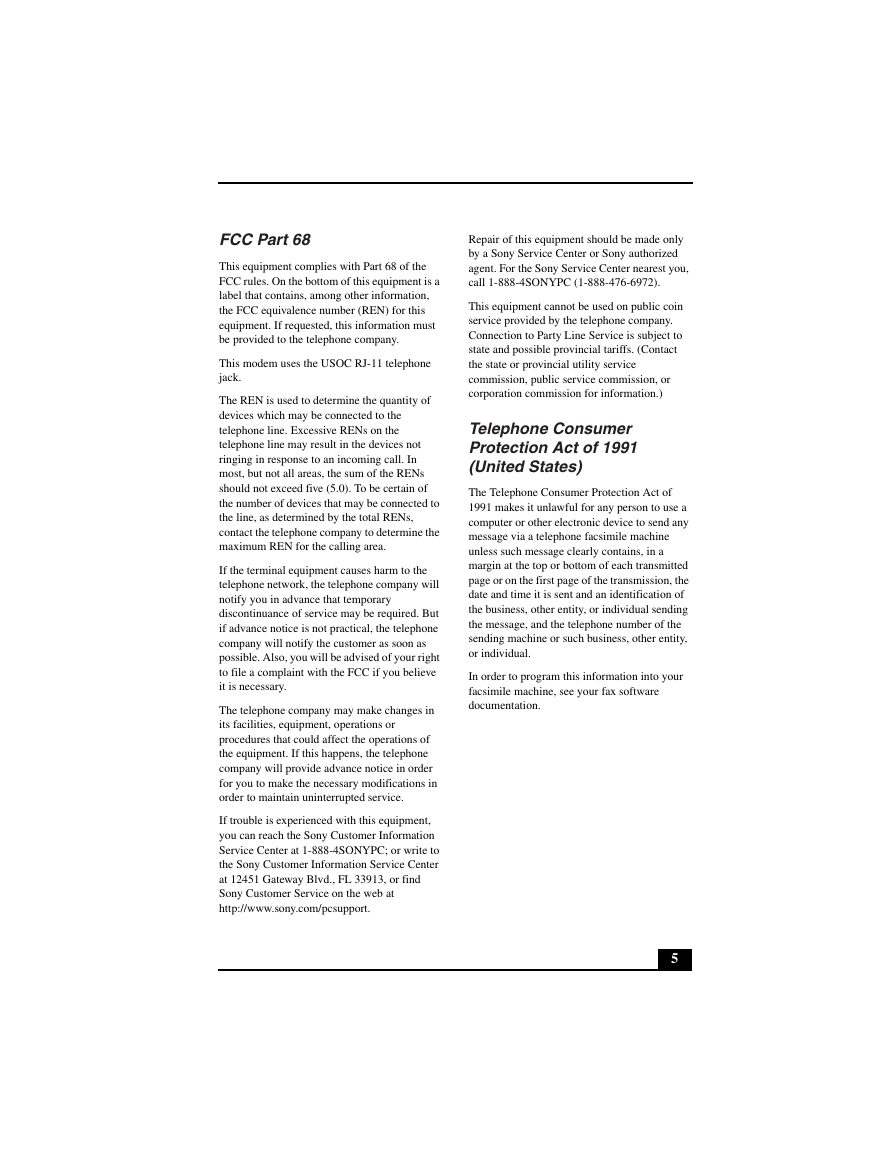

FCC Part 68

Telephone Consumer Protection Act of 1991 (United States)

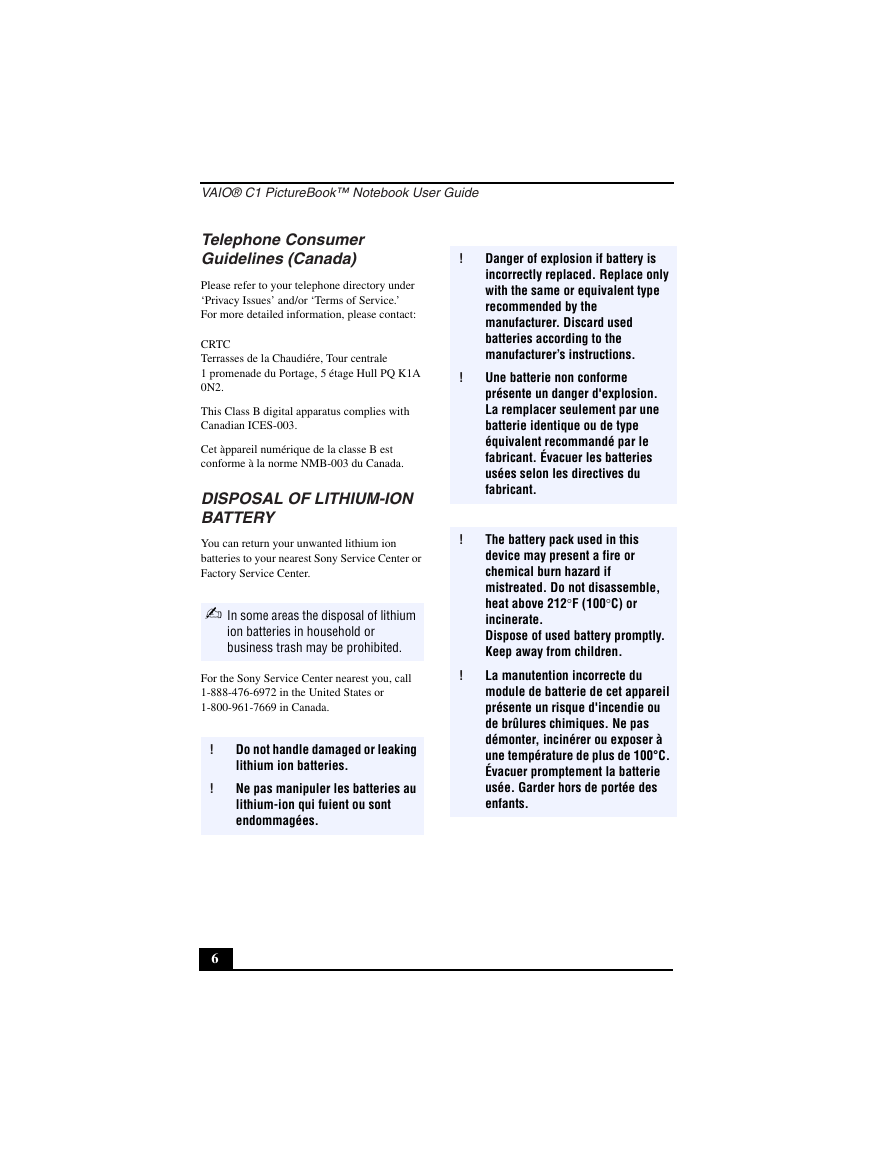

Telephone Consumer Guidelines (Canada)

DISPOSAL OF LITHIUM-ION BATTERY

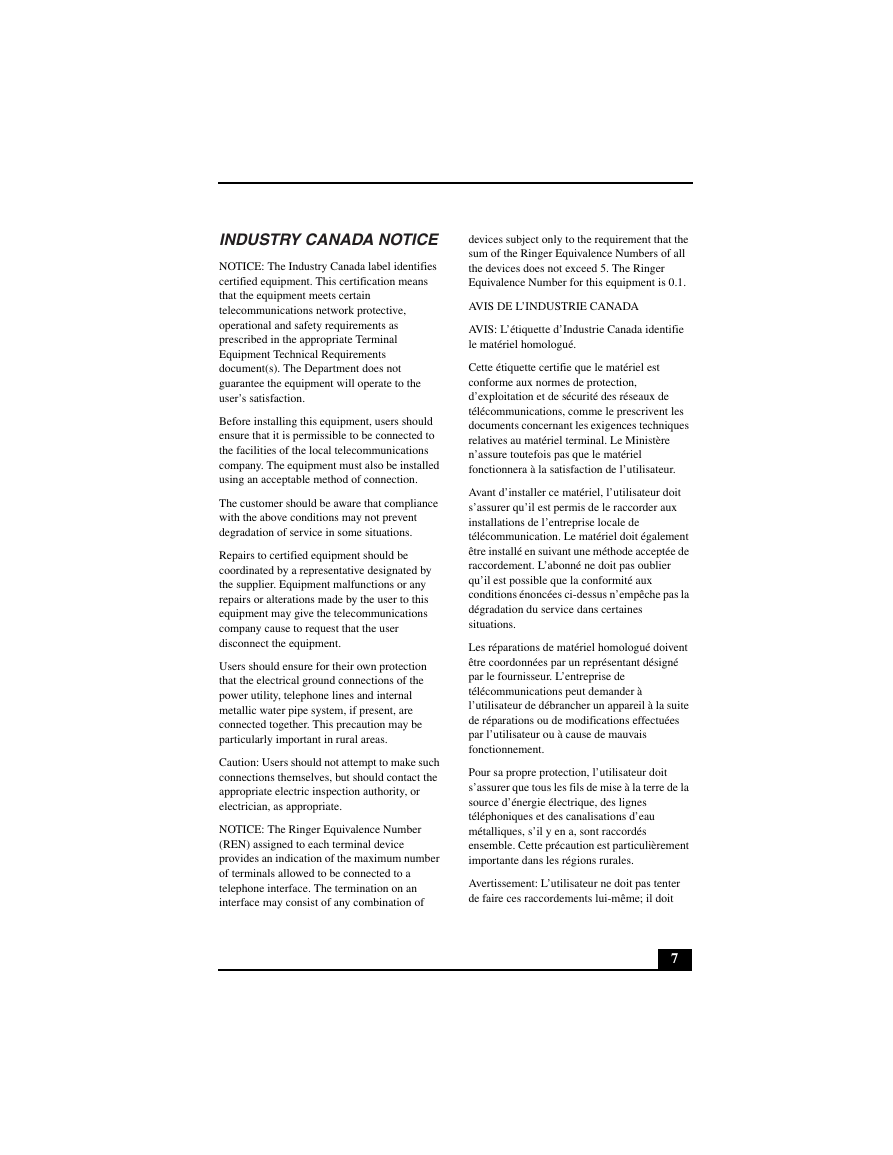

INDUSTRY CANADA NOTICE

Contents

Welcome 13

Features 13

Unpacking Your Notebook 14

Ergonomic Considerations 16

Setting Up Your VAIO C1 PictureBook™ Notebook 21

Locating the Controls and Connectors 21

Connecting a Power Source 25

Conserving Battery Power 30

Starting Your VAIO C1 PictureBook Computer 31

Shutting Down Your Computer 32

Using the Keyboard 33

Using the built-in MOTION EYE™ camera 38

Using the Pointing Device 43

Using PC Cards 45

Connecting with another VAIO® computer 47

Connecting an i.LINK device 48

VAIO Action Setup 51

The Jog Dial™ Control 51

Using Memory Stick® Media 55

Using Power Saving Modes 59

Connecting Peripheral Devices 61

Connecting a Phone Line 62

Connecting a USB Printer 64

Connecting a USB Mouse 65

Connecting an External Display 66

Using the Floppy Disk Drive (optional) 69

Connecting an Optical Drive (optional) 71

Connecting External Speakers 75

Connecting an External Microphone 75

Recording from a Microphone or Audio Equipment 76

About the Software on Your Computer 79

OpenMG™ Jukebox Software Instructions 82

Software Information 89

MovieShaker™ 89

PictureGear™ 92

For Answers to Your Software Questions 94

Using the System and Application RecoveryCDs 97

Troubleshooting 101

Resources 112

Specifications 115

Index 119

Welcome

Congratulations on your purchase of the Sony VAIO® Notebook. Sony has combined leading-edge techn...

Features

Exceptional performance

Portability

Sony audio and video quality

Windows® Millennium Edition

Communications

Unpacking Your Notebook

Remove the following hardware items from the box:

Main Unit

AV Cable

Display adaptor

Power cord

AC adapter

Rechargeable battery pack

Spare pointing device covers

Manuals

VAIO® User Guide

Microsoft® Windows® Millennium Edition Getting Started

Software CD

Microsoft® Word 2000

Recovery CDs

System Recovery CD(s)

Application Recovery CD(s)

Other

Ergonomic Considerations

Recommended position

Position of your computer

Furniture and posture

Viewing angle of the computer’s display

Lighting

Placement of an external display

Notes on Setup

Setting Up Your Notebook

Handling Your Notebook

Cleaning Your Notebook

Handling the LCD Screen

On Moisture Condensation

Setting Up Your VAIO C1 PictureBook™ Notebook

This section describes how to start using your notebook and the internal and external devices, su...

Locating the Controls and Connectors

Front

Left

Right

Bottom

Connecting a Power Source

Using the AC Adapter

1 Plug the cable attached to the AC adapter into the DC In connector on the computer.

2 Plug one end of the power cord into the AC adapter.

3 Plug the other end of the power cord into an AC outlet.

Connecting Computer to AC Outlet

Notes on the AC Adapter

Using Battery Power

To insert the battery pack

1 Make sure the Lock lever on the bottom of the computer is in the “unlock” position.

2 Align the grooves and tabs on the battery with the notches and tabs on the back of the computer...

3 Slide the Lock lever into the lock position.

Inserting Battery Pack

To charge the battery pack

1 Connect the AC adapter to the computer.

2 Insert the battery pack.

Battery Indicator Light

To remove the battery pack

1 Turn off the computer.

2 Slide the release levers to the UNLOCK position and slide the battery away from the computer.

Unlocking Battery Pack

Additional Notes On Batteries

To insert the optional high-capacity battery pack (PCGA-BP54)

Inserting High-Capacity Battery Pack

Conserving Battery Power

Starting Your VAIO C1 PictureBook Computer

1 Lift the cover while holding the bottom of the computer firmly. Do not grasp the camera lens wh...

Opening Your C1 PictureBook Computer

2 Press the power button until the green power indicator light turns on.

Turning on Your C1 PictureBook Computer

3 If necessary, adjust the brightness controls for the LCD display. To decrease the brightness, p...

Shutting Down Your Computer

1 Click the Start button on the Windows® taskbar.

2 Click Shut Down to display the Shut Down Windows dialog box.

3 Select Shut down.

4 Click OK.

5 Wait for your computer to turn off automatically. The power indicator turnsoff.

6 Turn off any peripheral devices connected to your computer.

If you are unable to shut down your computer:

1 Close or end all operations.

2 Shut down your computer by pressing Ctrl+Alt+Delete keys (at the same time).

Using the Keyboard

Keyboard

Combinations and Functions with the Windows Key

Indicators

Combinations and Functions with the Fn Key

Using the built-in MOTION EYE™ camera

Capturing a still image

1 Press the CAPTURE button to start Smart Capture.

CAPTURE Button

2 Select Still Viewer/Long Movie Player/Net Movie Player from the application list.

3 Choose Still by clicking the on-screen Capture Mode button. To switch to Motion, click the on-s...

4 The Finder window appears. Turn the MOTION EYE camera lens towards the subject you want to phot...

Turning MOTION EYE

5 Adjust the focusing ring.

Adjusting the Focusing Ring

6 Half-press the CAPTURE button on the computer. The image remains still for a few seconds. To di...

Using the Self-timer

1 Click Still Viewer/Movie Player from the switch applications list.

2 Select Still mode.

3 Click the Options button.

4 Click Self-timer capture on the Capturing mode tab.

5 Click OK.

To create a panoramic image

1 Capture the still images. Using the panoramic-assist function of Smart Capture, capture still i...

2 Start the PictureGear software. For details, see the PictureGear section in this manual.

To set the image quality and mode of MOTION EYE camera

1 Click the Start button, point to Settings, and then click Control Panel.

2 Double-click the MOTION EYE camera icon. The Camera Control Utility appears.

3 Click the Image tab and drag the slider to the left or the right. The level settings increase a...

4 Click Mode tab and click the item you want to set.

5 Click OK.

Using the Pointing Device

To replace the pointing device cover

Replacing the Pointing Device Cover

Using PC Cards

To insert card

1 Insert the PC card into the PC card slot with the front label facing up. Gently push the card i...

Inserting PC Card

2 Pull the release button, then push it down toward the slot.

Release Button

To remove a PC card

1 Double-click in the task tray.

2 The “Unplug or Eject Hardware” dialog displays.

3 Select the hardware device you wish to remove by clicking it.

4 Click Stop.

5 Confirm the correct device is selected in “Stop a hardware device.”

6 The message, “PC Card can now be safely removed from the system” appears. Click OK.

7 Gently grasp the card and pull it out.

8 Insert the PC card slot protector into the empty slot.

Connecting with another VAIO® computer

Connecting with an i.LINK cable

Hard Drive Partition

Connecting an i.LINK device

To connect a digital camcorder

Connecting Digital Camcorder

DVgate™

Digital Video Captures

Adjusting Image Resolution

VAIO Action Setup

The Jog Dial™ Control

Using the Jog Dial Control

Using the Jog Dial™ Control

Launcher Mode

Using Launcher Mode

1 Turn the Jog Dial control to select the item you want, then press the Jog Dial control. The win...

JOG Guide Dialog Box

2 Turn or press the Jog Dial control to use the desired function.

3 To select another item, switch to the launcher mode and repeat from step 1.

Guide Mode

Using Guide Mode

Using the Jog Dial Control with Sony Software

Using the Jog Dial Control with Other Software

Using a Dialog Box

JOG Guide dialog box

Internal Timer

Using Memory Stick® Media

Types of Memory Stick Media

What is MagicGate?

To Insert a Memory Stick Media

1 Insert with the arrow facing toward the Memory Stick media slot and the label facing down.

2 Carefully slide the Memory Stick in until it clicks in place.

Inserting Memory Stick

To view the contents of Memory Stick media

If you cannot see the Removable Disk (S:) in the My Computer window on your desktop:

1 Click Start, point to Settings and then Control Panel.

2 Click System. The System Properties window appears.

3 Select the Device Manager tab.

To Remove a Memory Stick Media

VisualFlow

To use VisualFlow

1 From the Start menu, point to Programs > VisualFlow > VisualFlow.

2 Click on an icon in the View section on the main toolbar to select a display layout.

3 Click on an icon in the Sort section on the main toolbar to select a sorting method.

4 Resting your cursor on the left end of the main toolbar activates the current Memory Stick prop...

5 Resting your cursor on the right end of the main toolbar activates a secondary toolbar with mor...

6 Click an image to show a normal view centered on the screen.

7 Movie files start playback when the view is enlarged. Click again on movie files to restore the...

Notes on using Memory Stick media:

Using Power Saving Modes

Normal Mode

System Suspend Mode

To activate System Suspend Mode

To return to normal Mode

System Hibernation Mode

To activate System Hibernation mode

To return to Normal mode

Connecting Peripheral Devices

You can add functionality to your computer by connecting any of these optional peripherals:

Connecting a Phone Line

1 Open the phone line jack cover. The cover opens only to a 45-degree angle.

Opening Phone Line Jack Cover

2 Plug one end of the phone cable into the jack on the inside of the phone line jack cover. Make ...

3 Plug the other end into the wall jack.

Connecting a USB Printer

To connect a printer

Connecting a Printer

To use a printer

Connecting a USB Mouse

To connect a USB mouse

Connecting a USB Mouse

Connecting an External Display

To connect a computer display

Connecting a Display

To connect a projector

1 Plug the display adapter into the computer's Out connector and the display’s RGB signal cable t...

2 Plug the audio cable into the Headphone connector.

Connecting a Projector

To connect a TV

1 Plug the supplied AV cable into the notebook’s AV Out connector.

2 Plug the other ends of the AV cable into theTV, as shown.

Connecting a TV

Using the Floppy Disk Drive (optional)

To connect the floppy disk drive

To insert a diskette

Plugging in USB Cable

1 Hold the diskette with the label side facing up.

2 Gently push the diskette into the drive until it clicks into place.

Inserting diskette

To remove a diskette

Removing diskette

To remove the floppy disk drive when the computer is on

1 Double-click the Remove Hardware icon in the task tray.

2 The “Unplug or Eject Hardware” dialog displays.

3 Select the hardware device you wish to remove by clicking it.

4 Click stop.

5 Confirm the correct device is selected in the “Stop a Hardware device” dialogbox.

6 The message, “Floppy Disk Drive can now be safely removed from the system” appears. Click OK.

7 Slide the unlock lever on the bottom of the computer in the direction of the arrow, and then un...

1 Open the start menu, select Settings, Control Panel, and then the System icon. The System Prope...

2 Click the Refresh button.

3 In the “Stop a Hardware device” dialog box, confirm that the device can be safely removed from ...

To carry the floppy disk drive

Notes on handling diskettes

Connecting an Optical Drive (optional)

To Connect the CD Drive

1 Remove the PC card slot protector from the PC card slot. See “Using PC Cards” on page45 for de...

2 Remove the PC card from the bottom side of the CD drive.

Removing PC Card

3 Insert the PC card into the PC card slot with the SONY logo facing up. See “Using PC Cards” on ...

Inserting PC Card

To Insert a Disc

1 Press the Eject button. The disc tray slides out.

CD-ROM Drive

2 Place the disc in the tray with the label side facing up. Push the disc onto the hub until the ...

Inserting Disc

3 Close the tray by pushing it gently. The BUSY indicator on the drive flashes while your compute...

Flashing BUSY Indicator

Notes on CD and DVD Media

To Remove the Drive

Handling CD or DVD Media

Cleaning CD or DVD Media

Connecting External Speakers

To connect external speakers

Connecting an External Microphone

To connect an external microphone

Recording from a Microphone or Audio Equipment

Switching the connector functionality

1 Double-click on the task tray located in the lower right corner of the Desktop window. The Volu...

2 From the Options menu, click Properties. The Properties window appears.

3 In the Adjust Volume panel, select Recording, and then click OK. TheRecording Control window a...

4 Select either Microphone or Line.

Adjusting sound volume in the Recording Control window

To increase the sound of the microphone:

1 Double-click on the task tray located in the lower right corner of the Desktop window. If Micro...

2 From the Microphone panel, click Advanced. The Advanced Controls for Microphones dialog box dis...

3 Click Mic 20dB in Other Controls, and then click Close.

Adjusting volume

To make the microphone echo

1 From the Start menu, select Settings, and click Control Panel. In the Control panel, double-cli...

2 Select the Echo tab.

3 Click Effective, you can also customize the setting by choosing options such as Time.

4 Click OK.

To effect the MIDI sound:

1 From the Start menu, select Settings, and then select Control Panel.

2 Click the YAMAHA DS-XG Audio Config icon. (If you do not see the icon that you are looking for,...

3 Select the Synthesizer tab.

4 Select the desired effect, and then click OK.

1 From the Options menu, select Properties.

2 In the Volume Adjust window, select Recording, and then click OK. The Recording Control window ...

About the Software on Your Computer

Adobe Acrobat Reader®

Adobe Systems Inc.

ArcSoft® PhotoPrinter™ 2000 Pro

ArcSoft, Inc.

DVgate™

Sony Electronics Inc.

McAfee® VirusScan®

Network Associates, Inc.

Media Bar™

Sony Electronics Inc.

Microsoft® Internet Explorer

Microsoft Corporation

Microsoft® Word 2000

Microsoft Corporation

MovieShaker™

Sony Electronics Inc.

Netscape Communicator®

Netscape Communications

OpenMG™ Jukebox

Sony Electronics Inc.

PictureGear™

Sony Electronics Inc.

Quicken® 2000 Basic

Intuit, Inc.

Smart Capture

Sony Electronics Inc.

VAIO Action Setup

Sony Electronics Inc.

VAIO Support Agent

Sony Electronics Inc.

VisualFlow™

Sony Electronics, Inc.

OpenMG™ Jukebox Software Instructions

Registering OpenMG Jukebox

Electronic Music Distribution (EMD) Services

Starting OpenMG Jukebox

OpenMG Jukebox Basic Controls

Recording a CD

1 Insert an audio CD into the optional CD/DVD-ROM drive.

2 Click Recorder. The OpenMG CD Recorder displays.

Transferring Songs to the MG Memory Stick®

Transferring Songs (Check-out)

1 Click the Portable Player icon on the OpenMG Jukebox main window. ThePortable Player window ap...

Returning songs (Check-in)

1 Start the OpenMG Jukebox software.

2 Select the song you want to return in the Portable Player window, then click . To select more t...

3 During check-in, the STOP button flashes. When check-in is finished, the song titles disappear ...

To exit OpenMG Jukebox

Software Information

MovieShaker™

Main window

Importing Images and Sound Clips

1 Click .

2 Find the file you want to add.

3 Select the file.

4 Click Open. The file is added to the Clip tray.

Create a Movie Using Shaker

1 Click the Shaker tab.

2 Select a mood by clicking a face in the Shaker tray.

Shaker Tray

3 Click . A thirty second scene is automatically generated and saved to the Product tray.

4 To preview, switch the Work Panel to Product tray mode and press play.

Editing Clips and Scenes

Working Panel

1 Double-click the clip or scene to move it to the Working Panel.

2 Select the Effects tab from the Editing tray.

3 Drag and drop the Effect you want to add from the Effects tray to the Effects palette on the Wo...

4 See Help for instructions on adjusting effect duration and replaying clips/scenes.

Saving a Movie

1 Verify that the clip(s) you want to save is on the Product tray. See Help for more details on s...

2 Click Export.

3 Select the format in which you want the document to be saved.

4 Click Next.

5 Locate the folder to which you want the file saved.

6 Name the file.

7 Click Save.

PictureGear™

Managing Your Pictures

1 Click the Folder tab and browse to locate your pictures.

2 Select the pictures you want to have in a collection.

3 From Collection menu, select Create New Collection.

4 Enter a name for the collection and then click OK.

Creating a Photo Album

1 Select the pictures you want to use to make an album.

2 From the Utilities menu, select Album Maker.

3 Choose the type of Album you want and click OK.

4 Now add more pictures, frames, text, and effects.

5 When you are finished, select Create Album in File menu or click the Create Album icon on the t...

6 Designate the folder where you want to save the Album.

7 Enter the Target Album name, select Thumbnails and click OK.

8 The new album can be viewed using most internet browsers.

Using Panorama Maker

1 Gather the source images into the same folder or collection.

2 Select the images you want to use.

3 From the Utilities menu select Panorama Maker.

4 Select the correct lens and click OK. (If 35mm lens is selected, the prompt does not appear; to...

5 Click the panoramic icon, near the bottom of the window.

6 Click Full Stitch.

Making Still Images and Panoramic from MPEG

1 Select the MPEG file.

2 From the Movie/Sound menu, select Scene break down.

3 Then select Movie Stitch, to create a panoramic picture.

For Answers to Your Software Questions

Acrobat® Reader (Adobe Systems Incorporated)

McAfee® VirusScan® (Network Associates, Inc.)

Netscape Communicator® (Netscape Communications Corp.)

PhotoPrinter™ 2000 Pro (ArcSoft, Inc.)

Quicken® 2000 (Intuit Inc.)

Windows® Millennium Edition Operating System, Internet Explorer, Word 2000 (Microsoft Corporation)

Sony Service Center

Using the System and Application Recovery CDs

About Your Recovery CDs

Application Recovery CD(s)

Sony Electronics

System Recovery CD(s)

Sony Electronics

Using the System Recovery CD(s)

Full Restore without Format

Full Restore with Format

To use the System Recovery CD(s)

1 Insert the Sony System Recovery CD in the CD-ROM drive.

2 Shut down your computer as described in “Shutting Down Your Computer” on page32.

3 Wait four seconds and then turn on your computer.

4 Click OK to signify you have read and accept the Microsoft End-User License Agreement.

5 When the System Recovery menu appears, follow the on-screen instructions to complete the recove...

If your computer does not start from the Recovery CD

1 Press and hold the power switch for more than four seconds to turn off the computer.

2 Turn on the computer and press the F2 key when the Sony logo appears. TheBIOS setup menu scree...

3 Press the arrow keys to select the Exit menu.

4 Press the arrow keys to select Get Default Values and then press the Enter key. The message “Lo...

5 Check that Yes is selected, then press the Enter key.

6 Press the arrow keys to select Exit (Save Changes) and then press the Enter key. The message “S...

7 Check that Yes is selected, then press the Enter key. The computer restarts from the Recovery CD.

Using the Application Recovery CD(s)

To use the Application Recovery CD(s)

1 Turn on your computer. If your computer is already on, close all applications.

2 When the Windows desktop appears, insert the first Sony Application Recovery CD in the CD-ROM d...

3 When the Application Recovery menu appears, follow the on-screen instructions to complete the r...

Recovering Microsoft® Word 2000

Troubleshooting

This section describes how to solve common problems you may encounter when using your notebook. M...

Troubleshooting your notebook

My notebook does not start

My notebook starts, but my system doesn’t start properly

1 Press F2. The BIOS Setup menu appears.

2 Set the date (month/day/year). Press Enter.

3 Press to select System Time, then set the time (hour: minute: second). Press Enter.

4 Press to select Exit, then press to select Get Default Values. Themessage “Load default config...

5 Select Yes and press Enter.

6 Select Exit (Save Changes), and then press Enter. The message “Save Configuration changes and e...

7 Select Yes, and then press Enter. The notebook restarts.

My notebook starts, but the message “Operating system not found” appears and Windows does not start

1 Turn off the notebook, and then remove the diskette.

2 Restart the notebook and confirm that Windows starts properly.

1 Remove any diskette from the floppy disk drive.

2 Remove any peripheral devices connected to the notebook.

3 Turn off the notebook and then turn it on.

4 Press the F2 key when the Sony logo appears. The BIOS setup menu screen appears.

5 Press the directional arrow keys to select the Exit menu.

6 Press the arrow keys to select “Get Default Values” and then press Enter. The message “Load def...

7 Select Yes, then press Enter.

8 Use the directional arrow keys to select “Exit” (Save Changes), and then press Enter. The messa...

9 Select Yes, then press Enter. The notebook restarts.

My notebook stops responding or does not shut down

My notebook does not enter the power saving mode I selected.

1 The message “Standby function is enabled” is displayed. If the message reads “Standby function ...

2 The message “Hibernation feature is enabled” is displayed. If the message reads “Hibernation fe...

3 Click OK and restart your notebook.

The Power Management setting is not responding

The sound of my notebook’s fan is too loud

Troubleshooting the LCD screen

My LCD screen is blank

My LCD screen continues to show the previous screen.

The image on my connected external display is not centered or sized properly

I want to change the video resolution of my display

Troubleshooting the mouse and pointing device

My mouse does not work

My pointing device does not work properly

1 Click Start, point to Control Panel, and then click on the Mouse icon.

2 Change the button assignments in the Mouse Properties dialog box. (One of the buttons is assign...

The pointer does not move (while using the pointing device or mouse)

Troubleshooting drives, PC cards and peripheral devices

My floppy disk drive icon doesn’t appear even though it is connected

My CD or DVD drive is not playing my CD or DVD properly

My CD or DVD drive tray does not open

I cannot use digital video (DV) devices. The message “DV equipment seems to be disconnected or tu...

My PC card is not working

Troubleshooting software

My software program stops responding or crashes

When I click an application icon, the message “You must insert the application CD into your CD-RO...

I hear background “noise” while using Windows Media Player to play my musicCDs

I can not use the DVgate software

My voice-related software does not work properly

1 Click Start, point to Settings, and then point to Control Panel.

2 Click Yamaha DS-XG.

3 Click the Echo tab and remove the checkmark. Click OK.

Troubleshooting the modem

My modem does not work

My modem connection is slow

Troubleshooting audio

My speakers have no sound

1 Double click System in Control Panel.

2 Set the sound device to enable in Device Manager.

My microphone does not work

Troubleshooting Memory Stick

Image files do not open even though I insert a Memory Stick into the slot

Memory Stick does not work. I cannot access the S: drive

1 Double-click the System icon in the Control Panel and Device Manager appears. If you cannot fin...

2 Click Refresh.

Resources

Specifications

Index

VAIO® C1 PictureBook™ Notebook User Guide PCG-C1VN

VAIO® C1 PictureBook™ Notebook User Guide Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations. ENERGY STAR is a U.S. registered mark. Sony, Handycam, Mavica, Media Bar, i.LINK, MovieShaker, PictureGear, VAIO and the VAIO logo are trademarks of Sony Corporation. Microsoft, Windows Me, Windows Media, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation. Crusoe is a trademark of Transmeta Corporation. All other trademarks are trademarks of their respective owners Notice to Users © 2000 Sony Electronics Inc. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. 2

Owner’s Record The model number and serial number are located on the bottom of your Sony Digital Studio. Refer to the model and serial number when you call your Sony Service Center. Model Number: PCG-141A Serial Number:________________________ Safety Information WARNING ❑ To prevent fire or shock hazard, do not expose your notebook to rain or moisture. ❑ To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. ❑ Never install modem or telephone wiring during a lightning storm. ❑ Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. ❑ Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected at the network interface. ❑ Use caution when installing or modifying telephone lines. ❑ Avoid using the modem during an electrical storm. ❑ Do not use the modem or a telephone to report a gas leak in the vicinity of the leak. ❑ A socket outlet should be as close as possible to the unit and easily accessible. +=KJE6HA@K?AJDAHEIBBEHA KIAO $)9/H=HCAH JAA?KE?=JEEA?H@ )JJAJE)BE@AH @KEHAAI HEIGKAI@E?A@EAKJEEIAGKK ?H@@A?KE?=JE $ )9/KFKICHI AVERTISSEMENT ❑ Pour prévenir tout risque d’incendie ou d’électrocution, garder cet appareil à l’abri de la pluie et de l’humidité. ❑ Pour prévenir tout risque d’électrocution, ne pas ouvrir le châssis de cet appareil et ne confier son entretien qu’à une personne qualifiée. ❑ Ne jamais effectuer l’installation de fil modem ou téléphone durant un orage électrique. ❑ Ne jamais effectuer l’installation d’une prise téléphonique dans un endroit mouillé à moins que la prise soit conçue à cet effet. ❑ Ne jamais toucher un fil téléphonique à découvert ou un terminal à moins que la ligne téléphonique n’ait été débranché de l’interface réseau. ❑ Soyez très prudent lorsque vous installez ou modifiez les lignes téléphoniques. 3

VAIO® C1 PictureBook™ Notebook User Guide ❑ Évitez d’utiliser le modem durant un orage électrique. ❑ N’utilisez pas le modem ni le téléphone pour prévenir d’une fuite de gas si vous êtes près de la fuite. ❑ L’appareil doit être le plus près possible d’une prise murale pour en faciliter l’accès. Regulatory Information If you have any questions about this product, you can reach the Sony Customer Information Service Center at 1-888-4SONYPC; or write to the Sony Customer Information Service Center at 12451 Gateway Blvd., Ft. Meyers, FL 33913, or find Sony Customer Service on the Web at: http://www.sony.com/pcsupport. Declaration of Conformity Trade Name: SONY limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and the receiver. ❑ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Model No.: PCG-141A ❑ Consult the dealer or an Responsible Party: Address: Sony Electronics Inc. 1 Sony Drive Park Ridge, NJ 07656 Telephone: 201-930-6972 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Rules. These 4 experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC Class B limits may be attached to this computer product. Operation with non-compliant peripherals is likely to result in interference to radio and television reception. All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded, may result in interference to radio and television reception.

FCC Part 68 This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. This modem uses the USOC RJ-11 telephone jack. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area. If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operations of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, you can reach the Sony Customer Information Service Center at 1-888-4SONYPC; or write to the Sony Customer Information Service Center at 12451 Gateway Blvd., FL 33913, or find Sony Customer Service on the web at http://www.sony.com/pcsupport. Repair of this equipment should be made only by a Sony Service Center or Sony authorized agent. For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-6972). This equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state and possible provincial tariffs. (Contact the state or provincial utility service commission, public service commission, or corporation commission for information.) Telephone Consumer Protection Act of 1991 (United States) The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual. In order to program this information into your facsimile machine, see your fax software documentation. 5

VAIO® C1 PictureBook™ Notebook User Guide ,=CAHBANFIEEB>=JJAHOEI E?HHA?JOHAF=?A@4AF=?AO MEJDJDAI=AHAGKEL=AJJOFA HA?A@A@>OJDA =KB=?JKHAH,EI?=H@KIA@ >=JJAHEAI=??H@ECJJDA =KB=?JKHAH\IEIJHK?JEI 7A>=JJAHEA?BHA FH IAJAK@=CAH@ANFIE =HAF=?AHIAKAAJF=HKA >=JJAHEAE@AJEGKAK@AJOFA GKEL=AJHA?=@ F=HA B=>HE?=J L=?KAHAI>=JJAHEAI KI AIIAAI@EHA?JELAI@K B=>HE?=J 6DA>=JJAHOF=?KIA@EJDEI @ALE?A=OFHAIAJ=BEHAH ?DAE?=>KHD==H@EB EIJHA=JA@,J@EI=IIA>A DA=J=>LA °.°+H E?EAH=JA ,EIFIABKIA@>=JJAHOFHFJO AAF=M=OBH?DE@HA ==KJAJEE?HHA?JA@K @KA@A>=JJAHEA@A?AJ=FF=HAE FH IAJAKHEIGKA@E?A@EAK @A>H6KHAI?DEEGKAIAF=I @ JAHE?E HAHKANFIAH KAJAF H=JKHA@AFKI@A+ L=?KAHFHFJAAJ=>=JJAHEA KI A/=H@AHDHI@AFHJ A@AI AB=JI Telephone Consumer Guidelines (Canada) Please refer to your telephone directory under ‘Privacy Issues’ and/or ‘Terms of Service.’ For more detailed information, please contact: CRTC Terrasses de la Chaudiére, Tour centrale 1 promenade du Portage, 5 étage Hull PQ K1A 0N2. This Class B digital apparatus complies with Canadian ICES-003. Cet àppareil numérique de la classe B est conforme à la norme NMB-003 du Canada. DISPOSAL OF LITHIUM-ION BATTERY You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center. ✍ 1IA=HA=IJDA@EIFI=BEJDEK E>=JJAHEAIEDKIAD@H >KIEAIIJH=ID=O>AFHDE>EJA@ For the Sony Service Center nearest you, call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada. ,JD=@A@==CA@HA=EC EJDEKE>=JJAHEAI AF=I=EFKAHAI>=JJAHEAI=K EJDEKEGKEBKEAJKIJ A@=C AI 6

INDUSTRY CANADA NOTICE NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Equipment malfunctions or any repairs or alterations made by the user to this equipment may give the telecommunications company cause to request that the user disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. The Ringer Equivalence Number for this equipment is 0.1. AVIS DE L’INDUSTRIE CANADA AVIS: L’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur. Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations. Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement. Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales. Avertissement: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit 7

分享到：

赞收藏

资料库

SONY索尼笔记本电脑-PCG-C1VN说明书.pdf

相关推荐

笔记本电脑

热门标签

最新资料
