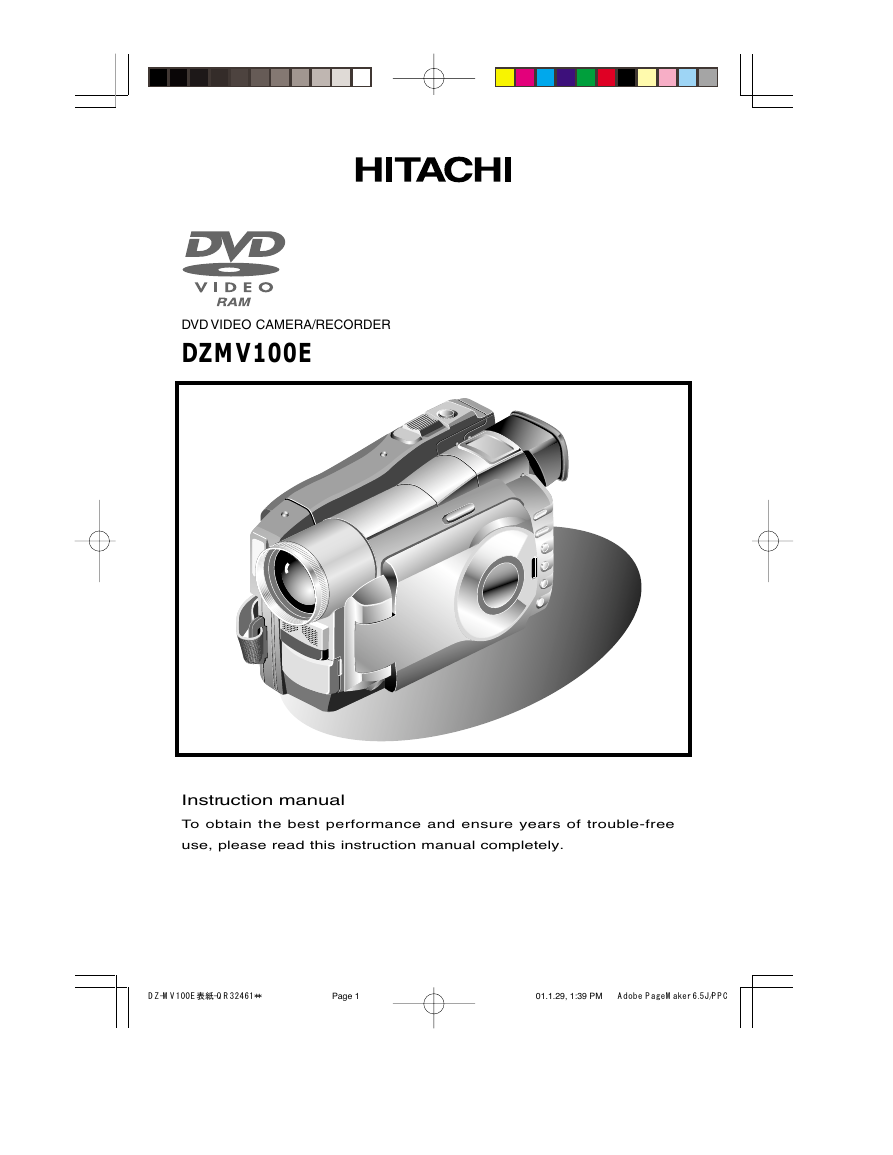

DVD VIDEO CAMERA/RECORDER DZMV100E Instruction manual To obtain the best performance and ensure years of trouble-free use, please read this instruction manual completely. DZ-MV100E表紙-QR32461** Page 1 01.1.29, 1:39 PM Adobe PageMaker 6.5J/PPC

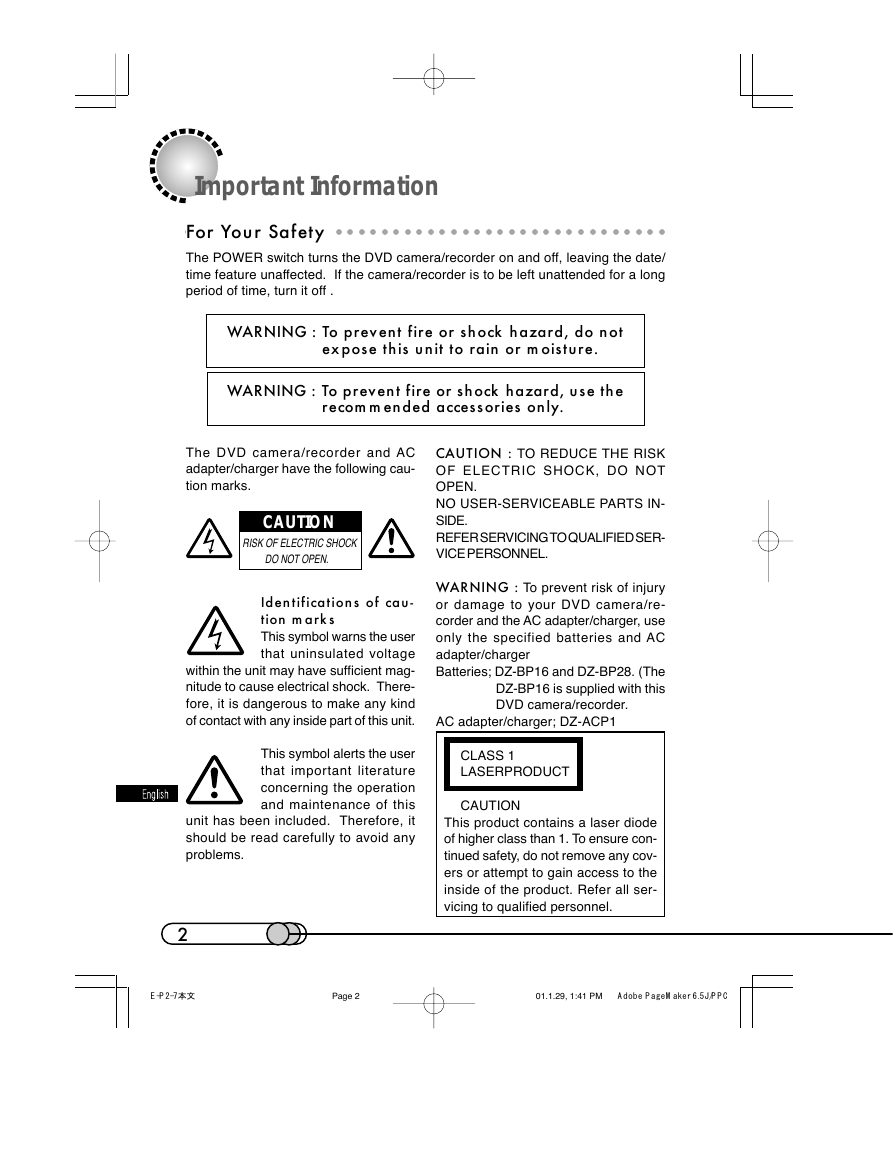

Important Information ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ For Your Safety The POWER switch turns the DVD camera/recorder on and off, leaving the date/ time feature unaffected. If the camera/recorder is to be left unattended for a long period of time, turn it off . WARNING : To prevent fire or shock hazard, do not expose this unit to rain or moisture. WARNING : To prevent fire or shock hazard, use the recommended accessories only. The DVD camera/recorder and AC adapter/charger have the following cau- tion marks. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN. Identifications of cau- tion marks This symbol warns the user that uninsulated voltage within the unit may have sufficient mag- nitude to cause electrical shock. There- fore, it is dangerous to make any kind of contact with any inside part of this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully to avoid any problems. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN. NO USER-SERVICEABLE PARTS IN- SIDE. REFER SERVICING TO QUALIFIED SER- VICE PERSONNEL. WARNING : To prevent risk of injury or damage to your DVD camera/re- corder and the AC adapter/charger, use only the specified batteries and AC adapter/charger Batteries; DZ-BP16 and DZ-BP28. (The DZ-BP16 is supplied with this DVD camera/recorder. AC adapter/charger; DZ-ACP1 CLASS 1 LASERPRODUCT CAUTION This product contains a laser diode of higher class than 1. To ensure con- tinued safety, do not remove any cov- ers or attempt to gain access to the inside of the product. Refer all ser- vicing to qualified personnel. 2 E-P2-7本文 Page 2 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC

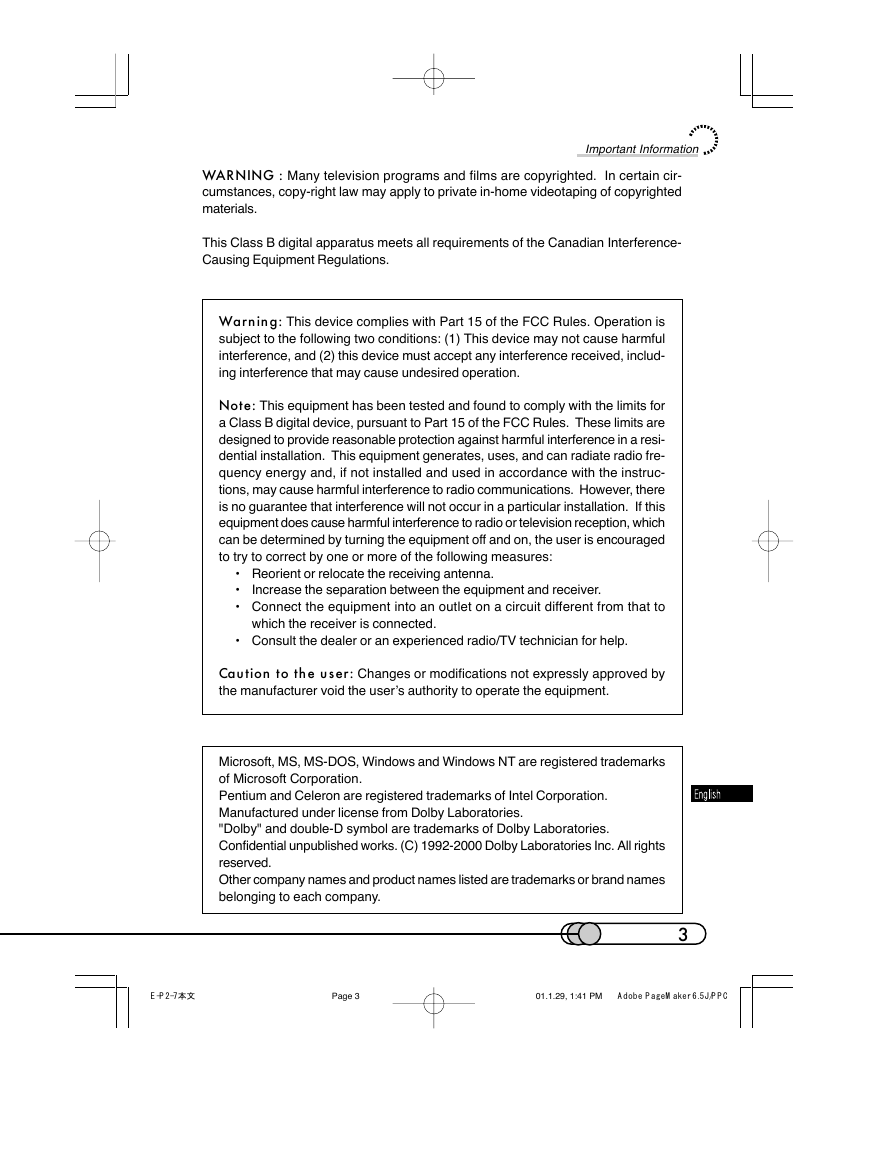

Important Information WARNING : Many television programs and films are copyrighted. In certain cir- cumstances, copy-right law may apply to private in-home videotaping of copyrighted materials. This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation. This equipment generates, uses, and can radiate radio fre- quency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct by one or more of the following measures: • Reorient or relocate the receiving antenna. • • Connect the equipment into an outlet on a circuit different from that to Increase the separation between the equipment and receiver. which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution to the user: Changes or modifications not expressly approved by the manufacturer void the user’s authority to operate the equipment. Microsoft, MS, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft Corporation. Pentium and Celeron are registered trademarks of Intel Corporation. Manufactured under license from Dolby Laboratories. "Dolby" and double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. (C) 1992-2000 Dolby Laboratories Inc. All rights reserved. Other company names and product names listed are trademarks or brand names belonging to each company. 3 E-P2-7本文 Page 3 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC

IMPORTANT SAFEGUARDS In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a major factor in the design of every instrument. But, safety is your responsibility too. This page lists important information that will help to assure your enjoyment and proper use of DVD camera/recorder and accessory equipment. Please read it carefully before operating your video product and keep it in a handy place for future refer- ence. ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ INSTALLATION 1 Read and Follow Instructions — All the safety and operating instruc- tions should be read before the video product is operated. Follow all operating and use instructions. 2 Retain Instructions – The safety and operating instructions should be re- tained for future reference. 3 Heed Warnings – Comply with all warnings on the video product and in the operating instructions. 4 Polarized Plug – This video prod- uct is equipped with a polarized alternat- ing – current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to re- place your obsolete outlet. To prevent electric shock do not use this polarized plug with an extension cable, receptacle or other outlet unless the blades can be fully inserted without blade exposure. If you need an extension, use a polarized cable. 5 Power Sources – This video prod- uct should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions. 6 Overloading – Do not overload wall outlets and extension cables as this can result in a risk of fire or electric shock. Overloaded AC outlets and extension cables are dangerous, and so are frayed power cables, damaged or cracked wire insulation and broken plugs. They may result in a shock or fire hazard. Periodi- cally examine the cord and have it re- placed by your ser- vice technician if ap- pearance indicates damage or deterio- rated insulation. 7 Power – Cable Protection – Power-supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cables at plugs, convenience receptacles, and the point where they exit from the appli- ance. 4 E-P2-7本文 Page 4 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC

Important Safeguards tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the prod- uct should follow the manufacturer’s in- structions, and should use a mounting accessory recommended by the manu- facturer. 12 An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven sur- faces may cause the appliance and cart combination to overturn. 13 Power Lines – An outside antenna system should not be located in the vicin- ity of overhead power lines or other elec- tric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, ex- treme care should be taken to keep from touching or approaching such power lines or circuits as contact with them might be fatal. Installing an outdoor antenna can be hazardous and should be left to a pro- fessional antenna installer. 8 Ventilation – Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the video product and to protect it from overheat- ing. These openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar sur- face. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper venti- lation is provided or the video product manufacturer’s instructions have been followed. 9 Attachments – Do not use attach- ments unless recommended by the video product manufacturer as they may cause hazards. Caution: Maintain electrical safety. Powerline operated equipment or acces- sories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not have been modified so as to defeat the safety features. This will help avoid any potential hazard from electric shock or fire. If in doubt, contact qualified ser- vice personnel. 10 Water and Moisture – Do not use this video product near water -for ex- ample, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet base- ment, or near a swimming pool, and the like. 11 Accessories – Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video prod- uct may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, E-P2-7本文 Page 5 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC 5

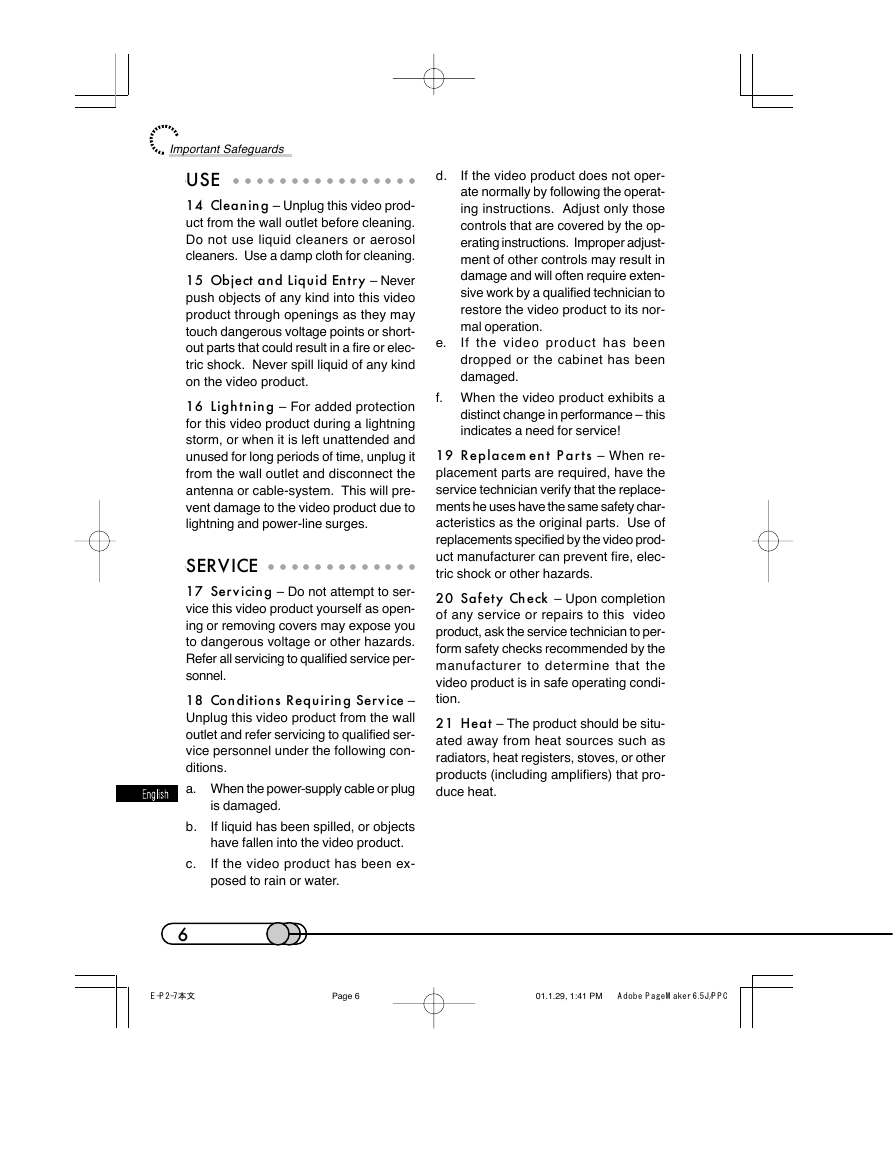

d. e. If the video product does not oper- ate normally by following the operat- ing instructions. Adjust only those controls that are covered by the op- erating instructions. Improper adjust- ment of other controls may result in damage and will often require exten- sive work by a qualified technician to restore the video product to its nor- mal operation. If the video product has been dropped or the cabinet has been damaged. f. When the video product exhibits a distinct change in performance – this indicates a need for service! 19 Replacement Parts – When re- placement parts are required, have the service technician verify that the replace- ments he uses have the same safety char- acteristics as the original parts. Use of replacements specified by the video prod- uct manufacturer can prevent fire, elec- tric shock or other hazards. 20 Safety Check – Upon completion of any service or repairs to this video product, ask the service technician to per- form safety checks recommended by the manufacturer to determine that the video product is in safe operating condi- tion. 21 Heat – The product should be situ- ated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that pro- duce heat. Important Safeguards ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ USE 14 Cleaning – Unplug this video prod- uct from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 15 Object and Liquid Entry – Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short- out parts that could result in a fire or elec- tric shock. Never spill liquid of any kind on the video product. 16 Lightning – For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable-system. This will pre- vent damage to the video product due to lightning and power-line surges. ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ SERVICE 17 Servicing – Do not attempt to ser- vice this video product yourself as open- ing or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service per- sonnel. 18 Conditions Requiring Service – Unplug this video product from the wall outlet and refer servicing to qualified ser- vice personnel under the following con- ditions. a. When the power–supply cable or plug is damaged. If liquid has been spilled, or objects have fallen into the video product. If the video product has been ex- posed to rain or water. b. c. 6 E-P2-7本文 Page 6 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC

Read This First E-P2-7本文 Page 7 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC 7

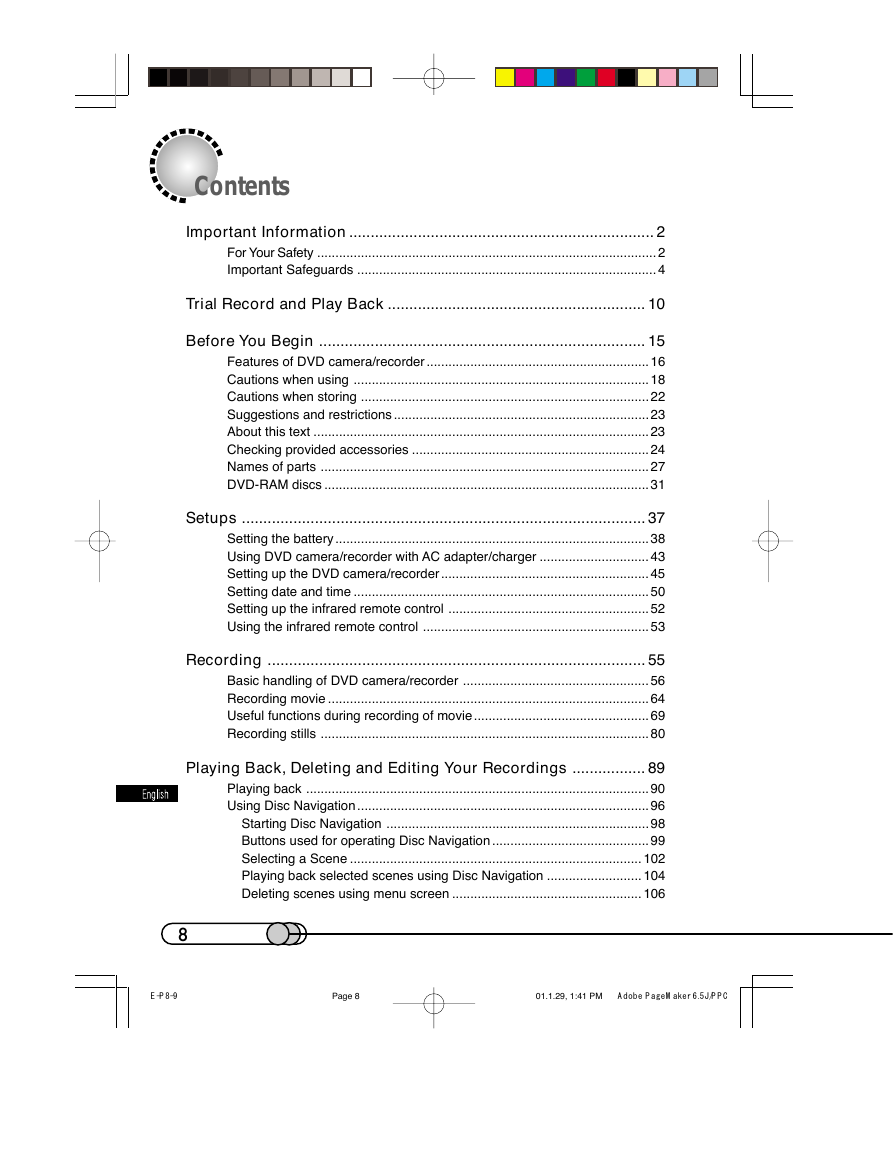

Contents Important Information ....................................................................... 2 For Your Safety ............................................................................................. 2 Important Safeguards .................................................................................. 4 Trial Record and Play Back ............................................................ 10 Before You Begin ............................................................................ 15 Features of DVD camera/recorder ............................................................. 16 Cautions when using ................................................................................. 18 Cautions when storing ............................................................................... 22 Suggestions and restrictions ......................................................................23 About this text ............................................................................................ 23 Checking provided accessories ................................................................. 24 Names of parts .......................................................................................... 27 DVD-RAM discs ......................................................................................... 31 Setups .............................................................................................. 37 Setting the battery ...................................................................................... 38 Using DVD camera/recorder with AC adapter/charger .............................. 43 Setting up the DVD camera/recorder ......................................................... 45 Setting date and time ................................................................................. 50 Setting up the infrared remote control ....................................................... 52 Using the infrared remote control .............................................................. 53 Recording ........................................................................................ 55 Basic handling of DVD camera/recorder ................................................... 56 Recording movie ........................................................................................ 64 Useful functions during recording of movie ................................................ 69 Recording stills .......................................................................................... 80 Playing Back, Deleting and Editing Your Recordings ................. 89 Playing back .............................................................................................. 90 Using Disc Navigation ................................................................................ 96 Starting Disc Navigation ........................................................................ 98 Buttons used for operating Disc Navigation ........................................... 99 Selecting a Scene ................................................................................ 102 Playing back selected scenes using Disc Navigation .......................... 104 Deleting scenes using menu screen .................................................... 106 8 E-P8-9 Page 8 01.1.29, 1:41 PM Adobe PageMaker 6.5J/PPC
