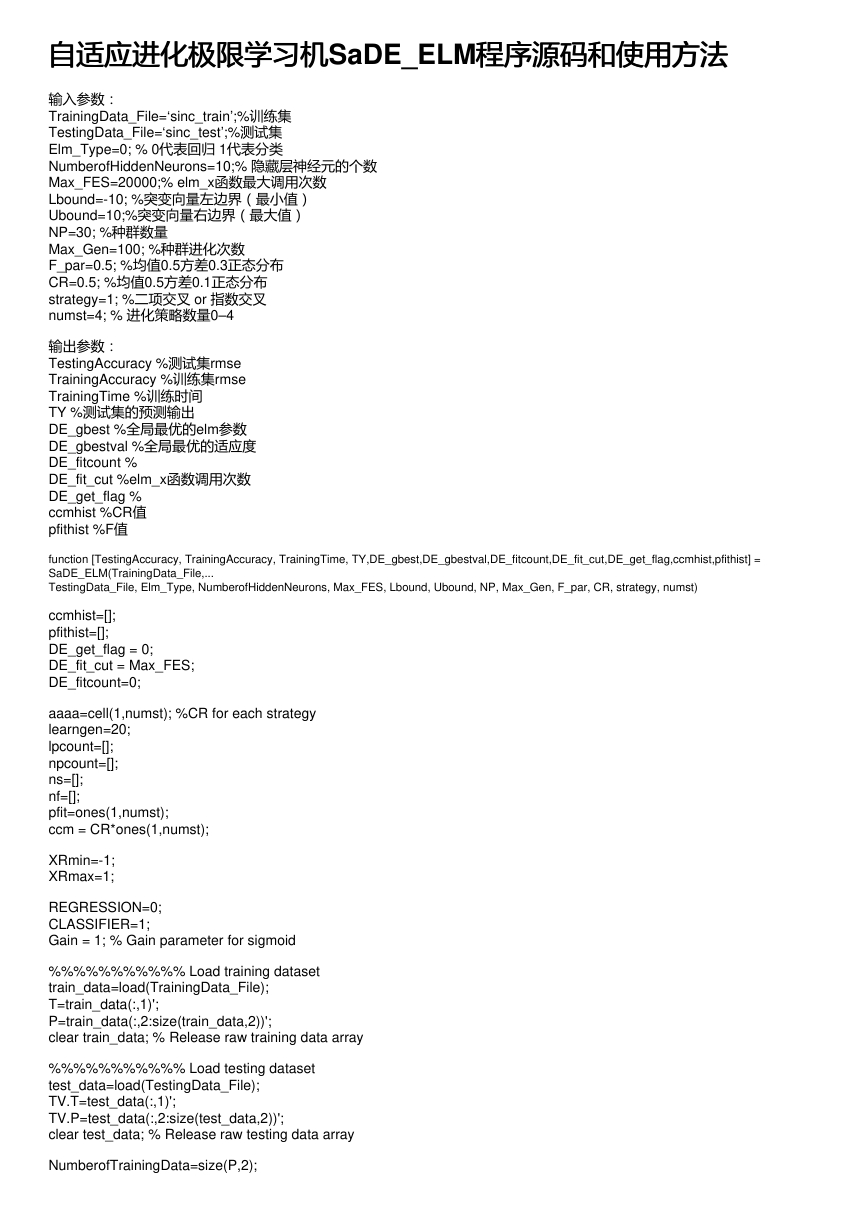

自适应进化极限学习机SaDE_ELM程序源码和使用方法
自适应进化极限学习机
程序源码和使用方法
输入参数：
TrainingData_File=‘sinc_train’;%训练集
TestingData_File=‘sinc_test’;%测试集
Elm_Type=0; % 0代表回归 1代表分类
NumberofHiddenNeurons=10;% 隐藏层神经元的个数
Max_FES=20000;% elm_x函数最大调用次数
Lbound=-10; %突变向量左边界（最小值）
Ubound=10;%突变向量右边界（最大值）
NP=30; %种群数量
Max_Gen=100; %种群进化次数
F_par=0.5; %均值0.5方差0.3正态分布
CR=0.5; %均值0.5方差0.1正态分布
strategy=1; %二项交叉 or 指数交叉
numst=4; % 进化策略数量0–4
输出参数：
TestingAccuracy %测试集rmse
TrainingAccuracy %训练集rmse
TrainingTime %训练时间
TY %测试集的预测输出
DE_gbest %全局最优的elm参数
DE_gbestval %全局最优的适应度
DE_fitcount %
DE_fit_cut %elm_x函数调用次数
DE_get_flag %
ccmhist %CR值
pfithist %F值
function [TestingAccuracy, TrainingAccuracy, TrainingTime, TY,DE_gbest,DE_gbestval,DE_fitcount,DE_fit_cut,DE_get_flag,ccmhist,pfithist] =
SaDE_ELM(TrainingData_File,...
TestingData_File, Elm_Type, NumberofHiddenNeurons, Max_FES, Lbound, Ubound, NP, Max_Gen, F_par, CR, strategy, numst)
ccmhist=[];
pfithist=[];
DE_get_flag = 0;
DE_fit_cut = Max_FES;
DE_fitcount=0;
aaaa=cell(1,numst); %CR for each strategy
learngen=20;
lpcount=[];
npcount=[];
ns=[];
nf=[];
pfit=ones(1,numst);
ccm = CR*ones(1,numst);
XRmin=-1;
XRmax=1;
REGRESSION=0;
CLASSIFIER=1;
Gain = 1; % Gain parameter for sigmoid
%%%%%%%%%%% Load training dataset
train_data=load(TrainingData_File);
T=train_data(:,1)';
P=train_data(:,2:size(train_data,2))';
clear train_data; % Release raw training data array
%%%%%%%%%%% Load testing dataset
test_data=load(TestingData_File);
TV.T=test_data(:,1)';
TV.P=test_data(:,2:size(test_data,2))';
clear test_data; % Release raw testing data array
NumberofTrainingData=size(P,2);
NumberofTestingData=size(TV.P,2);
NumberofInputNeurons=size(P,1);
NumberofValidationData = round(NumberofTestingData / 2);
if Elm_Type~=REGRESSION
%%%%%%%%%%%% Preprocessing the data of classification
sorted_target=sort(cat(2,T,TV.T),2);
label=zeros(1,1); % Find and save in 'label' class label from training and testing data sets
label(1,1)=sorted_target(1,1);
j=1;
for i = 2:(NumberofTrainingData+NumberofTestingData)
if sorted_target(1,i) ~= label(1,j)
j=j+1;
label(1,j) = sorted_target(1,i);
end
end
number_class=j;
NumberofOutputNeurons=number_class;
%%%%%%%%%% Processing the targets of training
temp_T=zeros(NumberofOutputNeurons, NumberofTrainingData);
for i = 1:NumberofTrainingData
for j = 1:number_class
if label(1,j) == T(1,i)
break;
end
end
temp_T(j,i)=1;
end
T=temp_T*2-1;
%%%%%%%%%% Processing the targets of testing
temp_TV_T=zeros(NumberofOutputNeurons, NumberofTestingData);
for i = 1:NumberofTestingData
for j = 1:number_class
if label(1,j) == TV.T(1,i)
break;
end
end
temp_TV_T(j,i)=1;
end
TV.T=temp_TV_T*2-1;
end % end if of Elm_Type
clear temp_T;
clear temp_T;
VV.P = TV.P(:,1:NumberofValidationData);
VV.T = TV.T(:,1:NumberofValidationData);
TV.P(:,1:NumberofValidationData)=[];
TV.T(:,1:NumberofValidationData)=[];
NumberofTestingData = NumberofTestingData - NumberofValidationData;
D=NumberofHiddenNeurons*(NumberofInputNeurons+1);
tolerance = 0.02;
start_time_validation=cputime;
%-----Initialize population and some arrays-------------------------------
pop = zeros(NP,D);
XRRmin=repmat(XRmin,NP,D);
XRRmax=repmat(XRmax,NP,D);
%rand('state',state_no);
pop=XRRmin+(XRRmax-XRRmin).*rand(NP,D);%initialize pop to gain speed
popold = zeros(size(pop)); % toggle population
val = zeros(1,NP); % create and reset the "cost array"
DE_gbest = zeros(1,D); % best population member ever
nfeval = 0; % number of function evaluations
%------Evaluate the best member after initialization----------------------
ibest = 1; % start with first population member

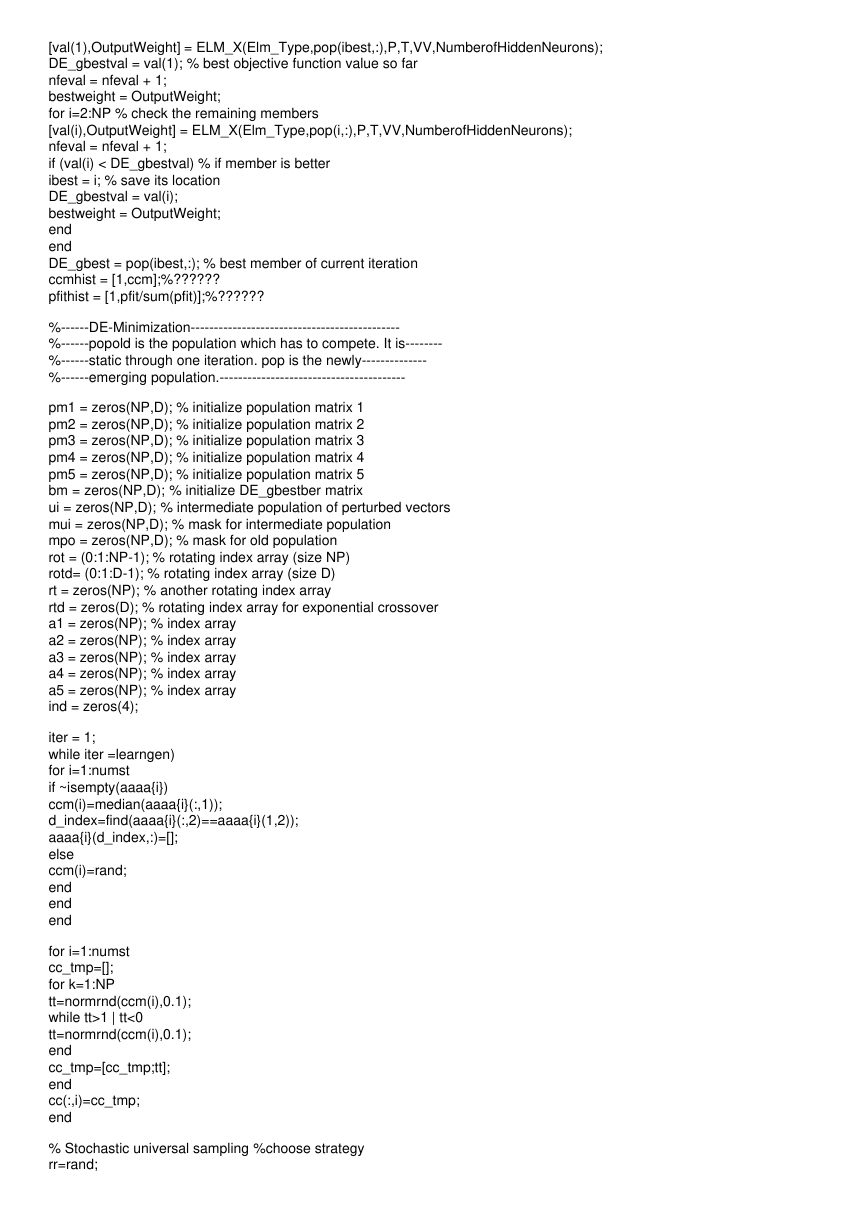

[val(1),OutputWeight] = ELM_X(Elm_Type,pop(ibest,:),P,T,VV,NumberofHiddenNeurons);
DE_gbestval = val(1); % best objective function value so far
nfeval = nfeval + 1;
bestweight = OutputWeight;
for i=2:NP % check the remaining members
[val(i),OutputWeight] = ELM_X(Elm_Type,pop(i,:),P,T,VV,NumberofHiddenNeurons);
nfeval = nfeval + 1;
if (val(i) < DE_gbestval) % if member is better
ibest = i; % save its location
DE_gbestval = val(i);
bestweight = OutputWeight;
end
end
DE_gbest = pop(ibest,:); % best member of current iteration
ccmhist = [1,ccm];%??????
pfithist = [1,pfit/sum(pfit)];%??????
%------DE-Minimization---------------------------------------------
%------popold is the population which has to compete. It is--------
%------static through one iteration. pop is the newly--------------
%------emerging population.----------------------------------------
pm1 = zeros(NP,D); % initialize population matrix 1
pm2 = zeros(NP,D); % initialize population matrix 2
pm3 = zeros(NP,D); % initialize population matrix 3
pm4 = zeros(NP,D); % initialize population matrix 4
pm5 = zeros(NP,D); % initialize population matrix 5
bm = zeros(NP,D); % initialize DE_gbestber matrix
ui = zeros(NP,D); % intermediate population of perturbed vectors
mui = zeros(NP,D); % mask for intermediate population
mpo = zeros(NP,D); % mask for old population
rot = (0:1:NP-1); % rotating index array (size NP)
rotd= (0:1:D-1); % rotating index array (size D)
rt = zeros(NP); % another rotating index array
rtd = zeros(D); % rotating index array for exponential crossover
a1 = zeros(NP); % index array
a2 = zeros(NP); % index array
a3 = zeros(NP); % index array
a4 = zeros(NP); % index array
a5 = zeros(NP); % index array
ind = zeros(4);
iter = 1;
while iter =learngen)
for i=1:numst
if ~isempty(aaaa{i})
ccm(i)=median(aaaa{i}(:,1));
d_index=find(aaaa{i}(:,2)==aaaa{i}(1,2));
aaaa{i}(d_index,:)=[];
else
ccm(i)=rand;
end
end
end
for i=1:numst
cc_tmp=[];
for k=1:NP
tt=normrnd(ccm(i),0.1);
while tt>1 | tt<0
tt=normrnd(ccm(i),0.1);
end
cc_tmp=[cc_tmp;tt];
end
cc(:,i)=cc_tmp;
end
% Stochastic universal sampling %choose strategy
rr=rand;

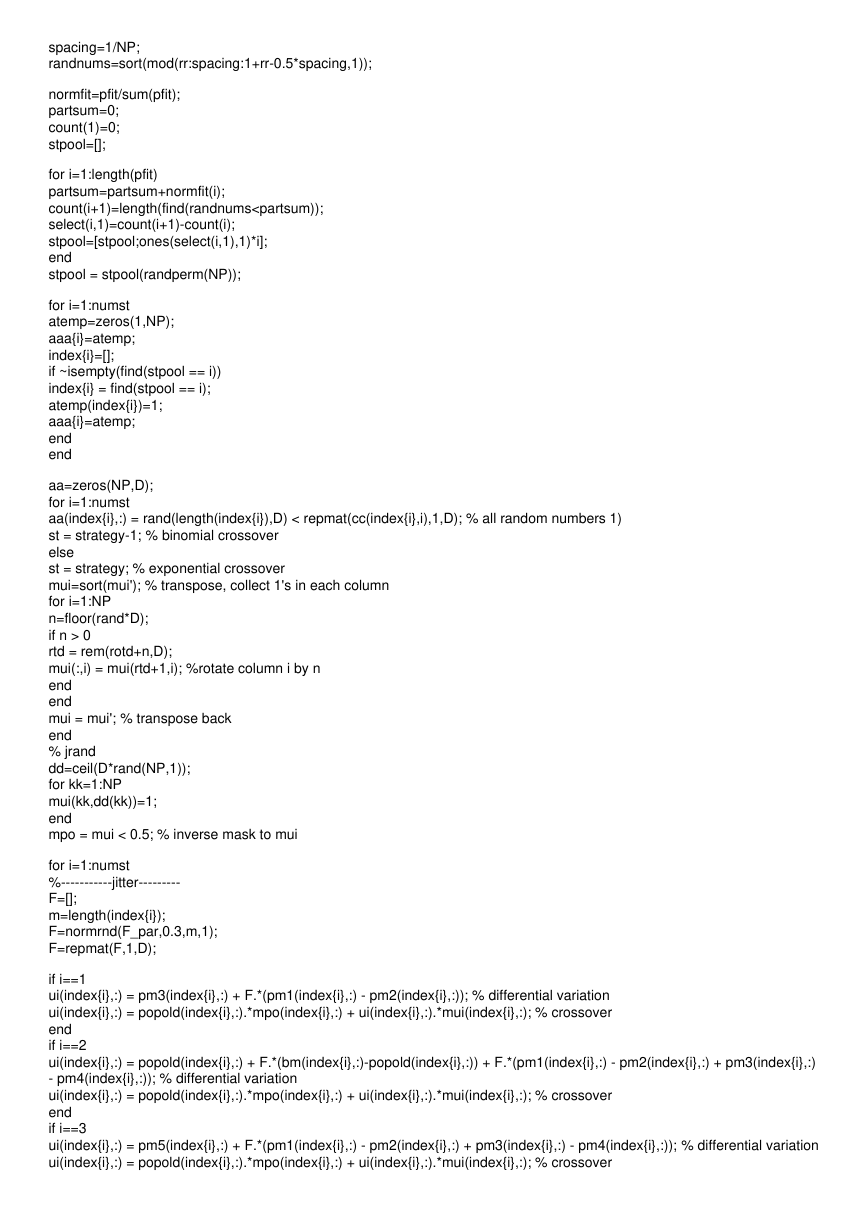

spacing=1/NP;
randnums=sort(mod(rr:spacing:1+rr-0.5*spacing,1));
normfit=pfit/sum(pfit);
partsum=0;
count(1)=0;
stpool=[];
for i=1:length(pfit)
partsum=partsum+normfit(i);
count(i+1)=length(find(randnums 0
rtd = rem(rotd+n,D);
mui(:,i) = mui(rtd+1,i); %rotate column i by n
end
end
mui = mui'; % transpose back
end
% jrand
dd=ceil(D*rand(NP,1));
for kk=1:NP
mui(kk,dd(kk))=1;
end
mpo = mui < 0.5; % inverse mask to mui
for i=1:numst
%-----------jitter---------
F=[];
m=length(index{i});
F=normrnd(F_par,0.3,m,1);
F=repmat(F,1,D);
if i==1
ui(index{i},:) = pm3(index{i},:) + F.*(pm1(index{i},:) - pm2(index{i},:)); % differential variation
ui(index{i},:) = popold(index{i},:).*mpo(index{i},:) + ui(index{i},:).*mui(index{i},:); % crossover
end
if i==2
ui(index{i},:) = popold(index{i},:) + F.*(bm(index{i},:)-popold(index{i},:)) + F.*(pm1(index{i},:) - pm2(index{i},:) + pm3(index{i},:)
- pm4(index{i},:)); % differential variation
ui(index{i},:) = popold(index{i},:).*mpo(index{i},:) + ui(index{i},:).*mui(index{i},:); % crossover
end
if i==3
ui(index{i},:) = pm5(index{i},:) + F.*(pm1(index{i},:) - pm2(index{i},:) + pm3(index{i},:) - pm4(index{i},:)); % differential variation
ui(index{i},:) = popold(index{i},:).*mpo(index{i},:) + ui(index{i},:).*mui(index{i},:); % crossover
end

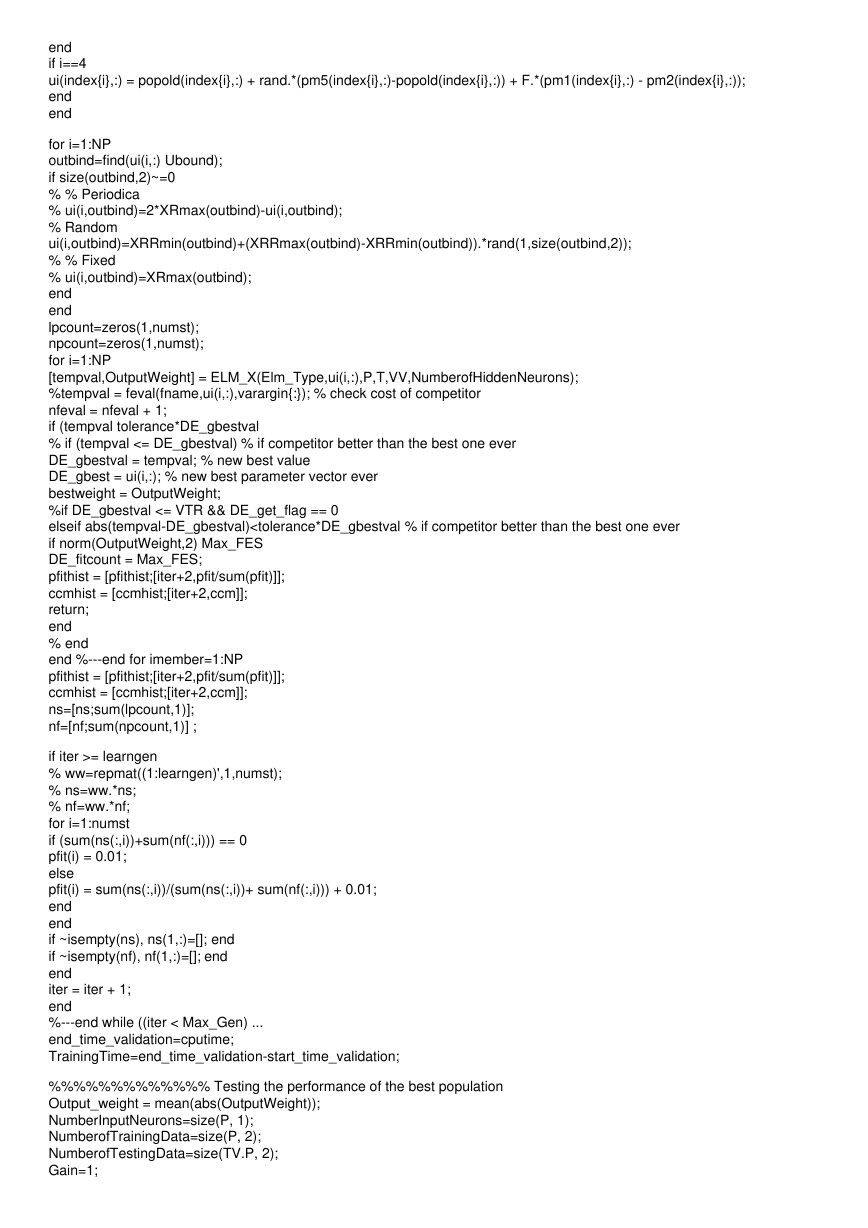

if i==4
ui(index{i},:) = popold(index{i},:) + rand.*(pm5(index{i},:)-popold(index{i},:)) + F.*(pm1(index{i},:) - pm2(index{i},:));
end
end
for i=1:NP
outbind=find(ui(i,:) Ubound);
if size(outbind,2)~=0
% % Periodica
% ui(i,outbind)=2*XRmax(outbind)-ui(i,outbind);
% Random
ui(i,outbind)=XRRmin(outbind)+(XRRmax(outbind)-XRRmin(outbind)).*rand(1,size(outbind,2));
% % Fixed
% ui(i,outbind)=XRmax(outbind);
end
end
lpcount=zeros(1,numst);
npcount=zeros(1,numst);
for i=1:NP
[tempval,OutputWeight] = ELM_X(Elm_Type,ui(i,:),P,T,VV,NumberofHiddenNeurons);
%tempval = feval(fname,ui(i,:),varargin{:}); % check cost of competitor
nfeval = nfeval + 1;
if (tempval tolerance*DE_gbestval
% if (tempval <= DE_gbestval) % if competitor better than the best one ever
DE_gbestval = tempval; % new best value
DE_gbest = ui(i,:); % new best parameter vector ever
bestweight = OutputWeight;
%if DE_gbestval <= VTR && DE_get_flag == 0
elseif abs(tempval-DE_gbestval)= learngen
% ww=repmat((1:learngen)',1,numst);
% ns=ww.*ns;
% nf=ww.*nf;
for i=1:numst
if (sum(ns(:,i))+sum(nf(:,i))) == 0
pfit(i) = 0.01;
else
pfit(i) = sum(ns(:,i))/(sum(ns(:,i))+ sum(nf(:,i))) + 0.01;
end
end
if ~isempty(ns), ns(1,:)=[]; end
if ~isempty(nf), nf(1,:)=[]; end
end
iter = iter + 1;
end
%---end while ((iter < Max_Gen) ...
end_time_validation=cputime;
TrainingTime=end_time_validation-start_time_validation;
%%%%%%%%%%%%% Testing the performance of the best population
Output_weight = mean(abs(OutputWeight));
NumberInputNeurons=size(P, 1);
NumberofTrainingData=size(P, 2);
NumberofTestingData=size(TV.P, 2);
Gain=1;

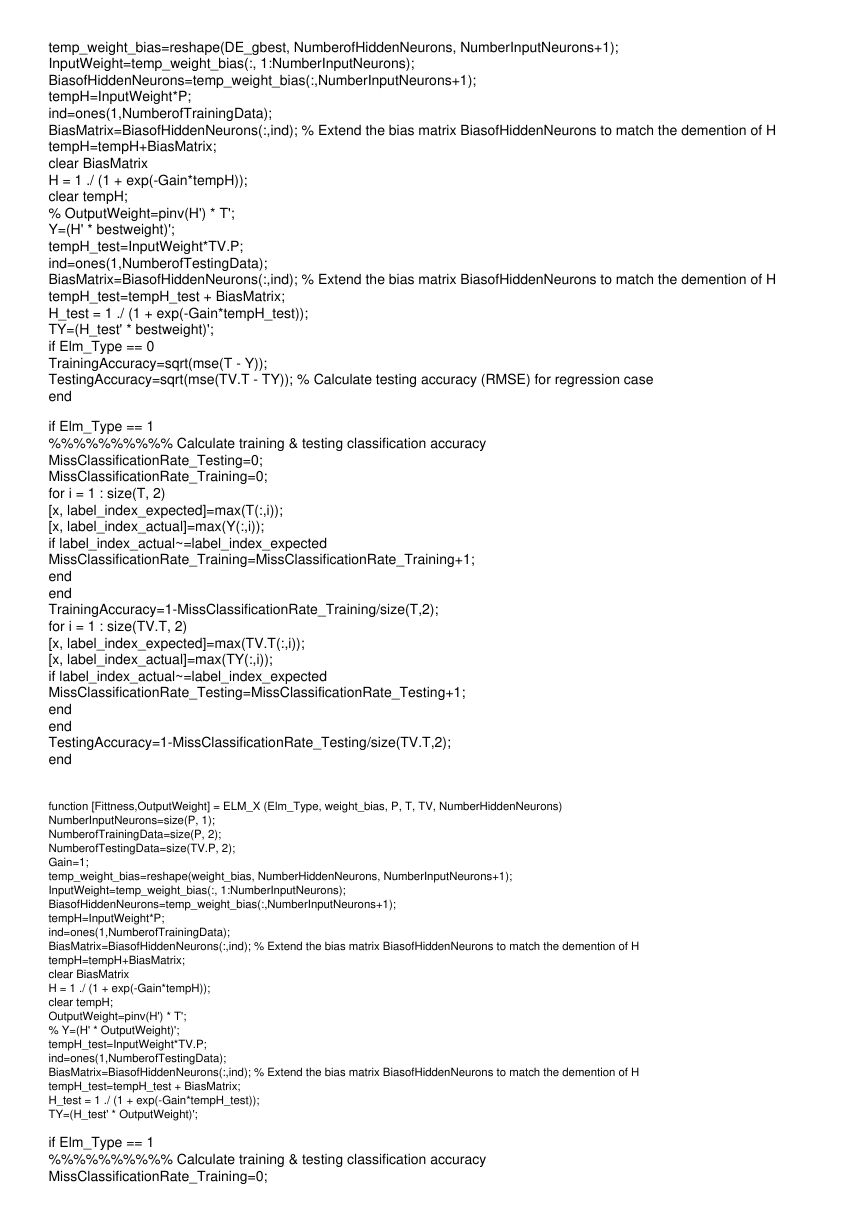

temp_weight_bias=reshape(DE_gbest, NumberofHiddenNeurons, NumberInputNeurons+1);
InputWeight=temp_weight_bias(:, 1:NumberInputNeurons);
BiasofHiddenNeurons=temp_weight_bias(:,NumberInputNeurons+1);
tempH=InputWeight*P;
ind=ones(1,NumberofTrainingData);
BiasMatrix=BiasofHiddenNeurons(:,ind); % Extend the bias matrix BiasofHiddenNeurons to match the demention of H
tempH=tempH+BiasMatrix;
clear BiasMatrix
H = 1 ./ (1 + exp(-Gain*tempH));
clear tempH;
% OutputWeight=pinv(H') * T';
Y=(H' * bestweight)';
tempH_test=InputWeight*TV.P;
ind=ones(1,NumberofTestingData);
BiasMatrix=BiasofHiddenNeurons(:,ind); % Extend the bias matrix BiasofHiddenNeurons to match the demention of H
tempH_test=tempH_test + BiasMatrix;
H_test = 1 ./ (1 + exp(-Gain*tempH_test));
TY=(H_test' * bestweight)';
if Elm_Type == 0
TrainingAccuracy=sqrt(mse(T - Y));
TestingAccuracy=sqrt(mse(TV.T - TY)); % Calculate testing accuracy (RMSE) for regression case
end
if Elm_Type == 1
%%%%%%%%%% Calculate training & testing classification accuracy
MissClassificationRate_Testing=0;
MissClassificationRate_Training=0;
for i = 1 : size(T, 2)
[x, label_index_expected]=max(T(:,i));
[x, label_index_actual]=max(Y(:,i));
if label_index_actual~=label_index_expected
MissClassificationRate_Training=MissClassificationRate_Training+1;
end
end
TrainingAccuracy=1-MissClassificationRate_Training/size(T,2);
for i = 1 : size(TV.T, 2)
[x, label_index_expected]=max(TV.T(:,i));
[x, label_index_actual]=max(TY(:,i));
if label_index_actual~=label_index_expected
MissClassificationRate_Testing=MissClassificationRate_Testing+1;
end
end
TestingAccuracy=1-MissClassificationRate_Testing/size(TV.T,2);
end
function [Fittness,OutputWeight] = ELM_X (Elm_Type, weight_bias, P, T, TV, NumberHiddenNeurons)
NumberInputNeurons=size(P, 1);
NumberofTrainingData=size(P, 2);
NumberofTestingData=size(TV.P, 2);
Gain=1;
temp_weight_bias=reshape(weight_bias, NumberHiddenNeurons, NumberInputNeurons+1);
InputWeight=temp_weight_bias(:, 1:NumberInputNeurons);
BiasofHiddenNeurons=temp_weight_bias(:,NumberInputNeurons+1);
tempH=InputWeight*P;
ind=ones(1,NumberofTrainingData);
BiasMatrix=BiasofHiddenNeurons(:,ind); % Extend the bias matrix BiasofHiddenNeurons to match the demention of H
tempH=tempH+BiasMatrix;
clear BiasMatrix
H = 1 ./ (1 + exp(-Gain*tempH));
clear tempH;
OutputWeight=pinv(H') * T';
% Y=(H' * OutputWeight)';
tempH_test=InputWeight*TV.P;
ind=ones(1,NumberofTestingData);
BiasMatrix=BiasofHiddenNeurons(:,ind); % Extend the bias matrix BiasofHiddenNeurons to match the demention of H
tempH_test=tempH_test + BiasMatrix;
H_test = 1 ./ (1 + exp(-Gain*tempH_test));
TY=(H_test' * OutputWeight)';
if Elm_Type == 1
%%%%%%%%%% Calculate training & testing classification accuracy
MissClassificationRate_Training=0;

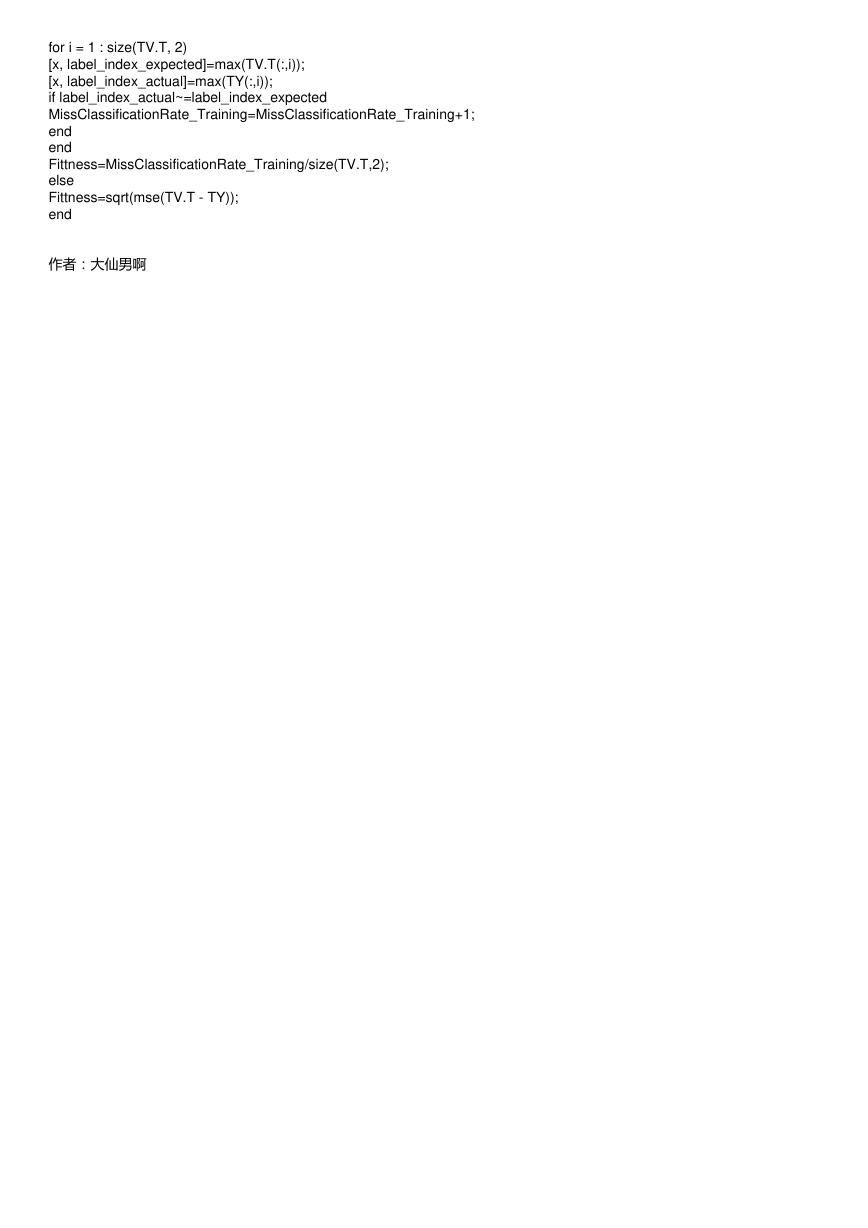

for i = 1 : size(TV.T, 2)
[x, label_index_expected]=max(TV.T(:,i));
[x, label_index_actual]=max(TY(:,i));
if label_index_actual~=label_index_expected
MissClassificationRate_Training=MissClassificationRate_Training+1;
end
end
Fittness=MissClassificationRate_Training/size(TV.T,2);
else
Fittness=sqrt(mse(TV.T - TY));
end
作者：大仙男啊
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
