Vol.1

Before Using The Parts List

OVERVIEW

1/2

2/2

CONTENTS Vol.1

PLACING HEAD

V12 HEAD

1/4

2/4

3/4

4/4

V12 HEAD (AUTO BACKUP PIN EQUIPMENT)

H12HS HEAD

1/3

2/3

3/3

H12HS HEAD (AUTO BACKUP PIN EQUIPMENT)

H12HSQ HEAD (Head with part side recognition)

H08M HEAD

1/4

2/4

3/4

4/4

H08M HEAD (AUTO BACKUP PIN EQUIPMENT)

H08MQ HEAD (Head with part side recognition)

H08 HEAD

1/5

2/5

3/5

4/5

5/5

H08 HEAD (AUTO BACKUP PIN EQUIPMENT)

H08Q HEAD (Head with part side recognition)

H04S HEAD

1/4

2/4

3/4

4/4

H04S HEAD (AUTO BACKUP PIN EQUIPMENT)

H04S HEAD (Parts Presence Check Sensor Equipment)

H04 HEAD

1/4

2/4

3/4

4/4

H04 HEAD (AUTO BACKUP PIN EQUIPMENT)

H04 HEAD (Parts Presence Check Sensor Equipment)

H02 HEAD

1/6

2/6

3/6

4/6

5/6

6/6

H02 HEAD (AUTO BACKUP PIN EQUIPMENT)

H01 HEAD

1/5

2/5

3/5

4/5

5/5

H01 HEAD (AUTO BACKUP PIN EQUIPMENT)

HEAD CASE

1/2

2/2

NOZZLES

H08/H12/V12-NOZZLES

1/2

2/2

H08M-NOZZLES

1/2

2/2

H04S-NOZZLES

1/2

2/2

H04-NOZZLES

1/2

2/2

H01/H02-NOZZLES

1/2

2/2

H02-NOZZLES

JIG NOZZLES

1/2

2/2

NOZZLE CASE

NOZZLE STATION

H08/H12/V12-ND36A-NOZZLE STATION

H08/H12/V12-ND32C-NOZZLE STATION

H08M-NL30A-NOZZLE STATION

H08M-NL16A-NOZZLE STATION

H08M-NL17A-NOZZLE STATION

H08M-NL18A-NOZZLE STATION

H04/H04S-NE18A-NOZZLE STATION

H04/H04S-NE12A-NOZZLE STATION

H04/H04S-NEXTA-NOZZLE STATION

H04/H04S-NEPTA-NOZZLE STATION

H01/H02-NC03B-NOZZLE STATION

H01/H02-NC08B-NOZZLE STATION

H01/H02-NC8LB-NOZZLE STATION

H01/H02-NCPTA-NOZZLE STATION

H01/H02-NCFTA-NOZZLE STATION

H01/H02-NCKTA-NOZZLE STATION

H01/H02-NCETB-NOZZLE STATION

CAMERA

MARK CAMERA

MARK CAMERA LIGHT

PARTS CAMERA

PARTS CAMERA LIGHT

PARTS CAMERA (SIDE LIGHT TYPE)

PARTS CAMERA LIGHT (SIDE LIGHT TYPE)

PARTS CAMERA (HIGH RESOLUTION CAMERA)

PARTS CAMERA LIGHT (HIGH RESOLUTION CAMERA)

P03 PARTS CAMERA

P03 PARTS CAMERA LIGHT

P05 PARTS CAMERA

P05 PARTS CAMERA LIGHT

DEVICE PALLET

M3 II-DEVICE PALLET

1/3

2/3

3/3

M6 II-DEVICE PALLET

1/3

2/3

3/3

PCU II

1/6

2/6

3/6

4/6

5/6

6/6

PCU II　GUIDE

PSU

M3S,M3II-PSU

1/2

2/2

M6S,M6II-PSU

1/2

2/2

MCU

1/6

2/6

3/6

4/6

5/6

6/6

MSU

PANEL STAND

SPLICING TAPE STAND

UK046

UK035

OTHERS

1/4

2/4

3/4

4/4

DETAIL A1-AA875

DETAIL A2-AA44K

DETAIL A3-AA0AM

DETAIL A6-AA14K

DETAIL A8-AA4XY

DETAIL A9-AWPJ810

DETAIL A29-UX044

DETAIL A31-AA54K

DETAIL A33-UX045

DETAIL B1-AA01B

DETAIL B5-AA94E

Vol.2

Before Using The Parts List

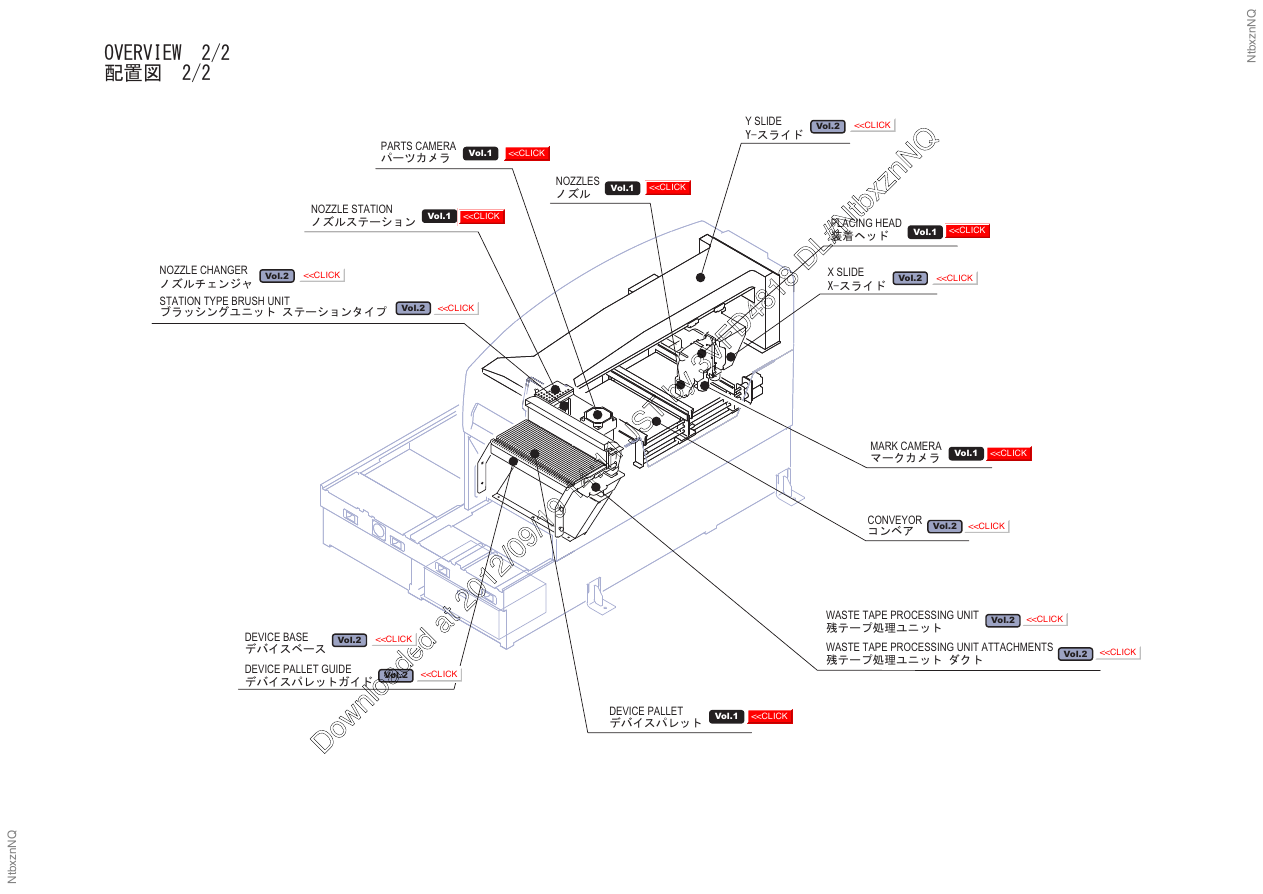

OVERVIEW

1/2

2/2

CONTENTS Vol.2

BED

M3 II-BED

1/7

2/7

3/7

4/7

5/7

6/7

7/7

M6 II-BED

1/7

2/7

3/7

4/7

5/7

6/7

7/7

NOZZLE CHANGER

1/2

2/2

STATION TYPE BRUSH UNIT

1/3

2/3

3/3

COVER

M3 II-TOP COVER

M6 II-TOP COVER

SIDE COVER (RIGHT)

1/2

2/2

SIDE COVER (LEFT)

1/2

2/2

SEAMLESS COVER (BETWEEN BASE)

SEAMLESS COVER (BETWEEN MODULE)

X SLIDE

M3 II-X SLIDE

1/3

2/3

3/3

M6 II-X SLIDE

1/3

2/3

3/3

Y SLIDE

M3 II-Y SLIDE

1/2

2/2

M6 II-Y SLIDE

1/2

2/2

DEVICE BASE

M3 II-DEVICE BASE

1/2

2/2

M6 II-DEVICE BASE

1/2

2/2

DEVICE PALLET GUIDE

M3 II-DEVICE PALLET GUIDE

M6 II-DEVICE PALLET GUIDE

WASTE TAPE PROCESSING UNIT

M3-WASTE TAPE PROCESSING UNIT (TCM3B)

M6-WASTE TAPE PROCESSING UNIT (TCM6B)

WASTE TAPE PROCESSING UNIT ATTACHMENTS

M3 II-WASTE TAPE PROCESSING UNIT ATTACHMENTS

M6 II-WASTE TAPE PROCESSING UNIT ATTACHMENTS

BASE

2M II-BASE

1/10

2/10

3/10

4/10

5/10

6/10

7/10

8/10

9/10

10/10

4M II-BASE

1/10

2/10

3/10

4/10

5/10

6/10

7/10

8/10

9/10

10/10

BASE LINKING PARTS

CONVEYOR

M3 II-SINGLE CONVEYOR

1/6

2/6

3/6

4/6

5/6

6/6

M3 II-DOUBLE CONVEYOR

1/7

2/7

3/7

4/7

5/7

6/7

7/7

M6 II-SINGLE CONVEYOR

1/6

2/6

3/6

4/6

5/6

6/6

M6 II-DOUBLE CONVEYOR

1/7

2/7

3/7

4/7

5/7

6/7

7/7

Consumable Parts List

Q N n z x b t N ＰＡＲＴＳ　ＬＩＳＴ Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q ＮＸＴ II PTS-NXT2-07JE Q N n z x b N t

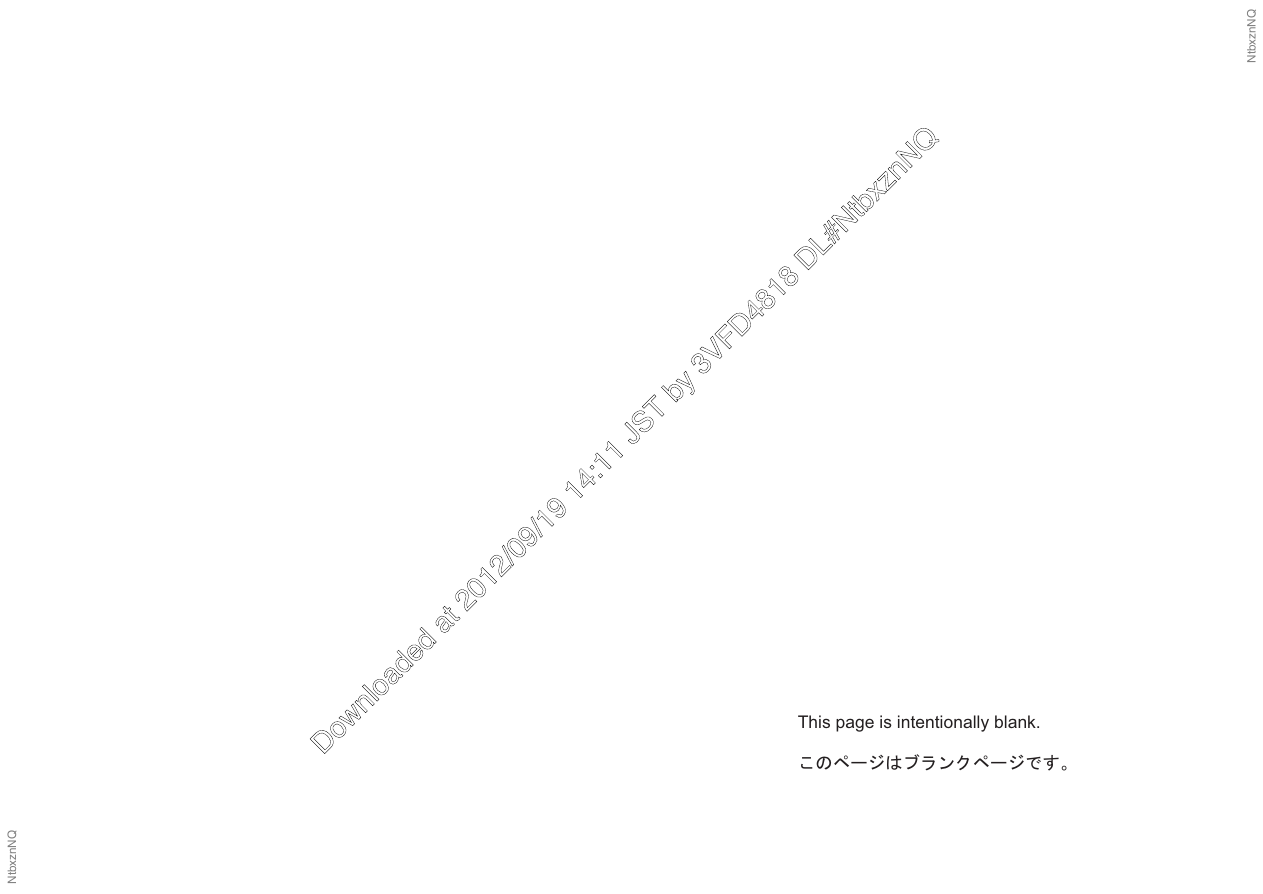

Q N n z x b t N Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q This page is intentionally blank. Q N n z x b N t

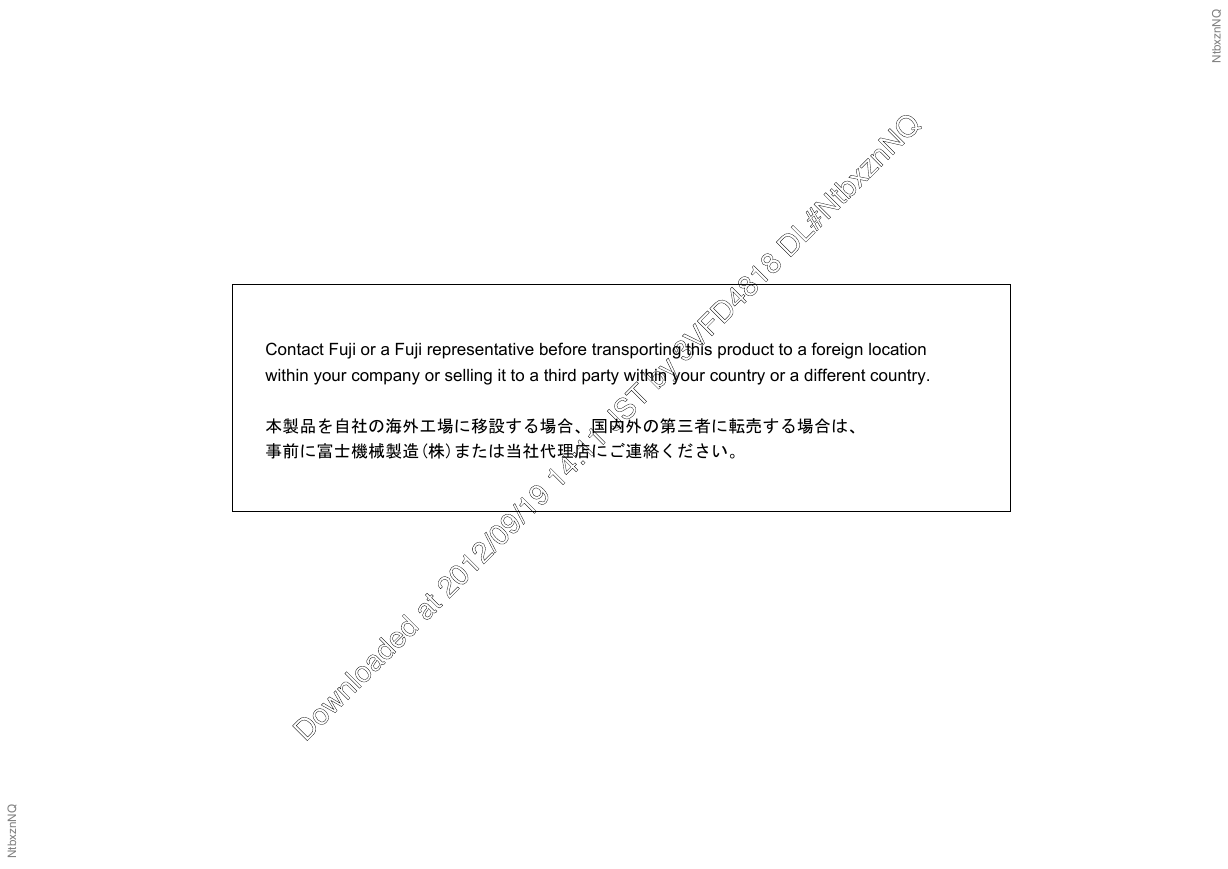

Q N n z x b t N Contact Fuji or a Fuji representative before transporting this product to a foreign location within your company or selling it to a third party within your country or a different country. Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q 本製品を自社の海外工場に移設する場合、国内外の第三者に転売する場合は、事前に富士機械製造(株)または当社代理店にご連絡ください。 Q N n z x b N t

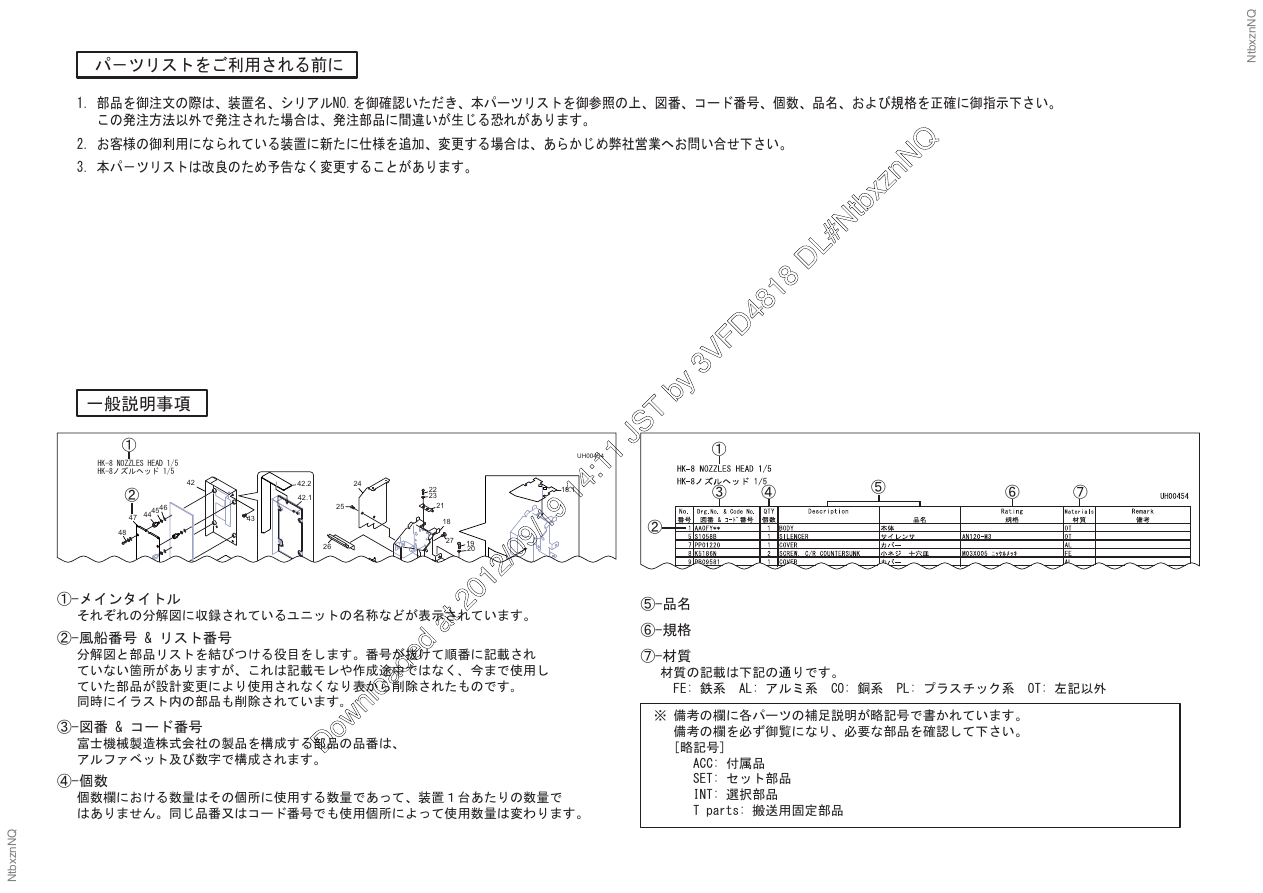

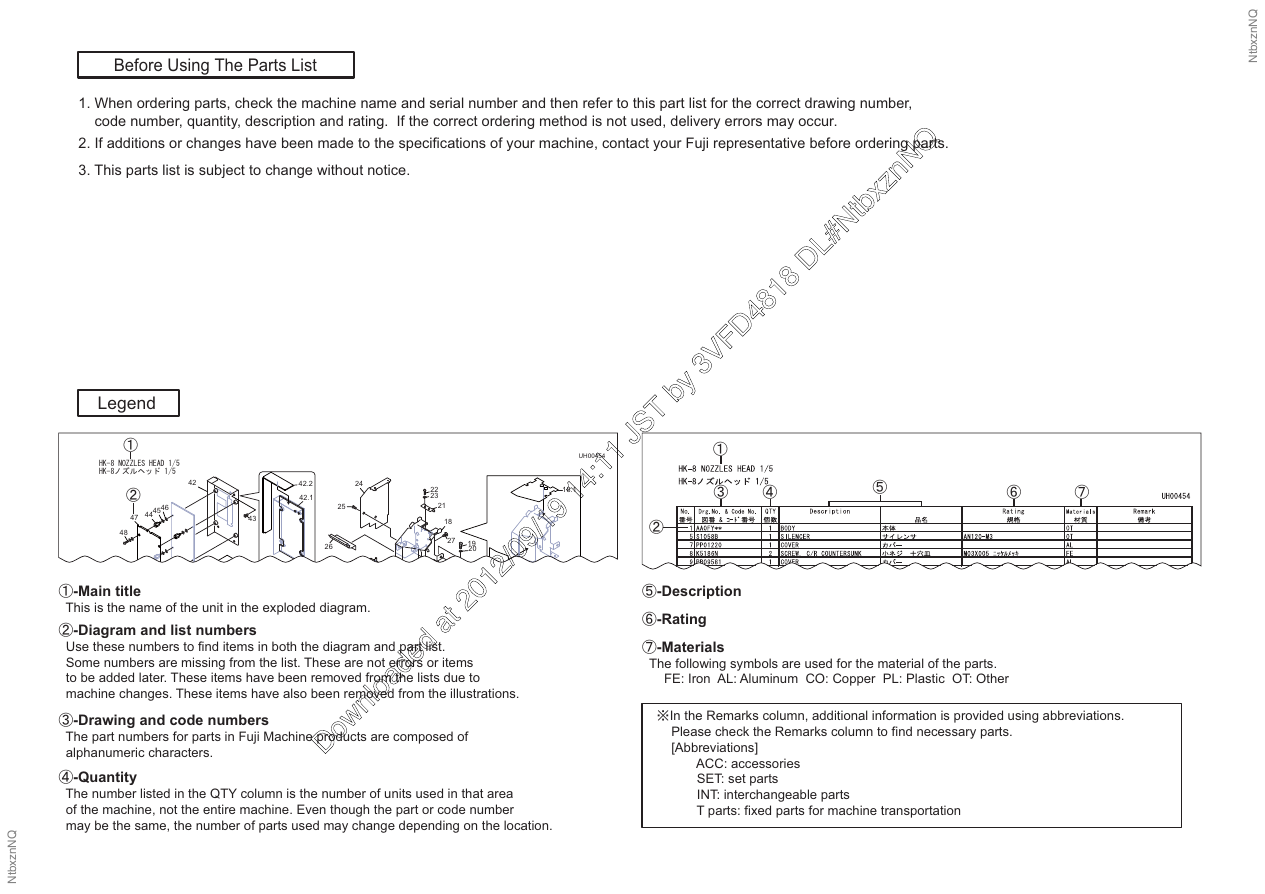

Before Using The Parts List Q N n z x b t N 1. When ordering parts, check the machine name and serial number and then refer to this part list for the correct drawing number, code number, quantity, description and rating. If the correct ordering method is not used, delivery errors may occur. 2. If additions or changes have been made to the specifications of your machine, contact your Fuji representative before ordering parts. 3. This parts list is subject to change without notice. Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q UH00454 27 A 22 23 21 26 B 24 25 18 19 20 18.1 -Description -Rating -Materials The following symbols are used for the material of the parts. FE: Iron AL: Aluminum CO: Copper PL: Plastic OT: Other In the Remarks column, additional information is provided using abbreviations. Please check the Remarks column to find necessary parts. [Abbreviations] ACC: accessories SET: set parts INT: interchangeable parts T parts: fixed parts for machine transportation Legend 42 47 48 4546 44 42.2 42.1 43 32 D -Main title This is the name of the unit in the exploded diagram. -Diagram and list numbers Use these numbers to find items in both the diagram and part list. Some numbers are missing from the list. These are not errors or items to be added later. These items have been removed from the lists due to machine changes. These items have also been removed from the illustrations. -Drawing and code numbers The part numbers for parts in Fuji Machine products are composed of alphanumeric characters. -Quantity The number listed in the QTY column is the number of units used in that area of the machine, not the entire machine. Even though the part or code number may be the same, the number of parts used may change depending on the location. Q N n z x b N t

Q N n z x b t N Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q 27 A 22 23 21 26 B 24 25 18 19 20 UH00454 18.1 32 42 47 48 4546 44 42.2 42.1 43 D Q N n z x b N t

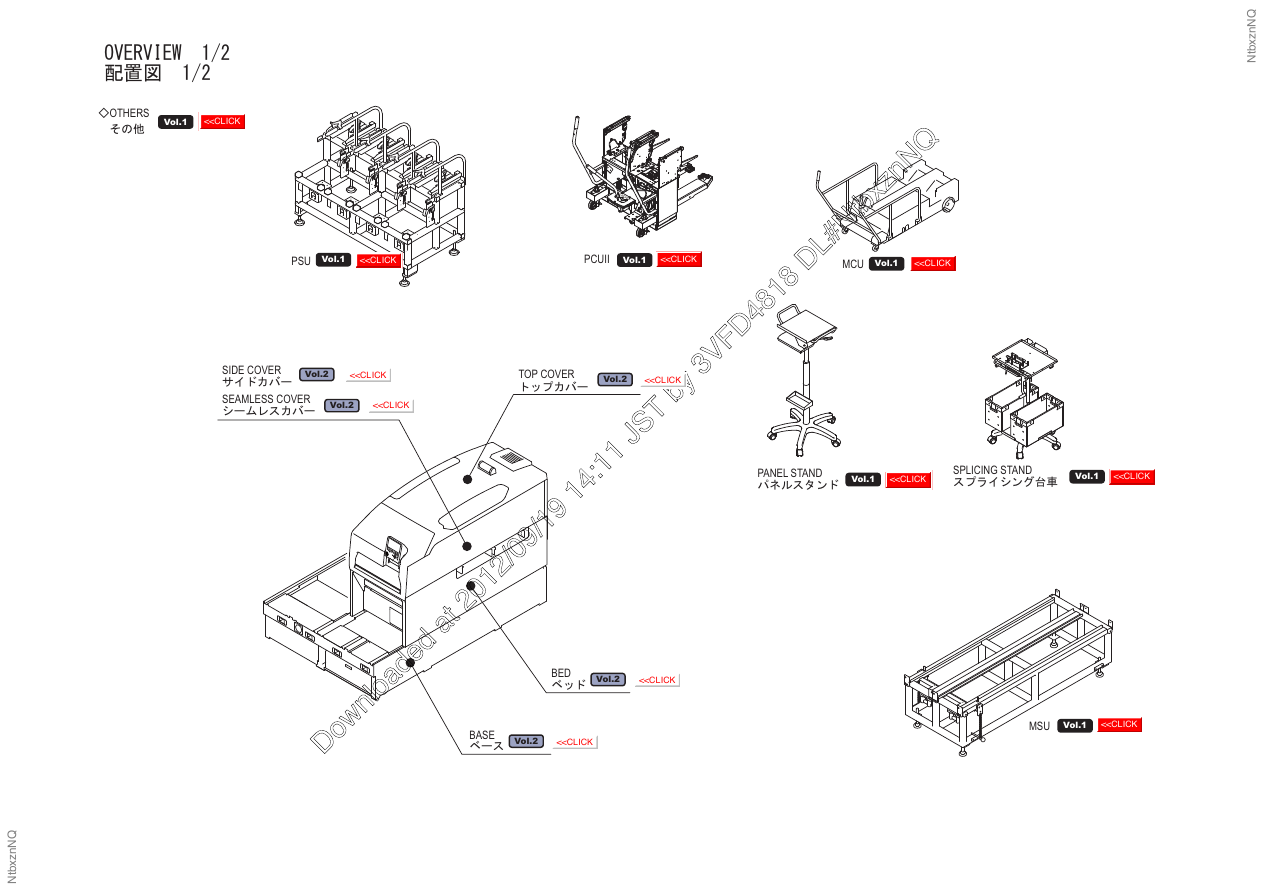

OTHERS Vol.1 PSU Vol.2 SIDE COVER SEAMLESS COVER Vol.2 895〜 910 〜 925〜 Vol.1 Vol.2 Vol.1 MCU Vol.1 PCUII TOP COVER Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q PANEL STAND BED BASE Vol.2 Vol.2 Q N n z x b t N SPLICING STAND Vol.1 MSU Vol.1 Vol.1 Q N n z x b N t

Q N n z x b t N NOZZLE CHANGER STATION TYPE BRUSH UNIT Vol.2 Y SLIDE Vol.2 NOZZLE STATION Vol.1 Vol.1 Vol.2 NOZZLES Vol.1 X SLIDE PLACING HEAD PARTS CAMERA Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q DEVICE PALLET CONVEYOR Vol.2 Vol.1 Vol.1 Vol.2 MARK CAMERA Vol.1 Vol.2 Vol.2 DEVICE BASE DEVICE PALLET GUIDE WASTE TAPE PROCESSING UNIT WASTE TAPE PROCESSING UNIT ATTACHMENTS Vol.2 Vol.2 Q N n z x b N t

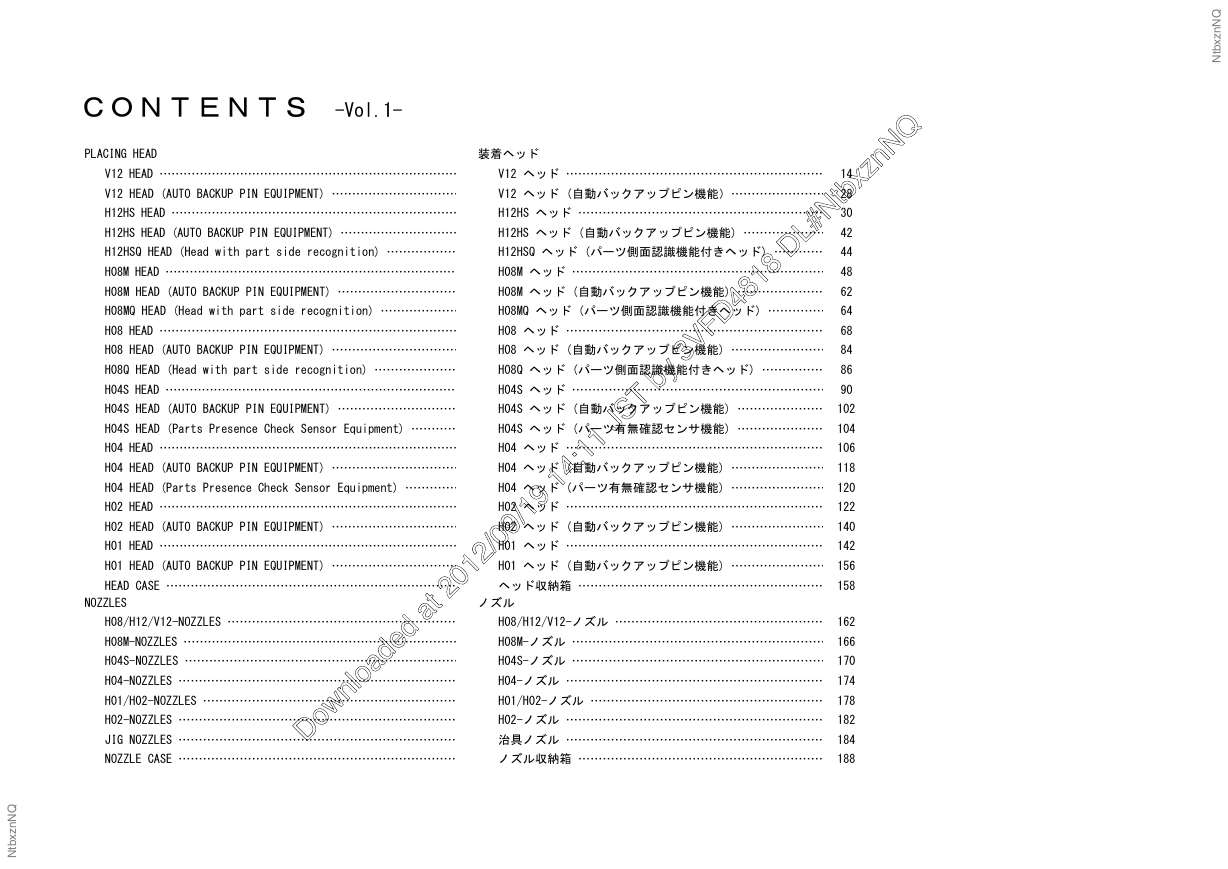

Q N n z x b t N ＣＯＮＴＥＮＴＳ -Vol.1- PLACING HEAD H04S HEAD ……………………………………………………………… 　 H04S HEAD (AUTO BACKUP PIN EQUIPMENT) …………………………　 H04S HEAD (Parts Presence Check Sensor Equipment) …………　 H04 HEAD …………………………………………………………………　 V12 HEAD …………………………………………………………………　 V12 ヘッド ……………………………………………………… 14 V12 HEAD (AUTO BACKUP PIN EQUIPMENT) ……………………………　 V12 ヘッド (自動バックアップピン機能）…………………… 28 H12HS HEAD ………………………………………………………………　 H12HS ヘッド …………………………………………………… 30 H12HS HEAD (AUTO BACKUP PIN EQUIPMENT) …………………………　 H12HS ヘッド (自動バックアップピン機能) ………………… 42 H12HSQ HEAD (Head with part side recognition) ………………　 H12HSQ ヘッド (パーツ側面認識機能付きヘッド) ………… 44 H08M HEAD ……………………………………………………………… 　 H08M ヘッド ……………………………………………………… 48 H08M HEAD (AUTO BACKUP PIN EQUIPMENT) …………………………　 H08M ヘッド (自動バックアップピン機能) ………………… 62 H08MQ HEAD (Head with part side recognition) …………………　 H08MQ ヘッド (パーツ側面認識機能付きヘッド) …………… 64 H08 HEAD …………………………………………………………………　 H08 ヘッド ……………………………………………………… 68 H08 HEAD (AUTO BACKUP PIN EQUIPMENT) ……………………………　 H08 ヘッド (自動バックアップピン機能) …………………… 84 H08Q HEAD (Head with part side recognition) …………………　 H08Q ヘッド (パーツ側面認識機能付きヘッド) …………… 86 　装着ヘッド H04S ヘッド ……………………………………………………… 90 Downloaded at 2012/09/19 14:11 JST by 3VFD4818 DL#NtbxznN Q H08/H12/V12-ノズル …………………………………………… 162 H04S ヘッド (自動バックアップピン機能) ………………… 102 H04S ヘッド (パーツ有無確認センサ機能) ………………… 104 ヘッド収納箱 …………………………………………………… 158 治具ノズル ……………………………………………………… 184 H02 ヘッド ……………………………………………………… 122 H01 ヘッド ……………………………………………………… 142 H04-ノズル ……………………………………………………… 174 H01/H02-ノズル ………………………………………………… 178 H02-ノズル ……………………………………………………… 182 H04 ヘッド ……………………………………………………… 106 H08M-ノズル ……………………………………………………… 166 H01 ヘッド (自動バックアップピン機能) …………………… 156 H04S-ノズル ……………………………………………………… 170 　ノズル H01 HEAD …………………………………………………………………　 H01 HEAD (AUTO BACKUP PIN EQUIPMENT) ……………………………　 HEAD CASE ………………………………………………………………　 NOZZLES H08/H12/V12-NOZZLES …………………………………………………　 H08M-NOZZLES …………………………………………………………… H04S-NOZZLES ……………………………………………………………　 H04-NOZZLES ……………………………………………………………　 H01/H02-NOZZLES ………………………………………………………　 H02-NOZZLES ……………………………………………………………　 JIG NOZZLES ……………………………………………………………　 H04 HEAD (AUTO BACKUP PIN EQUIPMENT) ……………………………　 H04 ヘッド (自動バックアップピン機能) …………………… 118 H04 HEAD (Parts Presence Check Sensor Equipment) ……………　 H04 ヘッド (パーツ有無確認センサ機能) …………………… 120 H02 HEAD …………………………………………………………………　 H02 HEAD (AUTO BACKUP PIN EQUIPMENT) ……………………………　 H02 ヘッド (自動バックアップピン機能) …………………… 140 NOZZLE CASE ……………………………………………………………　　ノズル収納箱 …………………………………………………… 188 Q N n z x b N t
