GFZRNX 1.12 Users Guide
DokuWiki
Wed Nov 6 14:50:05 UTC 2019
2
Wed Nov 6 14:50:05 UTC 2019
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences

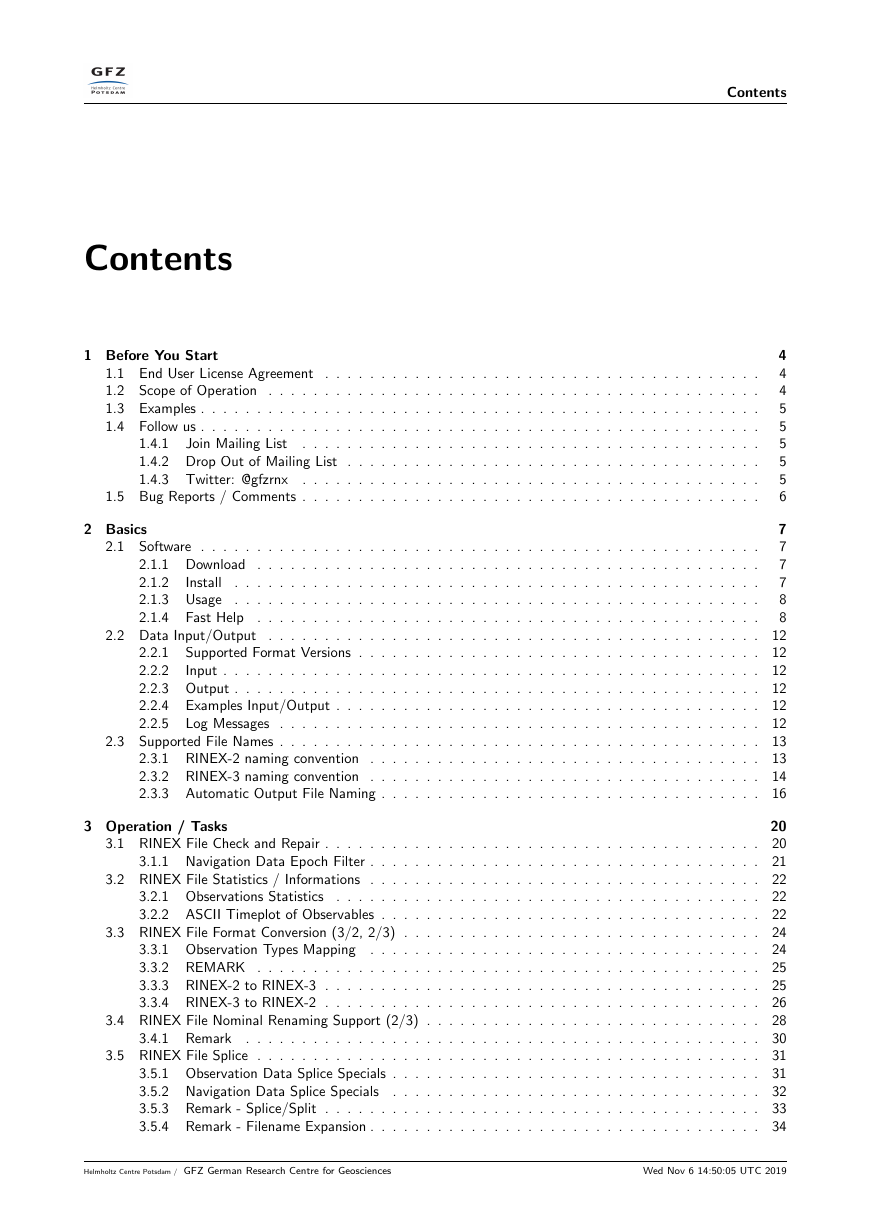

Contents
Contents
1 Before You Start
1.1 End User License Agreement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Scope of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4 Follow us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4.2 Drop Out of Mailing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4.3 Twitter: @gfzrnx
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5 Bug Reports / Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Join Mailing List
4
4
4
5
5
5
5
5
6
Install
2.2 Data Input/Output
2 Basics
2.1 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1 Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.3 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.4
Fast Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
7
7
8
8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Supported Format Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2.1
2.2.2
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2.3 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2.4 Examples Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Log Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2.5
2.3 Supported File Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3.1 RINEX-2 naming convention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3.2 RINEX-3 naming convention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.3.3 Automatic Output File Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3 Operation / Tasks
20
3.1 RINEX File Check and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.1.1 Navigation Data Epoch Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.2 RINEX File Statistics / Informations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2.1 Observations Statistics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2.2 ASCII Timeplot of Observables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.3 RINEX File Format Conversion (3/2, 2/3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.3.1 Observation Types Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.3.2 REMARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.3.3 RINEX-2 to RINEX-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.3.4 RINEX-3 to RINEX-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.4 RINEX File Nominal Renaming Support (2/3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.4.1 Remark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.5 RINEX File Splice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.5.1 Observation Data Splice Specials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.5.2 Navigation Data Splice Specials
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.5.3 Remark - Splice/Split . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.5.4 Remark - Filename Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences
Wed Nov 6 14:50:05 UTC 2019

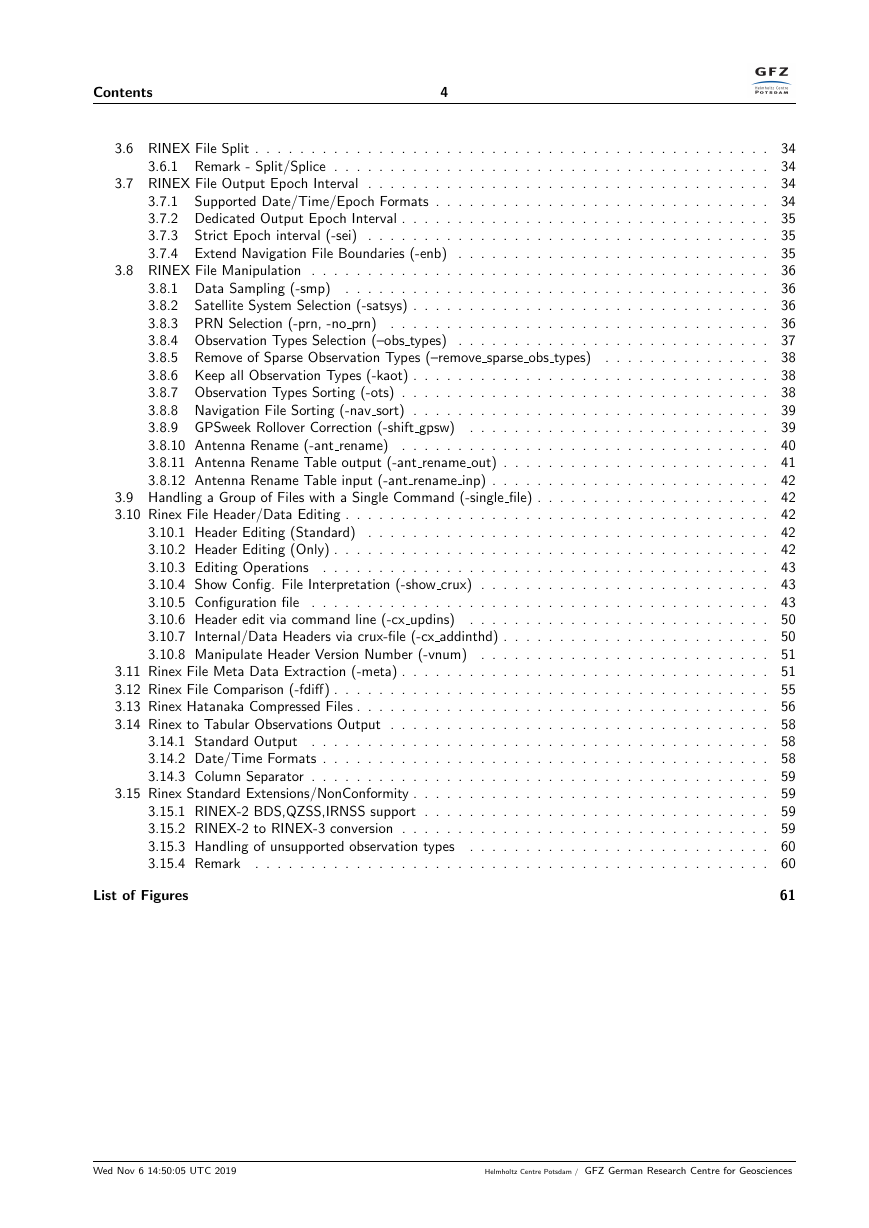

Contents
4
3.7 RINEX File Output Epoch Interval
3.6 RINEX File Split . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.6.1 Remark - Split/Splice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.7.1
Supported Date/Time/Epoch Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.7.2 Dedicated Output Epoch Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.7.3
Strict Epoch interval (-sei) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.7.4 Extend Navigation File Boundaries (-enb) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.8 RINEX File Manipulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.8.1 Data Sampling (-smp)
Satellite System Selection (-satsys) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.8.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.8.3 PRN Selection (-prn, -no prn)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.8.4 Observation Types Selection (–obs types)
3.8.5 Remove of Sparse Observation Types (–remove sparse obs types)
. . . . . . . . . . . . . . . 38
3.8.6 Keep all Observation Types (-kaot) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.8.7 Observation Types Sorting (-ots) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.8.8 Navigation File Sorting (-nav sort) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.8.9 GPSweek Rollover Correction (-shift gpsw)
. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.8.10 Antenna Rename (-ant rename)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.8.11 Antenna Rename Table output (-ant rename out) . . . . . . . . . . . . . . . . . . . . . . . . 41
3.8.12 Antenna Rename Table input (-ant rename inp) . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.9 Handling a Group of Files with a Single Command (-single file) . . . . . . . . . . . . . . . . . . . . . 42
3.10 Rinex File Header/Data Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.10.1 Header Editing (Standard)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.10.2 Header Editing (Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.10.3 Editing Operations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.4 Show Config. File Interpretation (-show crux) . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.5 Configuration file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.6 Header edit via command line (-cx updins)
. . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.10.7 Internal/Data Headers via crux-file (-cx addinthd) . . . . . . . . . . . . . . . . . . . . . . . . 50
3.10.8 Manipulate Header Version Number (-vnum)
. . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.11 Rinex File Meta Data Extraction (-meta) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.12 Rinex File Comparison (-fdiff) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.13 Rinex Hatanaka Compressed Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.14 Rinex to Tabular Observations Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.14.1 Standard Output
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.14.2 Date/Time Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.14.3 Column Separator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.15 Rinex Standard Extensions/NonConformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.15.1 RINEX-2 BDS,QZSS,IRNSS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.15.2 RINEX-2 to RINEX-3 conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.15.3 Handling of unsupported observation types
. . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.15.4 Remark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
List of Figures
61
Wed Nov 6 14:50:05 UTC 2019
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences

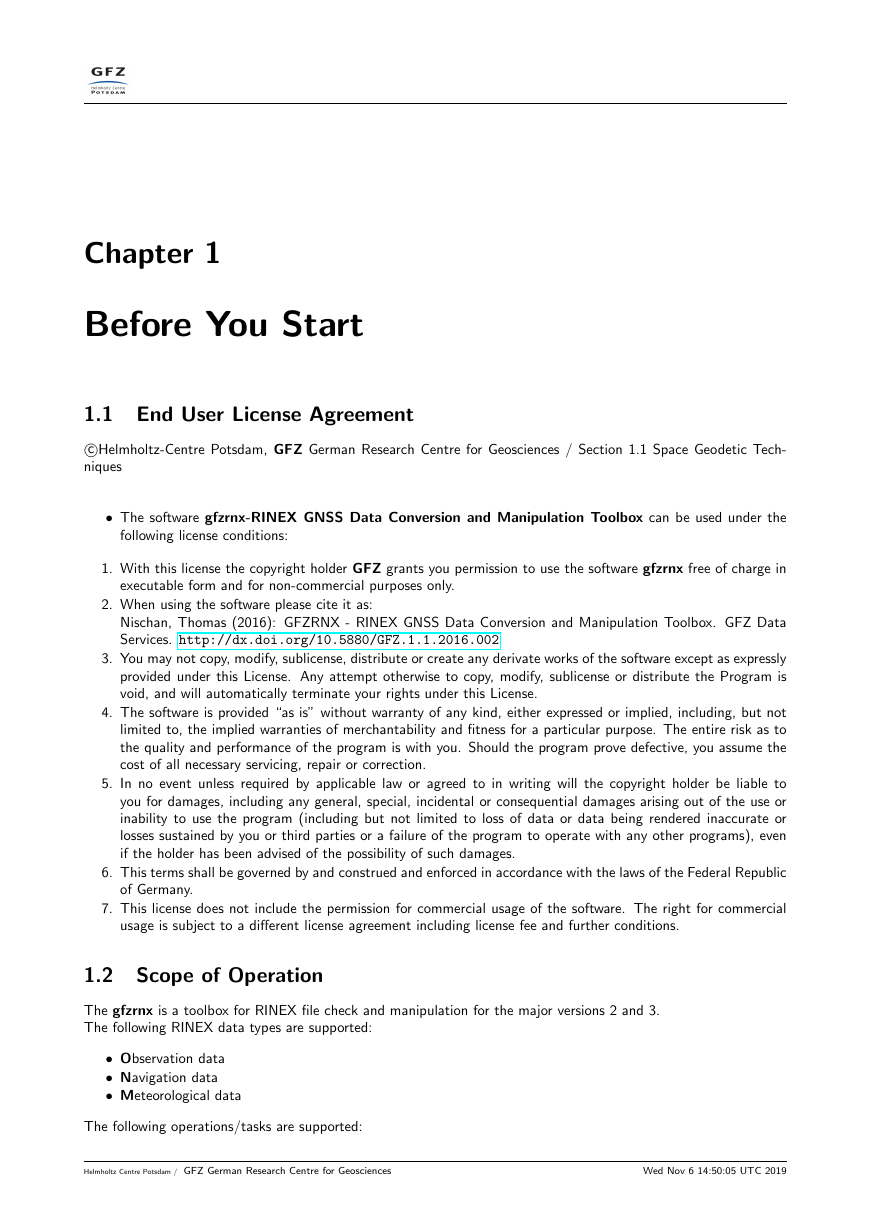

Chapter 1
Before You Start
1.1 End User License Agreement
cHelmholtz-Centre Potsdam, GFZ German Research Centre for Geosciences / Section 1.1 Space Geodetic Tech-
niques
• The software gfzrnx-RINEX GNSS Data Conversion and Manipulation Toolbox can be used under the
following license conditions:
1. With this license the copyright holder GFZ grants you permission to use the software gfzrnx free of charge in
executable form and for non-commercial purposes only.
2. When using the software please cite it as:
Nischan, Thomas (2016): GFZRNX - RINEX GNSS Data Conversion and Manipulation Toolbox. GFZ Data
Services. http://dx.doi.org/10.5880/GFZ.1.1.2016.002
3. You may not copy, modify, sublicense, distribute or create any derivate works of the software except as expressly
provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is
void, and will automatically terminate your rights under this License.
4. The software is provided “as is” without warranty of any kind, either expressed or implied, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose. The entire risk as to
the quality and performance of the program is with you. Should the program prove defective, you assume the
cost of all necessary servicing, repair or correction.
5. In no event unless required by applicable law or agreed to in writing will the copyright holder be liable to
you for damages, including any general, special, incidental or consequential damages arising out of the use or
inability to use the program (including but not limited to loss of data or data being rendered inaccurate or
losses sustained by you or third parties or a failure of the program to operate with any other programs), even
if the holder has been advised of the possibility of such damages.
6. This terms shall be governed by and construed and enforced in accordance with the laws of the Federal Republic
of Germany.
7. This license does not include the permission for commercial usage of the software. The right for commercial
usage is subject to a different license agreement including license fee and further conditions.
1.2 Scope of Operation
The gfzrnx is a toolbox for RINEX file check and manipulation for the major versions 2 and 3.
The following RINEX data types are supported:
• Observation data
• Navigation data
• Meteorological data
The following operations/tasks are supported:
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences
Wed Nov 6 14:50:05 UTC 2019

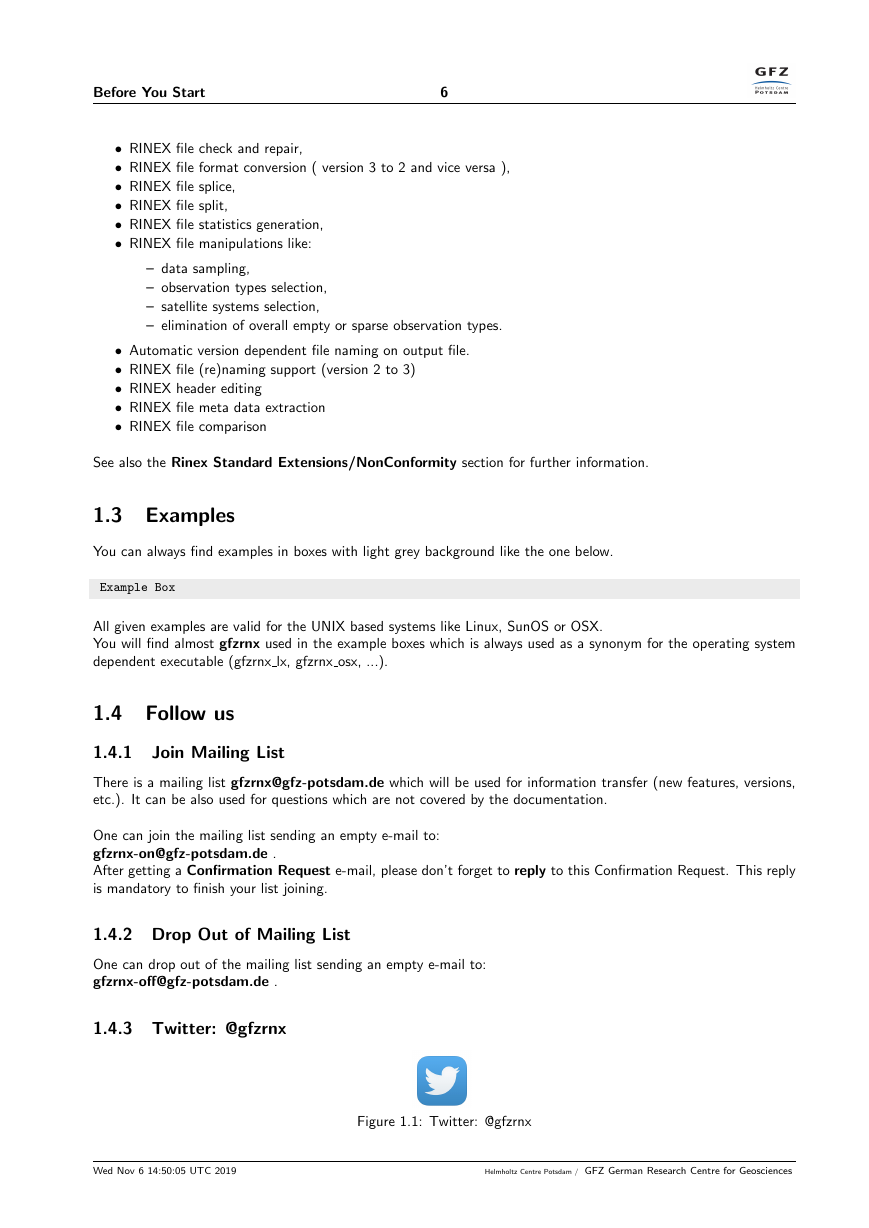

Before You Start
6
• RINEX file check and repair,
• RINEX file format conversion ( version 3 to 2 and vice versa ),
• RINEX file splice,
• RINEX file split,
• RINEX file statistics generation,
• RINEX file manipulations like:
– data sampling,
– observation types selection,
– satellite systems selection,
– elimination of overall empty or sparse observation types.
• Automatic version dependent file naming on output file.
• RINEX file (re)naming support (version 2 to 3)
• RINEX header editing
• RINEX file meta data extraction
• RINEX file comparison
See also the Rinex Standard Extensions/NonConformity section for further information.
1.3 Examples
You can always find examples in boxes with light grey background like the one below.
Example Box
All given examples are valid for the UNIX based systems like Linux, SunOS or OSX.
You will find almost gfzrnx used in the example boxes which is always used as a synonym for the operating system
dependent executable (gfzrnx lx, gfzrnx osx, ...).
1.4 Follow us
1.4.1 Join Mailing List
There is a mailing list gfzrnx@gfz-potsdam.de which will be used for information transfer (new features, versions,
etc.). It can be also used for questions which are not covered by the documentation.
One can join the mailing list sending an empty e-mail to:
gfzrnx-on@gfz-potsdam.de .
After getting a Confirmation Request e-mail, please don’t forget to reply to this Confirmation Request. This reply
is mandatory to finish your list joining.
1.4.2 Drop Out of Mailing List
One can drop out of the mailing list sending an empty e-mail to:
gfzrnx-off@gfz-potsdam.de .
1.4.3 Twitter: @gfzrnx
Figure 1.1: Twitter: @gfzrnx
Wed Nov 6 14:50:05 UTC 2019
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences
7

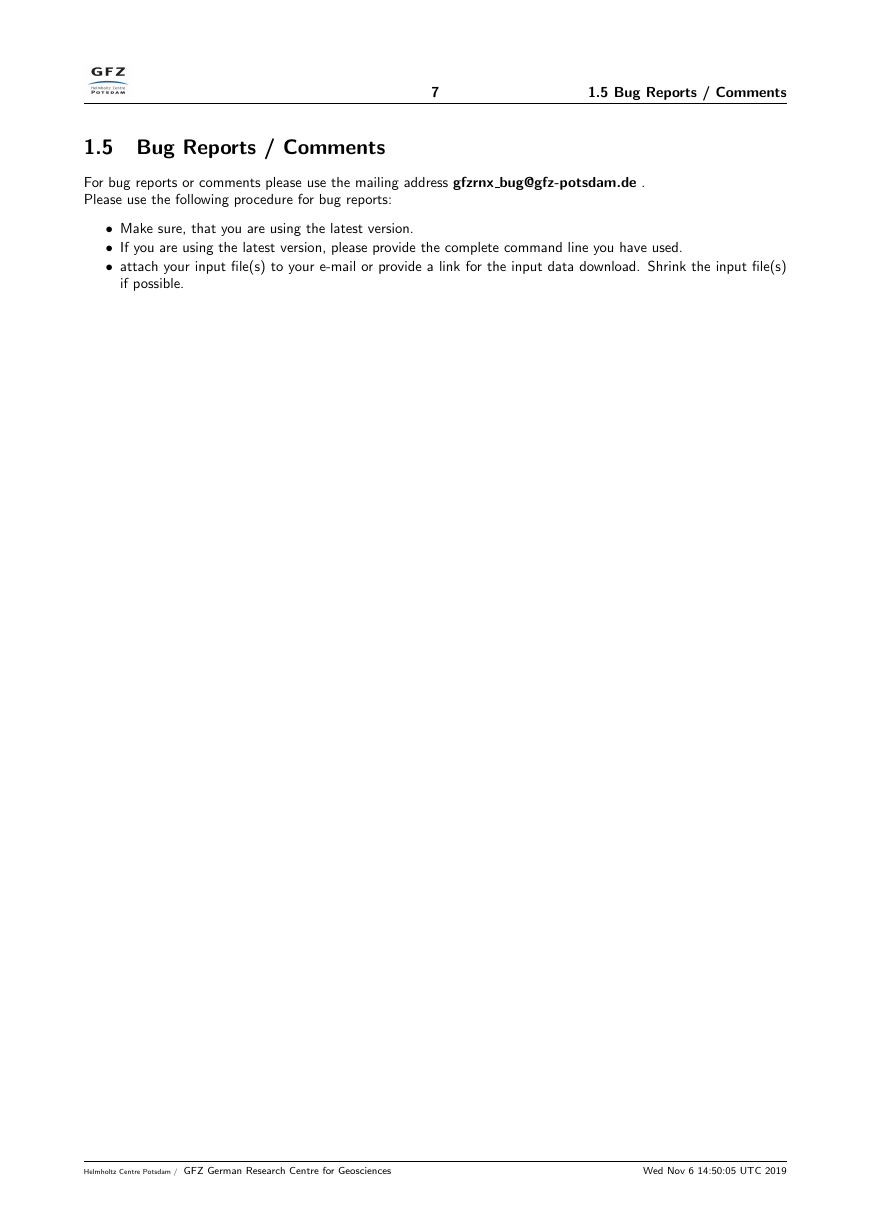

1.5 Bug Reports / Comments
1.5 Bug Reports / Comments
For bug reports or comments please use the mailing address gfzrnx bug@gfz-potsdam.de .
Please use the following procedure for bug reports:
• Make sure, that you are using the latest version.
• If you are using the latest version, please provide the complete command line you have used.
• attach your input file(s) to your e-mail or provide a link for the input data download. Shrink the input file(s)
if possible.
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences
Wed Nov 6 14:50:05 UTC 2019

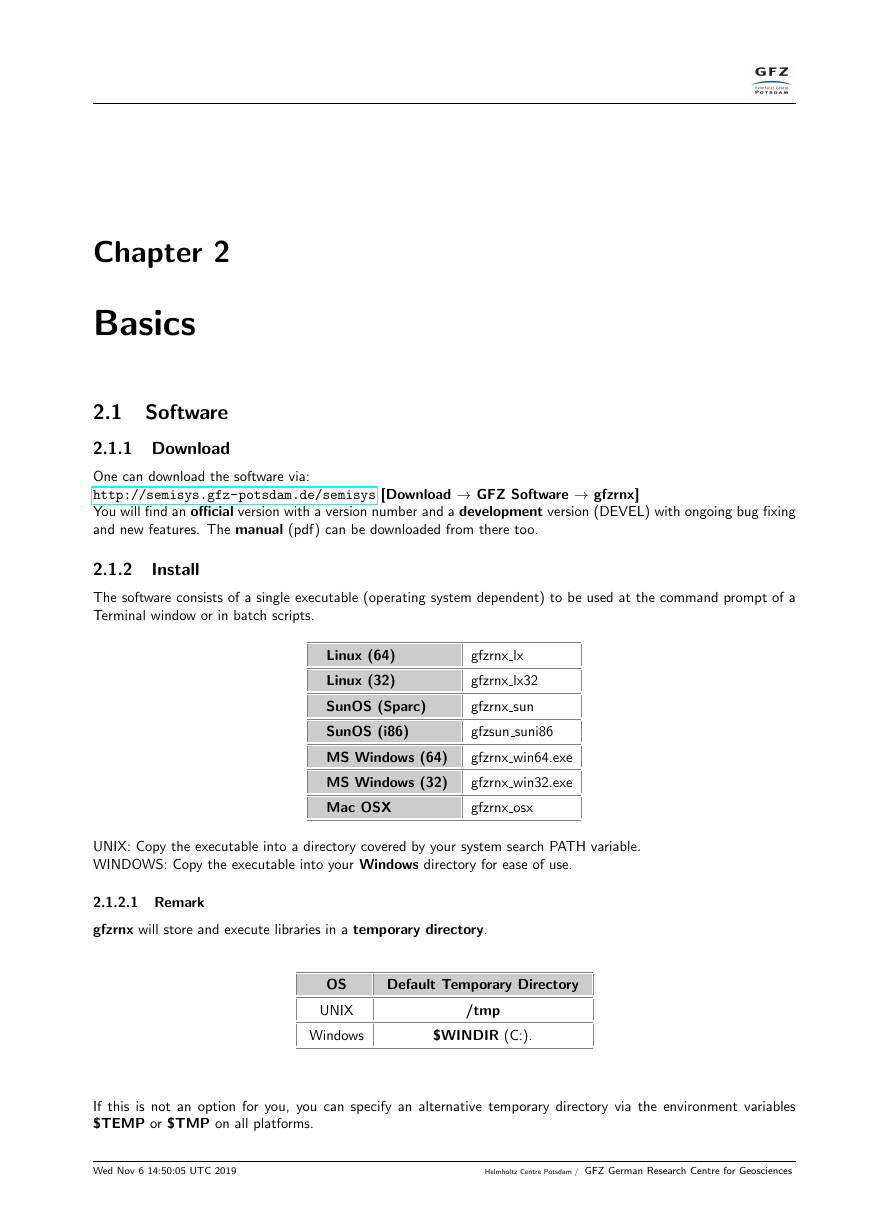

Chapter 2
Basics
2.1 Software
2.1.1 Download
One can download the software via:
http://semisys.gfz-potsdam.de/semisys [Download → GFZ Software → gfzrnx]
You will find an official version with a version number and a development version (DEVEL) with ongoing bug fixing
and new features. The manual (pdf) can be downloaded from there too.
2.1.2 Install
The software consists of a single executable (operating system dependent) to be used at the command prompt of a
Terminal window or in batch scripts.
Linux (64)
Linux (32)
gfzrnx lx
gfzrnx lx32
SunOS (Sparc)
gfzrnx sun
SunOS (i86)
gfzsun suni86
MS Windows (64)
gfzrnx win64.exe
MS Windows (32)
gfzrnx win32.exe
Mac OSX
gfzrnx osx
UNIX: Copy the executable into a directory covered by your system search PATH variable.
WINDOWS: Copy the executable into your Windows directory for ease of use.
2.1.2.1 Remark
gfzrnx will store and execute libraries in a temporary directory.
OS
UNIX
Default Temporary Directory
/tmp
Windows
$WINDIR (C:).
If this is not an option for you, you can specify an alternative temporary directory via the environment variables
$TEMP or $TMP on all platforms.
Wed Nov 6 14:50:05 UTC 2019
Helmholtz Centre Potsdam / GFZ German Research Centre for Geosciences
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
