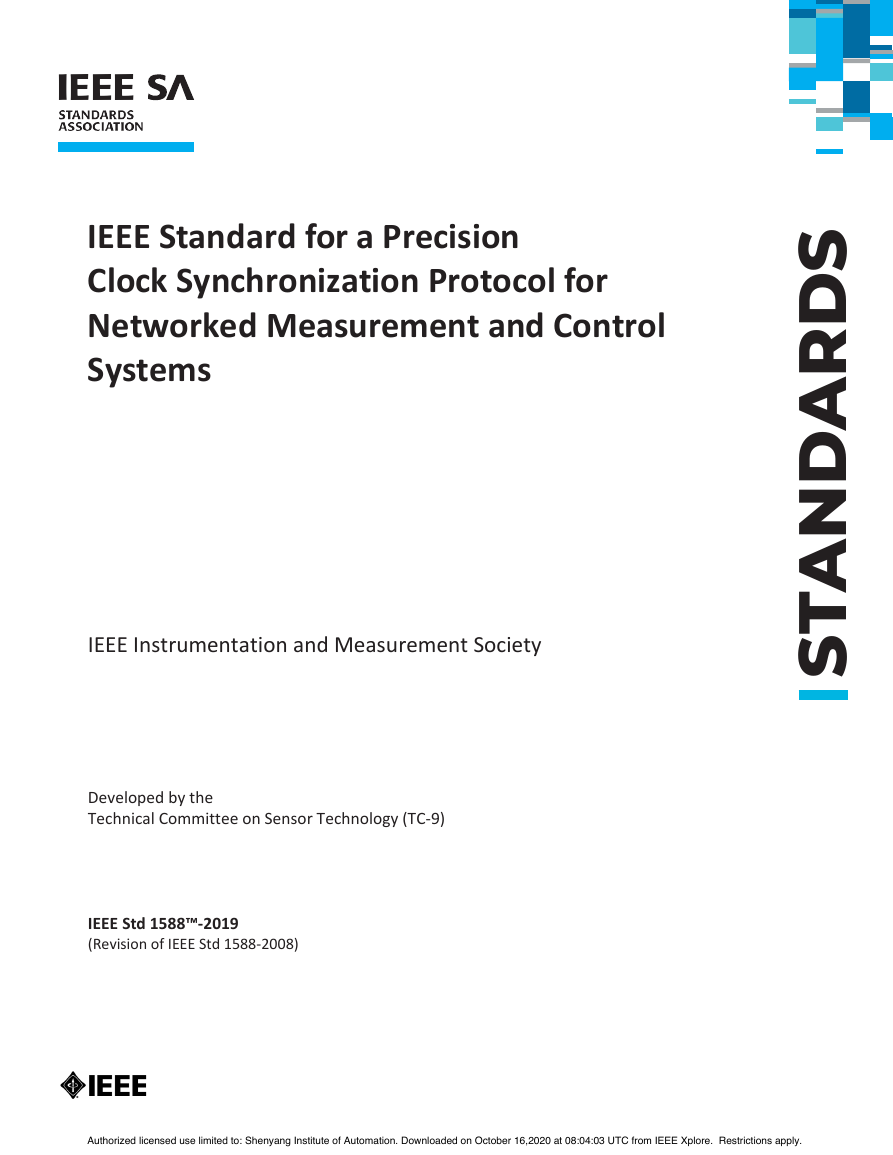

    IEEE Std 1588™-2019 Front cover

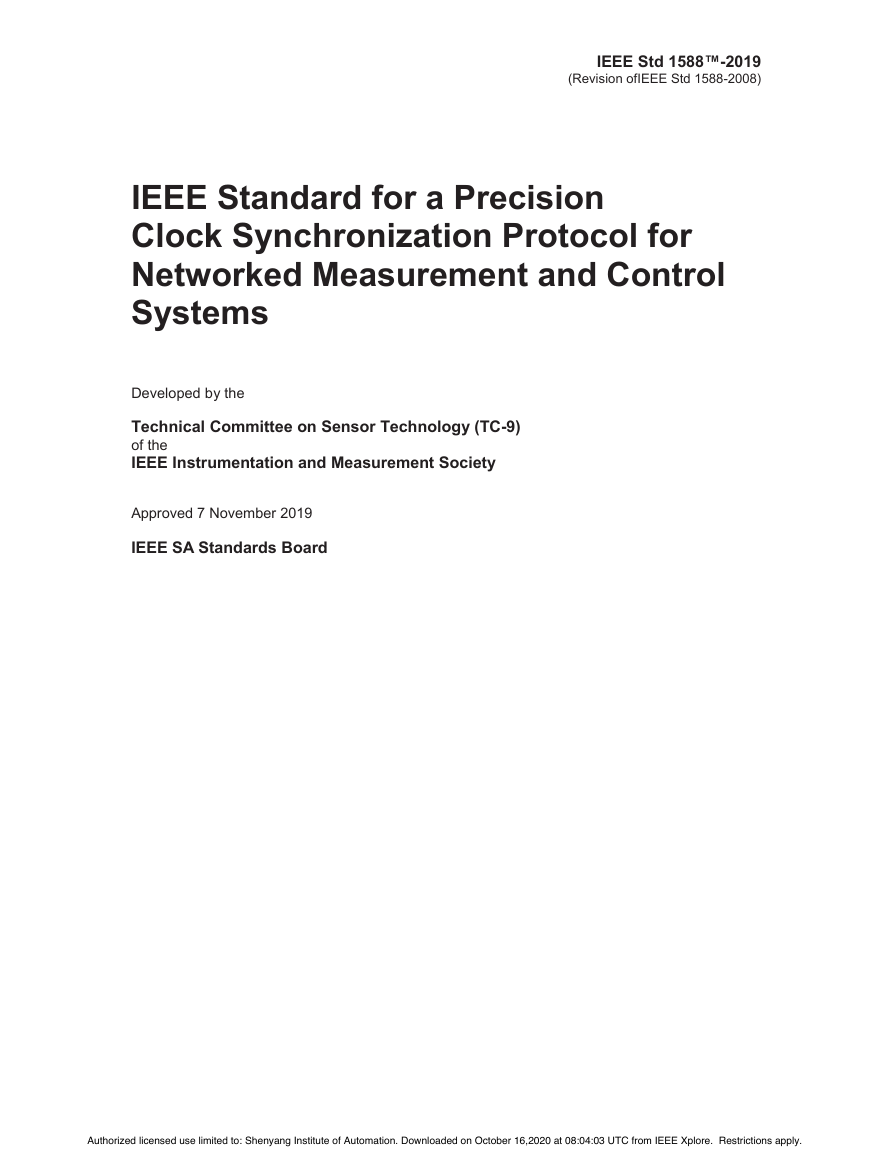

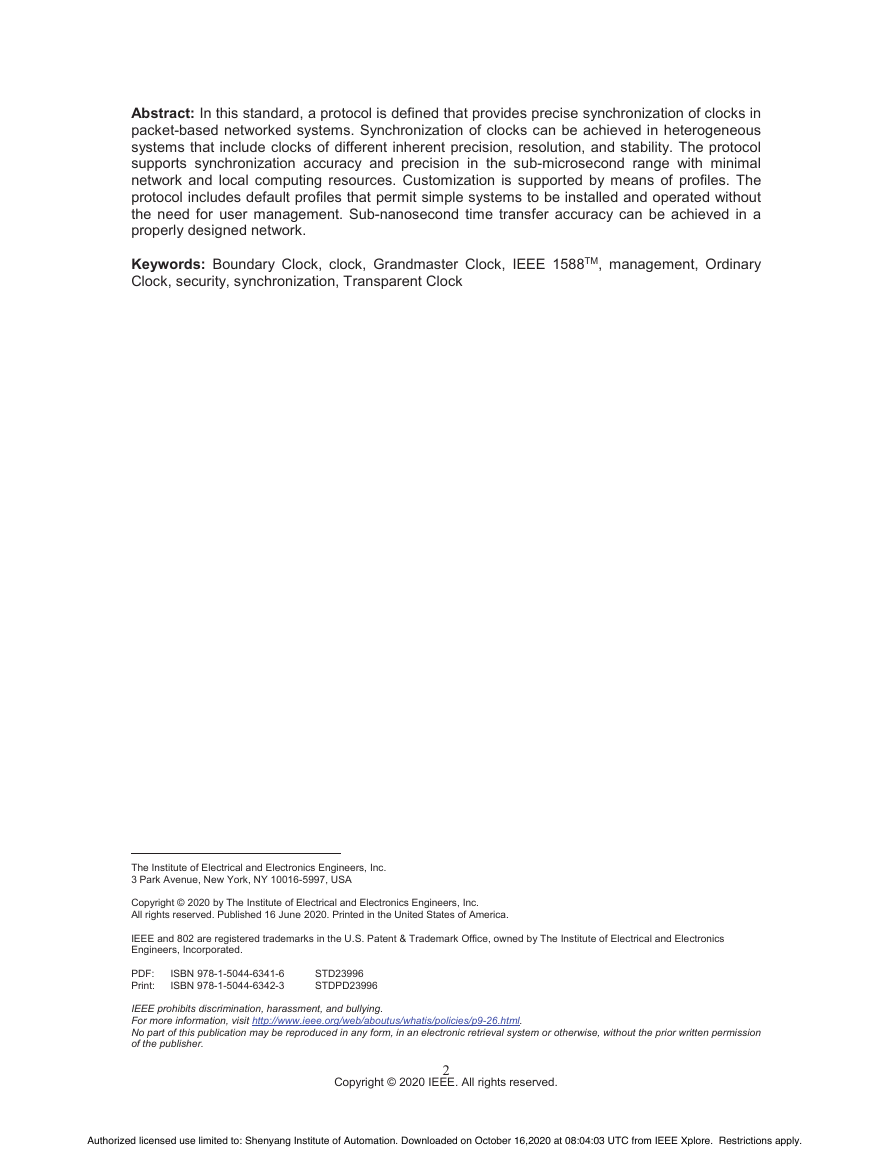

    Title page

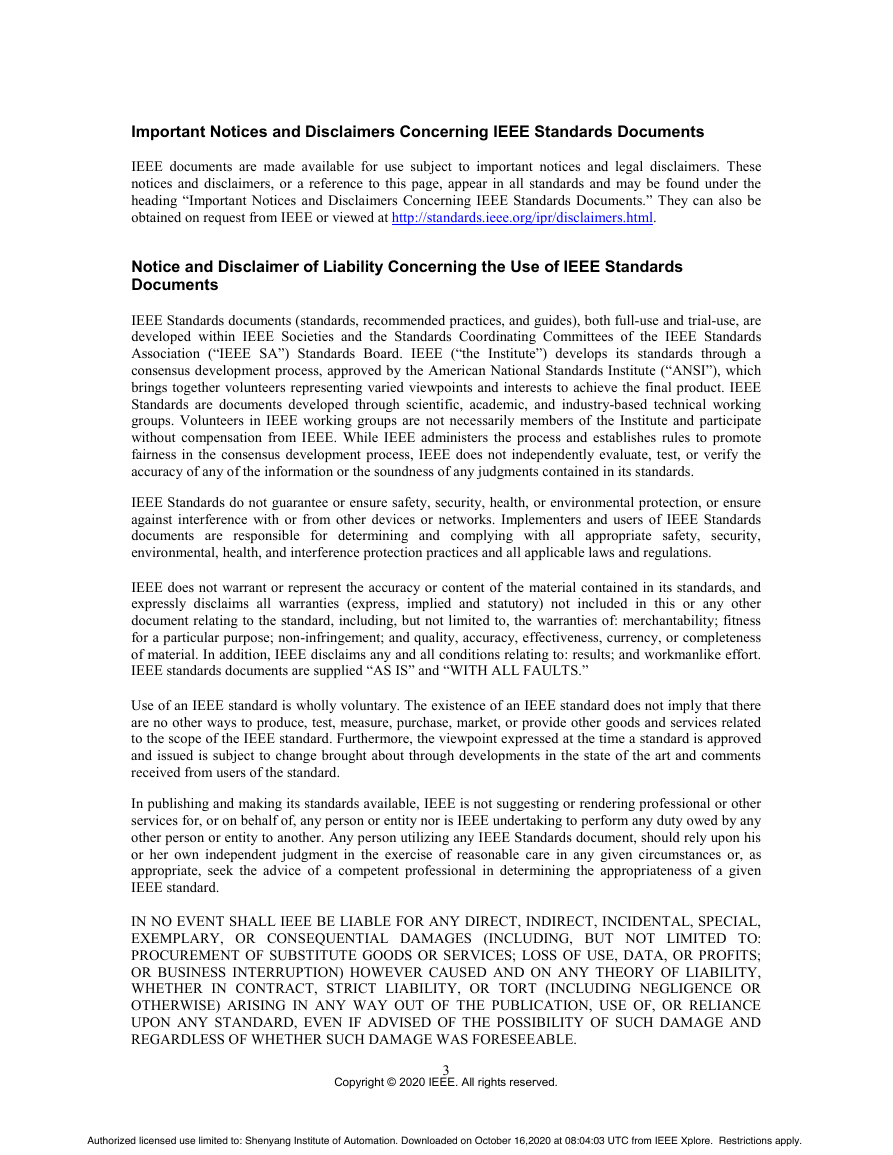

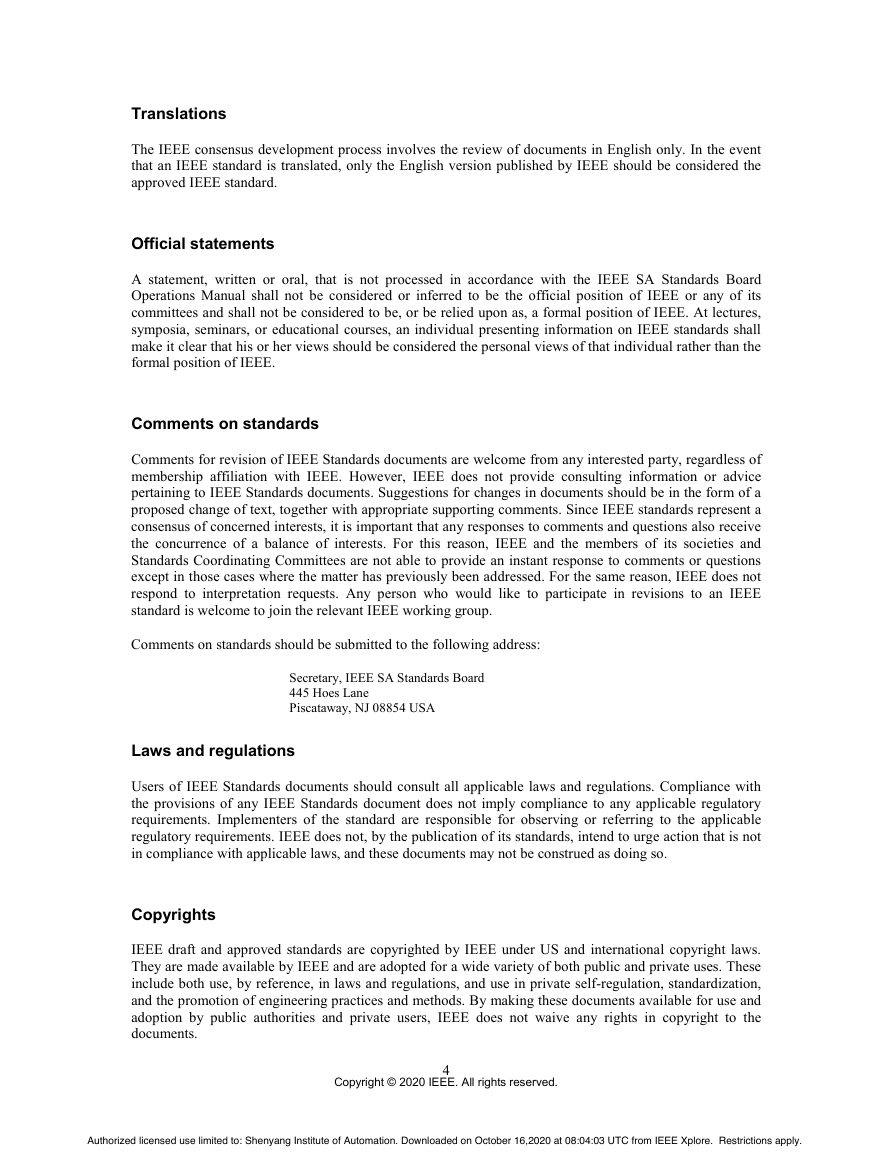

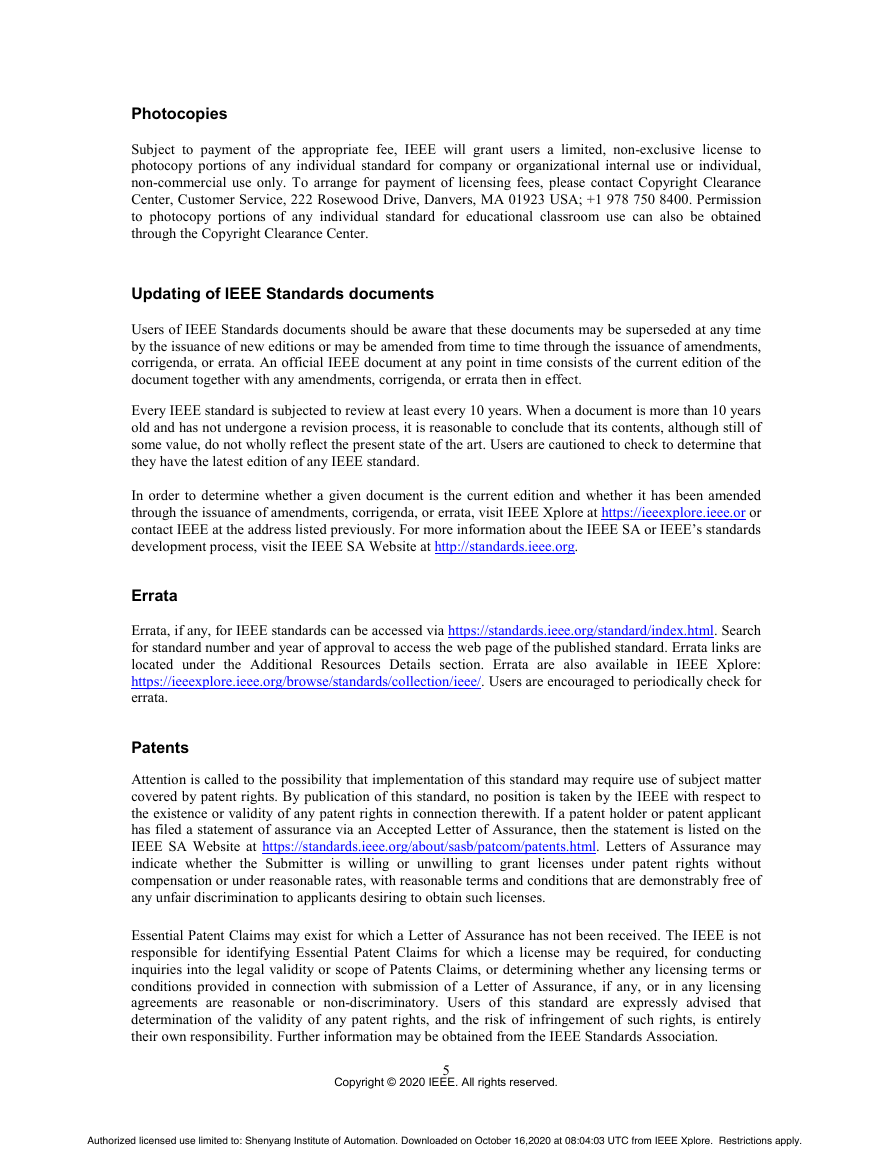

    Important Notices and Disclaimers Concerning IEEE Standards Documents

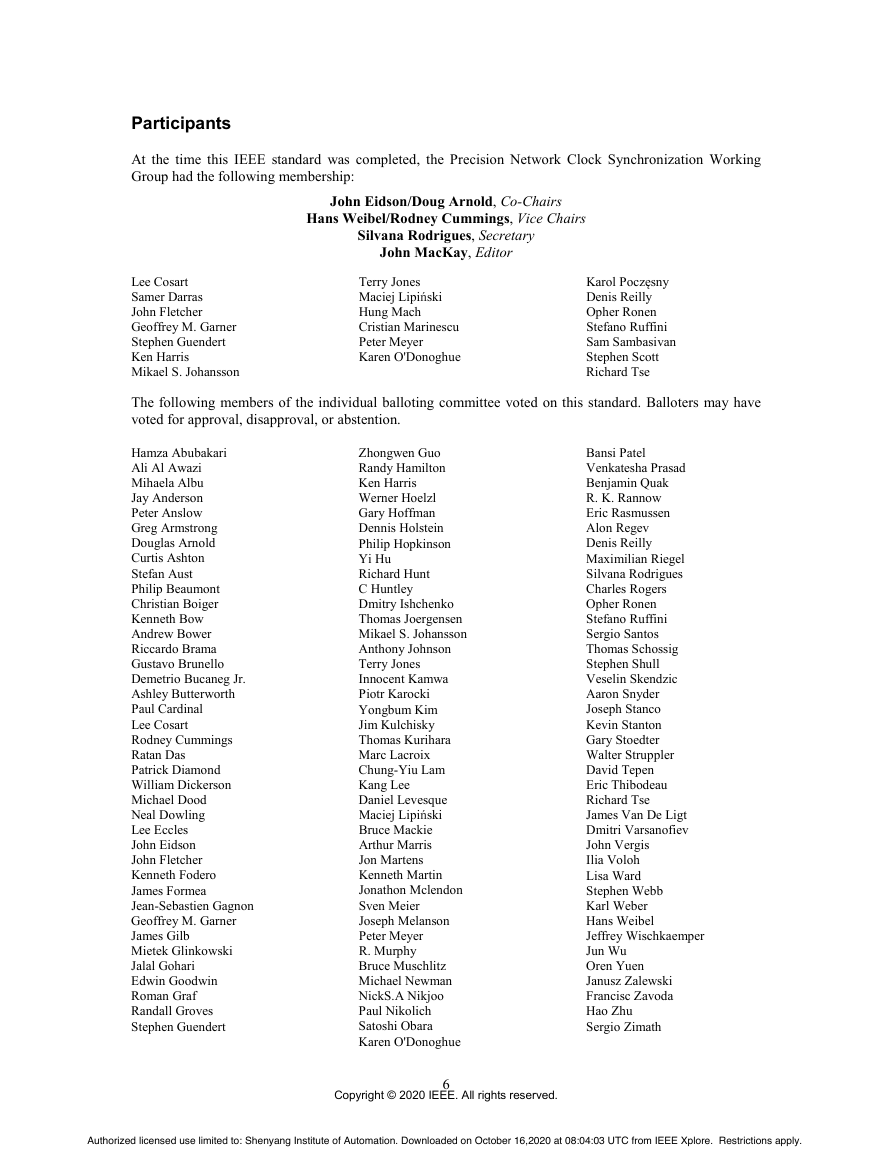

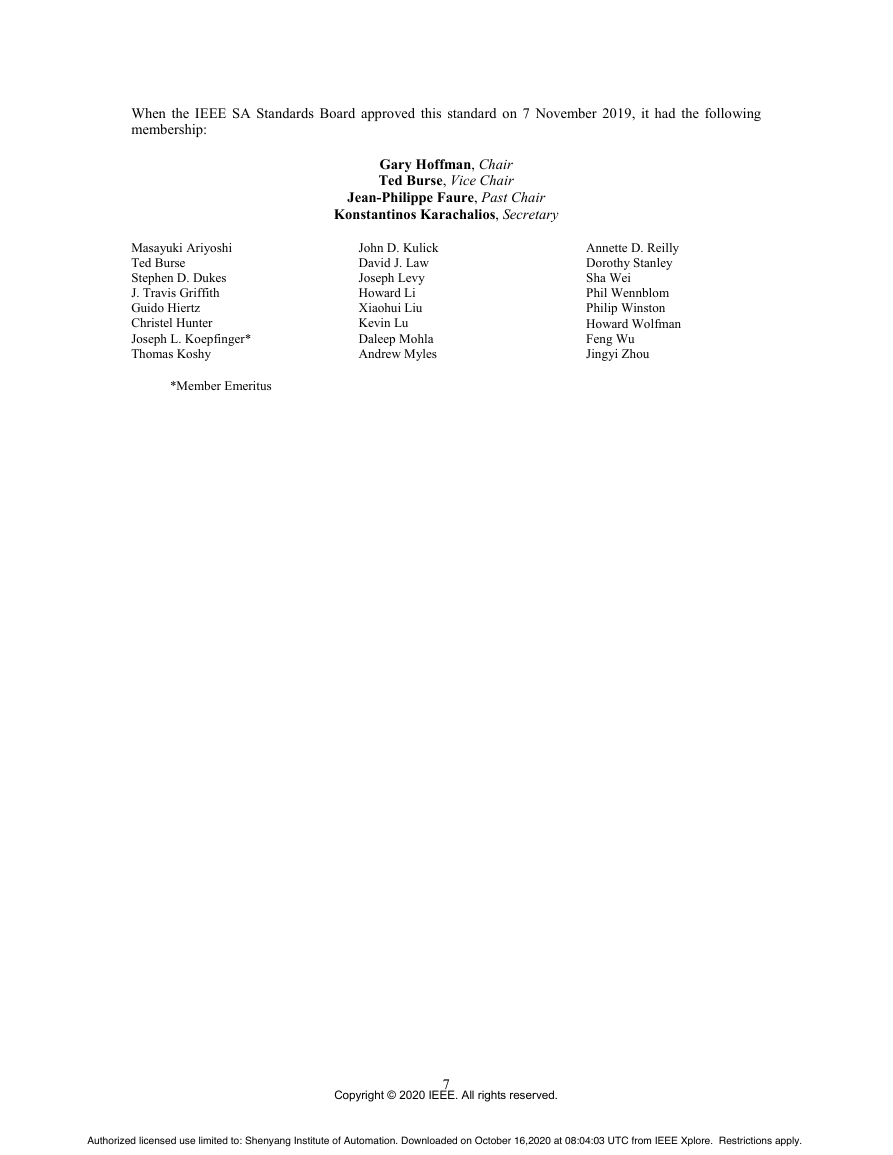

    Participants
    Introduction
    Contents
    1. Scope
    2. Normative references
    3. Definitions, acronyms, and abbreviations
    3.1 Definitions
    3.2 Acronyms and abbreviations
    4. Conventions
    4.1 Descriptive lexical form syntax
    4.1.1 Lexical form syntax
    4.2 Word usage
    4.2.1 Shall
    4.2.2 Must
    4.2.3 Should
    4.2.4 May
    4.2.5 Can
    4.2.6 Optional
    4.2.7 Reserved
    4.2.8 Deprecated
    4.2.9 Experimental
    4.3 Behavioral specification notation
    5. Data types and on-the-wire formats
    5.1 General
    5.2 Primitive data type specifications
    5.3 Derived data type specifications
    5.3.1 General
    5.3.2 TimeInterval
    5.3.3 Timestamp
    5.3.4 ClockIdentity
    5.3.5 PortIdentity
    5.3.6 PortAddress
    5.3.7 ClockQuality
    5.3.8 TLV
    5.3.9 PTPText
    5.3.10 FaultRecord
    5.3.11 RelativeDifference
    5.3.12 CommunicationCapabilities
    5.4 On-the-wire formats
    5.4.1 General
    5.4.2 Primitive data types
    5.4.3 Arrays of primitive types
    5.4.4 Derived data types
    5.4.5 Mapping of PTP protocol data units into their on-the-wire formats
    6. Clock synchronization model
    6.1 General requirements on implementations
    6.1.1 General
    6.1.2 Applicability and contents of the standard
    6.1.3 Names for major entities defined by the standard
    6.2 Principal assumptions about the network and implementation recommendations
    6.3 PTP Networks
    6.4 PTP message classes
    6.5 PTP device types
    6.5.1 General
    6.5.2 Ordinary Clocks and Boundary Clocks
    6.5.2.1 Layered model of Ordinary Clocks and Boundary Clocks
    6.5.2.1.1 General
    6.5.2.1.2 External environment and the Source Dependent and Sink Dependent blocks
    6.5.2.1.2.1 Introducing time into a PTP Instance
    6.5.2.1.2.2 Providing time to an external application
    6.5.2.1.3 Common core, data sets, internal clocks, and management
    6.5.2.1.3.1 PTP Common Core block
    6.5.2.1.3.2 Clocks associated with a PTP Instance
    6.5.2.1.3.3 Management
    6.5.2.1.4 PTP Ports and the PTP Network
    6.5.2.2 Properties of an Ordinary Clock
    6.5.2.3 Properties of a Boundary Clock
    6.5.3 End-to-end Transparent Clocks
    6.5.4 Peer-to-peer Transparent Clocks
    6.5.5 Combined Transparent Clocks and Ordinary Clocks
    6.5.6 PTP Management Nodes
    6.6 Synchronization overview
    6.6.1 General
    6.6.2 Establishing the master(slave hierarchy
    6.6.2.1 General
    6.6.2.2 PTP state machine
    6.6.2.3 Best master clock algorithm
    6.6.2.4 Simple master(slave hierarchy
    6.6.2.5 Pruning mesh topologies
    6.6.2.6 Segmentation of a domain by the BMCA
    6.6.3 Synchronizing Ordinary Clocks and Boundary Clocks
    6.6.4 Measuring PTP Link propagation delay using peer-to-peer delay mechanism
    6.6.5 Generation of PTP message timestamps
    6.6.6 Potential errors in measuring path delays and residence time
    6.6.6.1 Potential errors in measuring path delays and residence time due to differing rates of the Timestamping Clocks in PTP Instances in a domain
    6.6.6.2 Correcting for differing Timestamping Clock rates—,
    6.6.6.2.1 General
    6.6.6.2.2 Example using unsyntonized Local Clocks as the Timestamping Clock
    6.6.6.2.3 Example using syntonized Local Clocks as the Timestamping Clocks
    6.7 PTP communications overview
    6.7.1 PTP communication topology
    6.7.1.1 General
    6.7.1.2 Hierarchical topology
    6.7.1.3 Linear topology
    6.7.1.4 Rapid reconfiguration in multiply connected topologies
    6.7.1.5 Bridging between different network protocols
    6.7.2 PTP Network startup
    7. Characterization of PTP entities
    7.1 Domains
    7.1.1 General
    7.1.2 Domain identification semantics when not using the isolation option of 16.5
    7.1.2.1 In Boundary and Ordinary Clocks
    7.1.2.2 In Transparent Clocks
    7.1.3 Domain identification semantics when the isolation option of 16.5 is being used
    7.1.3.1 In Boundary and Ordinary Clocks
    7.1.3.2 In Transparent Clocks
    7.1.4 Assigning values for the domainNumber and sdoId for a domain
    7.2 Timescales used in PTP
    7.2.1 General
    7.2.2 Oscillator frequency
    7.2.3 Epoch
    7.2.4 UTC Offset
    7.2.5 Measurement of time within a domain
    7.3 PTP communications
    7.3.1 Messaging model
    7.3.2 PTP Message attributes
    7.3.3 Message class
    7.3.3.1 PTP event messages
    7.3.3.2 General PTP messages
    7.3.4 Generation of PTP event message timestamps
    7.3.4.1 message timestamp point
    7.3.4.2 Timestamp generation
    7.3.4.3 Timestamping Clock
    7.3.5 PTP message sourcePortIdentity
    7.3.6 PTP message types
    7.3.7 PTP message sequenceId
    7.3.8 Flag-based Indicators
    7.3.8.1 unicastFlag
    7.3.8.2 alternateMasterFlag
    7.3.8.3 twoStepFlag
    7.4 PTP communication media
    7.4.1 Network transport protocol
    7.4.2 PTP Communication Path delay, PTP Link delay, and
    7.4.3 Medium relative delay coefficient
    7.5 PTP Ports
    7.5.1 General
    7.5.2 portIdentity
    7.5.2.1 General
    7.5.2.2 clockIdentity
    7.5.2.2.1 General
    7.5.2.2.2 Construction of clockIdentity values
    7.5.2.2.2.1 General
    7.5.2.2.2.2 Construction based on an NUI-48
    7.5.2.2.2.3 Construction based on an NUI-64
    7.5.2.2.3 Reserved clockIdentity value
    7.5.2.3 portNumber
    7.5.2.4 Ordering of clockIdentity and portIdentity values
    7.5.2.5 Determination of PTP Port one or two-step semantics
    7.5.3 Path delay measurement mechanism
    7.5.4 PTP versions
    7.6 PTP Instance characterization
    7.6.1 PTP Instance type
    7.6.2 PTP Instance attributes
    7.6.2.1 General requirements
    7.6.2.2 clockIdentity
    7.6.2.3 priority1
    7.6.2.4 priority2
    7.6.2.5 clockClass
    7.6.2.6 clockAccuracy
    7.6.2.7 offsetScaledLogVariance
    7.6.2.8 timeSource
    7.6.2.9 numberPorts
    7.6.3 PTP variance
    7.6.3.1 General
    7.6.3.2 Variance algorithm
    7.6.3.3 Variance representation
    7.6.3.4 Ordering of variances
    7.6.3.5 Computation of defaultDS.offsetScaledLogVariance
    7.6.4 Parent PTP Instance statistics
    7.6.4.1 General
    7.6.4.2 parentDS.parentStats
    7.6.4.3 parentDS.observedParentOffsetScaledLogVariance
    7.6.4.4 parentDS.observedParentClockPhaseChangeRate
    7.6.5 defaultDS.numberPorts
    7.6.6 Obtaining timing from external sources and updating the data sets of a PTP Instance
    7.6.6.1 General specification
    7.6.6.2 Source Adapter blocks
    7.6.6.3 External Source block
    7.6.7 Providing timing to external users
    7.6.7.1 General specification
    7.6.7.2 Sink Adapter blocks
    7.6.7.3 External Sink block
    7.7 PTP timing characterization
    7.7.1 General
    7.7.2 PTP message transmission intervals
    7.7.2.1 General interval specification
    7.7.2.2 Announce message transmission interval
    7.7.2.3 Sync (multicast) message transmission interval
    7.7.2.4 Delay_Req message transmission interval
    7.7.2.5 Pdelay_Req message transmission interval
    7.7.3 PTP timeouts
    7.7.3.1 portDS.announceReceiptTimeout
    8. PTP data sets
    8.1 General specifications for data set members
    8.1.1 Introduction to data sets
    8.1.1.1 Introduction to data set specifications
    8.1.1.2 Ordinary Clocks and Boundary Clocks
    8.1.1.3 Transparent Clocks
    8.1.2 Initialization classification
    8.1.2.1 General
    8.1.2.1.1 Static members
    8.1.2.1.2 Dynamic members
    8.1.2.1.3 Configurable members
    8.1.3 PTP Instance data set initialization properties
    8.1.3.1 General initialization specifications
    8.1.3.2 Initialization of static data set members
    8.1.3.3 Initialization of dynamic data set members
    8.1.3.4 Initialization of configurable data set members
    8.1.3.5 Operation of nonvolatile read(write storage of data set members
    8.1.4 Use of data sets for management
    8.1.4.1 General
    8.1.4.2 Organization within a PTP Node
    8.1.4.3 Management conformance
    8.1.4.4 Read/write permissions
    8.1.5 Data type
    8.1.6 Operational conformance
    8.1.7 Correspondence between abstract quantities and data set members
    8.2 Data sets for PTP Instances
    8.2.1 defaultDS data set member specifications
    8.2.1.1 General
    8.2.1.2 Static members of the defaultDS data set
    8.2.1.2.1 defaultDS.twoStepFlag (deprecated)
    8.2.1.2.2 defaultDS.clockIdentity
    8.2.1.2.3 defaultDS.numberPorts
    8.2.1.3 Dynamic members of the defaultDS data set
    8.2.1.3.1 defaultDS.clockQuality
    8.2.1.3.1.1 General
    8.2.1.3.1.2 defaultDS.clockQuality.clockClass
    8.2.1.3.1.3 defaultDS.clockQuality.clockAccuracy
    8.2.1.3.1.4 defaultDS.clockQuality.offsetScaledLogVariance
    8.2.1.4 Configurable members of the defaultDS data set
    8.2.1.4.1 defaultDS.priority1
    8.2.1.4.2 defaultDS.priority2
    8.2.1.4.3 defaultDS.domainNumber
    8.2.1.4.4 defaultDS.slaveOnly
    8.2.1.4.5 defaultDS.sdoId
    8.2.1.5 Optional members of the defaultDS data set
    8.2.1.5.1 defaultDS.currentTime
    8.2.1.5.2 defaultDS.instanceEnable
    8.2.1.5.3 defaultDS.externalPortConfigurationEnabled
    8.2.1.5.4 defaultDS.maxStepsRemoved
    8.2.1.5.5 defaultDS.instanceType
    8.2.2 currentDS data set member specifications
    8.2.2.1 General
    8.2.2.2 currentDS.stepsRemoved
    8.2.2.3 currentDS.offsetFromMaster
    8.2.2.4 currentDS.meanDelay
    8.2.2.5 currentDS.synchronizationUncertain
    8.2.3 parentDS data set member specifications
    8.2.3.1 General
    8.2.3.2 parentDS.parentPortIdentity
    8.2.3.3 parentDS.parentStats
    8.2.3.4 parentDS.observedParentOffsetScaledLogVariance
    8.2.3.5 parentDS.observedParentClockPhaseChangeRate
    8.2.3.6 parentDS.grandmasterIdentity
    8.2.3.7 parentDS.grandmasterClockQuality
    8.2.3.8 parentDS.grandmasterPriority1
    8.2.3.9 parentDS.grandmasterPriority2
    8.2.3.10 parentDS.protocolAddress
    8.2.3.11 parentDS.synchronizationUncertain
    8.2.4 timePropertiesDS data set member specifications
    8.2.4.1 General
    8.2.4.2 timePropertiesDS.currentUtcOffset
    8.2.4.3 timePropertiesDS.currentUtcOffsetValid
    8.2.4.4 timePropertiesDS.leap59
    8.2.4.5 timePropertiesDS.leap61
    8.2.4.6 timePropertiesDS.timeTraceable
    8.2.4.7 timePropertiesDS.frequencyTraceable
    8.2.4.8 timePropertiesDS.ptpTimescale
    8.2.4.9 timePropertiesDS.timeSource
    8.2.5 descriptionDS
    8.2.5.1 General
    8.2.5.2 descriptionDS.manufacturerIdentity
    8.2.5.3 descriptionDS.productDescription
    8.2.5.4 descriptionDS.productRevision
    8.2.5.5 descriptionDS.userDescription
    8.2.6 faultLogDS
    8.2.6.1 General
    8.2.6.2 faultLogDS.numberOfFaultRecords
    8.2.6.3 faultLogDS.faultRecordList
    8.2.6.4 faultLogDS.reset
    8.2.7 nonvolatileStorageDS
    8.2.7.1 General
    8.2.7.2 nonVolatileStorageDS.reset
    8.2.7.3 nonVolatileStorageDS.save
    8.2.8 pathTraceDS
    8.2.9 alternateTimescaleOffsetsDS
    8.2.10 holdoverUpgradeDS
    8.2.10.1 General
    8.2.11 grandmasterClusterDS
    8.2.12 acceptableMasterTableDS
    8.2.13 performanceMonitoringDS
    8.2.14 enhancedSynchronizationAccuracyMetricsDS
    8.2.14.1 General
    8.2.14.2 enhancedSynchronizationAccuracyMetricsDS.enable
    8.2.15 portDS data set member specifications
    8.2.15.1 General
    8.2.15.2 Static members of the portDS data set
    8.2.15.2.1 portDS.portIdentity
    8.2.15.3 Dynamic members of the portDS data set
    8.2.15.3.1 portDS.portState
    8.2.15.3.2 portDS.logMinDelayReqInterval
    8.2.15.3.3 portDS.meanLinkDelay
    8.2.15.4 Configurable members of the portDS data set
    8.2.15.4.1 portDS.logAnnounceInterval
    8.2.15.4.2 portDS.announceReceiptTimeout
    8.2.15.4.3 portDS.logSyncInterval
    8.2.15.4.4 portDS.delayMechanism
    8.2.15.4.5 portDS.logMinPdelayReqInterval
    8.2.15.4.6 portDS.versionNumber
    8.2.15.4.7 portDS.minorVersionNumber
    8.2.15.4.8 portDS.delayAsymmetry
    8.2.15.5 Optional members of the portDS data set
    8.2.15.5.1 portDS.portEnable
    8.2.15.5.2 portDS.masterOnly
    8.2.16 timestampCorrectionPortDS
    8.2.16.1 General
    8.2.16.2 timestampCorrectionPortDS.egressLatency
    8.2.16.3 timestampCorrectionPortDS.ingressLatency
    8.2.17 asymmetryCorrectionPortDS
    8.2.17.1 General
    8.2.17.2 asymmetryCorrectionPortDS.constantAsymmetry
    8.2.17.3 asymmetryCorrectionPortDS.scaledDelayCoefficient
    8.2.17.4 asymmetryCorrectionPortDS.enable
    8.2.18 descriptionPortDS
    8.2.18.1 General
    8.2.18.2 descriptionPortDS.profileIdentifier
    8.2.18.3 descriptionPortDS.protocolAddress
    8.2.19 unicastNegotiationPortDS
    8.2.19.1 General
    8.2.19.2 unicastNegotiationPortDS.enable
    8.2.20 alternateMasterPortDS
    8.2.21 unicastDiscoveryPortDS
    8.2.22 acceptableMasterPortDS
    8.2.23 L1SyncBasicPortDS
    8.2.24 L1SyncOptParamsPortDS
    8.2.25 communicationCapabilitiesPortDS
    8.2.25.1 communicationCapabilitiesPortDS.syncCapabilities
    8.2.25.2 communicationCapabilitiesPortDS.delayRespCapabilities
    8.2.26 performanceMonitoringPortDS
    8.2.27 commonServicesPortDS
    8.2.28 externalPortConfigurationPortDS
    8.2.29 slaveMonitoringPortDs
    8.3 Data sets for Transparent Clocks
    8.3.1 General
    8.3.1.1 Node-level data sets for Transparent Clocks
    8.3.1.2 Instance-level data sets for Transparent Clocks
    8.3.2 transparentClockDefaultDS data set member specifications (deprecated)
    8.3.2.1 General
    8.3.2.2 Static members of the transparentClockDefaultDS data set
    8.3.2.2.1 transparentClockDefaultDS.clockIdentity
    8.3.2.2.2 transparentClockDefaultDS.numberPorts
    8.3.2.3 Configurable members of the transparentClockDefaultDS data set
    8.3.2.3.1 transparentClockDefaultDS.delayMechanism
    8.3.2.3.2 transparentClockDefaultDS.primaryDomain
    8.3.3 transparentClockPortDS data set member specifications (deprecated)
    8.3.3.1 General
    8.3.3.2 Static members of the portDS data set
    8.3.3.2.1 transparentClockPortDS.portIdentity
    8.3.3.3 Dynamic members of the portDS data set
    8.3.3.3.1 transparentClockPortDS.logMinPdelayReqInterval
    8.3.3.3.2 transparentClockPortDS.faultyFlag
    8.3.3.3.3 transparentClockPortDS.peerMeanPathDelay
    8.4 commonMeanLinkDelayService data sets
    9. PTP for Ordinary Clocks and Boundary Clocks
    9.1 General protocol requirements for PTP Ordinary Clocks and Boundary Clocks
    9.2 State protocol
    9.2.1 General state requirements
    9.2.2 PTP Instances with special state behavior
    9.2.2.1 Slave-Only Ordinary Clocks
    9.2.2.2 MasterOnly PTP Ports
    9.2.2.3 PTP Ports not on a Slave-Only Ordinary Clock or in a masterOnly mode
    9.2.3 Non-slaveOnly PTP Instances
    9.2.4 State definitions
    9.2.5 State machines
    9.2.6 Events initiating PTP state transitions
    9.2.6.1 General
    9.2.6.2 POWERUP
    9.2.6.3 INITIALIZE
    9.2.6.4 DESIGNATED_ENABLED
    9.2.6.5 DESIGNATED_DISABLED
    9.2.6.6 FAULT_CLEARED
    9.2.6.7 FAULT_DETECTED
    9.2.6.8 INITIALIZATION_COMPLETE
    9.2.6.9 STATE_DECISION_EVENT
    9.2.6.10 Recommended state
    9.2.6.11 QUALIFICATION_TIMEOUT_EXPIRES
    9.2.6.12 ANNOUNCE_RECEIPT_TIMEOUT_EXPIRES
    9.2.6.13 SYNCHRONIZATION_FAULT
    9.2.6.14 MASTER_CLOCK_SELECTED
    9.2.7 Applying PTP events to the PTP Ports of a Boundary Clock
    9.3 Best master clock algorithms
    9.3.1 Selection of the best master clock algorithm
    9.3.2 Best master clock algorithm
    9.3.2.1 Overview and definition of terms
    9.3.2.2 General best master clock algorithm specifications
    9.3.2.3 Computation of Erbest
    9.3.2.4 specifications
    9.3.2.4.1 General
    9.3.2.4.2 [].foreignMasterPortIdentity
    9.3.2.4.3 [].foreignMasterAnnounceMessages
    9.3.2.4.4 [].mostRecentAnnounceMessage
    9.3.2.4.5 FOREIGN_MASTER_TIME_WINDOW and FOREIGN_MASTER_THRESHOLD
    9.3.2.4.6 Size of
    9.3.2.5 Qualification of Announce messages
    9.3.3 State decision algorithm
    9.3.4 Data set comparison algorithm
    9.3.5 Update of data sets
    9.4 Grandmaster PTP Instance timePropertiesDS updates
    9.5 PTP message processing semantics
    9.5.1 Messaging behavior of Ordinary Clock and Boundary Clocks
    9.5.2 Receipt by a PTP Instance of any message from itself
    9.5.2.1 General
    9.5.2.2 Ordinary Clocks and any single PTP Port of a Boundary Clock
    9.5.2.3 Additional constraints for Boundary Clocks
    9.5.3 Receipt of an Announce message from another PTP Instance
    9.5.4 Receipt of a Sync message from another PTP Instance
    9.5.5 Receipt of a Follow_Up message from another PTP Instance
    9.5.6 Receipt of a Delay_Req message from another PTP Instance
    9.5.7 Receipt of a Delay_Resp message from another PTP Instance
    9.5.8 Transmission of an Announce message
    9.5.9 Transmission of a Sync message
    9.5.9.1 General specification
    9.5.9.2 General requirements
    9.5.9.3 Additional requirements when the Message Length Extension option is active
    9.5.9.4 One-step PTP Ports
    9.5.9.5 Two-step PTP Ports
    9.5.10 Transmission of a Follow_Up message
    9.5.11 Transmission of a Delay_Req message
    9.5.11.1 General requirements
    9.5.11.2 Timing requirements
    9.5.12 Transmission of a Delay_Resp message
    9.5.13 Transmission of a Pdelay_Req message
    9.5.13.1 General requirements
    9.5.13.2 Timing requirements
    9.5.14 Transmission of Pdelay_Resp message
    9.5.15 Transmission of Pdelay_Resp_Follow_Up message
    9.6 Changes in the PTP Instance
    10. PTP for Transparent Clocks
    10.1 Requirements for both end-to-end and peer-to-peer Transparent Clocks
    10.1.1 Residence time computations
    10.1.2 Retransmission of PTP messages that contain TLVs
    10.2 End-to-end Transparent Clock requirements
    10.2.1 General requirements
    10.2.2 Default PTP message processing in end-to-end Transparent Clocks
    10.2.2.1 Processing of Sync messages
    10.2.2.1.1 Egress one-step PTP Ports
    10.2.2.1.2 Egress two-step PTP Ports
    10.2.2.1.2.1 Ingress Sync message twoStep flag is FALSE
    10.2.2.1.2.2 Ingress Sync message twoStep flag is TRUE
    10.2.2.2 Processing of Delay_Req messages
    10.2.2.2.1 General specification
    10.2.2.2.2 Egress one-step PTP Ports
    10.2.2.2.3 Egress two-step PTP Ports
    10.2.2.3 Processing of Pdelay_Req and Pdelay_Resp messages
    10.2.2.3.1 General
    10.2.2.3.2 Egress one-step PTP Ports on end-to-end Transparent Clocks
    10.2.2.3.3 Egress two-step PTP Ports on end-to-end Transparent Clocks
    10.2.3 Alternate processing of Sync, Delay_Req, Delay_Resp, Pdelay_Req, and Pdelay_Resp messages on end-to-end Transparent Clocks
    10.2.3.1 General requirements
    10.2.3.2 Constraints on processing of Sync and Follow_Up messages
    10.2.3.2.1 All cases
    10.2.3.2.2 Ingress and egress twoStepFlags both FALSE
    10.2.3.2.3 Ingress twoStepFlag FALSE and egress twoStepFlag TRUE
    10.2.3.2.4 Ingress twoStepFlag TRUE and egress twoStepFlag FALSE
    10.2.3.2.5 Ingress twoStepFlag TRUE and egress twoStepFlag TRUE:
    10.2.3.3 Constraints on processing of Delay_Req and Delay_Resp messages
    10.2.3.4 Constraints on processing of Pdelay_Req and Pdelay_Resp messages
    10.2.3.4.1 All cases
    10.2.3.4.2 Ingress twoStep flag is FALSE
    10.2.3.4.3 Ingress twoStep flag is TRUE
    10.3 Peer-to-peer Transparent Clock requirements
    10.3.1 General requirements
    10.3.2 Default Sync and Follow_Up message processing in peer-to-peer Transparent Clocks
    10.3.2.1 Egress one-step PTP Ports
    10.3.2.2 Egress two-step PTP Ports
    10.3.2.2.1 Ingress Sync message twoStep flag is FALSE
    10.3.2.2.2 Ingress Sync message twoStep flag is TRUE
    10.3.3 Alternate processing of Sync and Follow_Up messages on peer-to-peer Transparent Clocks
    10.3.3.1 General requirements
    10.3.3.2 Constraints on processing of Sync and Follow_Up messages
    10.3.3.2.1 All cases
    10.3.3.2.2 Ingress and egress twoStepFlags both FALSE
    10.3.3.2.3 Ingress twoStepFlag FALSE and egress twoStepFlag TRUE
    10.3.3.2.4 Ingress twoStepFlag TRUE and egress twoStepFlag FALSE
    10.3.3.2.5 Ingress twoStepFlag TRUE and egress twoStepFlag TRUE
    11. Clock offset, path delay, residence time, and asymmetry corrections
    11.1 General specifications
    11.2 Computation of in Ordinary Clocks and Boundary Clocks
    11.3 Delay request-response mechanism for Ordinary Clocks and Boundary Clocks
    11.3.1 Delay request-response mechanism general requirements
    11.3.2 Delay request-response mechanism operational specifications
    11.4 Peer-to-peer delay mechanism
    11.4.1 Peer-to-peer delay mechanism general requirements
    11.4.2 Peer-to-peer delay mechanism operational specifications
    11.4.3 Restriction on the use of the peer-to-peer delay mechanism
    11.5 MDMI interface and Special Ports
    11.5.1 General requirements
    11.5.2 Operation of the components in a Special Port
    11.5.2.1 Nontiming PTP message handling by a Special Port
    11.5.2.1.1 Announce messages
    11.5.2.1.2 Signaling messages
    11.5.2.1.3 PTP management messages
    11.5.2.2 Time transfer by a Special Port
    11.5.2.2.1 PTP Port block
    11.5.2.2.2 MDMI interface general properties
    11.5.2.2.3 Special PTP MD Adapter block
    11.5.2.2.4 Network Interface Stack
    11.5.3 Timing information transfer across the MDMI Interface
    11.5.3.1 Timing information transfer across the MDMI Interface on reception
    11.5.3.1.1 domainNumber
    11.5.3.1.2 sdoId
    11.5.3.1.3 sourcePortIdentity
    11.5.3.1.4 originOrPreciseOriginTimestamp
    11.5.3.1.5 correctionField
    11.5.3.1.6 logMessageInterval
    11.5.3.1.7 upstreamTxTime
    11.5.3.1.8 cumulativeRateRatio
    11.5.3.2 Timing information transfer across the MDMI Interface on transmission
    11.5.3.2.1 domainNumber
    11.5.3.2.2 sdoId
    11.5.3.2.3 sourcePortIdentity
    11.5.3.2.4 originOrPreciseOriginTimestamp
    11.5.3.2.5 correctionField
    11.5.3.2.6 logMessageInterval
    11.5.3.2.7 upstreamTxTime
    11.5.3.2.8 cumulativeRateRatio
    11.5.3.3 Computation of at the PTP Instance whose PTP Port in the SLAVE state is a Special Port
    12. Synchronization and syntonization of clocks
    12.1 Clock adjustments
    12.2 Syntonization
    12.2.1 General specification
    12.2.2 Syntonization based on Sync messages
    12.2.3 Syntonization based on other mechanisms
    12.3 Synchronization
    13. PTP message formats
    13.1 General
    13.2 General PTP message format requirements
    13.3 Header
    13.3.1 General header specifications
    13.3.2 Header specifications
    13.3.2.1 majorSdoId (Nibble)
    13.3.2.2 minorSdoId (UInteger8)
    13.3.2.3 messageType (Enumeration4)
    13.3.2.4 versionPTP (UInteger4)
    13.3.2.5 minorVersionPTP (UInteger4)
    13.3.2.6 messageLength (UInteger16)
    13.3.2.7 domainNumber (UInteger8)
    13.3.2.8 flagField (Octet[2])
    13.3.2.9 correctionField (Integer64)
    13.3.2.10 messageTypeSpecific (Octet[4])
    13.3.2.11 sourcePortIdentity (PortIdentity)
    13.3.2.12 sequenceId (UInteger16)
    13.3.2.13 controlField (UInteger8)
    13.3.2.14 logMessageInterval (Integer8)
    13.4 Suffix
    13.5 Announce message
    13.5.1 General Announce message specifications
    13.5.2 Announce message field specifications
    13.5.2.1 originTimestamp (Timestamp)
    13.5.2.2 currentUtcOffset (Integer16)
    13.5.2.3 grandmasterPriority1 (UInteger8)
    13.5.2.4 grandmasterClockQuality (ClockQuality)
    13.5.2.5 grandmasterPriority2 (UInteger8)
    13.5.2.6 grandmasterIdentity (ClockIdentity)
    13.5.2.7 stepsRemoved (UInteger16)
    13.5.2.8 timeSource (Enumeration8)
    13.6 Sync and Delay_Req messages
    13.6.1 General Sync and Delay_Req message specifications
    13.6.2 Sync and Delay_Req message field specifications
    13.6.2.1 originTimestamp (Timestamp)
    13.7 Follow_Up message
    13.7.1 General Follow_Up message specifications
    13.7.2 Follow_Up message field specifications
    13.7.2.1 preciseOriginTimestamp (Timestamp)
    13.8 Delay_Resp message
    13.8.1 General Delay_Resp message specifications
    13.8.2 Delay_Resp message field specifications
    13.8.2.1 receiveTimestamp (Timestamp)
    13.8.2.2 requestingPortIdentity (PortIdentity)
    13.9 Pdelay_Req message
    13.9.1 General Pdelay_Req message specifications
    13.9.2 Pdelay_Req message field specifications
    13.9.2.1 originTimestamp (Timestamp)
    13.10 Pdelay_Resp message
    13.10.1 General Pdelay_Resp message specifications
    13.10.2 Pdelay_Resp message field specifications
    13.10.2.1 requestReceiptTimestamp (Timestamp)
    13.10.2.2 requestingPortIdentity (PortIdentity)
    13.11 Pdelay_Resp_Follow_Up message
    13.11.1 General Pdelay_Resp_Follow_Up message specifications
    13.11.2 Pdelay_Resp_Follow_Up message field specifications
    13.11.2.1 responseOriginTimestamp (Timestamp)
    13.11.2.2 requestingPortIdentity (PortIdentity)
    13.12 Signaling message
    13.12.1 Receipt of a Signaling message from another PTP Instance
    13.12.2 Transmission of a Signaling message
    13.12.2.1 targetPortIdentity (PortIdentity)
    13.13 PTP management message
    14. TLV entity specifications
    14.1 General requirements
    14.1.1 tlvType (Enumeration16)
    14.1.2 lengthField (UInteger16)
    14.1.3 valueField (tlvType specific)
    14.2 Propagation of TLVs through Boundary Clocks
    14.2.1 TLVs Attached to non-Announce PTP Messages
    14.2.2 Unsupported TLVs Attached to Announce PTP Message
    14.2.2.1 Unsupported TLVs marked “Do Not Propagate”
    14.2.2.2 Unsupported TLVs marked “Propagate”
    14.2.2.3 Supported TLVs received on an Announce message
    14.3 Vendor and standard organization extension TLVs
    14.3.1 General
    14.3.2 TLV member specifications
    14.3.2.1 tlvType (Enumeration16)
    14.3.2.2 lengthField (UInteger16)
    14.3.2.3 organizationId (Octet[3])
    14.3.2.4 organizationSubType (Enumeration24)
    14.3.2.5 data (organizationSubType and organizationId specific)
    14.4 PAD TLV (optional)
    14.4.1 General
    14.4.2 PAD TLV specification
    14.4.2.1 tlvType
    14.4.2.2 lengthField
    14.4.2.3 pad
    15. PTP management messages (optional)
    15.1 General
    15.1.1 Selection of management mechanisms
    15.2 PTP management mechanism
    15.3 Processing of PTP management messages
    15.3.1 Receipt of a PTP management message
    15.3.2 Transmission of a PTP management message
    15.3.3 Boundary Clock retransmission of PTP management messages
    15.4 PTP management message format
    15.4.1 Common fields
    15.4.1.1 domainNumber, majorSdoId, and minorSdoId of the header
    15.4.1.2 sequenceId of the header
    15.4.1.3 targetPortIdentity (PortIdentity)
    15.4.1.4 startingBoundaryHops (UInteger8)
    15.4.1.5 boundaryHops (UInteger8)
    15.4.1.7 managementTLV
    15.5 Management TLVs
    15.5.1 Management TLV introduction
    15.5.1.1 General
    15.5.1.1.1 Management of data sets
    15.5.1.1.2 Management of events
    15.5.2 MANAGEMENT TLV field format
    15.5.2.1 tlvType (Enumeration16)
    15.5.2.2 lengthField (UInteger16)
    15.5.2.3 managementId (Enumeration16)
    15.5.3 Management TLV data field specifications for each managementId
    15.5.3.1 TLV data fields for MANAGEMENT_TLVs applicable to all PTP Instances
    15.5.3.1.1 NULL_PTP_MANAGEMENT
    15.5.3.1.2 CLOCK_DESCRIPTION
    15.5.3.1.2.1 clockType (Boolean[16])
    15.5.3.1.2.2 physicalLayerProtocol (PTPText)
    15.5.3.1.2.3 physicalAddressLength (UInteger16)
    15.5.3.1.2.4 physicalAddress (Octet[physicalAddressLength])
    15.5.3.1.2.5 protocolAddress (PortAddress)
    15.5.3.1.2.6 manufacturerIdentity (Octet[3])
    15.5.3.1.2.7 productDescription (PTPText )
    15.5.3.1.2.8 revisionData (PTPText )
    15.5.3.1.2.9 userDescription (PTPText )
    15.5.3.1.2.10 profileIdentifier (Octet[6])
    15.5.3.1.2.11 pad (Octet[M])
    15.5.3.1.3 USER_DESCRIPTION
    15.5.3.1.3.1 userDescription (PTPText )
    15.5.3.1.3.2 pad (Octet[M])
    15.5.3.1.4 SAVE_IN_NON_VOLATILE_STORAGE
    15.5.3.1.5 RESET_NON_VOLATILE_STORAGE
    15.5.3.1.6 INITIALIZE
    15.5.3.1.6.1 initializationKey (Enumeration16)
    15.5.3.1.7 FAULT_LOG
    15.5.3.1.7.1 numberOfFaultRecords (UInteger16)
    15.5.3.1.7.2 faultRecordList (FaultRecord[numberOfFaultRecords])
    15.5.3.1.7.3 pad (Octet[M])
    15.5.3.1.8 FAULT_LOG_RESET
    15.5.3.2 TLV data fields applicable to Ordinary Clocks and Boundary Clocks
    15.5.3.2.1 TIME
    15.5.3.2.1.1 currentTime (Timestamp)
    15.5.3.2.2 CLOCK_ACCURACY
    15.5.3.2.2.1 clockAccuracy (Enumeration8)
    15.5.3.2.3 ENABLE_PORT
    15.5.3.2.4 DISABLE_PORT
    15.5.3.2.5 SLAVE_EVENT_MONITORING management TLV data field
    15.5.3.2.5.1 TLV0 (Boolean)
    15.5.3.2.5.2 TLV1 (Boolean)
    15.5.3.2.5.3 TLV2 (Boolean)
    15.5.3.2.5.4 EPRSTT (UInteger8)
    15.5.3.2.5.5 EPRSCT (UInteger8)
    15.5.3.2.5.6 EPTETT (UInteger8)
    15.5.3.2.5.7 TET (UInteger8)
    15.5.3.3 TLV data fields applicable to the defaultDS data set of Ordinary Clocks and Boundary Clocks
    15.5.3.3.1 DEFAULT_DATA_SET
    15.5.3.3.1.1 TSC (Boolean)
    15.5.3.3.1.2 SO (Boolean)
    15.5.3.3.1.3 numberPorts (UInteger16)
    15.5.3.3.1.4 priority1 (UInteger8)
    15.5.3.3.1.5 clockQuality (ClockQuality)
    15.5.3.3.1.6 priority2 (UInteger8)
    15.5.3.3.1.7 clockIdentity (ClockIdentity)
    15.5.3.3.1.8 domainNumber (UInteger8)
    15.5.3.3.2 PRIORITY1
    15.5.3.3.2.1 priority1 (UInteger8)
    15.5.3.3.3 PRIORITY2
    15.5.3.3.3.1 priority2 (UInteger8)
    15.5.3.3.4 DOMAIN
    15.5.3.3.4.1 domainNumber (UInteger8)
    15.5.3.3.5 SLAVE_ONLY
    15.5.3.3.5.1 SO (Boolean)
    15.5.3.3.6 PATH_TRACE_LIST PTP management message
    15.5.3.3.6.1 pathSequence (ClockIdentity[N])
    15.5.3.3.7 PATH_TRACE_ENABLE PTP management message
    15.5.3.3.7.1 EN (Boolean)
    15.5.3.3.8 ALTERNATE_TIME_OFFSET_ENABLE PTP management message
    15.5.3.3.8.1 keyField (UInteger8)
    15.5.3.3.8.2 EN (Boolean)
    15.5.3.3.9 ALTERNATE_TIME_OFFSET_NAME TLV
    15.5.3.3.9.1 keyField (UInteger8)
    15.5.3.3.9.2 displayName (PTPText)
    15.5.3.3.9.3 pad (Octet[M])
    15.5.3.3.10 ALTERNATE_TIME_OFFSET_MAX_KEY management TLV
    15.5.3.3.10.1 maxKey (UInteger8)
    15.5.3.3.11 ALTERNATE_TIME_OFFSET_PROPERTIES management TLV (optional)
    15.5.3.3.11.1 keyField (UInteger8)
    15.5.3.3.11.2 currentOffset (Integer32)
    15.5.3.3.11.3 jumpSeconds (Integer32)
    15.5.3.3.11.4 timeOfNextJump (UInteger48)
    15.5.3.3.12 Configuration of holdoverUpgradeDS
    15.5.3.3.12.1 EN (Boolean)
    15.5.3.3.13 GRANDMASTER_CLUSTER_TABLE management TLV data field
    15.5.3.3.13.1 logQueryInterval (Integer8)
    15.5.3.3.13.2 actualTableSize (UInteger8)
    15.5.3.3.13.3 portAddress (PortAddress[actualTableSize])
    15.5.3.3.13.4 pad (Octet[M])
    15.5.3.3.14 ACCEPTABLE_MASTER_TABLE management TLV data field
    15.5.3.3.14.1 actualTableSize (Integer16)
    15.5.3.3.14.2 list(acceptableMaster[actualTableSize])
    15.5.3.3.14.3 pad (Octet[M])
    15.5.3.3.15 ACCEPTABLE_MASTER_MAX_TABLE_SIZE management TLV data field
    15.5.3.3.15.1 maxTableSize (UInteger16)
    15.5.3.4 TLV data fields applicable to the currentDS data set of Ordinary Clocks and Boundary Clocks
    15.5.3.4.1 CURRENT_DATA_SET
    15.5.3.4.1.1 stepsRemoved (UInteger16)
    15.5.3.4.1.2 offsetFromMaster (TimeInterval)
    15.5.3.4.1.3 meanPathDelay (TimeInterval)
    15.5.3.5 TLV data fields applicable to the parentDS data set of Ordinary Clocks and Boundary Clocks
    15.5.3.5.1 PARENT_DATA_SET
    15.5.3.5.1.1 parentPortIdentity (PortIdentity)
    15.5.3.5.1.2 PS (Boolean)
    15.5.3.5.1.3 observedParentOffsetScaledLogVariance (UInteger16)
    15.5.3.5.1.4 observedParentClockPhaseChangeRate (Integer32)
    15.5.3.5.1.5 grandmasterPriority1 (UInteger8)
    15.5.3.5.1.6 grandmasterClockQuality (ClockQuality)
    15.5.3.5.1.7 grandmasterPriority2 (UInteger8)
    15.5.3.5.1.8 grandmasterIdentity (ClockIdentity)
    15.5.3.6 TLV data fields applicable to the timePropertiesDS data set of Ordinary Clocks and Boundary Clocks
    15.5.3.6.1 TIME_PROPERTIES_DATA_SET
    15.5.3.6.1.1 currentUtcOffset (Integer16)
    15.5.3.6.1.2 LI-61 (Boolean)
    15.5.3.6.1.3 LI-59 (Boolean)
    15.5.3.6.1.4 UTCV (Boolean)
    15.5.3.6.1.5 PTP (Boolean)
    15.5.3.6.1.6 TTRA (Boolean)
    15.5.3.6.1.7 FTRA (Boolean)
    15.5.3.6.1.8 timeSource (Enumeration8)
    15.5.3.6.2 UTC_PROPERTIES
    15.5.3.6.2.1 currentUtcOffset (Integer16)
    15.5.3.6.2.2 LI-61 (Boolean)
    15.5.3.6.2.3 LI-59 (Boolean)
    15.5.3.6.2.4 UTCV (Boolean)
    15.5.3.6.3 TRACEABILITY_PROPERTIES
    15.5.3.6.3.1 TTRA (Boolean)
    15.5.3.6.3.2 FTRA (Boolean)
    15.5.3.6.4 TIMESCALE_PROPERTIES
    15.5.3.6.4.1 PTP (Boolean)
    15.5.3.6.4.2 timeSource (Enumeration8)
    15.5.3.7 TLV data fields applicable to the portDS data set of Ordinary Clocks and Boundary Clocks
    15.5.3.7.1 PORT_DATA_SET
    15.5.3.7.1.1 portIdentity (PortIdentity)
    15.5.3.7.1.2 portState (Enumeration8)
    15.5.3.7.1.3 logMinDelayReqInterval (Integer8)
    15.5.3.7.1.4 meanLinkDelay (TimeInterval)
    15.5.3.7.1.5 logAnnounceInterval (Integer8)
    15.5.3.7.1.6 announceReceiptTimeout (UInteger8)
    15.5.3.7.1.7 logSyncInterval (Integer8)
    15.5.3.7.1.8 delayMechanism (Enumeration8)
    15.5.3.7.1.9 logMinPdelayReqInterval (Integer8)
    15.5.3.7.1.10 versionNumber (UInteger4)
    15.5.3.7.2 LOG_ANNOUNCE_INTERVAL
    15.5.3.7.2.1 logAnnounceInterval (Integer8)
    15.5.3.7.3 ANNOUNCE_RECEIPT_TIMEOUT
    15.5.3.7.3.1 announceReceiptTimeout (UInteger8)
    15.5.3.7.4 LOG_SYNC_INTERVAL
    15.5.3.7.4.1 logSyncInterval (Integer8)
    15.5.3.7.5 DELAY_MECHANISM
    15.5.3.7.5.1 delayMechanism (Enumeration8)
    15.5.3.7.6 LOG_MIN_PDELAY_REQ_INTERVAL
    15.5.3.7.6.1 logMinPdelayReqInterval (Integer8)
    15.5.3.7.7 VERSION_NUMBER
    15.5.3.7.7.1 versionNumber (UInteger4)
    15.5.3.7.8 EXTERNAL_PORT_CONFIGURATION_ENABLED
    15.5.3.7.8.1 EPC
    15.5.3.7.9 MASTER_ONLY
    15.5.3.7.9.1 MO (Boolean)
    15.5.3.7.10 UNICAST_NEGOTIATION_ENABLE
    15.5.3.7.10.1 EN (Boolean)
    15.5.3.7.11 ALTERNATE_MASTER management TLV data field
    15.5.3.7.11.1 S (Boolean)
    15.5.3.7.11.2 logAlternateMulticastSyncInterval (Integer8)
    15.5.3.7.11.3 numberOfAlternateMasters (UInteger8)
    15.5.3.7.12 UNICAST_MASTER_TABLE management TLV data field
    15.5.3.7.12.1 logQueryInterval (Integer8)
    15.5.3.7.12.2 actualTableSize (UInteger16)
    15.5.3.7.12.3 portAddress(PortAddress[actualTableSize])
    15.5.3.7.12.4 pad (Octet[M])
    15.5.3.7.13 UNICAST_MASTER_MAX_TABLE_SIZE management TLV data field
    15.5.3.7.13.1 maxTableSize (UInteger16)
    15.5.3.7.14 ACCEPTABLE_MASTER_TABLE_ENABLED management TLV data field
    15.5.3.7.14.1 EN (Boolean)
    15.5.3.7.15 EXT_PORT_CONFIG_PORT_DATA_SET management TLV data field
    15.5.3.7.15.1 desiredState (Enumeration8)
    15.5.3.8 TLV data fields applicable to the defaultDS data set of Transparent Clocks (deprecated)
    15.5.3.8.1 TRANSPARENT_CLOCK_DEFAULT_DATA_SET (deprecated)
    15.5.3.8.1.1 clockIdentity (ClockIdentity)
    15.5.3.8.1.2 numberPorts (UInteger16)
    15.5.3.8.1.3 delayMechanism (Enumeration8)
    15.5.3.8.1.4 primaryDomain (UInteger8)
    15.5.3.8.2 DELAY_MECHANISM (deprecated)
    15.5.3.8.3 PRIMARY_DOMAIN (deprecated)
    15.5.3.8.3.1 primaryDomain (UInteger8)
    15.5.3.9 TLV data fields applicable to the transparentClockPortDS data set of Transparent Clocks
    15.5.3.9.1 TRANSPARENT_CLOCK_PORT_DATA_SET
    15.5.3.9.1.1 portIdentity (PortIdentity)
    15.5.3.9.1.2 FLT (Boolean)
    15.5.3.9.1.3 logMinPdelayReqInterval (Integer8)
    15.5.3.9.1.4 peerMeanLinkDelay (TimeInterval)
    15.5.3.9.2 LOG_MIN_PDELAY_REQ_INTERVAL
    15.5.4 MANAGEMENT_ERROR_STATUS TLV
    15.5.4.1 General
    15.5.4.2 tlvType
    15.5.4.3 lengthField
    15.5.4.4 managementErrorId (Enumeration16)
    15.5.4.5 managementId (Enumeration16)
    15.5.4.6 displayData (PTPText)
    15.5.4.7 pad (Octet[M])
    16. General optional features
    16.1 Unicast message negotiation (optional)
    16.1.1 General unicast negotiation PTP operation specifications
    16.1.2 Unicast negotiation enable
    16.1.3 Granting PTP Port operations
    16.1.3.1 Cancel Requests for Inactive Service (Handling Abnormal Contract Cancel Request)
    16.1.3.2 Acknowledge Responses for Inactive Service (Handling Abnormal Contract Cancel Acknowledgment)
    16.1.3.3 Acknowledge Responses Opposite of the Cancel Request (Handling Abnormal Contract Cancel Acknowledgment)
    16.1.3.4 Single-Direction or Bidirectional Cancel Requests
    16.1.3.5 Multiple TLVs attached to same PTP message
    16.1.4 Unicast TLVs
    16.1.4.1 REQUEST_UNICAST_TRANSMISSION TLV specification
    16.1.4.1.1 tlvType
    16.1.4.1.2 lengthField
    16.1.4.1.3 messageType (Enumeration4)
    16.1.4.1.4 logInterMessagePeriod (Integer8)
    16.1.4.1.5 durationField (UInteger32)
    16.1.4.2 GRANT_UNICAST_TRANSMISSION TLV specification
    16.1.4.2.1 tlvType
    16.1.4.2.2 lengthField
    16.1.4.2.3 messageType (Enumeration4)
    16.1.4.2.4 logInterMessagePeriod (Integer8)
    16.1.4.2.5 durationField (UInteger32)
    16.1.4.2.6 R (Renewal Invited) (Boolean)
    16.1.4.3 CANCEL_UNICAST_TRANSMISSION TLV specification
    16.1.4.3.1 tlvType
    16.1.4.3.2 lengthField
    16.1.4.3.3 messageType (Enumeration4)
    16.1.4.3.4 R (maintainRequest) (Boolean)
    16.1.4.3.5 G (maintainGrant) (Boolean)
    16.1.4.4 ACKNOWLEDGE_CANCEL_UNICAST_TRANSMISSION TLV specification
    16.1.4.4.1 tlvType
    16.1.4.4.2 lengthField
    16.1.4.4.3 messageType (Enumeration4)
    16.1.4.4.4 R (maintainRequest) (Boolean)
    16.1.4.4.5 G (maintainGrant) (Boolean)
    16.2 Path trace (optional)
    16.2.1 General
    16.2.2 pathTraceDS data set specifications
    16.2.2.1 General
    16.2.2.2 Dynamic members of the pathTraceDS data set
    16.2.2.2.1 pathTraceDS.list
    16.2.2.3 Configurable members of the pathTraceDS data set
    16.2.2.3.1 pathTraceDS.enable
    16.2.3 Receipt of an Announce message
    16.2.4 Transmission of an Announce message
    16.2.5 PATH_TRACE TLV specification
    16.2.5.1 tlvType
    16.2.5.2 lengthField
    16.2.5.3 pathSequence (ClockIdentity[N])
    16.3 Alternate timescale offsets (optional)
    16.3.1 General
    16.3.1.1 Using the ALTERNATE_TIME_OFFSET_INDICATOR TLV when the timescale is PTP
    16.3.1.2 Using the ALTERNATE_TIME_OFFSET_INDICATOR TLV when the timescale is ARB
    16.3.1.3 Discontinuities in alternate timescales
    16.3.2 Propagation by Boundary Clocks
    16.3.3 ALTERNATE_TIME_OFFSET_INDICATOR TLV specification
    16.3.3.1 General
    16.3.3.2 tlvType
    16.3.3.3 lengthField
    16.3.3.4 keyField (UInteger8)
    16.3.3.5 currentOffset (Integer32)
    16.3.3.6 jumpSeconds (Integer32)
    16.3.3.7 timeOfNextJump (UInteger48)
    16.3.3.8 displayName (PTPText)
    16.3.3.9 pad (Octet[M])
    16.3.4 alternateTimescaleOffsetsDS data set specifications
    16.3.4.1 General
    16.3.4.2 AlternateTimescale derived data type
    16.3.4.3 Static members of the alternateTimescaleOffsetDS data set
    16.3.4.3.1 alternateTimescaleOffsetDS.maxKey
    16.3.4.4 Configurable members of the alternateTimescaleOffsetDS data set
    16.3.4.4.1 alternateTimescaleOffsetDS.list
    16.3.4.4.1.1 AlternateTimescale.keyField
    16.3.4.4.1.2 AlternateTimescale.enable
    16.3.4.4.1.3 AlternateTimescale.currentOffset
    16.3.4.4.1.4 AlternateTimescale.jumpSeconds
    16.3.4.4.1.5 AlternateTimescale.timeOfNextJump
    16.3.4.4.1.6 AlternateTimescale.displayName
    16.4 Holdover upgrade (optional)
    16.4.1 General description of the holdover upgrade option
    16.4.1.1 holdoverUpgradeDS.enable
    16.4.2 Behavior of a holdover-upgradable PTP Instance when in the disabled state.
    16.4.3 Behavior of a holdover-upgradable PTP Instance when in the enabled state.
    16.5 Isolation of PTP Instances running under profiles specified by different standards organizations (optional)
    16.5.1 General
    16.5.2 PTP Profile specifications for this option
    16.6 Common Mean Link Delay Service (optional)
    16.6.1 General
    16.6.2 Using the Common Mean Link Delay Service.
    16.6.3 Common Mean Link Delay Service
    16.6.3.1 General CMLDS specifications
    16.6.3.2 CMLDS link measurement operation
    16.6.4 commonMeanLinkDelayServiceDS data set specifications
    16.6.4.1 cmldsDefaultDS
    16.6.4.1.1 General
    16.6.4.1.2 Static members of the cmldsDefaultDS
    16.6.4.1.2.1 cmldsDefaultDS.clockIdentity
    16.6.4.1.2.2 cmldsDefaultDS.numberLinkPorts
    16.6.4.2 cmldsLinkPortDS
    16.6.4.2.1 General
    16.6.4.2.2 Static members of the cmldsLinkPortDS
    16.6.4.2.2.1 cmldsLinkPortDS.portIdentity
    16.6.4.2.2.2 cmldsLinkPortDS.domainNumber
    16.6.4.2.3 Dynamic members of the cmldsLinkPortDS
    16.6.4.2.3.1 cmldsLinkPortDS.commonMeanLinkDelayInformation
    16.6.4.2.4 Configurable members of the cmldsLinkPortDS
    16.6.4.2.4.1 cmldsLinkPortDS.logMinPdelayReqInterval
    16.6.4.2.4.2 cmldsLinkPortDS.versionNumber
    16.6.4.2.4.3 cmldsLinkPortDS.minorVersionNumber
    16.6.4.2.4.4 cmldsLinkPortDS.delayAsymmetry
    16.6.4.3 cmldsTimestampCorrectionLinkPortDS
    16.6.4.3.1 cmldsTimestampCorrectionLinkPortDS.egressLatency
    16.6.4.3.2 cmldsTimestampCorrectionLinkPortDS.ingressLatency
    16.6.4.4 cmldsAsymmetryCorrectionLinkPortDS
    16.6.4.4.1 cmldsAsymmetryCorrectionLinkPortDS.constantAsymmetry
    16.6.4.4.2 cmldsAsymmetryCorrectionLinkPortDS.delayCoefficient
    16.6.4.4.3 cmldsAsymmetryCorrectionLinkPortDS.enable
    16.6.4.5 cmldsPerformanceMonitoringLinkPortDS
    16.6.5 commonServicesPortDS
    16.6.5.1 General
    16.6.5.1.1 Static members of the commonServicesPortDS
    16.6.5.1.1.1 commonServicesPortDS.cmldsLinkPortPortNumber
    16.7 Configurable correction of timestamps (optional)
    16.7.1 General
    16.8 Calculation of the for certain media (optional)
    16.8.1 General
    16.8.2 Enabling the option
    16.8.3 Calculation of the
    16.9 Mixed multicast/unicast operation (optional)
    16.9.1 General
    16.9.2 Port property TLVs (Optional)
    16.9.2.1 PORT_COMMUNICATION_AVAILABILITY TLV (Optional)
    16.9.2.1.1 tlvType
    16.9.2.1.2 lengthField
    16.9.2.1.3 syncMessageAvailability (Boolean[4])
    16.9.2.1.4 delayRespMessageAvailability (Boolean[4])
    16.9.2.2 PROTOCOL_ADDRESS TLV
    16.9.2.2.1 tlvType
    16.9.2.2.2 lengthField
    16.9.2.2.3 portProtocolAddress (PortAddress)
    16.9.2.2.4 pad (Octet[M])
    16.10 Cumulative frequency transfer method for synchronizing clocks (optional)
    16.10.1 General
    16.10.2 Operation of the peer-to-peer delay mechanism using this option
    16.10.3 Generating the
    16.10.3.1 tlvType
    16.10.3.2 lengthField
    16.10.3.3 scaledCumulativeRateRatio (Integer32)
    16.10.4 Calculations based on the measured , , and cumulativeRateRatio field of the TLV
    16.10.4.1 General
    16.10.4.2 meanLinkDelay
    16.10.4.3 Ordinary Clocks that are not the Grandmaster Clock of the domain
    16.10.4.4 Transparent Clocks and all Boundary Clocks that are not the Grandmaster PTP Instance of the domain
    16.11 Slave Event Monitoring (optional)
    16.11.1 General
    16.11.2 Slave Event Monitoring Enable
    16.11.3 Transmission of PTP messages with Slave Event Monitoring TLVs
    16.11.4 Ingress Event Monitor TLVs
    16.11.4.1 SLAVE_RX_SYNC_TIMING_DATA TLV specification
    16.11.4.1.1 tlvType
    16.11.4.1.2 lengthField
    16.11.4.1.3 syncSourcePortIdentity (PortIdentity)
    16.11.4.1.4 sequenceId[i] (UInteger16)
    16.11.4.1.5 syncOriginTimestamp[i] (Timestamp)
    16.11.4.1.6 totalCorrectionField[i] (TimeInterval)
    16.11.4.1.7 scaledCumulativeRateOffset[i] (Integer32)
    16.11.4.1.8 syncEventIngressTimestamp[i] (Timestamp)
    16.11.4.2 SLAVE_RX_SYNC_COMPUTED_DATA TLV specification
    16.11.4.2.1 tlvType
    16.11.4.2.2 lengthField
    16.11.4.2.3 sourcePortIdentity (PortIdentity)
    16.11.4.2.4 computedFlags (Boolean[8])
    16.11.4.2.4.1 offsetFromMasterValid flag
    16.11.4.2.4.2 meanPathDelayValid flag
    16.11.4.2.4.3 scaledNeighborRateRatioValid flag
    16.11.4.2.5 sequenceId[i] (UInteger16)
    16.11.4.2.6 offsetFromMaster[i] (TimeInterval)
    16.11.4.2.7 meanPathDelay[i] (TimeInterval)
    16.11.4.2.8 scaledNeighborRateRatio[i] (Integer32)
    16.11.5 Egress Event Monitor TLVs
    16.11.5.1 SLAVE_TX_EVENT_TIMESTAMPS TLV specification
    16.11.5.1.1 tlvType
    16.11.5.1.2 lengthField
    16.11.5.1.3 sourcePortIdentity (PortIdentity)
    16.11.5.1.4 eventMessageType (Enumeration4)
    16.11.5.1.5 sequenceId[i] (UInteger16)
    16.11.5.1.6 eventEgressTimestamp[i] (Timestamp)
    16.11.6 slaveMonitoringPortDS data set member specifications
    16.11.6.1 General
    16.11.6.2 slaveMonitoringPortDS.slaveEventMonitoringEnable
    16.11.6.3 slaveMonitoringPortDS.slaveEventMonitoringEventsPerRxSyncTimingTLV
    16.11.6.4 slaveMonitoringPortDS.slaveEventMonitoringEventsPerRxSyncComputedTLV
    16.11.6.5 slaveMonitoringPortDS.slaveEventMonitoringEventsPerTxEventTimestampsTLV
    16.11.6.6 slaveMonitoringPortDS.slaveEventMonitoringTxEventType
    16.11.6.7 slaveMonitoringPortDS.slaveEventMonitoringRxSyncTimingEventMessageM
    16.11.6.8 slaveMonitoringPortDS.slaveEventMonitoringRxSyncComputedEventMessageM
    16.11.6.9 slaveMonitoringPortDS.slaveEventMonitoringTxEventTimestampsEventMessageM
    16.12 Enhanced synchronization accuracy metrics (optional)
    16.12.1 General
    16.12.2 ENHANCED_ACCURACY_METRICS TLV specification
    16.12.2.1 tlvType
    16.12.2.2 lengthField
    16.12.2.3 bcHopCount (UInteger8)
    16.12.2.4 tcHopCount (UInteger8)
    16.12.2.5 maxGmInaccuracy (TimeInterval)
    16.12.2.6 varGmInaccuracy (Float64)
    16.12.2.7 maxTransientInaccuracy (TimeInterval)
    16.12.2.8 varTransientInaccuracy (Float64)
    16.12.2.9 maxDynamicInaccuracy (TimeInterval)
    16.12.2.10 varDynamicInaccuracy (Float64)
    16.12.2.11 maxStaticInstanceInaccuracy (TimeInterval)
    16.12.2.12 varStaticInstanceInaccuracy (Float64)
    16.12.2.13 maxStaticMediumInaccuracy (TimeInterval)
    16.12.2.14 varStaticMediumInaccuracy (Float64)
    16.13 Message Length Extension (optional)
    16.14 PTP integrated security mechanism (optional)
    16.14.1 General
    16.14.1.1 PTP message Enhancement
    16.14.2 Requirements of the associated key management
    16.14.3 Definition of the AUTHENTICATION TLV
    16.14.3.1 tlvType
    16.14.3.2 lengthField
    16.14.3.3 SPP (UInteger8)
    16.14.3.4 secParamIndicator (Boolean[8])
    16.14.3.5 keyID (Octet [4])
    16.14.3.6 disclosedKey (Octet[D])
    16.14.3.7 sequenceNo (UInteger S)
    16.14.3.8 RES (UInteger R)
    16.14.3.9 ICV (UInteger K)
    16.14.4 PTP message processing
    16.14.4.1 General requirements
    16.14.4.2 General Interactions with SAD and SPD
    16.14.4.2.1 Inbound PTP messages
    16.14.4.2.2 Outbound PTP messages
    16.14.4.3 Outbound PTP message processing
    16.14.4.3.1 Outgoing PTP message retransmission by Transparent Clocks
    16.14.4.3.2 Integrity check value calculation
    16.14.4.3.3 PTP message retransmission
    16.14.4.3.4 Event PTP message transmit case
    16.14.4.4 Inbound PTP message processing
    16.14.4.4.1 Integrity check value calculation
    16.14.4.4.2 PTP message processing:
    16.14.4.4.2.1 Immediate security processing case
    16.14.4.4.2.2 Delayed security processing case
    17. State configuration options
    17.1 General
    17.2 Grandmaster clusters (optional)
    17.2.1 General specification
    17.2.2 Operation of the grandmaster cluster
    17.2.3 grandmasterClusterDS data set specifications
    17.2.3.1 General
    17.2.3.2 Static members of the grandmasterClusterDS data set
    17.2.3.2.1 grandmasterClusterDS.maxTableSize
    17.2.3.3 Configurable members of the grandmasterClusterDS data set
    17.2.3.3.1 grandmasterClusterDS.logQueryInterval
    17.2.3.3.2 grandmasterClusterDS.actualTableSize
    17.2.3.3.3 grandmasterClusterDS.portAddress
    17.3 Alternate master (optional)
    17.3.1 General
    17.3.2 Transmission of messages by alternate masters
    17.3.3 alternateMasterPortDS data set specifications
    17.3.3.1 General
    17.3.3.2 Configurable members of the alternateMasterPortDS data set
    17.3.3.2.1 alternateMasterPortDS.numberOfAlternateMasters
    17.3.3.2.2 alternateMasterPortDS.transmitAlternateMulticastSync
    17.3.3.2.3 alternateMasterPortDS.logAlternateMulticastSyncInterval
    17.3.4 Transmission of Delay_Req
    17.3.5 Transmission of Delay_Resp
    17.3.6 Summary of Messages for Alternate Master Option
    17.4 Unicast discovery (optional)
    17.4.1 General
    17.4.2 Operation of unicast discovery
    17.4.3 unicastDiscoveryPortDS data set specifications
    17.4.3.1 General
    17.4.3.2 Static members of the unicastDiscoveryPortDS data set
    17.4.3.2.1 unicastDiscoveryPortDS.maxTableSize
    17.4.3.3 Configurable members of the unicastDiscoveryPortDS data set
    17.4.3.3.1 unicastDiscoveryPortDS.logQueryInterval
    17.4.3.3.2 unicastDiscoveryPortDS.actualTableSize
    17.4.3.3.3 unicastDiscoveryPortDS.portAddress
    17.5 Acceptable master table (optional)
    17.5.1 General
    17.5.2 Operation of the acceptable master table
    17.5.3 acceptableMasterTableDS data set specifications
    17.5.3.1 General
    17.5.3.2 AcceptableMaster derived data type
    17.5.3.3 Static members of the acceptableMasterTableDS data set
    17.5.3.3.1 acceptableMasterTableDS.maxTableSize
    17.5.3.4 Configurable members of the acceptableMasterTableDS data set
    17.5.3.4.1 acceptableMasterTableDS.actualTableSize
    17.5.3.4.2 acceptableMasterTableDS.list
    17.5.4 acceptableMasterPortDS data set specifications
    17.5.4.1 General
    17.5.4.2 Configurable members of the acceptableMasterPortDS data set
    17.5.4.2.1 acceptableMasterPortDS.enable
    17.6 Mechanism for external configuration of a PTP Instance’s PTP Port state (optional)
    17.6.1 General specifications
    17.6.2 defaultDS.externalPortConfigurationEnabled
    17.6.3 externalPortConfigurationPortDS
    17.6.3.1 General
    17.6.3.2 externalPortConfigurationPortDS.desiredState
    17.6.4 Specifications for the disabled state of this option
    17.6.5 Specifications for the enabled state of this option
    17.6.5.1 General
    17.6.5.2 Value of the portDS.portState when this option is enabled
    17.6.5.3 Departures from normal operation of the protocol when this option is enabled
    17.6.5.4 Updating data sets when this option is enabled
    17.6.5.5 Receipt of an Announce message from another PTP Instance
    17.7 Reduced state sets and use of the feature (optional)
    17.7.1 General specifications
    17.7.2 Optional use of selected PTP Port states
    17.7.3 Optional use of the feature
    18. Interactions between PTP Instances in different PTP domains
    18.1 General specifications
    18.2 Interfaces enabling interdomain interactions
    19. Compatibility of this edition with earlier and future editions
    19.1 General
    19.2 Compatibility between version 2 and future versions
    19.3 Compatibility with IEEE Std 1588-2002
    19.4 Compatibility between the PTP Instance conformant to this edition and the implementations conformant to IEEE Std 1588-2008
    19.4.1 General
    19.4.2 Revision of clause 6- “Clock synchronization model”
    19.4.3 Clarification of terms
    19.4.4 Updates to options present in 2008 edition
    19.4.5 Revision of the specifications of a Transparent Clock
    19.4.6 Special Ports
    19.4.7 Revised specifications for domains
    19.4.8 New options permitting management configuration of the states of PTP Ports
    19.4.9 New rules on values for clockIdentity
    19.4.10 Revision of Clause 8
    19.4.11 New options and default profile for enhanced synchronization performance
    19.4.12 Option for using cumulative rate ratios
    19.4.13 Optional Common Mean Link Delay Service providing , and path delays in multi-domain PTP networks using the peer-to-peer delay mechanism
    19.4.14 Options for greater security
    20. Conformance
    20.1 Conformance objective
    20.2 PTP conformance requirements
    20.2.1 General conformance specification
    20.2.2 Transport conformance specification
    20.2.3 PTP Profile conformance specification
    20.3 PTP Profiles
    20.3.1.1 General
    20.3.1.2 PTP Profile recommendations
    20.3.2 Specific PTP Profiles
    20.3.3 PTP Profile specifications
    Annex A (informative) Using the Precision Time Protocol (PTP)
    Annex B (informative) Timescales and epochs in PTP
    Annex C (normative)Transport of PTP over User Datagram Protocol over Internet Protocol Version 4
    Annex D (normative) Transport of PTP over User Datagram Protocol over Internet Protocol Version 6
    Annex E (normative) Transport of PTP over IEEE 802.3 transports
    Annex F (normative) Transport of PTP over DeviceNET
    Annex G (normative) Transport of PTP over ControlNET
    Annex H (normative) Transport of PTP over IEC 61158 Type 10
    Annex I (normative) Default PTP Profiles
    Annex J (normative) Performance monitoring options (optional)
    Annex K (informative) Suppression of rogue Announce messages
    Annex L (normative)Layer-1 based synchronization performance enhancement (optional)
    Annex M (informative) Sub-nanosecond synchronization using the High Accuracy Default PTP Profile
    Annex N (informative) Calibration procedures
    Annex O (informative) Example inter-domain interactions
    Annex P (informative)Security
    Annex Q (informative) Bibliography
    Back cover
    S D R A D N A T S IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems IEEE Instrumentation and Measurement Society Developed by the Technical Committee on Sensor Technology (TC-9) IEEE Std 1588™-2019 (Revision of IEEE Std 1588-2008) Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    IEEE Std 1588™-2019 (Revision ofIEEE Std 1588-2008) IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems Developed by the Technical Committee on Sensor Technology (TC-9) of the IEEE Instrumentation and Measurement Society Approved 7 November 2019 IEEESA Standards Board Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    Abstract: In this standard, a protocol is defined that provides precise synchronization of clocks in packet-based networked systems. Synchronization of clocks can be achieved in heterogeneous systems that include clocks of different inherent precision, resolution, and stability. The protocol supports synchronization accuracy and precision in the sub-microsecond range with minimal network and local computing resources. Customization is supported by means of profiles. The protocol includes default profiles that permit simple systems to be installed and operated without the need for user management. Sub-nanosecond time transfer accuracy can be achieved in a properly designed network. Keywords: Boundary Clock, clock, Grandmaster Clock, IEEE 1588TM, management, Ordinary Clock, security, synchronization, Transparent Clock The Institute of Electrical and Electronics Engineers, Inc. 3 Park Avenue, New York, NY 10016-5997, USA Copyright © 2020 by The Institute of Electrical and Electronics Engineers, Inc. All rights reserved. Published 1 June 2020. Printed in the United States of America. IEEE and 802 are registered trademarks in the U.S. Patent & Trademark Office, owned by The Institute of Electrical and Electronics Engineers, Incorporated. PDF: Print: ISBN 978-1-5044-6341-6 ISBN 978-1-5044-6342-3 STD23996 STDPD23996 IEEE prohibits discrimination, harassment, and bullying. For more information, visit http://www.ieee.org/web/aboutus/whatis/policies/p9-26.html. No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission of the publisher. Copyright © 2020 IEEE. All rights reserved. 2 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    Important Notices and Disclaimers Concerning IEEE Standards Documents IEEE documents are made available for use subject to important notices and legal disclaimers. These notices and disclaimers, or a reference to this page, appear in all standards and may be found under the heading “Important Notices and Disclaimers Concerning IEEE Standards Documents.” They can also be obtained on request from IEEE or viewed at http://standards.ieee.org/ipr/disclaimers.html. Notice and Disclaimer of Liability Concerning the Use of IEEE Standards Documents IEEE Standards documents (standards, recommended practices, and guides), both full-use and trial-use, are developed within IEEE Societies and the Standards Coordinating Committees of the IEEE Standards Association (“IEEE SA”) Standards Board. IEEE (“the Institute”) develops its standards through a consensus development process, approved by the American National Standards Institute (“ANSI”), which brings together volunteers representing varied viewpoints and interests to achieve the final product. IEEE Standards are documents developed through scientific, academic, and industry-based technical working groups. Volunteers in IEEE working groups are not necessarily members of the Institute and participate without compensation from IEEE. While IEEE administers the process and establishes rules to promote fairness in the consensus development process, IEEE does not independently evaluate, test, or verify the accuracy of any of the information or the soundness of any judgments contained in its standards. IEEE Standards do not guarantee or ensure safety, security, health, or environmental protection, or ensure against interference with or from other devices or networks. Implementers and users of IEEE Standards documents are responsible for determining and complying with all appropriate safety, security, environmental, health, and interference protection practices and all applicable laws and regulations. IEEE does not warrant or represent the accuracy or content of the material contained in its standards, and expressly disclaims all warranties (express, implied and statutory) not included in this or any other document relating to the standard, including, but not limited to, the warranties of: merchantability; fitness for a particular purpose; non-infringement; and quality, accuracy, effectiveness, currency, or completeness of material. In addition, IEEE disclaims any and all conditions relating to: results; and workmanlike effort. IEEE standards documents are supplied “AS IS” and “WITH ALL FAULTS.” Use of an IEEE standard is wholly voluntary. The existence of an IEEE standard does not imply that there are no other ways to produce, test, measure, purchase, market, or provide other goods and services related to the scope of the IEEE standard. Furthermore, the viewpoint expressed at the time a standard is approved and issued is subject to change brought about through developments in the state of the art and comments received from users of the standard. In publishing and making its standards available, IEEE is not suggesting or rendering professional or other services for, or on behalf of, any person or entity nor is IEEE undertaking to perform any duty owed by any other person or entity to another. Any person utilizing any IEEE Standards document, should rely upon his or her own independent judgment in the exercise of reasonable care in any given circumstances or, as appropriate, seek the advice of a competent professional in determining the appropriateness of a given IEEE standard. IN NO EVENT SHALL IEEE BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO: PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE PUBLICATION, USE OF, OR RELIANCE UPON ANY STANDARD, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE AND REGARDLESS OF WHETHER SUCH DAMAGE WAS FORESEEABLE. Copyright © 2020 IEEE. All rights reserved. 3 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    Translations The IEEE consensus development process involves the review of documents in English only. In the event that an IEEE standard is translated, only the English version published by IEEE should be considered the approved IEEE standard. Official statements A statement, written or oral, that is not processed in accordance with the IEEE SA Standards Board Operations Manual shall not be considered or inferred to be the official position of IEEE or any of its committees and shall not be considered to be, or be relied upon as, a formal position of IEEE. At lectures, symposia, seminars, or educational courses, an individual presenting information on IEEE standards shall make it clear that his or her views should be considered the personal views of that individual rather than the formal position of IEEE. Comments on standards Comments for revision of IEEE Standards documents are welcome from any interested party, regardless of membership affiliation with IEEE. However, IEEE does not provide consulting information or advice pertaining to IEEE Standards documents. Suggestions for changes in documents should be in the form of a proposed change of text, together with appropriate supporting comments. Since IEEE standards represent a consensus of concerned interests, it is important that any responses to comments and questions also receive the concurrence of a balance of interests. For this reason, IEEE and the members of its societies and Standards Coordinating Committees are not able to provide an instant response to comments or questions except in those cases where the matter has previously been addressed. For the same reason, IEEE does not respond to interpretation requests. Any person who would like to participate in revisions to an IEEE standard is welcome to join the relevant IEEE working group. Comments on standards should be submitted to the following address: Secretary, IEEE SA Standards Board 445 Hoes Lane Piscataway, NJ 08854 USA Laws and regulations Users of IEEE Standards documents should consult all applicable laws and regulations. Compliance with the provisions of any IEEE Standards document does not imply compliance to any applicable regulatory requirements. Implementers of the standard are responsible for observing or referring to the applicable regulatory requirements. IEEE does not, by the publication of its standards, intend to urge action that is not in compliance with applicable laws, and these documents may not be construed as doing so. Copyrights IEEE draft and approved standards are copyrighted by IEEE under US and international copyright laws. They are made available by IEEE and are adopted for a wide variety of both public and private uses. These include both use, by reference, in laws and regulations, and use in private self-regulation, standardization, and the promotion of engineering practices and methods. By making these documents available for use and adoption by public authorities and private users, IEEE does not waive any rights in copyright to the documents. Copyright © 2020 IEEE. All rights reserved. 4 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    Photocopies Subject to payment of the appropriate fee, IEEE will grant users a limited, non-exclusive license to photocopy portions of any individual standard for company or organizational internal use or individual, non-commercial use only. To arrange for payment of licensing fees, please contact Copyright Clearance Center, Customer Service, 222 Rosewood Drive, Danvers, MA 01923 USA; +1 978 750 8400. Permission to photocopy portions of any individual standard for educational classroom use can also be obtained through the Copyright Clearance Center. Updating of IEEE Standards documents Users of IEEE Standards documents should be aware that these documents may be superseded at any time by the issuance of new editions or may be amended from time to time through the issuance of amendments, corrigenda, or errata. An official IEEE document at any point in time consists of the current edition of the document together with any amendments, corrigenda, or errata then in effect. Every IEEE standard is subjected to review at least every 10 years. When a document is more than 10 years old and has not undergone a revision process, it is reasonable to conclude that its contents, although still of some value, do not wholly reflect the present state of the art. Users are cautioned to check to determine that they have the latest edition of any IEEE standard. In order to determine whether a given document is the current edition and whether it has been amended through the issuance of amendments, corrigenda, or errata, visit IEEE Xplore at https://ieeexplore.ieee.or or contact IEEE at the address listed previously. For more information about the IEEE SA or IEEE’s standards development process, visit the IEEE SA Website at http://standards.ieee.org. Errata Errata, if any, for IEEE standards can be accessed via https://standards.ieee.org/standard/index.html. Search for standard number and year of approval to access the web page of the published standard. Errata links are located under the Additional Resources Details section. Errata are also available in IEEE Xplore: https://ieeexplore.ieee.org/browse/standards/collection/ieee/. Users are encouraged to periodically check for errata. Patents Attention is called to the possibility that implementation of this standard may require use of subject matter covered by patent rights. By publication of this standard, no position is taken by the IEEE with respect to the existence or validity of any patent rights in connection therewith. If a patent holder or patent applicant has filed a statement of assurance via an Accepted Letter of Assurance, then the statement is listed on the IEEE SA Website at https://standards.ieee.org/about/sasb/patcom/patents.html. Letters of Assurance may indicate whether the Submitter is willing or unwilling to grant licenses under patent rights without compensation or under reasonable rates, with reasonable terms and conditions that are demonstrably free of any unfair discrimination to applicants desiring to obtain such licenses. Essential Patent Claims may exist for which a Letter of Assurance has not been received. The IEEE is not responsible for identifying Essential Patent Claims for which a license may be required, for conducting inquiries into the legal validity or scope of Patents Claims, or determining whether any licensing terms or conditions provided in connection with submission of a Letter of Assurance, if any, or in any licensing agreements are reasonable or non-discriminatory. Users of this standard are expressly advised that determination of the validity of any patent rights, and the risk of infringement of such rights, is entirely their own responsibility. Further information may be obtained from the IEEE Standards Association. Copyright © 2020 IEEE. All rights reserved. 5 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    Participants At the time this IEEE standard was completed, the Precision Network Clock Synchronization Working Group had the following membership: John Eidson/Doug Arnold, Co-Chairs Hans Weibel/Rodney Cummings, Vice Chairs Silvana Rodrigues, Secretary John MacKay, Editor Lee Cosart Samer Darras John Fletcher Geoffrey M. Garner Stephen Guendert Ken Harris Mikael S. Johansson Terry Jones Maciej Lipiński Hung Mach Cristian Marinescu Peter Meyer Karen O'Donoghue Karol Poczęsny Denis Reilly Opher Ronen Stefano Ruffini Sam Sambasivan Stephen Scott Richard Tse The following members of the individual balloting committee voted on this standard. Balloters may have voted for approval, disapproval, or abstention. Hamza Abubakari Ali Al Awazi Mihaela Albu Jay Anderson Peter Anslow Greg Armstrong Douglas Arnold Curtis Ashton Stefan Aust Philip Beaumont Christian Boiger Kenneth Bow Andrew Bower Riccardo Brama Gustavo Brunello Demetrio Bucaneg Jr. Ashley Butterworth Paul Cardinal Lee Cosart Rodney Cummings Ratan Das Patrick Diamond William Dickerson Michael Dood Neal Dowling Lee Eccles John Eidson John Fletcher Kenneth Fodero James Formea Jean-Sebastien Gagnon Geoffrey M. Garner James Gilb Mietek Glinkowski Jalal Gohari Edwin Goodwin Roman Graf Randall Groves Stephen Guendert Zhongwen Guo Randy Hamilton Ken Harris Werner Hoelzl Gary Hoffman Dennis Holstein Philip Hopkinson Yi Hu Richard Hunt C Huntley Dmitry Ishchenko Thomas Joergensen Mikael S. Johansson Anthony Johnson Terry Jones Innocent Kamwa Piotr Karocki Yongbum Kim Jim Kulchisky Thomas Kurihara Marc Lacroix Chung-Yiu Lam Kang Lee Daniel Levesque Maciej Lipiński Bruce Mackie Arthur Marris Jon Martens Kenneth Martin Jonathon Mclendon Sven Meier Joseph Melanson Peter Meyer R. Murphy Bruce Muschlitz Michael Newman NickS.A Nikjoo Paul Nikolich Satoshi Obara Karen O'Donoghue Bansi Patel Venkatesha Prasad Benjamin Quak R. K. Rannow Eric Rasmussen Alon Regev Denis Reilly Maximilian Riegel Silvana Rodrigues Charles Rogers Opher Ronen Stefano Ruffini Sergio Santos Thomas Schossig Stephen Shull Veselin Skendzic Aaron Snyder Joseph Stanco Kevin Stanton Gary Stoedter Walter Struppler David Tepen Eric Thibodeau Richard Tse James Van De Ligt Dmitri Varsanofiev John Vergis Ilia Voloh Lisa Ward Stephen Webb Karl Weber Hans Weibel Jeffrey Wischkaemper Jun Wu Oren Yuen Janusz Zalewski Francisc Zavoda Hao Zhu Sergio Zimath Copyright © 2020 IEEE. All rights reserved. 6 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    When the IEEE SA Standards Board approved this standard on 7 November 2019, it had the following membership: Gary Hoffman, Chair Ted Burse, Vice Chair Jean-Philippe Faure, Past Chair Konstantinos Karachalios, Secretary Masayuki Ariyoshi Ted Burse Stephen D. Dukes J. Travis Griffith Guido Hiertz Christel Hunter Joseph L. Koepfinger* Thomas Koshy *Member Emeritus John D. Kulick David J. Law Joseph Levy Howard Li Xiaohui Liu Kevin Lu Daleep Mohla Andrew Myles Annette D. Reilly Dorothy Stanley Sha Wei Phil Wennblom Philip Winston Howard Wolfman Feng Wu Jingyi Zhou Copyright © 2020 IEEE. All rights reserved. 7 Authorized licensed use limited to: Shenyang Institute of Automation. Downloaded on October 16,2020 at 08:04:03 UTC from IEEE Xplore. Restrictions apply.
    分享到：
    赞 收藏

    相关推荐

    资料库

    行业

    共收录7266份资料，累计15个分类，关注成员有19位，主要包括：物流,旅游,餐饮零售,网络游戏,咨询,金融,电子政务,外包,教育,制造,医疗,嵌入式,互联网,交通,电信

    热门标签

    物流 旅游 餐饮零售 网络游戏 咨询 金融 电子政务 外包 教育 制造 医疗 嵌入式 互联网 交通 电信

    最新资料
