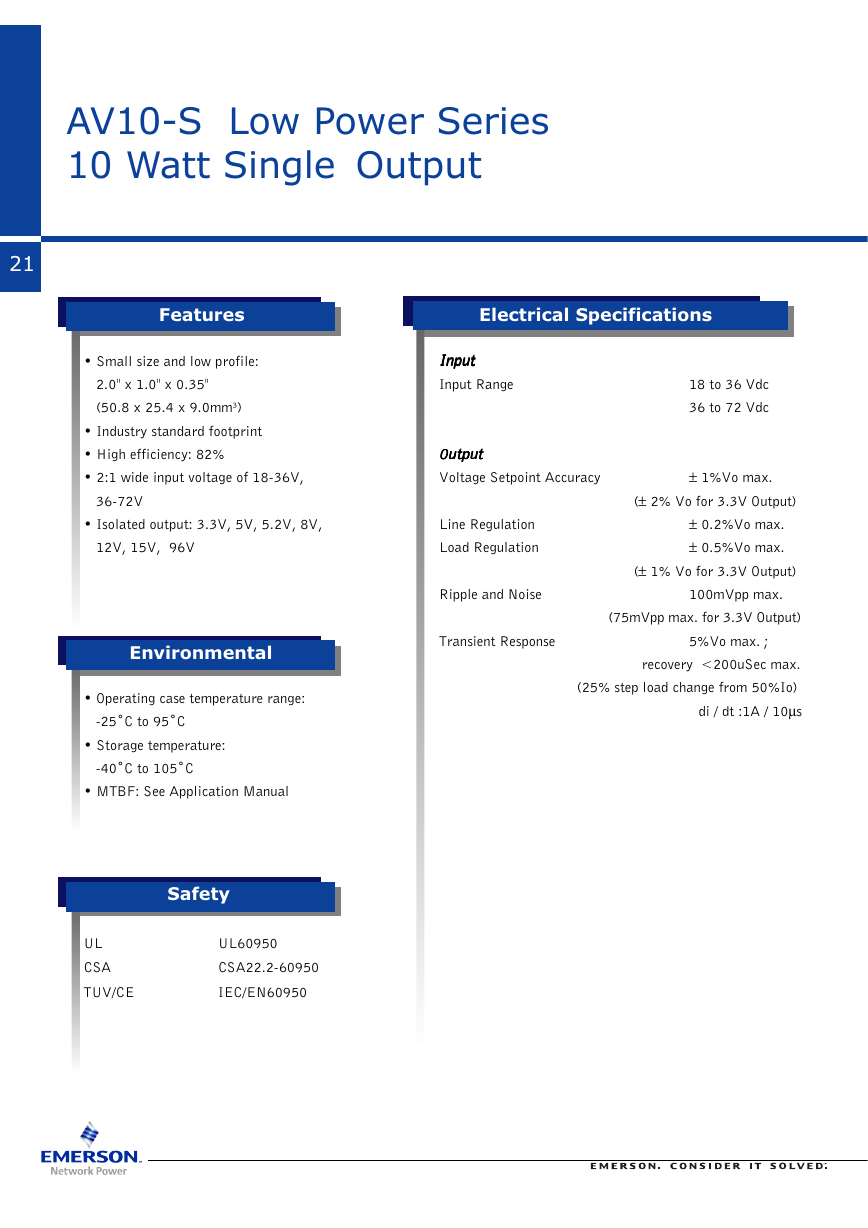

AV10-S Low Power Series 10 Watt Single Output 21 Features Electrical Specifications InputInputInputInputInput Input Range 18 to 36 Vdc 36 to 72 Vdc ± 1%Vo max. ± 0.2%Vo max. ± 0.5%Vo max. OOOOOutpututpututpututpututput Voltage Setpoint Accuracy (± 2% Vo for 3.3V Output) Line Regulation Load Regulation (± 1% Vo for 3.3V Output) Ripple and Noise (75mVpp max. for 3.3V Output) Transient Response recovery <200uSec max. (25% step load change from 50%Io) di / dt :1A / 10µs 100mVpp max. 5%Vo max. ; • Small size and low profile: 2.0" x 1.0" x 0.35" (50.8 x 25.4 x 9.0mm3) • Industry standard footprint • High efficiency: 82% • 2:1 wide input voltage of 18-36V, 36-72V • Isolated output: 3.3V, 5V, 5.2V, 8V, 12V, 15V, 96V Environmental • Operating case temperature range: -25˚C to 95˚C • Storage temperature: -40˚C to 105˚C • MTBF: See Application Manual Safety UL CSA TUV/CE UL60950 CSA22.2-60950 IEC/EN60950 

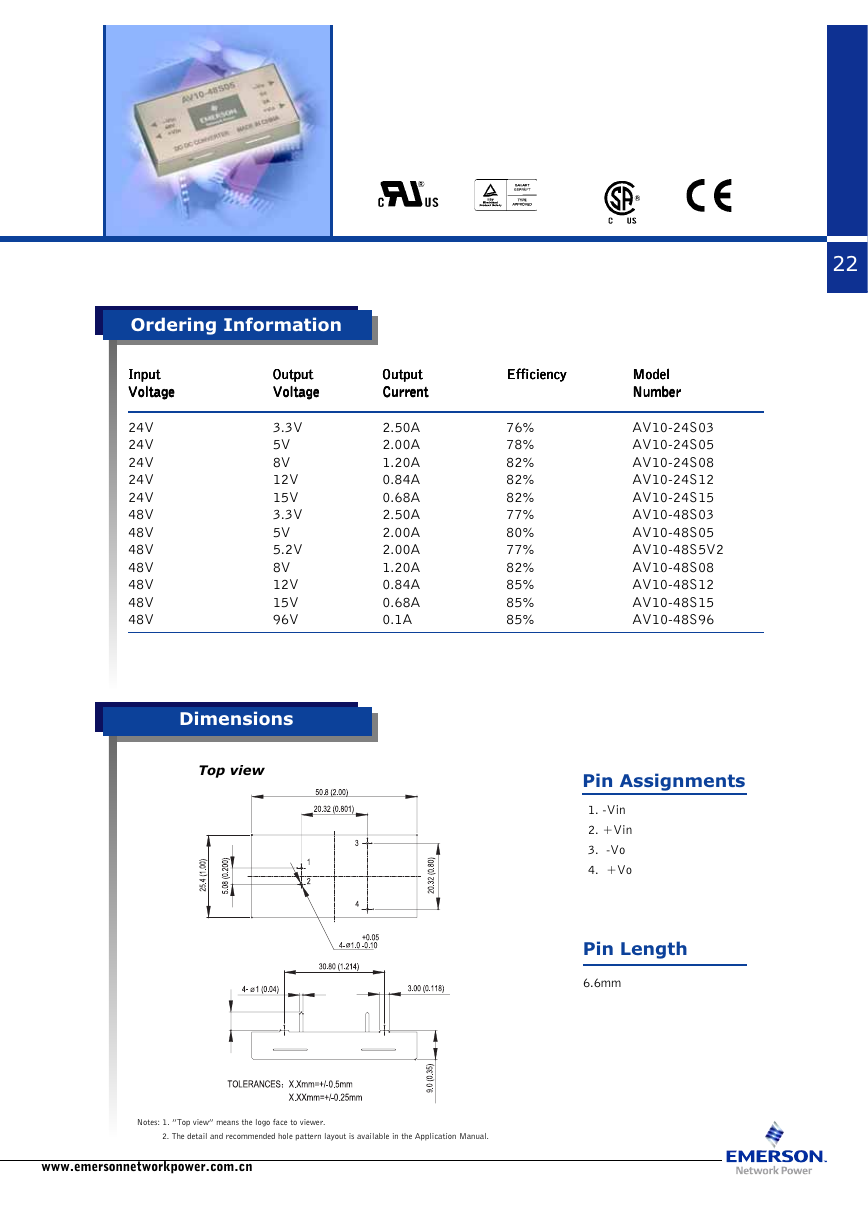

22 Ordering Information Input Input Input Input Input Voltage Voltage Voltage Voltage Voltage Output Output Output Output Output Voltage Voltage Voltage Voltage Voltage Output Output Output Output Output Current Current Current Current Current Efficiency Efficiency Efficiency Efficiency Efficiency 24V 24V 24V 24V 24V 48V 48V 48V 48V 48V 48V 48V 3.3V 5V 8V 12V 15V 3.3V 5V 5.2V 8V 12V 15V 96V 2.50A 2.00A 1.20A 0.84A 0.68A 2.50A 2.00A 2.00A 1.20A 0.84A 0.68A 0.1A 76% 78% 82% 82% 82% 77% 80% 77% 82% 85% 85% 85% ModelModelModelModelModel Number Number Number Number Number AV10-24S03 AV10-24S05 AV10-24S08 AV10-24S12 AV10-24S15 AV10-48S03 AV10-48S05 AV10-48S5V2 AV10-48S08 AV10-48S12 AV10-48S15 AV10-48S96 Dimensions Top view Pin Assignments 1. -Vin 2. +Vin 3. -Vo 4. +Vo Pin Length 6.6mm Notes: 1. ”Top view” means the logo face to viewer. 2. The detail and recommended hole pattern layout is available in the Application Manual. www.emersonnetworkpower.com.cn 

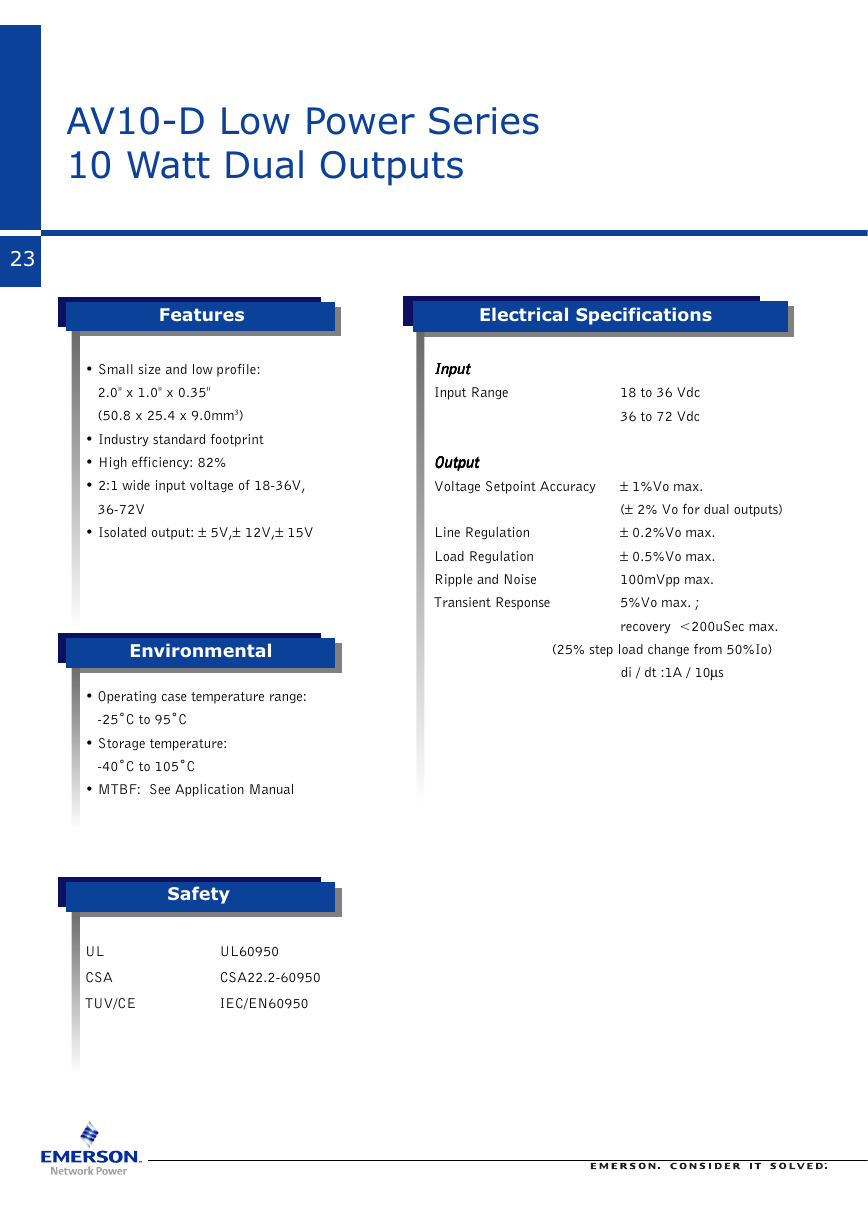

AV10-D Low Power Series 10 Watt Dual Outputs 23 Features Electrical Specifications InputInputInputInputInput Input Range 18 to 36 Vdc 36 to 72 Vdc OutputOutputOutputOutputOutput Voltage Setpoint Accuracy Line Regulation Load Regulation Ripple and Noise Transient Response ± 1%Vo max. (± 2% Vo for dual outputs) ± 0.2%Vo max. ± 0.5%Vo max. 100mVpp max. 5%Vo max. ; recovery <200uSec max. (25% step load change from 50%Io) di / dt :1A / 10µs • Small size and low profile: 2.0" x 1.0" x 0.35" (50.8 x 25.4 x 9.0mm3) • Industry standard footprint • High efficiency: 82% • 2:1 wide input voltage of 18-36V, 36-72V • Isolated output: ± 5V,± 12V,± 15V Environmental • Operating case temperature range: -25˚C to 95˚C • Storage temperature: -40˚C to 105˚C • MTBF: See Application Manual Safety UL CSA TUV/CE UL60950 CSA22.2-60950 IEC/EN60950 

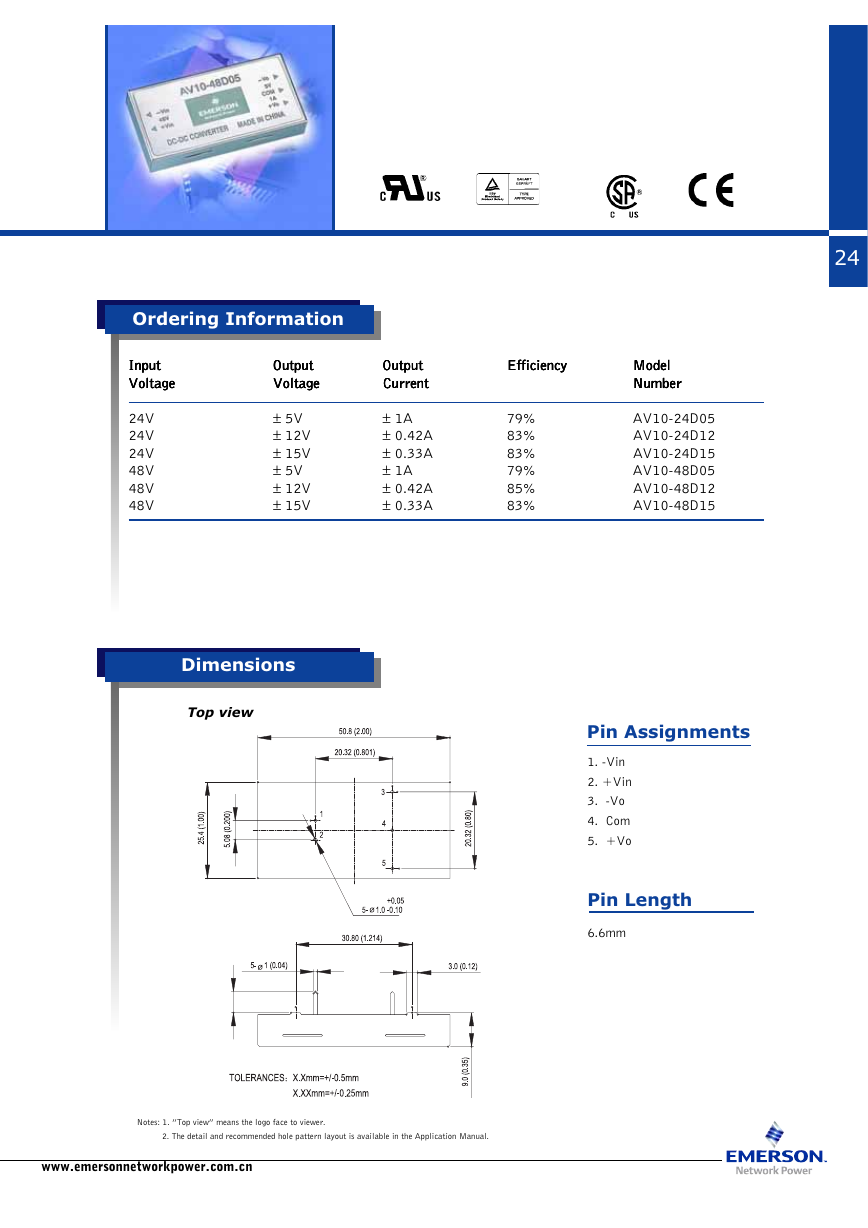

24 Ordering Information Input Input Input Input Input Voltage Voltage Voltage Voltage Voltage 24V 24V 24V 48V 48V 48V Output Output Output Output Output Voltage Voltage Voltage Voltage Voltage ± 5V ± 12V ± 15V ± 5V ± 12V ± 15V Output Output Output Output Output Current Current Current Current Current ± 1A ± 0.42A ± 0.33A ± 1A ± 0.42A ± 0.33A Efficiency Efficiency Efficiency Efficiency Efficiency 79% 83% 83% 79% 85% 83% ModelModelModelModelModel Number Number Number Number Number AV10-24D05 AV10-24D12 AV10-24D15 AV10-48D05 AV10-48D12 AV10-48D15 Dimensions Top view Pin Assignments 1. -Vin 2. +Vin 3. -Vo 4. Com 5. +Vo Pin Length 6.6mm Notes: 1. ”Top view” means the logo face to viewer. 2. The detail and recommended hole pattern layout is available in the Application Manual. www.emersonnetworkpower.com.cn
