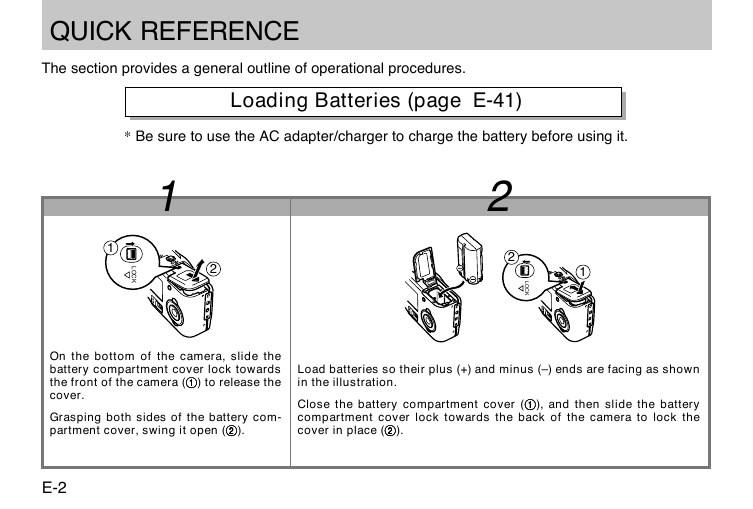

QUICK REFERENCE The section provides a general outline of operational procedures. Loading Batteries (page E-41) * Be sure to use the AC adapter/charger to charge the battery before using it. 1 1 L O C K 2 2 2 L O C K 1 On the bottom of the camera, slide the battery compartment cover lock towards the front of the camera (11111) to release the cover. Grasping both sides of the battery com- partment cover, swing it open (22222). Load batteries so their plus (+) and minus (–) ends are facing as shown in the illustration. Close the battery compartment cover (11111), and then slide the battery compartment cover lock towards the back of the camera to lock the cover in place (22222). E-2

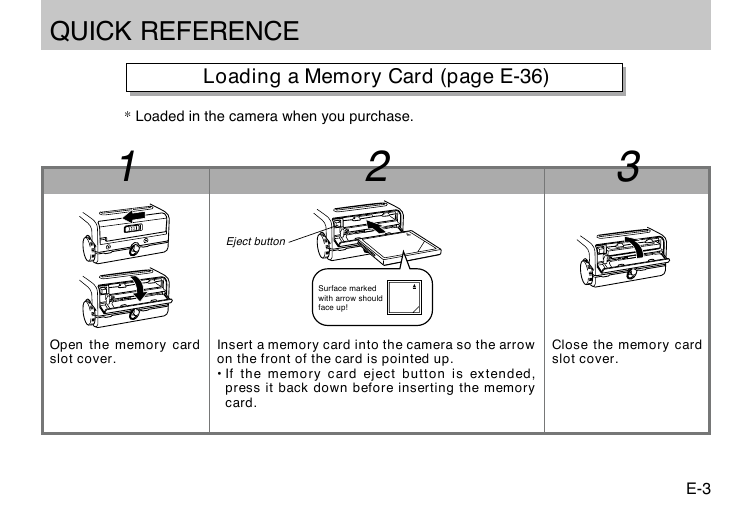

QUICK REFERENCE Loading a Memory Card (page E-36) * Loaded in the camera when you purchase. 1 2 3 Eject button Surface marked with arrow should face up! Open the memory card slot cover. Insert a memory card into the camera so the arrow on the front of the card is pointed up. • If the memory card eject button is extended, press it back down before inserting the memory card. Close the memory card slot cover. E-3

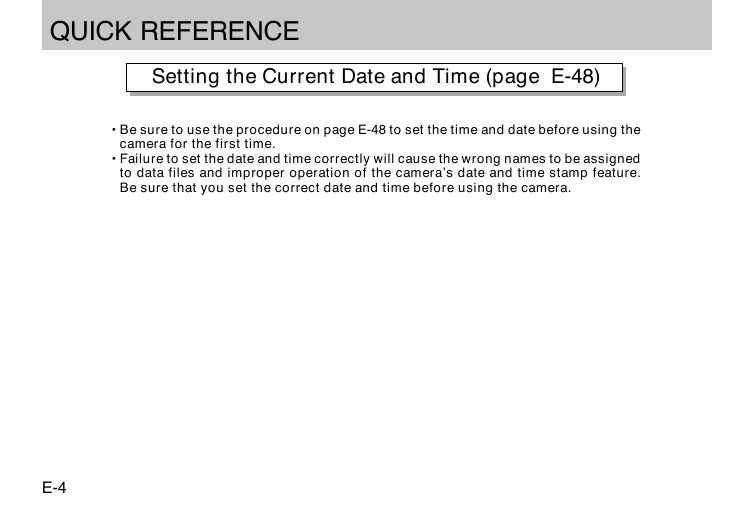

QUICK REFERENCE Setting the Current Date and Time (page E-48) • Be sure to use the procedure on page E-48 to set the time and date before using the camera for the first time. • Failure to set the date and time correctly will cause the wrong names to be assigned to data files and improper operation of the camera’s date and time stamp feature. Be sure that you set the correct date and time before using the camera. E-4

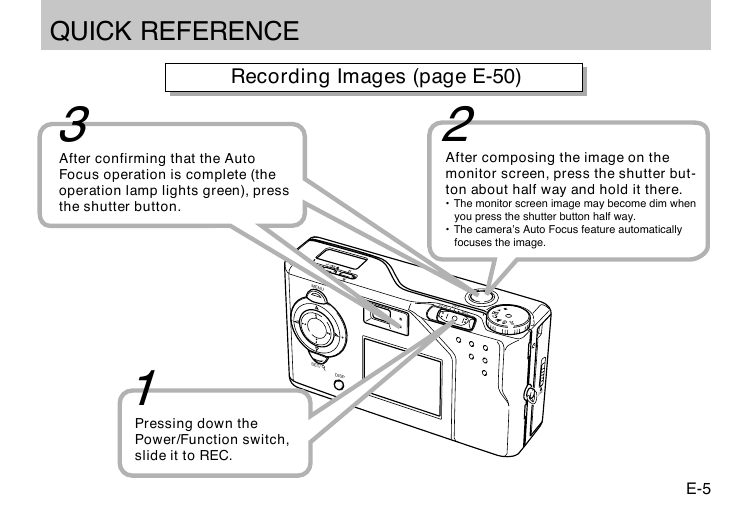

QUICK REFERENCE Recording Images (page E-50) 3 After confirming that the Auto Focus operation is complete (the operation lamp lights green), press the shutter button. 2 After composing the image on the monitor screen, press the shutter but- ton about half way and hold it there. • The monitor screen image may become dim when you press the shutter button half way. • The camera’s Auto Focus feature automatically focuses the image. INFO MF/ / MENU SET/ DISP PLAY OFF REC CARD 1 Pressing down the Power/Function switch, slide it to REC. E-5

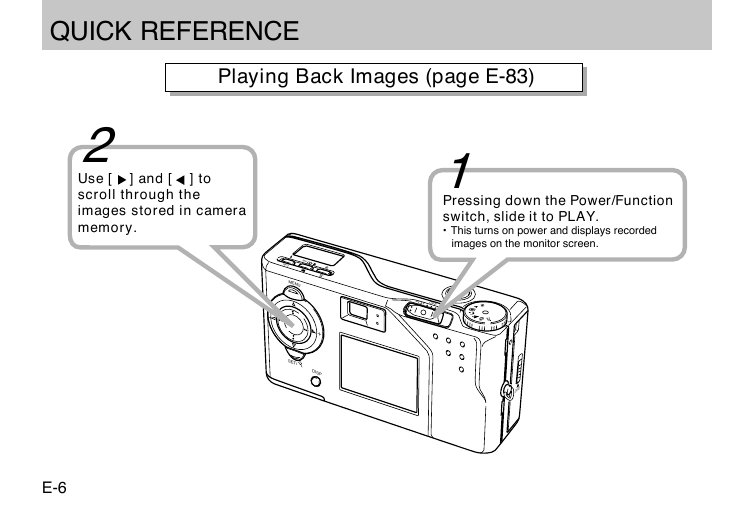

QUICK REFERENCE Playing Back Images (page E-83) 2 Use [ ] and [ ] to scroll through the images stored in camera memory. 1 Pressing down the Power/Function switch, slide it to PLAY. • This turns on power and displays recorded images on the monitor screen. INFO MF/ / MENU SET/ DISP PLAY OFF REC CARD E-6

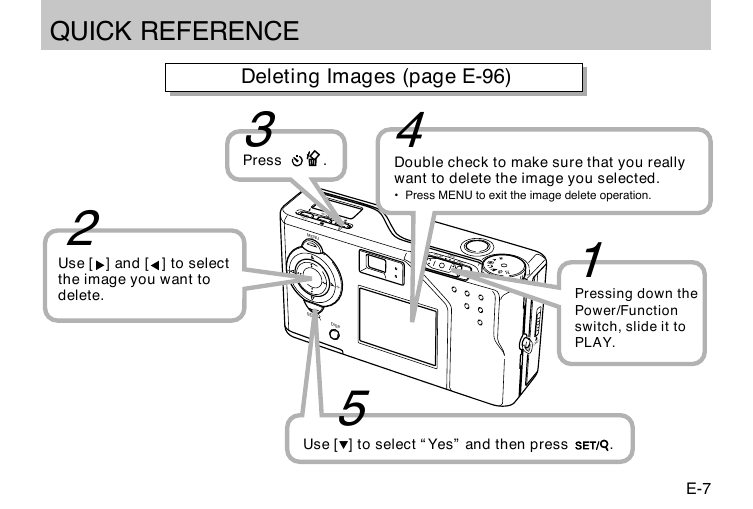

QUICK REFERENCE 2 Use [ ] and [ ] to select the image you want to delete. Deleting Images (page E-96) 3 Press . INFO MF/ / MENU SET/ DISP 4 Double check to make sure that you really want to delete the image you selected. • Press MENU to exit the image delete operation. PLAY OFF REC 1 Pressing down the Power/Function switch, slide it to PLAY. CARD 5 Use [왔] to select “Yes” and then press . E-7

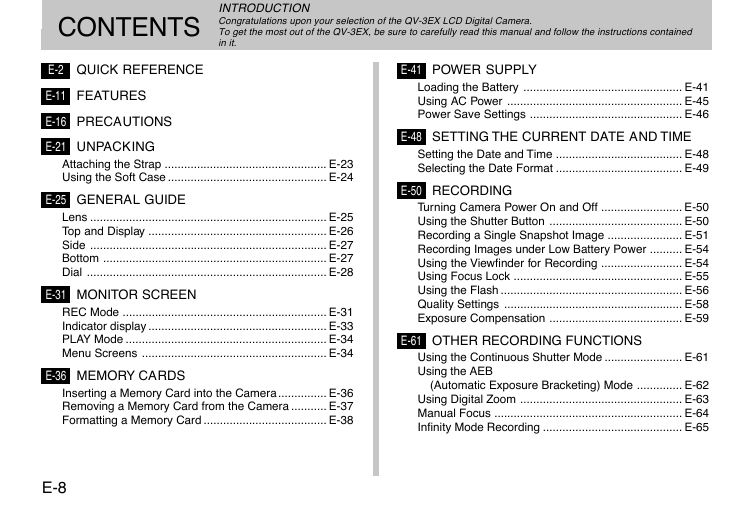

CONTENTS CONTENTS INTRODUCTION Congratulations upon your selection of the QV-3EX LCD Digital Camera. To get the most out of the QV-3EX, be sure to carefully read this manual and follow the instructions contained in it. E-2 QUICK REFERENCE E-41 POWER SUPPLY E-11 FEATURES E-16 PRECAUTIONS E-21 UNPACKING Attaching the Strap .................................................. E-23 Using the Soft Case ................................................. E-24 E-25 GENERAL GUIDE Lens ......................................................................... E-25 Top and Display ....................................................... E-26 Side ......................................................................... E-27 Bottom ..................................................................... E-27 Dial .......................................................................... E-28 E-31 MONITOR SCREEN REC Mode ............................................................... E-31 Indicator display ....................................................... E-33 PLAY Mode .............................................................. E-34 Menu Screens ......................................................... E-34 E-36 MEMORY CARDS Inserting a Memory Card into the Camera ............... E-36 Removing a Memory Card from the Camera ........... E-37 Formatting a Memory Card ...................................... E-38 Loading the Battery ................................................. E-41 Using AC Power ...................................................... E-45 Power Save Settings ............................................... E-46 E-48 SETTING THE CURRENT DATE AND TIME Setting the Date and Time ....................................... E-48 Selecting the Date Format ....................................... E-49 E-50 RECORDING Turning Camera Power On and Off ......................... E-50 Using the Shutter Button ......................................... E-50 Recording a Single Snapshot Image ....................... E-51 Recording Images under Low Battery Power .......... E-54 Using the Viewfinder for Recording ......................... E-54 Using Focus Lock .................................................... E-55 Using the Flash ........................................................ E-56 Quality Settings ....................................................... E-58 Exposure Compensation ......................................... E-59 E-61 OTHER RECORDING FUNCTIONS Using the Continuous Shutter Mode ........................ E-61 Using the AEB (Automatic Exposure Bracketing) Mode .............. E-62 Using Digital Zoom .................................................. E-63 Manual Focus .......................................................... E-64 Infinity Mode Recording ........................................... E-65 E-8

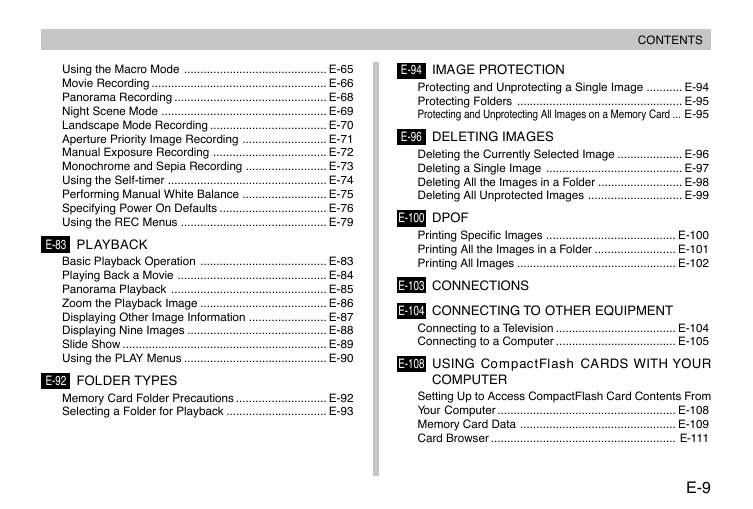

Using the Macro Mode ............................................ E-65 Movie Recording ...................................................... E-66 Panorama Recording ............................................... E-68 Night Scene Mode ................................................... E-69 Landscape Mode Recording .................................... E-70 Aperture Priority Image Recording .......................... E-71 Manual Exposure Recording ................................... E-72 Monochrome and Sepia Recording ......................... E-73 Using the Self-timer ................................................. E-74 Performing Manual White Balance .......................... E-75 Specifying Power On Defaults ................................. E-76 Using the REC Menus ............................................. E-79 E-83 PLAYBACK Basic Playback Operation ....................................... E-83 Playing Back a Movie .............................................. E-84 Panorama Playback ................................................ E-85 Zoom the Playback Image ....................................... E-86 Displaying Other Image Information ........................ E-87 Displaying Nine Images ........................................... E-88 Slide Show ............................................................... E-89 Using the PLAY Menus ............................................ E-90 E-92 FOLDER TYPES Memory Card Folder Precautions ............................ E-92 Selecting a Folder for Playback ............................... E-93 CONTENTS E-94 IMAGE PROTECTION Protecting and Unprotecting a Single Image ........... E-94 Protecting Folders ................................................... E-95 Protecting and Unprotecting All Images on a Memory Card ... E-95 E-96 DELETING IMAGES Deleting the Currently Selected Image .................... E-96 Deleting a Single Image .......................................... E-97 Deleting All the Images in a Folder .......................... E-98 Deleting All Unprotected Images ............................. E-99 E-100 DPOF Printing Specific Images ........................................ E-100 Printing All the Images in a Folder ......................... E-101 Printing All Images ................................................. E-102 E-103 CONNECTIONS E-104 CONNECTING TO OTHER EQUIPMENT Connecting to a Television ..................................... E-104 Connecting to a Computer ..................................... E-105 E-108 USING CompactFlash CARDS WITH YOUR COMPUTER Setting Up to Access CompactFlash Card Contents From Your Computer ....................................................... E-108 Memory Card Data ................................................ E-109 Card Browser ......................................................... E-111 E-9
