iGPS-BT II User Manual

FCC Notices

CE Notices

DC Jack

On/Off Switch

Bluetooth setup for Windows Mobile 5.0 OS

Performance

Electrical Power

Interface

Physical

Environmental

iGPS-BT II User Manual

FCC Notices This device complies with Part 15(b and c) of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Class B This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • • Connect the equipment into an outlet on a circuit different from that to which Increase the separation between the equipment and the receiver. the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. FCC ID #: Q7M-IGPS-BTII CE Notices This device has been tested and found to comply with CE marking according to the R&TTE Directive, 99/5/EEC. The test standards are listed below: CE/LVD CE/EMC Radio Spectrum EN60950: 1992+A1+A2+A3+A4+A11 EN301 489-17 V 1.1.1: 09-2000 EN301 489-1 V 1.3.1: 09-2001 EN300 328-1 V 1.3.1: 12-2001 EN300 328-2 V 1.2.1: 12-2001 1

I. iGPS-500 Receiver and Bluetooth Dock iGPS-BT II Dock DC Jack for charging Battery charging indicator (Orange/Green LED) Bluetooth Status (Internal Blue LED) Indicator DC Jack iGPS-500 Receiver On/Off Switch - Plug either the Car charger or 5V AC adapter for your PDA into the DC Jack to charge the battery. Refer to III. Battery charging instructions. iGPS-BT II will need to be charged for approximately 3 hours before initial use. - On/Off Switch - Turns the iGPS-BT II on or off. Blue LED’s will light up when powered. Bluetooth Status Indicator (Internal Blue LED) - Blinking: Searching for Bluetooth signal. - Steady: Bluetooth communication established, ready to use. Battery charging Indicator (Orange/Green LED) - Orange: Battery is being charged. - Green: Battery is fully charged. 2

use. Bluetooth connection. 2. Turn on the iGPS-BT II. The status indicator will blink as it searches for a 3. Launch the Bluetooth configuration software on your mobile device. (This should be provided by the manufacturer of your Bluetooth device) 4. Have the Bluetooth configuration software search for any Bluetooth devices present. It should detect the iGPS-BT II and list it as an available device (a “Pharos BT GPS II” icon should be displayed). 5. Select the “Pharos BT GPS II” device. Depending on your Bluetooth software, this should bring up a screen that will ask for a PIN Code or Security PIN. Enter the following PIN code: IMPORTANT PIN Code: 12345678 (Please memorize this code for future use) 6. After the PIN number is entered, a connection between your mobile device and the iGPS-BT II should be established. The blue LED on the iGPS-BT II dock will change from blinking to a steady glow. 7. Once a connection is established, check the properties of the iGPS-BT II in the Bluetooth configuration software and make a note as to which number COM port is assigned to it. The navigation software that will be used will require this COM port number. Or check the COM port setting for your Pocket PC in the Quick Start Guide. For more information regarding the iGPS-BT II setup, please visit our Support Product Support Bluetooth Setup page at www.pharosgps.com. II. iGPS-BT II Setup (see walkthrough guides at the end of this section) 1. The iGPS-BT II will need to be charged for two to three hours before initial Hints & Tips • • GPS receiver must have a direct view to the sky. GPS receiver does not work well indoors. If possible, make sure the GPS is stationary when getting the initial satellite position lock. Allow 1-2 minutes at initial start-up for the GPS receiver to acquire a satellite lock for tracking. • Make sure that the communication (COM) port is configured correctly in the navigation software being used to ensure proper functioning of the GPS system. 3

Walkthrough Guides 1. iGPS-BT II Setup for Pocket PCs with built-in Bluetooth Technology running the Windows Mobile Pocket PC OS (the following screen shots show the device as “Pharos iGPS-BT”, it may be shown as “Pharos BT GPS II” on your Pocket PC.) Steps 1 – 10: How to Pair the iGPS-BT II with your Pocket PC’s Bluetooth Manager Steps 11 – 15: Establishing a Bluetooth Connection using Ostia 1. Make sure that the iGPS-BT II is turned on (the blue light will be flashing). Tap the Bluetooth icon in the lower right-hand corner and select “Bluetooth Manager” 2. To create a shortcut, tap on “New”, “Connect” (For some devices, you may not need to select “Connect” before proceeding to the next step) 3. Select “Explore a Bluetooth device”, and tap on “Next” 4. To create the connection to the Pharos iGPS-BT II, select: “Tap here to choose a device” 4

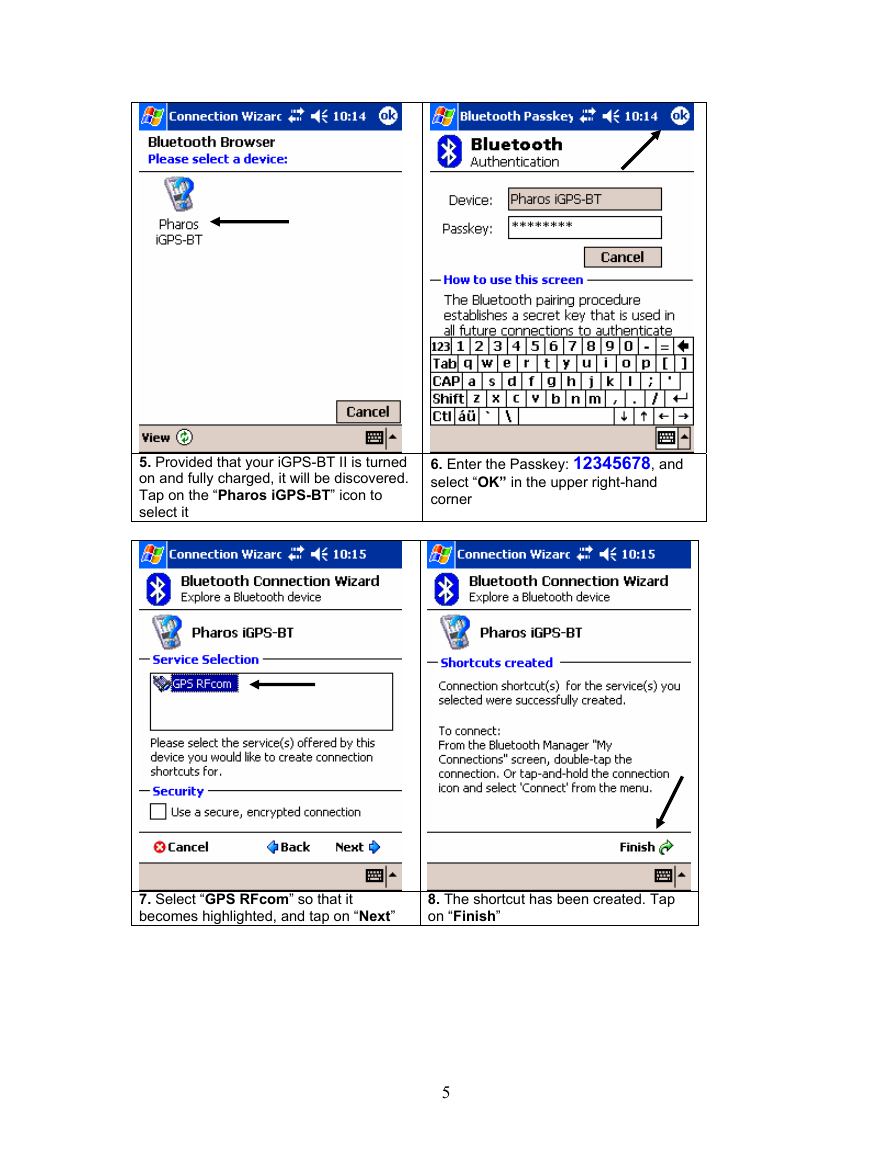

5. Provided that your iGPS-BT II is turned on and fully charged, it will be discovered. Tap on the “Pharos iGPS-BT” icon to select it 6. Enter the Passkey: 12345678, and select “OK” in the upper right-hand corner 7. Select “GPS RFcom” so that it becomes highlighted, and tap on “Next” 8. The shortcut has been created. Tap on “Finish” 5

9.Tap and hold on the “Pharos iGPS- BT: GPS RFcom” icon, select “Connect” from the Menu that appears 10. Once the GPS has a connection, the icon will change to Green. You will also notice that the Blue light on the GPS itself is now a solid, steady Blue. 11. Open Pharos Ostia on your Pocket PC, click through the Warning screens, and tap on “Tools”, “Options”… 12. …”Select Comm”. To select the appropriate COM Port for your Pocket PC (with built-in Bluetooth Technology), refer to the list here: iPAQ 22XX/51XX/54XX/55XX – COM8 iPAQ 41XX/43XX – COM6 iPAQ 194X – COM5 Dell Axim X3i/X30 – COM7 Toshiba e80X – COM6 ASUS A620BT/A716 – COM6 HTC XDAII – COM4 6

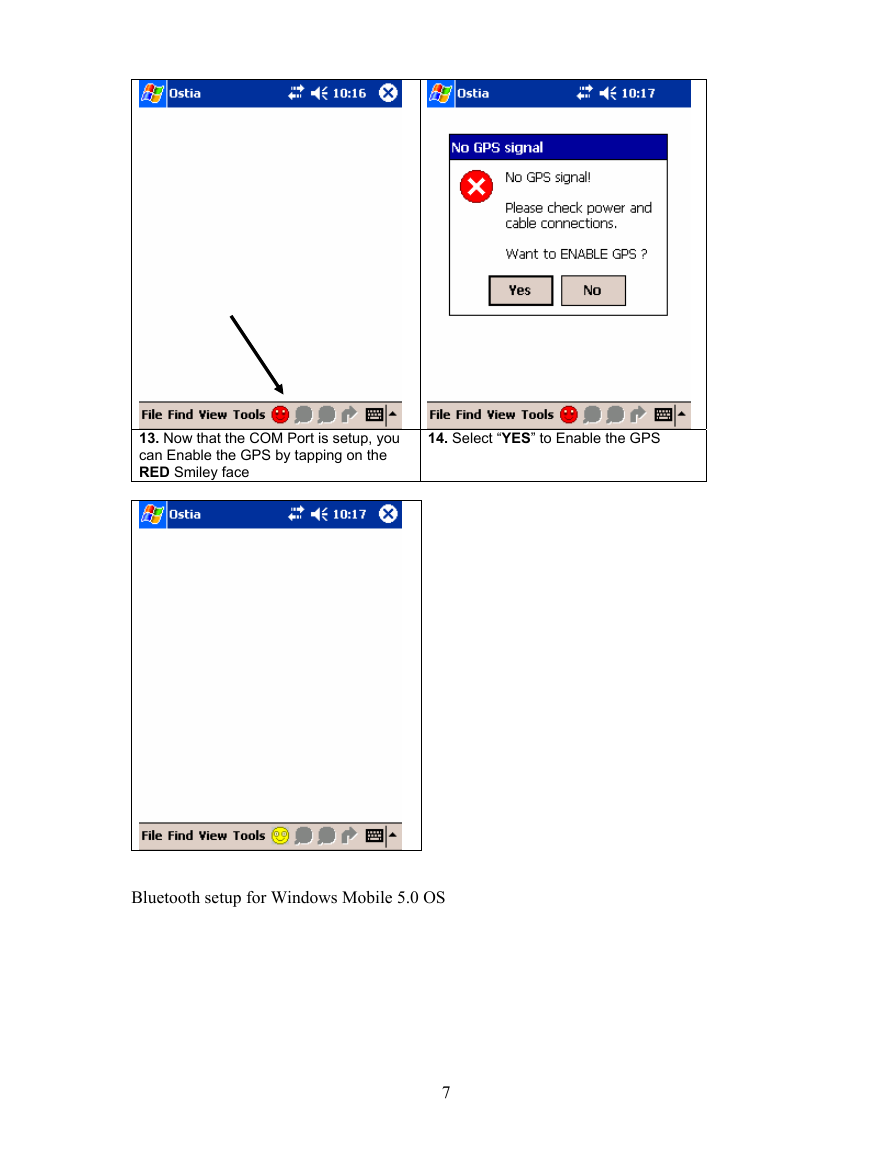

13. Now that the COM Port is setup, you can Enable the GPS by tapping on the RED Smiley face 14. Select “YES” to Enable the GPS Bluetooth setup for Windows Mobile 5.0 OS 7
