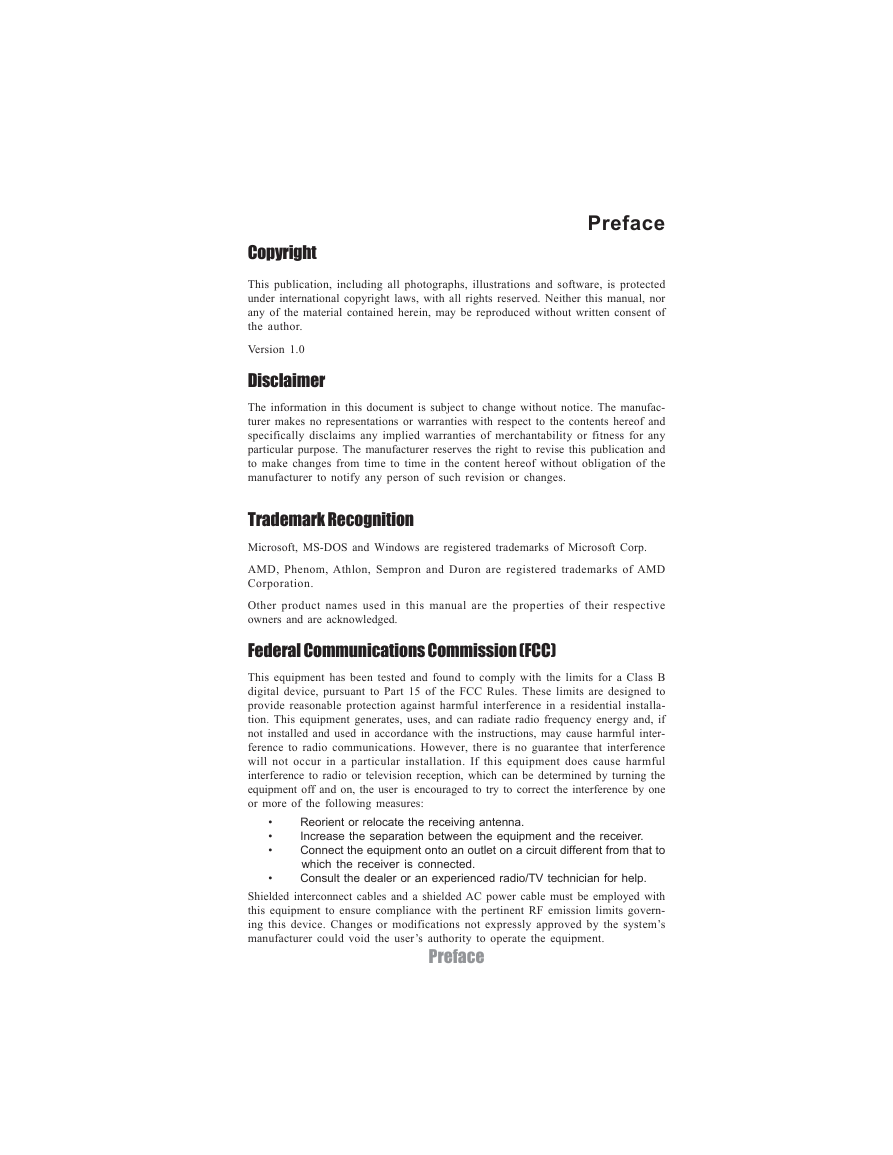

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufac- turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. AMD, Phenom, Athlon, Sempron and Duron are registered trademarks of AMD Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits govern- ing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

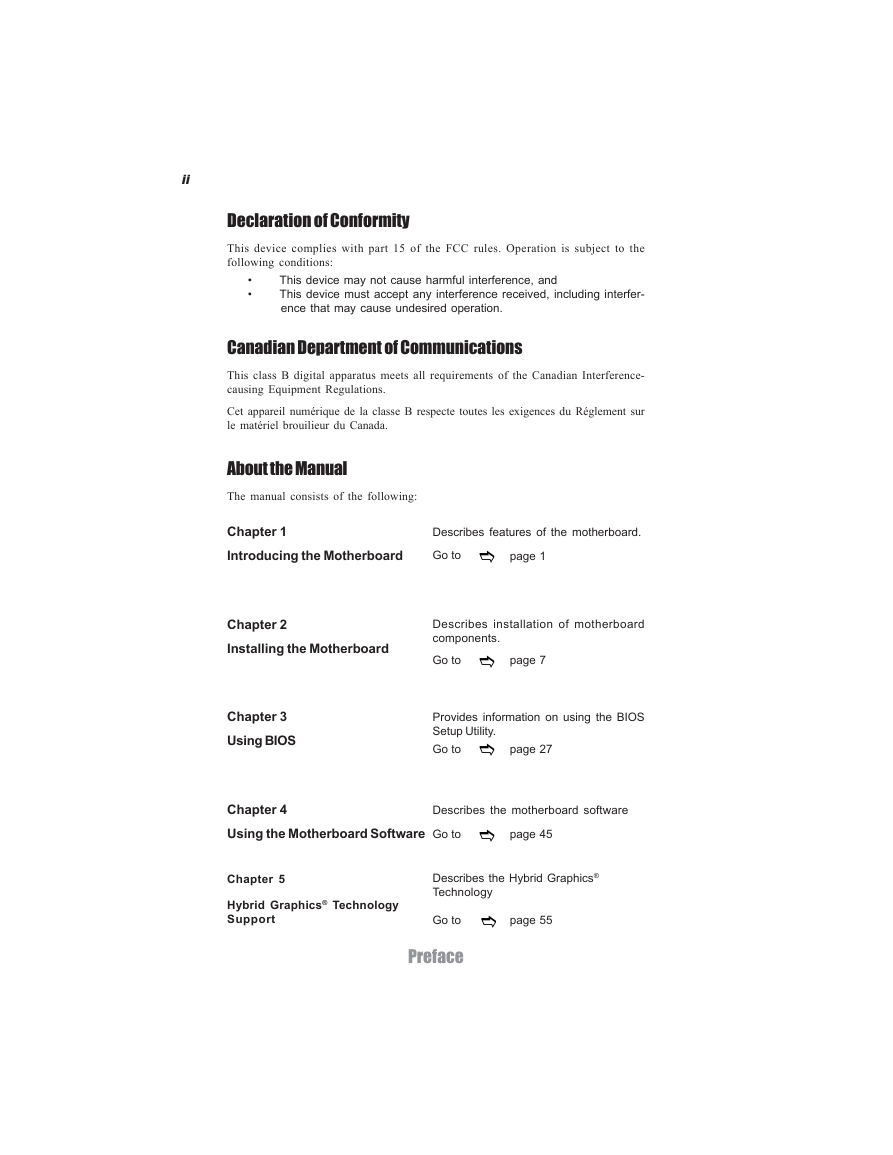

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interfer- ence that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Describes features of the motherboard. Go to page 1 Chapter 2 Installing the Motherboard Describes installation of motherboard components. Go to page 7 Chapter 3 Using BIOS Provides information on using the BIOS Setup Utility. Go to page 27 Chapter 4 Using the Motherboard Software Describes the motherboard software Go to page 45 Chapter 5 Hybrid Graphics® Technology Support Describes the Hybrid Graphics® Technology Go to page 55 Preface

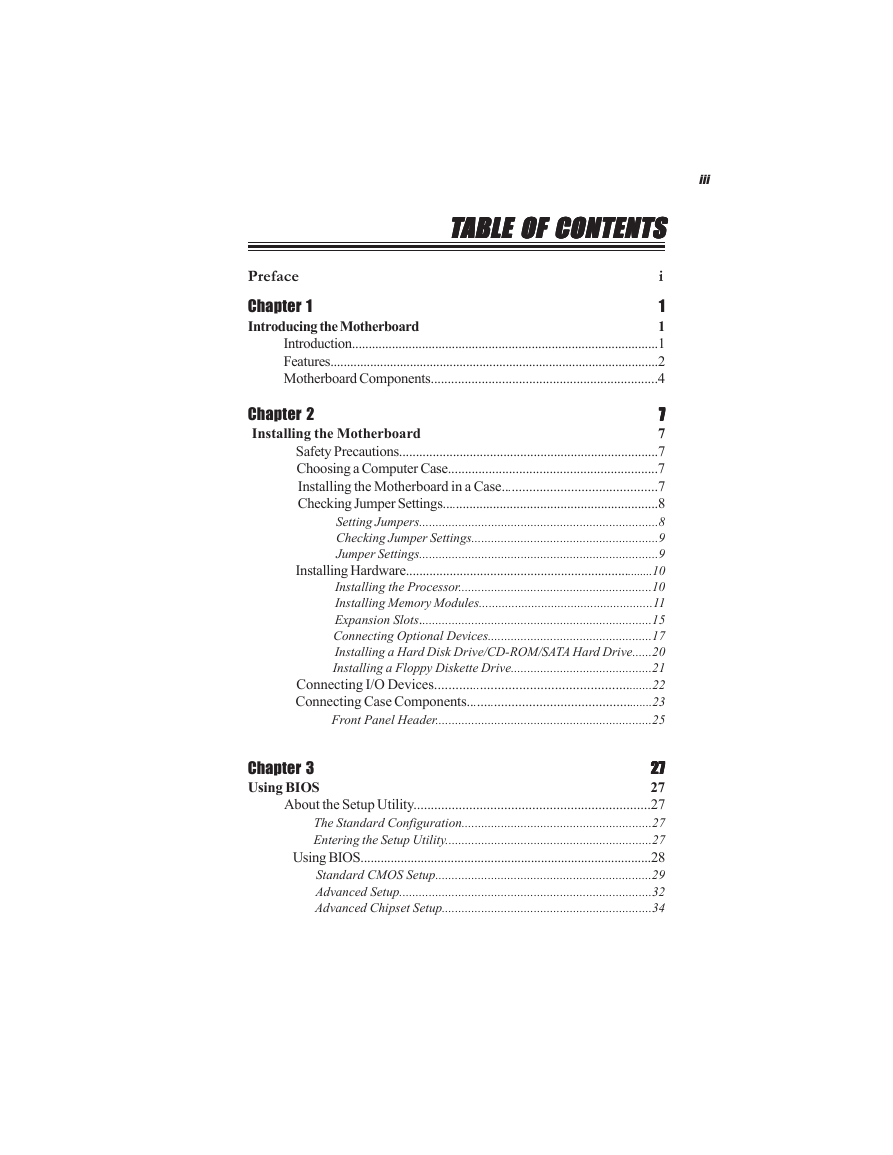

iii Preface Chapter 1 Introducing the Motherboard TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS i 1 1 Introduction............................................................................................1 Features...................................................................................................2 Motherboard Components...................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions.............................................................................7 Choosing a Computer Case..............................................................7 Installing the Motherboard in a Case.............................................7 Checking Jumper Settings................................................................8 Setting Jumpers.........................................................................8 Checking Jumper Settings.........................................................9 Jumper Settings.........................................................................9 Installing Hardware..........................................................................10 Installing the Processor...........................................................10 Installing Memory Modules.....................................................11 Expansion Slots.......................................................................15 Connecting Optional Devices..................................................17 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive......20 Installing a Floppy Diskette Drive...........................................21 Connecting I/O Devices..............................................................22 Connecting Case Components......................................................23 Front Panel Header..................................................................25 27 27 27 27 27 Chapter 3 Using BIOS 27 About the Setup Utility....................................................................27 The Standard Configuration..........................................................27 Entering the Setup Utility...............................................................27 Using BIOS.......................................................................................28 Standard CMOS Setup..................................................................29 Advanced Setup.............................................................................32 Advanced Chipset Setup................................................................34

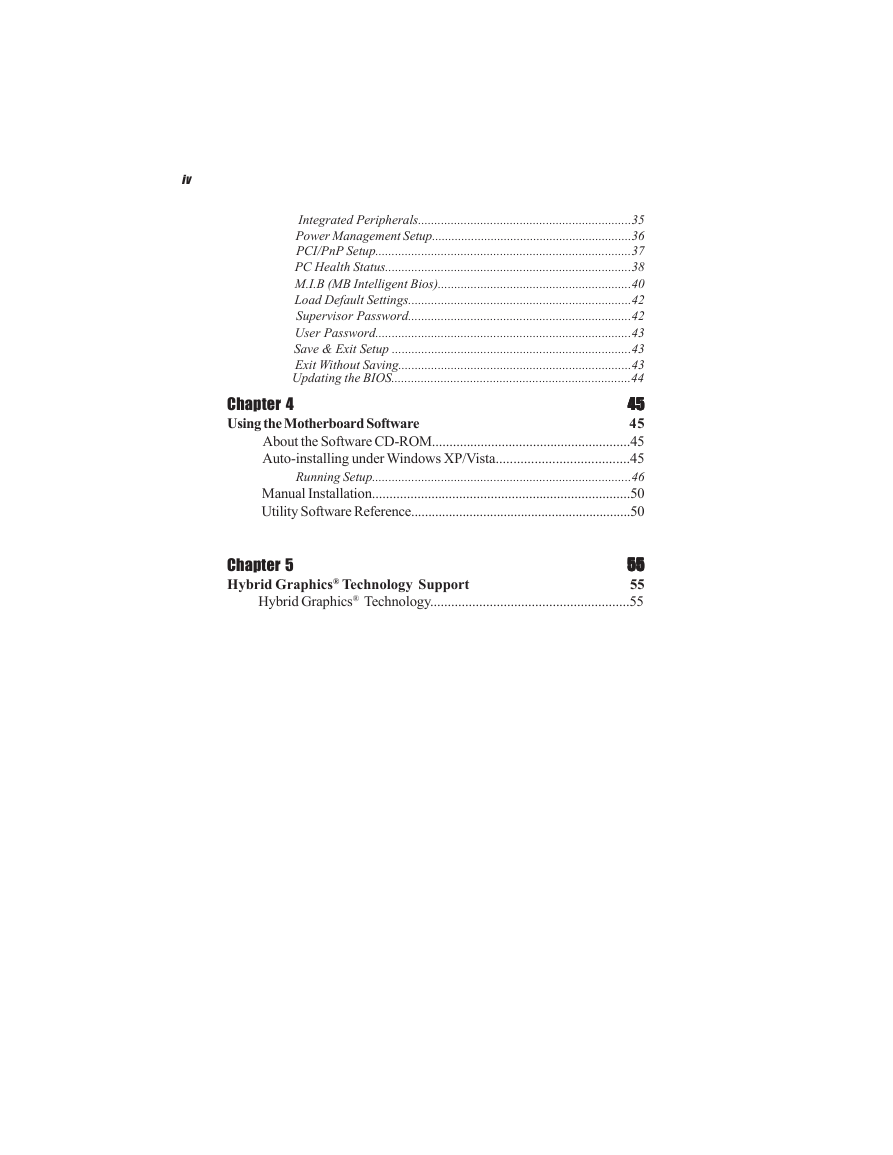

iv Integrated Peripherals.................................................................35 Power Management Setup.............................................................36 PCI/PnP Setup..............................................................................37 PC Health Status...........................................................................38 M.I.B (MB Intelligent Bios)...........................................................40 Load Default Settings....................................................................42 Supervisor Password....................................................................42 User Password..............................................................................43 Save & Exit Setup .........................................................................43 Exit Without Saving.......................................................................43 Updating the BIOS.........................................................................44 45 45 45 45 45 Chapter 4 Using the Motherboard Software 45 About the Software CD-ROM.........................................................45 Auto-installing under Windows XP/Vista......................................45 Running Setup...............................................................................46 Manual Installation..........................................................................50 Utility Software Reference................................................................50 55 55 55 55 55 Chapter 5 Hybrid Graphics® Technology Support 55 Hybrid Graphics® Technology.........................................................55

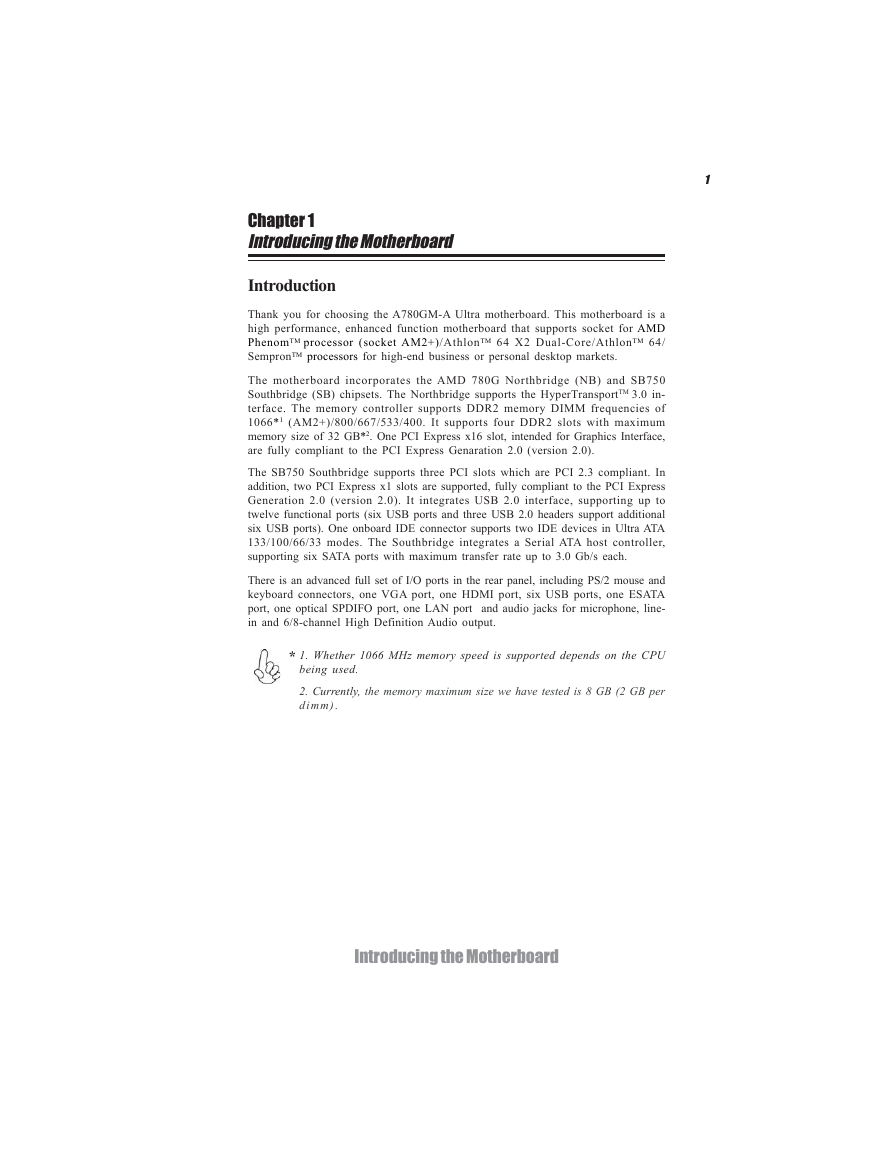

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the A780GM-A Ultra motherboard. This motherboard is a high performance, enhanced function motherboard that supports socket for AMD PhenomTM processor (socket AM2+)/AthlonTM 64 X2 Dual-Core/AthlonTM 64/ SempronTM processors for high-end business or personal desktop markets. The motherboard incorporates the AMD 780G Northbridge (NB) and SB750 Southbridge (SB) chipsets. The Northbridge supports the HyperTransportTM 3.0 in- terface. The memory controller supports DDR2 memory DIMM frequencies of 1066*1 (AM2+)/800/667/533/400. It supports four DDR2 slots with maximum memory size of 32 GB*2. One PCI Express x16 slot, intended for Graphics Interface, are fully compliant to the PCI Express Genaration 2.0 (version 2.0). The SB750 Southbridge supports three PCI slots which are PCI 2.3 compliant. In addition, two PCI Express x1 slots are supported, fully compliant to the PCI Express Generation 2.0 (version 2.0). It integrates USB 2.0 interface, supporting up to twelve functional ports (six USB ports and three USB 2.0 headers support additional six USB ports). One onboard IDE connector supports two IDE devices in Ultra ATA 133/100/66/33 modes. The Southbridge integrates a Serial ATA host controller, supporting six SATA ports with maximum transfer rate up to 3.0 Gb/s each. There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, one VGA port, one HDMI port, six USB ports, one ESATA port, one optical SPDIFO port, one LAN port and audio jacks for microphone, line- in and 6/8-channel High Definition Audio output. * 1. Whether 1066 MHz memory speed is supported depends on the CPU being used. 2. Currently, the memory maximum size we have tested is 8 GB (2 GB per dimm). Introducing the Motherboard

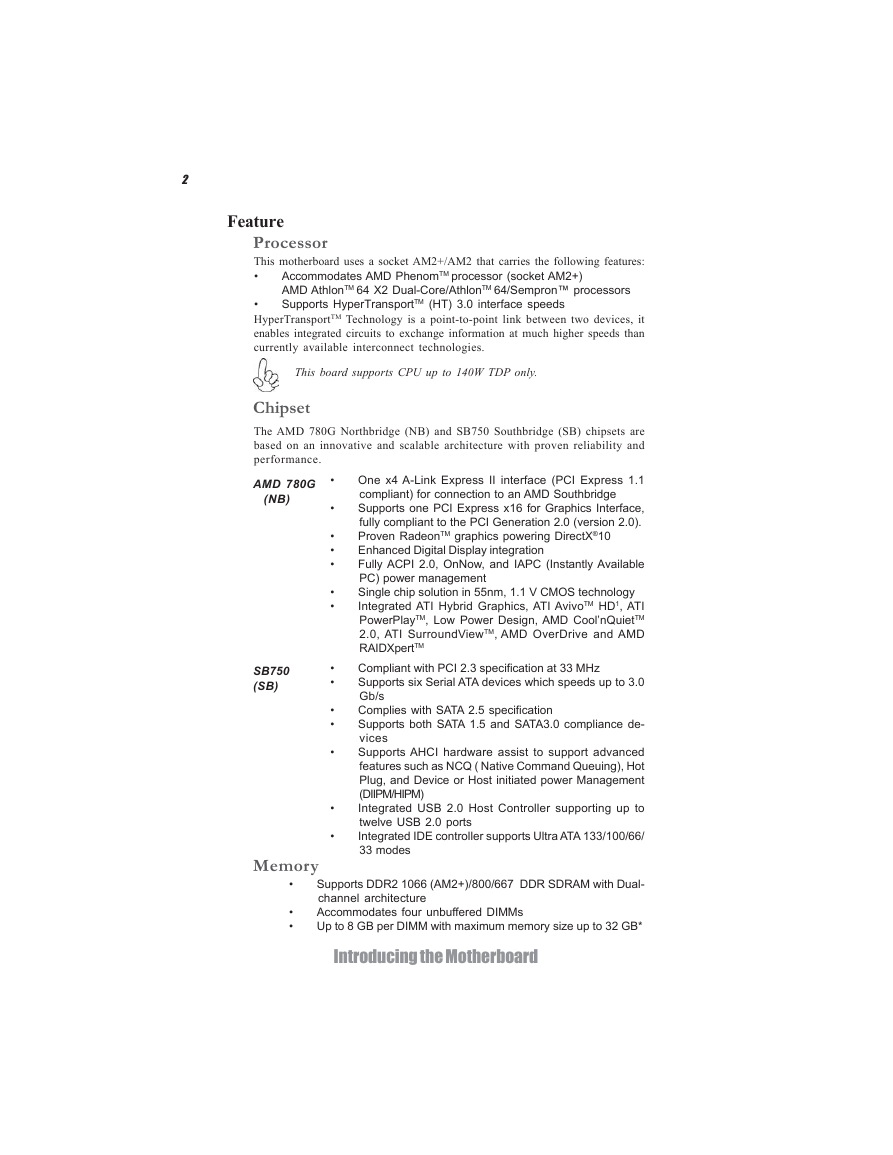

2 Feature Processor This motherboard uses a socket AM2+/AM2 that carries the following features: • Accommodates AMD PhenomTM processor (socket AM2+) AMD AthlonTM 64 X2 Dual-Core/AthlonTM 64/Sempron™ processors Supports HyperTransportTM (HT) 3.0 interface speeds • HyperTransportTM Technology is a point-to-point link between two devices, it enables integrated circuits to exchange information at much higher speeds than currently available interconnect technologies. This board supports CPU up to 140W TDP only. Chipset The AMD 780G Northbridge (NB) and SB750 Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance. AMD 780G • • (NB) • • • Supports DDR2 1066 (AM2+)/800/667 DDR SDRAM with Dual- channel architecture Accommodates four unbuffered DIMMs Up to 8 GB per DIMM with maximum memory size up to 32 GB* Introducing the Motherboard One x4 A-Link Express II interface (PCI Express 1.1 compliant) for connection to an AMD Southbridge Supports one PCI Express x16 for Graphics Interface, fully compliant to the PCI Generation 2.0 (version 2.0). Proven RadeonTM graphics powering DirectX®10 Enhanced Digital Display integration Fully ACPI 2.0, OnNow, and IAPC (Instantly Available PC) power management Single chip solution in 55nm, 1.1 V CMOS technology Integrated ATI Hybrid Graphics, ATI AvivoTM HD1, ATI PowerPlayTM, Low Power Design, AMD Cool’nQuietTM 2.0, ATI SurroundViewTM, AMD OverDrive and AMD RAIDXpertTM Compliant with PCI 2.3 specification at 33 MHz Supports six Serial ATA devices which speeds up to 3.0 Gb/s Complies with SATA 2.5 specification Supports both SATA 1.5 and SATA3.0 compliance de- vices Supports AHCI hardware assist to support advanced features such as NCQ ( Native Command Queuing), Hot Plug, and Device or Host initiated power Management (DIIPM/HIPM) Integrated USB 2.0 Host Controller supporting up to twelve USB 2.0 ports Integrated IDE controller supports Ultra ATA 133/100/66/ 33 modes SB750 (SB) • • • • • • • • • • • • Memory
