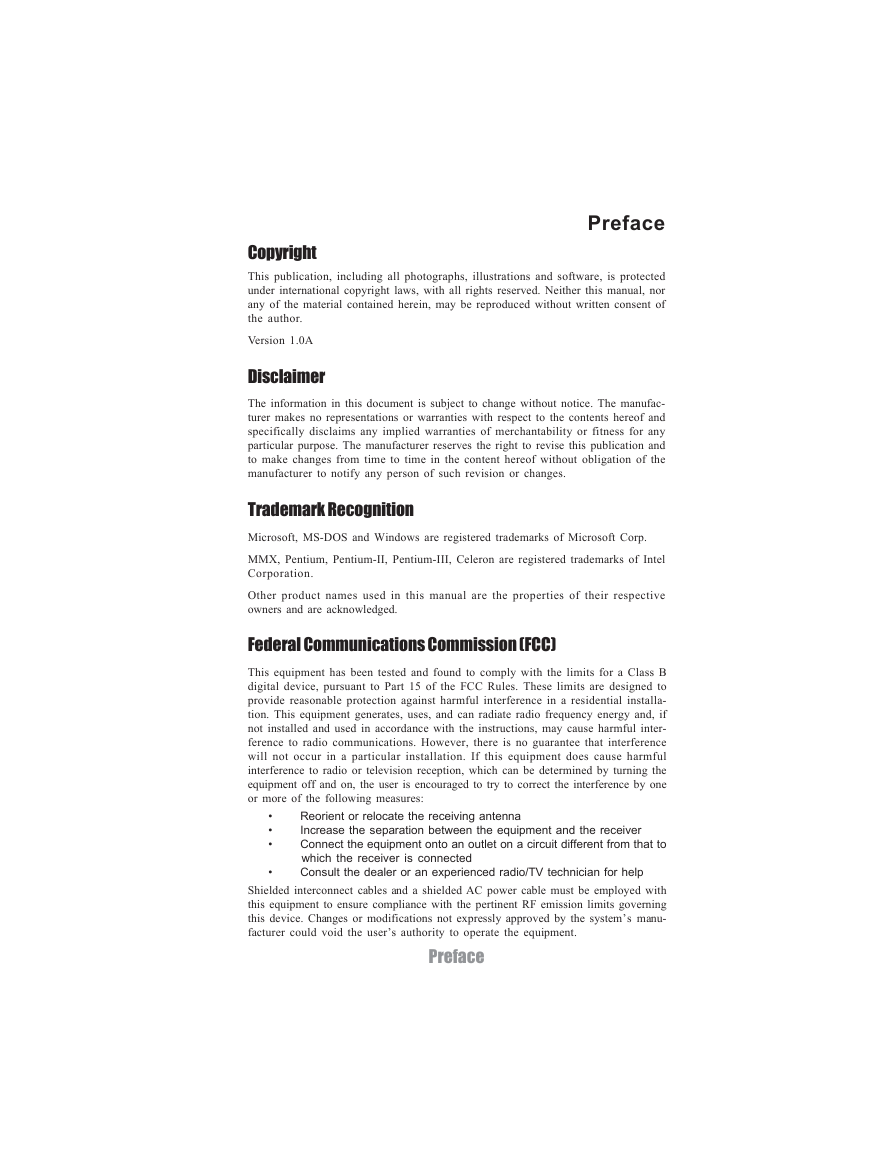

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0A Disclaimer The information in this document is subject to change without notice. The manufac- turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manu- facturer could void the user’s authority to operate the equipment. Preface

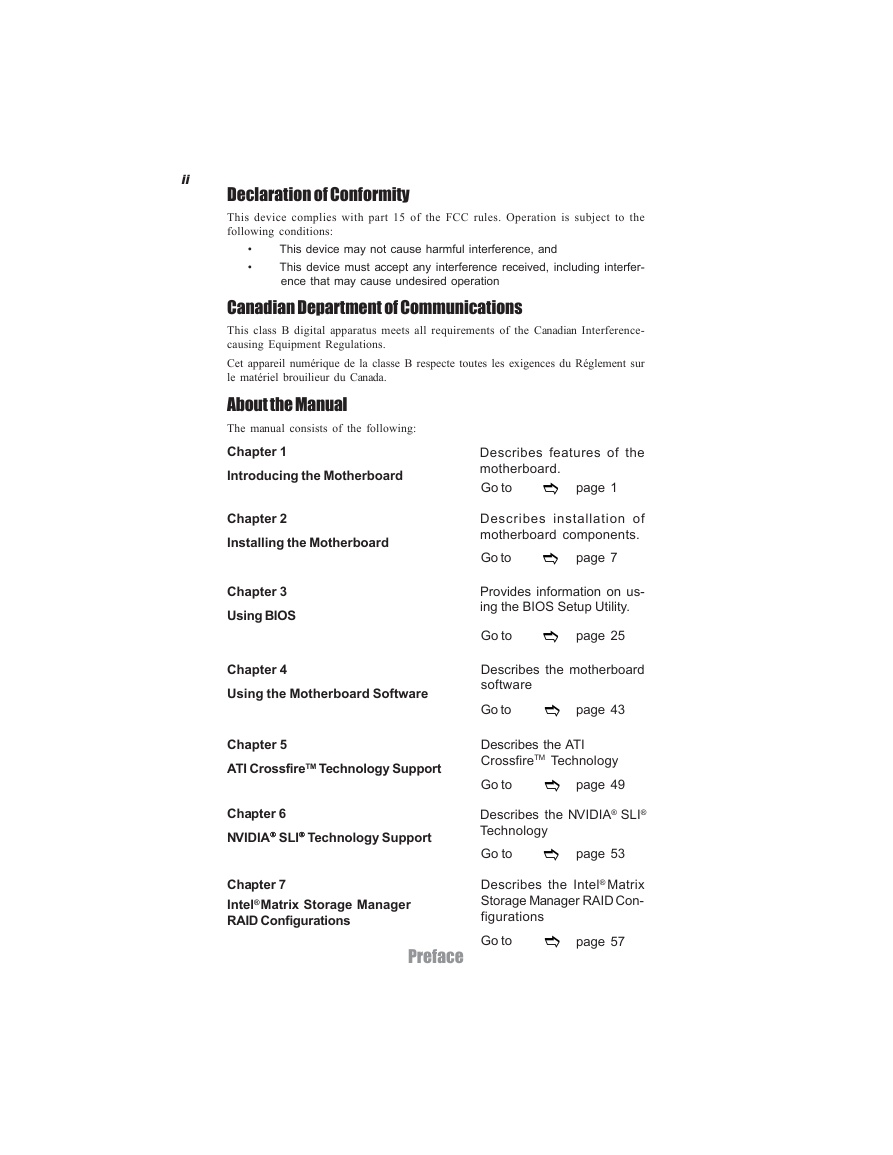

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interfer- ence that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Chapter 4 Using the Motherboard Software Chapter 5 ATI CrossfireTM Technology Support Chapter 6 NVIDIA®®®®® SLI®®®®® Technology Support Chapter 7 Intel® Matrix Storage Manager RAID Configurations Preface Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on us- ing the BIOS Setup Utility. Go to page 25 Describes the motherboard software Go to page 43 Describes the ATI CrossfireTM Technology Go to page 49 Describes the NVIDIA® SLI® Technology Go to page 53 Describes the Intel® Matrix Storage Manager RAID Con- figurations Go to page 57

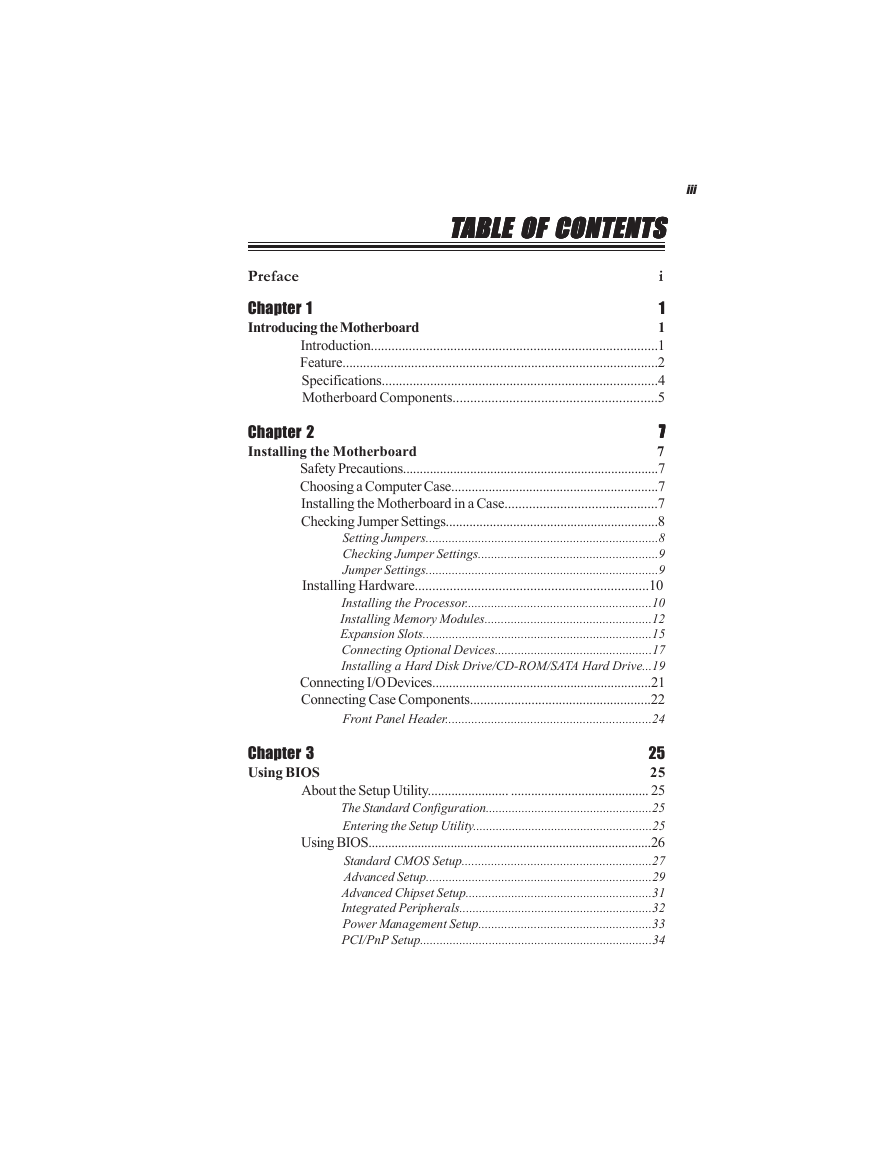

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS i Preface 1 Chapter 1 1 Introducing the Motherboard Introduction...................................................................................1 Feature............................................................................................2 Specifications................................................................................4 Motherboard Components..........................................................5 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions............................................................................7 Choosing a Computer Case.............................................................7 Installing the Motherboard in a Case............................................7 Checking Jumper Settings...............................................................8 Setting Jumpers.......................................................................8 Checking Jumper Settings.......................................................9 Jumper Settings.......................................................................9 Installing Hardware...................................................................10 Installing the Processor.........................................................10 Installing Memory Modules...................................................12 Expansion Slots......................................................................15 Connecting Optional Devices................................................17 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive...19 Connecting I/O Devices.................................................................21 Connecting Case Components.....................................................22 Front Panel Header...............................................................24 Chapter 3 Using BIOS 25 25 About the Setup Utility........................ ......................................... 25 The Standard Configuration...................................................25 Entering the Setup Utility.......................................................25 Using BIOS......................................................................................26 Standard CMOS Setup..........................................................27 Advanced Setup.....................................................................29 Advanced Chipset Setup.........................................................31 Integrated Peripherals...........................................................32 Power Management Setup.....................................................33 PCI/PnP Setup.......................................................................34

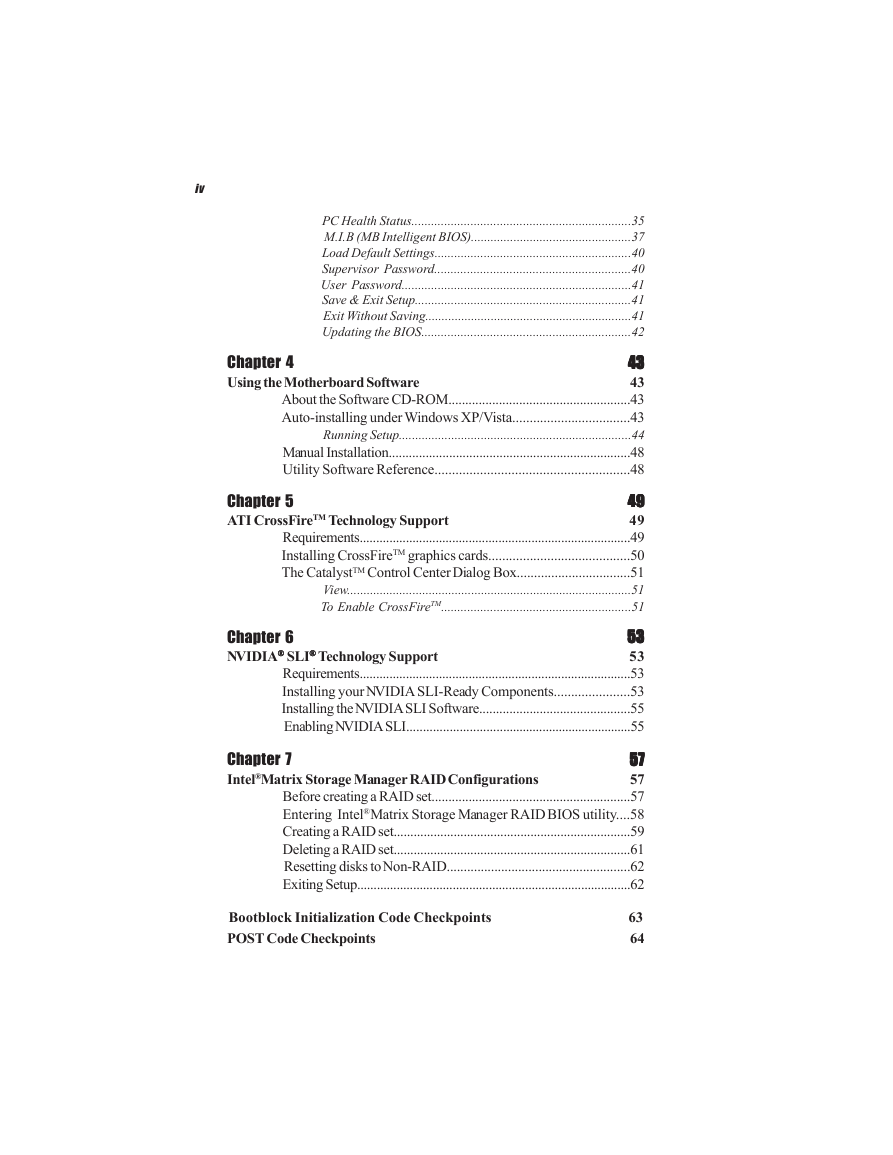

iv Chapter 4 Using the Motherboard Software PC Health Status...................................................................35 M.I.B (MB Intelligent BIOS).................................................37 Load Default Settings............................................................40 Supervisor Password............................................................40 User Password......................................................................41 Save & Exit Setup..................................................................41 Exit Without Saving...............................................................41 Updating the BIOS................................................................42 43 43 43 43 43 43 About the Software CD-ROM......................................................43 Auto-installing under Windows XP/Vista..................................43 Running Setup.......................................................................44 Manual Installation........................................................................48 Utility Software Reference........................................................48 49 49 49 49 49 Chapter 5 ATI CrossFireTM Technology Support 49 Requirements..................................................................................49 Installing CrossFireTM graphics cards.........................................50 The CatalystTM Control Center Dialog Box.................................51 View.......................................................................................51 To Enable CrossFireTM..........................................................51 53 53 53 53 53 53 Requirements..................................................................................53 Installing your NVIDIA SLI-Ready Components......................53 Installing the NVIDIA SLI Software.............................................55 Enabling NVIDIA SLI....................................................................55 57 57 57 57 57 57 Before creating a RAID set...........................................................57 Entering Intel® Matrix Storage Manager RAID BIOS utility....58 Creating a RAID set.......................................................................59 Deleting a RAID set.......................................................................61 Resetting disks to Non-RAID......................................................62 Exiting Setup...................................................................................62 Chapter 7 Intel® Matrix Storage Manager RAID Configurations Chapter 6 NVIDIA®®®®® SLI®®®®® Technology Support Bootblock Initialization Code Checkpoints 63 64 POST Code Checkpoints

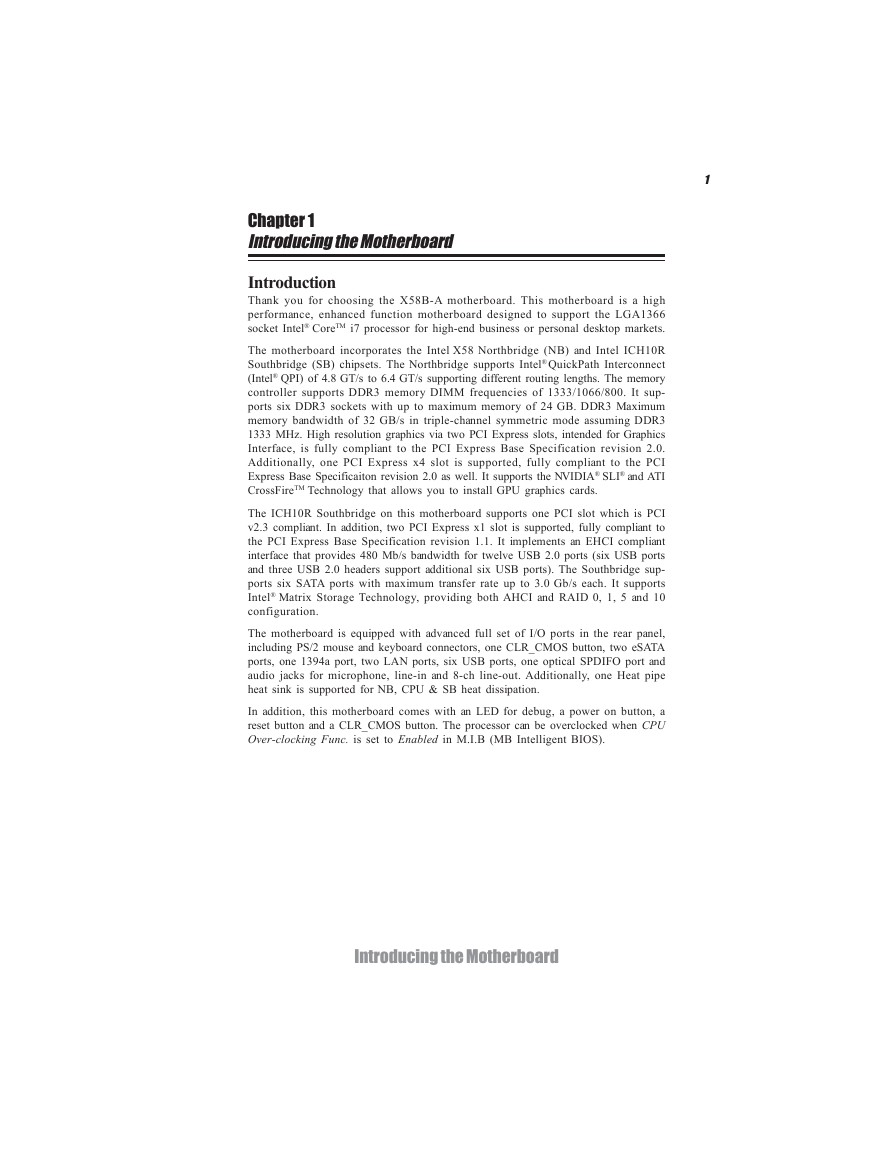

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the X58B-A motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA1366 socket Intel® CoreTM i7 processor for high-end business or personal desktop markets. The motherboard incorporates the Intel X58 Northbridge (NB) and Intel ICH10R Southbridge (SB) chipsets. The Northbridge supports Intel® QuickPath Interconnect (Intel® QPI) of 4.8 GT/s to 6.4 GT/s supporting different routing lengths. The memory controller supports DDR3 memory DIMM frequencies of 1333/1066/800. It sup- ports six DDR3 sockets with up to maximum memory of 24 GB. DDR3 Maximum memory bandwidth of 32 GB/s in triple-channel symmetric mode assuming DDR3 1333 MHz. High resolution graphics via two PCI Express slots, intended for Graphics Interface, is fully compliant to the PCI Express Base Specification revision 2.0. Additionally, one PCI Express x4 slot is supported, fully compliant to the PCI Express Base Specificaiton revision 2.0 as well. It supports the NVIDIA® SLI® and ATI CrossFireTM Technology that allows you to install GPU graphics cards. The ICH10R Southbridge on this motherboard supports one PCI slot which is PCI v2.3 compliant. In addition, two PCI Express x1 slot is supported, fully compliant to the PCI Express Base Specification revision 1.1. It implements an EHCI compliant interface that provides 480 Mb/s bandwidth for twelve USB 2.0 ports (six USB ports and three USB 2.0 headers support additional six USB ports). The Southbridge sup- ports six SATA ports with maximum transfer rate up to 3.0 Gb/s each. It supports Intel® Matrix Storage Technology, providing both AHCI and RAID 0, 1, 5 and 10 configuration. The motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, one CLR_CMOS button, two eSATA ports, one 1394a port, two LAN ports, six USB ports, one optical SPDIFO port and audio jacks for microphone, line-in and 8-ch line-out. Additionally, one Heat pipe heat sink is supported for NB, CPU & SB heat dissipation. In addition, this motherboard comes with an LED for debug, a power on button, a reset button and a CLR_CMOS button. The processor can be overclocked when CPU Over-clocking Func. is set to Enabled in M.I.B (MB Intelligent BIOS). Introducing the Motherboard

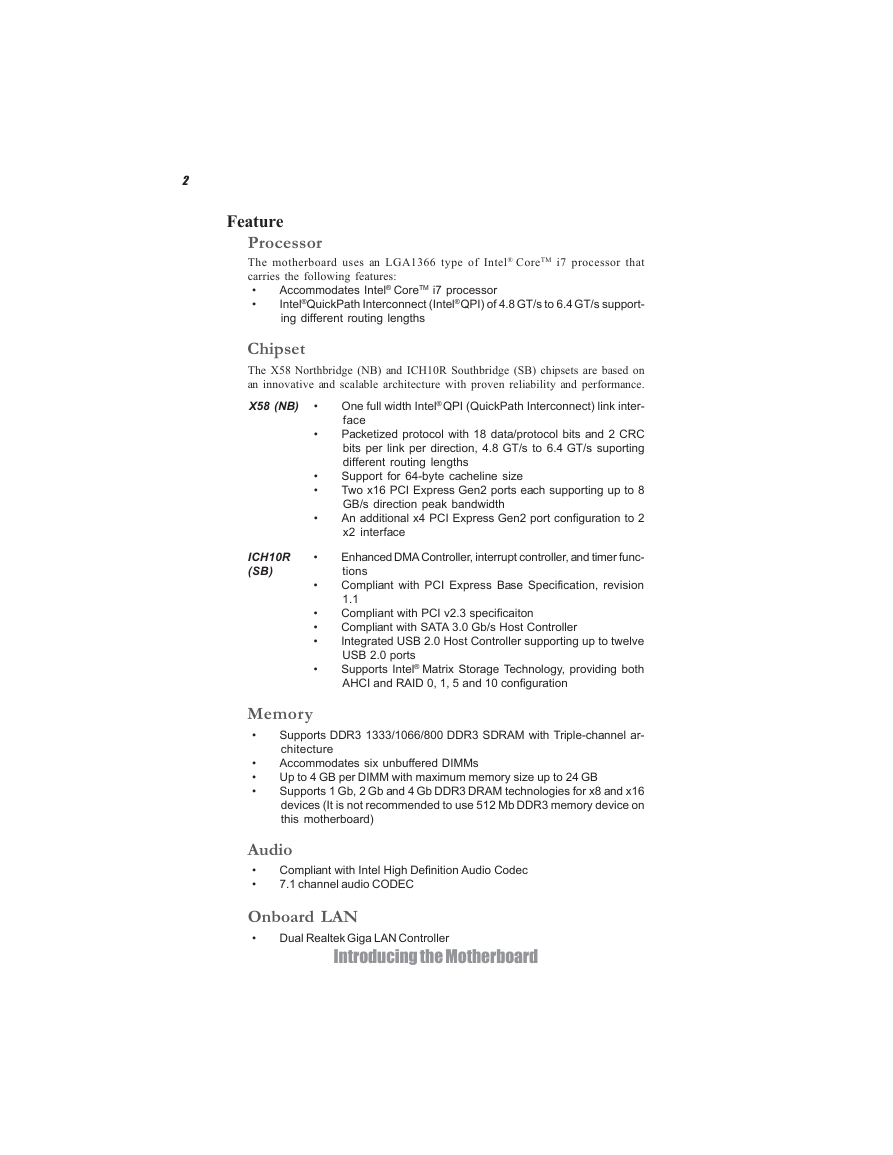

2 Feature Processor The motherboard uses an LGA1366 type of Intel® CoreTM i7 processor that carries the following features: • • Accommodates Intel® CoreTM i7 processor Intel® QuickPath Interconnect (Intel® QPI) of 4.8 GT/s to 6.4 GT/s support- ing different routing lengths • • Chipset The X58 Northbridge (NB) and ICH10R Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance. X58 (NB) One full width Intel® QPI (QuickPath Interconnect) link inter- face Packetized protocol with 18 data/protocol bits and 2 CRC bits per link per direction, 4.8 GT/s to 6.4 GT/s suporting different routing lengths Support for 64-byte cacheline size Two x16 PCI Express Gen2 ports each supporting up to 8 GB/s direction peak bandwidth An additional x4 PCI Express Gen2 port configuration to 2 x2 interface • • • ICH10R (SB) • • • • • • Enhanced DMA Controller, interrupt controller, and timer func- tions Compliant with PCI Express Base Specification, revision 1.1 Compliant with PCI v2.3 specificaiton Compliant with SATA 3.0 Gb/s Host Controller Integrated USB 2.0 Host Controller supporting up to twelve USB 2.0 ports Supports Intel® Matrix Storage Technology, providing both AHCI and RAID 0, 1, 5 and 10 configuration Memory • • • • Supports DDR3 1333/1066/800 DDR3 SDRAM with Triple-channel ar- chitecture Accommodates six unbuffered DIMMs Up to 4 GB per DIMM with maximum memory size up to 24 GB Supports 1 Gb, 2 Gb and 4 Gb DDR3 DRAM technologies for x8 and x16 devices (It is not recommended to use 512 Mb DDR3 memory device on this motherboard) Audio • • Compliant with Intel High Definition Audio Codec 7.1 channel audio CODEC Onboard LAN • Dual Realtek Giga LAN Controller Introducing the Motherboard
