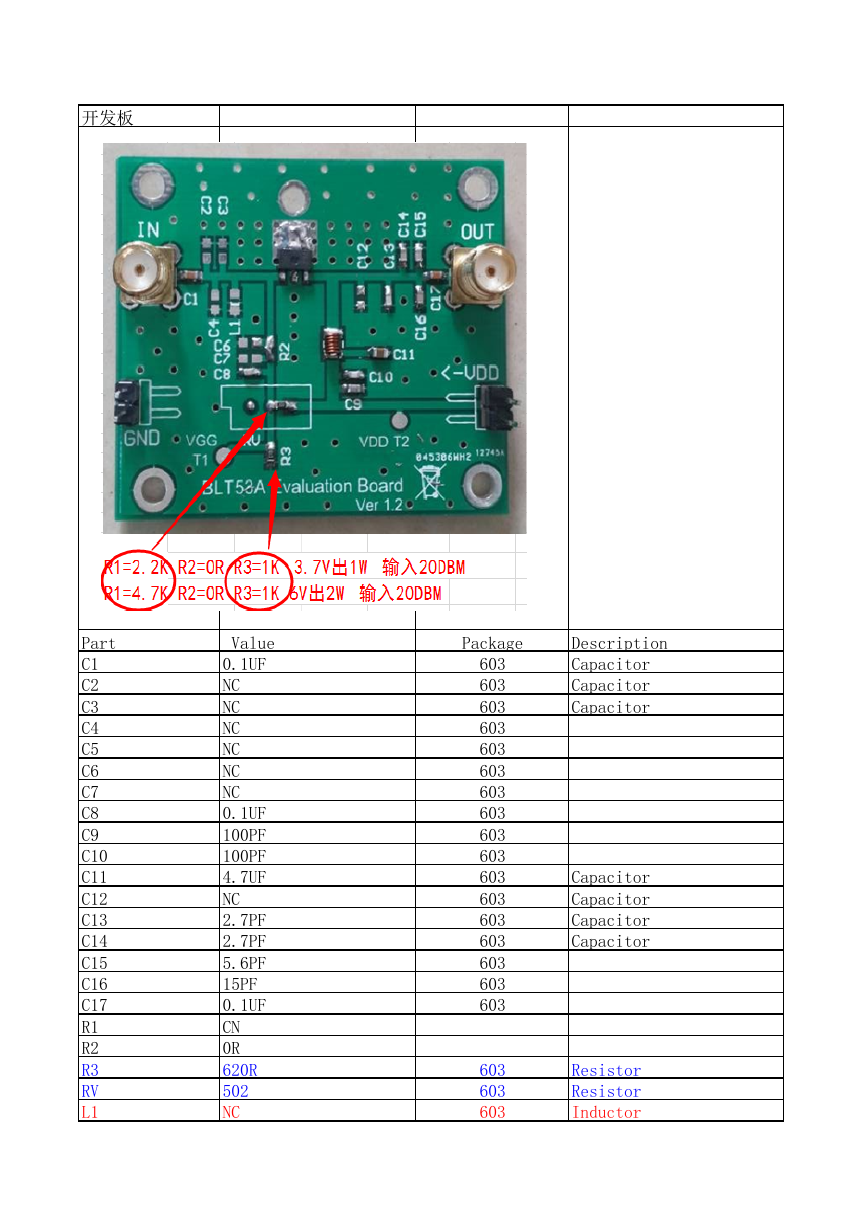

开发板 Part C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 R1 R2 R3 RV L1 Value 0.1UF NC NC NC NC NC NC 0.1UF 100PF 100PF 4.7UF NC 2.7PF 2.7PF 5.6PF 15PF 0.1UF CN 0R 620R 502 NC Package 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 603 Description Capacitor Capacitor Capacitor Capacitor Capacitor Capacitor Capacitor Resistor Resistor Inductor 

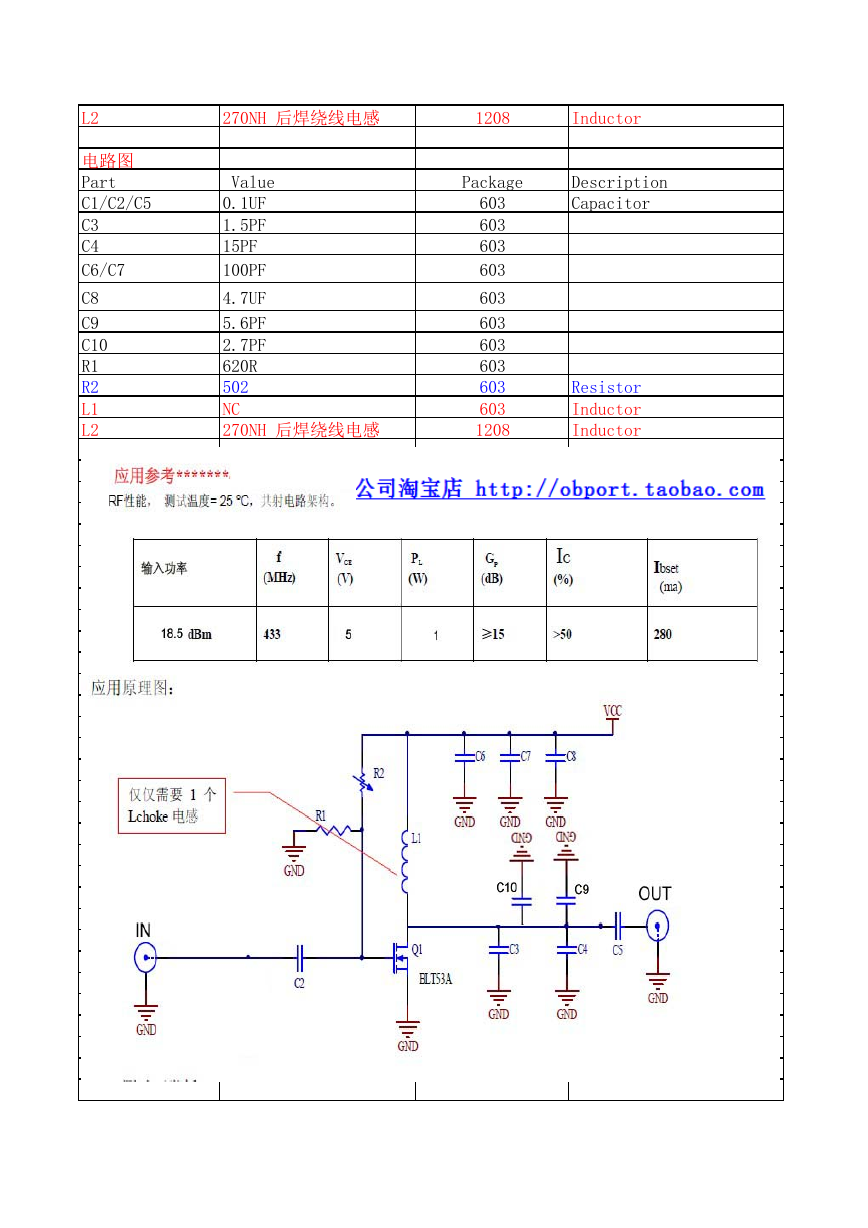

L2 270NH 后焊绕线电感 1208 Inductor 电路图 Part C1/C2/C5 C3 C4 C6/C7 C8 C9 C10 R1 R2 L1 L2 Value 0.1UF 1.5PF 15PF 100PF 4.7UF 5.6PF 2.7PF 620R 502 NC 270NH 后焊绕线电感 Package 603 603 603 603 603 603 603 603 603 603 1208 Description Capacitor Resistor Inductor Inductor
