    GV-101 User Manual ver 1.41 Eng 1
    Table of Content 1. Features and Specification 1.1 Features..................................................................................................................5 1.2 Specification ........................................................................................................6 1.2.1 Hardware.................................................................................................6 1.2.2 Software ..................................................................................................7 2. Introduction 2.1 Overview................................................................................................................8 2.2 Detailed Hardware Functions ................................................................................9 3. Download Software to Memory Card............................................................................11 4. Download Map Data to the Memory Card ....................................................................13 4.1 Europe Map to the Memory Card 4.1.1 Install Europe Map Loader Software....................................................13 4.1.2 Upload Europe Map to the Memory Card ............................................16 4.2 American Map to the Memory Card 4.2.1 Install American Map Loader Software................................................17 4.2.2 Upload American Map to the Memory Card ........................................20 5. Setup GV-101 in Car 5.1 Attach GV-101 and Car Holder on the Car..........................................................23 5.2 Removing the GV-101 with the Car Holder ........................................................24 5.3 Connecting the Car Cigarette Charger to the GV-101 .........................................24 5.4 Powering the GV-101 On and Off .......................................................................25 5.4.1 Powering the GV-101 Off .....................................................................25 5.4.2 Powering the GV-101 On......................................................................25 5.5 Reset.....................................................................................................................26 5.5.1 Soft Reset..............................................................................................26 5.5.2 Hard Reset.............................................................................................26 5.6 Screen Alignment.................................................................................................27 6. Changing the Battery .....................................................................................................29 7. Software 7.1 The Main Application Screen ..............................................................................31 7.2 Detail Software Functions....................................................................................31 7.2.1 Car Navigation System 7.2.1.1 Window Overview 7.2.1.1.1 Main Menu..................................................31 2
    7.2.1.1.2 Map Display................................................31 7.2.1.1.3 Navigation Display .....................................32 7.2.1.1.4 GPS Status Display.....................................33 7.2.1.2 Selecting Your Destination.................................................33 7.2.1.2.1 If You Have Selected “Street First” ............34 7.2.1.2.2 If You Have Selected “City First”...............36 7.2.1.3 To Enter a Destination from Intersection...........................40 7.2.1.3.1 If You Have Selected “Street First” ............41 7.2.1.3.2 If You Have Selected “City First”...............44 7.2.1.4 To Enter a Destination from Points of Interest ..................47 7.2.1.4.1 If You Have Selected “Alphabetical”..........48 7.2.1.4.2 If You Have Selected “By Distance” ..........51 7.2.1.5 To Enter a Destination from Favorites...............................53 7.2.1.6 To Enter a Destination from Recent...................................55 7.2.1.7 To Enter the Center of City to Find the Destination ..........58 7.2.1.7.1 If You Have Selected “Alphabetical”..........59 7.2.1.7.2 If You Have Selected “By Distance” ..........62 7.2.1.7.3 If You Have Selected “List ALL” ...............64 7.2.1.8 To Set the Route Options ...................................................66 7.2.1.9 To Set the Region Options .................................................67 7.2.1.10 To Set the Display Options ..............................................68 7.2.1.11 To Create or Add to the Favorites List.............................69 7.2.1.12 To Add a Label to Your Favorites ....................................71 7.2.1.13 To Demo a Navigation .....................................................72 7.2.1.14 To Add a Location to Favorites........................................74 7.2.1.15 Use GPS Info ...................................................................75 7.2.2 Photo View............................................................................................76 7.2.3 Movie Playback ....................................................................................77 7.2.4 MP3 Player............................................................................................79 7.2.4.1 Creating a Play List............................................................79 7.2.4.2 Basic Operation..................................................................81 Play the Created Play List Change the Playback Mode of the Play List 7.2.4.3 The Equalizer.....................................................................82 7.2.5 Optional Blue tooth HandsFree Carkit .................................................82 7.2.5.1 How to Use the Hands Free Carkit ....................................83 7.2.5.2 How to Set Up Blue tooth HandsFree Carkit with a Mobile Phone..................................................................................83 3
    7.2.5.3 Blue tooth Mobile Phone Settings .....................................85 7.2.5.3.1 Adding and Delete Phone Settings..................86 7.2.5.3.2 Connecting to a Phone ....................................86 7.2.5.3.3 Disconnecting the Mobile Phone....................87 7.2.5.3.4 Adding “+” before the Setup Number.............89 7.2.5.4 Answering Calls.................................................................90 7.2.5.5 Hang Up the Calls..............................................................90 7.2.5.6 Direct Dialing.....................................................................90 7.2.5.7 List All Calls the Incoming Calls.......................................91 7.2.5.7.1 Adding Calls to the Phonebook.......................91 7.2.5.7.2 Deleting All the Received and Missed Calls...94 7.2.5.7.3 Direct Dialing..................................................95 7.2.5.8 Phonebook..........................................................................96 7.2.5.8.1 Add A Number to the Phonebook ...................96 7.2.5.8.2 Edit A Number in the Phonebook ...................97 7.2.6 Setting Mode.........................................................................99 7.2.6.1 System Information............................................99 7.2.6.2 Power Setting...................................................100 7.2.6.3 Backlight Adjustment.......................................101 7.2.6.4 Language Selection and Time zone .................102 7.2.6.5 About................................................................102 7.2.6.6 Screen Correction.............................................103 8.1 Index A – Blue tooth HandsFree Carkit Installation 8.1.1 Introduction........................................................................................104 8.1.2 Blue tooth HandsFree Carkit Installation (Optional).........................105 8. Index 8.2 Index B -- FM Transmitter (Optional) 8.2.1 Introduction........................................................................................106 8.2.2 FM Transmitter Installation ...............................................................107 9.Troubleshooting ............................................................................................................109 10. FCC Notices ...............................................................................................................111 4

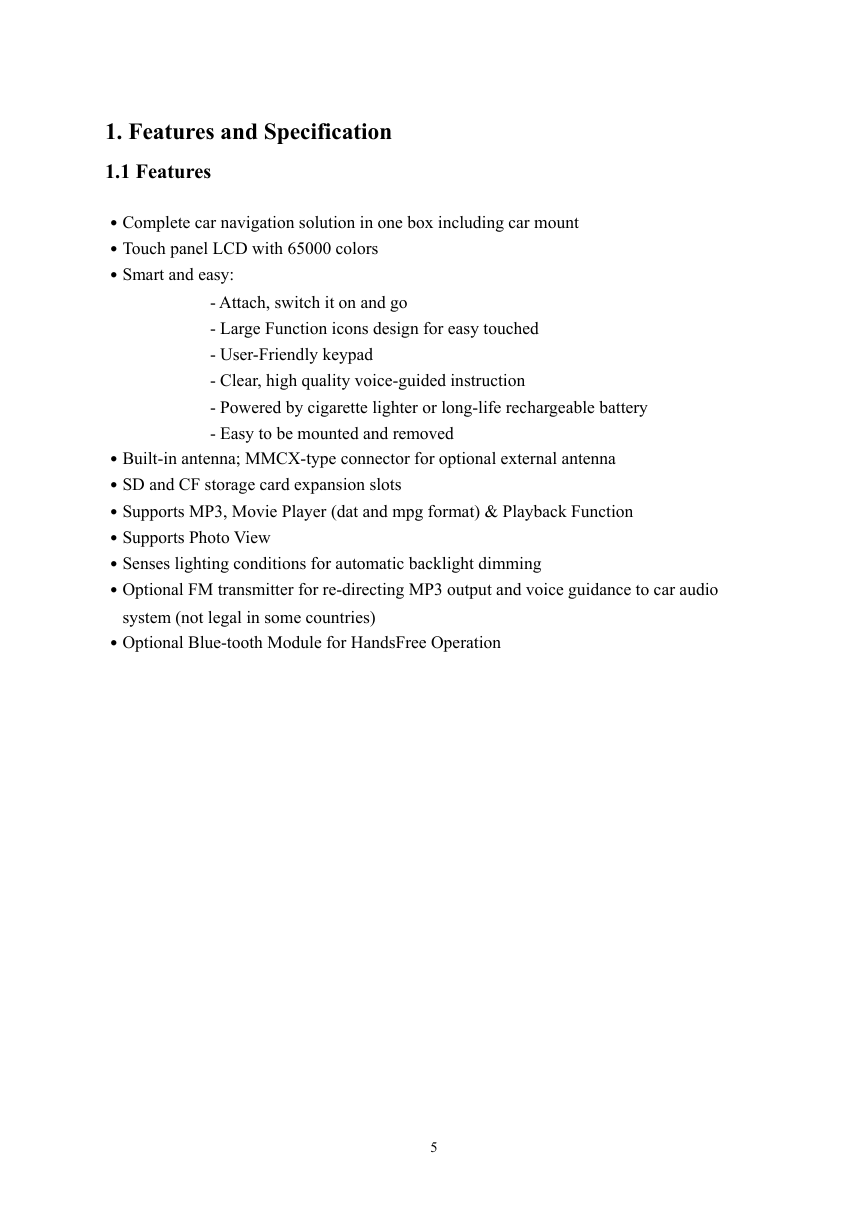

    1. Features and Specification 1.1 Features ․Complete car navigation solution in one box including car mount ․Touch panel LCD with 65000 colors ․Smart and easy: - Attach, switch it on and go - Large Function icons design for easy touched - User-Friendly keypad - Clear, high quality voice-guided instruction - Powered by cigarette lighter or long-life rechargeable battery - Easy to be mounted and removed ․Built-in antenna; MMCX-type connector for optional external antenna ․SD and CF storage card expansion slots ․Supports MP3, Movie Player (dat and mpg format) & Playback Function ․Supports Photo View ․Senses lighting conditions for automatic backlight dimming ․Optional FM transmitter for re-directing MP3 output and voice guidance to car audio system (not legal in some countries) ․Optional Blue-tooth Module for HandsFree Operation 5

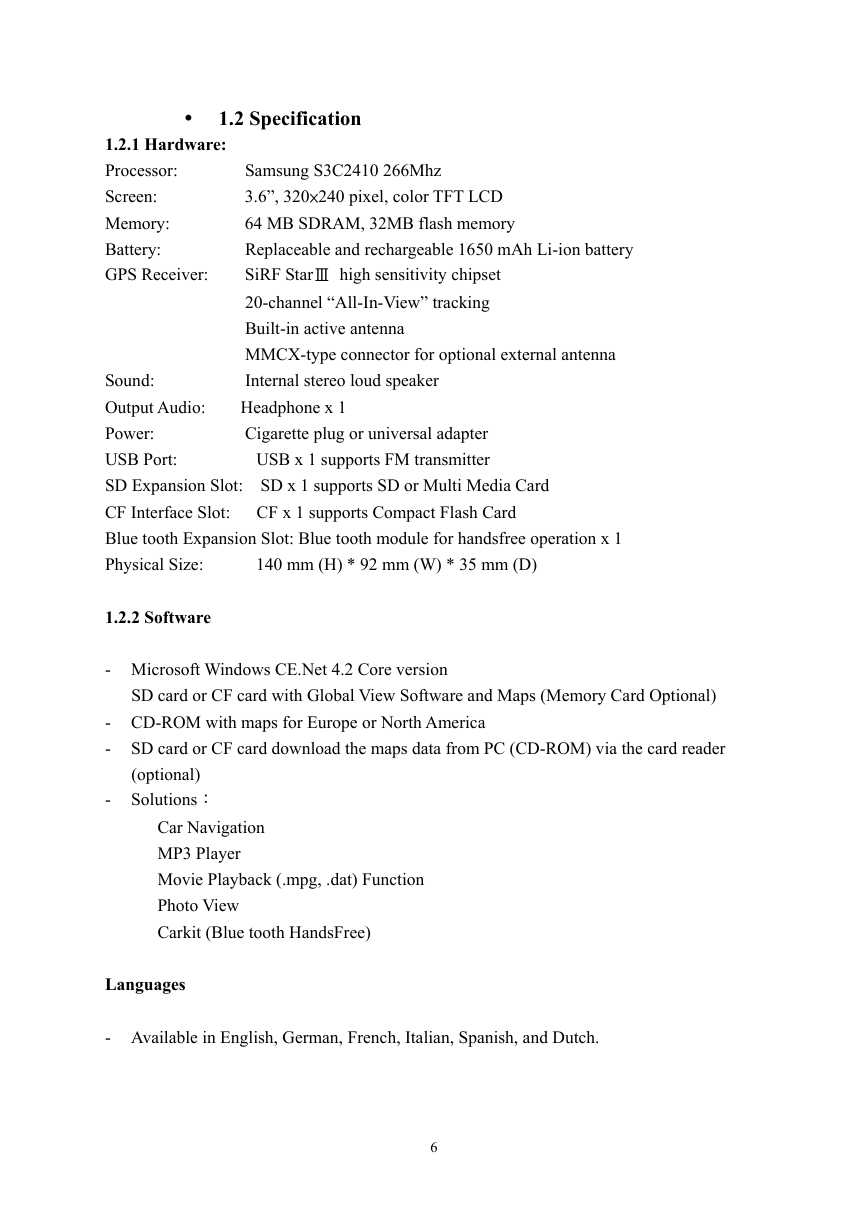

    1.2 Specification 1.2.1 Hardware: Processor: Screen: Memory: Battery: GPS Receiver: Samsung S3C2410 266Mhz 3.6”, 320×240 pixel, color TFT LCD 64 MB SDRAM, 32MB flash memory Replaceable and rechargeable 1650 mAh Li-ion battery SiRF StarⅢ high sensitivity chipset 20-channel “All-In-View” tracking Built-in active antenna MMCX-type connector for optional external antenna Internal stereo loud speaker Sound: Output Audio: Headphone x 1 Power: Cigarette plug or universal adapter USB Port: USB x 1 supports FM transmitter SD Expansion Slot: SD x 1 supports SD or Multi Media Card CF Interface Slot: CF x 1 supports Compact Flash Card Blue tooth Expansion Slot: Blue tooth module for handsfree operation x 1 Physical Size: 140 mm (H) * 92 mm (W) * 35 mm (D) 1.2.2 Software - Microsoft Windows CE.Net 4.2 Core version SD card or CF card with Global View Software and Maps (Memory Card Optional) - CD-ROM with maps for Europe or North America - SD card or CF card download the maps data from PC (CD-ROM) via the card reader (optional) - Solutions： Car Navigation MP3 Player Movie Playback (.mpg, .dat) Function Photo View Carkit (Blue tooth HandsFree) Languages - Available in English, German, French, Italian, Spanish, and Dutch. 6

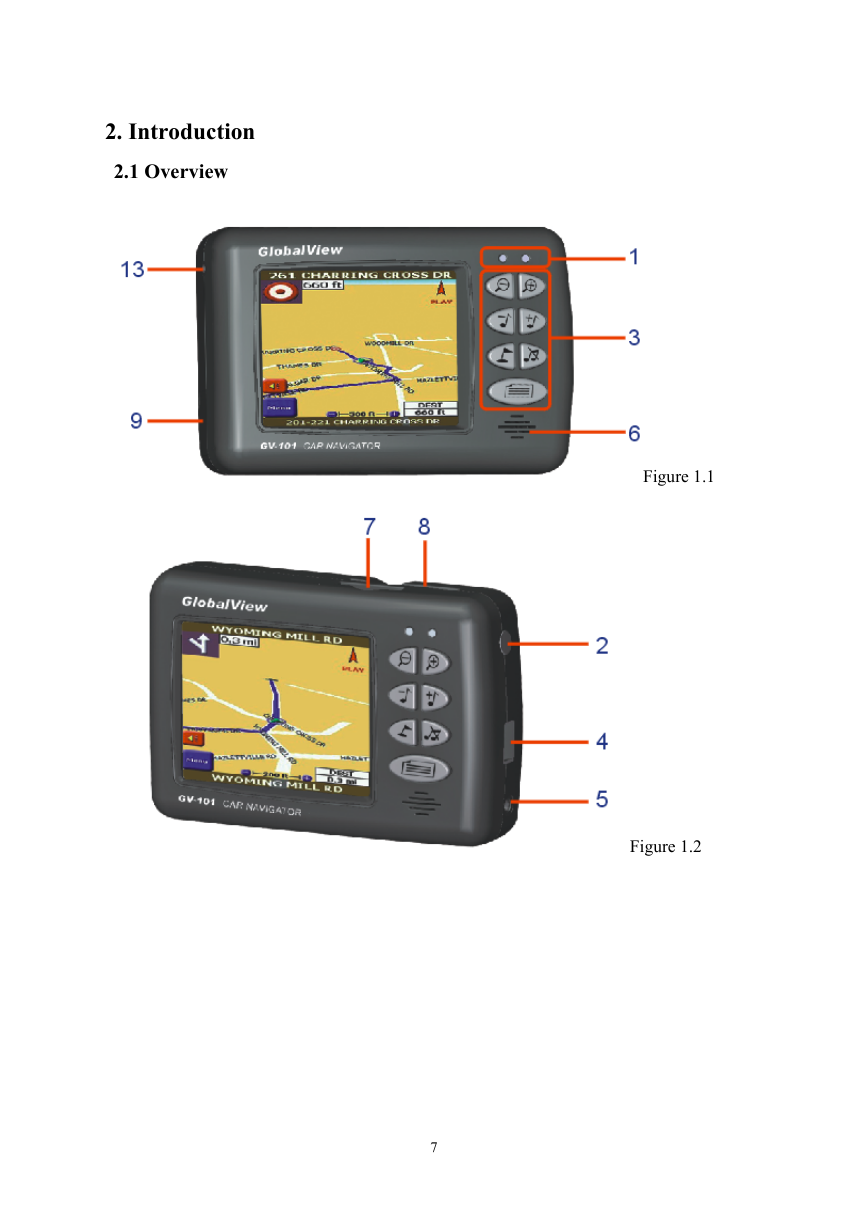

    2. Introduction 2.1 Overview 7 Figure 1.1 Figure 1.2

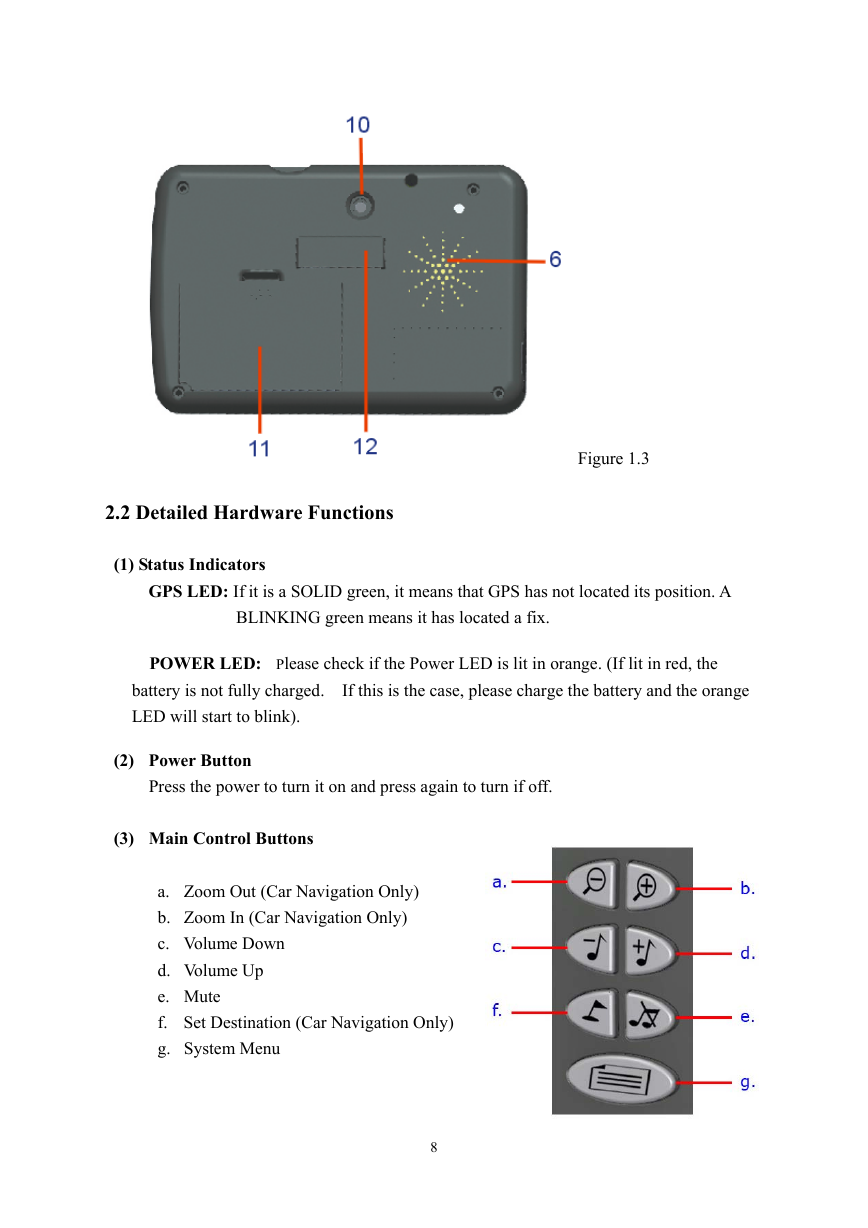

    2.2 Detailed Hardware Functions (1) Status Indicators Figure 1.3 GPS LED: If it is a SOLID green, it means that GPS has not located its position. A BLINKING green means it has located a fix. POWER LED: Please check if the Power LED is lit in orange. (If lit in red, the battery is not fully charged. If this is the case, please charge the battery and the orange LED will start to blink). (2) Power Button Press the power to turn it on and press again to turn if off. (3) Main Control Buttons a. Zoom Out (Car Navigation Only) b. Zoom In (Car Navigation Only) c. Volume Down d. Volume Up e. Mute f. Set Destination (Car Navigation Only) g. System Menu 8
