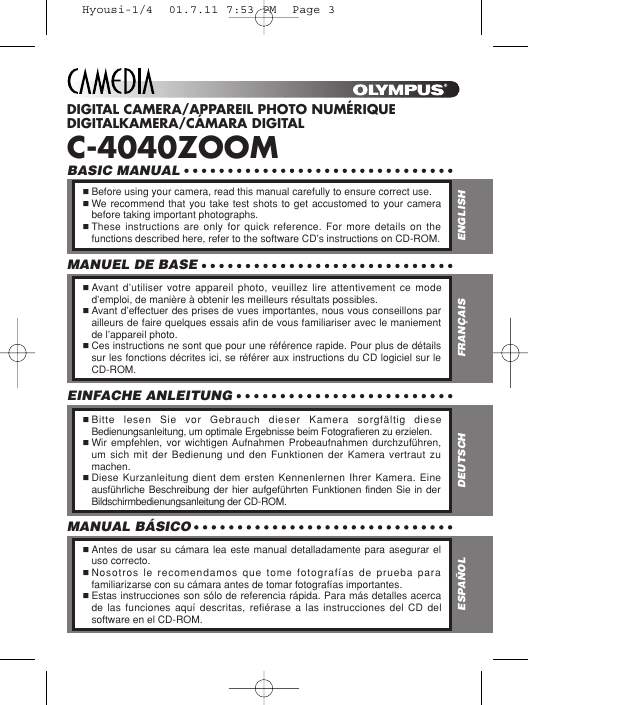

Hyousi-1/4 01.7.11 7:53 PM Page 3 DIGITAL CAMERA/APPAREIL PHOTO NUMÉRIQUE DIGITALKAMERA/CÁMARA DIGITAL C-4040ZOOM BASIC MANUAL 䡲 Before using your camera, read this manual carefully to ensure correct use. 䡲 We recommend that you take test shots to get accustomed to your camera before taking important photographs. 䡲 These instructions are only for quick reference. For more details on the functions described here, refer to the software CD’s instructions on CD-ROM. MANUEL DE BASE 䡲 Avant d’utiliser votre appareil photo, veuillez lire attentivement ce mode d’emploi, de manière à obtenir les meilleurs résultats possibles. 䡲 Avant d’effectuer des prises de vues importantes, nous vous conseillons par ailleurs de faire quelques essais afin de vous familiariser avec le maniement de l’appareil photo. 䡲 Ces instructions ne sont que pour une référence rapide. Pour plus de détails sur les fonctions décrites ici, se référer aux instructions du CD logiciel sur le CD-ROM. EINFACHE ANLEITUNG 䡲 Bitte lesen Sie vor Gebrauch dieser Kamera sorgfältig diese Bedienungsanleitung, um optimale Ergebnisse beim Fotografieren zu erzielen. 䡲 Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um sich mit der Bedienung und den Funktionen der Kamera vertraut zu machen. 䡲 Diese Kurzanleitung dient dem ersten Kennenlernen Ihrer Kamera. Eine ausführliche Beschreibung der hier aufgeführten Funktionen finden Sie in der Bildschirmbedienungsanleitung der CD-ROM. MANUAL BÁSICO 䡲 Antes de usar su cámara lea este manual detalladamente para asegurar el uso correcto. 䡲 Nosotros le recomendamos que tome fotografías de prueba para familiarizarse con su cámara antes de tomar fotografías importantes. 䡲 Estas instrucciones son sólo de referencia rápida. Para más detalles acerca de las funciones aquí descritas, refiérase a las instrucciones del CD del software en el CD-ROM. H S I L G N E S I A Ç N A R F H C S T U E D L O Ñ A P S E

1 C-4040ZBasic-E2 01.7.11 7:31 PM Page 2 Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. For customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party Address : C-4040ZOOM : OLYMPUS : Olympus America Inc. : 2 Corporate Center Drive, Melville, New York 11747-3157 U.S.A. Telephone Number : 631-844-5000 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Trademarks •IBM is a registered trademark of International Business Machines Corporation. •Microsoft and Windows are registered trademarks of Microsoft Corporation. •Macintosh is a trademark of Apple Computer Inc. •All other company and product names are registered trademarks and/or trademarks of their respective owners. •The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). 2

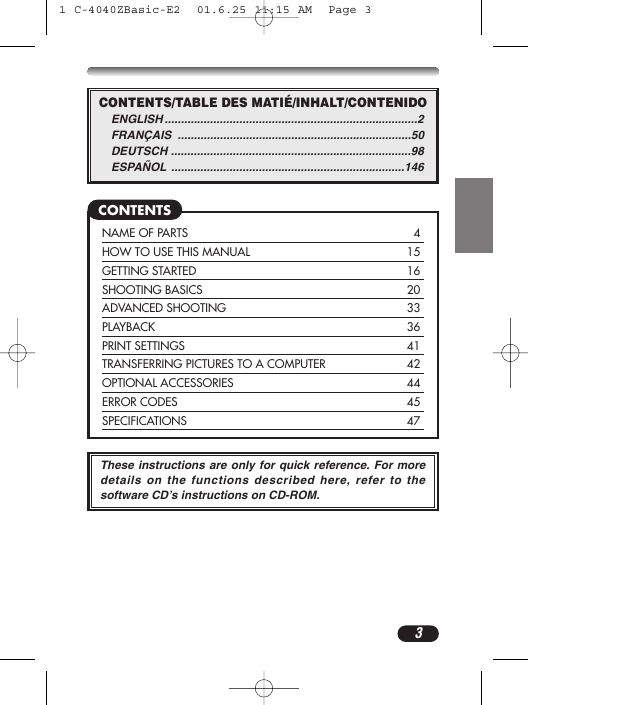

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 3 CONTENTS/TABLE DES MATIÉ/INHALT/CONTENIDO ENGLISH ..............................................................................2 FRANÇAIS ........................................................................50 DEUTSCH ..........................................................................98 ESPAÑOL ........................................................................146 CONTENTS NAME OF PARTS HOW TO USE THIS MANUAL GETTING STARTED SHOOTING BASICS ADVANCED SHOOTING PLAYBACK PRINT SETTINGS TRANSFERRING PICTURES TO A COMPUTER OPTIONAL ACCESSORIES ERROR CODES SPECIFICATIONS 4 15 16 20 33 36 41 42 44 45 47 These instructions are only for quick reference. For more details on the functions described here, refer to the software CD’s instructions on CD-ROM. 3

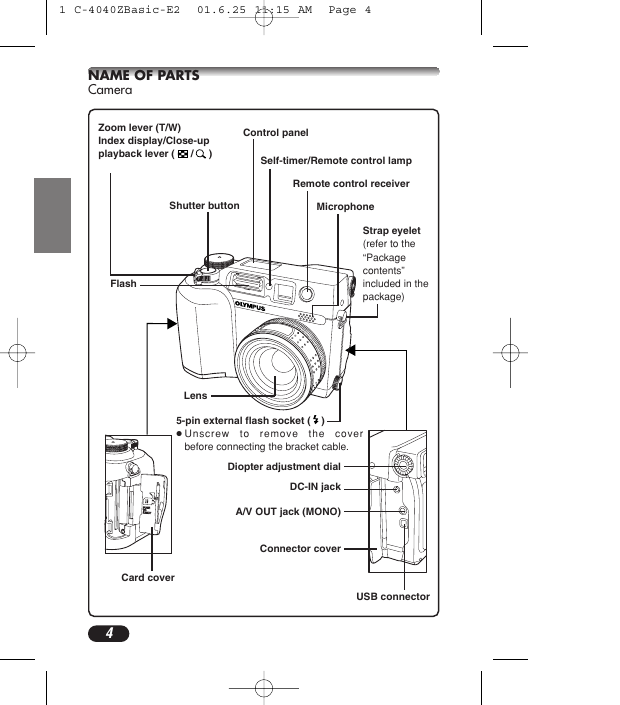

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 4 NAME OF PARTS Camera Zoom lever (T/W) Index display/Close-up playback lever ( ) / Control panel Self-timer/Remote control lamp Remote control receiver Shutter button Microphone Strap eyelet (refer to the “Package contents” included in the package) ) to the cover Flash Lens 5-pin external flash socket ( ● Unscrew remove before connecting the bracket cable. Diopter adjustment dial DC-IN jack A/V OUT jack (MONO) Connector cover Card cover 4 USB connector

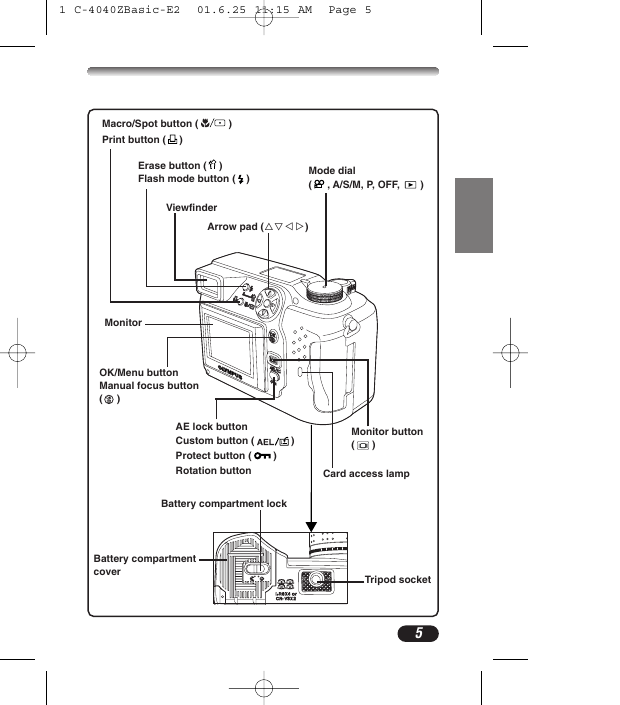

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 5 Macro/Spot button ( Print button ( ) ) Erase button ( Flash mode button ( ) ) Viewfinder Arrow pad (ÑñÉí) Mode dial ( , A/S/M, P, OFF, ) Monitor OK/Menu button Manual focus button ( ) AE lock button Custom button ( Protect button ( Rotation button ) ) Monitor button ( ) Card access lamp Battery compartment lock Battery compartment cover Tripod socket 5

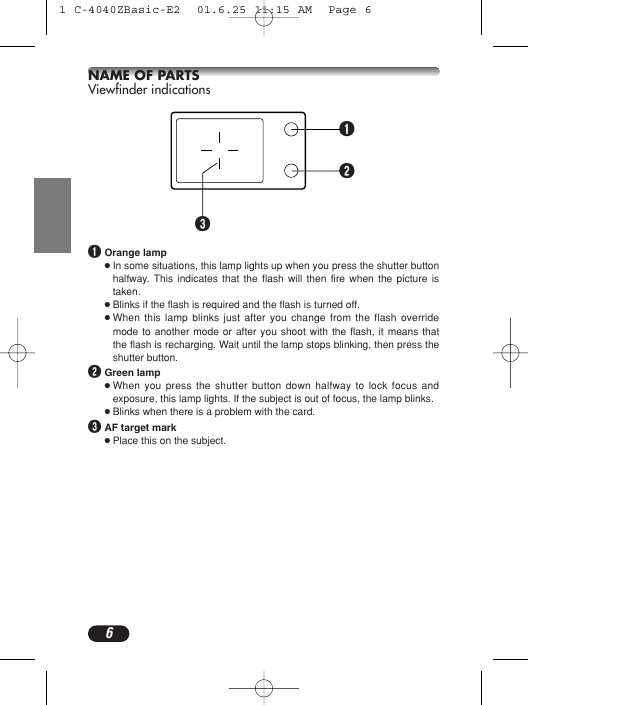

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 6 NAME OF PARTS Viewfinder indications 1 2 3 1 Orange lamp ● In some situations, this lamp lights up when you press the shutter button halfway. This indicates that the flash will then fire when the picture is taken. ● Blinks if the flash is required and the flash is turned off. ● When this lamp blinks just after you change from the flash override mode to another mode or after you shoot with the flash, it means that the flash is recharging. Wait until the lamp stops blinking, then press the shutter button. 2 Green lamp ● When you press the shutter button down halfway to lock focus and exposure, this lamp lights. If the subject is out of focus, the lamp blinks. ● Blinks when there is a problem with the card. 3 AF target mark ● Place this on the subject. 6

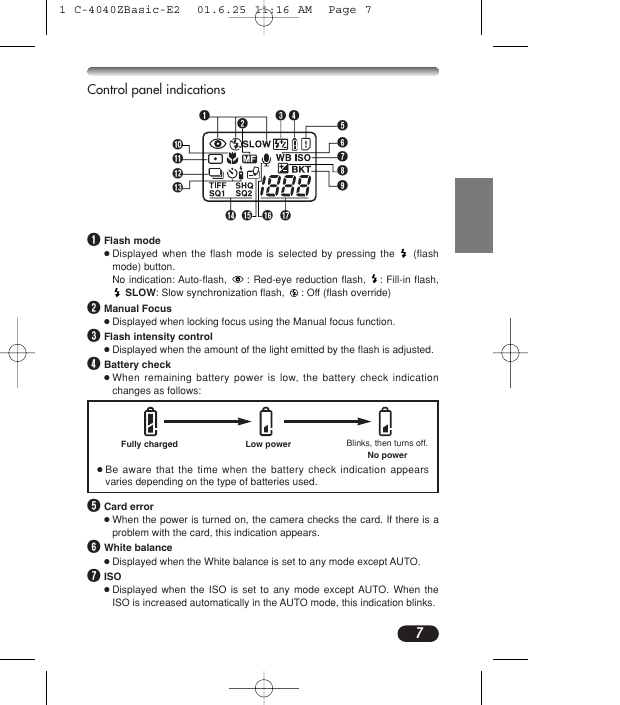

1 C-4040ZBasic-E2 01.6.25 11:16 AM Page 7 Control panel indications Control panel indications 1 2 3 4 0 ! @ # 5 6 7 8 9 $ % ^ & 1 Flash mode ● Displayed when the flash mode is selected by pressing the (flash mode) button. No indication: Auto-flash, : Red-eye reduction flash, : Fill-in flash, SLOW: Slow synchronization flash, 2 Manual Focus : Off (flash override) ● Displayed when locking focus using the Manual focus function. 3 Flash intensity control ● Displayed when the amount of the light emitted by the flash is adjusted. 4 Battery check ● When remaining battery power is low, the battery check indication changes as follows: Fully charged Low power Blinks, then turns off. No power ● Be aware that the time when the battery check indication appears varies depending on the type of batteries used. 5 Card error ● When the power is turned on, the camera checks the card. If there is a problem with the card, this indication appears. 6 White balance ● Displayed when the White balance is set to any mode except AUTO. 7 ISO ● Displayed when the ISO is set to any mode except AUTO. When the ISO is increased automatically in the AUTO mode, this indication blinks. 7

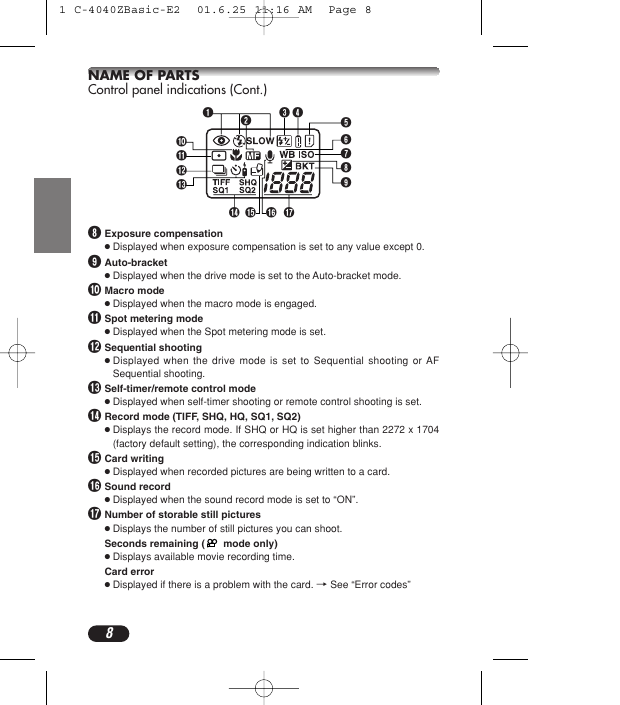

1 C-4040ZBasic-E2 01.6.25 11:16 AM Page 8 NAME OF PARTS Control panel indications (Cont.) 1 2 3 4 0 ! @ # 5 6 7 8 9 8 Exposure compensation $ % ^ & ● Displayed when exposure compensation is set to any value except 0. 9 Auto-bracket ● Displayed when the drive mode is set to the Auto-bracket mode. 0 Macro mode ● Displayed when the macro mode is engaged. ! Spot metering mode ● Displayed when the Spot metering mode is set. @ Sequential shooting ● Displayed when the drive mode is set to Sequential shooting or AF Sequential shooting. # Self-timer/remote control mode ● Displayed when self-timer shooting or remote control shooting is set. $ Record mode (TIFF, SHQ, HQ, SQ1, SQ2) ● Displays the record mode. If SHQ or HQ is set higher than 2272 x 1704 (factory default setting), the corresponding indication blinks. % Card writing ● Displayed when recorded pictures are being written to a card. ^ Sound record ● Displayed when the sound record mode is set to “ON”. & Number of storable still pictures ● Displays the number of still pictures you can shoot. Seconds remaining ( ● Displays available movie recording time. Card error ● Displayed if there is a problem with the card. T See “Error codes” mode only) 8
