3040ZOOM_(E)/Hyoshi 00.12.14 1:50 PM Page 1 (1,1) OLYMPUS OPTICAL CO., LTD. San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan. (Customer support) Tel. 0426-42-7499 Tokyo http://www.olympus.co.jp OLYMPUS AMERICA INC. Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. 631-844-5000 (Customer support) Tel. 1-888-553-4448 http://www.olympus.com OLYMPUS OPTICAL CO. (EUROPA) GMBH. (Premises/Goods delivery) Wendenstraße 14-18 D-20097 Hamburg, Germany. Tel. 040-237730 (Letters) Postfach 10 49 08, 20034 Hamburg, Germany. http://www.olympus-europa.com Hotline Numbers Tel.01805-67 10 83 Tel.00800-67 10 83 00 for Austria, Belgium, Denmark, France, Netherlands, Norway, for Germany Tel.+49 180 5-67 10 83 for Finland, Italy, Luxemburg, Portugal, Spain, Czech Republic Tel.+49 40-237 73 899 for Greece, Croatia, Hungaria and the Rest of Europe Sweden, Switzerland, United Kingdom Our Hotline is available from 9 a.m. to 6 p.m. (Monday to Friday) (E-Mail) di.support@olympus-europa.com • “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. • La marque “CE” indique que ce produit est conforme avec les exi- gences européennes en matière de sécurité, santé, environnement et protection du consommateur. • Das CE-Zeichen bestätigt, daß dieses Produkt mit den europäischen Bestimmungen für Sicherheit, Gesundheit, Umweltschutz und Personenschutz übereinstimmt. • La marca “CE” indica que este producto está en conformidad con los requerimientos europeos de seguridad, salud, medio ambiente y pro- tección al usuario. Printed in Japan 1AG6P1P0895– –A VT2212- 02 DIGITAL CAMERA/APPAREIL PHOTO NUMÉRIQUE DIGITAL-KAMERA/CAMERA DIGITAL C-3040ZOOM BASIC MANUAL/MANUEL DE BASE KURZANLETIUNG/MANUAL BÁSICO ENGLISH FRANÇAIS DEUTSCH ESPAÑOL I Before using your camera, read this manual carefully to ensure correct use. I We recommend that you take test shots to get accustomed to your camera before taking important photographs. I These instructions are only a basic manual. For more details on the functions described here, refer to the software CD’s reference manual on CD-ROM. I Avant d’utiliser votre appareil photo, veuillez lire attentivement ce mode d’emploi, de manière à obtenir les meilleurs résultats possibles. I Avant d’effectuer des prises de vues importantes, nous vous conseillons par ailleurs de faire quelques essais afin de vous familiariser avec le maniement de l’appareil photo. I Ces instructions ne sont qu'un manuel de base. Pour plus de détails sur les fonctions décrites ici, se référer aux manuel de référence du CD logiciel sur le CD-ROM. I Bitte lesen Sie vor Gebrauch dieser Kamera sorgfältig diese Bedienungsanleitung, um optimale Ergebnisse beim Fotografieren zu erzielen. I Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um sich mit der Bedienung und den Funktionen der Kamera vertraut zu machen. I Die vorliegende Broschüre stellt nur eine einfache Anleitung dar. Falls Sie ausführlichere Angaben zu den hier beschriebenen Funktionen benötigen, steht Ihnen die Kurzanleitung auf der CD-ROM zur Verfügung. I Antes de usar su cámara lea este manual detalladamente para asegurar el uso correcto. I Nosotros le recomendamos que tome fotografías de prueba para familiarizarse con su cámara antes de tomar fotografías importantes. I Estas instrucciones constituyen sólo un manual básico. Para más detalles de las funciones descritas aquí, refiérase a las manual de consultas del software CD en el CD-ROM.

Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference. •IBM is a registered trademark of International Business Machines Corporation. •Microsoft and Windows are registered trademarks of Microsoft Corporation. •Macintosh is a trademark of Apple Computer Inc. •All other company and product names are registered trademarks and/or trademarks of their respective owners. •The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics Industry Development Association (JEIDA). CONTENTS/TABLE DES MATIÉ/INHALT/CONTENIDO PRECAUTIONS (in English only)...........................................3 ENGLISH ......................................................................5 FRANÇAIS ...................................................................41 DEUTSCH ....................................................................77 ESPAÑOL ...................................................................113 IMPORTANT NOTICES Disclaimer of Warranty Olympus makes no representations or warranties, either expressed or implied, by or concern- ing any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequen- tial, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software. Some countries do not allow the exclusion or limi- tation of liability for consequential or incidental damages, so the above limitations may not apply to you. Copyright Notice All rights reserved. No part of these written materials or software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording and the use of any kind of information storage and retrieval system, without prior permission in writing from Olympus. No liability is assumed with respect to the use of the information con- tained in these written materials or software, or for damages resulting from the use of the infor- mation contained in these written materials or of the software. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice. WARNING Unauthorised photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorised photographing, use or other acts that infringe upon the rights of copyright owners. 2

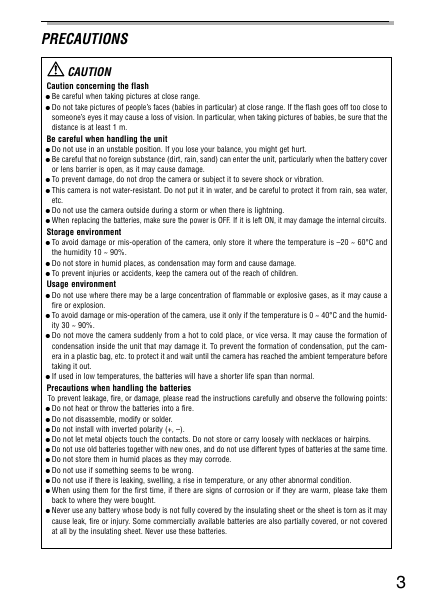

PRECAUTIONS CAUTION Caution concerning the flash G Be careful when taking pictures at close range. G Do not take pictures of people’s faces (babies in particular) at close range. If the flash goes off too close to someone’s eyes it may cause a loss of vision. In particular, when taking pictures of babies, be sure that the distance is at least 1 m. Be careful when handling the unit G Do not use in an unstable position. If you lose your balance, you might get hurt. G Be careful that no foreign substance (dirt, rain, sand) can enter the unit, particularly when the battery cover or lens barrier is open, as it may cause damage. G To prevent damage, do not drop the camera or subject it to severe shock or vibration. G This camera is not water-resistant. Do not put it in water, and be careful to protect it from rain, sea water, etc. G Do not use the camera outside during a storm or when there is lightning. G When replacing the batteries, make sure the power is OFF. If it is left ON, it may damage the internal circuits. Storage environment G To avoid damage or mis-operation of the camera, only store it where the temperature is –20 ~ 60°C and the humidity 10 ~ 90%. G Do not store in humid places, as condensation may form and cause damage. G To prevent injuries or accidents, keep the camera out of the reach of children. Usage environment G Do not use where there may be a large concentration of flammable or explosive gases, as it may cause a fire or explosion. G To avoid damage or mis-operation of the camera, use it only if the temperature is 0 ~ 40°C and the humid- ity 30 ~ 90%. G Do not move the camera suddenly from a hot to cold place, or vice versa. It may cause the formation of condensation inside the unit that may damage it. To prevent the formation of condensation, put the cam- era in a plastic bag, etc. to protect it and wait until the camera has reached the ambient temperature before taking it out. G If used in low temperatures, the batteries will have a shorter life span than normal. Precautions when handling the batteries To prevent leakage, fire, or damage, please read the instructions carefully and observe the following points: G Do not heat or throw the batteries into a fire. G Do not disassemble, modify or solder. G Do not install with inverted polarity (+, –). G Do not let metal objects touch the contacts. Do not store or carry loosely with necklaces or hairpins. G Do not use old batteries together with new ones, and do not use different types of batteries at the same time. G Do not store them in humid places as they may corrode. G Do not use if something seems to be wrong. G Do not use if there is leaking, swelling, a rise in temperature, or any other abnormal condition. G When using them for the first time, if there are signs of corrosion or if they are warm, please take them back to where they were bought. G Never use any battery whose body is not fully covered by the insulating sheet or the sheet is torn as it may cause leak, fire or injury. Some commercially available batteries are also partially covered, or not covered at all by the insulating sheet. Never use these batteries. 3

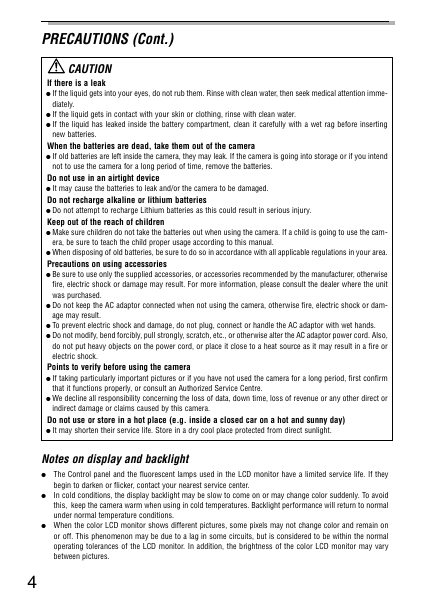

PRECAUTIONS (Cont.) CAUTION If there is a leak G If the liquid gets into your eyes, do not rub them. Rinse with clean water, then seek medical attention imme- diately. G If the liquid gets in contact with your skin or clothing, rinse with clean water. G If the liquid has leaked inside the battery compartment, clean it carefully with a wet rag before inserting new batteries. When the batteries are dead, take them out of the camera G If old batteries are left inside the camera, they may leak. If the camera is going into storage or if you intend not to use the camera for a long period of time, remove the batteries. Do not use in an airtight device G It may cause the batteries to leak and/or the camera to be damaged. Do not recharge alkaline or lithium batteries G Do not attempt to recharge Lithium batteries as this could result in serious injury. Keep out of the reach of children G Make sure children do not take the batteries out when using the camera. If a child is going to use the cam- era, be sure to teach the child proper usage according to this manual. G When disposing of old batteries, be sure to do so in accordance with all applicable regulations in your area. Precautions on using accessories G Be sure to use only the supplied accessories, or accessories recommended by the manufacturer, otherwise fire, electric shock or damage may result. For more information, please consult the dealer where the unit was purchased. G Do not keep the AC adaptor connected when not using the camera, otherwise fire, electric shock or dam- age may result. G To prevent electric shock and damage, do not plug, connect or handle the AC adaptor with wet hands. G Do not modify, bend forcibly, pull strongly, scratch, etc., or otherwise alter the AC adaptor power cord. Also, do not put heavy objects on the power cord, or place it close to a heat source as it may result in a fire or electric shock. Points to verify before using the camera G If taking particularly important pictures or if you have not used the camera for a long period, first confirm that it functions properly, or consult an Authorized Service Centre. G We decline all responsibility concerning the loss of data, down time, loss of revenue or any other direct or indirect damage or claims caused by this camera. Do not use or store in a hot place (e.g. inside a closed car on a hot and sunny day) G It may shorten their service life. Store in a dry cool place protected from direct sunlight. Notes on display and backlight G The Control panel and the fluorescent lamps used in the LCD monitor have a limited service life. If they begin to darken or flicker, contact your nearest service center. G In cold conditions, the display backlight may be slow to come on or may change color suddenly. To avoid this, keep the camera warm when using in cold temperatures. Backlight performance will return to normal under normal temperature conditions. G When the color LCD monitor shows different pictures, some pixels may not change color and remain on or off. This phenomenon may be due to a lag in some circuits, but is considered to be within the normal operating tolerances of the LCD monitor. In addition, the brightness of the color LCD monitor may vary between pictures. 4

CONTENTS GETTING STARTED BASIC FUNCTIONS RECORDING FUNCTIONS PLAYBACK FUNCTIONS PRINTING PICTURES DOWNLOADING IMAGES TO YOUR COMPUTER ERROR CODES SPECIFICATIONS 6 16 22 24 32 33 35 37 5

GETTING STARTED PACKAGE CONTENTS Camera Lens cap Strap Remote control A/V cable CR-V3 Lithium Battery Pack (2) USB cable Remote Control Instructions RS-232C PC serial cable Instructions (Basic Manual/Quick start Guide) Warranty Software CDs (including Windows 98 USB driver Installer Software/Reference Manual) Lens cap cord SmartMedia card (1) Static-free SmartMedia case SmartMedia Instruction SmartMedia write- protect stickers (4) SmartMedia labels (2) 6

ATTACHING THE STRAP Thread the strap through loop and fastener as indicated by the arrows in the fig- ure. Then check that the strap does not loosen or come undone when pulled. NAME OF PARTS I Camera Control panel Zoom lever Flash (built-in) Fastener Strap eyelet Self-timer/Remote control lamp Remote control receiver Diopter adjust- ment dial Strap eyelet Connector cover Lens Microphone 5-pin external flash socket DC IN jack A/V output jack USB connector Serial connector (RS-232C) Connector cover Card cover 7

Mode dial Arrow pad Shutter button I Camera (Flash mode button) (Erase button) (Spot/Macro button) (Print button) Viewfinder Monitor Battery compartment cover Bottom view (OK button) AEL (AE lock button) (Protect button) (Monitor button) Card access lamp (Menu button) Orange lamp Green lamp Battery compartment lock Tripod socket I Viewfinder AF target mark 8
