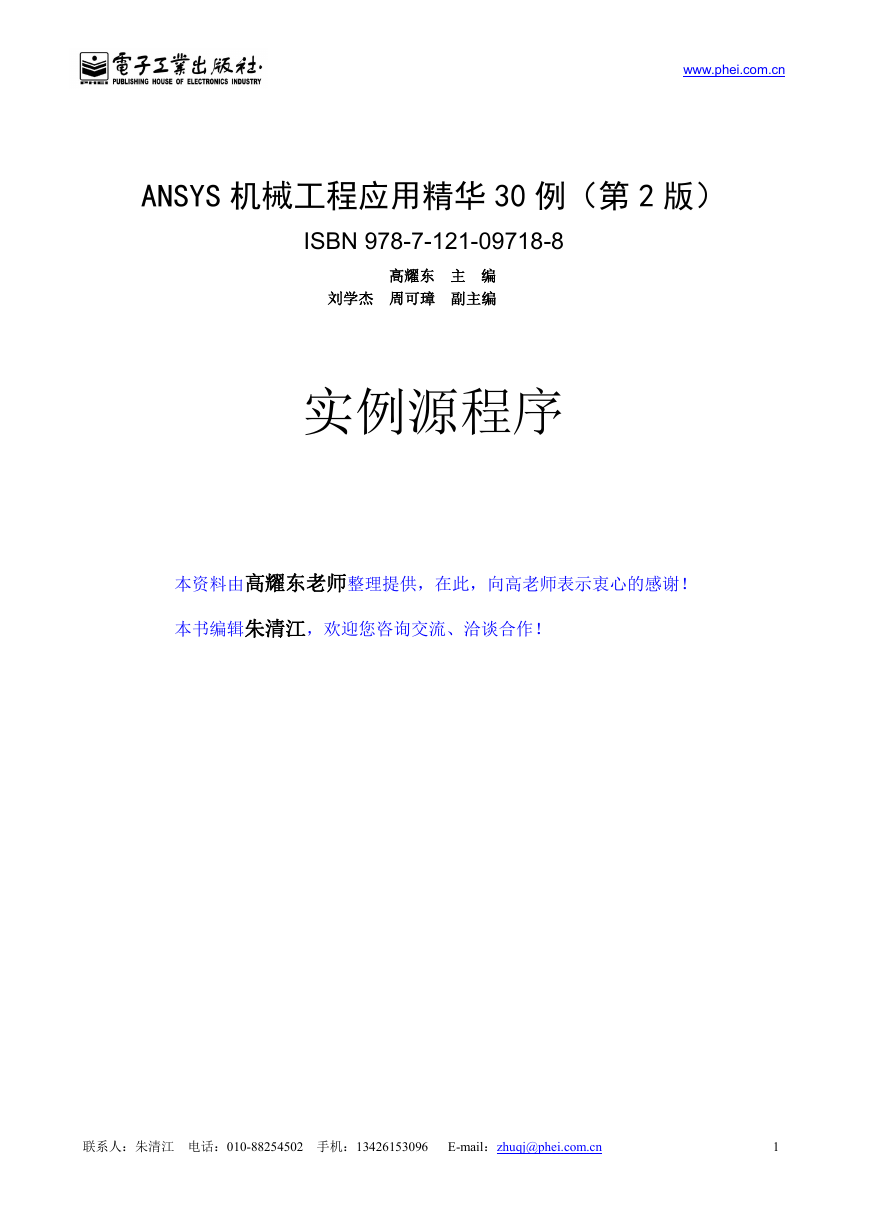

www.phei.com.cn ANSYS 机械工程应用精华 30 例（第 2 版） ISBN 978-7-121-09718-8 高耀东主编刘学杰周可璋副主编实例源程序本资料由高耀东老师整理提供，在此，向高老师表示衷心的感谢！本书编辑朱清江，欢迎您咨询交流、洽谈合作！联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 1

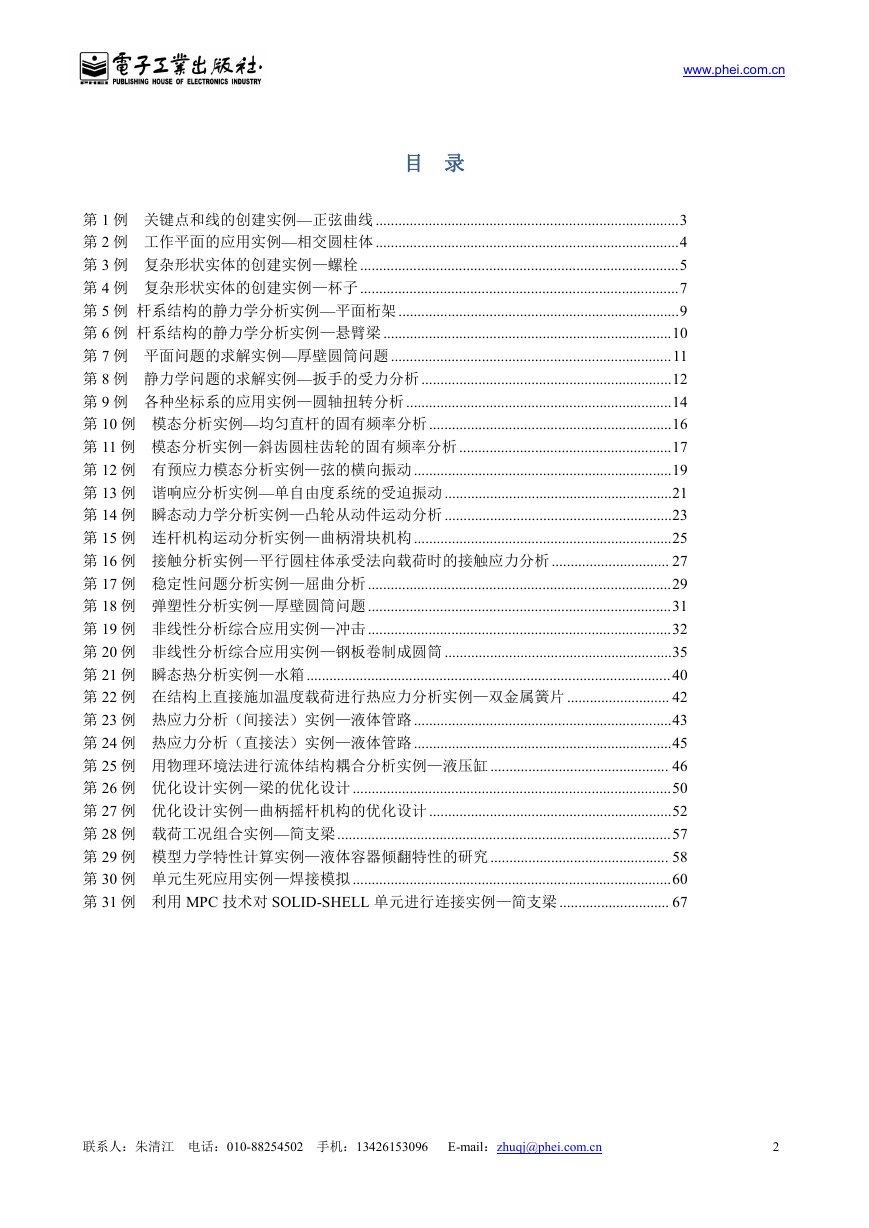

www.phei.com.cn 目录第 1 例关键点和线的创建实例—正弦曲线 ................................................................................3 第 2 例工作平面的应用实例—相交圆柱体 ................................................................................4 第 3 例复杂形状实体的创建实例—螺栓 ....................................................................................5 第 4 例复杂形状实体的创建实例—杯子 ....................................................................................7 第 5 例杆系结构的静力学分析实例—平面桁架 ..........................................................................9 第 6 例杆系结构的静力学分析实例—悬臂梁 ............................................................................10 第 7 例平面问题的求解实例—厚壁圆筒问题 ..........................................................................11 第 8 例静力学问题的求解实例—扳手的受力分析..................................................................12 第 9 例各种坐标系的应用实例—圆轴扭转分析 ......................................................................14 第 10 例模态分析实例—均匀直杆的固有频率分析................................................................16 第 11 例模态分析实例—斜齿圆柱齿轮的固有频率分析 ........................................................17 第 12 例有预应力模态分析实例—弦的横向振动 ....................................................................19 第 13 例谐响应分析实例—单自由度系统的受迫振动 ............................................................21 第 14 例瞬态动力学分析实例—凸轮从动件运动分析 ............................................................23 第 15 例连杆机构运动分析实例—曲柄滑块机构 ....................................................................25 第 16 例接触分析实例—平行圆柱体承受法向载荷时的接触应力分析............................... 27 第 17 例稳定性问题分析实例—屈曲分析 ................................................................................29 第 18 例弹塑性分析实例—厚壁圆筒问题 ................................................................................31 第 19 例非线性分析综合应用实例—冲击 ................................................................................32 第 20 例非线性分析综合应用实例—钢板卷制成圆筒 ............................................................35 第 21 例瞬态热分析实例—水箱 ................................................................................................40 第 22 例在结构上直接施加温度载荷进行热应力分析实例—双金属簧片 ........................... 42 第 23 例热应力分析（间接法）实例—液体管路 ....................................................................43 第 24 例热应力分析（直接法）实例—液体管路 ....................................................................45 第 25 例用物理环境法进行流体结构耦合分析实例—液压缸............................................... 46 第 26 例优化设计实例—梁的优化设计 ....................................................................................50 第 27 例优化设计实例—曲柄摇杆机构的优化设计................................................................52 第 28 例载荷工况组合实例—简支梁........................................................................................57 第 29 例模型力学特性计算实例—液体容器倾翻特性的研究............................................... 58 第 30 例单元生死应用实例—焊接模拟 ....................................................................................60 第 31 例利用 MPC 技术对 SOLID-SHELL 单元进行连接实例—简支梁 ............................. 67 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 2

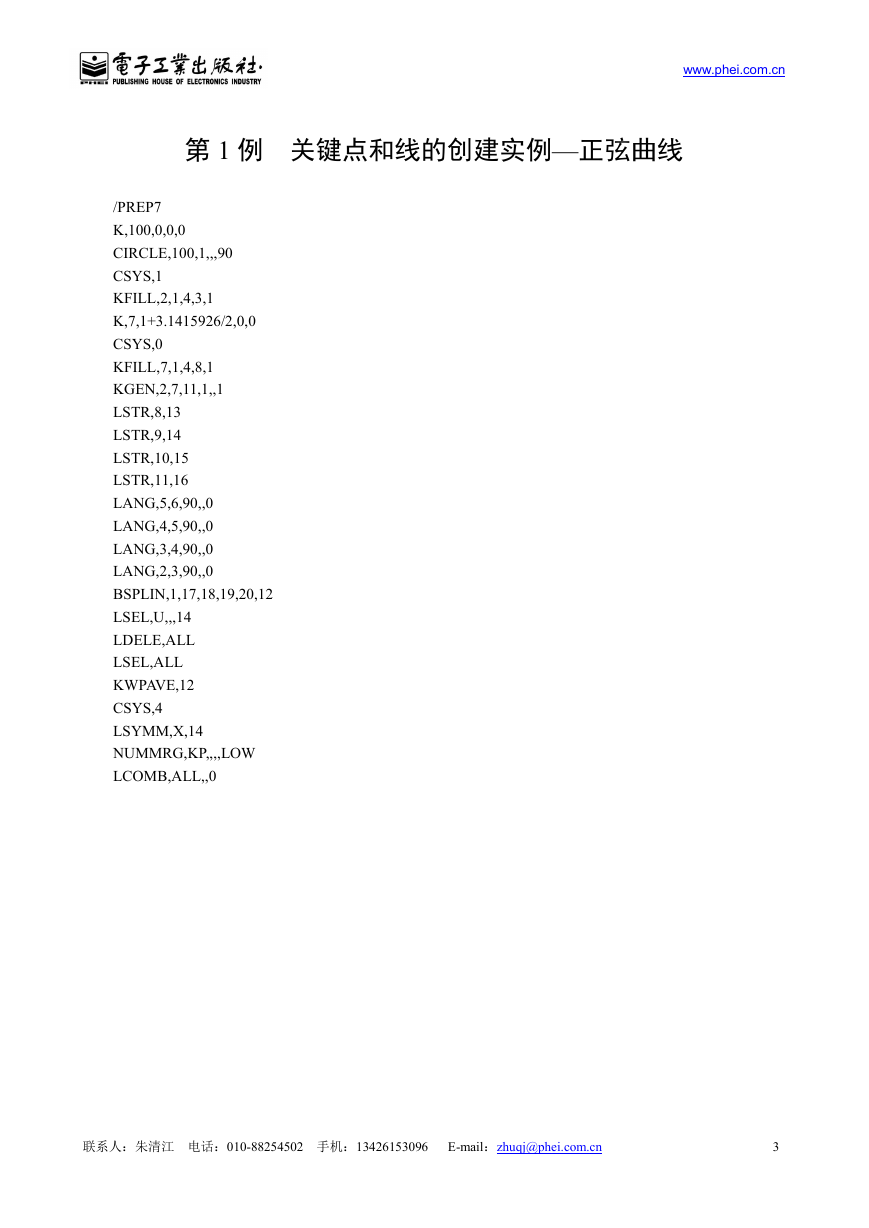

第 1 例关键点和线的创建实例—正弦曲线 www.phei.com.cn /PREP7 K,100,0,0,0 CIRCLE,100,1,,,90 CSYS,1 KFILL,2,1,4,3,1 K,7,1+3.1415926/2,0,0 CSYS,0 KFILL,7,1,4,8,1 KGEN,2,7,11,1,,1 LSTR,8,13 LSTR,9,14 LSTR,10,15 LSTR,11,16 LANG,5,6,90,,0 LANG,4,5,90,,0 LANG,3,4,90,,0 LANG,2,3,90,,0 BSPLIN,1,17,18,19,20,12 LSEL,U,,,14 LDELE,ALL LSEL,ALL KWPAVE,12 CSYS,4 LSYMM,X,14 NUMMRG,KP,,,,LOW LCOMB,ALL,,0 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 3

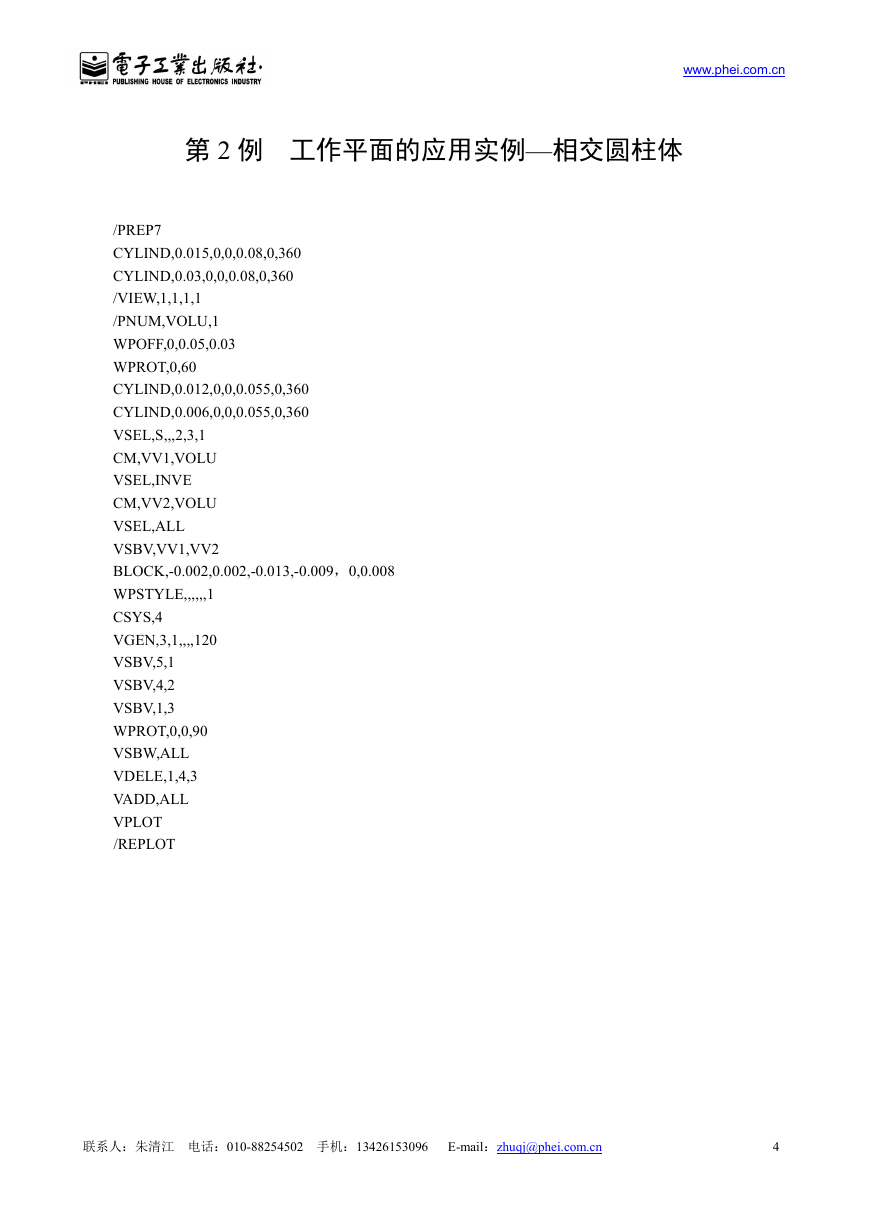

第 2 例工作平面的应用实例—相交圆柱体 www.phei.com.cn /PREP7 CYLIND,0.015,0,0,0.08,0,360 CYLIND,0.03,0,0,0.08,0,360 /VIEW,1,1,1,1 /PNUM,VOLU,1 WPOFF,0,0.05,0.03 WPROT,0,60 CYLIND,0.012,0,0,0.055,0,360 CYLIND,0.006,0,0,0.055,0,360 VSEL,S,,,2,3,1 CM,VV1,VOLU VSEL,INVE CM,VV2,VOLU VSEL,ALL VSBV,VV1,VV2 BLOCK,-0.002,0.002,-0.013,-0.009，0,0.008 WPSTYLE,,,,,,1 CSYS,4 VGEN,3,1,,,,120 VSBV,5,1 VSBV,4,2 VSBV,1,3 WPROT,0,0,90 VSBW,ALL VDELE,1,4,3 VADD,ALL VPLOT /REPLOT 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 4

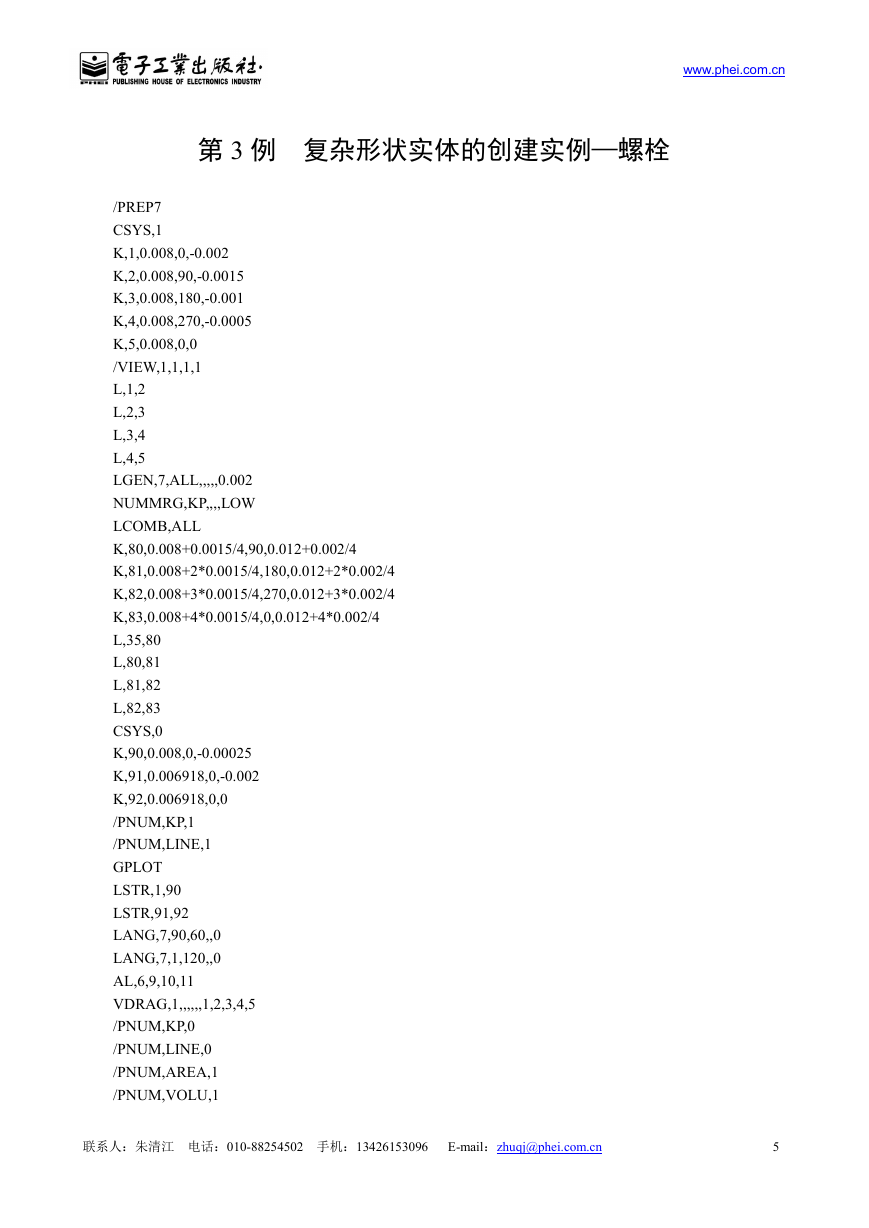

第 3 例复杂形状实体的创建实例—螺栓 www.phei.com.cn /PREP7 CSYS,1 K,1,0.008,0,-0.002 K,2,0.008,90,-0.0015 K,3,0.008,180,-0.001 K,4,0.008,270,-0.0005 K,5,0.008,0,0 /VIEW,1,1,1,1 L,1,2 L,2,3 L,3,4 L,4,5 LGEN,7,ALL,,,,,0.002 NUMMRG,KP,,,,LOW LCOMB,ALL K,80,0.008+0.0015/4,90,0.012+0.002/4 K,81,0.008+2*0.0015/4,180,0.012+2*0.002/4 K,82,0.008+3*0.0015/4,270,0.012+3*0.002/4 K,83,0.008+4*0.0015/4,0,0.012+4*0.002/4 L,35,80 L,80,81 L,81,82 L,82,83 CSYS,0 K,90,0.008,0,-0.00025 K,91,0.006918,0,-0.002 K,92,0.006918,0,0 /PNUM,KP,1 /PNUM,LINE,1 GPLOT LSTR,1,90 LSTR,91,92 LANG,7,90,60,,0 LANG,7,1,120,,0 AL,6,9,10,11 VDRAG,1,,,,,,1,2,3,4,5 /PNUM,KP,0 /PNUM,LINE,0 /PNUM,AREA,1 /PNUM,VOLU,1 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 5

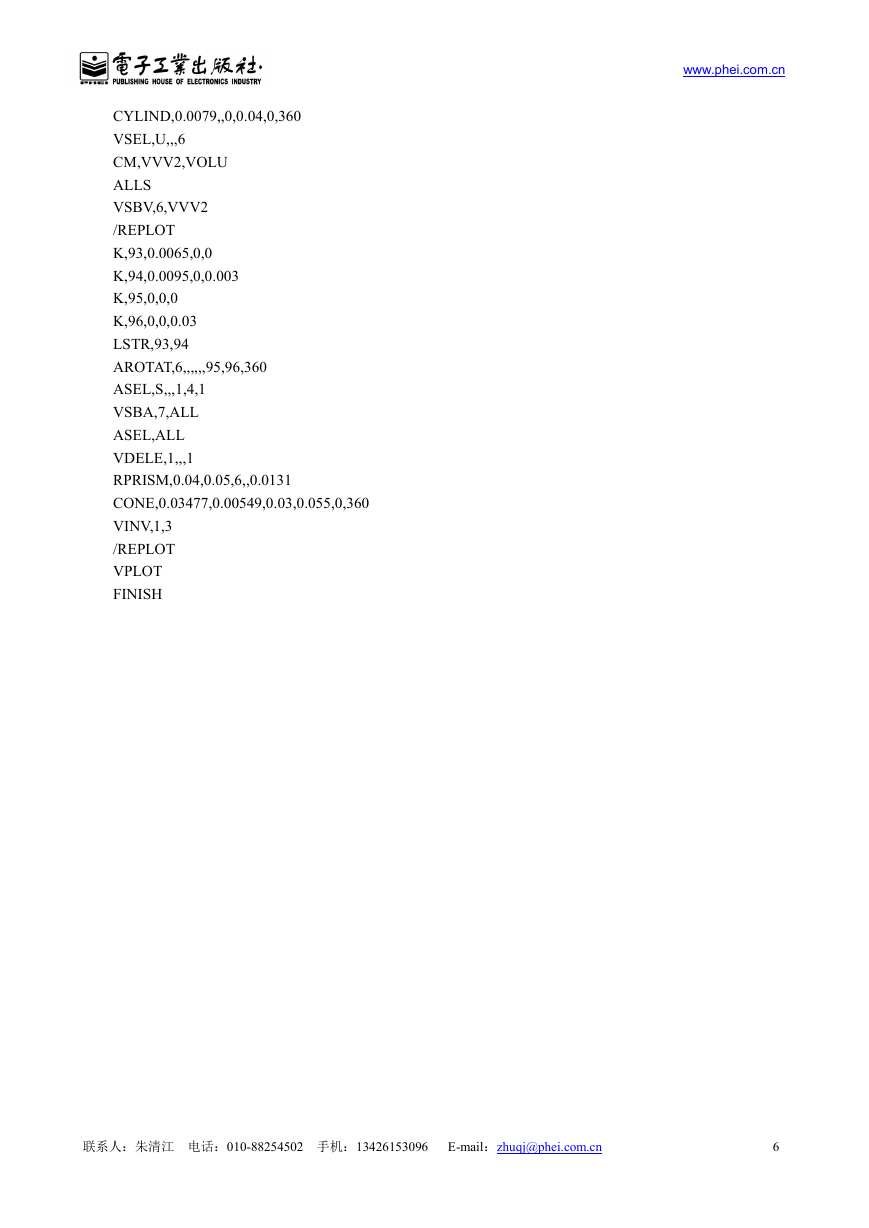

www.phei.com.cn CYLIND,0.0079,,0,0.04,0,360 VSEL,U,,,6 CM,VVV2,VOLU ALLS VSBV,6,VVV2 /REPLOT K,93,0.0065,0,0 K,94,0.0095,0,0.003 K,95,0,0,0 K,96,0,0,0.03 LSTR,93,94 AROTAT,6,,,,,,95,96,360 ASEL,S,,,1,4,1 VSBA,7,ALL ASEL,ALL VDELE,1,,,1 RPRISM,0.04,0.05,6,,0.0131 CONE,0.03477,0.00549,0.03,0.055,0,360 VINV,1,3 /REPLOT VPLOT FINISH 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 6

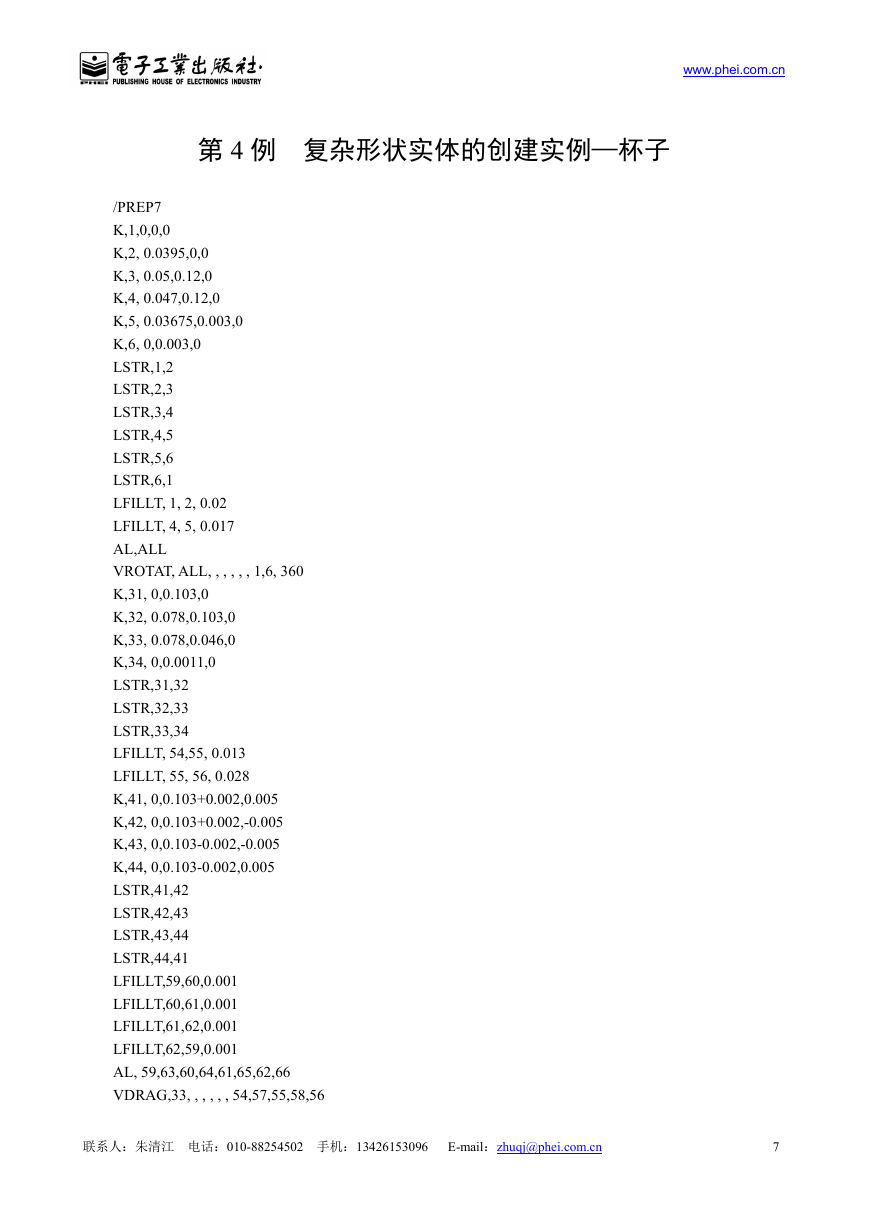

第 4 例复杂形状实体的创建实例—杯子 www.phei.com.cn /PREP7 K,1,0,0,0 K,2, 0.0395,0,0 K,3, 0.05,0.12,0 K,4, 0.047,0.12,0 K,5, 0.03675,0.003,0 K,6, 0,0.003,0 LSTR,1,2 LSTR,2,3 LSTR,3,4 LSTR,4,5 LSTR,5,6 LSTR,6,1 LFILLT, 1, 2, 0.02 LFILLT, 4, 5, 0.017 AL,ALL VROTAT, ALL, , , , , , 1,6, 360 K,31, 0,0.103,0 K,32, 0.078,0.103,0 K,33, 0.078,0.046,0 K,34, 0,0.0011,0 LSTR,31,32 LSTR,32,33 LSTR,33,34 LFILLT, 54,55, 0.013 LFILLT, 55, 56, 0.028 K,41, 0,0.103+0.002,0.005 K,42, 0,0.103+0.002,-0.005 K,43, 0,0.103-0.002,-0.005 K,44, 0,0.103-0.002,0.005 LSTR,41,42 LSTR,42,43 LSTR,43,44 LSTR,44,41 LFILLT,59,60,0.001 LFILLT,60,61,0.001 LFILLT,61,62,0.001 LFILLT,62,59,0.001 AL, 59,63,60,64,61,65,62,66 VDRAG,33, , , , , , 54,57,55,58,56 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 7

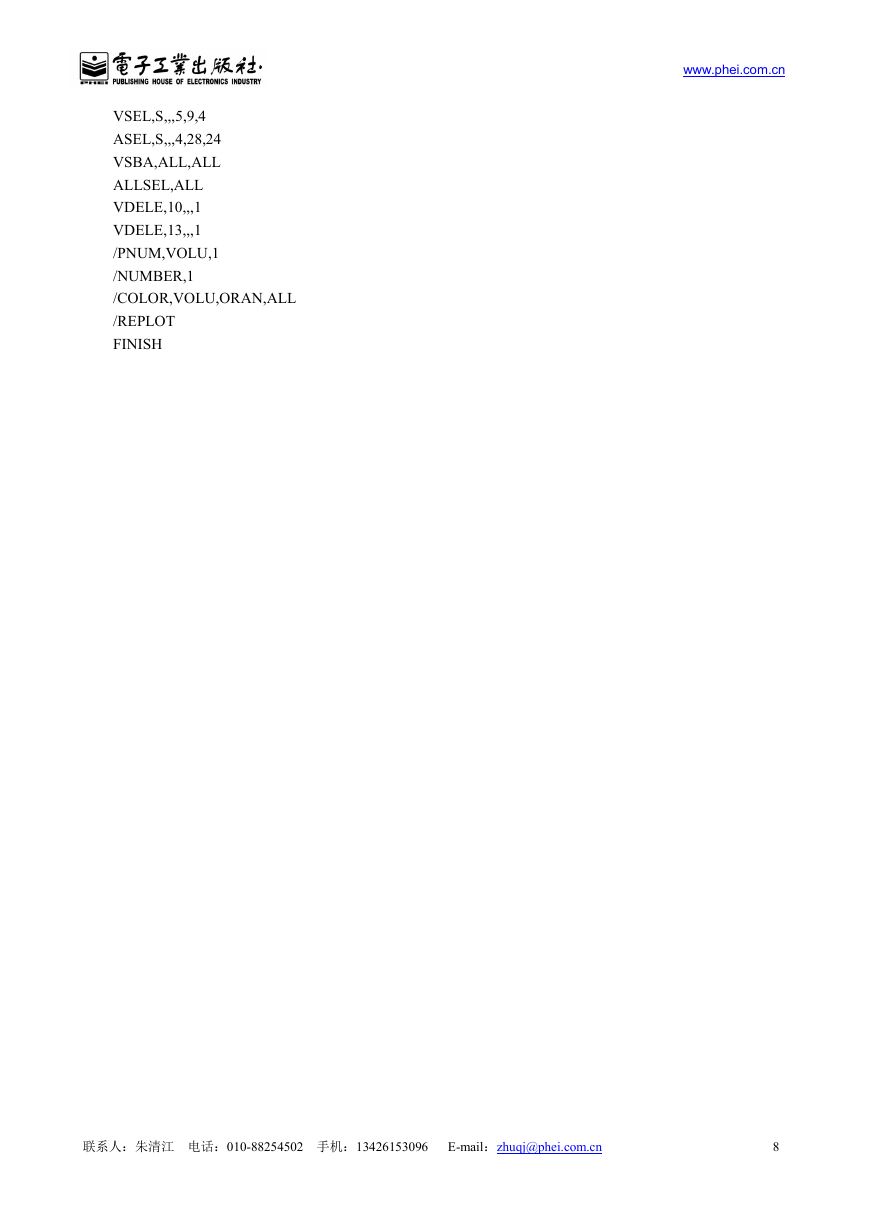

www.phei.com.cn VSEL,S,,,5,9,4 ASEL,S,,,4,28,24 VSBA,ALL,ALL ALLSEL,ALL VDELE,10,,,1 VDELE,13,,,1 /PNUM,VOLU,1 /NUMBER,1 /COLOR,VOLU,ORAN,ALL /REPLOT FINISH 联系人：朱清江电话：010-88254502 手机：13426153096 E-mail：zhuqj@phei.com.cn 8
