GUIDEBOOK E N G L S H I EN HD HARD DISK CAMCORDER GZ-HD5 GZ-HD6 U U Dear Customers Thank you for purchasing this hard disk camera. Before use, please read the safety information and precautions contained on pages 4 and 5 to ensure safe use of this product. For Future Reference: Enter the Model No. (located on the bottom of the camera) and Serial No. (located on the battery pack mount of the camera) below. Model No. Serial No. The camera illustrations appearing in this instruction manual are of the GZ-HD6.

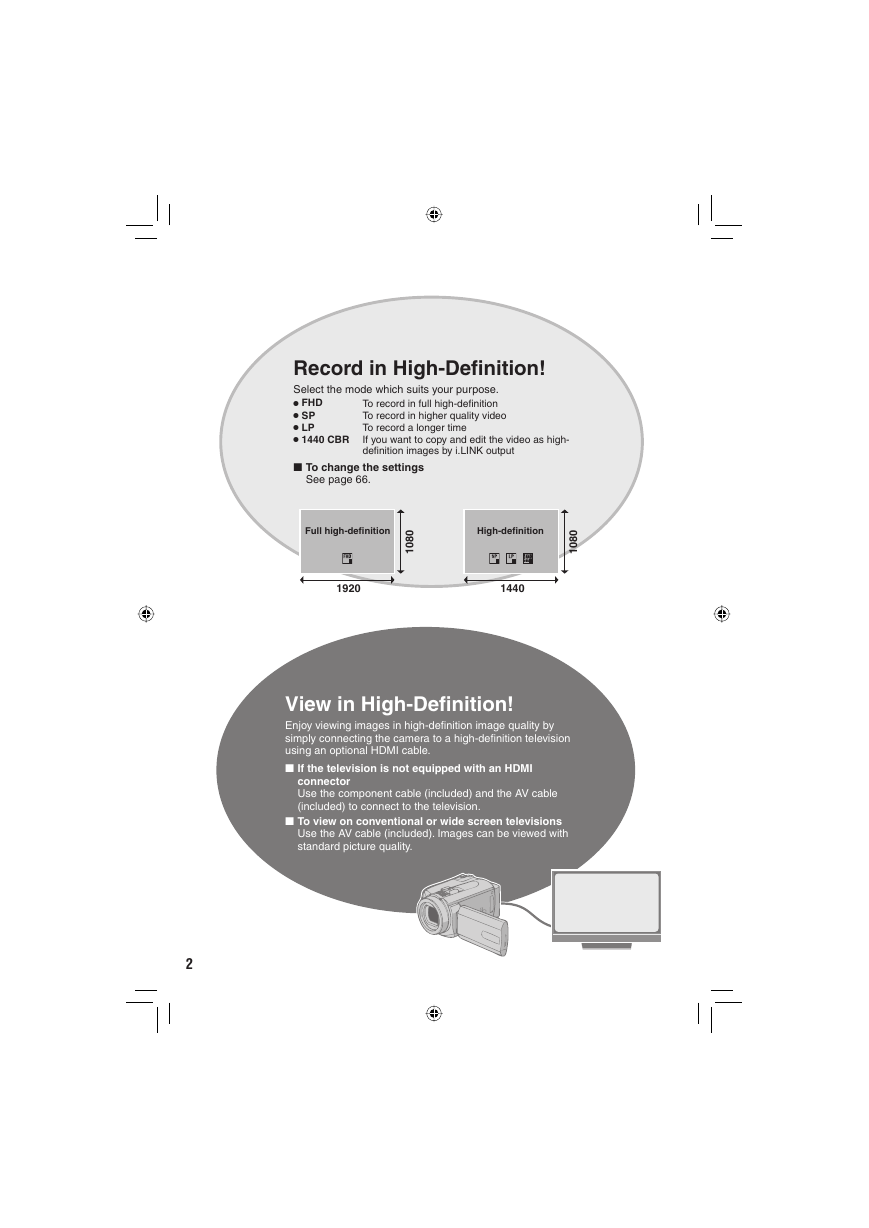

Record in High-Deﬁ nition! Select the mode which suits your purpose. • FHD To record in full high-deﬁ nition • SP To record in higher quality video • LP To record a longer time • 1440 CBR If you want to copy and edit the video as high- deﬁ nition images by i.LINK output 8 To change the settings See page 66. Full high-deﬁ nition 0 8 0 1 High-deﬁ nition 0 8 0 1 1920 1440 View in High-Deﬁ nition! Enjoy viewing images in high-deﬁ nition image quality by simply connecting the camera to a high-deﬁ nition television using an optional HDMI cable. 8 If the television is not equipped with an HDMI connector Use the component cable (included) and the AV cable (included) to connect to the television. 8 To view on conventional or wide screen televisions Use the AV cable (included). Images can be viewed with standard picture quality. 2

Back Up High-Deﬁ nition Images on DVD Discs! Video can easily be backed up on a DVD disc by connecting to a separate DVD burner (CU-VD40). • This DVD disc can then be played in the camera or a PC, but not in a DVD player. • If a CU-VD40 is used, the DVD burner can be connected directly to a television so the disc can be played without using the camera. Edit High-Deﬁ nition Images on a PC! Perform advanced editing on high-deﬁ nition images by loading to a PC. E N G L S H I 3

Safety Precautions CAUTION DO NOT OPEN RISK OF ELECTRIC SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. bottom and/or the back of the main unit. NOTES: • The rating plate and safety caution are on the • The serial number plate is on the battery pack • The rating information and safety caution of the AC adapter are on its upper and lower sides. mount. Caution on Replaceable lithium battery The battery used in this device may present a ﬁ re or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of ﬁ re if the battery is incorrectly replaced. • Dispose of used battery promptly. • Keep away from children. • Do not disassemble and do not dispose of in ﬁ re. For USA-California Only This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate 4 When the equipment is installed in a cabinet or on a shelf, make sure that it has sufﬁ cient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked ﬂ ame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers ﬁ lled with water or liquids (such as cosmetics or medicines, ﬂ ower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, ﬁ re or electric shock may be caused.) Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of ﬁ re or electric shock. CAUTION! The following notes concern possible physical damage to the camera and to the user. Carrying or holding the camera by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camera. CAUTION! Connecting cables (Audio/Video, S-Video, etc.) to the camera and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camera to fall, resulting in damage. CAUTION: The mains plug shall remain readily operable. WARNING: Batteries, including lithium batteries installed in the camera and the remote control, should not be exposed to excessive heat such as direct sunshine, ﬁ re or the like.

Remember that this camera is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.) E N G L S H I Corporation. Trademarks • i.LINK is a trademark of Sony • x.v.ColorTM is a trademark of • HDMI is a trademark of HDMI • Windows® is either registered Sony Corporation. Licensing, LLC. trademark or trademark of Microsoft Corporation in the United States and/or other countries. • Macintosh is a registered trademark of Apple • Other product and company names included Inc. in this instruction manual are trademarks and/or registered trademarks of their respective holders. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat. 9. Only use attachments/accessories speciﬁ ed by the manufacturer. 10. Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If this symbol is shown, it is only valid in the European Union. 5

JVC Software License Agreement 4 LIMITED WARRANTY JVC warrants that any media in which the Program is embodied are free from any defects in materials and workmanship for a period of thirty (30) days from the date of Your purchasing any our products accompanying the Program. JVC’s entire liability and your exclusive remedy in connection with the Program shall be replacement of such defective media. EXCEPT FOR THE EXPRESS WARRANTIES STATED HEREIN AND TO THE EXTENT PERMITTED BY APPLICABLE LAW, JVC AND ITS LICENSORS DISCLAIM ANY OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IN REGARD TO THE PROGRAM AND THE ACCOMPANYING PRINTED MATERIALS. SHOULD THERE BE ANY PROBLEM ARISING FROM OR CAUSED BY THE PROGRAM, YOU SHOULD SETTLE ALL SUCH PROBLEM AT YOUR OWN COST AND EXPENSE. 5 LIMITED LIABILITY TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL JVC AND ITS LICENSORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, REGARDLESS OF THE FORM OF ACTION WHETHER IN CONTRACT, TORT OR OTHERWISE ARISING OUT OF OR IN CONNECTION WITH THE USE OF OR INABILITY TO USE THE PROGRAM, EVEN IF JVC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU WILL INDEMNIFY AND HOLD HARMLESS JVC FROM ANY LOSS, LIABILITY OR COST ARISING OUT OF OR IN ANY WAY CONNECTED TO CLAIMS FROM ANY THIRD PARTY RELATING TO THE USE OF THE PROGRAM. JVC SOFTWARE LICENSE AGREEMENT IMPORTANT TO CUSTOMERS: PLEASE MAKE SURE TO READ THIS CAREFULLY BEFORE INSTALLING OR USING THE SOFTWARE PROGRAM NAMED “DIGITAL PHOTO NAVIGATOR” (“Program”) ON YOUR PC. The right to use the Program is granted by Victor Company of Japan, Limited (“JVC”) to You only on the condition that You agree to the following. Should You not agree to the terms hereof, You may not install or use the Program. HOWEVER, INSTALLING OR USING THE PROGRAM INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. 1 COPYRIGHT; OWNERSHIP You acknowledge that all copyrights and other intellectual property rights in the Program are owned by JVC and its licensor, and remain vested in JVC and such licensor. The Program is protected under the copyright law of Japan and other countries, and related Conventions. 2 GRANT OF LICENSE (1) Subject to the conditions of this Agreement, JVC grants to You a non-exclusive right to use the Program. You may install and use the Program on a HDD or other storage devices incorporated in Your PC. (2) You may make one (1) copy of the Program solely for your personal backup or archival purposes. 3 RESTRICTION ON THE PROGRAM (1) You may not reverse engineer, decompile, disassemble, revise or modify the Program, except to the extent that expressly permitted by applicable law. (2) You may not copy or use the Program, in whole or in part, other than as expressly speciﬁ ed in this Agreement. (3) You have no right to grant a license to use the Program, and may not distribute, rent, lease or transfer the Program to any third party or otherwise let them use the Program. 6

NOTE If You acquired the Program in Germany, the provisions of Sections 4 (Limited Warranty) and 5 (Limited Liability) provided above will be replaced with those of the German version of this Agreement. E N G L S H I CAUTION: • Operate this equipment according to the operating procedures described in this manual. • Use only the provided CD-ROM. Never use any other CD-ROM to run this software. • Do not attempt to modify this software. • Changes or modiﬁ cations not approved by JVC could void user’s authority to operate the equipment. How to handle a CD-ROM • Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the center hole. • Do not use conventional disc cleaners or cleaning spray. • Do not bend the CD-ROM or touch its mirror surface. • Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight. You can ﬁ nd the latest information (in English) on the provided software program at our world wide web server at http://www.jvc- victor.co.jp/english/global-e.html 6 TERM This Agreement will become effective on the date when You install and use the Program on Your machine, and continue to be in effect until the termination under the following provision. Should You breach any provision of this Agreement, JVC may terminate this Agreement without giving any notice to You. In this event, JVC may claim against You for any damages caused by Your breach. Should this Agreement be terminated, You must immediately destroy the Program stored in Your machine (including the erasing from any memory in Your PC), and no longer own such Program. 7 EXPORT CONTROL You agree that You will not ship, transfer or export the Program or underlying information and technology to any countries to which Japan and other relevant countries have initiated an embargo on such goods. 8 U.S. GOVERNMENT USER If You are an agency of the United States of America (the “Government”), You acknowledge JVC’s representation that the Program is a “Commercial Item” as deﬁ ned in Federal Acquisition Regulation (FAR) part 2.101 (g) consisting unpublished “Commercial Computer Software” as those items are used at FAR part 12.212 and is only licensed to You with the same use rights JVC grants all commercial end users pursuant to the terms of this Agreement. 9 GENERAL (1) No modiﬁ cation, change, addition, deletion or other alternation of or to this Agreement will be valid unless reduced to writing and signed by an authorized representative of JVC. (2) If any part of this Agreement is held invalid by or in conﬂ ict with any law having jurisdiction over this Agreement, the remaining provisions will remain in full force and effect. (3) This Agreement shall be governed by and interpreted under the laws of Japan. The Tokyo District Court has jurisdiction over all disputes which may arise with respect to the execution, interpretation and performance of this Agreement. Victor Company of Japan, Limited 7

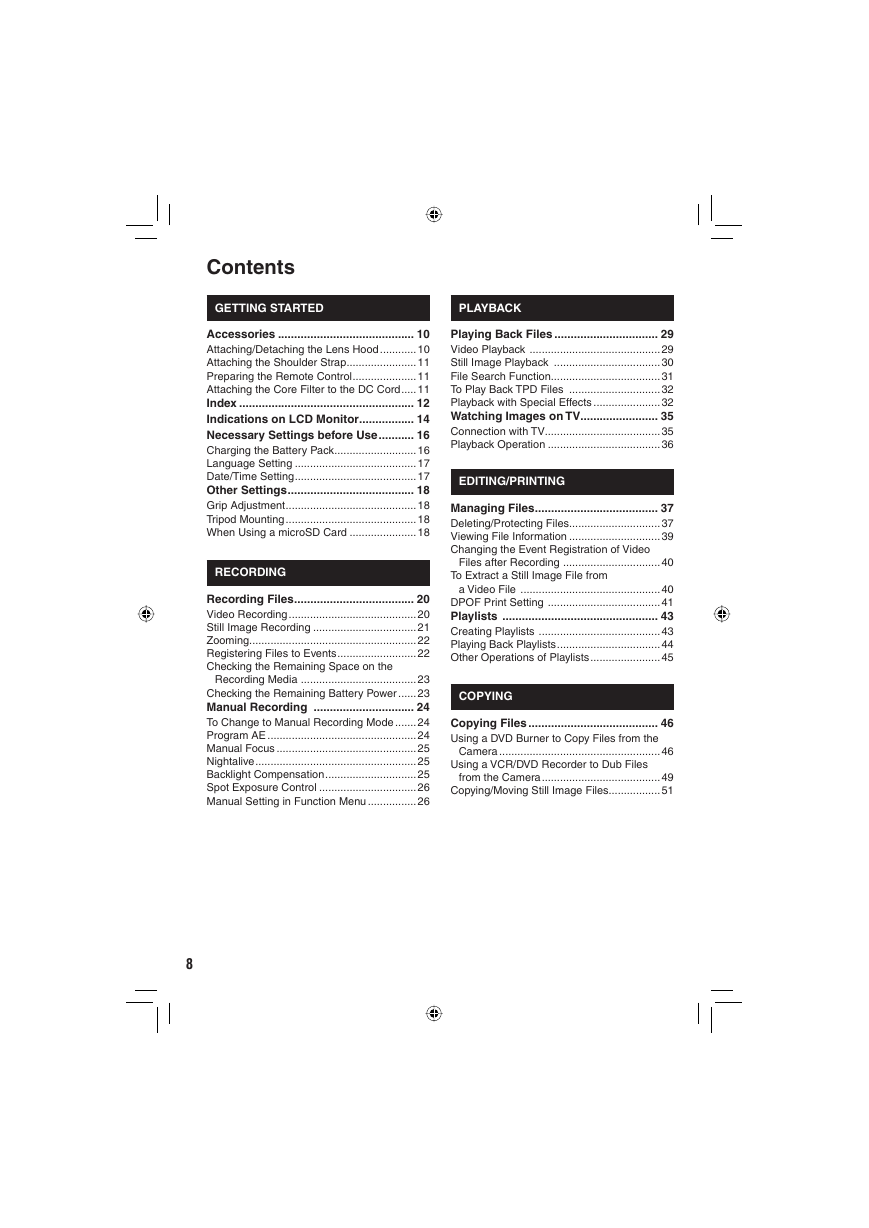

Contents GETTING STARTED PLAYBACK Accessories .......................................... 10 Attaching/Detaching the Lens Hood ............10 Attaching the Shoulder Strap .......................11 Preparing the Remote Control .....................11 Attaching the Core Filter to the DC Cord .....11 Index ...................................................... 12 Indications on LCD Monitor ................. 14 Necessary Settings before Use ........... 16 Charging the Battery Pack ...........................16 Language Setting ........................................17 Date/Time Setting ........................................17 Other Settings ....................................... 18 Grip Adjustment ...........................................18 Tripod Mounting ...........................................18 When Using a microSD Card ......................18 RECORDING Recording Files ..................................... 20 Video Recording ..........................................20 Still Image Recording ..................................21 Zooming .......................................................22 Registering Files to Events ..........................22 Checking the Remaining Space on the Recording Media ......................................23 Checking the Remaining Battery Power ......23 Manual Recording ............................... 24 To Change to Manual Recording Mode .......24 Program AE .................................................24 Manual Focus ..............................................25 Nightalive .....................................................25 Backlight Compensation ..............................25 Spot Exposure Control ................................26 Manual Setting in Function Menu ................26 Playing Back Files ................................ 29 Video Playback ...........................................29 Still Image Playback ...................................30 File Search Function ....................................31 To Play Back TPD Files ..............................32 Playback with Special Effects ......................32 Watching Images on TV........................ 35 Connection with TV......................................35 Playback Operation .....................................36 EDITING/PRINTING Managing Files ...................................... 37 Deleting/Protecting Files .............................. 37 Viewing File Information ..............................39 Changing the Event Registration of Video Files after Recording ................................40 To Extract a Still Image File from a Video File ..............................................40 DPOF Print Setting .....................................41 Playlists ................................................ 43 Creating Playlists ........................................43 Playing Back Playlists ..................................44 Other Operations of Playlists .......................45 COPYING Copying Files ........................................ 46 Using a DVD Burner to Copy Files from the Camera .....................................................46 Using a VCR/DVD Recorder to Dub Files from the Camera .......................................49 Copying/Moving Still Image Files.................51 8
