User’s Manual Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. ENGLISH

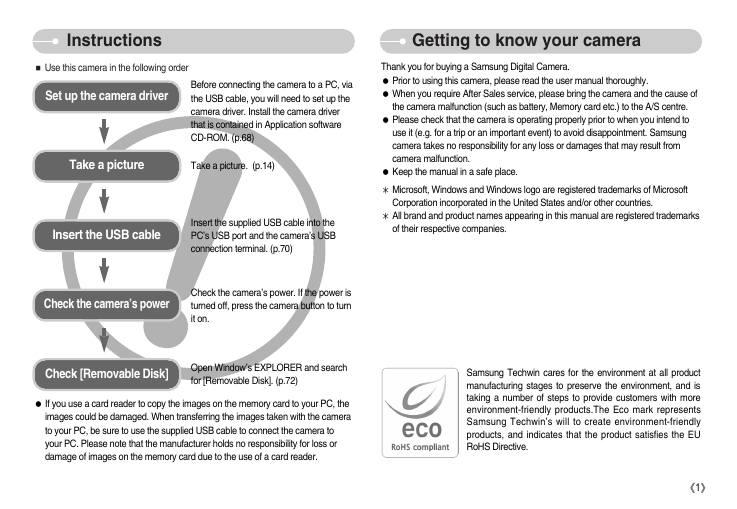

Instructions Use this camera in the following order Set up the camera driver Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in Application software CD-ROM. (p.68) Take a picture Take a picture. (p.14) Insert the USB cable Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.70) Check the camera’s power Check the camera’s power. If the power is turned off, press the camera button to turn it on. Check [Removable Disk] Open Window’s EXPLORER and search for [Removable Disk]. (p.72) If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader. Getting to know your camera Thank you for buying a Samsung Digital Camera. Prior to using this camera, please read the user manual thoroughly. When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre. Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. Keep the manual in a safe place. Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. All brand and product names appearing in this manual are registered trademarks of their respective companies. Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin’s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive. 1

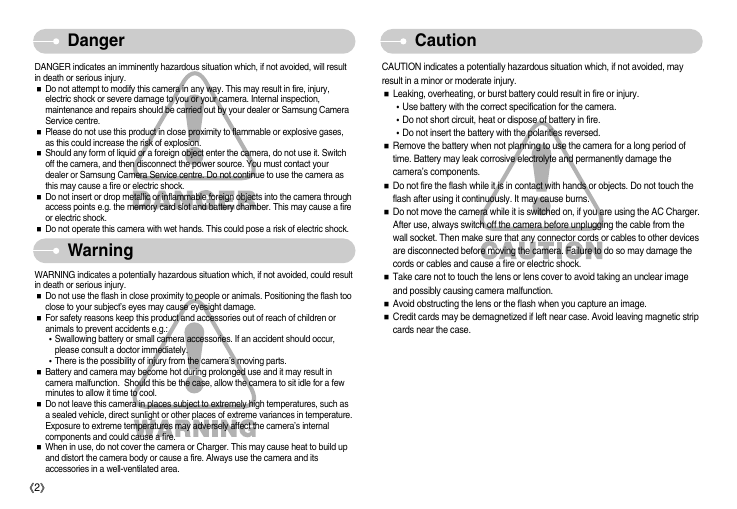

Danger Caution CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Leaking, overheating, or burst battery could result in fire or injury. Use battery with the correct specification for the camera. Do not short circuit, heat or dispose of battery in fire. Do not insert the battery with the polarities reversed. Remove the battery when not planning to use the camera for a long period of time. Battery may leak corrosive electrolyte and permanently damage the camera’s components. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Do not move the camera while it is switched on, if you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock. Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction. Avoid obstructing the lens or the flash when you capture an image. Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip cards near the case. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service centre. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock. Warning WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes may cause eyesight damage. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. There is the possibility of injury from the camera’s moving parts. Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fire. When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area. 2

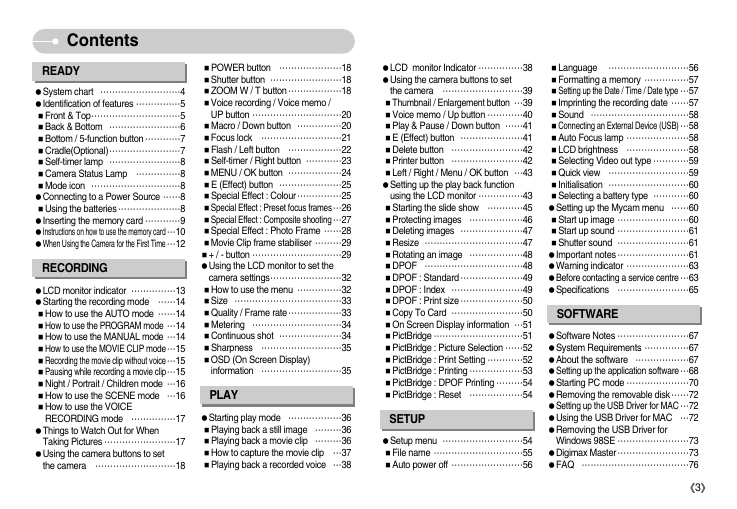

Contents READY System chart 4 Identification of features 5 Front & Top5 Back & Bottom 6 Bottom / 5-function button7 Cradle(Optional)7 Self-timer lamp 8 Camera Status Lamp 8 Mode icon 8 Connecting to a Power Source 8 Using the batteries8 Inserting the memory card 9 Instructions on how to use the memory card10 When Using the Camera for the First Time12 RECORDING LCD monitor indicator 13 Starting the recording mode 14 How to use the AUTO mode 14 How to use the PROGRAM mode 14 How to use the MANUAL mode 14 How to use the MOVIE CLIP mode15 Recording the movie clip without voice15 Pausing while recording a movie clip15 Night / Portrait / Children mode 16 How to use the SCENE mode 16 How to use the VOICE RECORDING mode 17 Things to Watch Out for When Taking Pictures 17 Using the camera buttons to set the camera 18 POWER button 18 Shutter button 18 ZOOM W / T button18 Voice recording / Voice memo / UP button 20 Macro / Down button 20 Focus lock 21 Flash / Left button 22 Self-timer / Right button 23 MENU / OK button 24 E (Effect) button 25 Special Effect : Colour25 Special Effect : Preset focus frames26 Special Effect : Composite shooting27 Special Effect : Photo Frame 28 Movie Clip frame stabiliser 29 + / - button 29 Using the LCD monitor to set the camera settings32 How to use the menu 32 Size 33 Quality / Frame rate33 Metering 34 Continuous shot 34 Sharpness 35 OSD (On Screen Display) information 35 PLAY LCD monitor Indicator 38 Using the camera buttons to set the camera 39 Thumbnail / Enlargement button 39 Voice memo / Up button 40 Play & Pause / Down button 41 E (Effect) button 41 Delete button 42 Printer button 42 Left / Right / Menu / OK button 43 Setting up the play back function using the LCD monitor 43 Starting the slide show 45 Protecting images 46 Deleting images 47 Resize 47 Rotating an image 48 DPOF 48 DPOF : Standard49 DPOF : Index 49 DPOF : Print size50 Copy To Card 50 On Screen Display information 51 PictBridge 51 PictBridge : Picture Selection 52 PictBridge : Print Setting 52 PictBridge : Printing 53 PictBridge : DPOF Printing 54 PictBridge : Reset 54 Starting play mode 36 Playing back a still image 36 Playing back a movie clip 36 How to capture the movie clip 37 Playing back a recorded voice 38 SETUP Setup menu 54 File name 55 Auto power off 56 Language 56 Formatting a memory 57 Setting up the Date / Time / Date type 57 Imprinting the recording date 57 Sound 58 Connecting an External Device (USB)58 Auto Focus lamp 58 LCD brightness 58 Selecting Video out type 59 Quick view 59 Initialisation 60 Selecting a battery type 60 Setting up the Mycam menu 60 Start up image 60 Start up sound 61 Shutter sound 61 Important notes61 Warning indicator 63 Before contacting a service centre63 Specifications 65 SOFTWARE Software Notes 67 System Requirements 67 About the software 67 Setting up the application software68 Starting PC mode 70 Removing the removable disk72 Setting up the USB Driver for MAC72 Using the USB Driver for MAC 72 Removing the USB Driver for Windows 98SE 73 Digimax Master73 FAQ 76 3

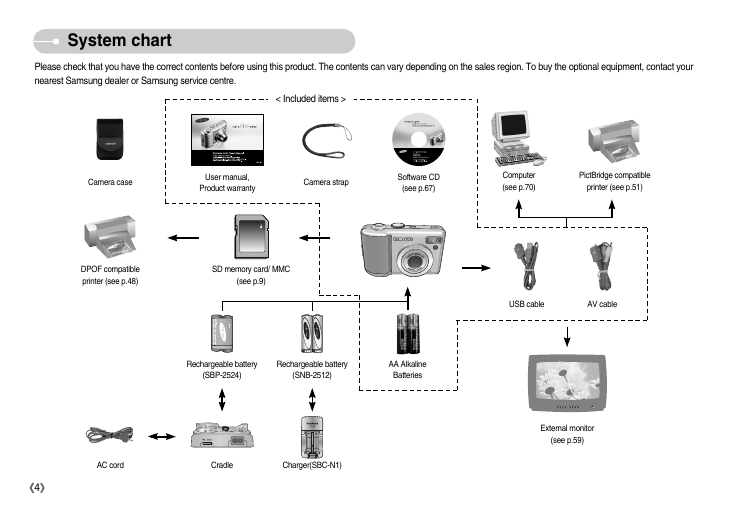

System chart Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. < Included items > Camera case User manual, Product warranty Camera strap Software CD (see p.67) Computer (see p.70) PictBridge compatible printer (see p.51) DPOF compatible printer (see p.48) SD memory card/ MMC (see p.9) Rechargeable battery Rechargeable battery (SBP-2524) (SNB-2512) AA Alkaline Batteries USB cable AV cable External monitor (see p.59) AC cord Cradle Charger(SBC-N1) 4

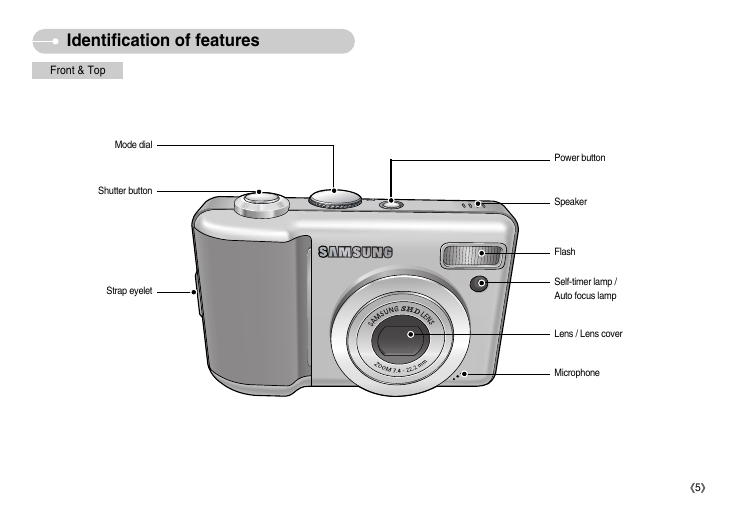

Identification of features Front & Top Mode dial Shutter button Strap eyelet Power button Speaker Flash Self-timer lamp / Auto focus lamp Lens / Lens cover Microphone 5

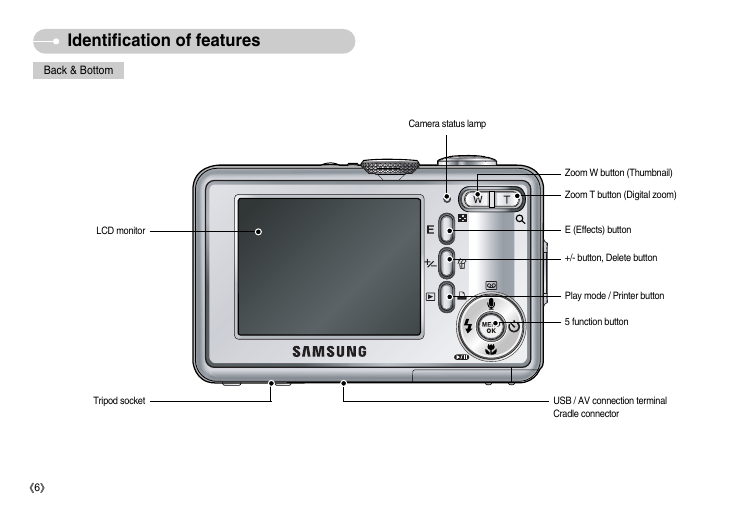

Identification of features Back & Bottom Camera status lamp LCD monitor Tripod socket 6 Zoom W button (Thumbnail) Zoom T button (Digital zoom) E (Effects) button +/- button, Delete button Play mode / Printer button 5 function button USB / AV connection terminal Cradle connector

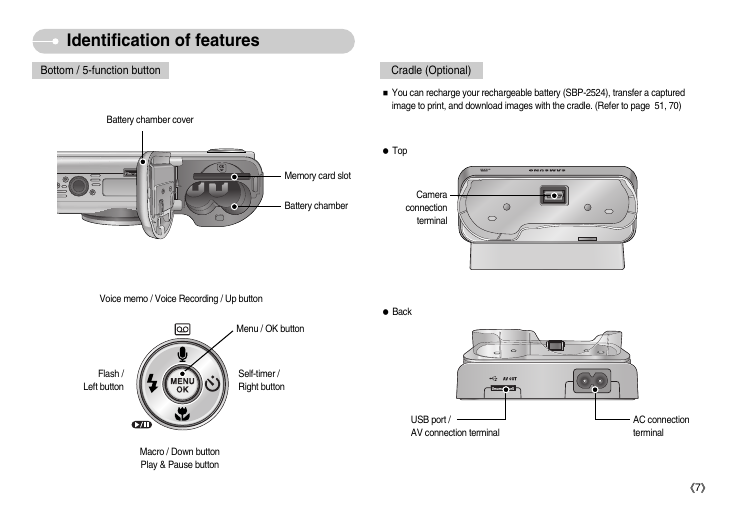

Identification of features Bottom / 5-function button Cradle (Optional) Battery chamber cover You can recharge your rechargeable battery (SBP-2524), transfer a captured image to print, and download images with the cradle. (Refer to page 51, 70) Memory card slot Battery chamber Top Camera connection terminal Voice memo / Voice Recording / Up button Back Flash / Left button Menu / OK button Self-timer / Right button Macro / Down button Play & Pause button USB port / AV connection terminal AC connection terminal 7
