SAFETY PRECAUTIONS

CONTENTS

GETTING STARTED

Index

Controls

Connectors

Indicators

Other Parts

LCD Monitor/Viewfinder Indications

During Video Recording Only

During D.S.C. Recording Only

During Both Video And D.S.C. Recording

During Video Playback

During D.S.C. Playback

Before Using This Camcorder

Provided Accessories

How To Attach The Lens Cap

How To Attach The Shoulder Strap

How To Attach The Core Filter

Power

Charging The Battery Pack

Using The Battery Pack

Data Battery System

Using AC Power

About Batteries

Operation Mode

Power-Linked Operation

Language Settings

Date/Time Settings

Grip Adjustment

Viewfinder Adjustment

Brightness Adjustment Of The Display

Tripod Mounting

Loading/Unloading A Cassette

Loading/Unloading A Memory Card

VIDEO PLAYBACK

VIDEO RECORDING

Basic Recording

Tape Remaining Time

LCD Monitor And Viewfinder

Zooming

Journalistic Shooting

Time Code

Quick Review

Recording From The Middle Of A Tape

Normal Playback

Still Playback

Shuttle Search

Blank Search

Connections To A TV Or VCR

Playback Using The Remote Control

Installing The Battery

Beam Effective Area (indoor use)

Buttons And Functions

Slow-Motion Playback

Frame-By-Frame Playback

Playback Zoom

Playback Special Effects

D.S.C. PLAYBACK

D.S.C. RECORDING

Basic Shooting (D.S.C. Snapshot)

Interval Shooting

Normal Playback Of Images

Playback Zoom

Auto Playback Of Images

Index Playback Of Files

Removing On-Screen Display

ADDITIONAL FEATURES FOR D.S.C.

Dubbing Still Images Recorded On A Tape To A Memory Card

Resetting The File Name

Protecting Files

To Remove Protection

Deleting Files

Setting Print Information (DPOF Setting)

To Print All Still Images (One Print For Each)

To Print By Selecting Still Images And Number Of Prints

To Reset The Number Of Prints

Initialising A Memory Card

MENUS FOR DETAILED ADJUSTMENT

Changing The Menu Settings

Menus without Sub Menus

Menus with Sub Menus

Recording Menus

Playback Menus

FEATURES FOR RECORDING

LED Light

Live Slow

5-Second Recording

Night-Scope

Snapshot (For Video Recording)

Motor Drive Mode

Manual Focus

Exposure Control

Iris Lock

Backlight Compensation

Spot Exposure Control

White Balance Adjustment

Manual White Balance Adjustment

Wipe Or Fader Effects

WIPE/FADER

Program AE With Special Effects

PROGRAM AE

EDITING

Dubbing To Or From A VCR

Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing)

Connection To A Personal Computer

Audio Dubbing

Insert Editing

USER MAINTENANCE

TROUBLESHOOTING

Warning Indications

Cleaning The Camcorder

CAUTIONS

Battery Packs

Cassettes

Memory Cards

LCD Monitor

Main Unit

How To Handle A CD-ROM

SPECIFICATIONS

Camcorder

AC Adapter

TERMS

SOFTWARE INSTALLATION

Notice for Users

System Requirements

Software Installation (Windows®)

Updating [Device Manager] (Windows®98SE only)

Connections (Windows®)

Viewing the Contents of a Memory Card (Windows®)

Copying Files to the PC (Windows®)

Playing Back Files on the PC (Windows®)

Disconnecting the USB Cable (Windows®)

Connections (Macintosh)

Viewing the Contents of a Memory Card (Macintosh)

Copying Files to the PC (Macintosh)

Playing Back Files on the PC (Macintosh)

Disconnecting the USB cable (Macintosh)

User’s Guide/Help/Readme

Overview of Enjoying the Moving or Still Images on the PC

GR-D290_270Asia.book Page 1 Monday, October 25, 2004 10:10 PM DIGITAL VIDEO CAMERA GR-D290 GR-D270 Please visit our Homepage on the World Wide Web for Digital Video Camera: http://www.jvc.co.jp/english/cyber/ For Accessories: http://www.jvc.co.jp/english/accessory/ INSTRUCTIONS Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the pages 3 – 4 and 10 to ensure safe use of this product. ENGLISH GETTING STARTED VIDEO RECORDING & PLAYBACK DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK ADVANCED FEATURES REFERENCES 6 18 25 31 47 TERMS Back cover To deactivate the demonstration, set “DEMO MODE” to “OFF”. (墌 pg. 31, 33) LYT1383-001A EN

GR-D290_270Asia.book Page 2 Monday, October 25, 2004 10:10 PM MasterPage: Left 2 EN Major Features of this Camcorder Wipe/Fader Effects You can use the Wipe/Fader Effects to make pro-style scene transitions. (墌 pg. 41) Fade in Backlight Compensation Simply pressing the BACK LIGHT button brightens the image darkened by backlight. (墌 pg. 40) ● You can also select a spot metering area so that more precise exposure compensation is available. (墌 pg. 40, Spot Exposure Control) Fade out Program AE with Special Effects For example, “SPORTS” mode allows fast- moving images to be captured one frame at a time, for vivid, stable slow-motion. (墌 pg. 42) Data Battery You can check the battery status by simply pressing the DATA button. (墌 pg. 14) BATTERY CONDITION MAX TIME 100% 50% 0% FINDER min LCD min LED Light You can brighten the subject in the dark place with the LED Light. (墌 pg. 37) Live Slow You can record and play back precious or hard-to-see moments at a slow speed. The sound is recorded and played back in real time. (墌 pg. 37)

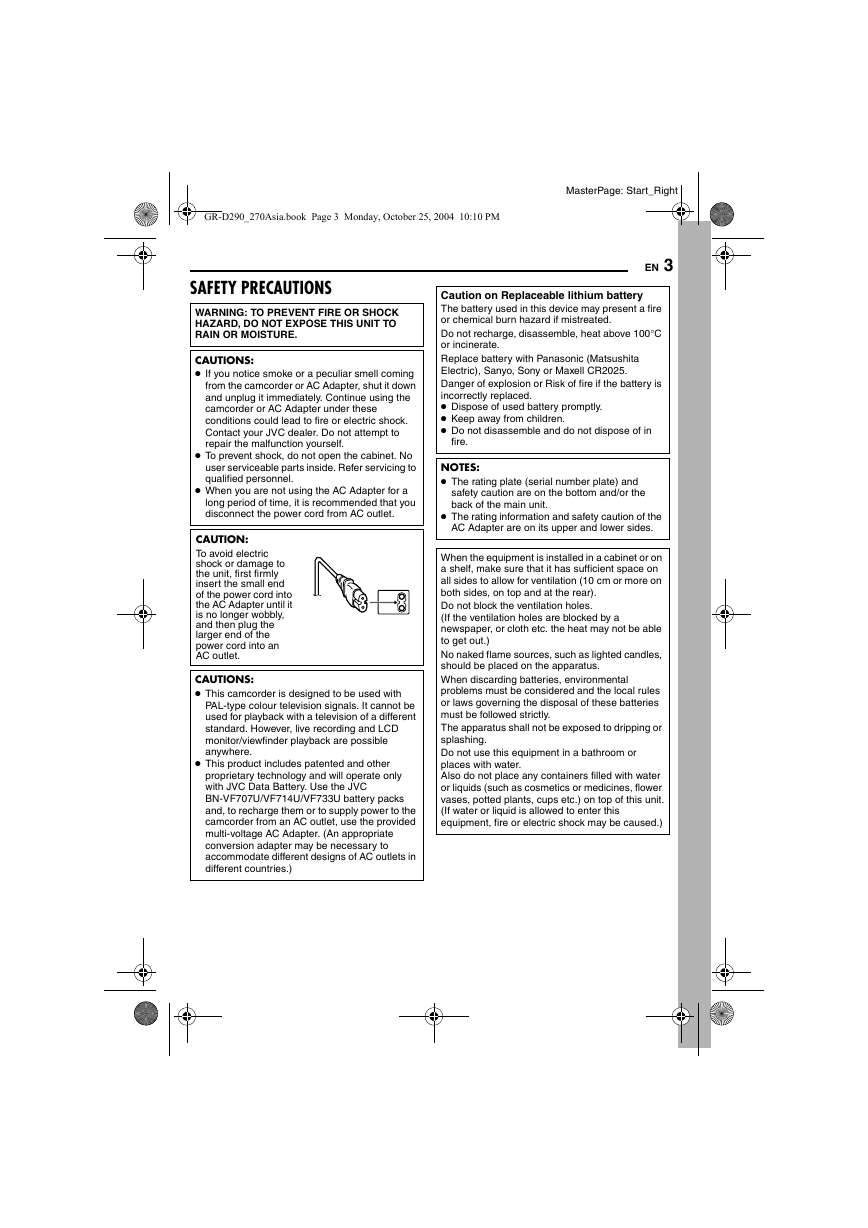

GR-D290_270Asia.book Page 3 Monday, October 25, 2004 10:10 PM MasterPage: Start_Right EN 3 SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTIONS: ● If you notice smoke or a peculiar smell coming from the camcorder or AC Adapter, shut it down and unplug it immediately. Continue using the camcorder or AC Adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. ● To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. ● When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. CAUTIONS: ● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. ● This product includes patented and other proprietary technology and will operate only with JVC Data Battery. Use the JVC BN-VF707U/VF714U/VF733U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) Caution on Replaceable lithium battery The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced. ● Dispose of used battery promptly. ● Keep away from children. ● Do not disassemble and do not dispose of in fire. NOTES: ● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ● The rating information and safety caution of the AC Adapter are on its upper and lower sides. When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

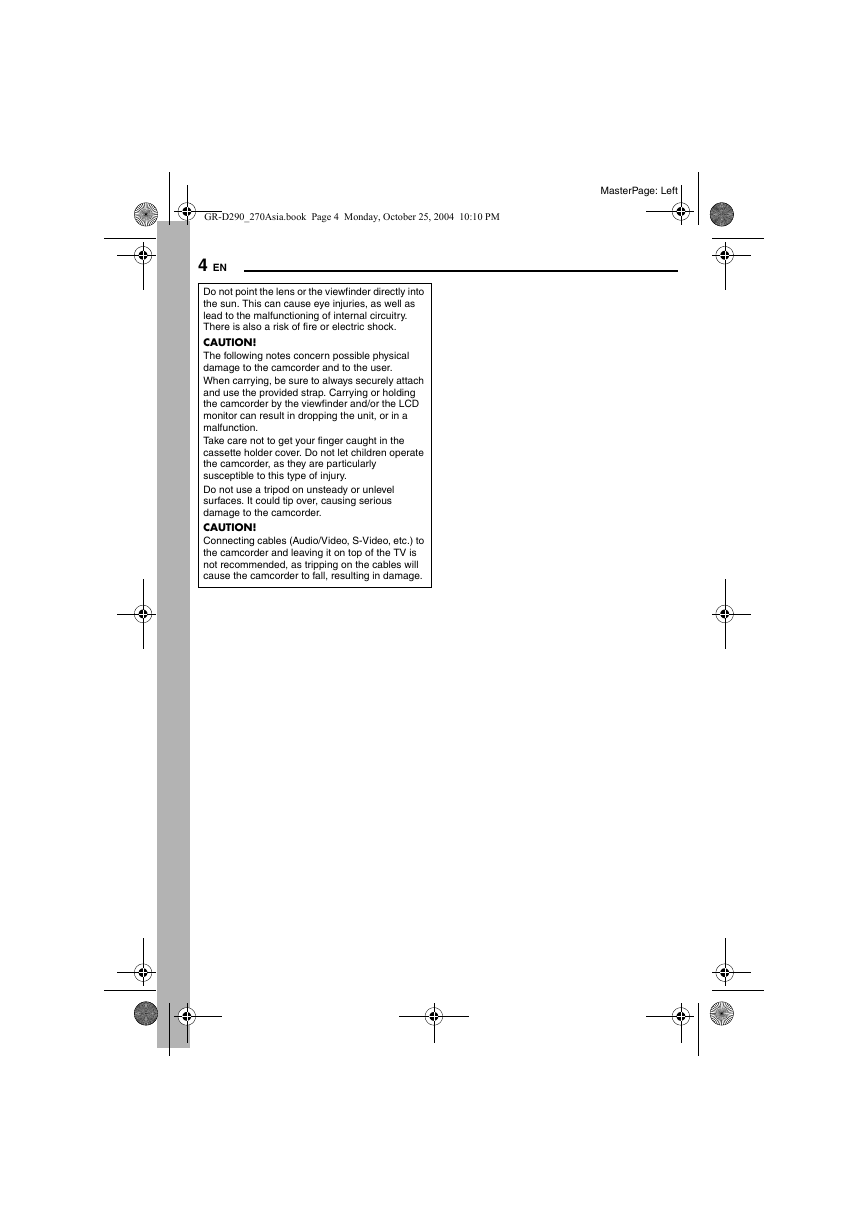

GR-D290_270Asia.book Page 4 Monday, October 25, 2004 10:10 PM MasterPage: Left 4 EN Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

GR-D290_270Asia.book Page 5 Monday, October 25, 2004 10:10 PM MasterPage: TOC_Heading0_Right CONTENTS EN 5 ADVANCED FEATURES 31 MENUS FOR DETAILED ADJUSTMENT.................. 31 Changing The Menu Settings ......................... 31 Recording Menus............................................ 32 Playback Menus ............................................. 35 FEATURES FOR RECORDING............................... 37 LED Light........................................................ 37 Live Slow ........................................................ 37 5-Second Recording ....................................... 37 Night-Scope .................................................... 38 Snapshot (For Video Recording) .................... 38 Manual Focus ................................................. 38 Exposure Control ............................................ 39 Iris Lock .......................................................... 39 Backlight Compensation ................................. 40 Spot Exposure Control.................................... 40 White Balance Adjustment.............................. 40 Manual White Balance Adjustment................. 41 Wipe Or Fader Effects .................................... 41 Program AE With Special Effects ................... 42 EDITING............................................................ 43 Dubbing To Or From A VCR........................... 43 Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing).............. 44 Connection To A Personal Computer ............. 45 Audio Dubbing ................................................ 46 Insert Editing................................................... 46 REFERENCES 47 TROUBLESHOOTING.......................................... 47 USER MAINTENANCE......................................... 51 CAUTIONS ........................................................ 52 SPECIFICATIONS................................................ 55 TERMS Back cover GETTING STARTED 6 Index................................................................. 6 Provided Accessories ..................................... 11 Power.............................................................. 13 Operation Mode.............................................. 14 Date/Time Settings ......................................... 15 Grip Adjustment.............................................. 15 Viewfinder Adjustment.................................... 16 Brightness Adjustment Of The Display ........... 16 Tripod Mounting.............................................. 16 Loading/Unloading A Cassette ....................... 16 Loading/Unloading A Memory Card................ 17 VIDEO RECORDING & PLAYBACK 18 VIDEO RECORDING ........................................... 18 Basic Recording.............................................. 18 Tape Remaining Time ................................ 18 LCD Monitor And Viewfinder ...................... 18 Zooming...................................................... 19 Journalistic Shooting .................................. 19 Time Code .................................................. 19 Quick Review.............................................. 20 Recording From The Middle Of A Tape...... 20 VIDEO PLAYBACK ............................................. 20 Normal Playback............................................. 20 Still Playback .............................................. 20 Shuttle Search ............................................ 21 Blank Search .............................................. 21 Connections To A TV Or VCR ........................ 22 Playback Using The Remote Control.............. 23 DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK 25 D.S.C. RECORDING............................................ 25 Basic Shooting (D.S.C. Snapshot).................. 25 Interval Shooting......................................... 25 D.S.C. PLAYBACK .............................................. 26 Normal Playback Of Images ........................... 26 Auto Playback Of Images ............................... 27 Index Playback Of Files .................................. 27 Removing On-Screen Display ........................ 27 ADDITIONAL FEATURES FOR D.S.C. .................... 28 Dubbing Still Images Recorded On A Tape To A Memory Card.............................................. 28 Resetting The File Name................................ 28 Protecting Files ............................................... 28 Deleting Files.................................................. 29 Setting Print Information (DPOF Setting)........ 29 Initialising A Memory Card.............................. 30

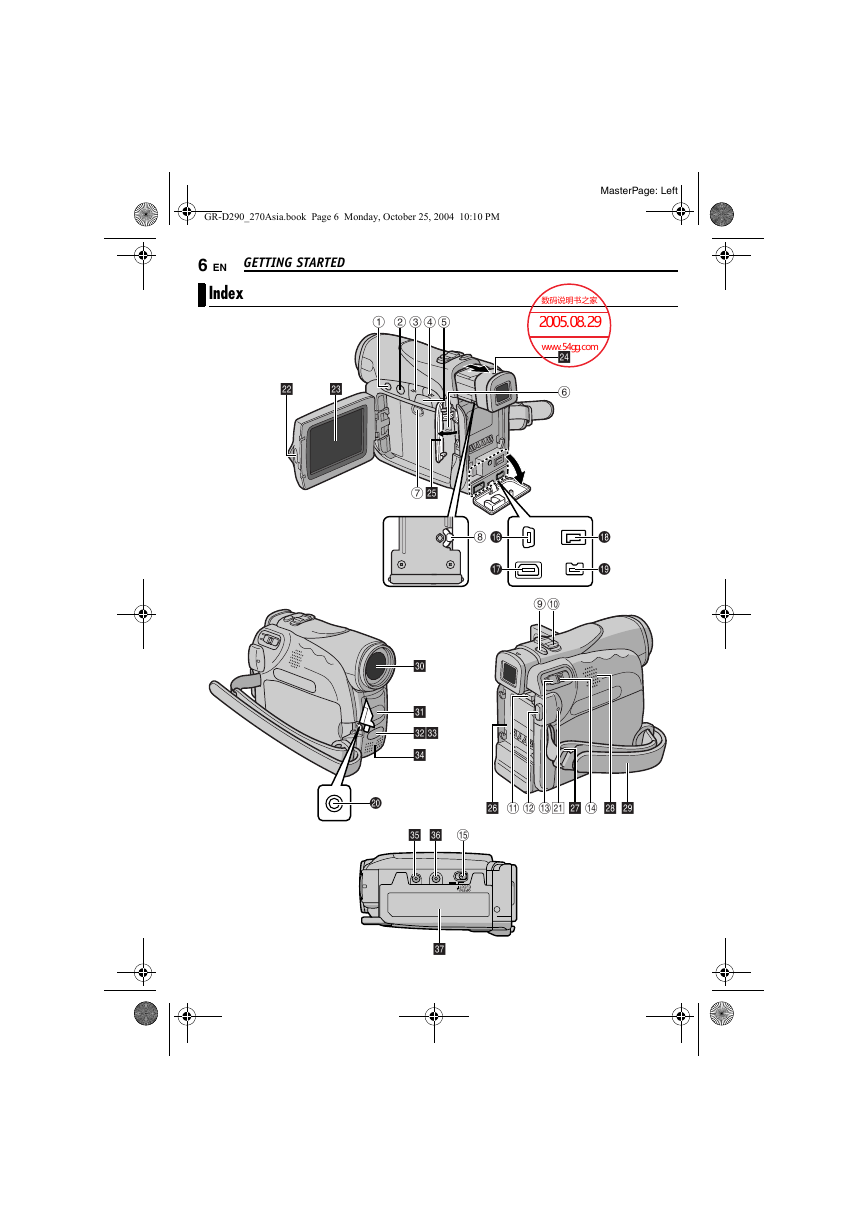

GR-D290_270Asia.book Page 6 Monday, October 25, 2004 10:10 PM MasterPage: Left GETTING STARTED 6 EN Index 1 B C D E V W X F 8 P Q R S 9J G Y d e fg h T Z LK M NU a b c i j O k

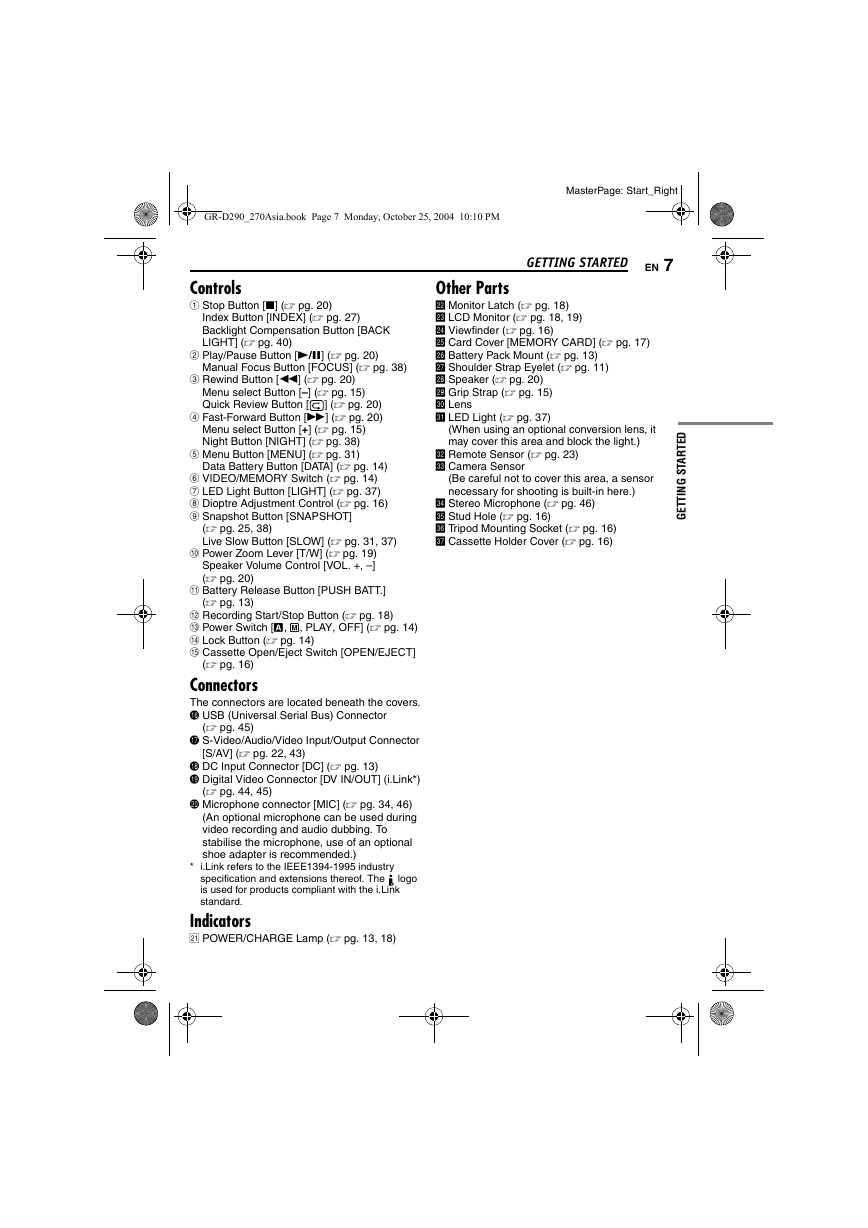

GR-D290_270Asia.book Page 7 Monday, October 25, 2004 10:10 PM MasterPage: Start_Right GETTING STARTED EN 7 Other Parts V Monitor Latch (墌 pg. 18) W LCD Monitor (墌 pg. 18, 19) X Viewfinder (墌 pg. 16) Y Card Cover [MEMORY CARD] (墌 pg. 17) Z Battery Pack Mount (墌 pg. 13) a Shoulder Strap Eyelet (墌 pg. 11) b Speaker (墌 pg. 20) c Grip Strap (墌 pg. 15) d Lens e LED Light (墌 pg. 37) (When using an optional conversion lens, it may cover this area and block the light.) f Remote Sensor (墌 pg. 23) g Camera Sensor (Be careful not to cover this area, a sensor necessary for shooting is built-in here.) h Stereo Microphone (墌 pg. 46) i Stud Hole (墌 pg. 16) j Tripod Mounting Socket (墌 pg. 16) k Cassette Holder Cover (墌 pg. 16) D E T R A T S G N I T T E G Controls A Stop Button [8] (墌 pg. 20) Index Button [INDEX] (墌 pg. 27) Backlight Compensation Button [BACK LIGHT] (墌 pg. 40) B Play/Pause Button [4/9] (墌 pg. 20) Manual Focus Button [FOCUS] (墌 pg. 38) C Rewind Button [3] (墌 pg. 20) Menu select Button [–] (墌 pg. 15) Quick Review Button [ ] (墌 pg. 20) D Fast-Forward Button [5] (墌 pg. 20) Menu select Button [+] (墌 pg. 15) Night Button [NIGHT] (墌 pg. 38) E Menu Button [MENU] (墌 pg. 31) Data Battery Button [DATA] (墌 pg. 14) F VIDEO/MEMORY Switch (墌 pg. 14) G LED Light Button [LIGHT] (墌 pg. 37) H Dioptre Adjustment Control (墌 pg. 16) I Snapshot Button [SNAPSHOT] (墌 pg. 25, 38) Live Slow Button [SLOW] (墌 pg. 31, 37) J Power Zoom Lever [T/W] (墌 pg. 19) Speaker Volume Control [VOL. +, –] (墌 pg. 20) K Battery Release Button [PUSH BATT.] (墌 pg. 13) L Recording Start/Stop Button (墌 pg. 18) M Power Switch [A, M, PLAY, OFF] (墌 pg. 14) N Lock Button (墌 pg. 14) O Cassette Open/Eject Switch [OPEN/EJECT] (墌 pg. 16) Connectors The connectors are located beneath the covers. P USB (Universal Serial Bus) Connector (墌 pg. 45) Q S-Video/Audio/Video Input/Output Connector [S/AV] (墌 pg. 22, 43) R DC Input Connector [DC] (墌 pg. 13) S Digital Video Connector [DV IN/OUT] (i.Link*) (墌 pg. 44, 45) T Microphone connector [MIC] (墌 pg. 34, 46) (An optional microphone can be used during video recording and audio dubbing. To stabilise the microphone, use of an optional shoe adapter is recommended.) * i.Link refers to the IEEE1394-1995 industry specification and extensions thereof. The is used for products compliant with the i.Link standard. Indicators U POWER/CHARGE Lamp (墌 pg. 13, 18) logo

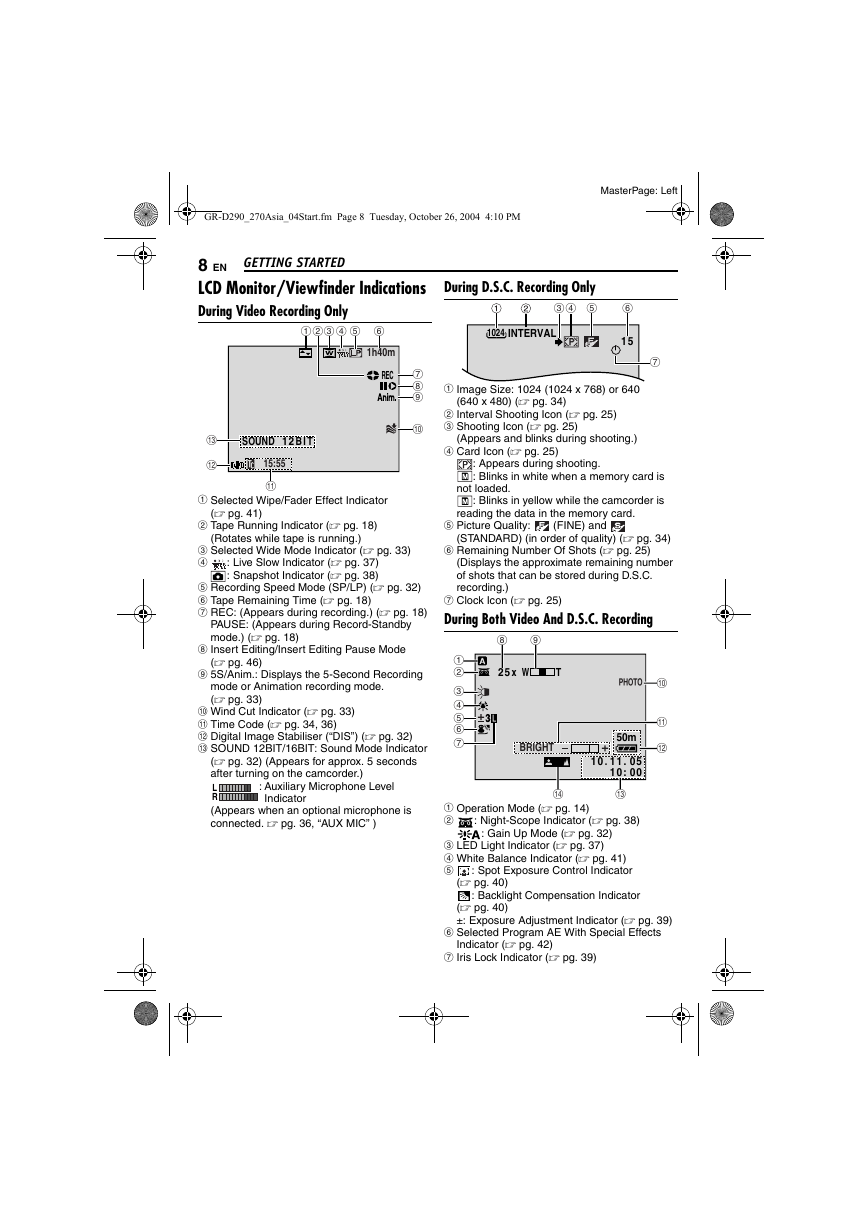

GR-D290_270Asia_04Start.fm Page 8 Tuesday, October 26, 2004 4:10 PM MasterPage: Left GETTING STARTED 8 EN LCD Monitor/Viewfinder Indications During Video Recording Only 4 1 23 5 6 1h40m REC 7 8 9 0 e w SOUND 12 BI T 15:55 q a Selected Wipe/Fader Effect Indicator (墌 pg. 41) B Tape Running Indicator (墌 pg. 18) (Rotates while tape is running.) C Selected Wide Mode Indicator (墌 pg. 33) D : Live Slow Indicator (墌 pg. 37) : Snapshot Indicator (墌 pg. 38) E Recording Speed Mode (SP/LP) (墌 pg. 32) F Tape Remaining Time (墌 pg. 18) G REC: (Appears during recording.) (墌 pg. 18) PAUSE: (Appears during Record-Standby mode.) (墌 pg. 18) H Insert Editing/Insert Editing Pause Mode (墌 pg. 46) I 5S/Anim.: Displays the 5-Second Recording mode or Animation recording mode. (墌 pg. 33) J Wind Cut Indicator (墌 pg. 33) K Time Code (墌 pg. 34, 36) L Digital Image Stabiliser (“DIS”) (墌 pg. 32) M SOUND 12BIT/16BIT: Sound Mode Indicator (墌 pg. 32) (Appears for approx. 5 seconds after turning on the camcorder.) L R (Appears when an optional microphone is connected. 墌 pg. 36, “AUX MIC” ) : Auxiliary Microphone Level Indicator During D.S.C. Recording Only 3 4 5 1024 INTERVAL 6 51 7 a Image Size: 1024 (1024 x 768) or 640 (640 x 480) (墌 pg. 34) B Interval Shooting Icon (墌 pg. 25) C Shooting Icon (墌 pg. 25) (Appears and blinks during shooting.) D Card Icon (墌 pg. 25) : Appears during shooting. : Blinks in white when a memory card is not loaded. : Blinks in yellow while the camcorder is reading the data in the memory card. E Picture Quality: (FINE) and (STANDARD) (in order of quality) (墌 pg. 34) F Remaining Number Of Shots (墌 pg. 25) (Displays the approximate remaining number of shots that can be stored during D.S.C. recording.) G Clock Icon (墌 pg. 25) During Both Video And D.S.C. Recording 1 2 3 4 5 6 7 8 9 25 x W T BRIGHT O 0 1 0 . 1 1 50m 1 0 0 0 . : 5 0 q w r e a Operation Mode (墌 pg. 14) B : Night-Scope Indicator (墌 pg. 38) : Gain Up Mode (墌 pg. 32) C LED Light Indicator (墌 pg. 37) D White Balance Indicator (墌 pg. 41) E : Spot Exposure Control Indicator (墌 pg. 40) : Backlight Compensation Indicator (墌 pg. 40) ±: Exposure Adjustment Indicator (墌 pg. 39) F Selected Program AE With Special Effects Indicator (墌 pg. 42) G Iris Lock Indicator (墌 pg. 39)
