H3C SecPathF10X0_L2TP over IPSec配置.IOS、Android、Win7、Win10免客户端接入.docx
#

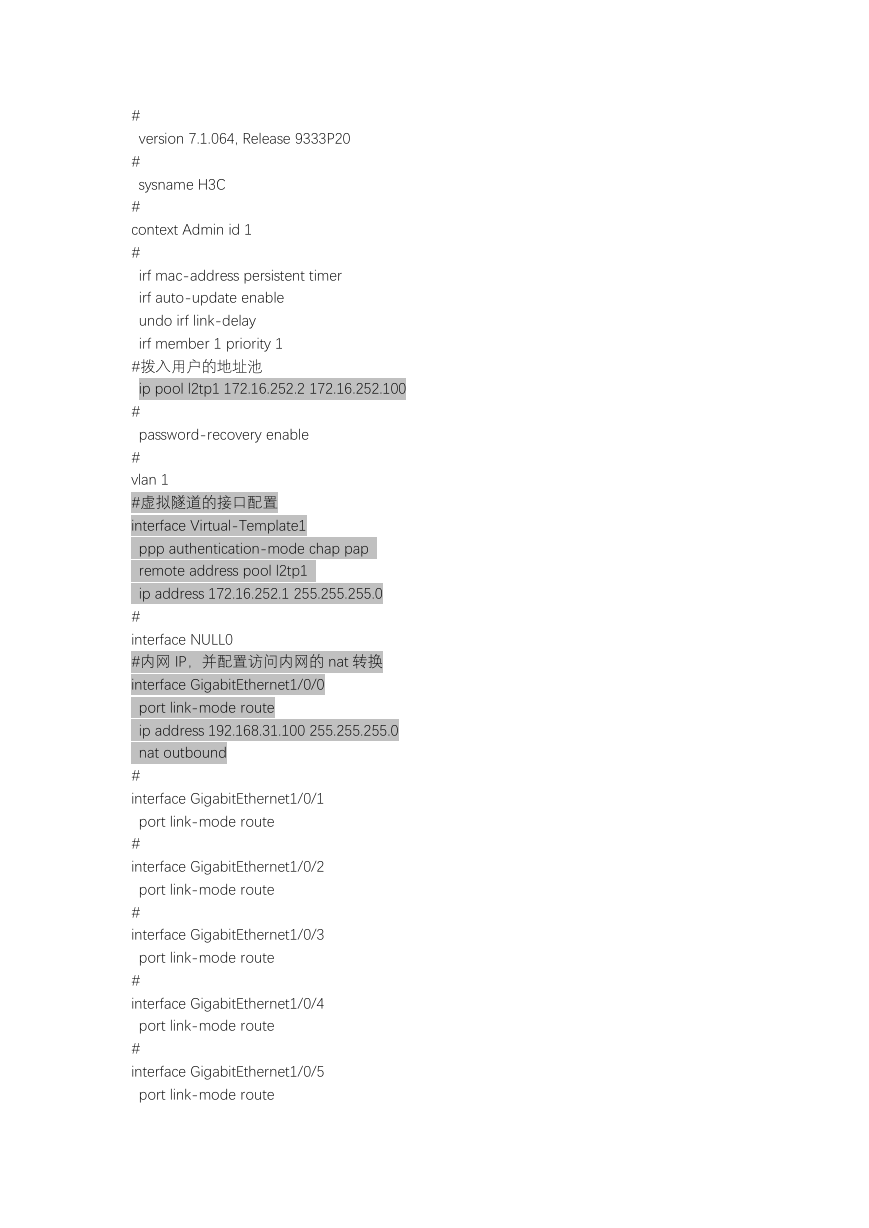

version 7.1.064, Release 9333P20
#
sysname H3C
#
context Admin id 1
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#拨入用户的地址池
ip pool l2tp1 172.16.252.2 172.16.252.100
#
password-recovery enable
#
vlan 1
#虚拟隧道的接口配置
interface Virtual-Template1
ppp authentication-mode chap pap
remote address pool l2tp1
ip address 172.16.252.1 255.255.255.0
#
interface NULL0
#内网 IP，并配置访问内网的 nat 转换
interface GigabitEthernet1/0/0
port link-mode route
ip address 192.168.31.100 255.255.255.0
nat outbound
#
interface GigabitEthernet1/0/1
port link-mode route
#
interface GigabitEthernet1/0/2
port link-mode route
#
interface GigabitEthernet1/0/3
port link-mode route
#
interface GigabitEthernet1/0/4
port link-mode route
#
interface GigabitEthernet1/0/5
port link-mode route
#

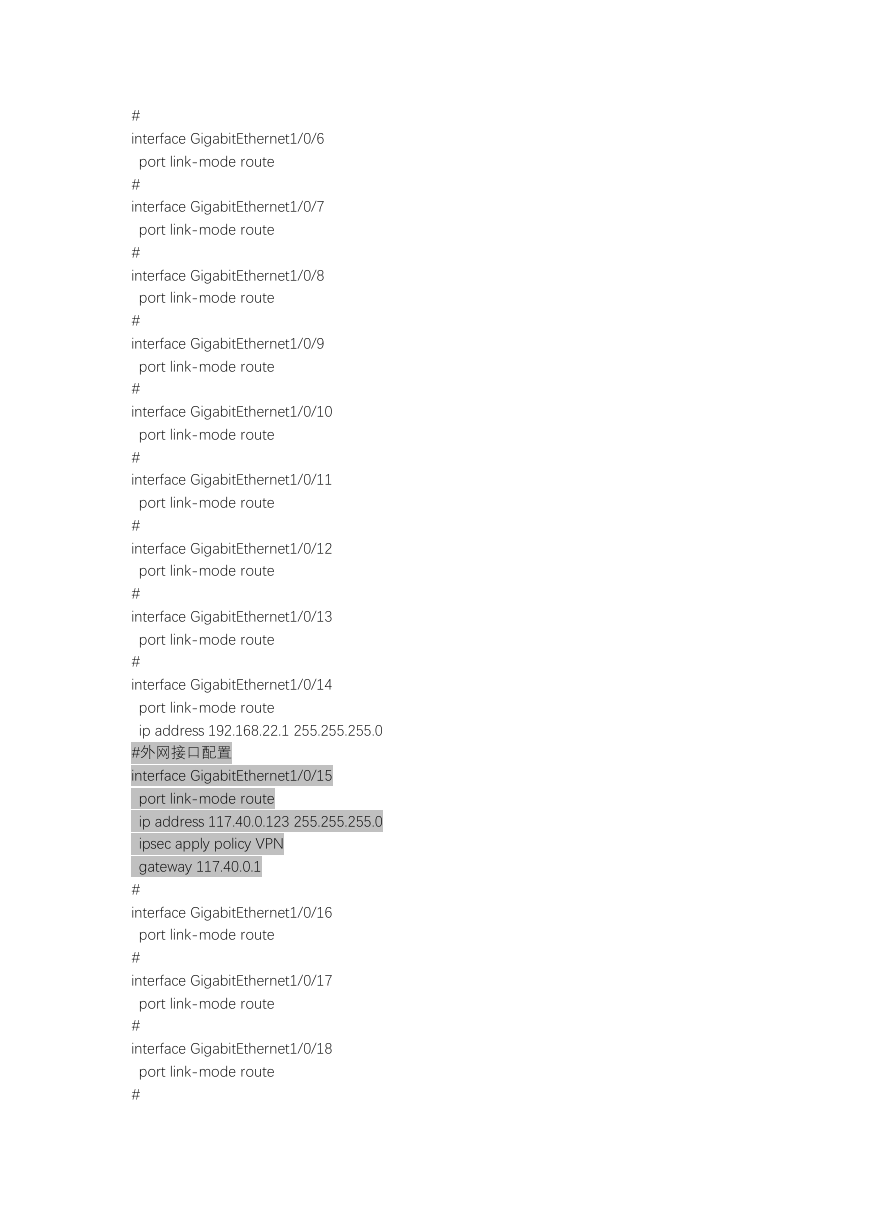

interface GigabitEthernet1/0/6
port link-mode route
#
interface GigabitEthernet1/0/7
port link-mode route
#
interface GigabitEthernet1/0/8
port link-mode route
#
interface GigabitEthernet1/0/9
port link-mode route
#
interface GigabitEthernet1/0/10
port link-mode route
#
interface GigabitEthernet1/0/11
port link-mode route
#
interface GigabitEthernet1/0/12
port link-mode route
#
interface GigabitEthernet1/0/13
port link-mode route
#
interface GigabitEthernet1/0/14
port link-mode route
ip address 192.168.22.1 255.255.255.0
#外网接口配置
interface GigabitEthernet1/0/15
port link-mode route
ip address 117.40.0.123 255.255.255.0
ipsec apply policy VPN
gateway 117.40.0.1
#
interface GigabitEthernet1/0/16
port link-mode route
#
interface GigabitEthernet1/0/17
port link-mode route
#
interface GigabitEthernet1/0/18
port link-mode route
#

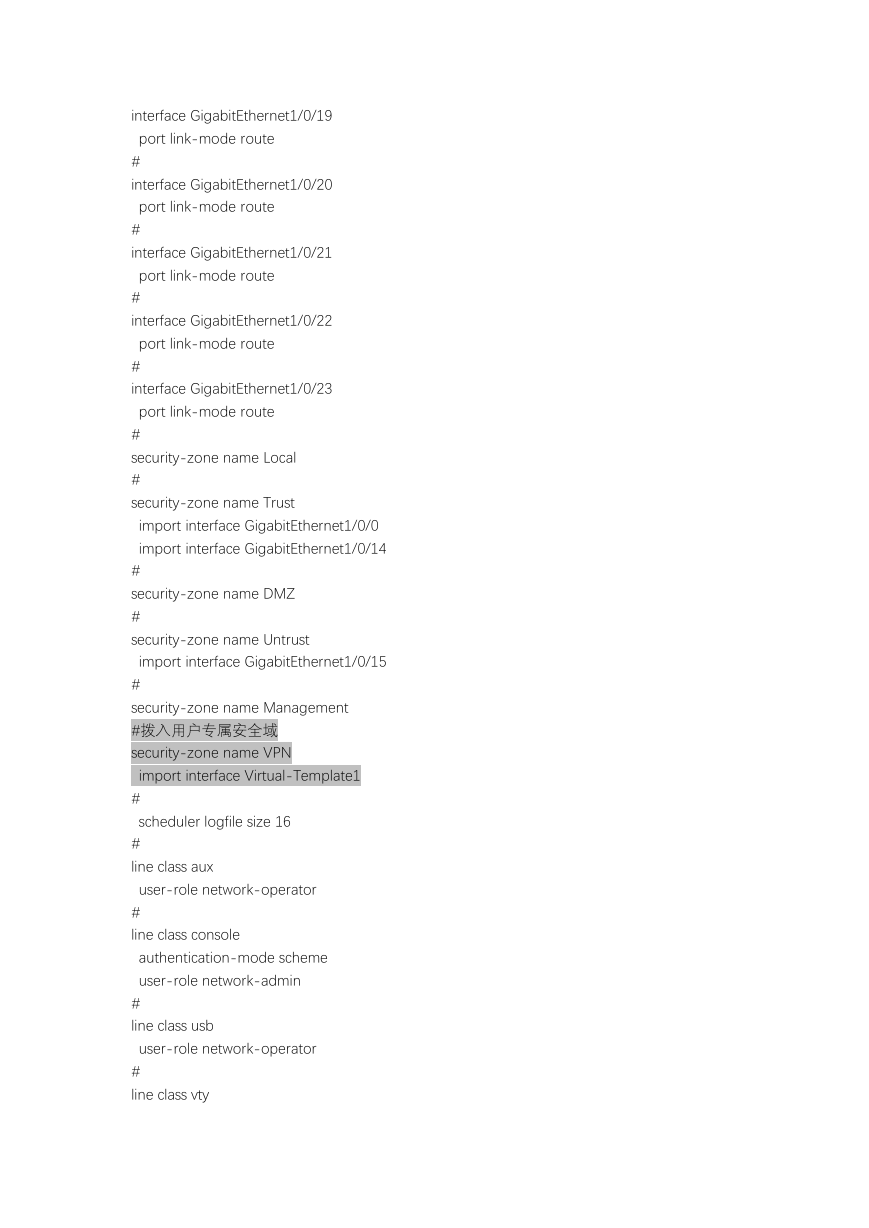

interface GigabitEthernet1/0/19
port link-mode route
#
interface GigabitEthernet1/0/20
port link-mode route
#
interface GigabitEthernet1/0/21
port link-mode route
#
interface GigabitEthernet1/0/22
port link-mode route
#
interface GigabitEthernet1/0/23
port link-mode route
#
security-zone name Local
#
security-zone name Trust
import interface GigabitEthernet1/0/0
import interface GigabitEthernet1/0/14
#
security-zone name DMZ
#
security-zone name Untrust
import interface GigabitEthernet1/0/15
#
security-zone name Management
#拨入用户专属安全域
security-zone name VPN
import interface Virtual-Template1
#
scheduler logfile size 16
#
line class aux
user-role network-operator
#
line class console
authentication-mode scheme
user-role network-admin
#
line class usb
user-role network-operator
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line con 0
user-role network-admin
#
line vty 0 63
authentication-mode scheme
user-role network-admin
#
ip route-static 192.168.0.0 16 GigabitEthernet1/0/0 192.168.31.1
#
ssh server enable
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
local-user admin class manage
password
hash
$h$6$qqSdfAPHxkQkqMYb$O2oQxz/RKohHdUaVB8uWeTdE+IwWOuHpWHPOnZ2phNnqv6d
9jMVgdtYEVvhmaOAPNeuqK7Z6h/Gi6jAyY+oWZg==
service-type ssh terminal https
authorization-attribute user-role level-3
authorization-attribute user-role network-admin
authorization-attribute user-role network-operator
#拨入用户密码、权限
local-user 1 class network
password cipher $c$3$w8j1rIWa4o/xuV10LmkTOF+w68s46+dnkDxG7FfU
service-type ike
service-type ppp
authorization-attribute user-role network-operator
#
session statistics enable
#
ipsec logging negotiation enable
#IPSec 六种认证协议
ipsec transform-set VPN_IPv4_1
encapsulation-mode transport

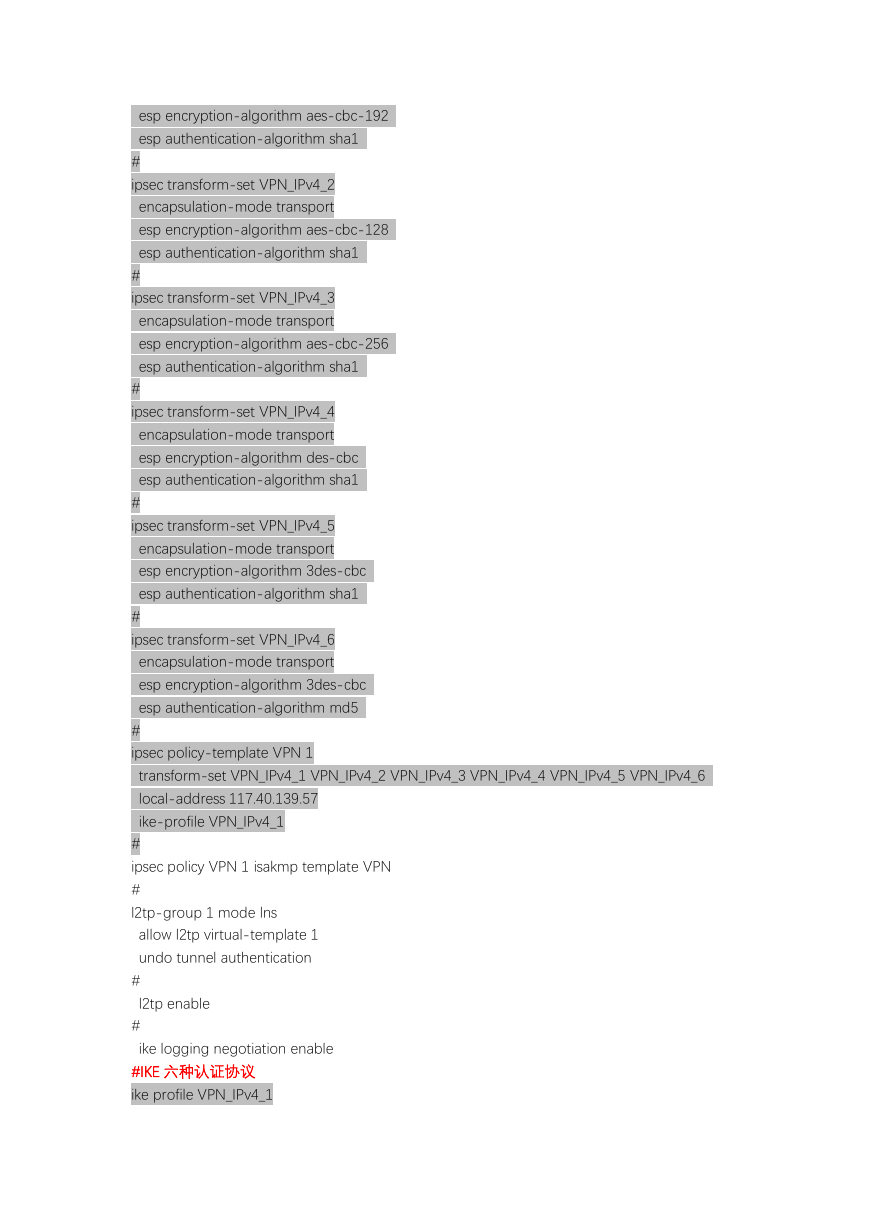

esp encryption-algorithm aes-cbc-192
esp authentication-algorithm sha1
#
ipsec transform-set VPN_IPv4_2
encapsulation-mode transport
esp encryption-algorithm aes-cbc-128
esp authentication-algorithm sha1
#
ipsec transform-set VPN_IPv4_3
encapsulation-mode transport
esp encryption-algorithm aes-cbc-256
esp authentication-algorithm sha1
#
ipsec transform-set VPN_IPv4_4
encapsulation-mode transport
esp encryption-algorithm des-cbc
esp authentication-algorithm sha1
#
ipsec transform-set VPN_IPv4_5
encapsulation-mode transport
esp encryption-algorithm 3des-cbc
esp authentication-algorithm sha1
#
ipsec transform-set VPN_IPv4_6
encapsulation-mode transport
esp encryption-algorithm 3des-cbc
esp authentication-algorithm md5
#
ipsec policy-template VPN 1
transform-set VPN_IPv4_1 VPN_IPv4_2 VPN_IPv4_3 VPN_IPv4_4 VPN_IPv4_5 VPN_IPv4_6
local-address 117.40.139.57
ike-profile VPN_IPv4_1
#
ipsec policy VPN 1 isakmp template VPN
#
l2tp-group 1 mode lns
allow l2tp virtual-template 1
undo tunnel authentication
#
l2tp enable
#
ike logging negotiation enable
#IKE 六种认证协议

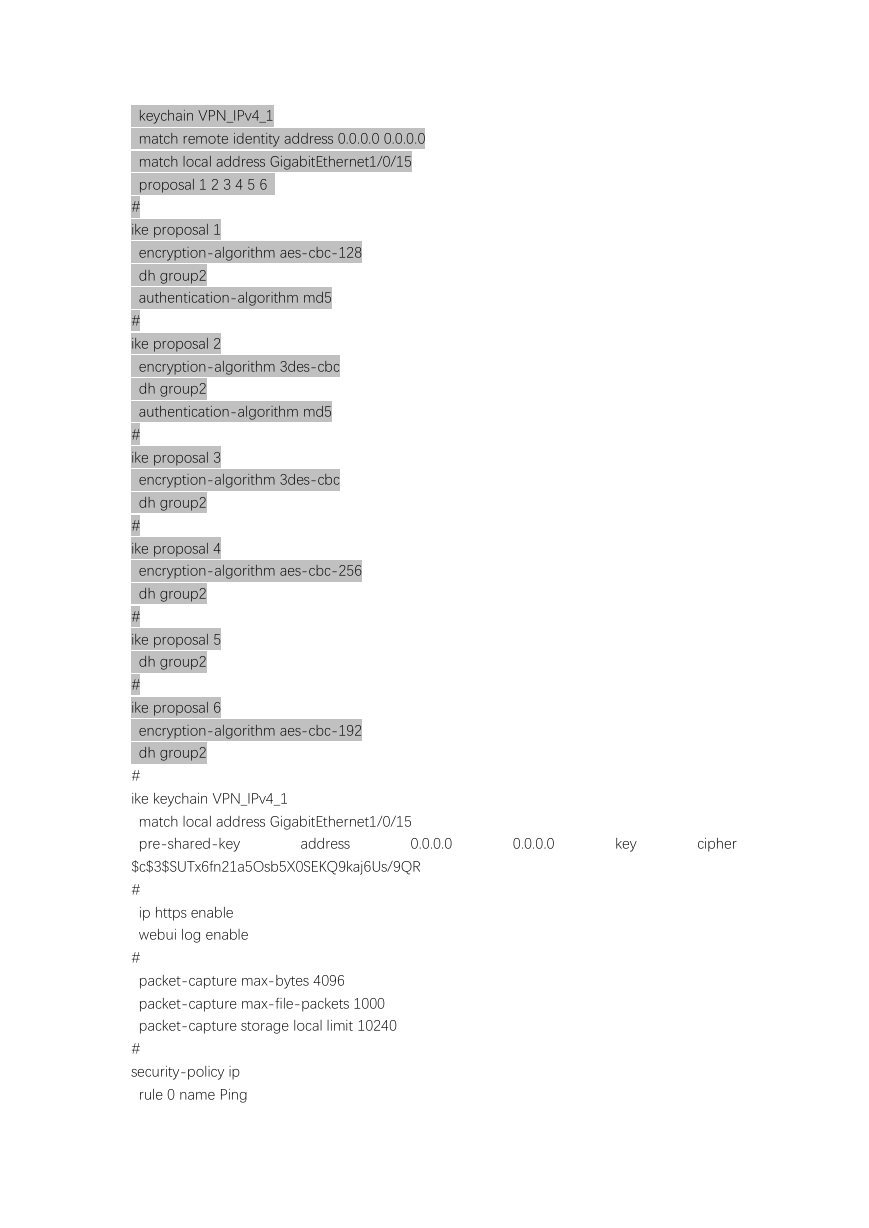

ike profile VPN_IPv4_1
keychain VPN_IPv4_1
match remote identity address 0.0.0.0 0.0.0.0
match local address GigabitEthernet1/0/15
proposal 1 2 3 4 5 6
#
ike proposal 1
encryption-algorithm aes-cbc-128
dh group2
authentication-algorithm md5
#
ike proposal 2
encryption-algorithm 3des-cbc
dh group2
authentication-algorithm md5
#
ike proposal 3
encryption-algorithm 3des-cbc
dh group2
#
ike proposal 4
encryption-algorithm aes-cbc-256
dh group2
#
ike proposal 5
dh group2
#
ike proposal 6
encryption-algorithm aes-cbc-192
dh group2
#
ike keychain VPN_IPv4_1
match local address GigabitEthernet1/0/15
pre-shared-key
$c$3$SUTx6fn21a5Osb5X0SEKQ9kaj6Us/9QR
#
ip https enable
webui log enable
#
packet-capture max-bytes 4096
packet-capture max-file-packets 1000
packet-capture storage local limit 10240
#
security-policy ip
rule 0 name Ping
address
0.0.0.0
0.0.0.0
key
cipher
action pass
service ping
rule 1 name fff
action pass
rule 2 name loacl
action pass
source-zone Local
source-zone Trust
source-zone Untrust
destination-zone Untrust
destination-zone Trust
destination-zone Local
#
return
