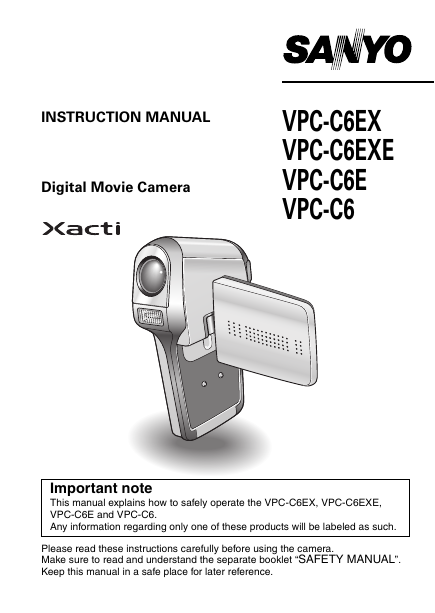

INSTRUCTION MANUAL Digital Movie Camera VPC-C6EX VPC-C6EXE VPC-C6E VPC-C6 Important note This manual explains how to safely operate the VPC-C6EX, VPC-C6EXE, VPC-C6E and VPC-C6. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

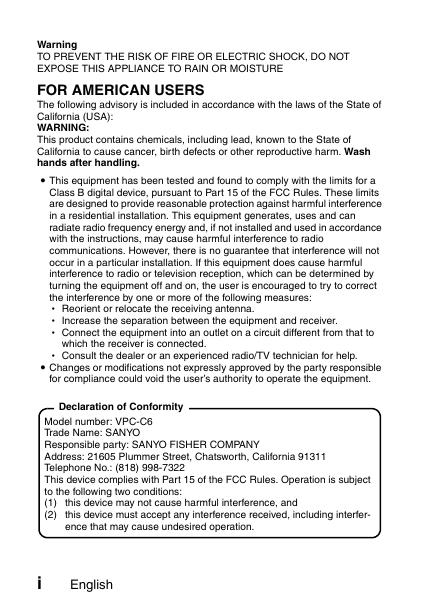

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE FOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Model number: VPC-C6 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. i English

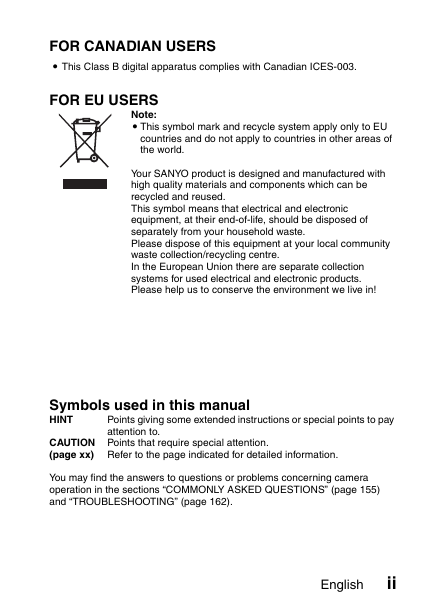

FOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. FOR EU USERS Note: iThis symbol mark and recycle system apply only to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in! Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 155) and “TROUBLESHOOTING” (page 162). English ii

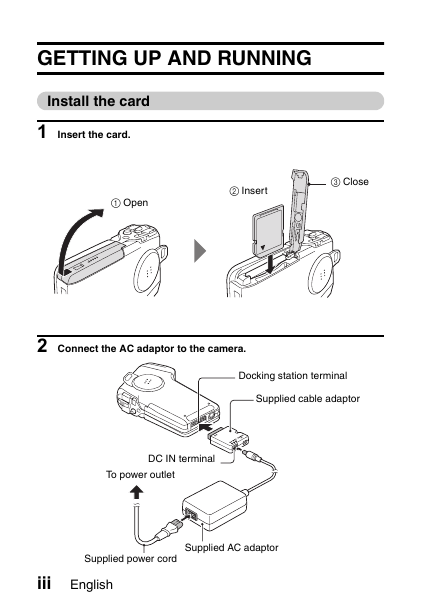

GETTING UP AND RUNNING Install the card 1 Insert the card. 1 Open 2 Insert 3 Close 2 Connect the AC adaptor to the camera. Docking station terminal Supplied cable adaptor DC IN terminal To power outlet Supplied power cord Supplied AC adaptor iii English

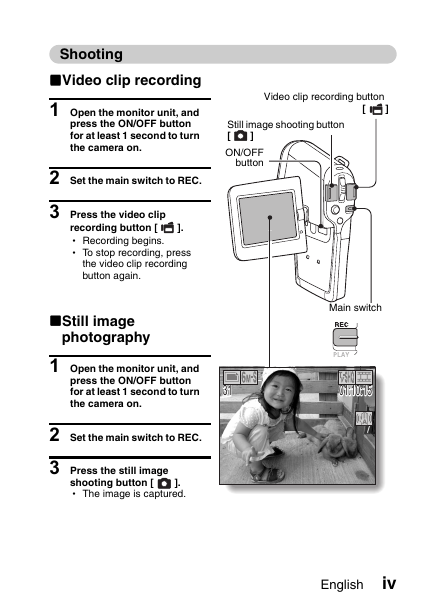

Shooting kkkkVideo clip recording 1 Open the monitor unit, and press the ON/OFF button for at least 1 second to turn the camera on. 2 Set the main switch to REC. 3 Press the video clip ]. recording button [ h Recording begins. h To stop recording, press the video clip recording button again. kkkkStill image photography 1 Open the monitor unit, and press the ON/OFF button for at least 1 second to turn the camera on. 2 Set the main switch to REC. 3 Press the still image shooting button [ ]. h The image is captured. Video clip recording button [ ] ] Still image shooting button [ ON/OFF button Main switch 313131 01:10:15 01:10:15 01:10:15 English iv

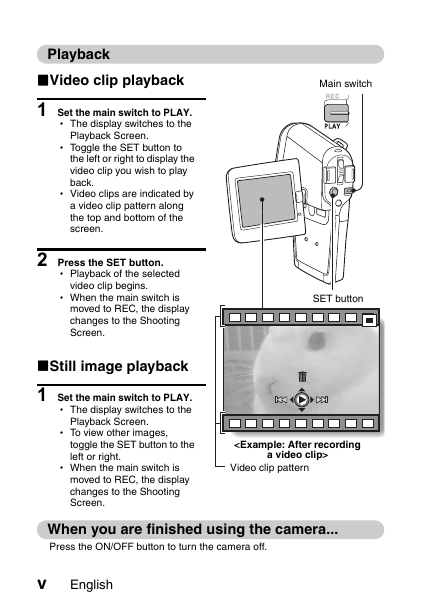

Playback kkkkVideo clip playback 1 Set the main switch to PLAY. h The display switches to the Playback Screen. h Toggle the SET button to the left or right to display the video clip you wish to play back. h Video clips are indicated by a video clip pattern along the top and bottom of the screen. 2 Press the SET button. h Playback of the selected video clip begins. h When the main switch is moved to REC, the display changes to the Shooting Screen. kkkkStill image playback 1 Set the main switch to PLAY. h The display switches to the Playback Screen. h To view other images, toggle the SET button to the left or right. h When the main switch is moved to REC, the display changes to the Shooting Screen. Main switch SET button Video clip pattern When you are finished using the camera... Press the ON/OFF button to turn the camera off. v English

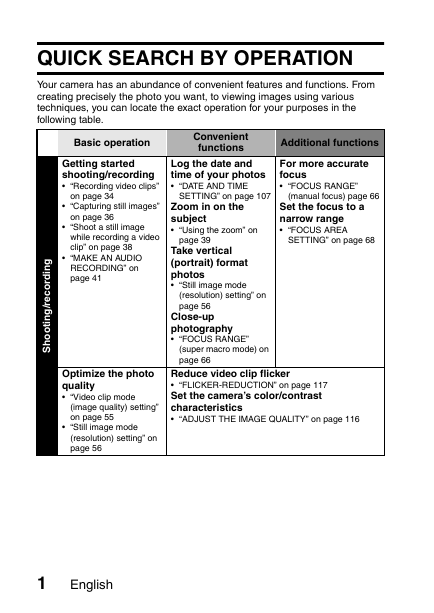

QUICK SEARCH BY OPERATION Your camera has an abundance of convenient features and functions. From creating precisely the photo you want, to viewing images using various techniques, you can locate the exact operation for your purposes in the following table. Additional functions For more accurate focus “FOCUS RANGE” (manual focus) page 66 Set the focus to a narrow range “FOCUS AREA SETTING” on page 68 Basic operation Convenient functions Getting started shooting/recording “Recording video clips” Log the date and time of your photos “DATE AND TIME on page 34 “Capturing still images” on page 36 “Shoot a still image while recording a video clip” on page 38 “MAKE AN AUDIO RECORDING” on page 41 i g n d r o c e r / g n i t o o h S SETTING” on page 107 Zoom in on the subject “Using the zoom” on page 39 Take vertical (portrait) format photos “Still image mode (resolution) setting” on page 56 Close-up photography “FOCUS RANGE” (super macro mode) on page 66 Optimize the photo quality “Video clip mode (image quality) setting” on page 55 “Still image mode (resolution) setting” on page 56 Reduce video clip flicker “FLICKER-REDUCTION” on page 117 Set the camera’s color/contrast characteristics “ADJUST THE IMAGE QUALITY” on page 116 1 English

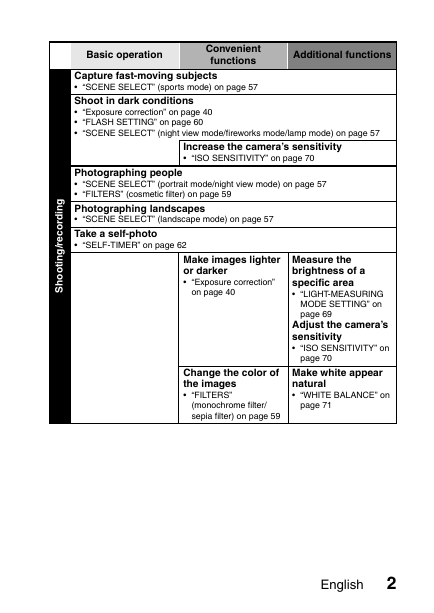

Basic operation Convenient functions Additional functions Capture fast-moving subjects “SCENE SELECT” (sports mode) on page 57 Shoot in dark conditions “Exposure correction” on page 40 “FLASH SETTING” on page 60 “SCENE SELECT” (night view mode/fireworks mode/lamp mode) on page 57 Increase the camera’s sensitivity “ISO SENSITIVITY” on page 70 Photographing people “SCENE SELECT” (portrait mode/night view mode) on page 57 “FILTERS” (cosmetic filter) on page 59 Photographing landscapes “SCENE SELECT” (landscape mode) on page 57 Take a self-photo “SELF-TIMER” on page 62 Make images lighter or darker “Exposure correction” on page 40 Change the color of the images “FILTERS” (monochrome filter/ sepia filter) on page 59 Measure the brightness of a specific area “LIGHT-MEASURING MODE SETTING” on page 69 Adjust the camera’s sensitivity “ISO SENSITIVITY” on page 70 Make white appear natural “WHITE BALANCE” on page 71 i g n d r o c e r / g n i t o o h S English 2
