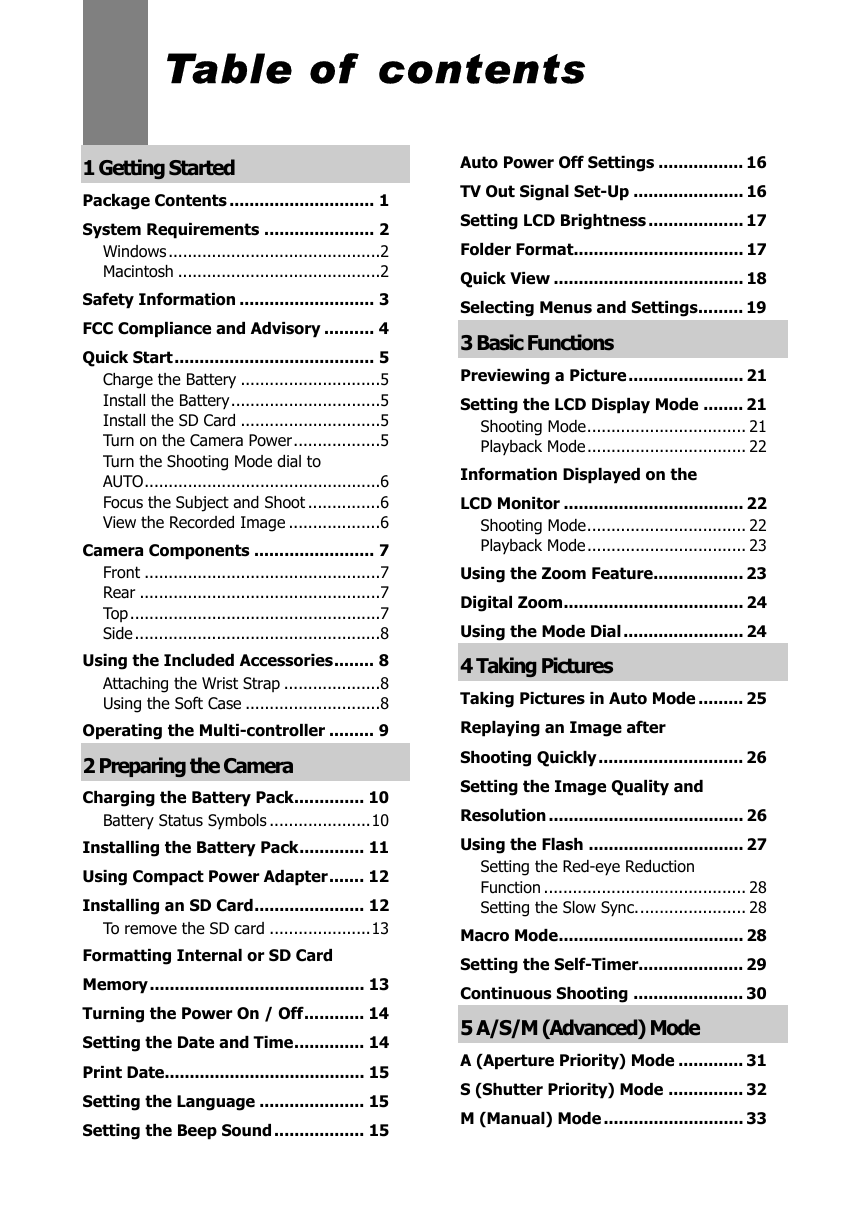

Table of contents
1 Getting Started
Package Contents ............................. 1
System Requirements ...................... 2
Windows............................................2
Macintosh ..........................................2
Safety Information ........................... 3
FCC Compliance and Advisory .......... 4
Quick Start........................................ 5
Charge the Battery .............................5
Install the Battery...............................5
Install the SD Card .............................5
Turn on the Camera Power..................5
Turn the Shooting Mode dial to
AUTO.................................................6
Focus the Subject and Shoot ...............6
View the Recorded Image ...................6
Camera Components ........................ 7
Front .................................................7
Rear ..................................................7
Top....................................................7
Side...................................................8
Using the Included Accessories........ 8
Attaching the Wrist Strap ....................8
Using the Soft Case ............................8
Operating the Multi-controller ......... 9
2 Preparing the Camera
Charging the Battery Pack.............. 10
Battery Status Symbols .....................10
Installing the Battery Pack............. 11
Using Compact Power Adapter....... 12
Installing an SD Card...................... 12
To remove the SD card .....................13
Formatting Internal or SD Card
Memory........................................... 13
Turning the Power On / Off............ 14
Setting the Date and Time.............. 14
Print Date........................................ 15
Setting the Language ..................... 15
Setting the Beep Sound .................. 15
Auto Power Off Settings ................. 16
TV Out Signal Set-Up ...................... 16
Setting LCD Brightness ................... 17
Folder Format.................................. 17
Quick View ...................................... 18
Selecting Menus and Settings......... 19
3 Basic Functions
Previewing a Picture....................... 21
Setting the LCD Display Mode ........ 21
Shooting Mode................................. 21
Playback Mode................................. 22
Information Displayed on the
LCD Monitor .................................... 22
Shooting Mode................................. 22
Playback Mode................................. 23
Using the Zoom Feature.................. 23
Digital Zoom.................................... 24
Using the Mode Dial........................ 24
4 Taking Pictures
Taking Pictures in Auto Mode ......... 25
Replaying an Image after
Shooting Quickly............................. 26
Setting the Image Quality and
Resolution ....................................... 26
Using the Flash ............................... 27
Setting the Red-eye Reduction
Function .......................................... 28
Setting the Slow Sync....................... 28
Macro Mode..................................... 28
Setting the Self-Timer..................... 29
Continuous Shooting ...................... 30
5 A/S/M (Advanced) Mode
A (Aperture Priority) Mode ............. 31
S (Shutter Priority) Mode ............... 32
M (Manual) Mode ............................ 33
Signal Mode .................................... 50
Downloading Images to a
Computer ........................................ 50
Downloading Directly from an SD
Card................................................ 51
Connecting the Camera to a
Computer with a USB Cable .............. 51
Understanding Camera Memory
and Storage..................................... 52
Internal Memory .............................. 52
Optional SD Memory Card................. 52
DCF Protocol.................................... 52
9 Installing Software
Install the Software Driver ............. 53
Installing Roxio PhotoSuite 5.0
SE .................................................... 54
Using the Roxio PhotoSuite 5.0
SE .................................................... 57
10 Appendix
Troubleshooting.............................. 58
Specifications.................................. 59
Quick Switching in A/S/M
(Advanced) Mode............................ 34
Adjusting the Exposure ---EV
adjustment ..................................... 34
Adjusting Color Tones ---Setting
the White Balance .......................... 35
Changing the ISO Speed................. 35
Movie Mode..................................... 36
Functions Available in Each
Camera Mode.................................. 38
6 Replaying Photo & Video Clips
Replaying Pictures.......................... 39
Magnifying Images......................... 39
Viewing Pictures in Thumbnail
Mode ............................................... 40
Erasing Files From Memory ............ 40
Erasing Images Individually...............40
Erasing All Unprotected Images.........41
Protecting Photos and Video
Clips ................................................ 42
Playing a Slide Show (Auto Play) ... 42
Adjusting the Play Time and
Repeat Settings ................................43
Copying Flash Memory Images
to a Memory Card ........................... 44
7 File Names & Printing
About File and Folder Numbers ...... 45
Folder File Capacity...........................45
File Number Reset .......................... 46
DPOF Print Settings ........................ 47
Selecting Images for Printing.............47
Resetting the Print Settings ...............48
8 Making Connections
Viewing Images on a TV ................. 49
Selecting the Video Output

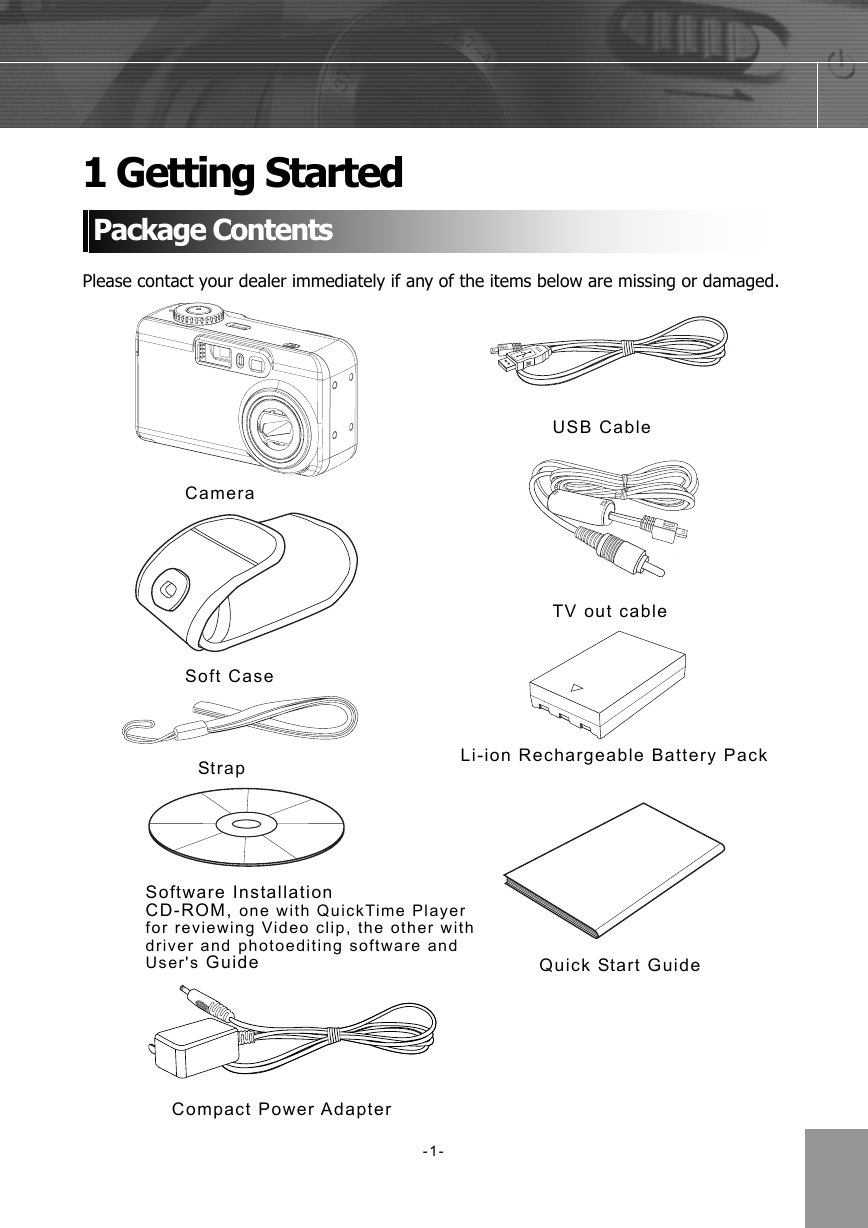

1 Getting Started
Package Contents
USB Cable
TV out cable
Camera
Soft Case
Strap
Please contact your dealer immediately if any of the items below are missing or damaged.
Software Installation
CD-ROM, one with QuickTime Player
for reviewing Video clip, the other with
driver and photoediting software and
User's Guide
Li-ion Rechargeable Battery Pack
Compact Power Adapter
Quick Start Guide
-1-

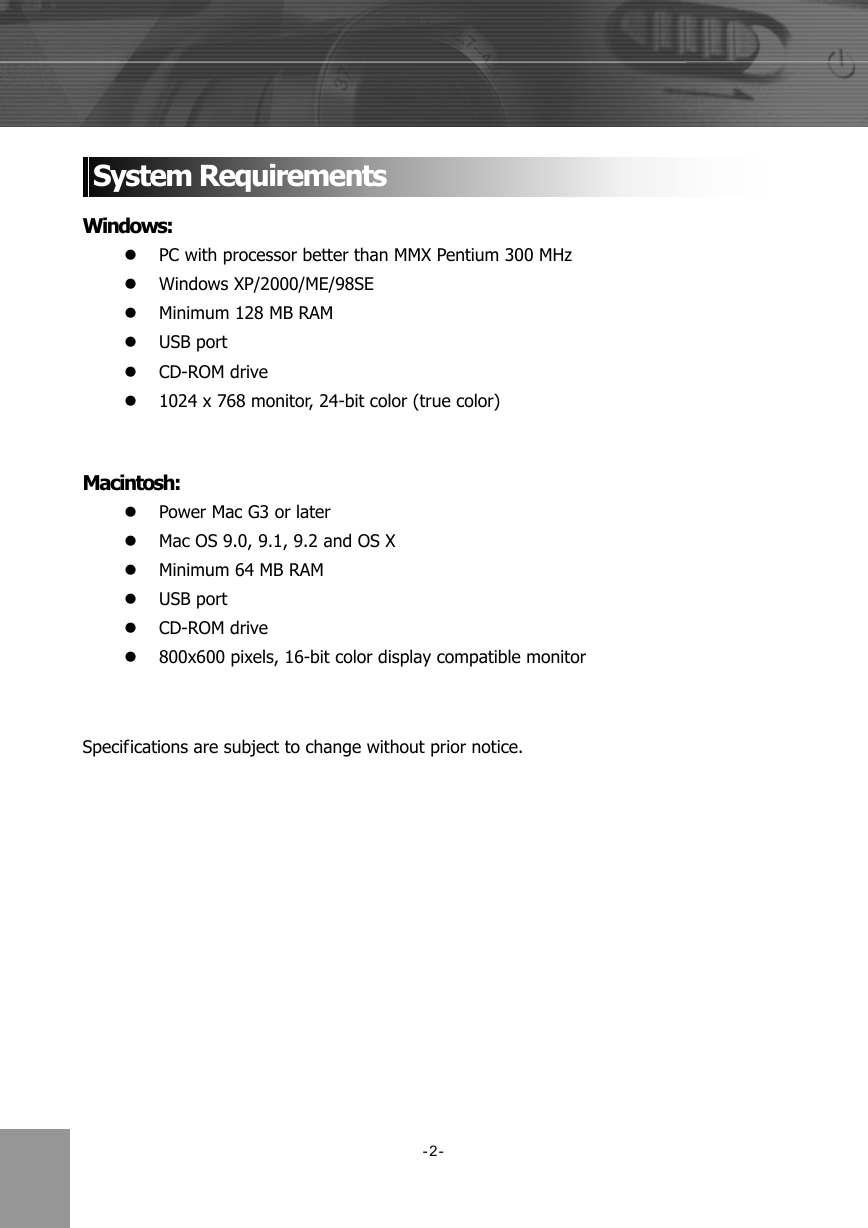

System Requirements
Windows:
PC with processor better than MMX Pentium 300 MHz
Windows XP/2000/ME/98SE
Minimum 128 MB RAM
USB port
CD-ROM drive
1024 x 768 monitor, 24-bit color (true color)
Macintosh:
Power Mac G3 or later
Mac OS 9.0, 9.1, 9.2 and OS X
Minimum 64 MB RAM
USB port
CD-ROM drive
800x600 pixels, 16-bit color display compatible monitor
Specifications are subject to change without prior notice.
-2-
Safety Information
Before using the camera, please ensure that you read and understand the safety
precautions described below. Always ensure that the camera is operated correctly.
Do not aim the camera directly into the sun or other intense light sources which could
damage your eyesight.
Do not try to open the case of the camera or attempt to modify this camera in any
way. High-voltage internal components create the risk of electric shock when exposed.
Maintenance and repairs should be carried out only by authorized service providers.
Do not fire the flash too close to the eyes of animals or people, especially for young
children. Eye damage may result. In particular, remain at least one meter away from
infants when using flash.
Keep the camera away from water and other liquids. Do not use the camera with wet
hands. Never use the camera in the rain or snow. Moisture creates the danger of fire
and electric shock.
Keep the camera and its accessories out of the reach of children and animals to
prevent accidents or damage to the camera.
If you notice smoke or a strange odor coming from the camera, turn the power off
immediately and unplug the AC adapter from the po let. Take the camera to the
nearest authorized service center for repair. Never attempt wer out to repair the
camera on your own.
Use only the recommended power accessories. Use of power sources not expressly
recommended for this equipment may lead to overheating, distortion of the
equipment, fire, electrical shock or other hazards.
Disconnect the compact power adapter from both the camera and power outlet after
recharging and when the camera is not in use to avoid fires and other hazards.
The compact power adapter of the camera is designed for exclusive use with this camera.
Do not use it with other products. There is a risk of fire and other hazards.
-3-

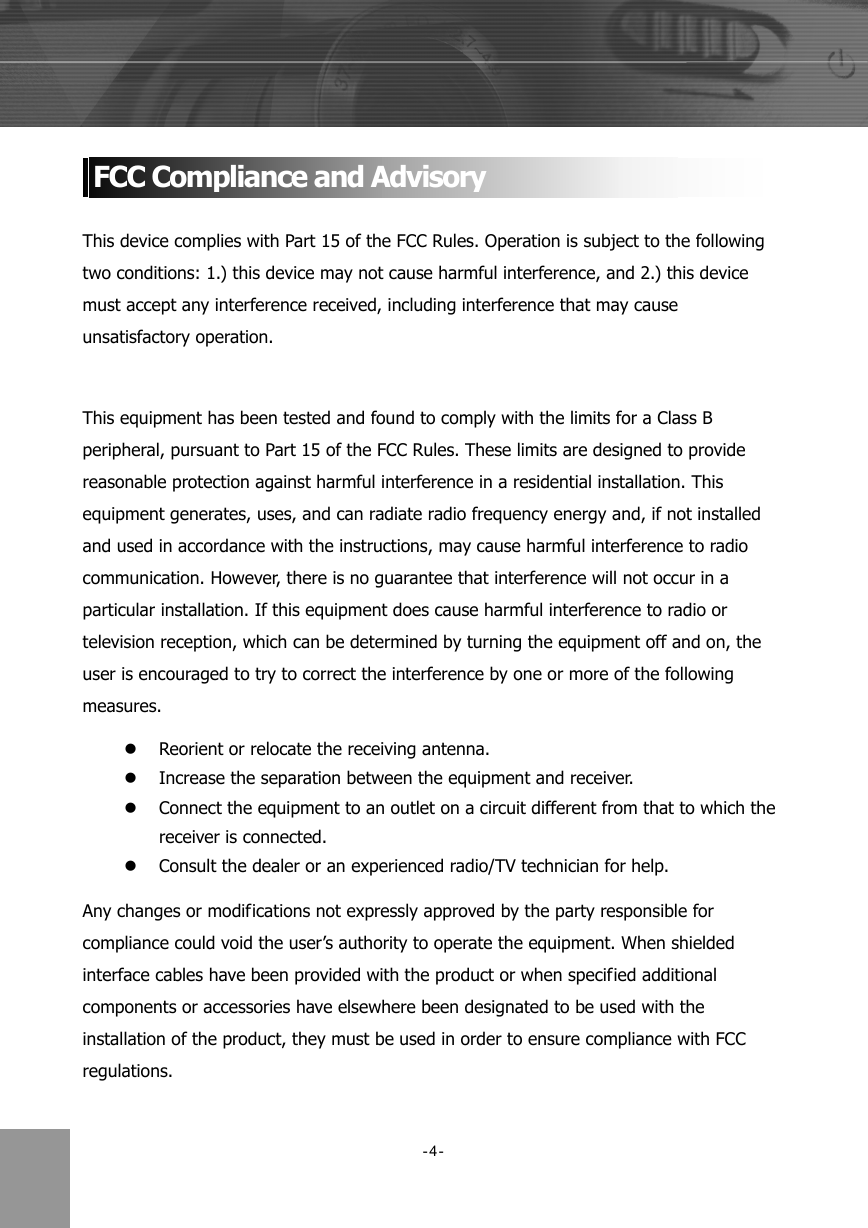

FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: 1.) this device may not cause harmful interference, and 2.) this device
must accept any interference received, including interference that may cause
unsatisfactory operation.
This equipment has been tested and found to comply with the limits for a Class B
peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. When shielded
interface cables have been provided with the product or when specified additional
components or accessories have elsewhere been designated to be used with the
installation of the product, they must be used in order to ensure compliance with FCC
regulations.
-4-
Quick Start
1. Charge the Battery (p. 10).
Put battery inside the camera body and plug
the compact power adapter then a green-light
indicator is on, that means charging is on the
way.
2. Install the Battery (p. 11).
Slide the battery cover in the direction of the
arrows. Insert the battery pack with the
positive (+) and negative (-) poles matching
the directions indicated inside the battery cover.
Slide the battery cover closed.
3. Install the SD Card (p. 12).
Turn off the camera. Slide the SD card
slot/battery cover in the direction of the arrow
to open the cover. The SD card slot is located
beneath the battery compartment. Insert the
SD card with the label facing up and the arrow
pointing in.
4. Turn on the Camera Power (p. 14).
Slide the power switch to right side and hold it
until the LCD indicator begins flashing green. It
takes about 2 seconds to power on the camera.
-5-
Power switch
5. Turn the Shooting Mode dial to AUTO (p. 25).
Turn the Mode dial to A mode.
6. Focus the Subject and Shoot (p. 25).
Aim the camera at the subject. Press the shutter
button down halfway. When the camera has
finished adjusting its settings, the auto focus
indicator will appear. Press the shutter button all
the way.
7. View the Recorded Image (p. 26).
The recorded image appears in the LCD monitor
for approximately 2 seconds.
Press
to view the captured photo.
6.0 MEGA PIXELS
To delete the file, press
Press
and
.
to select OK or Cancel, press OK
to confirm the choice.
Press
again, return to shooting mode.
-6-
