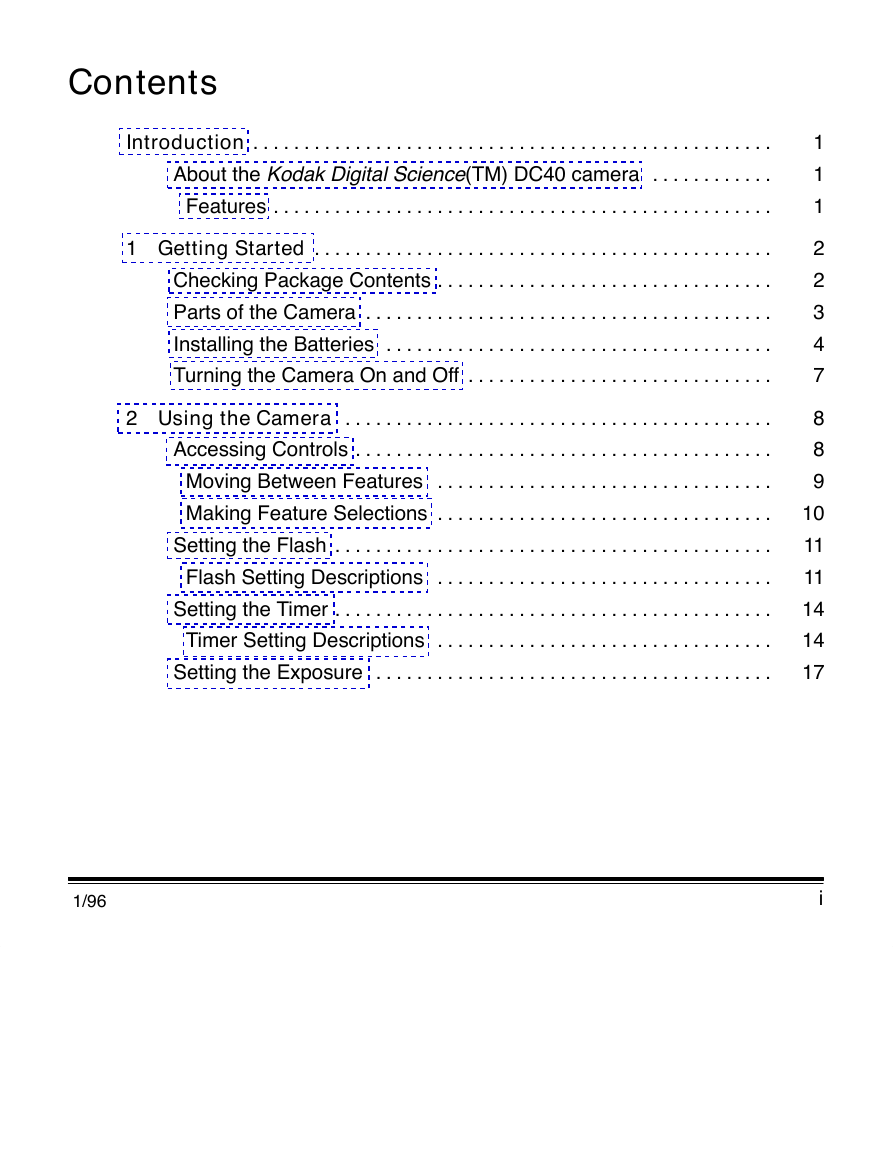

Contents

Introduction

About the Kodak Digital Science(TM) DC40 camera

Features

1 Getting Started

Checking Package Contents

Parts of the Camera

Installing the Batteries

Turning the Camera On and Off

2 Using the Camera

Accessing Controls

Moving Between Features

Making Feature Selections

Setting the Flash

Automatic Flash

Flash Off

Flash On

Setting the Timer

No Wait

Ten Seconds

Twenty Seconds

Setting the Exposure

Waking the Camera

Taking Pictures

Managing Pictures

Storing Pictures

Erasing Pictures

Erasing the Last Picture

Erasing All Pictures

3 Using Batteries

Battery Charge Level

Battery Safety Information

Improving Battery Performance

About NiCad Batteries

4 Using a Power Adapter

5 Connecting to a Computer

Connecting to a MACINTOSH Computer

Connecting to a Computer Running WINDOWS Software

6 Maintenance

General Guidelines

Cleaning the Lens

Cleaning the Light Sensors

Storing the Camera

7 Troubleshooting

Display Does Not Appear

Part of a Picture Is Missing

Picture Is Not Clear

Nothing Happens when Shutter Is Pressed

Flash Does Not Work

Picture Is Too Light

Picture Is Too Dark

Getting Help

Appendix A Camera Specifications

Technical

Size

Weight

Operating Environment

Power Sources

Power Consumption

Regulatory Information

FCC Compliance and Advisory Statement

Canadian DOC Statement

Index

Kodak Digital Science(TM) DC40 camera User’s Guide

Contents Introduction About the Kodak Digital Science(TM) DC40 camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Features 1 Getting Started Checking Package Contents Parts of the Camera Installing the Batteries Turning the Camera On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Using the Camera Accessing Controls Moving Between Features Making Feature Selections Setting the Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flash Setting Descriptions Setting the Timer Timer Setting Descriptions Setting the Exposure 1/96 1 1 1 2 2 3 4 7 8 8 9 10 11 11 14 14 17 i

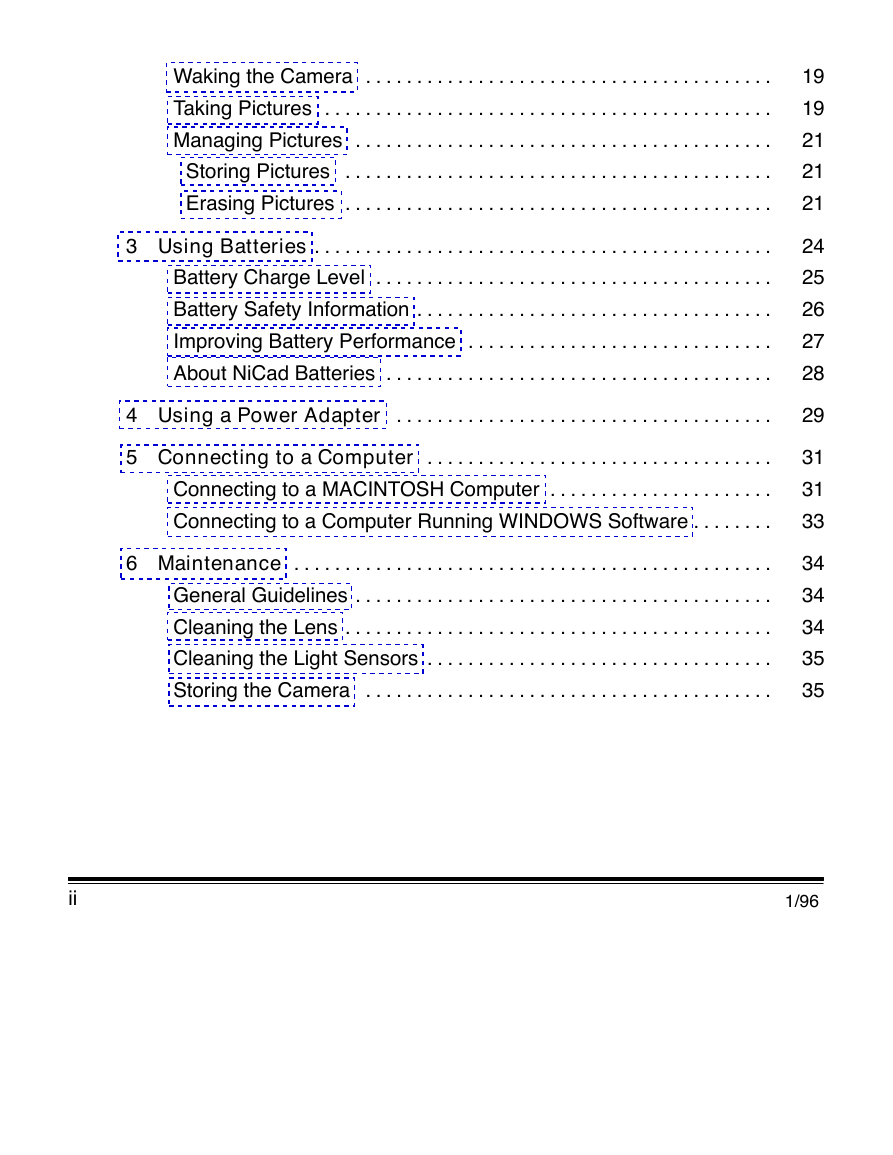

Waking the Camera Taking Pictures Managing Pictures Storing Pictures Erasing Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Using Batteries Battery Charge Level Battery Safety Information Improving Battery Performance About NiCad Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Using a Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Connecting to a Computer Connecting to a MACINTOSH Computer Connecting to a Computer Running WINDOWS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Maintenance General Guidelines Cleaning the Lens Cleaning the Light Sensors Storing the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 19 21 21 21 24 25 26 27 28 29 31 31 33 34 34 34 35 35 ii 1/96

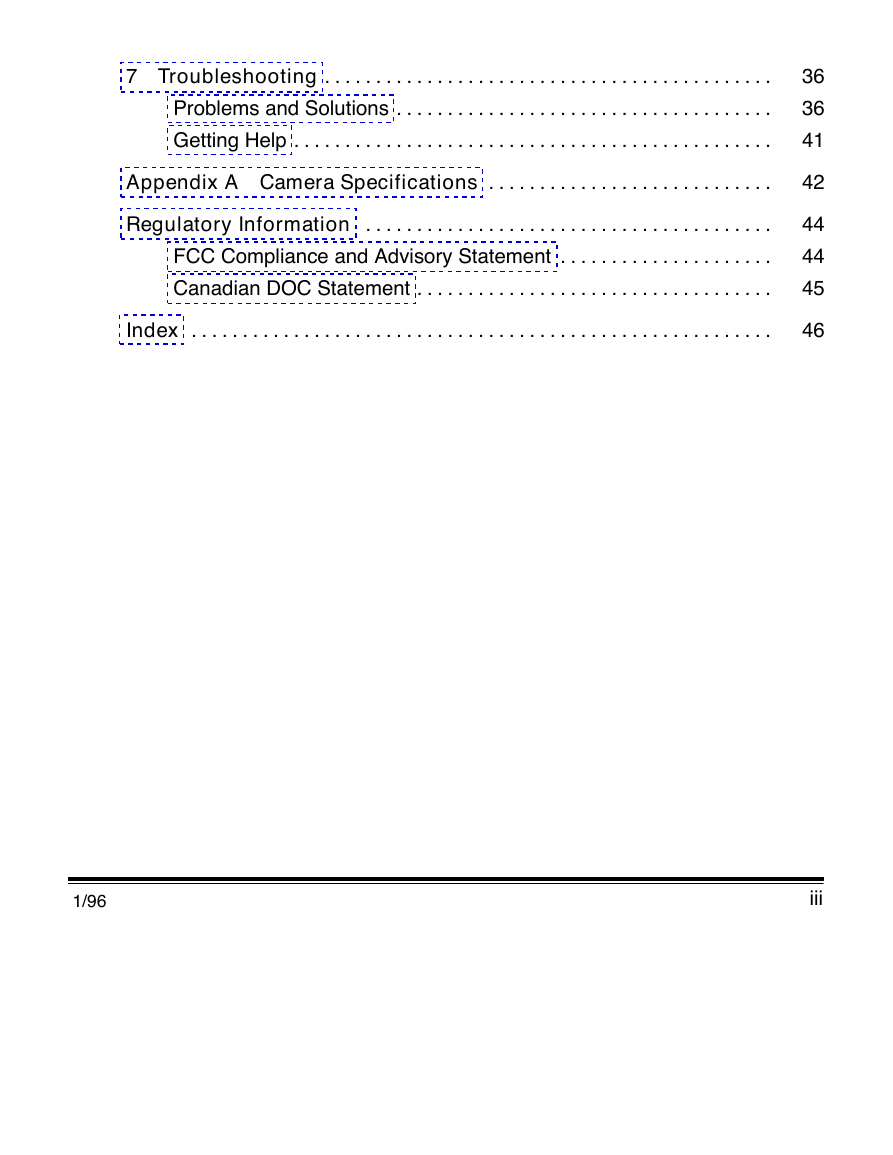

7 Troubleshooting Problems and Solutions Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix A Camera Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . Regulatory Information FCC Compliance and Advisory Statement Canadian DOC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/96 36 36 41 42 44 44 45 46 iii

Introduction About the Kodak Digital Science(TM) DC40 camera The Kodak Digital Science(TM) DC40 camera (DC40 camera) allows you to capture images and then quickly transfer the images to your computer so that you can save or manipulate them using image editing software. Features The DC40 camera is very easy to use and offers the following features: – flash settings – timer settings – exposure settings – energy saving “sleep” mode – built-in lens cover – your choice of battery or power adapter as power supply – battery use display – capability for accessory lens attachments – standard tripod mount January 1996 1

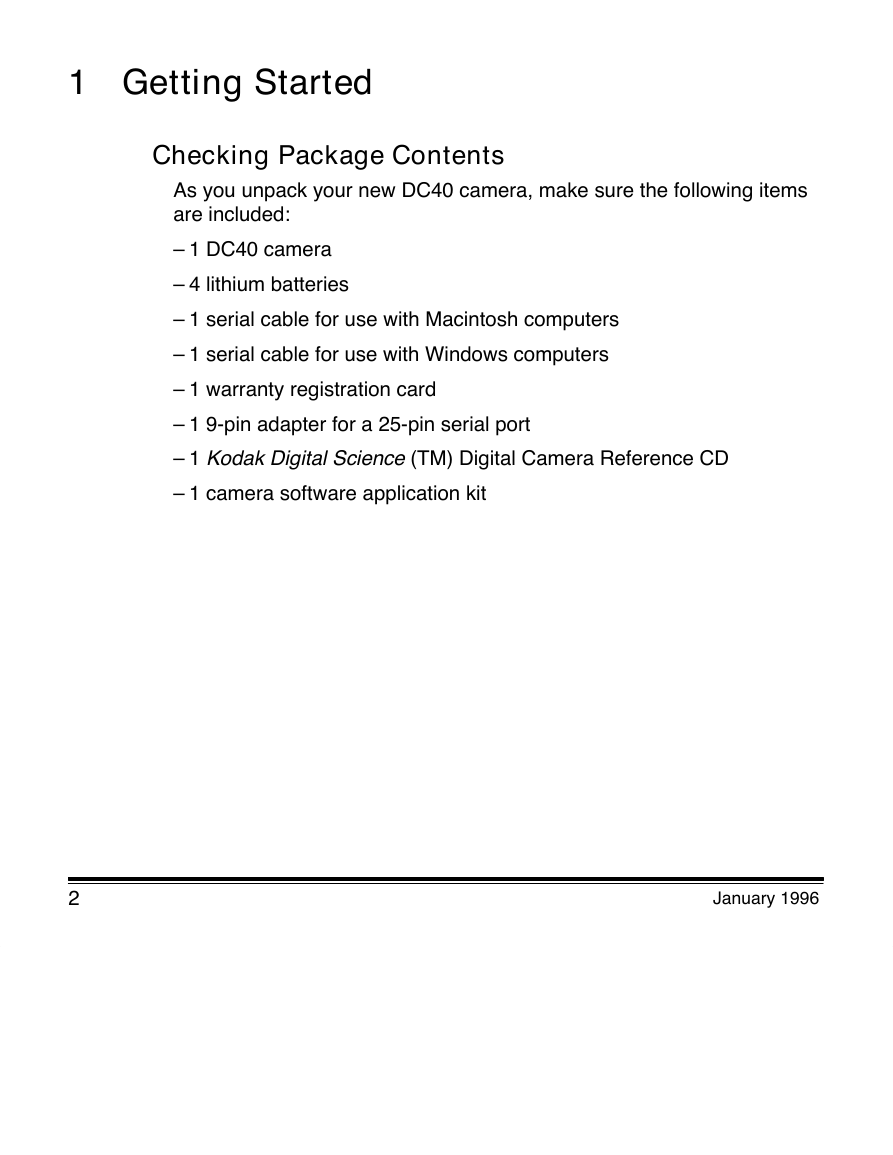

1 Getting Started Checking Package Contents As you unpack your new DC40 camera, make sure the following items are included: – 1 DC40 camera – 4 lithium batteries – 1 serial cable for use with Macintosh computers – 1 serial cable for use with Windows computers – 1 warranty registration card – 1 9-pin adapter for a 25-pin serial port – 1 Kodak Digital Science (TM) Digital Camera Reference CD – 1 camera software application kit 2 January 1996

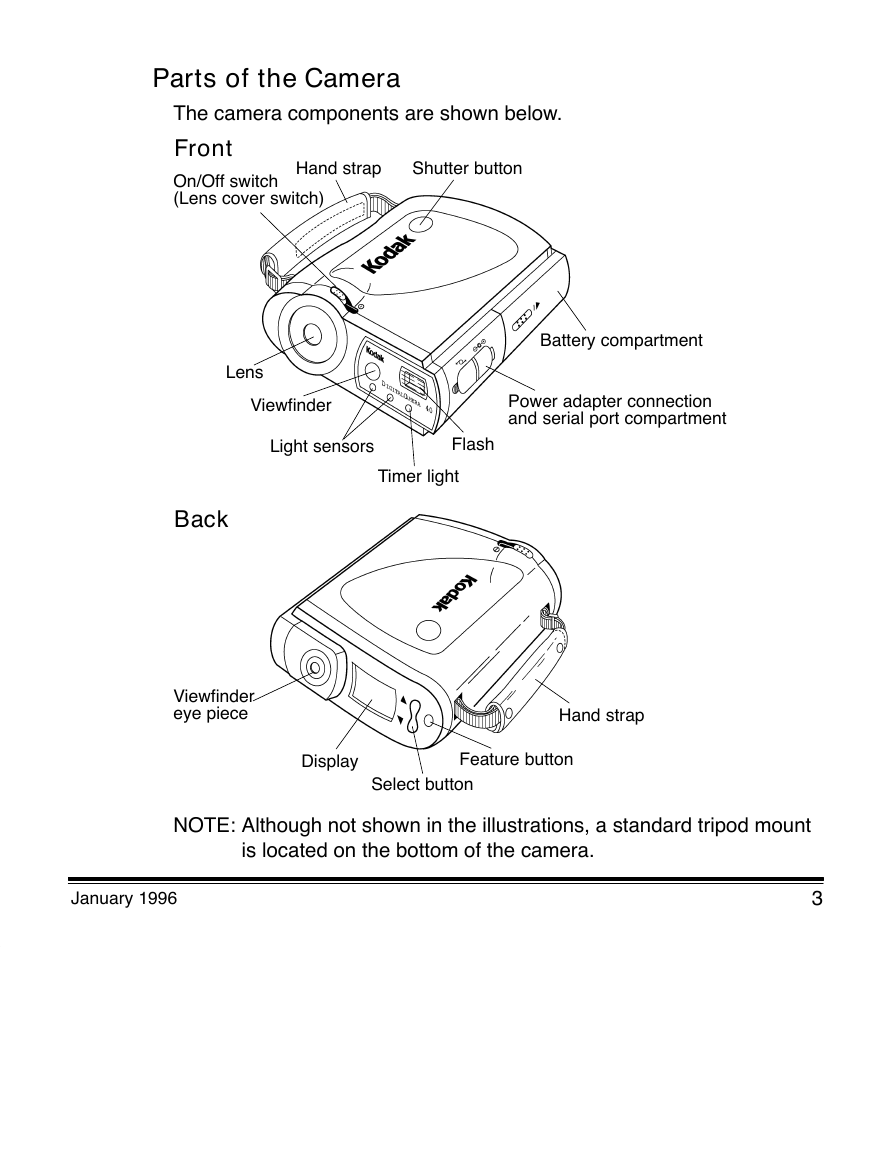

Parts of the Camera The camera components are shown below. Front On/Off switch (Lens cover switch) Shutter button Hand strap Lens Viewfinder Light sensors Flash Timer light Battery compartment Power adapter connection and serial port compartment Back Viewfinder eye piece Hand strap Display Feature button Select button NOTE: Although not shown in the illustrations, a standard tripod mount is located on the bottom of the camera. January 1996 3

Installing the Batteries Four lithium batteries come with your DC40 camera, however, you can also use rechargeable NiCad or AA alkaline batteries. This section describes how to install the batteries. Refer to Chapter 3, Using Batteries, for more information about battery use. WARNING: Mixing battery types in the camera may cause a fire or explosion. Install only batteries of the same type at one time. 1. Push firmly on the battery compartment cover in the direction of the arrow. The cover will slide along its track until it can be removed. 4 January 1996
