Contents

Features

Printer Tour

Printer Features

Available Configurations

Front View

Rear View

Printer Options and Supplies

Control Panel Layout

Error and Warning Messages

Menu Map

Information Pages

Sample Pages

Printer Drivers

Available Printer Drivers

Printer Driver Features

Remote Control Panel

Installing the Remote Control Panel

Changing Settings with the Remote Control Panel

Managing Your Printer

Printer’s IP Address

CentreWare Internet Services (IS)

Status Monitor

Printer Settings

Accessing Power Saver

Selecting Tray Settings

Changing Printer Language

Fonts

Resident PostScript Fonts

Resident PCL Fonts

Printing a List of Available Fonts

Registering Your Printer

Printing

Supported Paper

Basic Printing

Changing Paper Type and Size on the Control Panel

Adjusting Printing Options

Setting Printing Options

Using the Manual Feed Mode

Selecting the Bypass Tray 1 (MPT) Mode

2-Sided Printing

Automatic 2-Sided Printing

Manual 2-Sided Printing

Transparencies

Guidelines

Printing Transparencies from Tray 1 (MPT)

Envelopes

Guidelines

Preparing to Print

Printing Envelopes

Labels

Guidelines

Printing Labels

Custom Size Paper

Loading Custom Size Paper in Tray 1 (MPT)

Advanced Options

Printing Multiple Pages to a Single Sheet (N-Up)

Scaling

Printing Booklets

Printing Posters

Printing Negative and Mirror Images

Printing Watermarks

Printing Cover Pages

Supplies and Recycling

Supplies

Configuration Page

Recycling

Connections and Networks

Overview of Network Setup and Configuration

Choosing a Connection Method

Connecting via Ethernet

Connecting via USB

Connecting via Parallel Cable

Configuring the Network Address

TCP/IP and IP Addresses

Automatically Setting the Printer’s IP Address

Manually Setting the Printer’s IP Address

Installing the Printer Drivers

Windows 98 SE or Later and Windows 2000 or Later

Macintosh OS 9.x

Macintosh OS X Version 10.2 and Higher

Troubleshooting

Print-Quality Problems

Cleaning the Outside of the Printer

Control Panel Messages

LED Descriptions

Errors and Warnings

Moving and Repacking the Printer

Precautions for Moving the Printer

Moving the Printer Within the Office

Preparing the Printer for Shipment

Additional Resources

Support

Web Links

Appendices

A-User Safety

Electrical Safety

Laser Safety

Maintenance Safety

Operational Safety

Printing Safety Guidelines

Symbols Marked on the Product

B-Printer Specifications (English Only)

Physical Specifications

Environmental Specifications

Electrical Specifications

Performance Specifications

Controller Specifications

C-Regulatory Information (English Only)

United States (FCC Regulations)

Canada (Regulations)

European Union (Declaration of Conformity)

D-Material Safety Data Sheet (English Only)

E-Product Recycling and Disposal (English Only)

Index

Phaser™ 3500 Laser Printer i

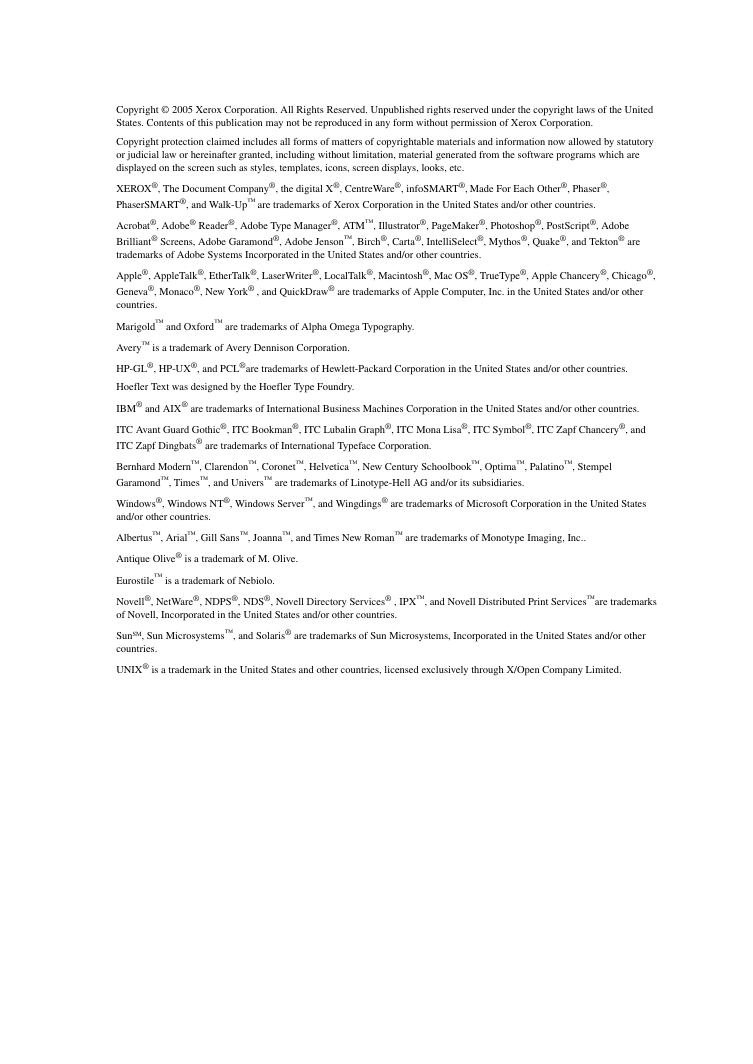

Copyright © 2005 Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation. Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc. XEROX®, The Document Company®, the digital X®, CentreWare®, infoSMART®, Made For Each Other®, Phaser®, PhaserSMART®, and Walk-Up™ are trademarks of Xerox Corporation in the United States and/or other countries. Acrobat®, Adobe® Reader®, Adobe Type Manager®, ATM™, Illustrator®, PageMaker®, Photoshop®, PostScript®, Adobe Brilliant® Screens, Adobe Garamond®, Adobe Jenson™, Birch®, Carta®, IntelliSelect®, Mythos®, Quake®, and Tekton® are trademarks of Adobe Systems Incorporated in the United States and/or other countries. Apple®, AppleTalk®, EtherTalk®, LaserWriter®, LocalTalk®, Macintosh®, Mac OS®, TrueType®, Apple Chancery®, Chicago®, Geneva®, Monaco®, New York® , and QuickDraw® are trademarks of Apple Computer, Inc. in the United States and/or other countries. Marigold™ and Oxford™ are trademarks of Alpha Omega Typography. Avery™ is a trademark of Avery Dennison Corporation. HP-GL®, HP-UX®, and PCL®are trademarks of Hewlett-Packard Corporation in the United States and/or other countries. Hoefler Text was designed by the Hoefler Type Foundry. IBM® and AIX® are trademarks of International Business Machines Corporation in the United States and/or other countries. ITC Avant Guard Gothic®, ITC Bookman®, ITC Lubalin Graph®, ITC Mona Lisa®, ITC Symbol®, ITC Zapf Chancery®, and ITC Zapf Dingbats® are trademarks of International Typeface Corporation. Bernhard Modern™, Clarendon™, Coronet™, Helvetica™, New Century Schoolbook™, Optima™, Palatino™, Stempel Garamond™, Times™, and Univers™ are trademarks of Linotype-Hell AG and/or its subsidiaries. Windows®, Windows NT®, Windows Server™, and Wingdings® are trademarks of Microsoft Corporation in the United States and/or other countries. Albertus™, Arial™, Gill Sans™, Joanna™, and Times New Roman™ are trademarks of Monotype Imaging, Inc.. Antique Olive® is a trademark of M. Olive. Eurostile™ is a trademark of Nebiolo. Novell®, NetWare®, NDPS®, NDS®, Novell Directory Services® , IPX™, and Novell Distributed Print Services™are trademarks of Novell, Incorporated in the United States and/or other countries. SunSM, Sun Microsystems™, and Solaris® are trademarks of Sun Microsystems, Incorporated in the United States and/or other countries. UNIX® is a trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

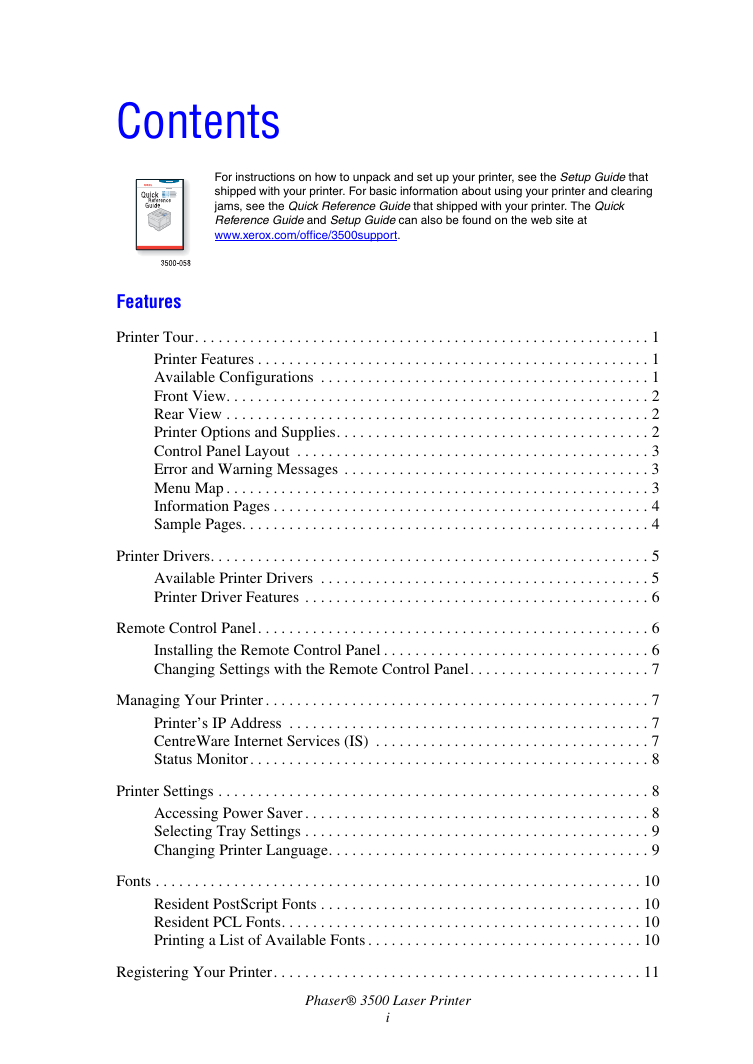

Contents EQ HS CD DR OS For instructions on how to unpack and set up your printer, see the Setup Guide that shipped with your printer. For basic information about using your printer and clearing jams, see the Quick Reference Guide that shipped with your printer. The Quick Reference Guide and Setup Guide can also be found on the web site at www.xerox.com/office/3500support. Features Printer Tour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Printer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Available Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Printer Options and Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Control Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Error and Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Information Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Sample Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Printer Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Available Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Printer Driver Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Remote Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing the Remote Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Changing Settings with the Remote Control Panel. . . . . . . . . . . . . . . . . . . . . . . 7 Managing Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CentreWare Internet Services (IS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Status Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Accessing Power Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Selecting Tray Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Changing Printer Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Resident PostScript Fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Resident PCL Fonts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Printing a List of Available Fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Registering Your Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Phaser® 3500 Laser Printer i

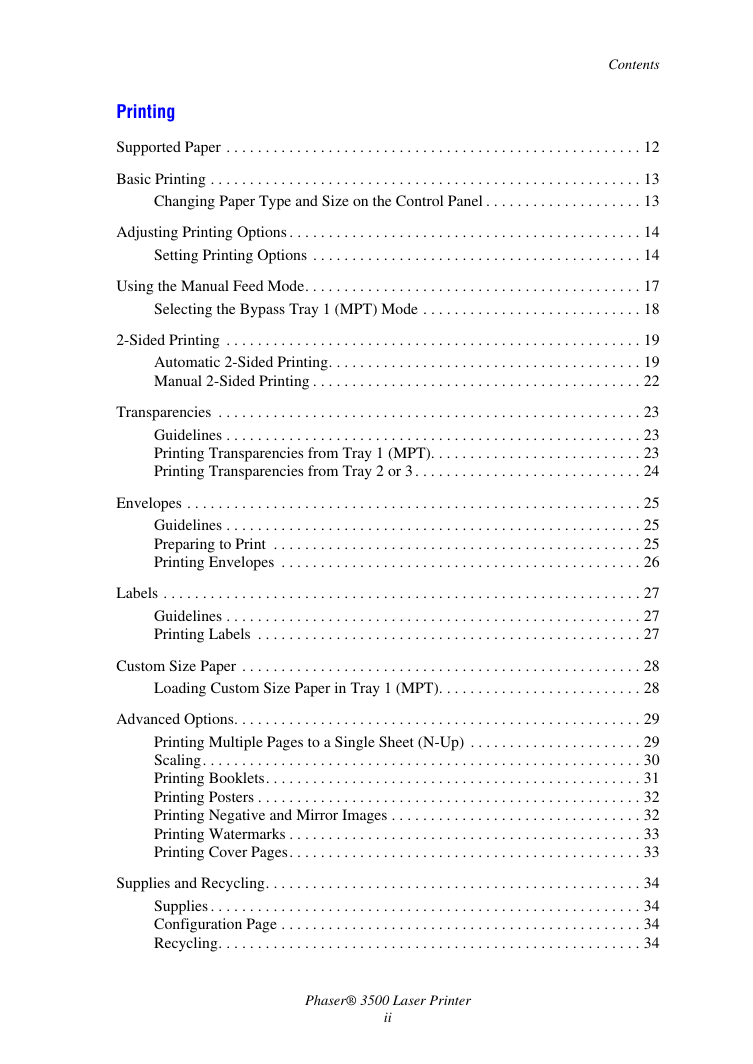

Contents Printing Supported Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Basic Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Changing Paper Type and Size on the Control Panel . . . . . . . . . . . . . . . . . . . . 13 Adjusting Printing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setting Printing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using the Manual Feed Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Selecting the Bypass Tray 1 (MPT) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2-Sided Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Automatic 2-Sided Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Manual 2-Sided Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Transparencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Printing Transparencies from Tray 1 (MPT). . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Printing Transparencies from Tray 2 or 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Preparing to Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Printing Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Printing Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Custom Size Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Loading Custom Size Paper in Tray 1 (MPT). . . . . . . . . . . . . . . . . . . . . . . . . . 28 Advanced Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Printing Multiple Pages to a Single Sheet (N-Up) . . . . . . . . . . . . . . . . . . . . . . 29 Scaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Printing Booklets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Printing Posters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Printing Negative and Mirror Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Printing Watermarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Printing Cover Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Supplies and Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Phaser® 3500 Laser Printer ii

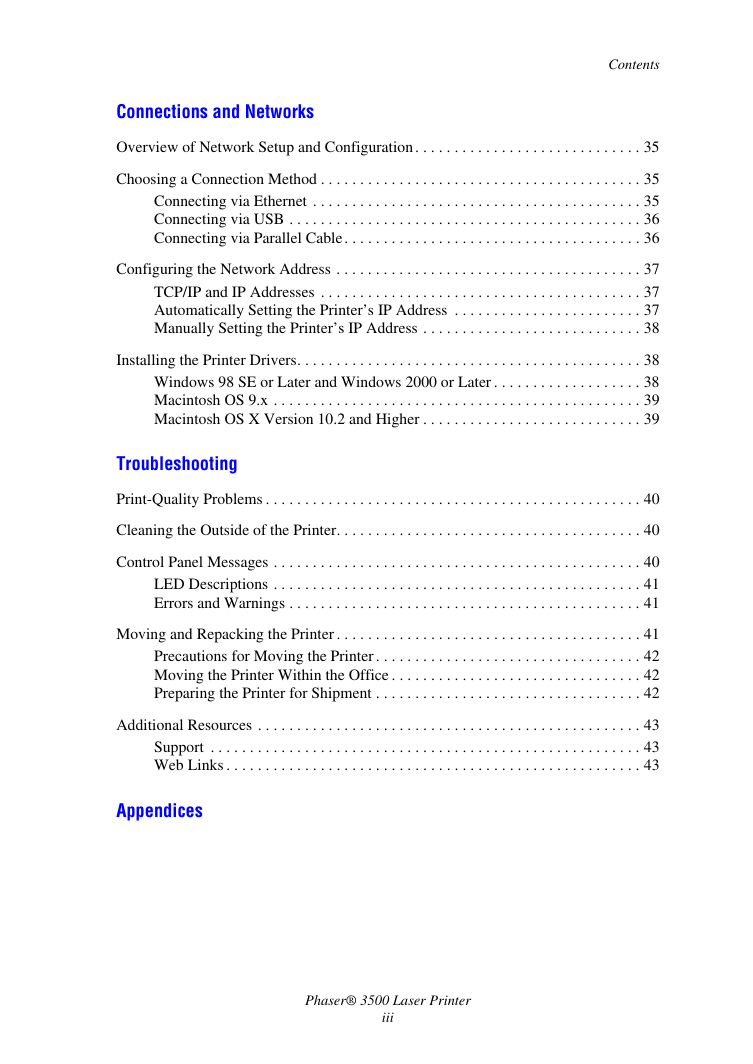

Contents Connections and Networks Overview of Network Setup and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Choosing a Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Connecting via Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Connecting via USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Connecting via Parallel Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Configuring the Network Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 TCP/IP and IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Automatically Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . 37 Manually Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Installing the Printer Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Windows 98 SE or Later and Windows 2000 or Later . . . . . . . . . . . . . . . . . . . 38 Macintosh OS 9.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Macintosh OS X Version 10.2 and Higher . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Troubleshooting Print-Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Cleaning the Outside of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Control Panel Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 LED Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Errors and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Moving and Repacking the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Precautions for Moving the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Moving the Printer Within the Office . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Preparing the Printer for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Web Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Appendices Phaser® 3500 Laser Printer iii

Printer Tour Features Printer Tour Printer Features The Phaser 3500 Laser Printer embodies a multitude of features to meet your printing needs: Great performance and superior print quality Letter: 35 pages per minute (ppm) with 1200 x 1200 dpi image quality A4: 33 ppm with 1200 x 1200 dpi image quality Up to 288 MB RAM memory Flexible paper handling Optional 500-Sheet Feeder (including tray) 2-sided printing with Phaser 3500DN configuration to automatically print on both sides. If you use Phaser 3500B and Phaser 3500N configurations, you can print on both sides when you install an optional duplex unit. A wide variety of productivity features Easy to replace print cartridge CentreWare IS printer management software helps manage, configure, and troubleshoot the printer from your computer. Status Monitor provides on-screen notification and troubleshooting information. Available Configurations The Phaser 3500 Laser Printer is available in three configurations: Features Printer Configuration Maximum Print Speed (pages per minute) Memory (Standard) Up to 288 MB Optional 3500B 35 ppm 32 MB 3500N 35 ppm 32 MB 3500DN 35 ppm 32 MB PostScript and PCL Fonts Yes Yes Yes Default Resolutions (dpi) 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 500-Sheet Feeder Network Interface Automatic 2-Sided Printing (Duplex) Optional Optional Optional Optional Standard Optional Optional Standard Standard Phaser® 3500 Laser Printer 1

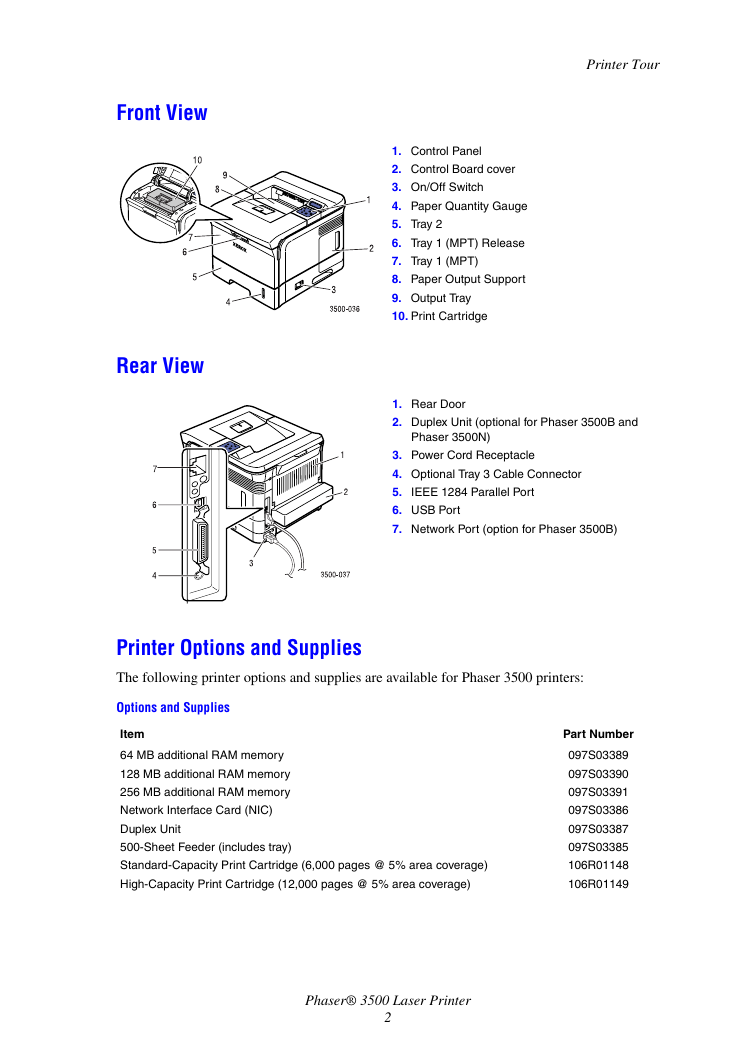

Front View Rear View Printer Tour 1. Control Panel 2. Control Board cover 3. On/Off Switch 4. Paper Quantity Gauge 5. Tray 2 6. Tray 1 (MPT) Release 7. Tray 1 (MPT) 8. Paper Output Support 9. Output Tray 10. Print Cartridge 1. Rear Door 2. Duplex Unit (optional for Phaser 3500B and Phaser 3500N) 3. Power Cord Receptacle 4. Optional Tray 3 Cable Connector 5. 6. USB Port 7. Network Port (option for Phaser 3500B) IEEE 1284 Parallel Port Printer Options and Supplies The following printer options and supplies are available for Phaser 3500 printers: Options and Supplies Item 64 MB additional RAM memory 128 MB additional RAM memory 256 MB additional RAM memory Network Interface Card (NIC) Duplex Unit 500-Sheet Feeder (includes tray) Standard-Capacity Print Cartridge (6,000 pages @ 5% area coverage) High-Capacity Print Cartridge (12,000 pages @ 5% area coverage) Part Number 097S03389 097S03390 097S03391 097S03386 097S03387 097S03385 106R01148 106R01149 Phaser® 3500 Laser Printer 2

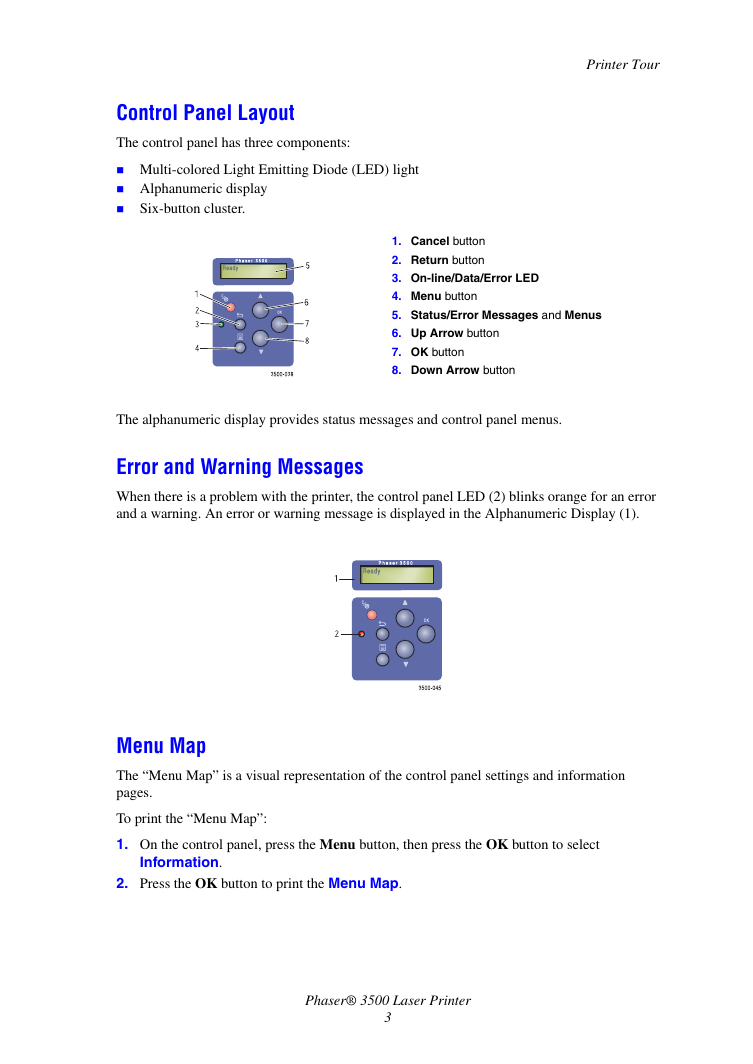

Printer Tour Control Panel Layout The control panel has three components: Multi-colored Light Emitting Diode (LED) light Alphanumeric display Six-button cluster. 1. Cancel button 2. Return button 3. On-line/Data/Error LED 4. Menu button 5. Status/Error Messages and Menus 6. Up Arrow button 7. OK button 8. Down Arrow button The alphanumeric display provides status messages and control panel menus. Error and Warning Messages When there is a problem with the printer, the control panel LED (2) blinks orange for an error and a warning. An error or warning message is displayed in the Alphanumeric Display (1). Menu Map The “Menu Map” is a visual representation of the control panel settings and information pages. To print the “Menu Map”: 1. On the control panel, press the Menu button, then press the OK button to select Information. 2. Press the OK button to print the Menu Map. Phaser® 3500 Laser Printer 3
