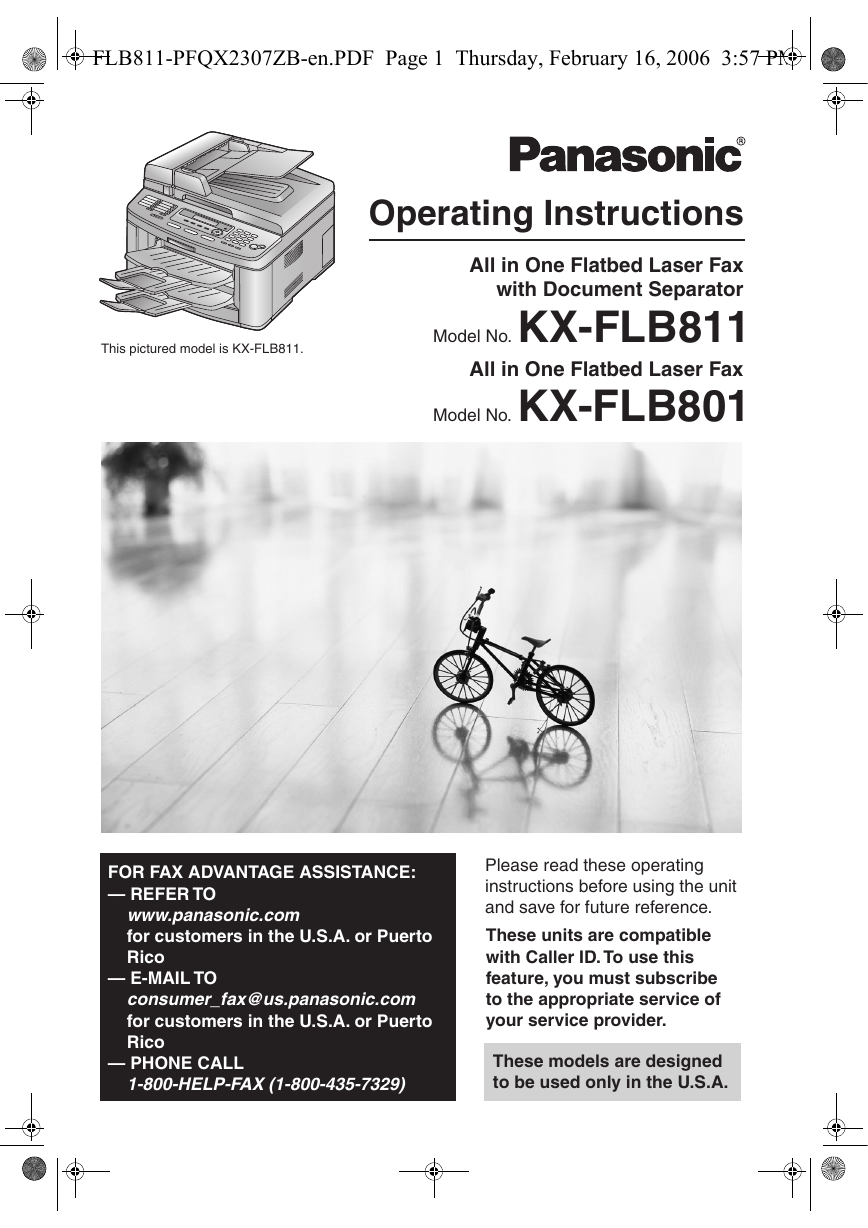

FLB811-PFQX2307ZB-en.PDF Page 1 Thursday, February 16, 2006 3:57 PM
This pictured model is KX-FLB811.
Operating Instructions
All in One Flatbed Laser Fax
with Document Separator
Model No. KX-FLB811
All in One Flatbed Laser Fax
Model No. KX-FLB801
FOR FAX ADVANTAGE ASSISTANCE:
— REFER TO
www.panasonic.com
for customers in the U.S.A. or Puerto
Rico
— E-MAIL TO
consumer_fax@us.panasonic.com
for customers in the U.S.A. or Puerto
Rico
— PHONE CALL
1-800-HELP-FAX (1-800-435-7329)
Please read these operating
instructions before using the unit
and save for future reference.
These units are compatible
with Caller ID. To use this
feature, you must subscribe
to the appropriate service of
your service provider.
These models are designed
to be used only in the U.S.A.
FLB811-PFQX2307ZB-en.book Page i Thursday, February 16, 2006 3:57 PM
Location of Controls

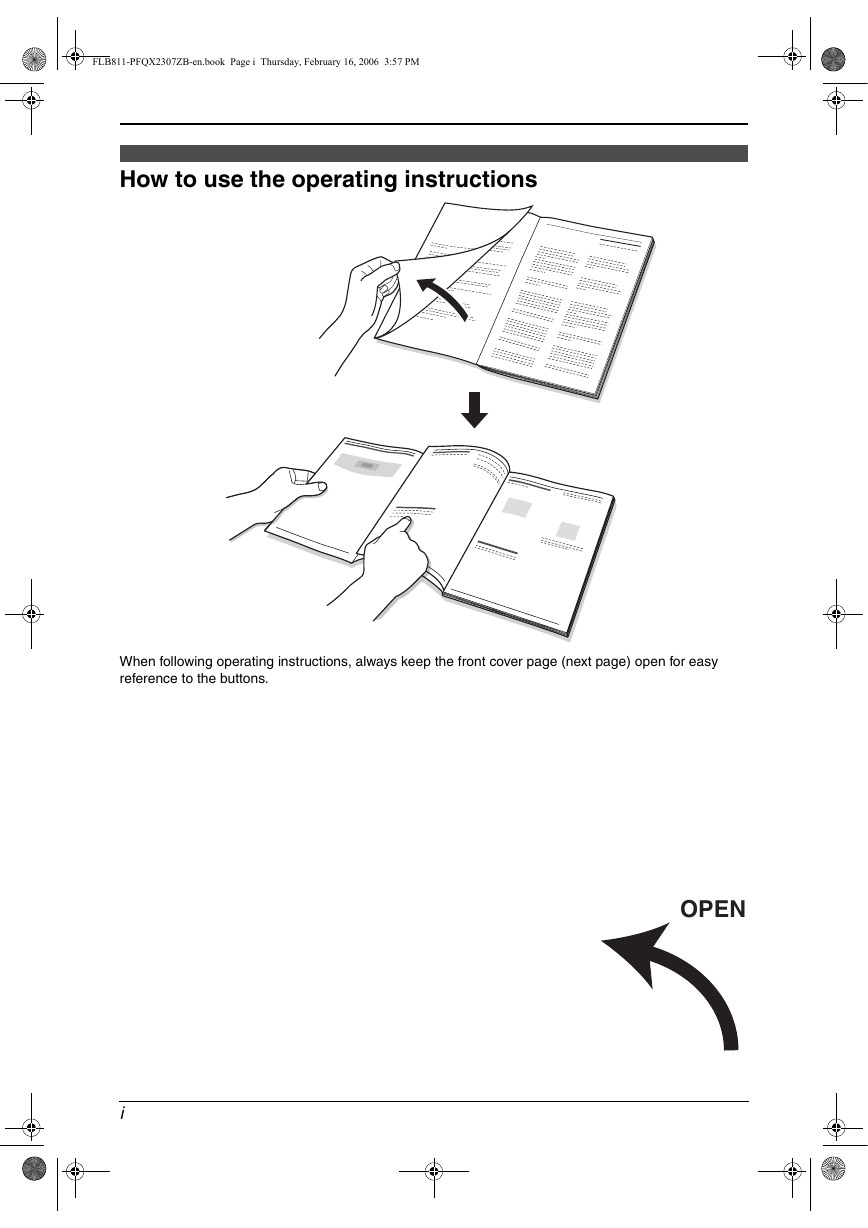

How to use the operating instructions
When following operating instructions, always keep the front cover page (next page) open for easy
reference to the buttons.
OPEN
i
FLB811-PFQX2307ZB-en.book Page ii Thursday, February 16, 2006 3:57 PM

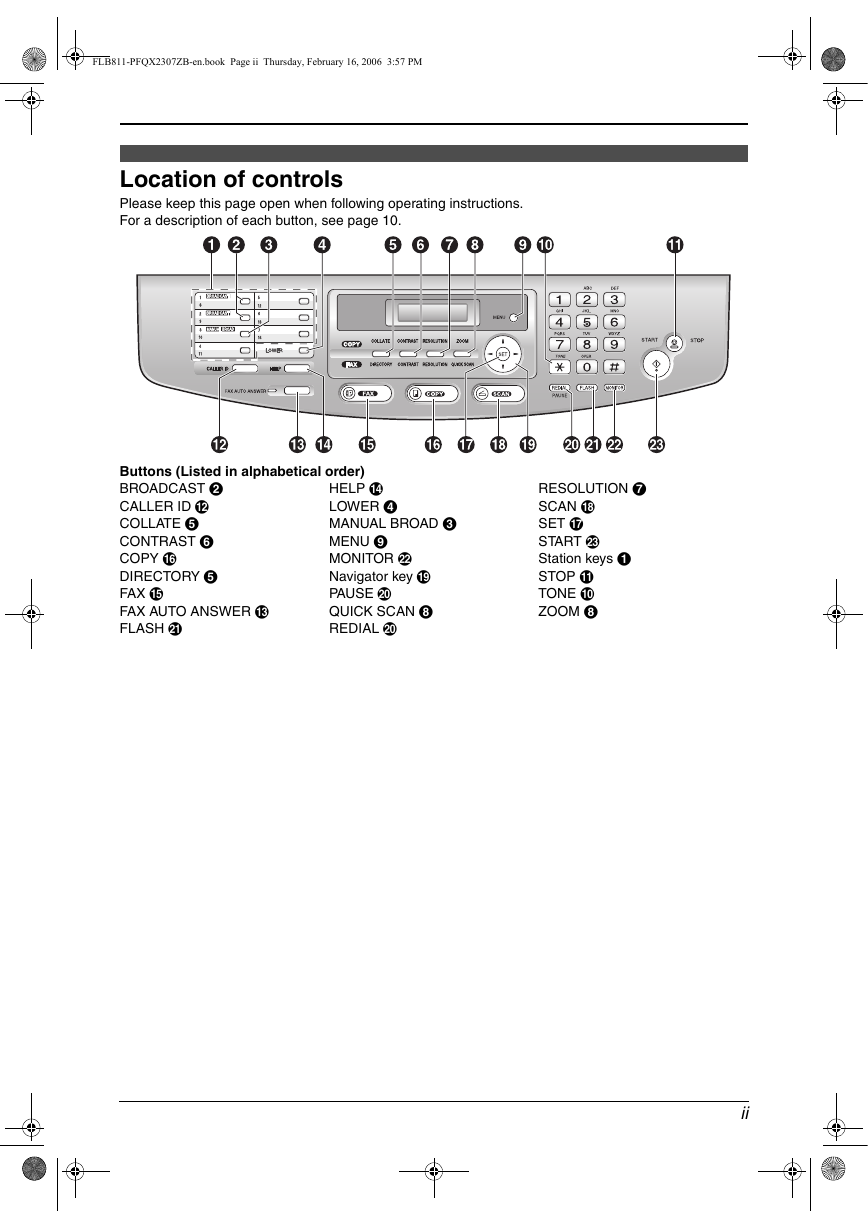

Location of controls
Please keep this page open when following operating instructions.
For a description of each button, see page 10.
Buttons (Listed in alphabetical order)
BROADCAST B
CALLER ID L
COLLATE E
CONTRAST F
COPY P
DIRECTORY E
FAX O
FAX AUTO ANSWER M
FLASH U
HELP N
LOWER D
MANUAL BROAD C
MENU I
MONITOR V
Navigator key S
PAUSE T
QUICK SCAN H
REDIAL T
RESOLUTION G
SCAN R
SET Q
START W
Station keys A
STOP K
TONE J
ZOOM H
ii
FLB811-PFQX2307ZB-en.book Page 2 Thursday, February 16, 2006 3:57 PM

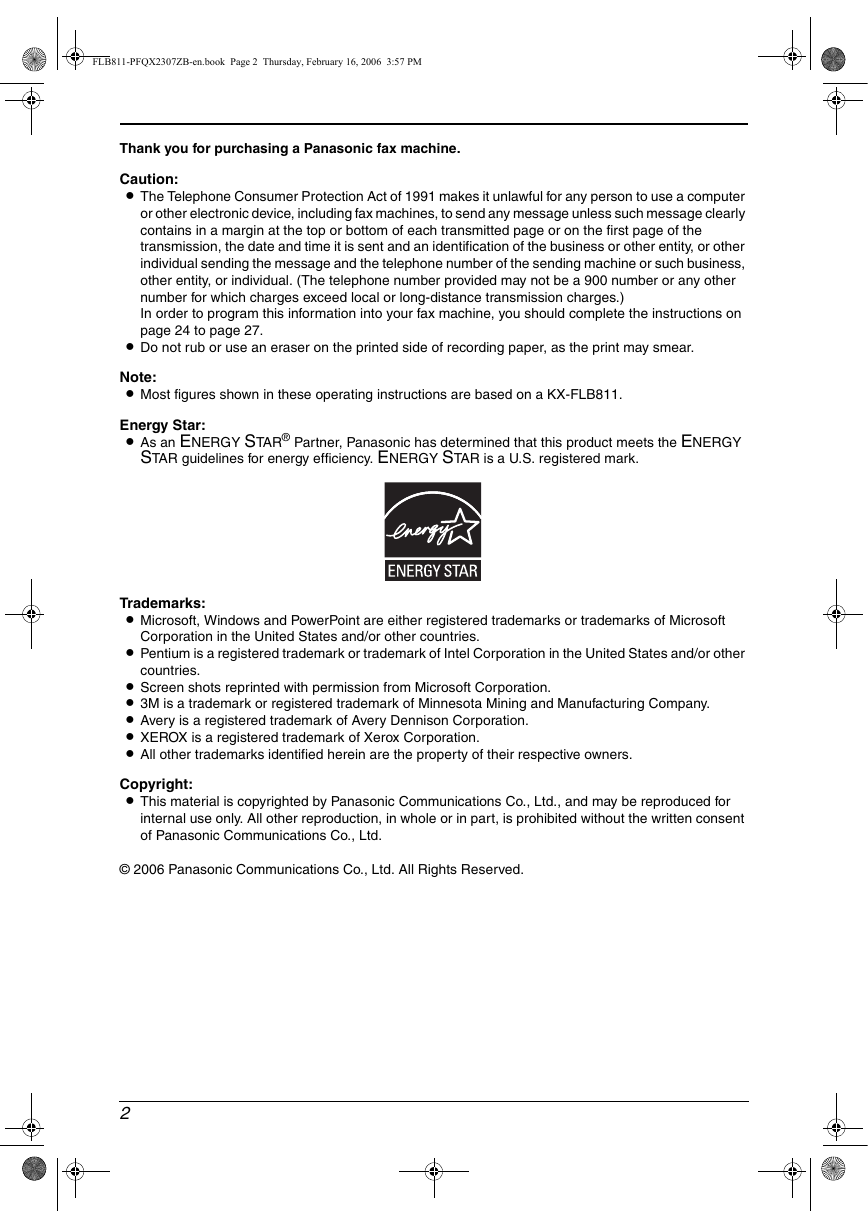

Thank you for purchasing a Panasonic fax machine.
Caution:
L The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer
or other electronic device, including fax machines, to send any message unless such message clearly
contains in a margin at the top or bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification of the business or other entity, or other
individual sending the message and the telephone number of the sending machine or such business,
other entity, or individual. (The telephone number provided may not be a 900 number or any other
number for which charges exceed local or long-distance transmission charges.)
In order to program this information into your fax machine, you should complete the instructions on
page 24 to page 27.
L Do not rub or use an eraser on the printed side of recording paper, as the print may smear.
Note:
L Most figures shown in these operating instructions are based on a KX-FLB811.
Energy Star:
L As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY
STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark.
Trademarks:
L Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
L Pentium is a registered trademark or trademark of Intel Corporation in the United States and/or other
countries.
L Screen shots reprinted with permission from Microsoft Corporation.
L 3M is a trademark or registered trademark of Minnesota Mining and Manufacturing Company.
L Avery is a registered trademark of Avery Dennison Corporation.
L XEROX is a registered trademark of Xerox Corporation.
L All other trademarks identified herein are the property of their respective owners.
Copyright:
L This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for
internal use only. All other reproduction, in whole or in part, is prohibited without the written consent
of Panasonic Communications Co., Ltd.
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
2
Important Information
C. If the unit has been exposed to rain or
D.
E.
F.
water.
If the unit does not work normally by
following the operating instructions.
Adjust only controls covered by the
operating instructions. Improper
adjustment may require extensive work
by an authorized service center.
If the unit has been dropped or physically
damaged.
If the unit exhibits a distinct change in
performance.
14.During thunderstorms, avoid using
telephones except cordless types. There may
be a remote risk of an electric shock from
lightning.
15.Do not use this unit to report a gas leak, when
in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
Installation
L After moving the unit from cold areas to
warmer areas, let the unit adjust to the
warmer temperature and do not connect the
unit for about 30 minutes. If the unit is
connected too soon after a sudden climate
change, condensation may form inside the
unit causing malfunction.
L Never install telephone wiring during a
lightning storm.
L Never install telephone jacks in wet locations
unless the jack is specifically designed for
wet locations.
L Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
L Use caution when installing or modifying
telephone lines.
L Do not touch the plug with wet hands.
FLB811-PFQX2307ZB-en.book Page 3 Thursday, February 16, 2006 3:57 PM
Important Information

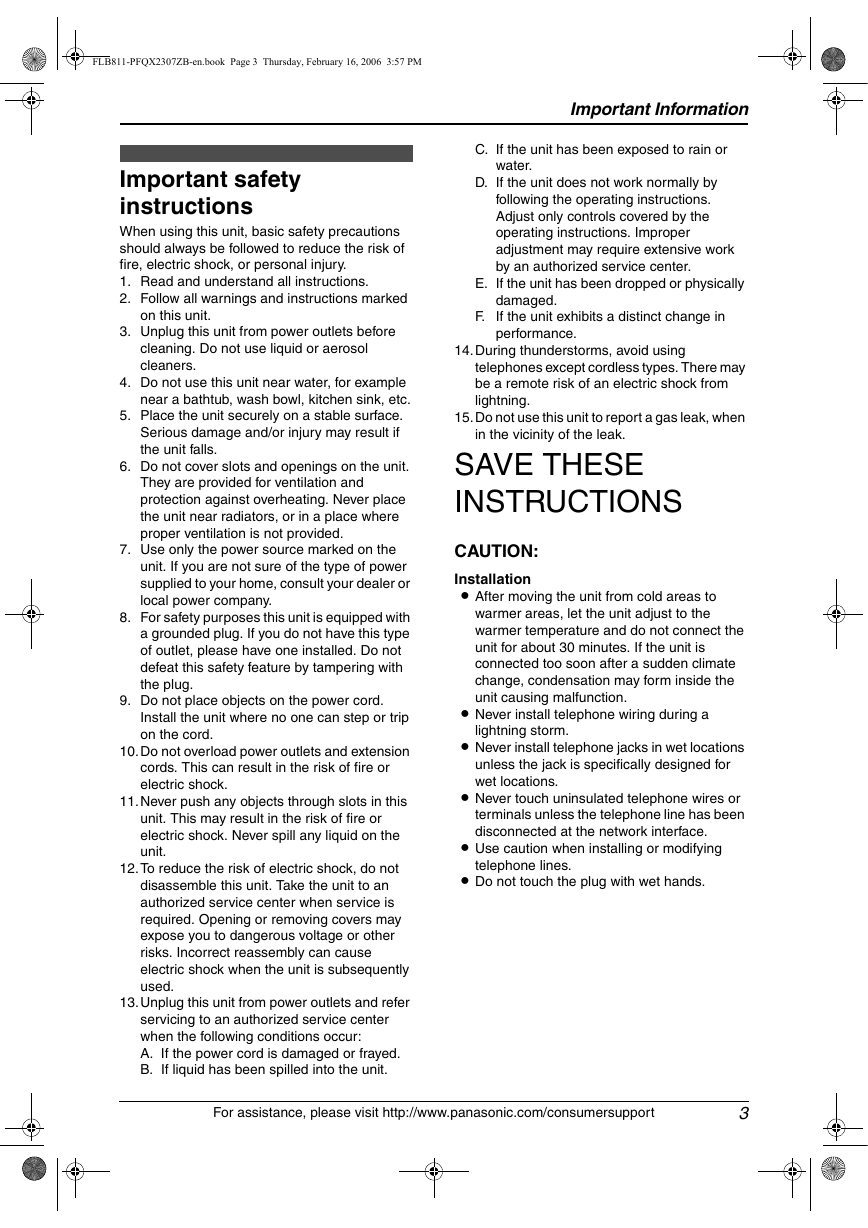

Safety Instructions
1For assistance, please visit http://www.panasonic.com/consumersupport
Important safety
instructions
When using this unit, basic safety precautions
should always be followed to reduce the risk of
fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked
on this unit.
3. Unplug this unit from power outlets before
cleaning. Do not use liquid or aerosol
cleaners.
4. Do not use this unit near water, for example
near a bathtub, wash bowl, kitchen sink, etc.
5. Place the unit securely on a stable surface.
Serious damage and/or injury may result if
the unit falls.
6. Do not cover slots and openings on the unit.
They are provided for ventilation and
protection against overheating. Never place
the unit near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on the
unit. If you are not sure of the type of power
supplied to your home, consult your dealer or
local power company.
8. For safety purposes this unit is equipped with
a grounded plug. If you do not have this type
of outlet, please have one installed. Do not
defeat this safety feature by tampering with
the plug.
9. Do not place objects on the power cord.
Install the unit where no one can step or trip
on the cord.
10.Do not overload power outlets and extension
cords. This can result in the risk of fire or
electric shock.
11.Never push any objects through slots in this
unit. This may result in the risk of fire or
electric shock. Never spill any liquid on the
unit.
12.To reduce the risk of electric shock, do not
disassemble this unit. Take the unit to an
authorized service center when service is
required. Opening or removing covers may
expose you to dangerous voltage or other
risks. Incorrect reassembly can cause
electric shock when the unit is subsequently
used.
13.Unplug this unit from power outlets and refer
servicing to an authorized service center
when the following conditions occur:
A. If the power cord is damaged or frayed.
B.
If liquid has been spilled into the unit.
For assistance, please visit http://www.panasonic.com/consumersupport
3
FLB811-PFQX2307ZB-en.book Page 4 Thursday, February 16, 2006 3:57 PM
Important Information

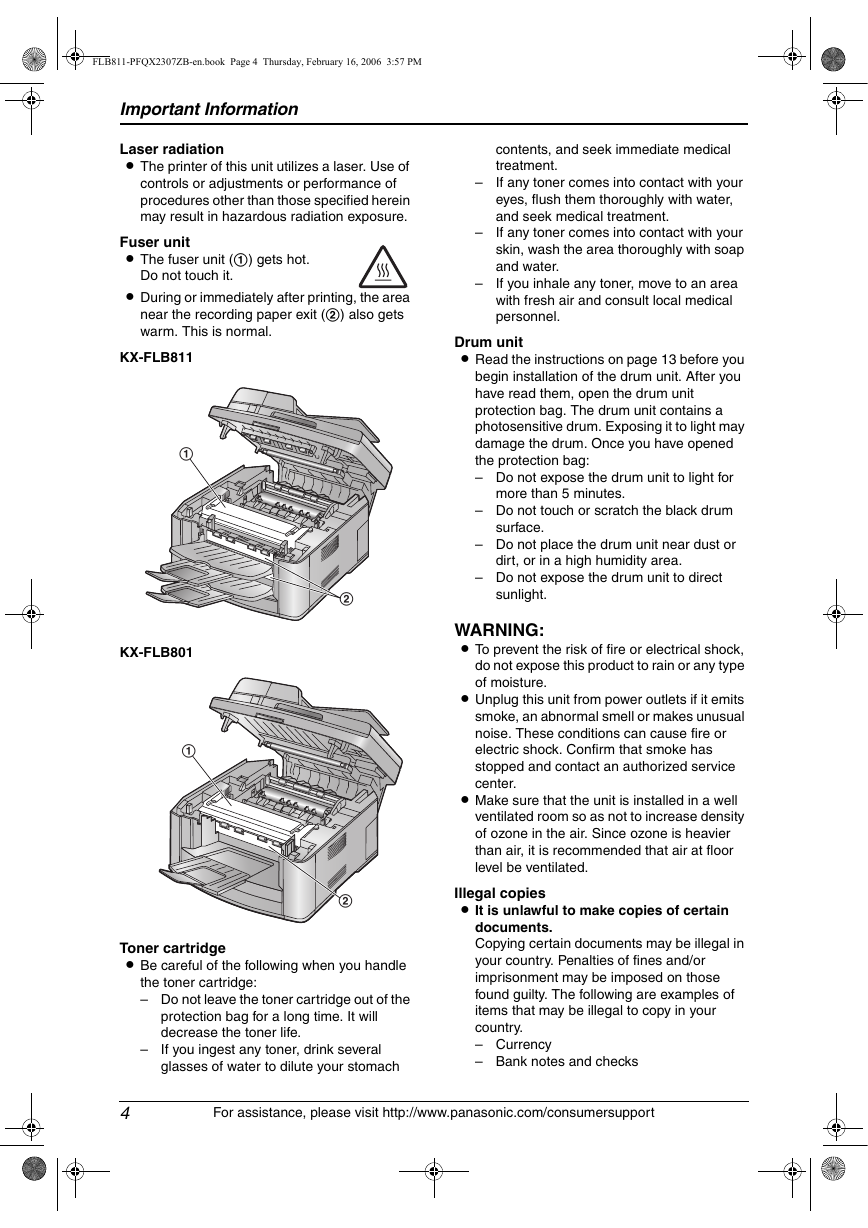

Laser radiation
L The printer of this unit utilizes a laser. Use of
controls or adjustments or performance of
procedures other than those specified herein
may result in hazardous radiation exposure.
Fuser unit
L The fuser unit (1) gets hot.
Do not touch it.
L During or immediately after printing, the area
near the recording paper exit (2) also gets
warm. This is normal.
KX-FLB811
1
KX-FLB801
1
contents, and seek immediate medical
treatment.
– If any toner comes into contact with your
eyes, flush them thoroughly with water,
and seek medical treatment.
– If any toner comes into contact with your
skin, wash the area thoroughly with soap
and water.
– If you inhale any toner, move to an area
with fresh air and consult local medical
personnel.
Drum unit
L Read the instructions on page 13 before you
begin installation of the drum unit. After you
have read them, open the drum unit
protection bag. The drum unit contains a
photosensitive drum. Exposing it to light may
damage the drum. Once you have opened
the protection bag:
– Do not expose the drum unit to light for
more than 5 minutes.
– Do not touch or scratch the black drum
surface.
– Do not place the drum unit near dust or
dirt, or in a high humidity area.
– Do not expose the drum unit to direct
2
sunlight.
WARNING:
L To prevent the risk of fire or electrical shock,
do not expose this product to rain or any type
of moisture.
L Unplug this unit from power outlets if it emits
smoke, an abnormal smell or makes unusual
noise. These conditions can cause fire or
electric shock. Confirm that smoke has
stopped and contact an authorized service
center.
L Make sure that the unit is installed in a well
ventilated room so as not to increase density
of ozone in the air. Since ozone is heavier
than air, it is recommended that air at floor
level be ventilated.
2
Toner cartridge
L Be careful of the following when you handle
the toner cartridge:
– Do not leave the toner cartridge out of the
protection bag for a long time. It will
decrease the toner life.
– If you ingest any toner, drink several
glasses of water to dilute your stomach
Illegal copies
L It is unlawful to make copies of certain
documents.
Copying certain documents may be illegal in
your country. Penalties of fines and/or
imprisonment may be imposed on those
found guilty. The following are examples of
items that may be illegal to copy in your
country.
– Currency
– Bank notes and checks
4
For assistance, please visit http://www.panasonic.com/consumersupport
FLB811-PFQX2307ZB-en.book Page 5 Thursday, February 16, 2006 3:57 PM
– Bank and government bonds and
securities
– Passports and identification cards
– Copyright material or trademarks without
the consent of the owner
– Postage stamps and other negotiable
instruments
This list is not inclusive and no liability is
assumed for either its completeness or
accuracy. In case of doubt, contact your
legal counsel.
Notice:
L Install your machine near a supervised area
to prevent illegal copies from being made.
Important Information

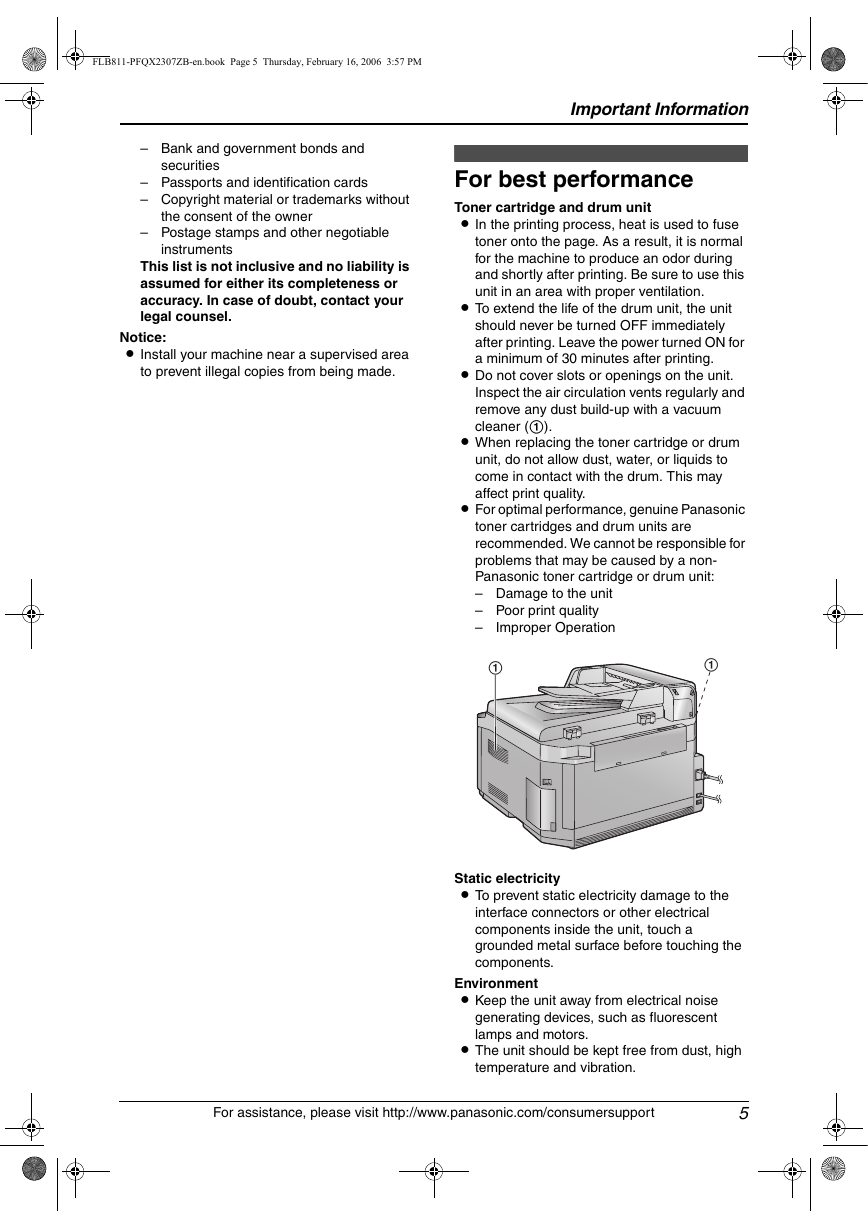

For best performance
Toner cartridge and drum unit
L In the printing process, heat is used to fuse
toner onto the page. As a result, it is normal
for the machine to produce an odor during
and shortly after printing. Be sure to use this
unit in an area with proper ventilation.
L To extend the life of the drum unit, the unit
should never be turned OFF immediately
after printing. Leave the power turned ON for
a minimum of 30 minutes after printing.
L Do not cover slots or openings on the unit.
Inspect the air circulation vents regularly and
remove any dust build-up with a vacuum
cleaner (1).
L When replacing the toner cartridge or drum
unit, do not allow dust, water, or liquids to
come in contact with the drum. This may
affect print quality.
L For optimal performance, genuine Panasonic
toner cartridges and drum units are
recommended. We cannot be responsible for
problems that may be caused by a non-
Panasonic toner cartridge or drum unit:
– Damage to the unit
– Poor print quality
– Improper Operation
1
1
Static electricity
L To prevent static electricity damage to the
interface connectors or other electrical
components inside the unit, touch a
grounded metal surface before touching the
components.
Environment
L Keep the unit away from electrical noise
generating devices, such as fluorescent
lamps and motors.
L The unit should be kept free from dust, high
temperature and vibration.
For assistance, please visit http://www.panasonic.com/consumersupport
5
FLB811-PFQX2307ZB-en.book Page 6 Thursday, February 16, 2006 3:57 PM
Important Information
L The unit should not be exposed to direct
sunlight.
L Do not place heavy objects on top of the unit.
L When you leave the unit unused for a long
period of time, unplug this unit from the power
outlet.
L The unit should be kept away from heat
sources such as heaters, kitchen stoves, etc.
It should not be placed in rooms where the
temperature is less than 10 °C (50 °F) or
greater than 32.5 °C (90.5 °F). Damp
basements should also be avoided.
Recording paper
L Store unused paper in the original packaging,
in a cool and dry place. Not doing so may
affect print quality.
Routine care
L Wipe the outer surface of the unit with a soft
cloth. Do not use benzine, thinner, or any
abrasive powder.
Moving the unit
L The unit weights approximately 16 kg (35.3
lb.). It is highly recommended that two people
handle this unit.
L When moving the unit, hold the both side
grips (1).
1
1
Approx. 16 kg (35.3 lb.)
6
For assistance, please visit http://www.panasonic.com/consumersupport
