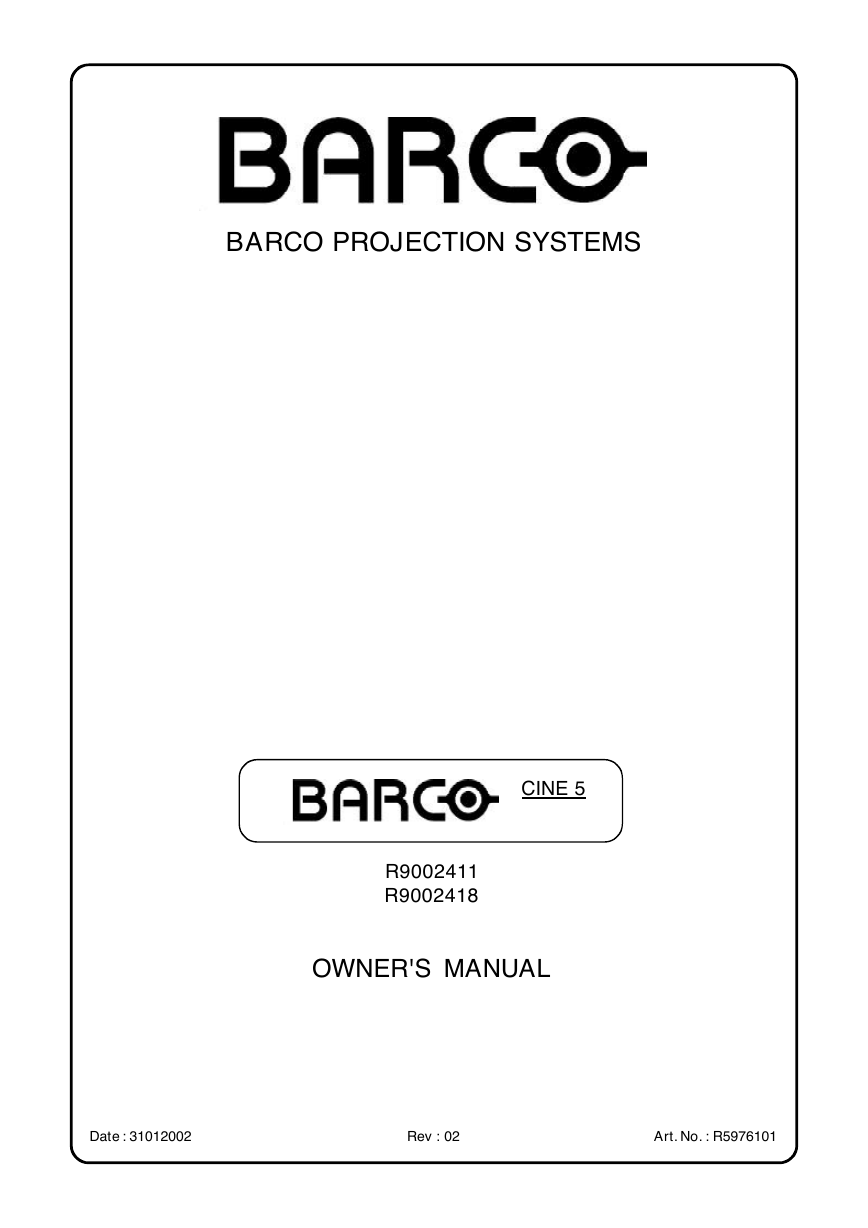

BARCO PROJECTION SYSTEMS CINE 5 R9002411 R9002418 OWNER'S MANUAL Date : 31012002 Rev : 02 Art. No. : R5976101

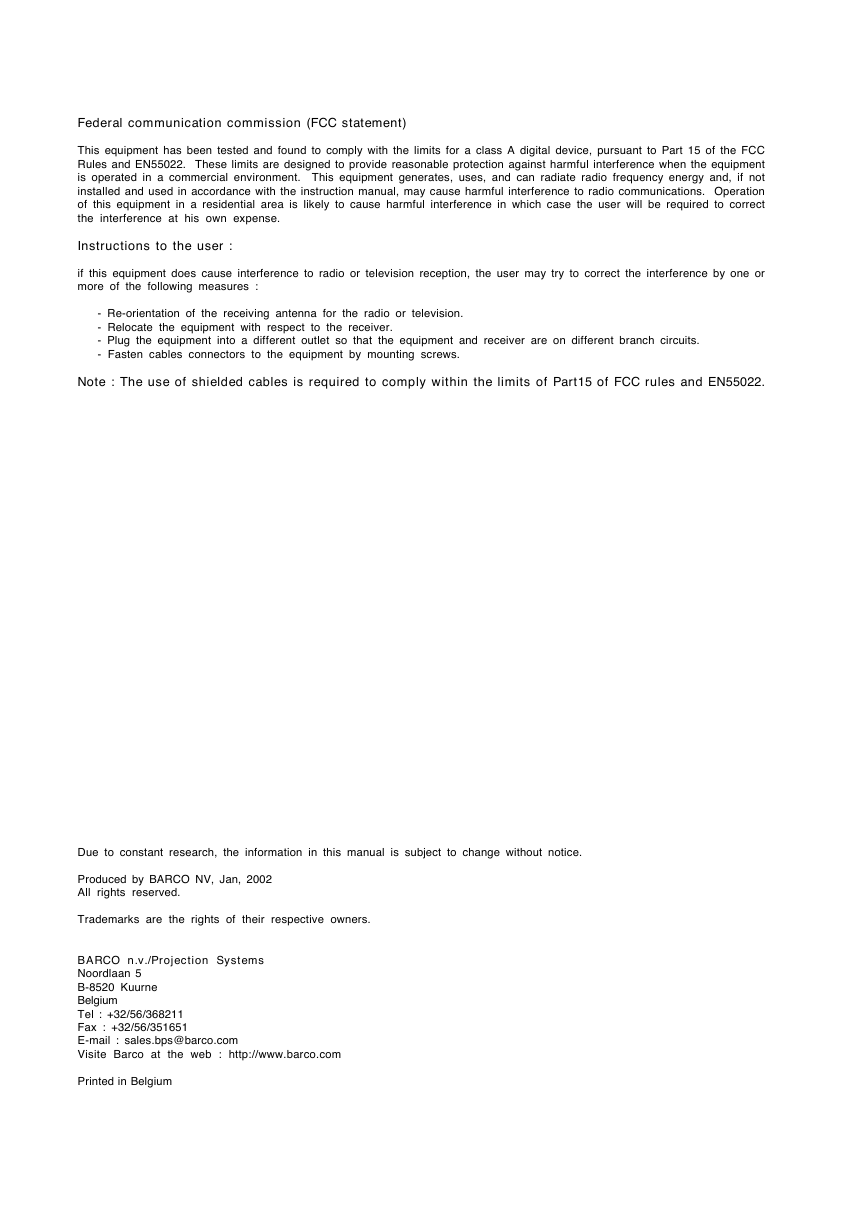

Federal communication commission (FCC statement) This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Instructions to the user : if this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or more of the following measures : - Re-orientation of the receiving antenna for the radio or television. - Relocate the equipment with respect to the receiver. - Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits. - Fasten cables connectors to the equipment by mounting screws. Note : The use of shielded cables is required to comply within the limits of Part15 of FCC rules and EN55022. Due to constant research, the information in this manual is subject to change without notice. Produced by BARCO NV, Jan, 2002 All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium

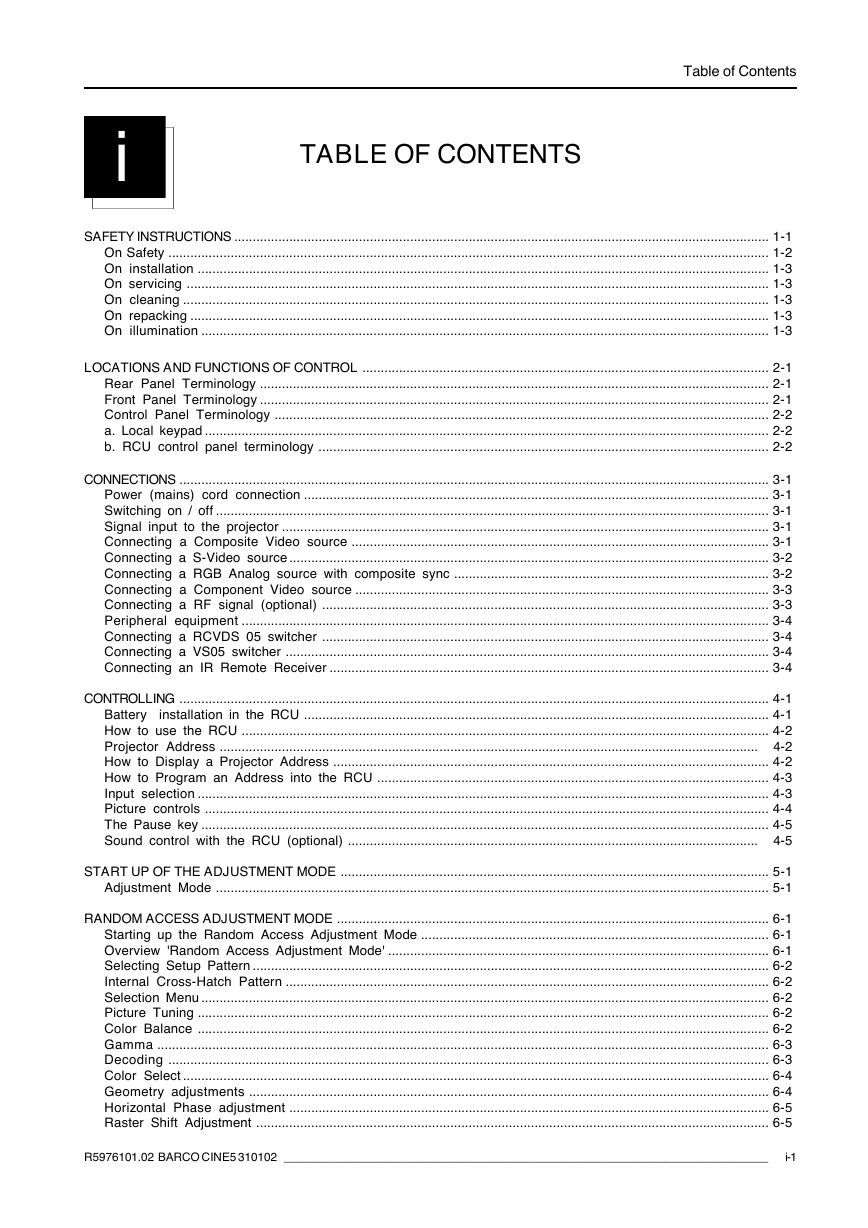

Table of Contents i TABLE OF CONTENTS SAFETY INSTRUCTIONS .................................................................................................................................................. 1-1 On Safety .................................................................................................................................................................... 1-2 On installation ............................................................................................................................................................ 1-3 On servicing ............................................................................................................................................................... 1-3 On cleaning ................................................................................................................................................................ 1-3 On repacking .............................................................................................................................................................. 1-3 On illumination ........................................................................................................................................................... 1-3 LOCATIONS AND FUNCTIONS OF CONTROL ............................................................................................................... 2-1 Rear Panel Terminology ........................................................................................................................................... 2-1 Front Panel Terminology ........................................................................................................................................... 2-1 Control Panel Terminology ....................................................................................................................................... 2-2 a. Local keypad .......................................................................................................................................................... 2-2 b. RCU control panel terminology ........................................................................................................................... 2-2 CONNECTIONS ................................................................................................................................................................. 3-1 Power (mains) cord connection ............................................................................................................................... 3-1 Switching on / off ....................................................................................................................................................... 3-1 Signal input to the projector ..................................................................................................................................... 3-1 Connecting a Composite Video source .................................................................................................................. 3-1 Connecting a S-Video source ................................................................................................................................... 3-2 Connecting a RGB Analog source with composite sync ...................................................................................... 3-2 Connecting a Component Video source ................................................................................................................. 3-3 Connecting a RF signal (optional) .......................................................................................................................... 3-3 Peripheral equipment ................................................................................................................................................ 3-4 Connecting a RCVDS 05 switcher .......................................................................................................................... 3-4 Connecting a VS05 switcher .................................................................................................................................... 3-4 Connecting an IR Remote Receiver ........................................................................................................................ 3-4 CONTROLLING ................................................................................................................................................................. 4-1 Battery installation in the RCU ............................................................................................................................... 4-1 How to use the RCU ................................................................................................................................................ 4-2 Projector Address ................................................................................................................................................... 4-2 How to Display a Projector Address ....................................................................................................................... 4-2 How to Program an Address into the RCU ........................................................................................................... 4-3 Input selection ............................................................................................................................................................ 4-3 Picture controls .......................................................................................................................................................... 4-4 The Pause key ........................................................................................................................................................... 4-5 Sound control with the RCU (optional) ................................................................................................................ 4-5 START UP OF THE ADJUSTMENT MODE ..................................................................................................................... 5-1 Adjustment Mode ....................................................................................................................................................... 5-1 RANDOM ACCESS ADJUSTMENT MODE ...................................................................................................................... 6-1 Starting up the Random Access Adjustment Mode ............................................................................................... 6-1 Overview 'Random Access Adjustment Mode' ........................................................................................................ 6-1 Selecting Setup Pattern ............................................................................................................................................. 6-2 Internal Cross-Hatch Pattern .................................................................................................................................... 6-2 Selection Menu ........................................................................................................................................................... 6-2 Picture Tuning ............................................................................................................................................................ 6-2 Color Balance ............................................................................................................................................................ 6-2 Gamma ....................................................................................................................................................................... 6-3 Decoding .................................................................................................................................................................... 6-3 Color Select ................................................................................................................................................................ 6-4 Geometry adjustments .............................................................................................................................................. 6-4 Horizontal Phase adjustment ................................................................................................................................... 6-5 Raster Shift Adjustment ............................................................................................................................................ 6-5 R5976101.02 BARCO CINE5 310102 ___________________________________________________________________________ i-1

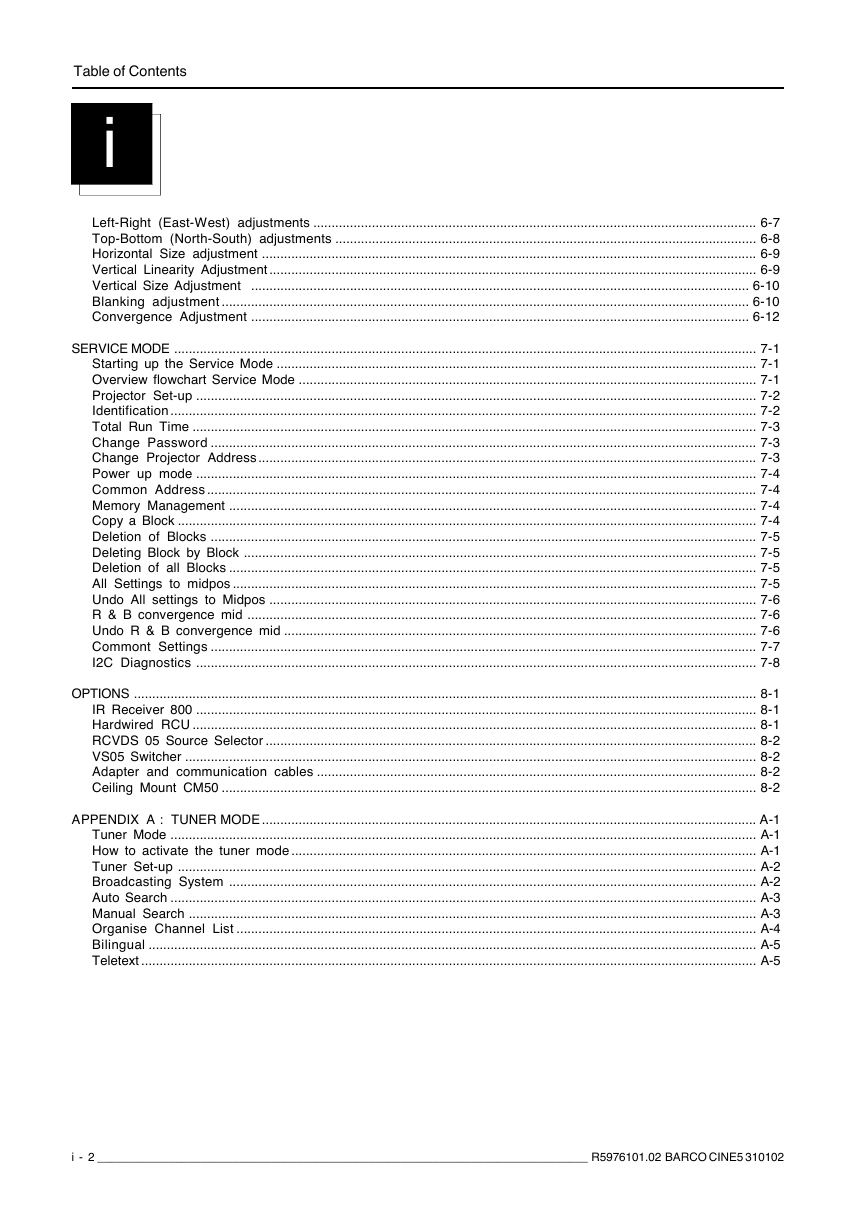

Table of Contents i Left-Right (East-West) adjustments ......................................................................................................................... 6-7 Top-Bottom (North-South) adjustments ................................................................................................................... 6-8 Horizontal Size adjustment ....................................................................................................................................... 6-9 Vertical Linearity Adjustment ..................................................................................................................................... 6-9 Vertical Size Adjustment ........................................................................................................................................ 6-10 Blanking adjustment ................................................................................................................................................ 6-10 Convergence Adjustment ........................................................................................................................................ 6-12 SERVICE MODE ............................................................................................................................................................... 7-1 Starting up the Service Mode ................................................................................................................................... 7-1 Overview flowchart Service Mode ............................................................................................................................. 7-1 Projector Set-up ......................................................................................................................................................... 7-2 Identification ................................................................................................................................................................ 7-2 Total Run Time .......................................................................................................................................................... 7-3 Change Password ..................................................................................................................................................... 7-3 Change Projector Address........................................................................................................................................ 7-3 Power up mode ......................................................................................................................................................... 7-4 Common Address ...................................................................................................................................................... 7-4 Memory Management ................................................................................................................................................ 7-4 Copy a Block .............................................................................................................................................................. 7-4 Deletion of Blocks ..................................................................................................................................................... 7-5 Deleting Block by Block ............................................................................................................................................ 7-5 Deletion of all Blocks ................................................................................................................................................ 7-5 All Settings to midpos ............................................................................................................................................... 7-5 Undo All settings to Midpos ..................................................................................................................................... 7-6 R & B convergence mid ........................................................................................................................................... 7-6 Undo R & B convergence mid ................................................................................................................................. 7-6 Commont Settings ..................................................................................................................................................... 7-7 I2C Diagnostics ......................................................................................................................................................... 7-8 OPTIONS .......................................................................................................................................................................... 8-1 IR Receiver 800 ......................................................................................................................................................... 8-1 Hardwired RCU .......................................................................................................................................................... 8-1 RCVDS 05 Source Selector ...................................................................................................................................... 8-2 VS05 Switcher ............................................................................................................................................................ 8-2 Adapter and communication cables ........................................................................................................................ 8-2 Ceiling Mount CM50 .................................................................................................................................................. 8-2 APPENDIX A : TUNER MODE ....................................................................................................................................... A-1 Tuner Mode ................................................................................................................................................................ A-1 How to activate the tuner mode ............................................................................................................................... A-1 Tuner Set-up .............................................................................................................................................................. A-2 Broadcasting System ................................................................................................................................................ A-2 Auto Search ................................................................................................................................................................ A-3 Manual Search ........................................................................................................................................................... A-3 Organise Channel List .............................................................................................................................................. A-4 Bilingual ...................................................................................................................................................................... A-5 Teletext ........................................................................................................................................................................ A-5 i -2 ____________________________________________________________________________ R5976101.02 BARCO CINE5 310102

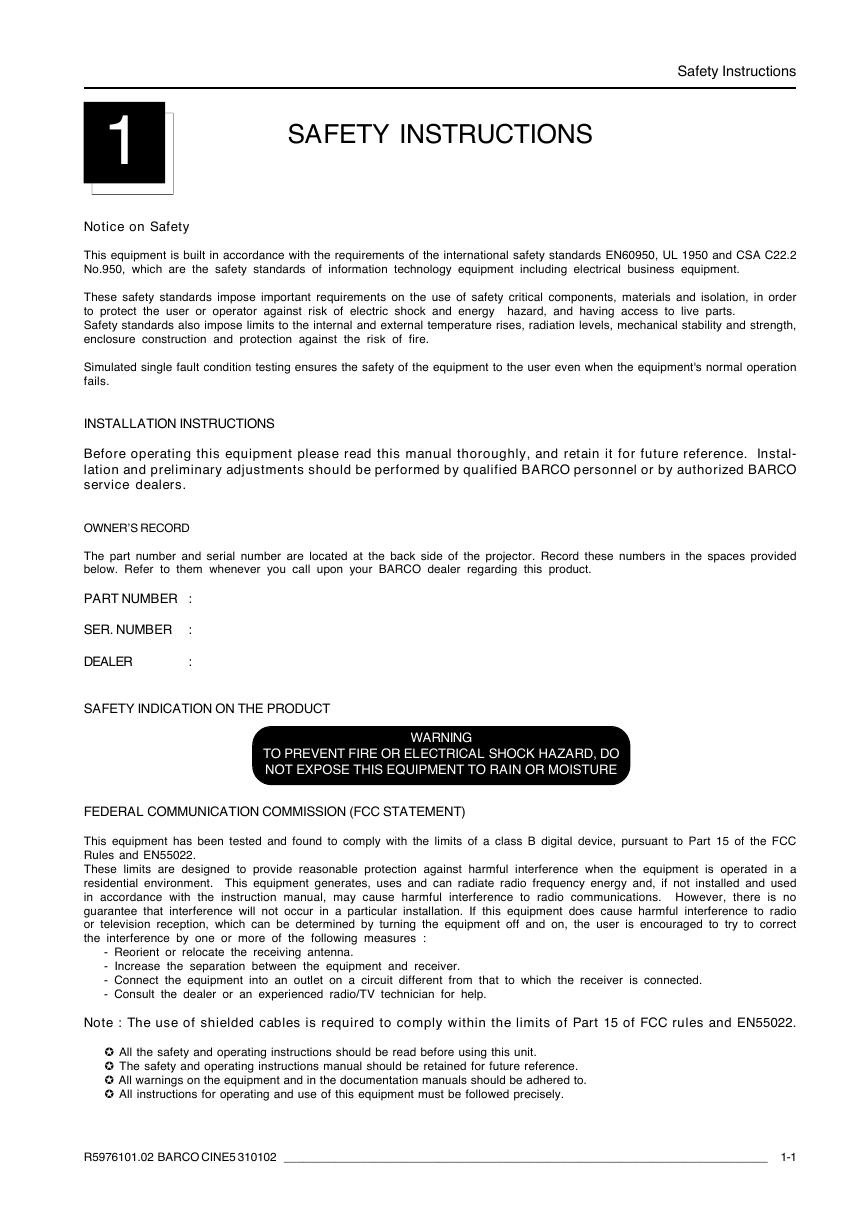

SAFETY INSTRUCTIONS Safety Instructions 1 Notice on Safety This equipment is built in accordance with the requirements of the international safety standards EN60950, UL 1950 and CSA C22.2 No.950, which are the safety standards of information technology equipment including electrical business equipment. These safety standards impose important requirements on the use of safety critical components, materials and isolation, in order to protect the user or operator against risk of electric shock and energy hazard, and having access to live parts. Safety standards also impose limits to the internal and external temperature rises, radiation levels, mechanical stability and strength, enclosure construction and protection against the risk of fire. Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment's normal operation fails. INSTALLATION INSTRUCTIONS Before operating this equipment please read this manual thoroughly, and retain it for future reference. Instal- lation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers. OWNER’S RECORD The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding this product. PART NUMBER : SER. NUMBER : DEALER : SAFETY INDICATION ON THE PRODUCT TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE WARNING FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT) This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Note : The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022. All the safety and operating instructions should be read before using this unit. The safety and operating instructions manual should be retained for future reference. All warnings on the equipment and in the documentation manuals should be adhered to. All instructions for operating and use of this equipment must be followed precisely. R5976101.02 BARCO CINE5 310102 ___________________________________________________________________________ 1-1

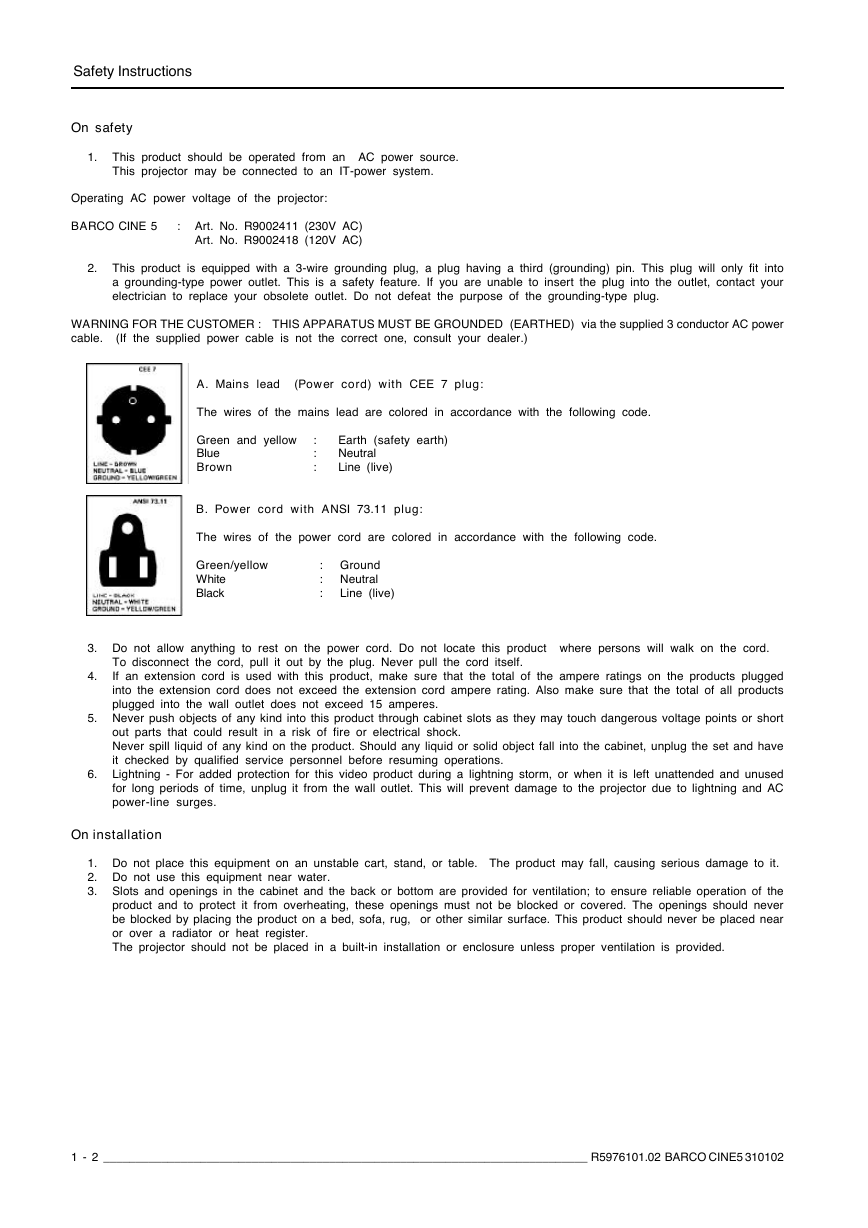

Safety Instructions On safety 1. This product should be operated from an AC power source. This projector may be connected to an IT-power system. Operating AC power voltage of the projector: BARCO CINE 5 : Art. No. R9002411 (230V AC) Art. No. R9002418 (120V AC) 2. This product is equipped with a 3-wire grounding plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. WARNING FOR THE CUSTOMER : THIS APPARATUS MUST BE GROUNDED (EARTHED) via the supplied 3 conductor AC power cable. (If the supplied power cable is not the correct one, consult your dealer.) A. Mains lead (Power cord) with CEE 7 plug: The wires of the mains lead are colored in accordance with the following code. Green and yellow : : Blue Brown : Earth (safety earth) Neutral Line (live) B. Power cord with ANSI 73.11 plug: The wires of the power cord are colored in accordance with the following code. Green/yellow White Black : Ground Neutral : : Line (live) 3. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. To disconnect the cord, pull it out by the plug. Never pull the cord itself. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord does not exceed the extension cord ampere rating. Also make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. 5. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short 4. 6. out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set and have it checked by qualified service personnel before resuming operations. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges. On installation 1. Do not place this equipment on an unstable cart, stand, or table. The product may fall, causing serious damage to it. 2. Do not use this equipment near water. 3. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. The projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided. 1 -2 ___________________________________________________________________________ R5976101.02 BARCO CINE5 310102

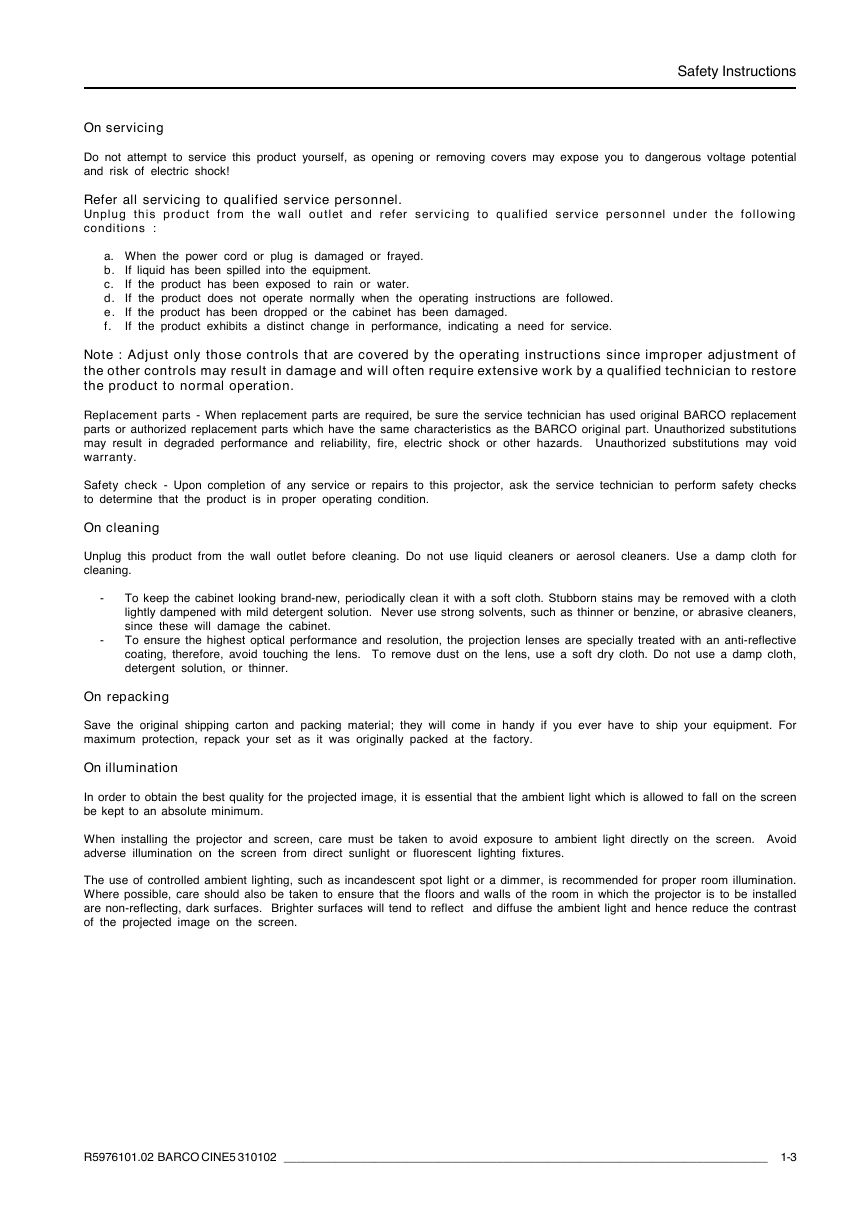

Safety Instructions On servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage potential and risk of electric shock! Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions : a. When the power cord or plug is damaged or frayed. b. c. d. e. f. If liquid has been spilled into the equipment. If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are followed. If the product has been dropped or the cabinet has been damaged. If the product exhibits a distinct change in performance, indicating a need for service. Note : Adjust only those controls that are covered by the operating instructions since improper adjustment of the other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void warranty. Safety check - Upon completion of any service or repairs to this projector, ask the service technician to perform safety checks to determine that the product is in proper operating condition. On cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. - - To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the cabinet. To ensure the highest optical performance and resolution, the projection lenses are specially treated with an anti-reflective coating, therefore, avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner. On repacking Save the original shipping carton and packing material; they will come in handy if you ever have to ship your equipment. For maximum protection, repack your set as it was originally packed at the factory. On illumination In order to obtain the best quality for the projected image, it is essential that the ambient light which is allowed to fall on the screen be kept to an absolute minimum. When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse illumination on the screen from direct sunlight or fluorescent lighting fixtures. The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are non-reflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast of the projected image on the screen. R5976101.02 BARCO CINE5 310102 ___________________________________________________________________________ 1-3

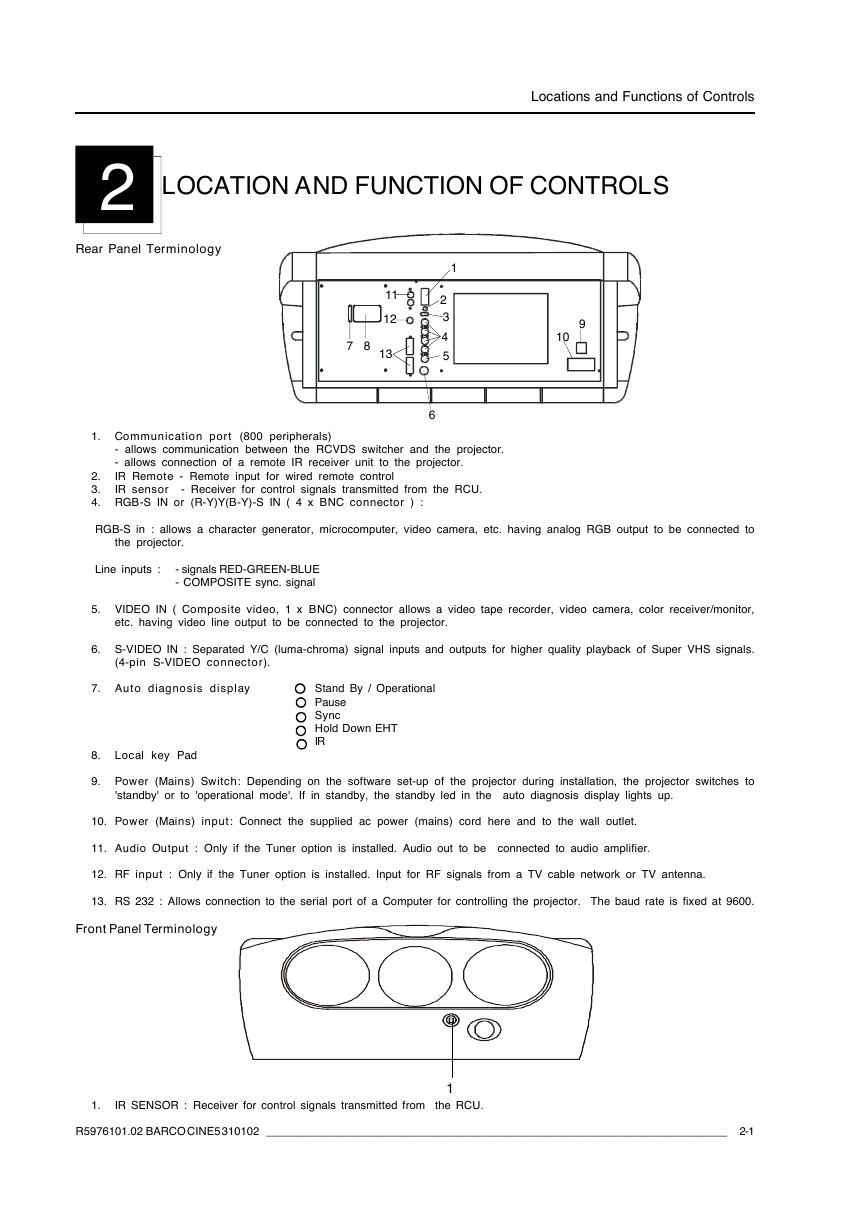

Locations and Functions of Controls 2 LOCATION AND FUNCTION OF CONTROLS Rear Panel Terminology 11 12 7 8 13 1 2 3 4 5 6 9 10 1. Communication port (800 peripherals) - allows communication between the RCVDS switcher and the projector. - allows connection of a remote IR receiver unit to the projector. IR Remote - Remote input for wired remote control IR sensor 2. 3. 4. RGB-S IN or (R-Y)Y(B-Y)-S IN ( 4 x BNC connector ) : - Receiver for control signals transmitted from the RCU. RGB-S in : allows a character generator, microcomputer, video camera, etc. having analog RGB output to be connected to the projector. Line inputs : - signals RED-GREEN-BLUE - COMPOSITE sync. signal 5. VIDEO IN ( Composite video, 1 x BNC) connector allows a video tape recorder, video camera, color receiver/monitor, etc. having video line output to be connected to the projector. 6. S-VIDEO IN : Separated Y/C (luma-chroma) signal inputs and outputs for higher quality playback of Super VHS signals. (4-pin S-VIDEO connector). 7. Auto diagnosis display 8. Local key Pad Stand By / Operational Pause Sync Hold Down EHT IR 9. Power (Mains) Switch: Depending on the software set-up of the projector during installation, the projector switches to 'standby' or to 'operational mode'. If in standby, the standby led in the auto diagnosis display lights up. 10. Power (Mains) input: Connect the supplied ac power (mains) cord here and to the wall outlet. 11. Audio Output : Only if the Tuner option is installed. Audio out to be connected to audio amplifier. 12. RF input : Only if the Tuner option is installed. Input for RF signals from a TV cable network or TV antenna. 13. RS 232 : Allows connection to the serial port of a Computer for controlling the projector. The baud rate is fixed at 9600. Front Panel Terminology 1. IR SENSOR : Receiver for control signals transmitted from the RCU. 1 R5976101.02 BARCO CINE5 310102 ___________________________________________________________________________ 2-1
